Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2026-04-04 16:24:21 (GMT)
 Μέγεθος
 M 4.0
 Γεωγρ. Πλάτος
 39.6368° Β
 Γεωγρ. Μήκος
 20.5802° Α
 Εστιακό Βάθος
 5 χμ
 Αρ. αφίξεων
 76
 Επίκεντρο 23.4 χμ Δ των Ιωαννίνων
30.7 χμ ΑΒΑ της Ηγουμενίτσας
329.3 χμ ΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης (αυτόματη λύση)

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
993832 3.82E+22

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
39.685820.58665.04.3

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες αυτόματου μηχανισμού γένεσης


  Χάρτης εντάσεως

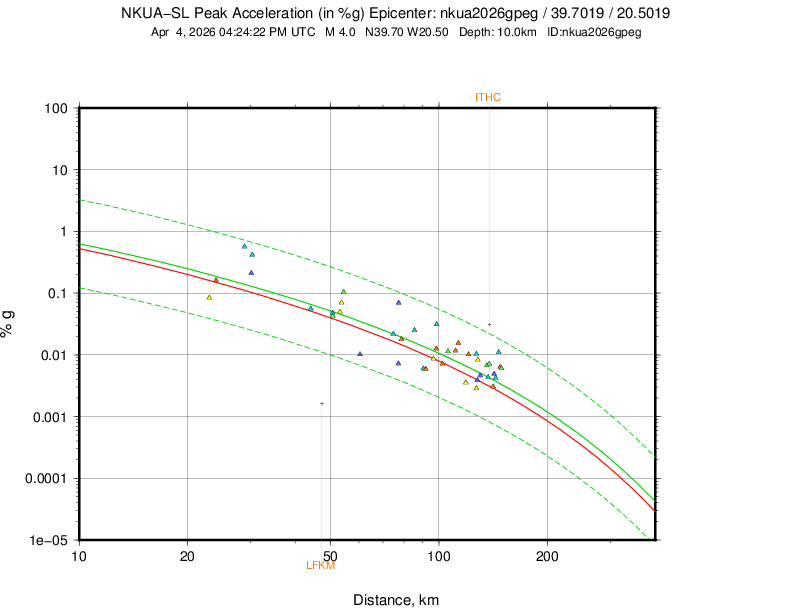

PGA

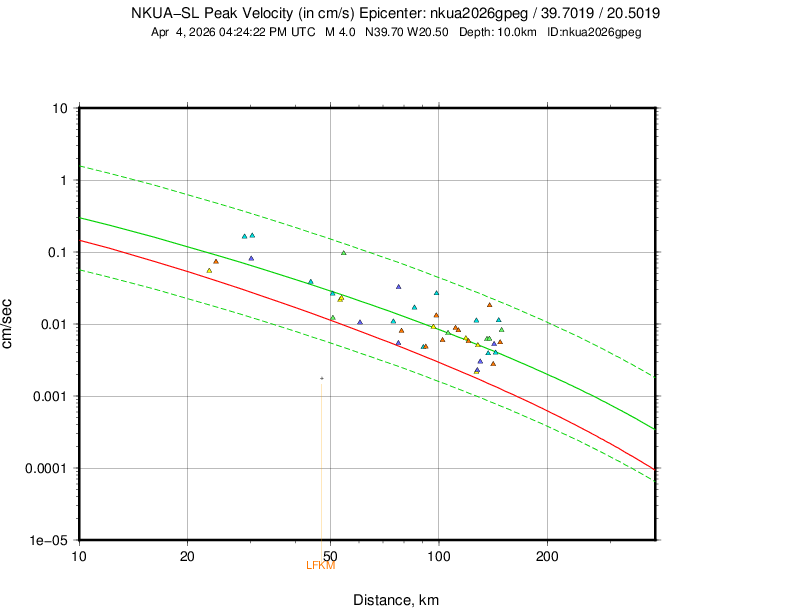

 PGV

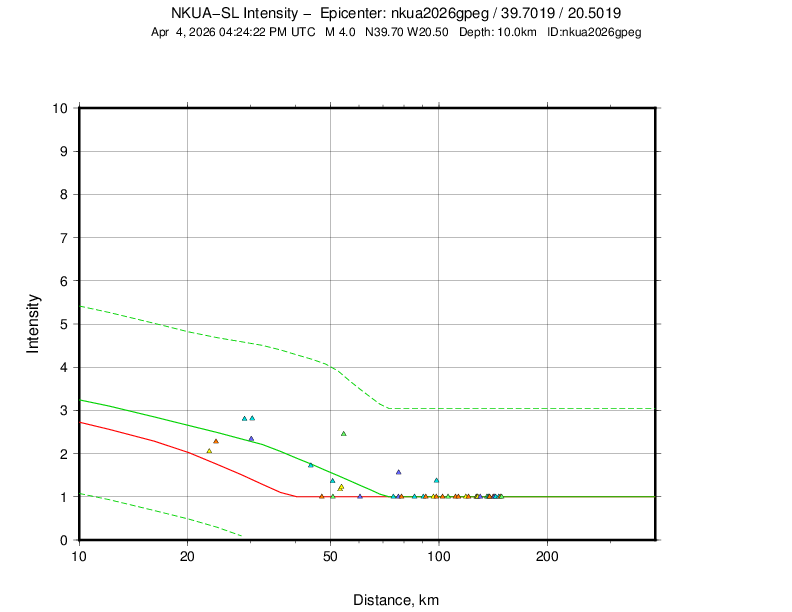

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
JANHL23.1 85 P16:24:24.72 -0.91.0M
JANHL23.1 85 S16:24:28.13 -1.01.0M
IGTHT24.4241 P16:24:25.23 -0.61.0M
IGTHT24.4241 S16:24:29.41 0.01.0M
GR141Y29.3360 P16:24:26.36 -0.31.0M
GR141Y29.3360 S16:24:31.71 0.71.0M
LFKMHT49.3245 P16:24:29.96 0.01.0M
GR151Y52.3 50 P16:24:29.42 -1.21.0M
GR151Y52.3 50 S16:24:37.51 -0.31.0M
GR19B1Y54.8242 P16:24:30.87 0.01.0M
KRK1HI56.6268 P16:24:31.66 0.51.0M
KEKHL67.6277 P16:24:33.02 0.01.0M
TETRHL67.9119 P16:24:32.02 -1.11.0M
TETRHL67.9119 S16:24:41.57 -0.81.0M
KPROHT75.7 62 P16:24:33.44 -1.01.0M
KPROHT75.7 62 S16:24:45.02 0.51.0M
PENTHL78.3 38 P16:24:34.14 -0.71.0M
PENTHL78.3 38 S16:24:45.98 0.61.0M
TSLKHT90.5176 P16:24:36.01 -0.71.0M
TSLKHT90.5176 S16:24:49.45 0.81.0M
GR171Y90.5 83 P16:24:35.96 -0.81.0M
GR171Y90.5 83 S16:24:49.10 0.31.0M
LKD2HT94.5176 P16:24:36.48 -0.91.0M
LKD2HT94.5176 S16:24:50.37 0.61.0M
NESTHT95.3 25 P16:24:37.48 -0.11.0M
NESTHT95.3 25 S16:24:50.35 0.21.0M
NYDRHT103.2174 P16:24:38.06 -0.61.0M
NYDRHT103.2174 S16:24:51.60 -0.51.0M
EVGIHT113.1177 P16:24:39.89 -0.41.0M
EVGIHT113.1177 S16:24:54.59 -0.31.0M
THLHL123.1 94 P16:24:41.18 -0.81.0M
THLHL123.1 94 S16:24:57.22 -0.61.0M
GR161Y124.4 69 P16:24:41.65 -0.61.0M
GR161Y124.4 69 S16:24:57.70 -0.71.0M
PDOHP126.6156 P16:24:42.41 0.01.0M
PDOHP126.6156 S16:24:58.74 0.11.0M
GR101Y127.7 43 P16:24:42.23 -0.51.0M
GR101Y127.7 43 S16:24:59.14 0.01.0M
ITHCHT130.7178 P16:24:43.42 0.41.0M
ITHCHT130.7178 S16:25:00.15 0.41.0M
FSKHP130.9181 P16:24:43.03 0.01.0M
FSKHP130.9181 S16:25:00.26 0.51.0M
PVOHP139.7144 P16:24:44.73 0.31.0M
PVOHP139.7144 S16:25:02.57 0.31.0M
LMS2HI141.5 20 P16:24:45.19 0.41.0M
LMS2HI141.5 20 S16:25:02.71 -0.11.0M
TYRNHT141.7 87 P16:24:44.08 -0.71.0M
TYRNHT141.7 87 S16:25:03.10 0.21.0M
FLNAHT144.5 28 P16:24:45.43 0.21.0M
FLNAHT144.5 28 S16:25:04.01 0.41.0M
ATHRHA147.4186 P16:24:45.77 0.21.0M
PLEVHP153.8152 P16:24:46.81 0.21.0M
VLSHL162.3180 P16:24:47.82 -0.11.0M
VLSHL162.3180 S16:25:08.86 0.51.0M
ANXHP163.8135 P16:24:48.23 -0.11.0M
ANXHP163.8135 S16:25:09.70 0.71.0M
AGGHT165.8114 P16:24:48.12 -0.51.0M
AGGHT165.8114 S16:25:10.16 0.71.0M
NESNHT168.0 87 P16:24:48.55 -0.31.0M
NESNHT168.0 87 S16:25:10.67 0.71.0M
GR211Y168.4100 P16:24:48.42 -0.51.0M
GR211Y168.4100 S16:25:10.71 0.51.0M
GR111Y168.7 54 P16:24:49.01 0.11.0M
GR111Y168.7 54 S16:25:10.87 0.71.0M
PSDAHT169.3180 P16:24:48.92 0.01.0M
PSDAHT169.3180 S16:25:11.16 1.01.0M
RTZLHT174.3175 P16:24:49.60 0.01.0M
RTZLHT174.3175 S16:25:12.23 0.91.0M
GR241Y174.6127 P16:24:49.58 -0.31.0M
GR241Y174.6127 S16:25:12.08 0.31.0M
EFPHP176.7139 P16:24:50.20 0.21.0M
EFPHP176.7139 S16:25:12.22 0.31.0M
GR071Y176.8 44 P16:24:50.03 0.01.0M
GR071Y176.8 44 S16:25:13.17 1.11.0M
GR181Y179.0 87 P16:24:50.04 -0.41.0M
GR181Y179.0 87 S16:25:13.50 0.71.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2026gpeg
    Description
      region name: Greece-Albania Border Region
Origin:
    Date                   2026-04-04
    Time                  16:24:21.05
    Latitude              39.6368 deg  +/-      0 km
    Longitude             20.5802 deg  +/-      0 km
    Depth                       5 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.48 s
    Azimuthal gap              83 deg

2 Network magnitudes:
    MLv       3.98 +/- 0.12  31
    M         3.98           31 preferred

76 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    JAN   HL    0.2  85  P       16:24:24.72  -0.9 M  1.0  JAN
    JAN   HL    0.2  85  S       16:24:28.13  -1.0 M  1.0  JAN
    IGT   HT    0.2 241  P       16:24:25.23  -0.6 M  1.0  IGT
    IGT   HT    0.2 241  S       16:24:29.41  -0.0 M  1.0  IGT
    GR14  1Y    0.3 360  P       16:24:26.36  -0.3 M  1.0  GR14
    GR14  1Y    0.3 360  S       16:24:31.71   0.7 M  1.0  GR14
    LFKM  HT    0.4 245  P       16:24:29.96  -0.0 M  1.0  LFKM
    GR15  1Y    0.5  50  P       16:24:29.42  -1.2 M  1.0  GR15
    GR15  1Y    0.5  50  S       16:24:37.51  -0.3 M  1.0  GR15
    GR19B 1Y    0.5 242  P       16:24:30.87  -0.0 M  1.0  GR19B
    KRK1  HI    0.5 268  P       16:24:31.66   0.5 M  1.0  KRK1
    KEK   HL    0.6 277  P       16:24:33.02   0.0 M  1.0  KEK
    TETR  HL    0.6 119  P       16:24:32.02  -1.1 M  1.0  TETR
    TETR  HL    0.6 119  S       16:24:41.57  -0.8 M  1.0  TETR
    KPRO  HT    0.7  62  P       16:24:33.44  -1.0 M  1.0  KPRO
    KPRO  HT    0.7  62  S       16:24:45.02   0.5 M  1.0  KPRO
    PENT  HL    0.7  38  P       16:24:34.14  -0.7 M  1.0  PENT
    PENT  HL    0.7  38  S       16:24:45.98   0.6 M  1.0  PENT
    TSLK  HT    0.8 176  P       16:24:36.01  -0.7 M  1.0  TSLK
    TSLK  HT    0.8 176  S       16:24:49.45   0.8 M  1.0  TSLK
    GR17  1Y    0.8  83  P       16:24:35.96  -0.8 M  1.0  GR17
    GR17  1Y    0.8  83  S       16:24:49.10   0.3 M  1.0  GR17
    LKD2  HT    0.8 176  P       16:24:36.48  -0.9 M  1.0  LKD2
    LKD2  HT    0.8 176  S       16:24:50.37   0.6 M  1.0  LKD2
    NEST  HT    0.9  25  P       16:24:37.48  -0.1 M  1.0  NEST
    NEST  HT    0.9  25  S       16:24:50.35   0.2 M  1.0  NEST
    NYDR  HT    0.9 174  P       16:24:38.06  -0.6 M  1.0  NYDR
    NYDR  HT    0.9 174  S       16:24:51.60  -0.5 M  1.0  NYDR
    EVGI  HT    1.0 177  P       16:24:39.89  -0.4 M  1.0  EVGI
    EVGI  HT    1.0 177  S       16:24:54.59  -0.3 M  1.0  EVGI
    THL   HL    1.1  94  P       16:24:41.18  -0.8 M  1.0  THL
    THL   HL    1.1  94  S       16:24:57.22  -0.6 M  1.0  THL
    GR16  1Y    1.1  69  P       16:24:41.65  -0.6 M  1.0  GR16
    GR16  1Y    1.1  69  S       16:24:57.70  -0.7 M  1.0  GR16
    PDO   HP    1.1 156  P       16:24:42.41  -0.0 M  1.0  PDO
    PDO   HP    1.1 156  S       16:24:58.74   0.1 M  1.0  PDO
    GR10  1Y    1.1  43  P       16:24:42.23  -0.5 M  1.0  GR10
    GR10  1Y    1.1  43  S       16:24:59.14   0.0 M  1.0  GR10
    ITHC  HT    1.2 178  P       16:24:43.42   0.4 M  1.0  ITHC
    ITHC  HT    1.2 178  S       16:25:00.15   0.4 M  1.0  ITHC
    FSK   HP    1.2 181  P       16:24:43.03  -0.0 M  1.0  FSK
    FSK   HP    1.2 181  S       16:25:00.26   0.5 M  1.0  FSK
    PVO   HP    1.3 144  P       16:24:44.73   0.3 M  1.0  PVO
    PVO   HP    1.3 144  S       16:25:02.57   0.3 M  1.0  PVO
    LMS2  HI    1.3  20  P       16:24:45.19   0.4 M  1.0  LMS2
    LMS2  HI    1.3  20  S       16:25:02.71  -0.1 M  1.0  LMS2
    TYRN  HT    1.3  87  P       16:24:44.08  -0.7 M  1.0  TYRN
    TYRN  HT    1.3  87  S       16:25:03.10   0.2 M  1.0  TYRN
    FLNA  HT    1.3  28  P       16:24:45.43   0.2 M  1.0  FLNA
    FLNA  HT    1.3  28  S       16:25:04.01   0.4 M  1.0  FLNA
    ATHR  HA    1.3 186  P       16:24:45.77   0.2 M  1.0  ATHR
    PLEV  HP    1.4 152  P       16:24:46.81   0.2 M  1.0  PLEV
    VLS   HL    1.5 180  P       16:24:47.82  -0.1 M  1.0  VLS
    VLS   HL    1.5 180  S       16:25:08.86   0.5 M  1.0  VLS
    ANX   HP    1.5 135  P       16:24:48.23  -0.1 M  1.0  ANX
    ANX   HP    1.5 135  S       16:25:09.70   0.7 M  1.0  ANX
    AGG   HT    1.5 114  P       16:24:48.12  -0.5 M  1.0  AGG
    AGG   HT    1.5 114  S       16:25:10.16   0.7 M  1.0  AGG
    NESN  HT    1.5  87  P       16:24:48.55  -0.3 M  1.0  NESN
    NESN  HT    1.5  87  S       16:25:10.67   0.7 M  1.0  NESN
    GR21  1Y    1.5 100  P       16:24:48.42  -0.5 M  1.0  GR21
    GR21  1Y    1.5 100  S       16:25:10.71   0.5 M  1.0  GR21
    GR11  1Y    1.5  54  P       16:24:49.01   0.1 M  1.0  GR11
    GR11  1Y    1.5  54  S       16:25:10.87   0.7 M  1.0  GR11
    PSDA  HT    1.5 180  P       16:24:48.92  -0.0 M  1.0  PSDA
    PSDA  HT    1.5 180  S       16:25:11.16   1.0 M  1.0  PSDA
    RTZL  HT    1.6 175  P       16:24:49.60  -0.0 M  1.0  RTZL
    RTZL  HT    1.6 175  S       16:25:12.23   0.9 M  1.0  RTZL
    GR24  1Y    1.6 127  P       16:24:49.58  -0.3 M  1.0  GR24
    GR24  1Y    1.6 127  S       16:25:12.08   0.3 M  1.0  GR24
    EFP   HP    1.6 139  P       16:24:50.20   0.2 M  1.0  EFP
    EFP   HP    1.6 139  S       16:25:12.22   0.3 M  1.0  EFP
    GR07  1Y    1.6  44  P       16:24:50.03  -0.0 M  1.0  GR07
    GR07  1Y    1.6  44  S       16:25:13.17   1.1 M  1.0  GR07
    GR18  1Y    1.6  87  P       16:24:50.04  -0.4 M  1.0  GR18
    GR18  1Y    1.6  87  S       16:25:13.50   0.7 M  1.0  GR18

41 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    JAN   HL    0.2  85  MLv     3.93 -0.05    233.687
    IGT   HT    0.2 241  MLv     3.65 -0.32    87.3396
    GR14  1Y    0.3 360  MLv     3.74 -0.24    81.1616
    LFKM  HT    0.4 245  MLv     2.49 -1.49    1.43704
    GR15  1Y    0.5  50  MLv     4.12  0.14    51.6538
    GR19B 1Y    0.5 242  MLv     4.25  0.28    60.7111
    KRK1  HI    0.5 268  MLv     3.97 -0.01    28.5627
    KEK   HL    0.6 277  MLv     3.60 -0.38    17.2888
    TETR  HL    0.6 119  MLv     4.44  0.46    62.9454
    KPRO  HT    0.7  62  MLv     4.07  0.10    24.8413
    PENT  HL    0.7  38  MLv     3.76 -0.21    9.18001
    TSLK  HT    0.8 176  MLv     3.73 -0.25    9.48466
    GR17  1Y    0.8  83  MLv     4.10  0.12    22.1436
    LKD2  HT    0.8 176  MLv     3.86 -0.11    12.3568
    NEST  HT    0.9  25  MLv     3.90 -0.07    13.3608
    NYDR  HT    0.9 174  MLv     3.88 -0.09    8.49681
    EVGI  HT    1.0 177  MLv     4.17  0.19    20.1156
    THL   HL    1.1  94  MLv     3.97 -0.00    6.90649
    GR16  1Y    1.1  69  MLv     3.76 -0.21    6.95417
    PDO   HP    1.1 156  MLv     3.91 -0.06    9.58898
    GR10  1Y    1.1  43  MLv     3.81 -0.17    7.46585
    ITHC  HT    1.2 178  MLv     4.13  0.15    14.8672
    FSK   HP    1.2 181  MLv     3.94 -0.04    9.70308
    PVO   HP    1.3 144  MLv     4.02  0.04    10.4483
    LMS2  HI    1.3  20  MLv     3.83 -0.15    6.65344
    TYRN  HT    1.3  87  MLv     4.07  0.10    9.03427
    FLNA  HT    1.3  28  MLv     3.82 -0.16    6.22126
    ATHR  HA    1.3 186  MLv     4.04  0.06    10.0647
    PLEV  HP    1.4 152  MLv     4.10  0.12    10.6462
    VLS   HL    1.5 180  MLv     4.04  0.07    8.57941
    ANX   HP    1.5 135  MLv     4.16  0.19    11.0415
    AGG   HT    1.5 114  MLv     4.25  0.28    10.3532
    NESN  HT    1.5  87  MLv     4.45  0.47    20.4745
    GR21  1Y    1.5 100  MLv     3.94 -0.03    6.35439
    GR11  1Y    1.5  54  MLv     3.91 -0.07    5.80071
    PSDA  HT    1.5 180  MLv     4.08  0.10    8.55882
    RTZL  HT    1.6 175  MLv     4.16  0.18    9.75452
    GR24  1Y    1.6 127  MLv     4.06  0.08    7.71166
    EFP   HP    1.6 139  MLv     4.24  0.27    11.5086
    GR07  1Y    1.6  44  MLv     3.80 -0.18    4.10611
    GR18  1Y    1.6  87  MLv     3.95 -0.03    5.69587
