Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-04-30 09:13:58 (GMT)
 Μέγεθος
 M 0.7
 Γεωγρ. Πλάτος
 38.3868° Β
 Γεωγρ. Μήκος
 21.9968° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 26
 Επίκεντρο 17.1 χμ ΒΒΔ του Αιγίου
27.8 χμ ΒΑ της Πάτρας
158.3 χμ ΔΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

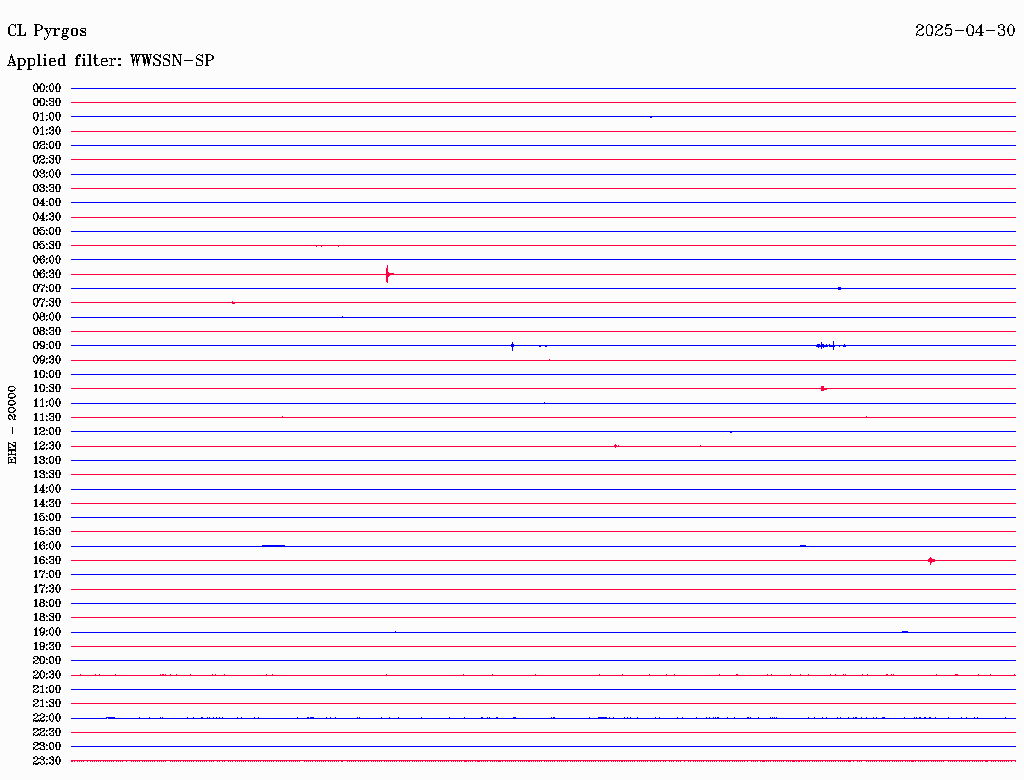

PYRGCL3.1 34 P09:13:59.32 0.01.0M
PYRGCL3.1 34 S09:14:00.60 -0.11.0M
MG06CL5.3303 P09:13:59.42 0.01.0M
MG06CL5.3303 S09:14:00.97 0.11.0M
TRIZCL7.0110 P09:13:59.65 0.01.0M
TRIZCL7.0110 S09:14:01.22 0.01.0M
EFPHP9.1299 P09:13:59.99 0.11.0M
EFPHP9.1299 S09:14:01.76 0.11.0M
ZIRICL9.4205 P09:14:00.14 0.01.0M
ZIRICL9.4205 S09:14:02.20 0.21.0M
KALEHA12.5 88 P09:14:00.49 0.01.0M
KALEHA12.5 88 S09:14:03.24 0.51.0M

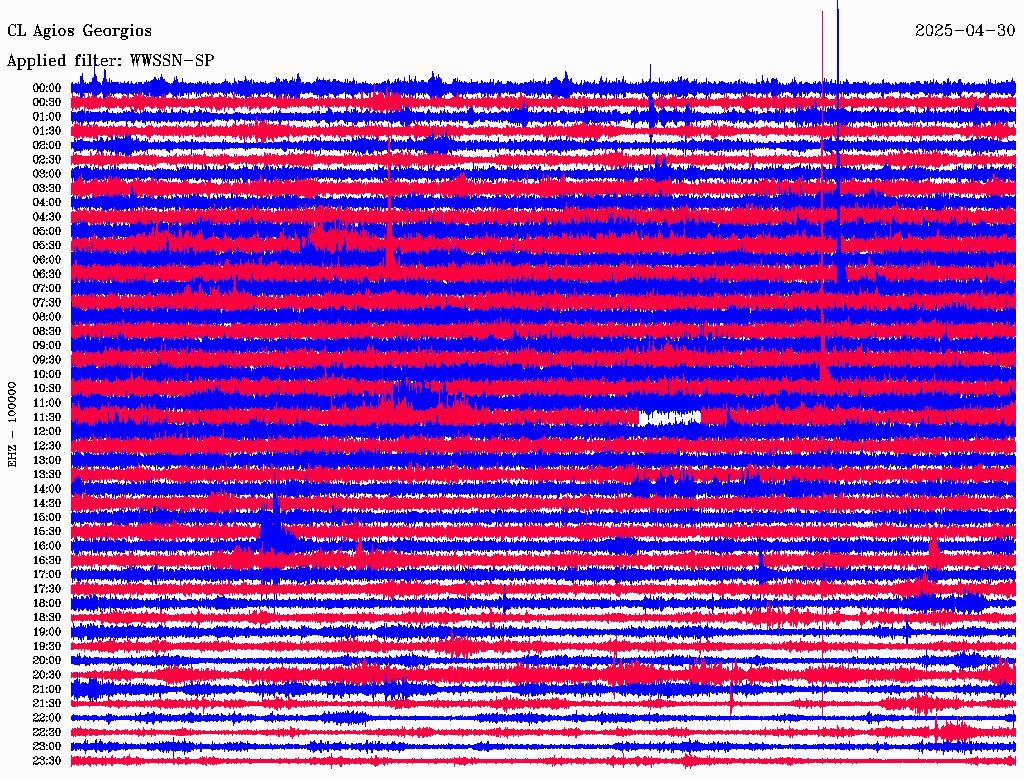

AGEOCL14.7157 P09:14:00.84 0.11.0M
AGEOCL14.7157 S09:14:03.20 0.11.0M
VVKHP16.6284 P09:14:01.26 0.11.0M
VVKHP16.6284 S09:14:03.81 0.01.0M

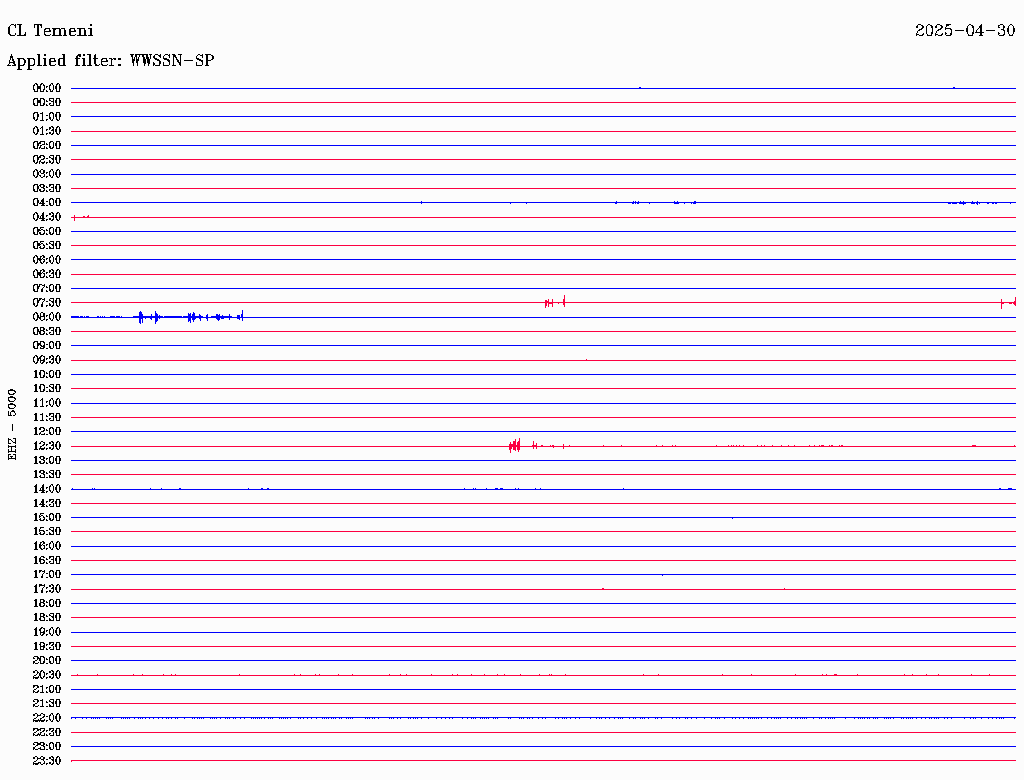

TEMECL20.2148 P09:14:01.81 0.21.0M
TEMECL20.2148 S09:14:04.60 -0.11.0M
PANRCL22.1 94 P09:14:01.88 -0.11.0M
PANRCL22.1 94 S09:14:05.31 0.11.0M
AIOACL22.1166 P09:14:01.79 -0.11.0M
AIOACL22.1166 S09:14:05.14 -0.11.0M
ANXHP23.9344 P09:14:02.29 0.01.0M
ANXHP23.9344 S09:14:06.04 0.11.0M

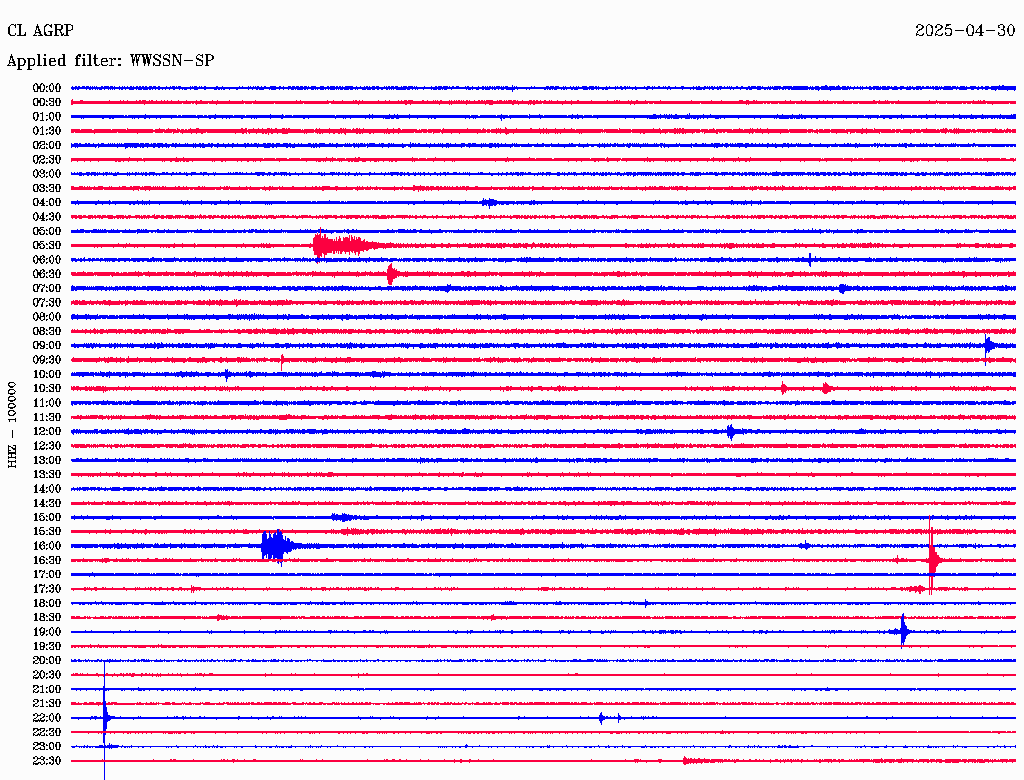

AGRPCL23.9272 P09:14:01.97 -0.31.0M
AGRPCL23.9272 S09:14:05.61 -0.21.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025ikdd
    Description
      region name: Greece
Origin:
    Date                   2025-04-30
    Time                  09:13:57.57
    Latitude              38.3868 deg  +/-      0 km
    Longitude             21.9968 deg  +/-      0 km
    Depth                       8 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.11 s
    Azimuthal gap              67 deg

2 Network magnitudes:
    MLv       0.70 +/- 0.14  11
    M         0.70           11 preferred

26 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PYRG  CL    0.0  34  P       09:13:59.32  -0.0 M  1.0  PYRG
    PYRG  CL    0.0  34  S       09:14:00.60  -0.1 M  1.0  PYRG
    MG06  CL    0.0 303  P       09:13:59.42  -0.0 M  1.0  MG06
    MG06  CL    0.0 303  S       09:14:00.97   0.1 M  1.0  MG06

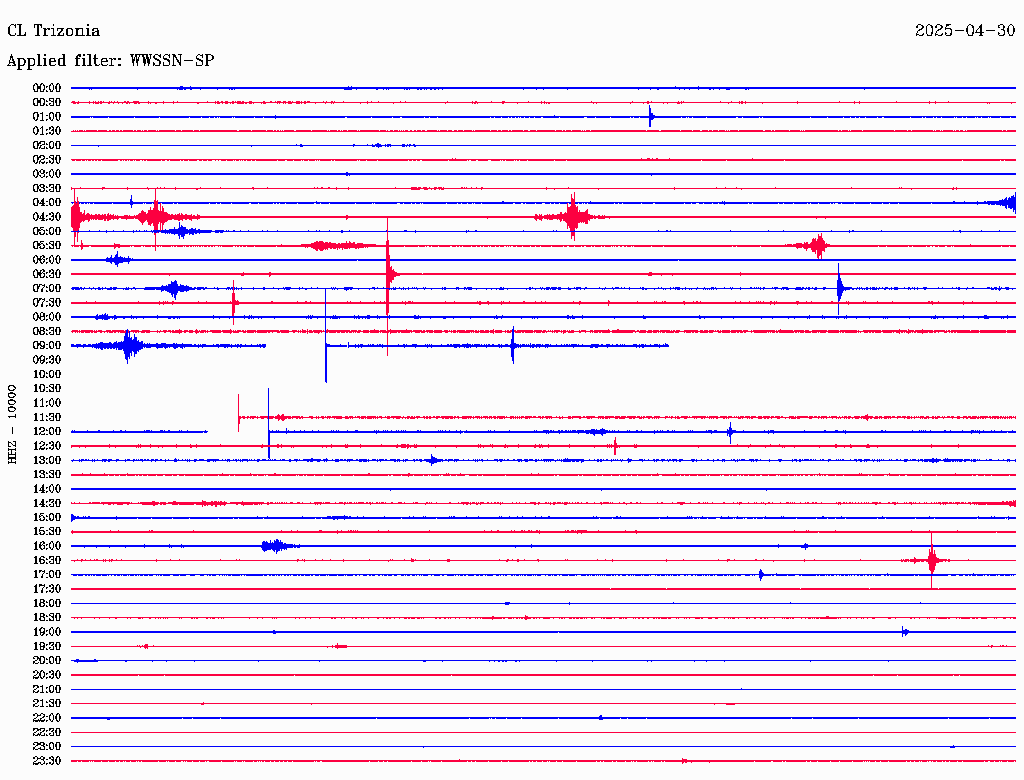

    TRIZ  CL    0.1 110  P       09:13:59.65   0.0 M  1.0  TRIZ
    TRIZ  CL    0.1 110  S       09:14:01.22   0.0 M  1.0  TRIZ

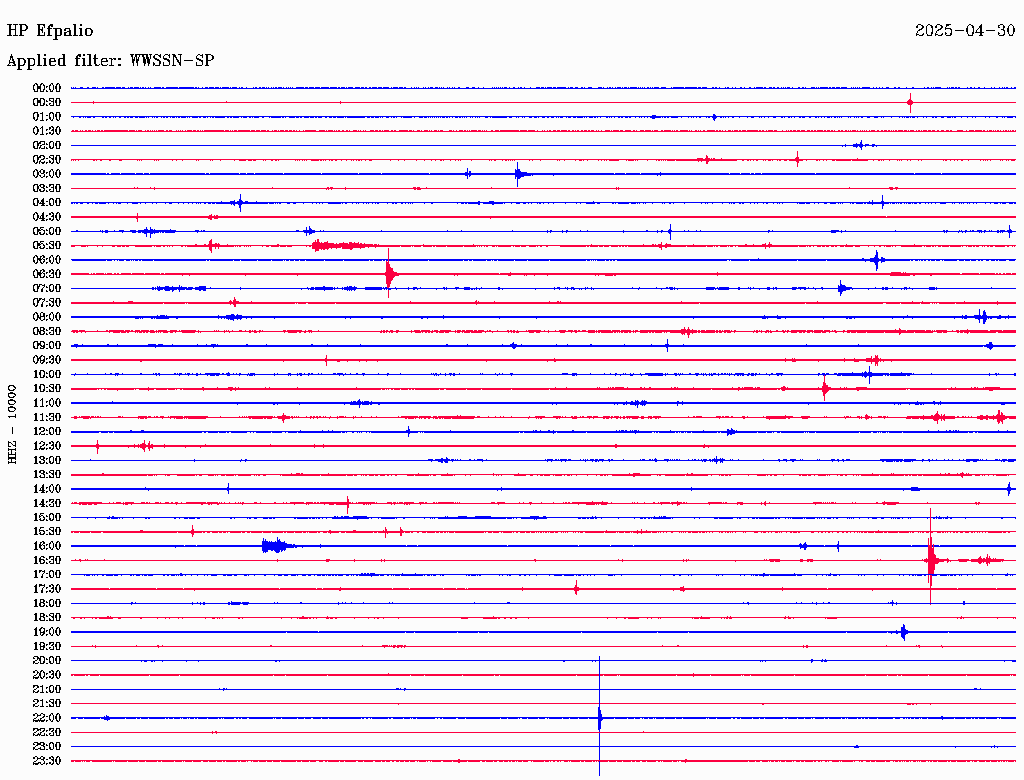

    EFP   HP    0.1 299  P       09:13:59.99   0.1 M  1.0  EFP
    EFP   HP    0.1 299  S       09:14:01.76   0.1 M  1.0  EFP

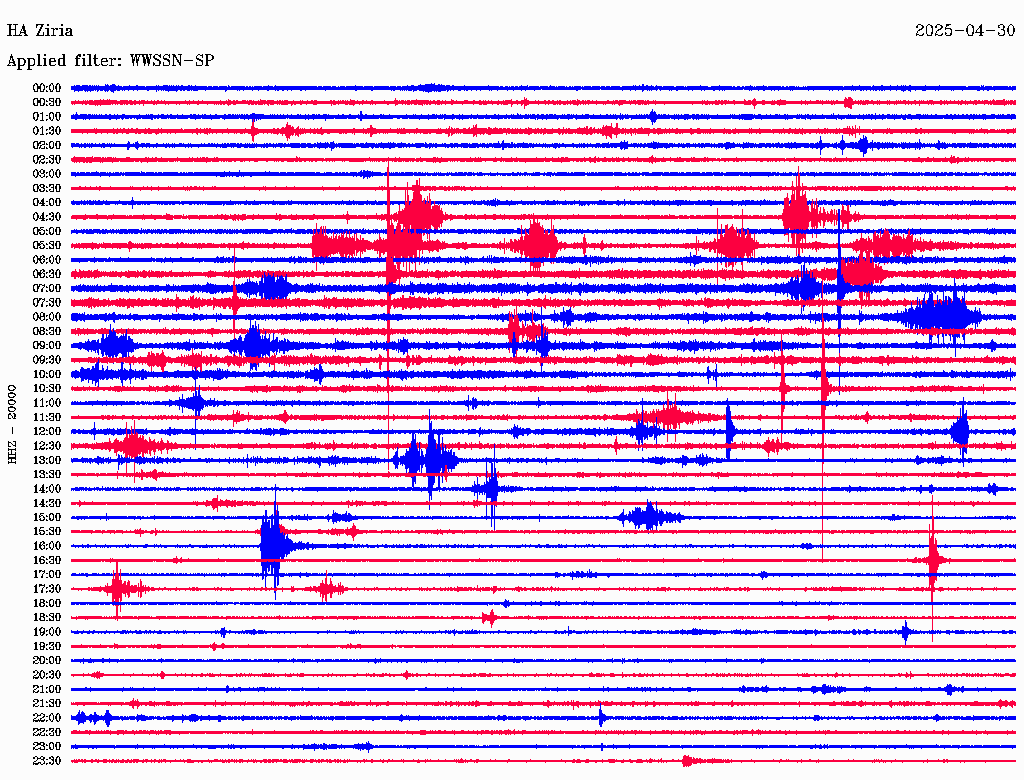

    ZIRI  CL    0.1 205  P       09:14:00.14   0.0 M  1.0  ZIRI
    ZIRI  CL    0.1 205  S       09:14:02.20   0.2 M  1.0  ZIRI

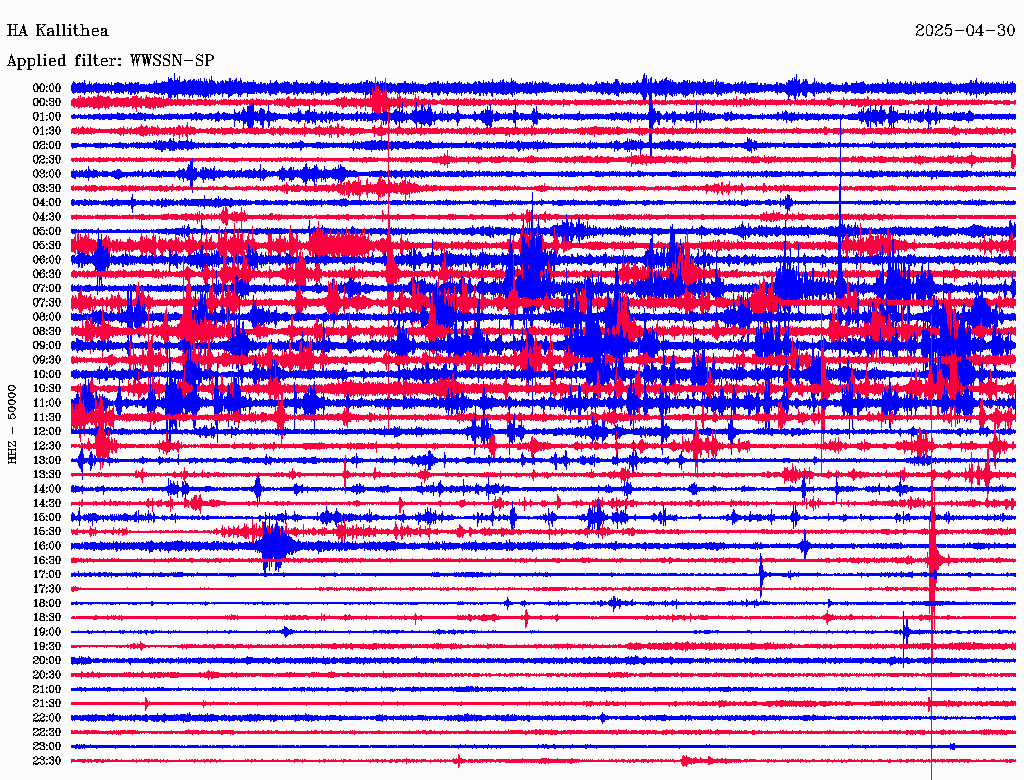

    KALE  HA    0.1  88  P       09:14:00.49   0.0 M  1.0  KALE
    KALE  HA    0.1  88  S       09:14:03.24   0.5 M  1.0  KALE
    AGEO  CL    0.1 157  P       09:14:00.84   0.1 M  1.0  AGEO
    AGEO  CL    0.1 157  S       09:14:03.20   0.1 M  1.0  AGEO

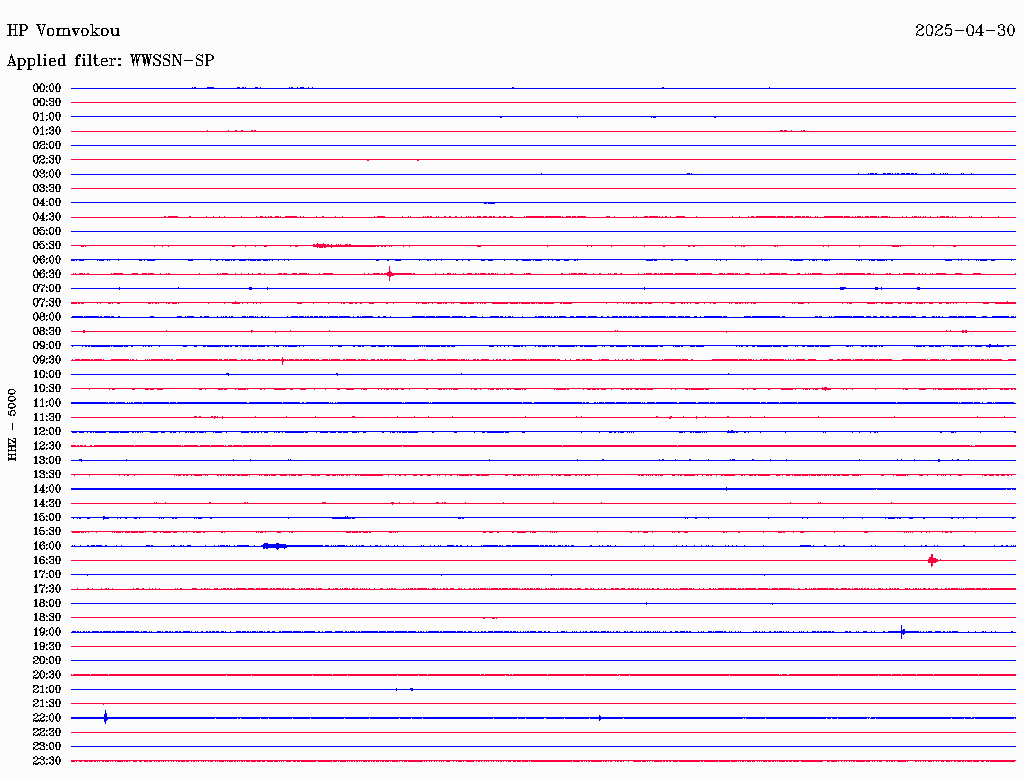

    VVK   HP    0.2 284  P       09:14:01.26   0.1 M  1.0  VVK
    VVK   HP    0.2 284  S       09:14:03.81  -0.0 M  1.0  VVK
    TEME  CL    0.2 148  P       09:14:01.81   0.2 M  1.0  TEME
    TEME  CL    0.2 148  S       09:14:04.60  -0.1 M  1.0  TEME

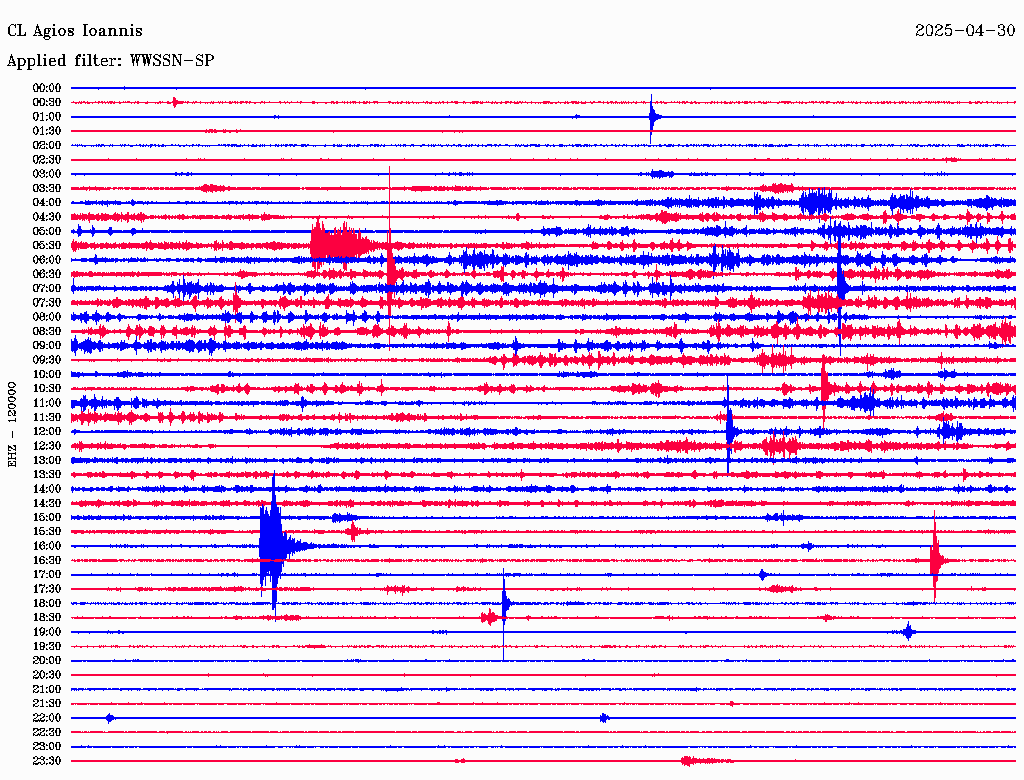

    AIOA  CL    0.2 166  P       09:14:01.79  -0.1 M  1.0  AIOA
    AIOA  CL    0.2 166  S       09:14:05.14  -0.1 M  1.0  AIOA

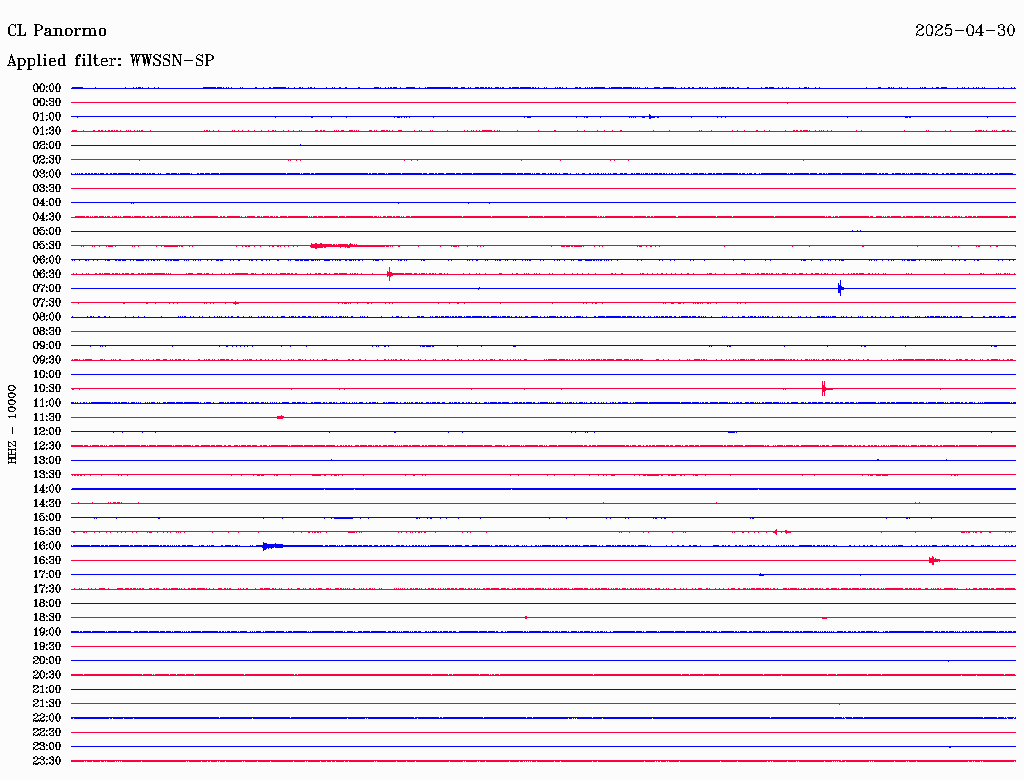

    PANR  CL    0.2  94  P       09:14:01.88  -0.1 M  1.0  PANR
    PANR  CL    0.2  94  S       09:14:05.31   0.1 M  1.0  PANR

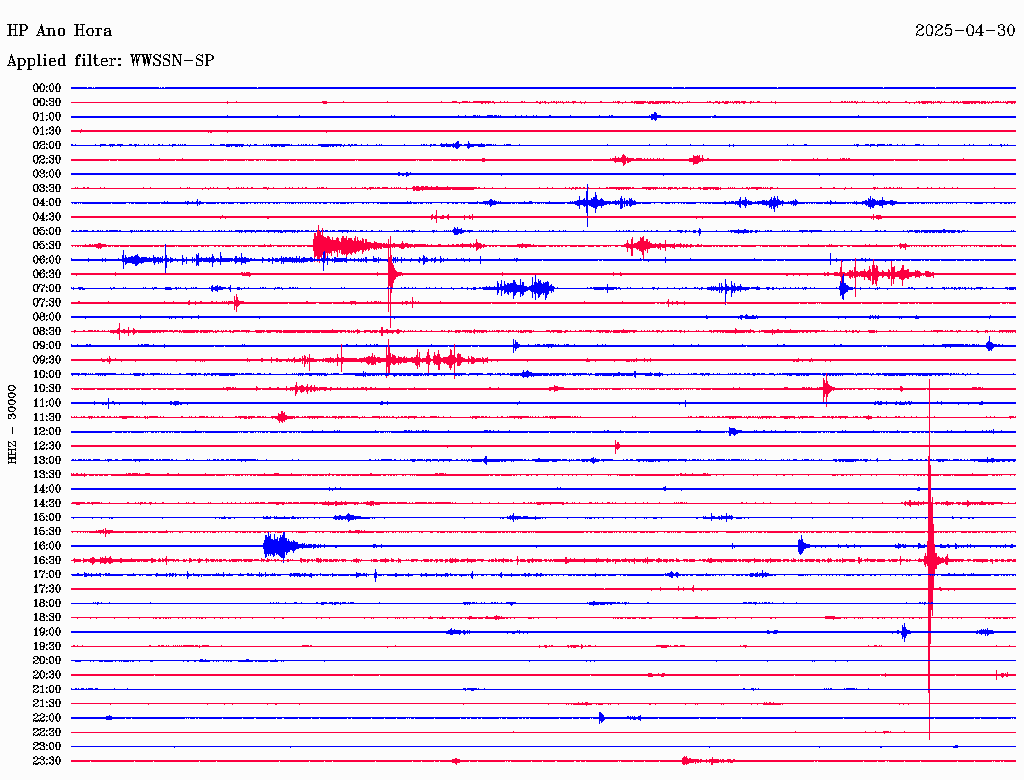

    ANX   HP    0.2 344  P       09:14:02.29  -0.0 M  1.0  ANX
    ANX   HP    0.2 344  S       09:14:06.04   0.1 M  1.0  ANX
    AGRP  CL    0.2 272  P       09:14:01.97  -0.3 M  1.0  AGRP
    AGRP  CL    0.2 272  S       09:14:05.61  -0.2 M  1.0  AGRP

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PYRG  CL    0.0  34  MLv     1.07  0.37   0.487429
    MG06  CL    0.0 303  MLv     0.59 -0.11   0.229104
    TRIZ  CL    0.1 110  MLv     0.80  0.10   0.334752
    EFP   HP    0.1 299  MLv     0.62 -0.08   0.194232
    ZIRI  CL    0.1 205  MLv     0.77  0.07   0.259728
    KALE  HA    0.1  88  MLv     0.64 -0.06   0.169212
    AGEO  CL    0.1 157  MLv     0.76  0.06   0.0561666
    VVK   HP    0.2 284  MLv    -0.06 -0.75   0.125278
    TEME  CL    0.2 148  MLv     0.50 -0.20   0.0257521
    AIOA  CL    0.2 166  MLv     0.49 -0.21   0.0174635
    PANR  CL    0.2  94  MLv     2.61  1.91   0.174986
    ANX   HP    0.2 344  MLv     0.73  0.03   0.106967
    AGRP  CL    0.2 272  MLv     0.82  0.13   0.133505
