Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-04-28 20:40:01 (GMT)
 Μέγεθος
 M 1.7
 Γεωγρ. Πλάτος
 39.8152° Β
 Γεωγρ. Μήκος
 21.9612° Α
 Εστιακό Βάθος
 11 χμ
 Αρ. αφίξεων
 28
 Επίκεντρο 33.3 χμ ΒΒΑ των Τρικάλων
44.0 χμ ΔΒΔ της Λάρισας
255.0 χμ ΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR161Y25.3356 P20:40:05.73 0.11.0M
GR161Y25.3356 S20:40:09.32 -0.21.0M
TYRNHT25.9116 P20:40:05.79 0.11.0M
TYRNHT25.9116 S20:40:09.53 0.01.0M
THLHL28.2171 P20:40:06.09 0.11.0M
THLHL28.2171 S20:40:09.51 -0.61.0M
GR171Y29.7252 P20:40:06.40 0.11.0M
GR171Y29.7252 S20:40:10.00 -0.61.0M
KPROHT53.3287 P20:40:10.32 0.21.0M
KPROHT53.3287 S20:40:16.95 -0.51.0M
LITHT55.1 55 P20:40:10.40 0.01.0M
LITHT55.1 55 S20:40:17.57 -0.31.0M
GR181Y61.2 99 P20:40:11.94 0.51.0M
GR181Y61.2 99 S20:40:19.38 -0.31.0M
GR201Y67.1196 P20:40:12.91 0.61.0M
GR201Y67.1196 S20:40:21.01 -0.21.0M
GR211Y68.3136 P20:40:12.70 0.21.0M
GR211Y68.3136 S20:40:21.42 -0.11.0M
TETRHL78.8228 P20:40:14.19 0.01.0M
TETRHL78.8228 S20:40:24.47 -0.11.0M
GR151Y79.3280 P20:40:14.52 0.21.0M
GR151Y79.3280 S20:40:24.59 -0.11.0M
PRMDHP80.5247 P20:40:14.54 0.11.0M
PRMDHP80.5247 S20:40:24.99 -0.11.0M
GR101Y80.6337 P20:40:14.86 0.41.0M
GR101Y80.6337 S20:40:24.90 -0.11.0M
PENTHL81.9301 P20:40:15.37 0.61.0M
PENTHL81.9301 S20:40:25.35 -0.11.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025ihit
    Description
      region name: Greece
Origin:
    Date                   2025-04-28
    Time                  20:40:00.59
    Latitude              39.8152 deg  +/-      0 km
    Longitude             21.9612 deg  +/-      0 km
    Depth                      11 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.30 s
    Azimuthal gap              59 deg

2 Network magnitudes:
    MLv       1.67 +/- 0.16  12
    M         1.67           12 preferred

28 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR16  1Y    0.2 356  P       20:40:05.73   0.1 M  1.0  GR16
    GR16  1Y    0.2 356  S       20:40:09.32  -0.2 M  1.0  GR16

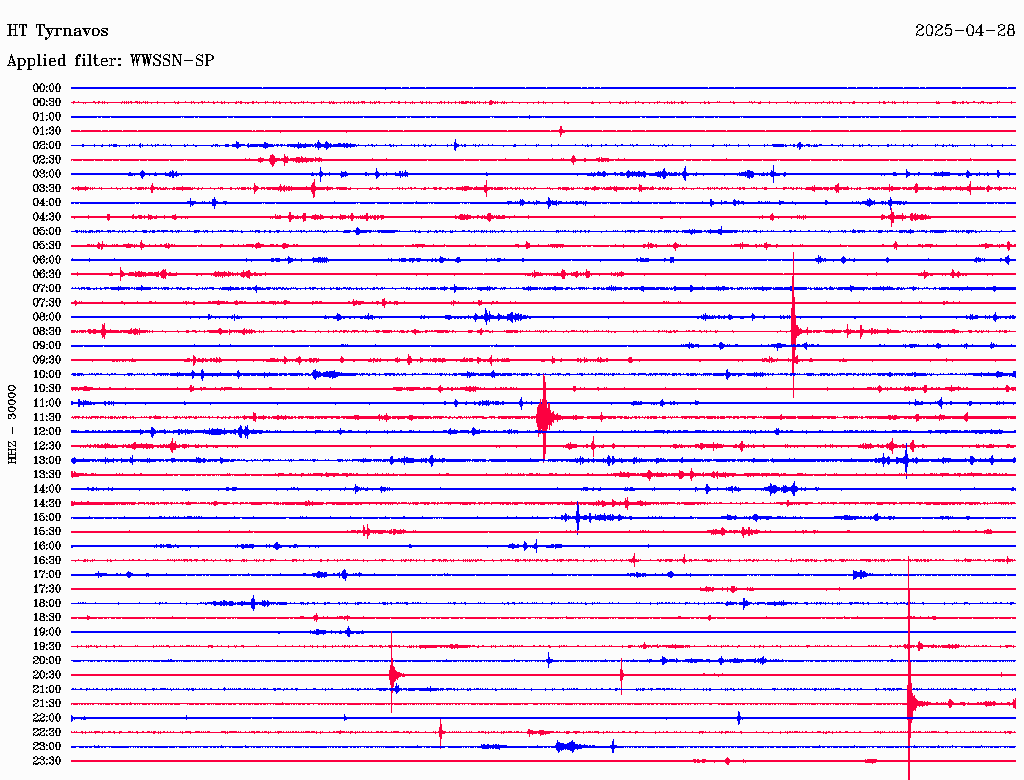

    TYRN  HT    0.2 116  P       20:40:05.79   0.1 M  1.0  TYRN
    TYRN  HT    0.2 116  S       20:40:09.53   0.0 M  1.0  TYRN
    THL   HL    0.3 171  P       20:40:06.09   0.1 M  1.0  THL
    THL   HL    0.3 171  S       20:40:09.51  -0.6 M  1.0  THL

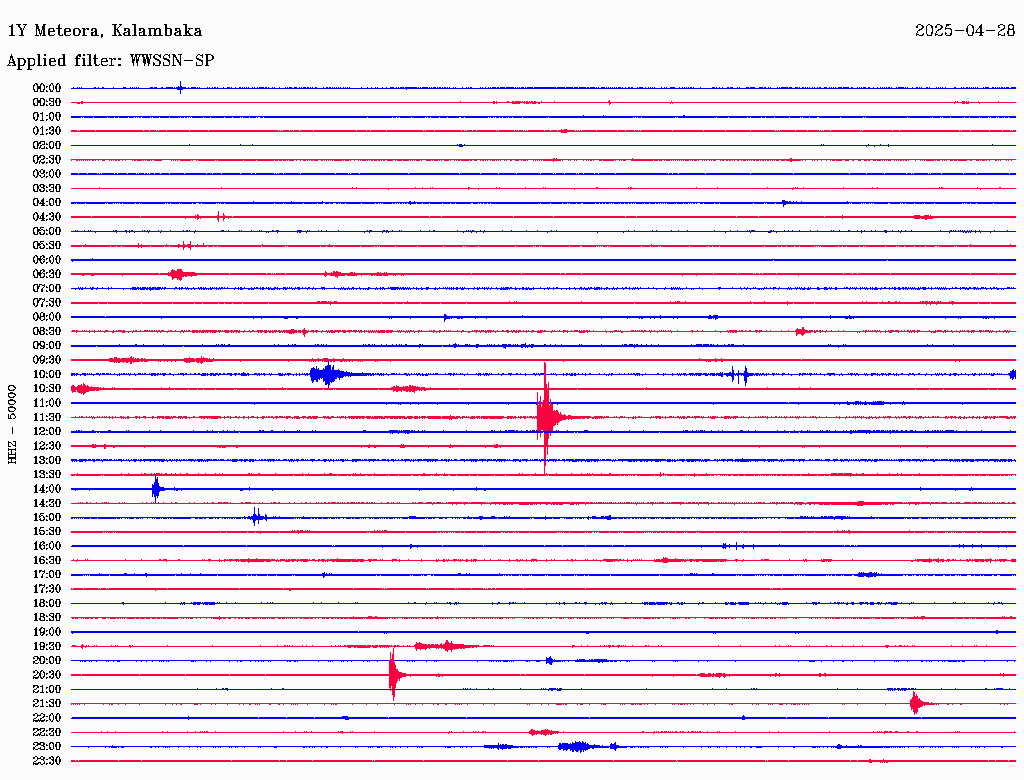

    GR17  1Y    0.3 252  P       20:40:06.40   0.1 M  1.0  GR17
    GR17  1Y    0.3 252  S       20:40:10.00  -0.6 M  1.0  GR17

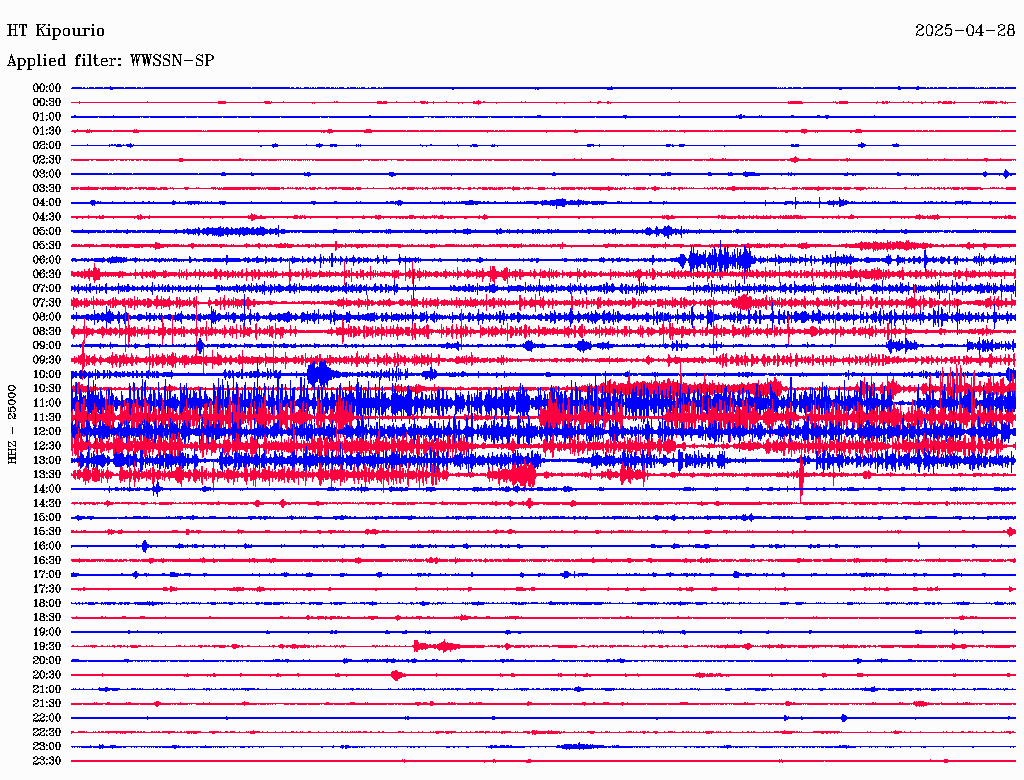

    KPRO  HT    0.5 287  P       20:40:10.32   0.2 M  1.0  KPRO
    KPRO  HT    0.5 287  S       20:40:16.95  -0.5 M  1.0  KPRO

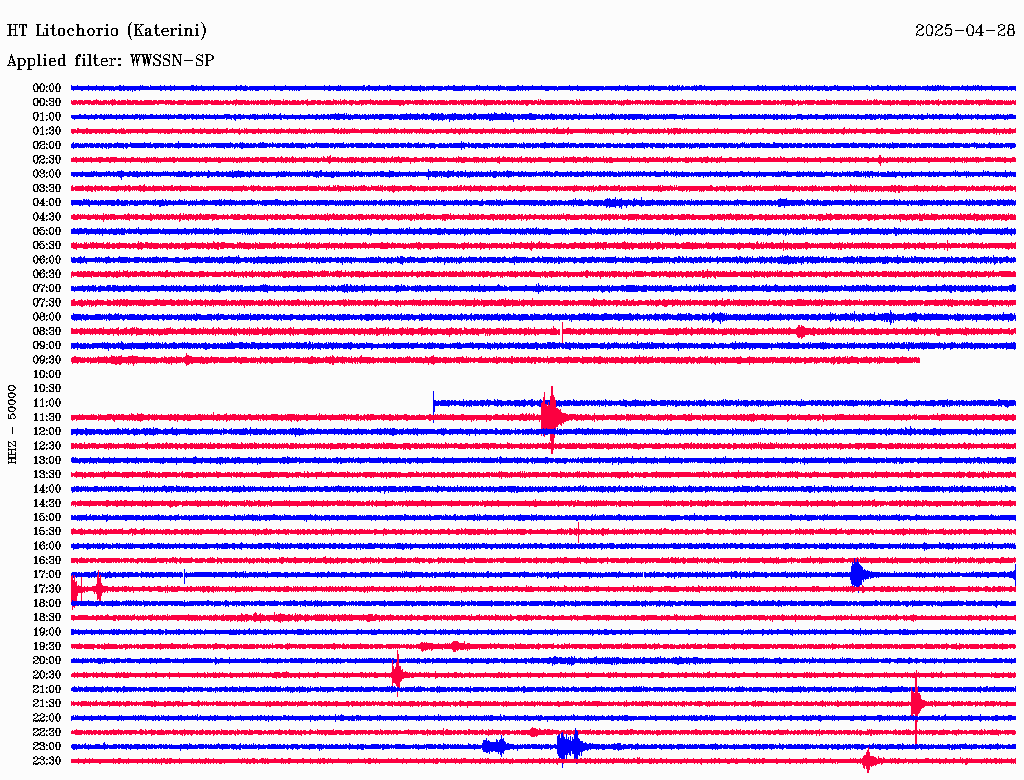

    LIT   HT    0.5  55  P       20:40:10.40  -0.0 M  1.0  LIT
    LIT   HT    0.5  55  S       20:40:17.57  -0.3 M  1.0  LIT
    GR18  1Y    0.6  99  P       20:40:11.94   0.5 M  1.0  GR18
    GR18  1Y    0.6  99  S       20:40:19.38  -0.3 M  1.0  GR18
    GR20  1Y    0.6 196  P       20:40:12.91   0.6 M  1.0  GR20
    GR20  1Y    0.6 196  S       20:40:21.01  -0.2 M  1.0  GR20

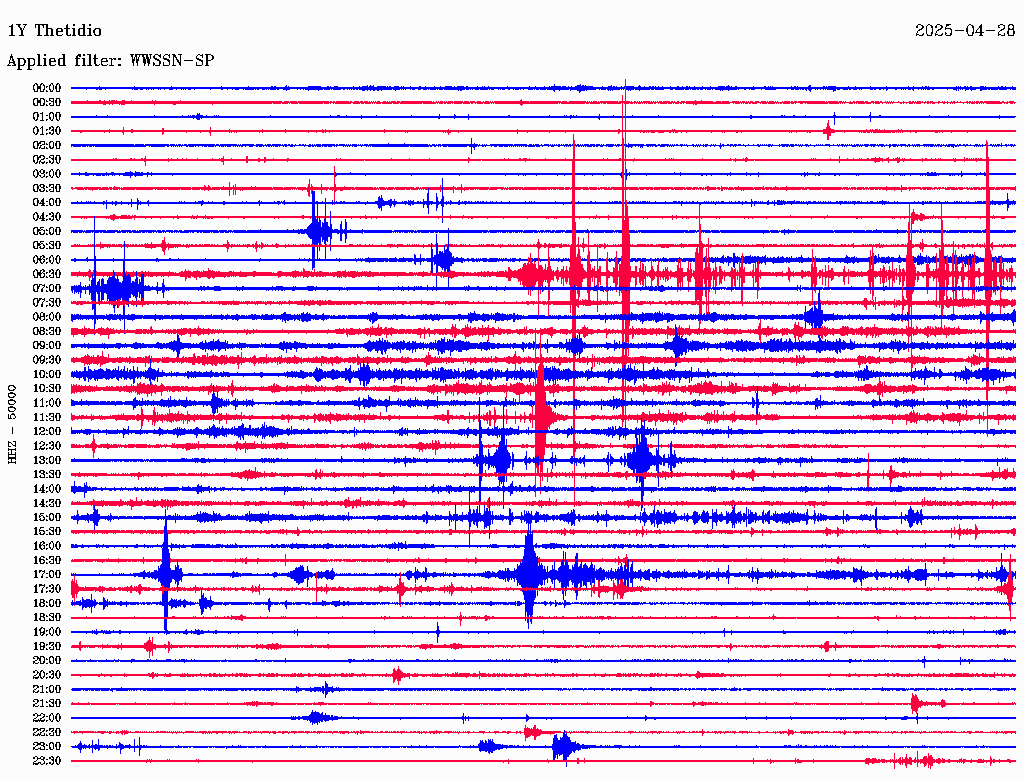

    GR21  1Y    0.6 136  P       20:40:12.70   0.2 M  1.0  GR21
    GR21  1Y    0.6 136  S       20:40:21.42  -0.1 M  1.0  GR21

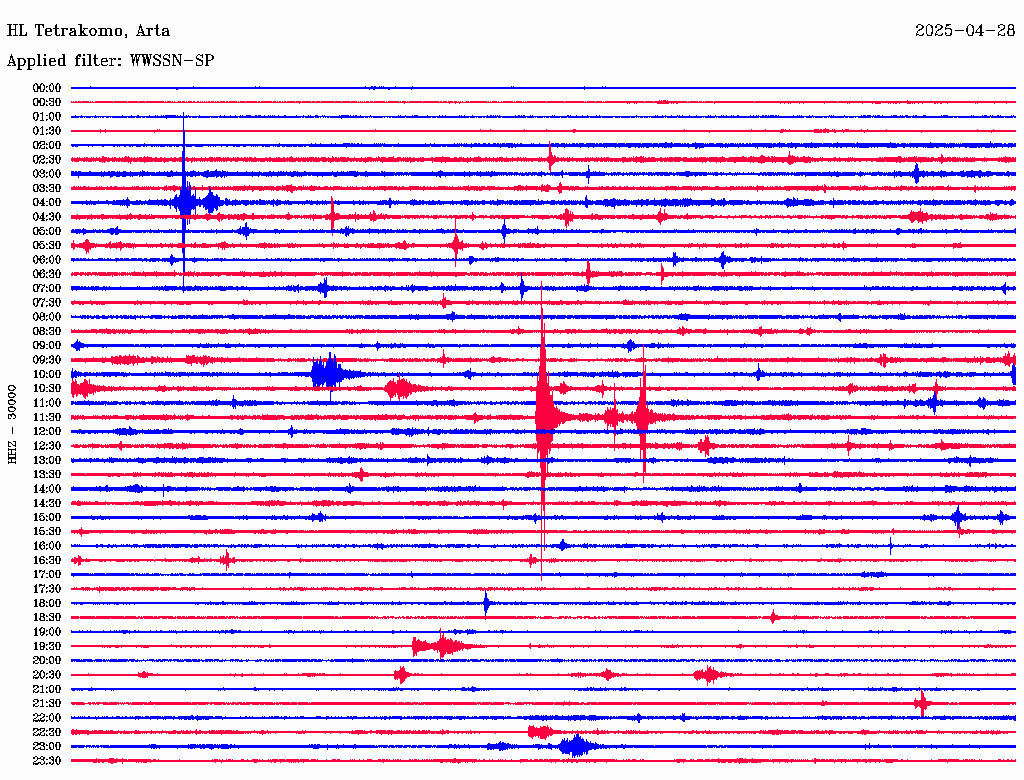

    TETR  HL    0.7 228  P       20:40:14.19  -0.0 M  1.0  TETR
    TETR  HL    0.7 228  S       20:40:24.47  -0.1 M  1.0  TETR
    GR15  1Y    0.7 280  P       20:40:14.52   0.2 M  1.0  GR15
    GR15  1Y    0.7 280  S       20:40:24.59  -0.1 M  1.0  GR15

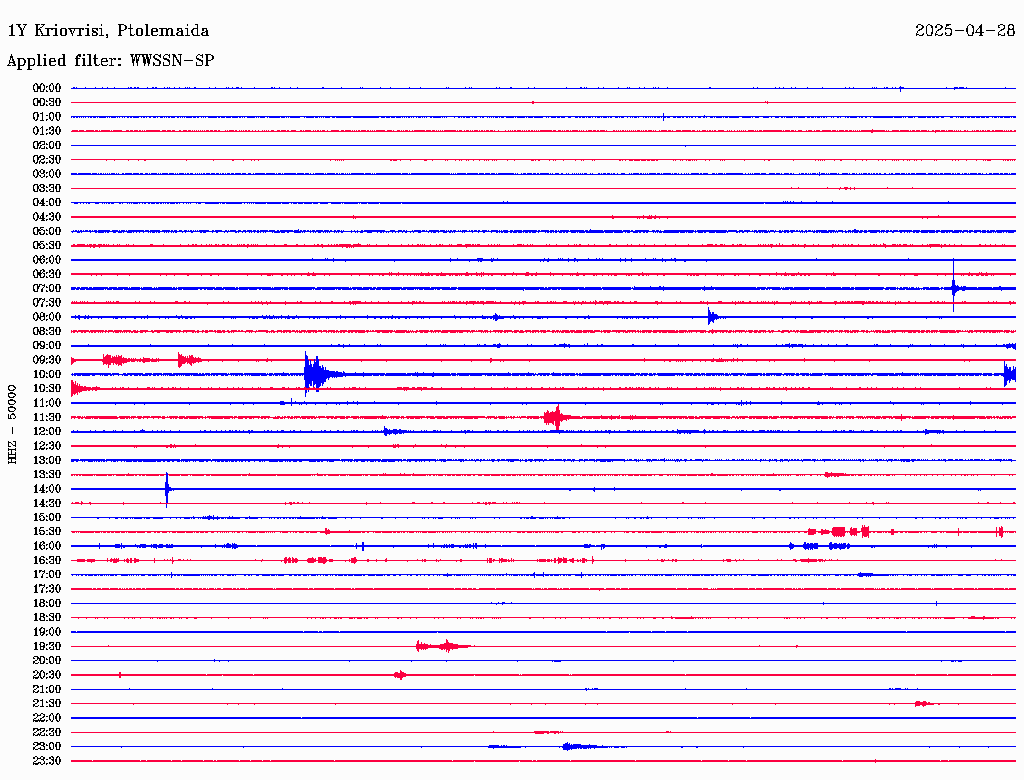

    GR10  1Y    0.7 337  P       20:40:14.86   0.4 M  1.0  GR10
    GR10  1Y    0.7 337  S       20:40:24.90  -0.1 M  1.0  GR10
    PRMD  HP    0.7 247  P       20:40:14.54   0.1 M  1.0  PRMD
    PRMD  HP    0.7 247  S       20:40:24.99  -0.1 M  1.0  PRMD

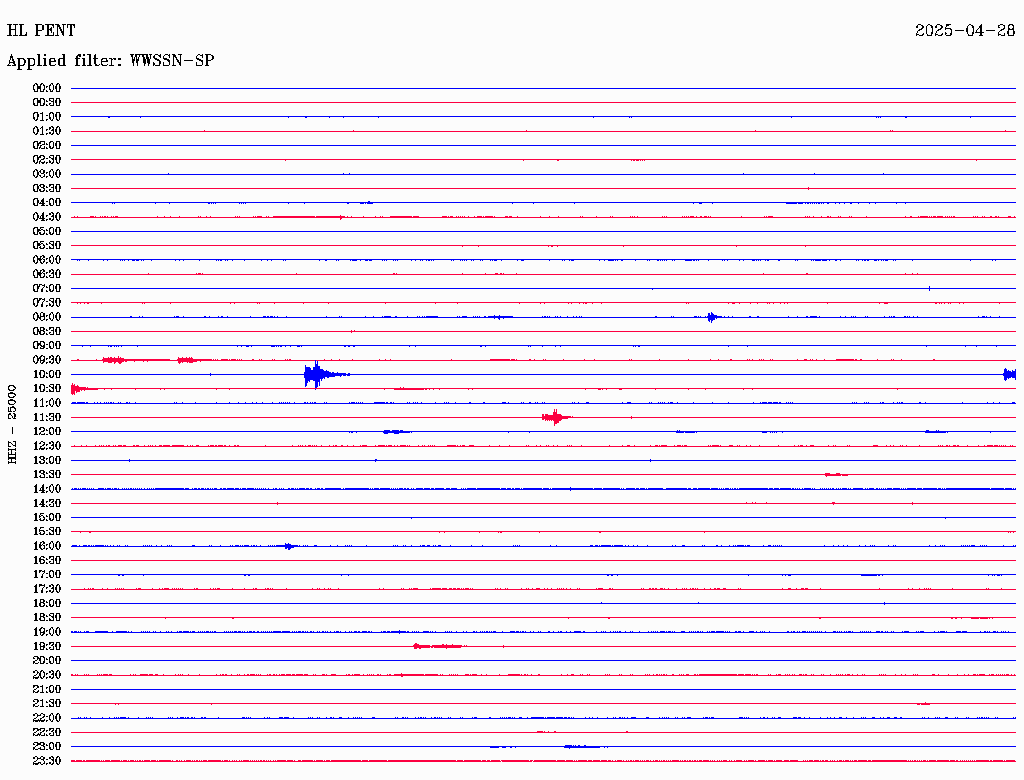

    PENT  HL    0.7 301  P       20:40:15.37   0.6 M  1.0  PENT
    PENT  HL    0.7 301  S       20:40:25.35  -0.1 M  1.0  PENT

14 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR16  1Y    0.2 356  MLv     1.02 -0.64    0.19555
    TYRN  HT    0.2 116  MLv     1.43 -0.24   0.371759
    THL   HL    0.3 171  MLv     1.56 -0.10   0.344486
    GR17  1Y    0.3 252  MLv     1.29 -0.38   0.281416
    KPRO  HT    0.5 287  MLv     1.48 -0.18   0.112397
    LIT   HT    0.5  55  MLv     1.73  0.06   0.127374
    GR18  1Y    0.6  99  MLv     1.71  0.04   0.126262
    GR20  1Y    0.6 196  MLv     1.67  0.01     0.1093
    GR21  1Y    0.6 136  MLv     1.93  0.26   0.193879
    TETR  HL    0.7 228  MLv     1.77  0.11   0.120325
    GR15  1Y    0.7 280  MLv     1.88  0.21   0.152651
    GR10  1Y    0.7 337  MLv     1.61 -0.06   0.0801264
    PRMD  HP    0.7 247  MLv     1.94  0.28     0.1733
    PENT  HL    0.7 301  MLv     1.84  0.18   0.105558
