Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-20 17:52:41 (GMT)
 Μέγεθος
 M 4.0
 Γεωγρ. Πλάτος
 36.6995° Β
 Γεωγρ. Μήκος
 21.4135° Α
 Εστιακό Βάθος
 5 χμ
 Αρ. αφίξεων
 92
 Επίκεντρο 28.7 χμ ΔΝΔ της Μεθώνης
72.9 χμ ΔΝΔ της Καλαμάτας
249.9 χμ ΝΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap


  Χάρτης εντάσεως


PGA

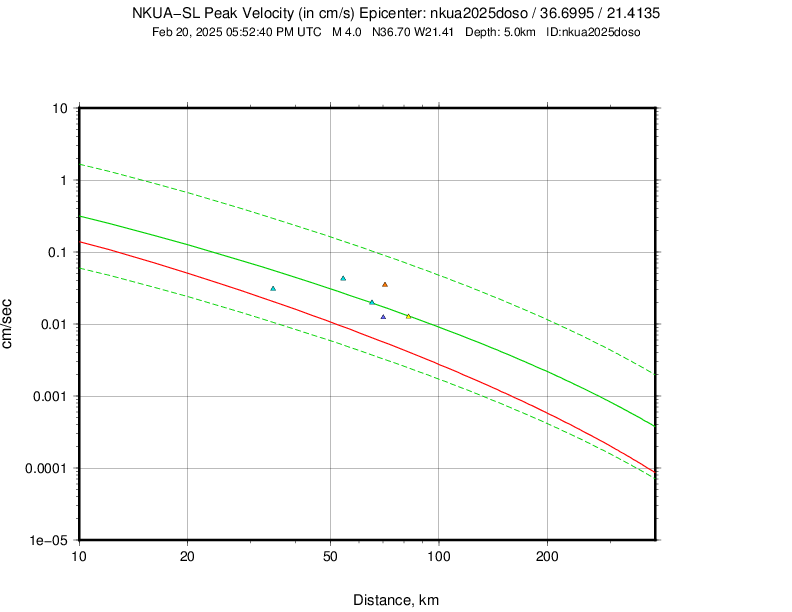

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
PYL1HI34.6 47 P17:52:47.54 0.11.0M
PYL1HI34.6 47 S17:52:52.10 -0.21.0M
PYLHP36.5 53 P17:52:47.61 -0.11.0M
PYLHP36.5 53 S17:52:52.25 -0.71.0M
ITMHL70.1 41 P17:52:52.93 -0.31.0M
ITMHL70.1 41 S17:53:02.09 -0.61.0M
STRFHL70.3330 P17:52:53.52 0.31.0M
STRFHL70.3330 S17:53:01.99 -0.61.0M
GR331Y82.3 85 P17:52:54.67 -0.61.0M
GR331Y82.3 85 S17:53:05.54 -0.71.0M
AMTHP96.2 16 P17:52:56.99 -0.51.0M
AMTHP96.2 16 S17:53:09.50 -0.61.0M
GR311Y105.3 69 P17:52:58.74 -0.21.0M
GR311Y105.3 69 S17:53:12.47 -0.21.0M
VLXHP113.6 49 P17:52:59.92 -0.41.0M
VLXHP113.6 49 S17:53:14.90 -0.31.0M
LTHKHP123.4335 P17:53:00.82 -0.91.0M
LTHKHP123.4335 S17:53:17.71 0.11.0M
VLIHL136.7 89 P17:53:03.51 -0.41.0M
VLIHL136.7 89 S17:53:21.53 0.21.0M
GR301Y137.9 49 P17:53:04.23 0.21.0M
GR301Y137.9 49 S17:53:21.94 0.31.0M
DROHP141.8 11 P17:53:03.86 -0.71.0M
DROHP141.8 11 S17:53:23.14 0.51.0M
GR321Y143.2 78 P17:53:04.69 -0.21.0M
GR321Y143.2 78 S17:53:24.06 1.01.0M
MNVAHL144.8 91 P17:53:05.53 0.41.0M
MNVAHL144.8 91 S17:53:24.15 0.71.0M
RLSHL150.9 2 P17:53:05.75 -0.21.0M
RLSHL150.9 2 S17:53:25.77 0.81.0M
KTHAHL155.4108 P17:53:07.22 0.41.0M
KTHAHL155.4108 S17:53:27.46 1.01.0M
GURHP160.2 31 P17:53:06.89 -0.71.0M
GURHP160.2 31 S17:53:28.41 0.61.0M
KLVHL163.0 24 P17:53:07.96 0.01.0M
KLVHL163.0 24 S17:53:28.62 0.11.0M
KRNDHT171.9 64 P17:53:08.86 -0.41.0M
KRNDHT171.9 64 S17:53:30.93 0.11.0M
AIOACL175.6 19 P17:53:09.71 0.01.0M
AIOACL175.6 19 S17:53:31.92 0.41.0M
LAKAHA178.4 16 P17:53:10.30 0.21.0M
LAKAHA178.4 16 S17:53:32.43 0.21.0M
UPRHP179.2 11 P17:53:10.22 0.11.0M
UPRHP179.2 11 S17:53:32.73 0.41.0M
VLSHL179.7336 P17:53:09.20 -1.01.0M
VLSHL179.7336 S17:53:32.48 0.01.0M
DIMTCL180.8 18 P17:53:10.92 0.61.0M
DIMTCL180.8 18 S17:53:32.93 0.21.0M
AGEOCL183.3 18 P17:53:11.19 0.61.0M
AGEOCL183.3 18 S17:53:33.55 0.31.0M
ROD3CL183.8 13 P17:53:11.24 0.51.0M
ROD3CL183.8 13 S17:53:33.57 0.11.0M
ACORHA184.7 44 P17:53:10.29 -0.61.0M
ACORHA184.7 44 S17:53:33.84 0.11.0M
THALHA185.1 37 P17:53:10.85 -0.11.0M
THALHA185.1 37 S17:53:33.93 0.21.0M
HAVDHA190.3331 P17:53:10.63 -0.91.0M
HAVDHA190.3331 S17:53:35.10 0.21.0M
PLEVHP190.5360 P17:53:11.97 0.41.0M
PLEVHP190.5360 S17:53:34.98 0.11.0M
AGRPCL190.6 8 P17:53:11.88 0.31.0M
AGRPCL190.6 8 S17:53:35.07 0.11.0M
PSAMCL192.8 21 P17:53:11.26 -0.61.0M
PSAMCL192.8 21 S17:53:35.59 0.21.0M
PSARCL193.5 20 P17:53:12.21 0.31.0M
PSARCL193.5 20 S17:53:35.84 0.31.0M
TRIZCL194.2 17 P17:53:12.66 0.71.0M
TRIZCL194.2 17 S17:53:36.02 0.31.0M
DMLNHT194.2332 P17:53:10.85 -1.21.0M
DMLNHT194.2332 S17:53:35.72 -0.11.0M
VVKHP194.7 10 P17:53:12.81 0.61.0M
VVKHP194.7 10 S17:53:36.13 0.21.0M
EFPHP196.9 13 P17:53:13.19 0.81.0M
EFPHP196.9 13 S17:53:36.49 0.21.0M
PYRGCL197.5 16 P17:53:13.78 1.21.0M
PYRGCL197.5 16 S17:53:36.80 0.21.0M
KALEHA198.7 19 P17:53:13.44 0.71.0M
KALEHA198.7 19 S17:53:36.94 0.11.0M
LOUTHA198.9 44 P17:53:11.98 -0.71.0M
LOUTHA198.9 44 S17:53:37.13 0.31.0M
LTKHP201.3 43 P17:53:12.32 -0.71.0M
LTKHP201.3 43 S17:53:37.71 0.31.0M
FSKHP209.6339 P17:53:13.17 -0.81.0M
FSKHP209.6339 S17:53:39.38 0.21.0M
PDOHP212.1354 P17:53:14.66 0.31.0M
PDOHP212.1354 S17:53:39.79 0.01.0M
PVOHP213.4 3 P17:53:15.26 0.81.0M
PVOHP213.4 3 S17:53:40.16 0.11.0M
DSFHP214.2 27 P17:53:14.12 -0.61.0M
DSFHP214.2 27 S17:53:40.50 0.11.0M
PRDMHA216.6 36 P17:53:13.78 -1.21.0M
PRDMHA216.6 36 S17:53:40.91 0.01.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025doso
    Description
      region name: Southern Greece
Origin:
    Date                   2025-02-20
    Time                  17:52:40.89
    Latitude              36.6995 deg  +/-      1 km
    Longitude             21.4135 deg  +/-      1 km
    Depth                       5 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.48 s
    Azimuthal gap             221 deg

2 Network magnitudes:
    MLv       3.99 +/- 0.15  38
    M         3.99           38 preferred

92 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PYL1  HI    0.3  47  P       17:52:47.54   0.1 M  1.0  PYL1
    PYL1  HI    0.3  47  S       17:52:52.10  -0.2 M  1.0  PYL1

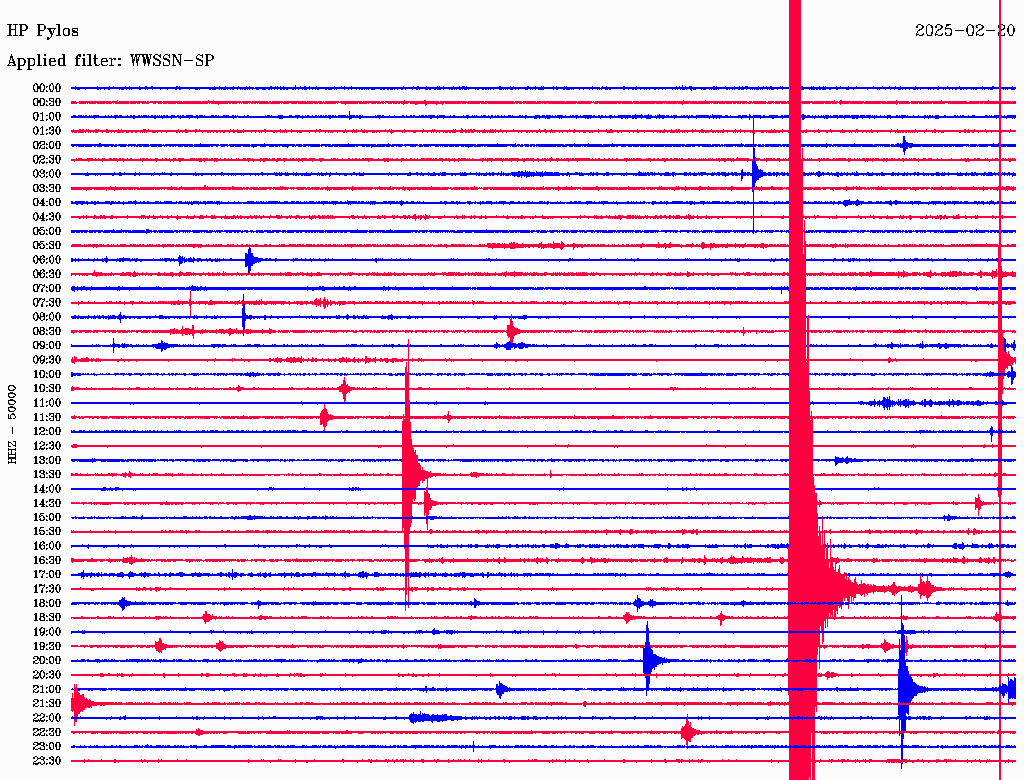

    PYL   HP    0.3  53  P       17:52:47.61  -0.1 M  1.0  PYL
    PYL   HP    0.3  53  S       17:52:52.25  -0.7 M  1.0  PYL

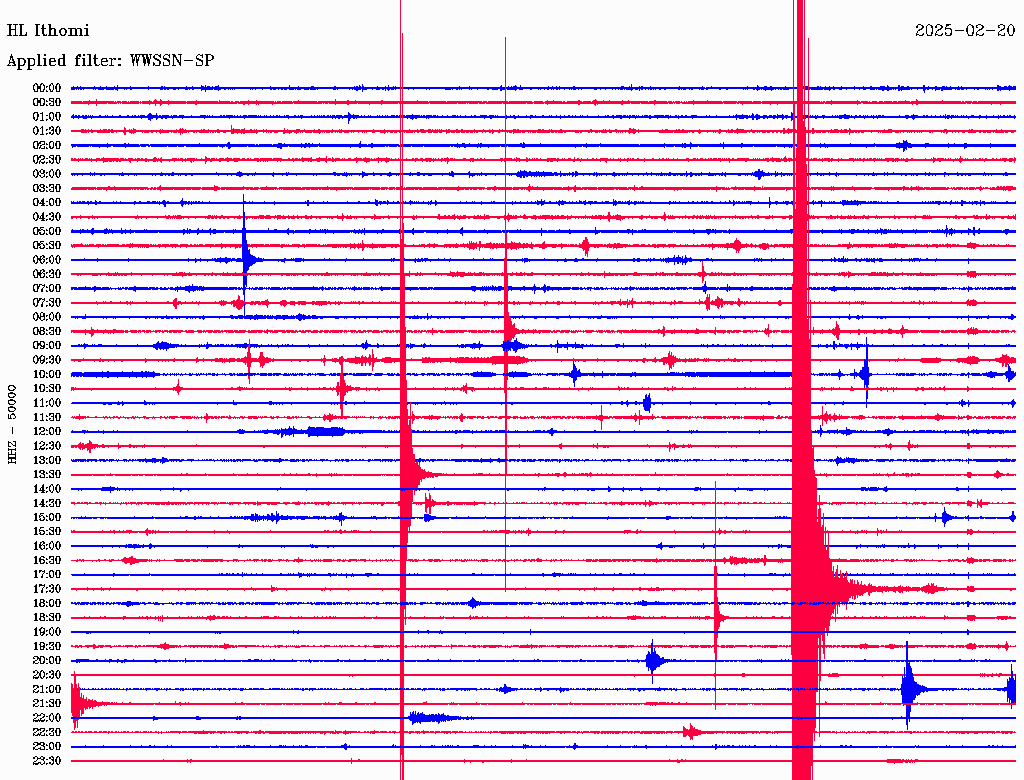

    ITM   HL    0.6  41  P       17:52:52.93  -0.3 M  1.0  ITM
    ITM   HL    0.6  41  S       17:53:02.09  -0.6 M  1.0  ITM

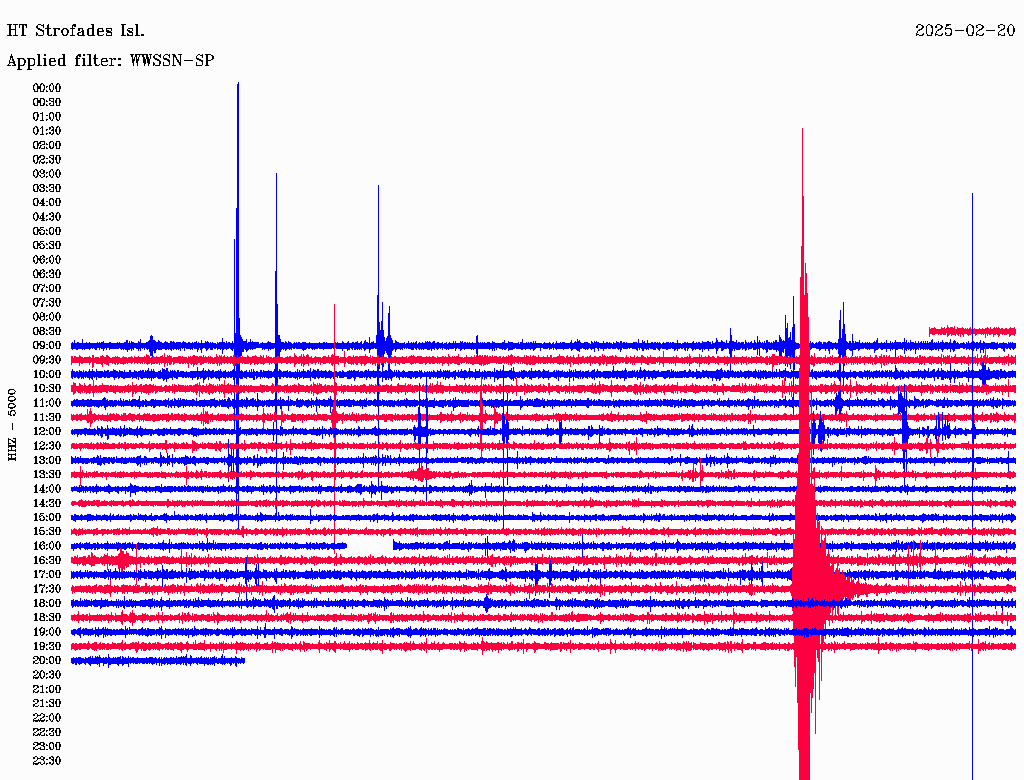

    STRF  HL    0.6 330  P       17:52:53.52   0.3 M  1.0  STRF
    STRF  HL    0.6 330  S       17:53:01.99  -0.6 M  1.0  STRF
    GR33  1Y    0.7  85  P       17:52:54.67  -0.6 M  1.0  GR33
    GR33  1Y    0.7  85  S       17:53:05.54  -0.7 M  1.0  GR33
    AMT   HP    0.9  16  P       17:52:56.99  -0.5 M  1.0  AMT
    AMT   HP    0.9  16  S       17:53:09.50  -0.6 M  1.0  AMT
    GR31  1Y    0.9  69  P       17:52:58.74  -0.2 M  1.0  GR31
    GR31  1Y    0.9  69  S       17:53:12.47  -0.2 M  1.0  GR31

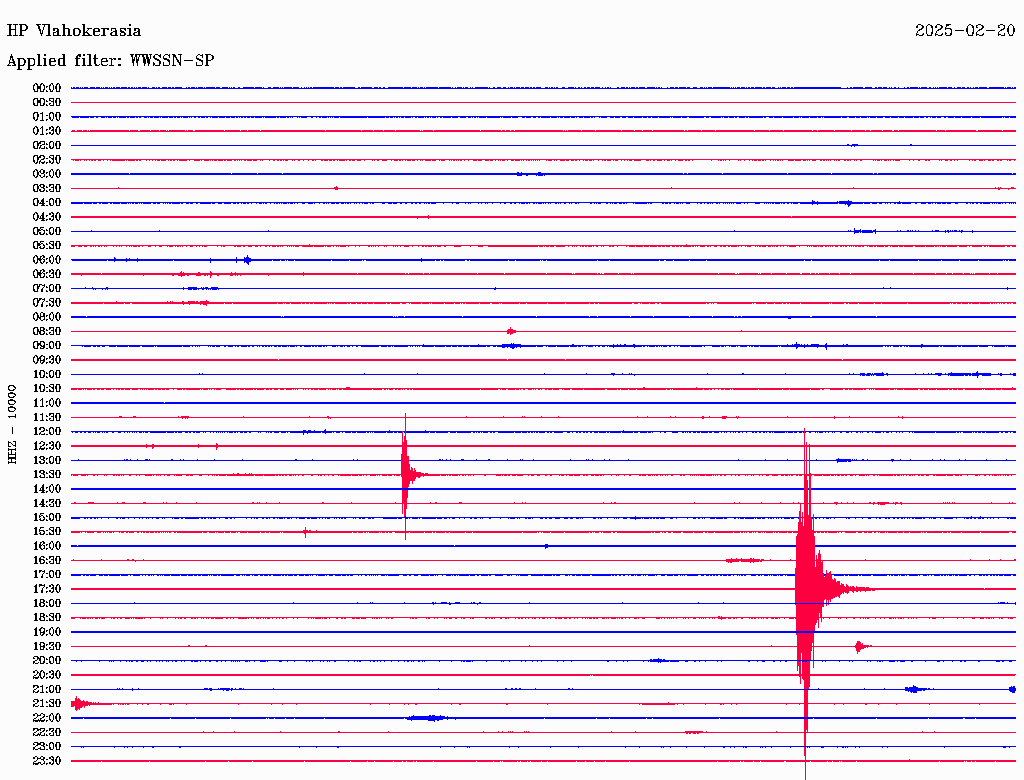

    VLX   HP    1.0  49  P       17:52:59.92  -0.4 M  1.0  VLX
    VLX   HP    1.0  49  S       17:53:14.90  -0.3 M  1.0  VLX
    LTHK  HP    1.1 335  P       17:53:00.82  -0.9 M  1.0  LTHK
    LTHK  HP    1.1 335  S       17:53:17.71   0.1 M  1.0  LTHK

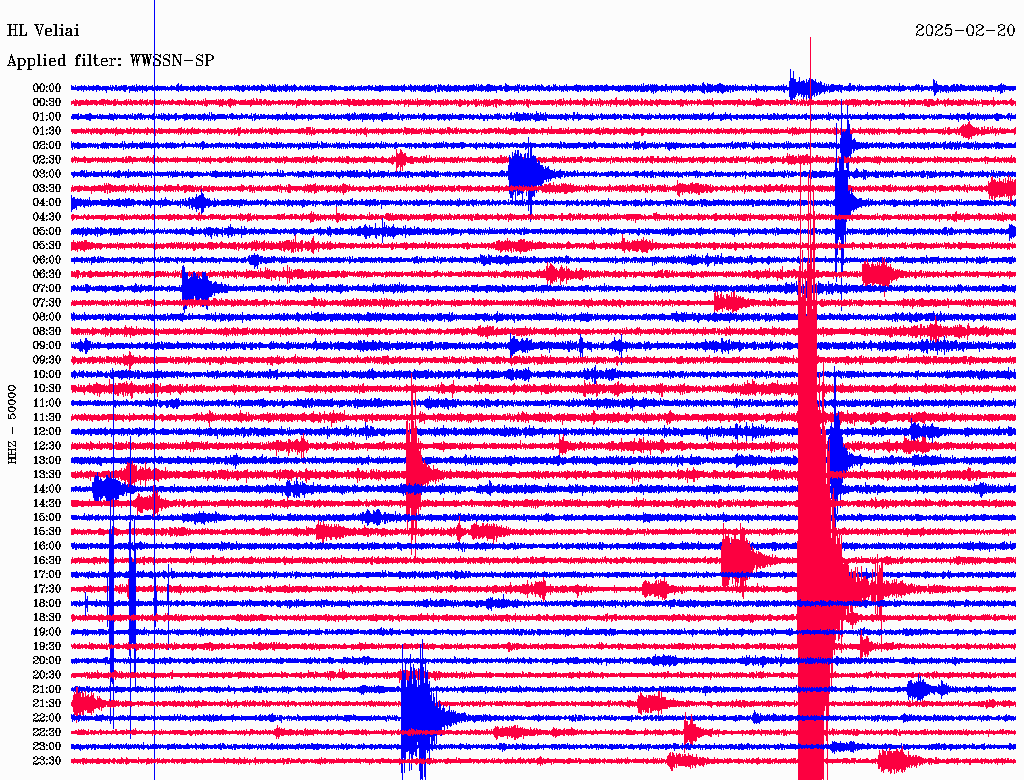

    VLI   HL    1.2  89  P       17:53:03.51  -0.4 M  1.0  VLI
    VLI   HL    1.2  89  S       17:53:21.53   0.2 M  1.0  VLI
    GR30  1Y    1.2  49  P       17:53:04.23   0.2 M  1.0  GR30
    GR30  1Y    1.2  49  S       17:53:21.94   0.3 M  1.0  GR30

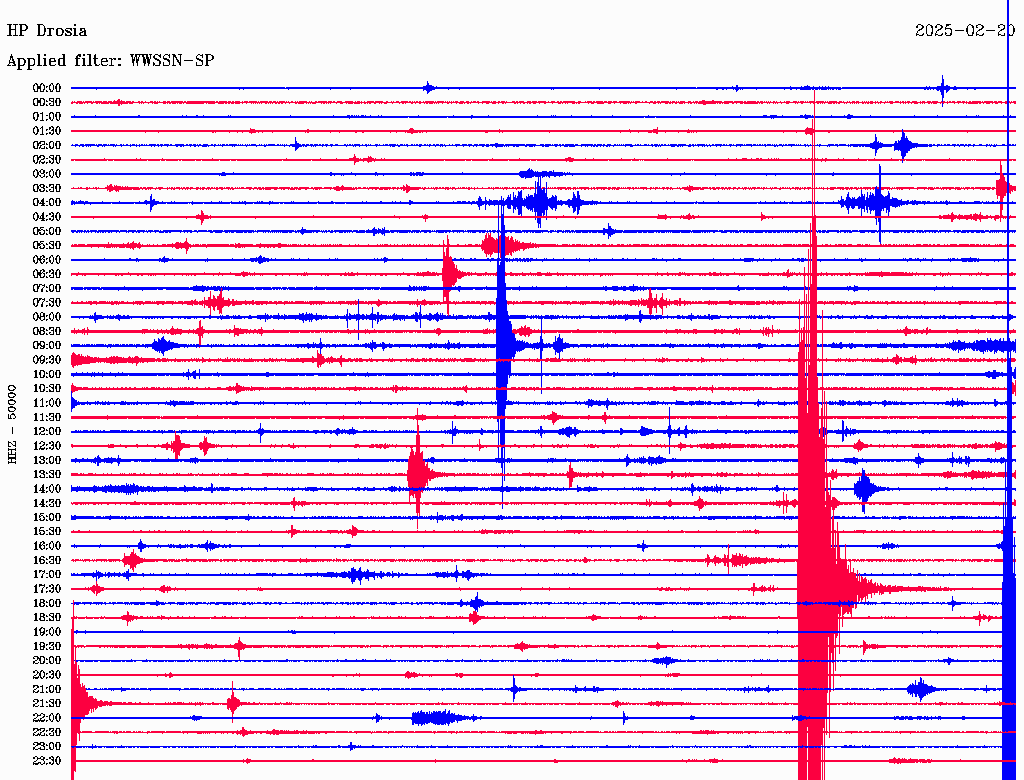

    DRO   HP    1.3  11  P       17:53:03.86  -0.7 M  1.0  DRO
    DRO   HP    1.3  11  S       17:53:23.14   0.5 M  1.0  DRO
    GR32  1Y    1.3  78  P       17:53:04.69  -0.2 M  1.0  GR32
    GR32  1Y    1.3  78  S       17:53:24.06   1.0 M  1.0  GR32

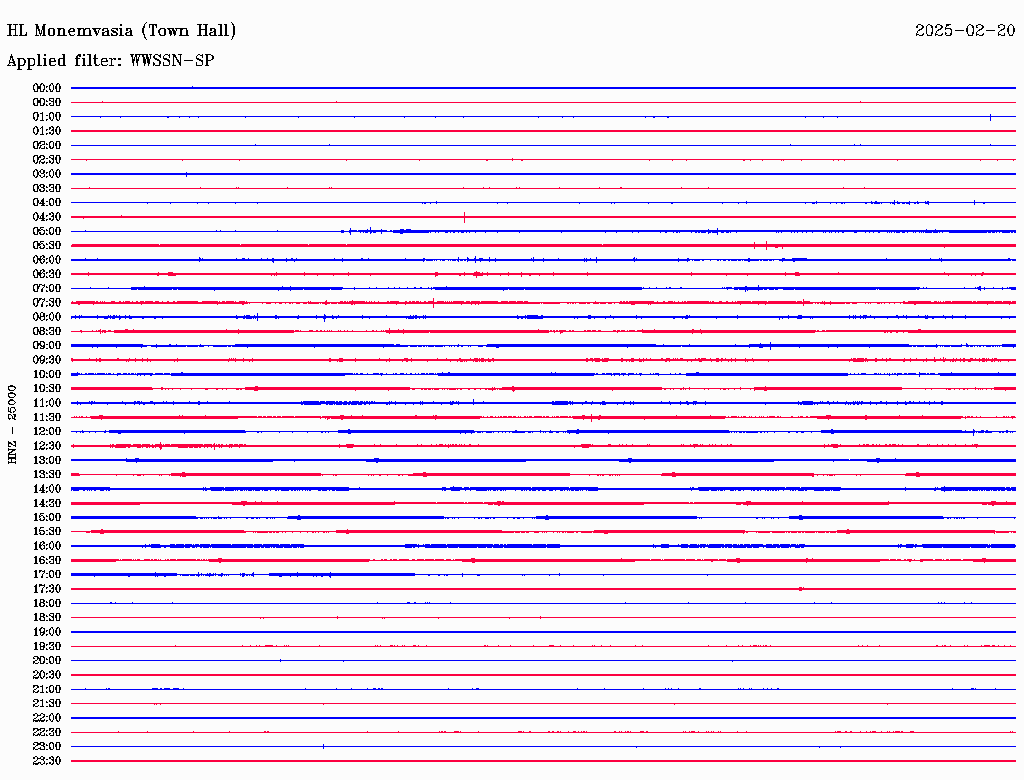

    MNVA  HL    1.3  91  P       17:53:05.53   0.4 M  1.0  MNVA
    MNVA  HL    1.3  91  S       17:53:24.15   0.7 M  1.0  MNVA
    RLS   HL    1.4   2  P       17:53:05.75  -0.2 M  1.0  RLS
    RLS   HL    1.4   2  S       17:53:25.77   0.8 M  1.0  RLS

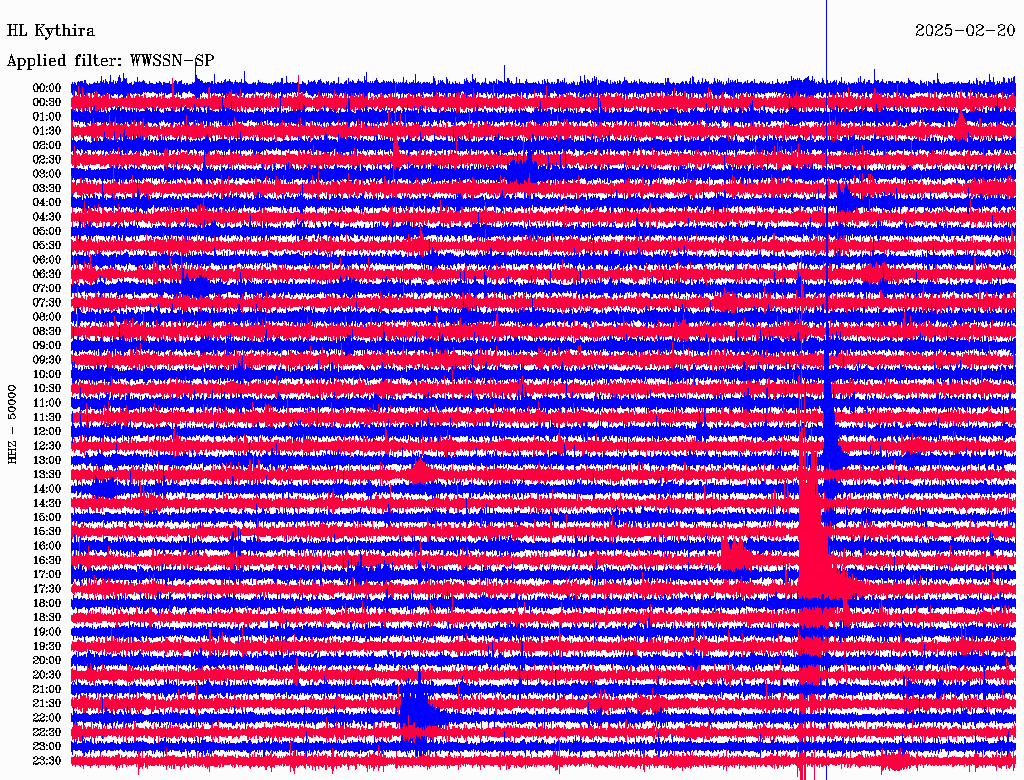

    KTHA  HL    1.4 108  P       17:53:07.22   0.4 M  1.0  KTHA
    KTHA  HL    1.4 108  S       17:53:27.46   1.0 M  1.0  KTHA
    GUR   HP    1.4  31  P       17:53:06.89  -0.7 M  1.0  GUR
    GUR   HP    1.4  31  S       17:53:28.41   0.6 M  1.0  GUR

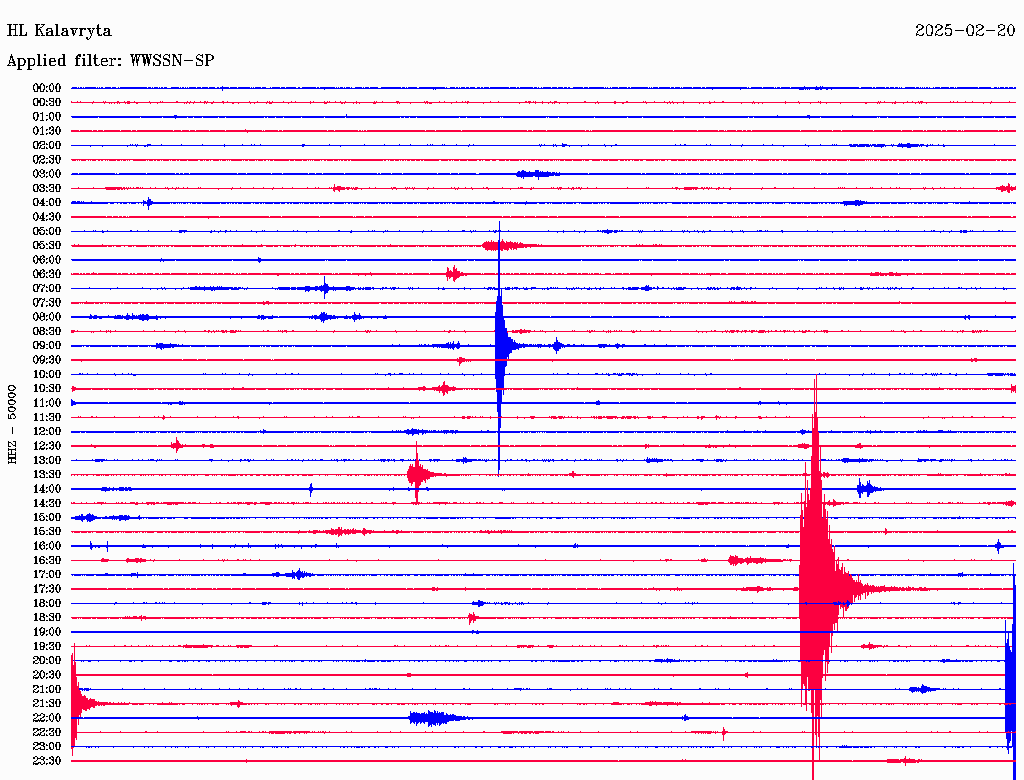

    KLV   HL    1.5  24  P       17:53:07.96   0.0 M  1.0  KLV
    KLV   HL    1.5  24  S       17:53:28.62   0.1 M  1.0  KLV

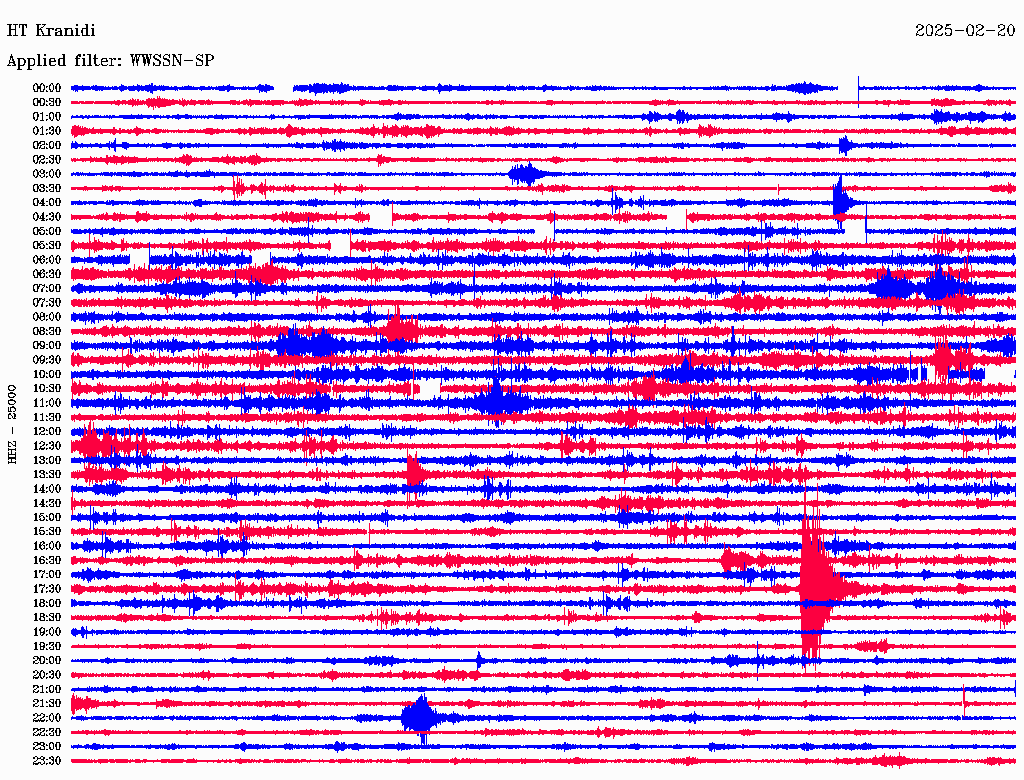

    KRND  HT    1.5  64  P       17:53:08.86  -0.4 M  1.0  KRND
    KRND  HT    1.5  64  S       17:53:30.93   0.1 M  1.0  KRND

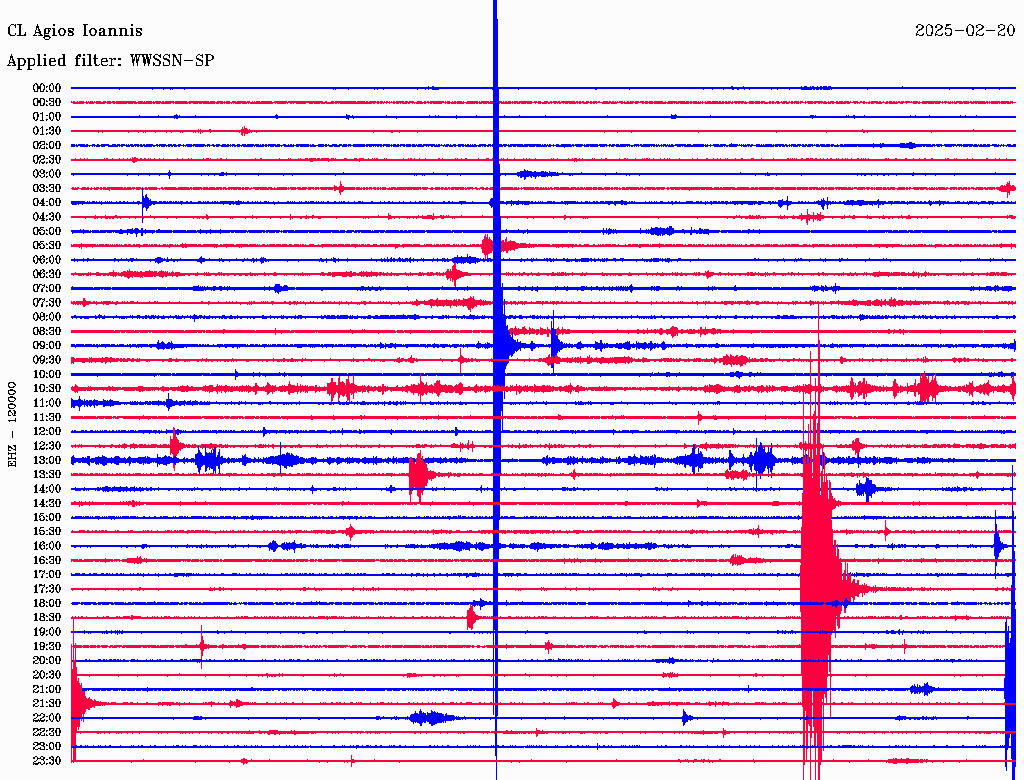

    AIOA  CL    1.6  19  P       17:53:09.71   0.0 M  1.0  AIOA
    AIOA  CL    1.6  19  S       17:53:31.92   0.4 M  1.0  AIOA
    LAKA  HA    1.6  16  P       17:53:10.30   0.2 M  1.0  LAKA
    LAKA  HA    1.6  16  S       17:53:32.43   0.2 M  1.0  LAKA

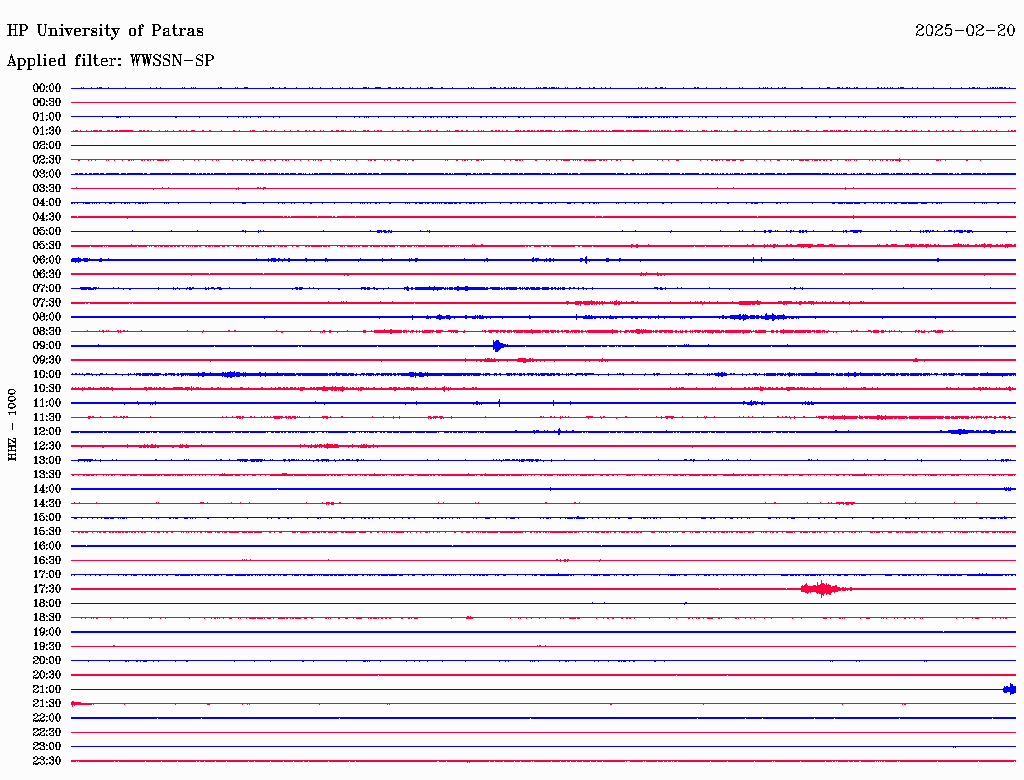

    UPR   HP    1.6  11  P       17:53:10.22   0.1 M  1.0  UPR
    UPR   HP    1.6  11  S       17:53:32.73   0.4 M  1.0  UPR

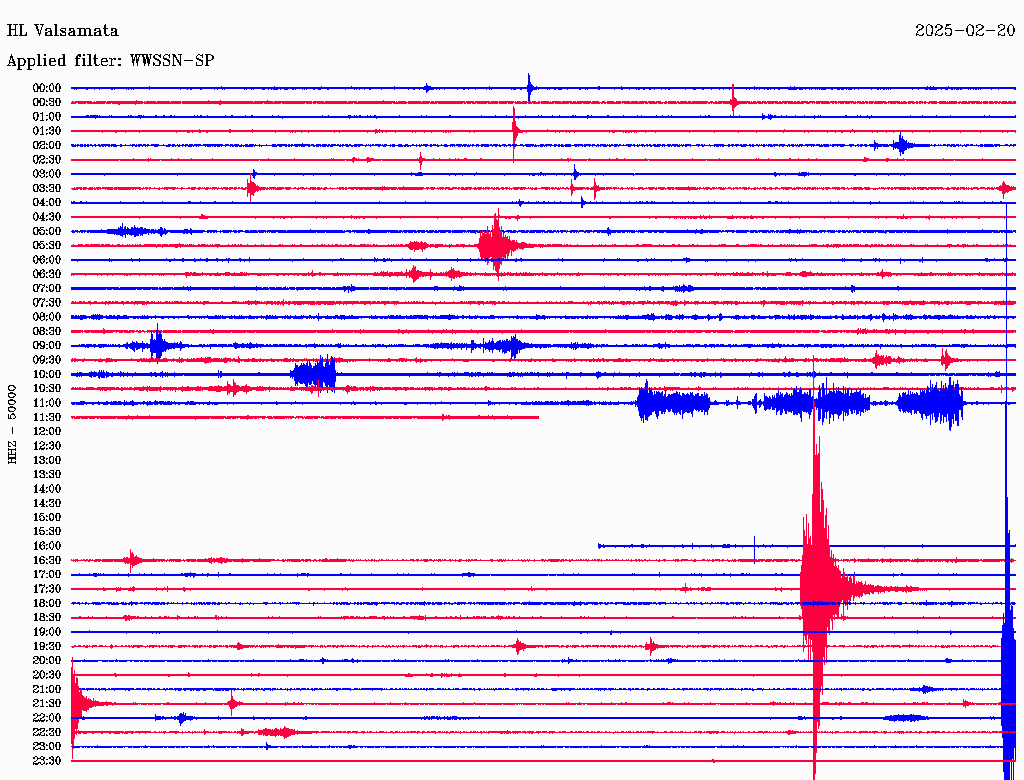

    VLS   HL    1.6 336  P       17:53:09.20  -1.0 M  1.0  VLS
    VLS   HL    1.6 336  S       17:53:32.48  -0.0 M  1.0  VLS

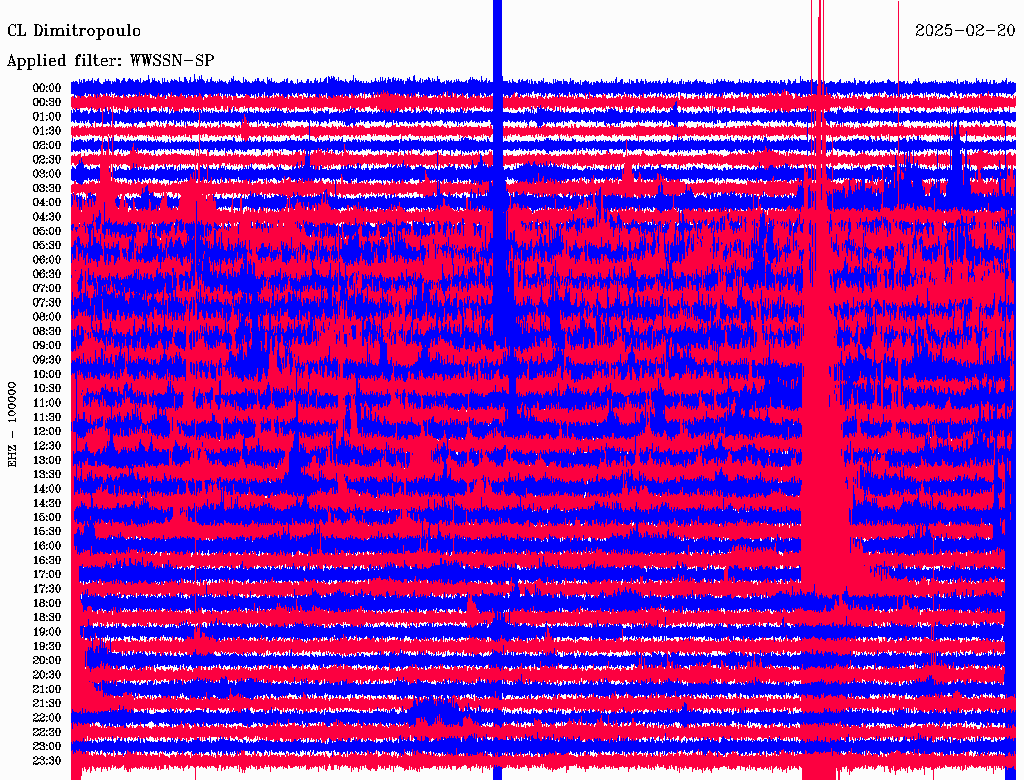

    DIMT  CL    1.6  18  P       17:53:10.92   0.6 M  1.0  DIMT
    DIMT  CL    1.6  18  S       17:53:32.93   0.2 M  1.0  DIMT
    AGEO  CL    1.6  18  P       17:53:11.19   0.6 M  1.0  AGEO
    AGEO  CL    1.6  18  S       17:53:33.55   0.3 M  1.0  AGEO
    ROD3  CL    1.7  13  P       17:53:11.24   0.5 M  1.0  ROD3
    ROD3  CL    1.7  13  S       17:53:33.57   0.1 M  1.0  ROD3

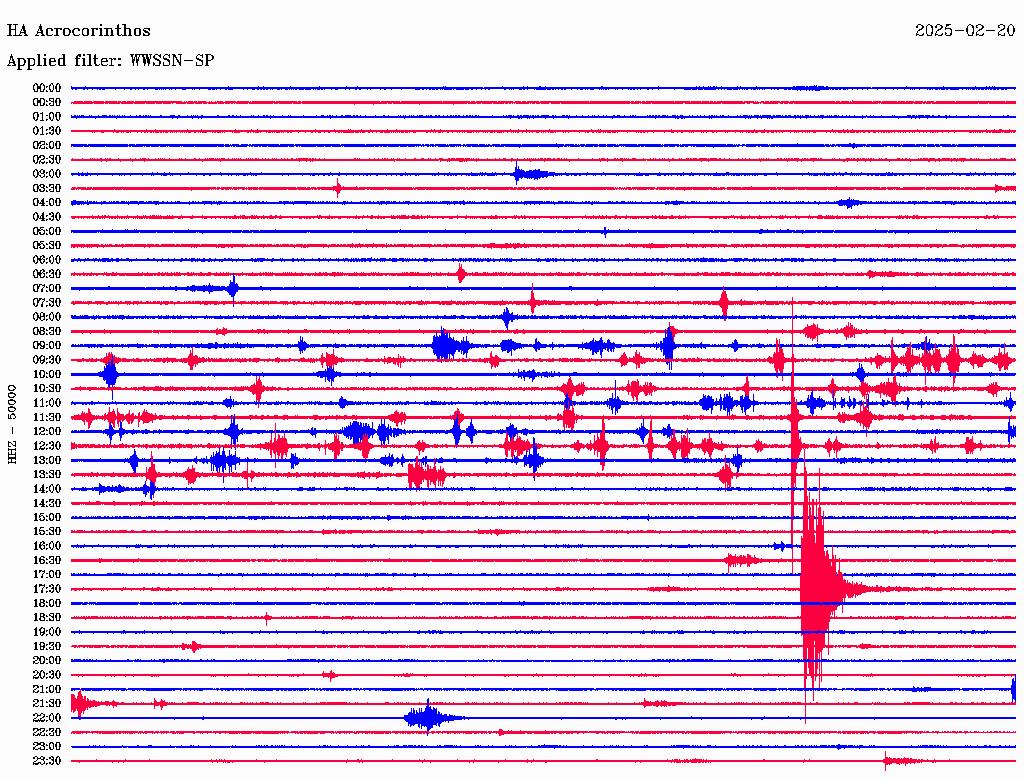

    ACOR  HA    1.7  44  P       17:53:10.29  -0.6 M  1.0  ACOR
    ACOR  HA    1.7  44  S       17:53:33.84   0.1 M  1.0  ACOR

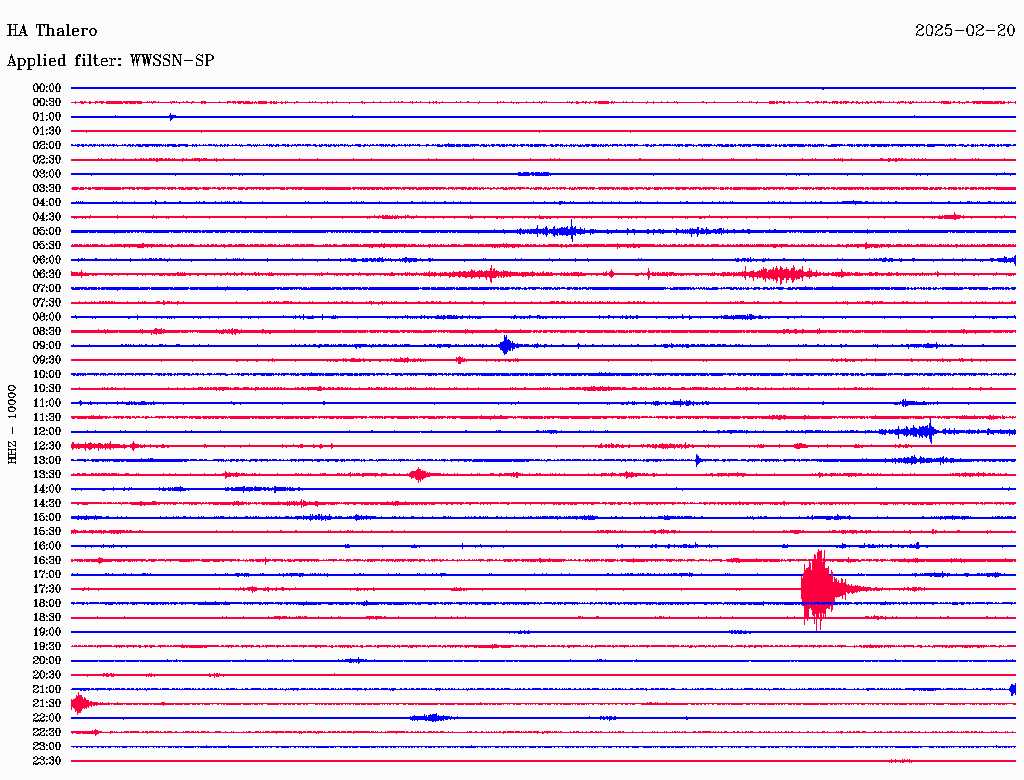

    THAL  HA    1.7  37  P       17:53:10.85  -0.1 M  1.0  THAL
    THAL  HA    1.7  37  S       17:53:33.93   0.2 M  1.0  THAL

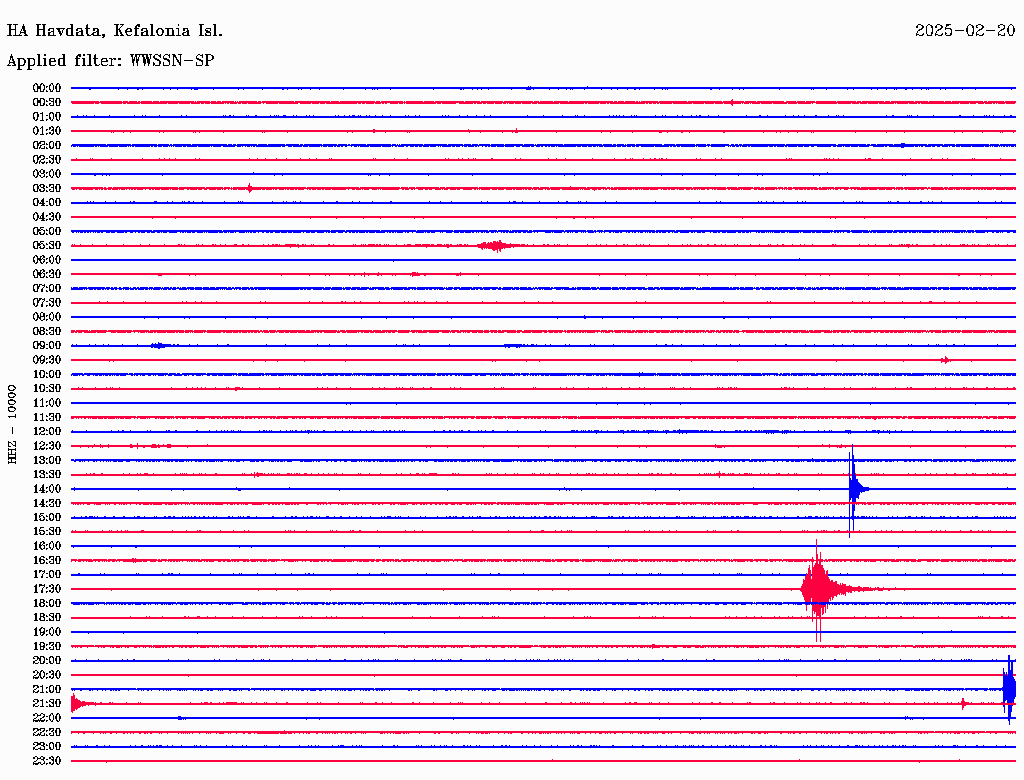

    HAVD  HA    1.7 331  P       17:53:10.63  -0.9 M  1.0  HAVD
    HAVD  HA    1.7 331  S       17:53:35.10   0.2 M  1.0  HAVD

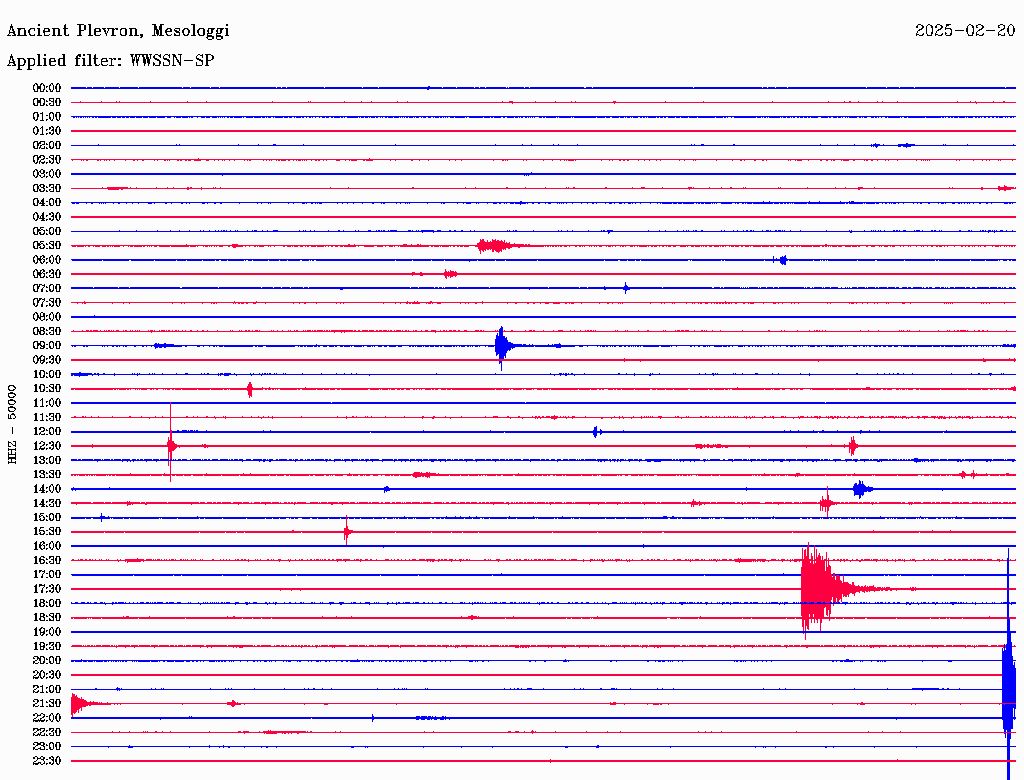

    PLEV  HP    1.7 360  P       17:53:11.97   0.4 M  1.0  PLEV
    PLEV  HP    1.7 360  S       17:53:34.98   0.1 M  1.0  PLEV
    AGRP  CL    1.7   8  P       17:53:11.88   0.3 M  1.0  AGRP
    AGRP  CL    1.7   8  S       17:53:35.07   0.1 M  1.0  AGRP
    PSAM  CL    1.7  21  P       17:53:11.26  -0.6 M  1.0  PSAM
    PSAM  CL    1.7  21  S       17:53:35.59   0.2 M  1.0  PSAM
    PSAR  CL    1.7  20  P       17:53:12.21   0.3 M  1.0  PSAR
    PSAR  CL    1.7  20  S       17:53:35.84   0.3 M  1.0  PSAR
    TRIZ  CL    1.7  17  P       17:53:12.66   0.7 M  1.0  TRIZ
    TRIZ  CL    1.7  17  S       17:53:36.02   0.3 M  1.0  TRIZ

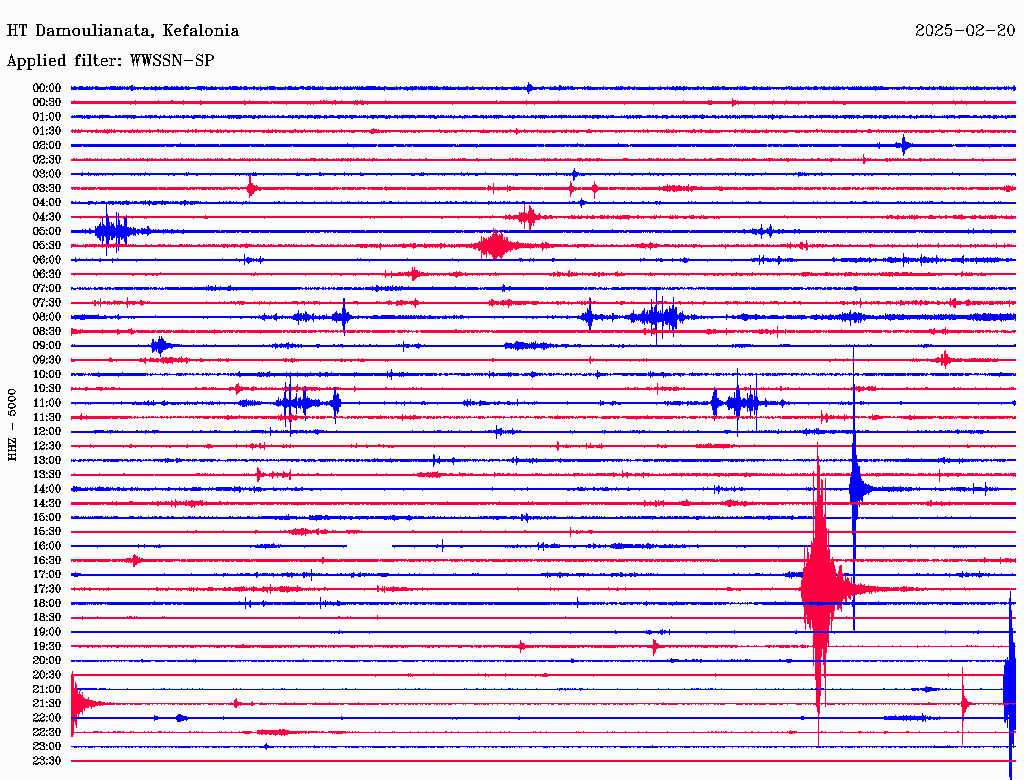

    DMLN  HT    1.7 332  P       17:53:10.85  -1.2 M  1.0  DMLN
    DMLN  HT    1.7 332  S       17:53:35.72  -0.1 M  1.0  DMLN
    VVK   HP    1.7  10  P       17:53:12.81   0.6 M  1.0  VVK
    VVK   HP    1.7  10  S       17:53:36.13   0.2 M  1.0  VVK

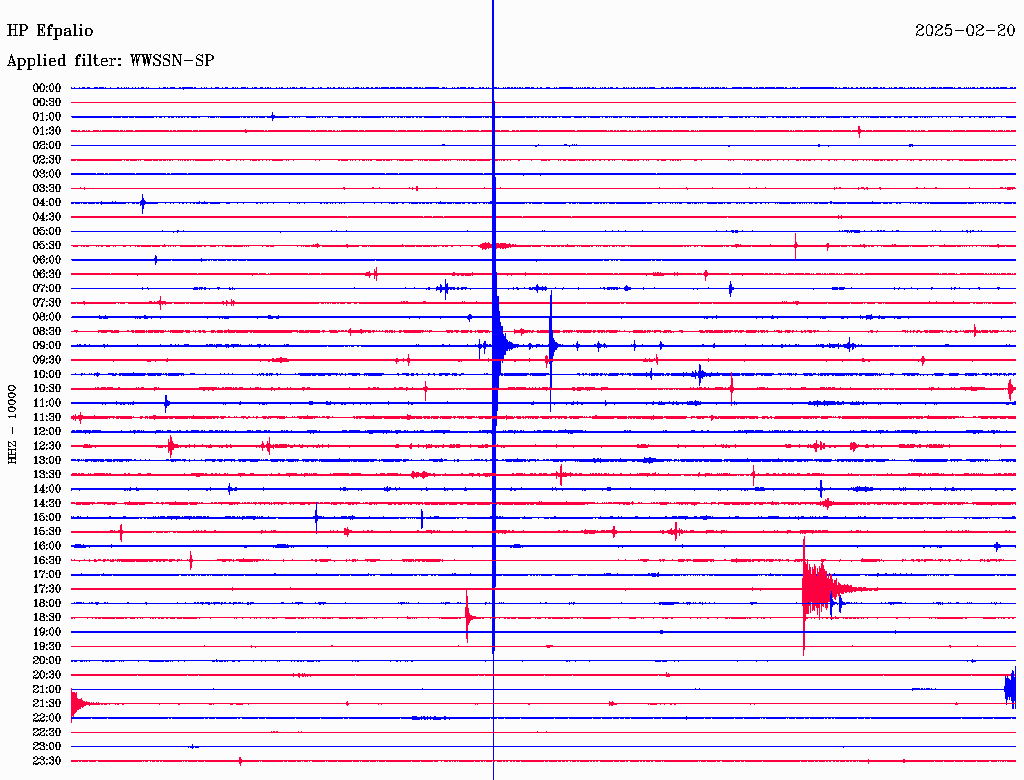

    EFP   HP    1.8  13  P       17:53:13.19   0.8 M  1.0  EFP
    EFP   HP    1.8  13  S       17:53:36.49   0.2 M  1.0  EFP

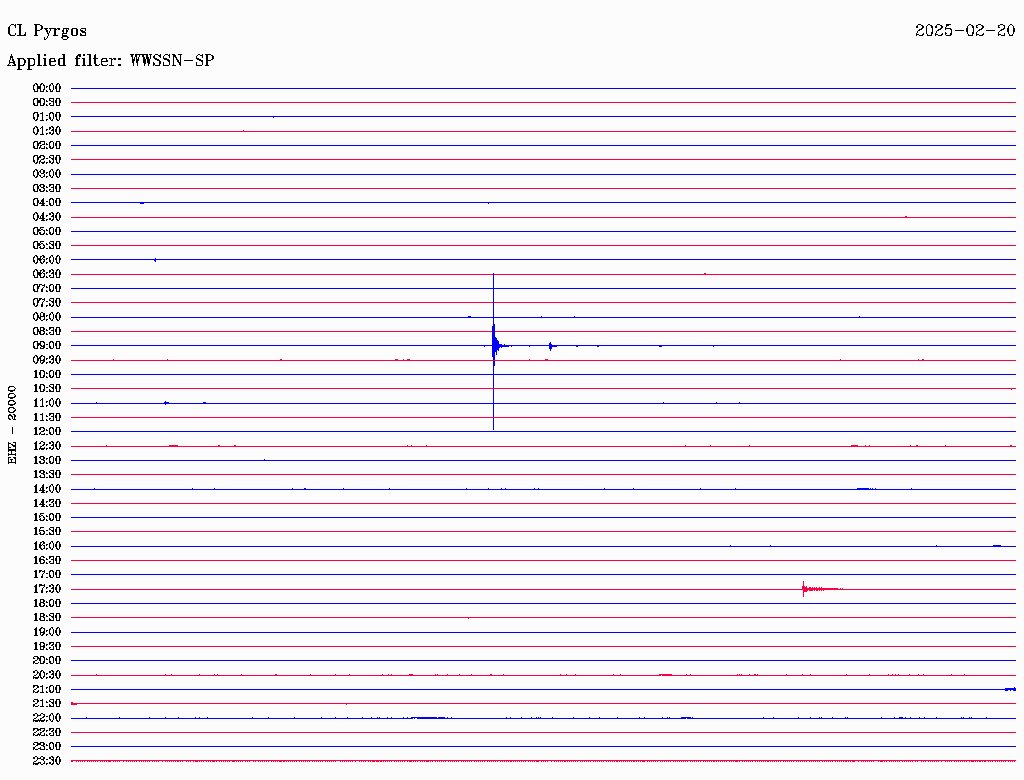

    PYRG  CL    1.8  16  P       17:53:13.78   1.2 M  1.0  PYRG
    PYRG  CL    1.8  16  S       17:53:36.80   0.2 M  1.0  PYRG
    KALE  HA    1.8  19  P       17:53:13.44   0.7 M  1.0  KALE
    KALE  HA    1.8  19  S       17:53:36.94   0.1 M  1.0  KALE
    LOUT  HA    1.8  44  P       17:53:11.98  -0.7 M  1.0  LOUT
    LOUT  HA    1.8  44  S       17:53:37.13   0.3 M  1.0  LOUT
    LTK   HP    1.8  43  P       17:53:12.32  -0.7 M  1.0  LTK
    LTK   HP    1.8  43  S       17:53:37.71   0.3 M  1.0  LTK
    FSK   HP    1.9 339  P       17:53:13.17  -0.8 M  1.0  FSK
    FSK   HP    1.9 339  S       17:53:39.38   0.2 M  1.0  FSK
    PDO   HP    1.9 354  P       17:53:14.66   0.3 M  1.0  PDO
    PDO   HP    1.9 354  S       17:53:39.79   0.0 M  1.0  PDO
    PVO   HP    1.9   3  P       17:53:15.26   0.8 M  1.0  PVO
    PVO   HP    1.9   3  S       17:53:40.16   0.1 M  1.0  PVO

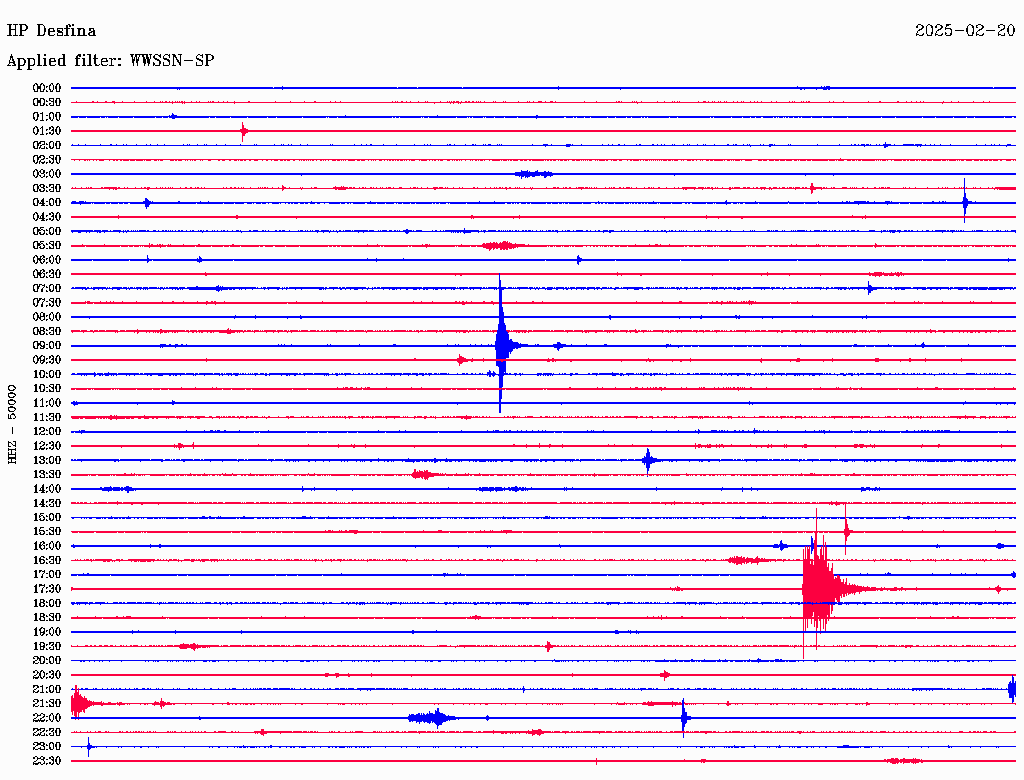

    DSF   HP    1.9  27  P       17:53:14.12  -0.6 M  1.0  DSF
    DSF   HP    1.9  27  S       17:53:40.50   0.1 M  1.0  DSF
    PRDM  HA    1.9  36  P       17:53:13.78  -1.2 M  1.0  PRDM
    PRDM  HA    1.9  36  S       17:53:40.91  -0.0 M  1.0  PRDM

46 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PYL1  HI    0.3  47  MLv     3.59 -0.40    41.8206
    PYL   HP    0.3  53  MLv     3.95 -0.04    34.5375
    ITM   HL    0.6  41  MLv     4.30  0.31     44.256
    STRF  HL    0.6 330  MLv     4.25  0.26    39.3627
    GR33  1Y    0.7  85  MLv     3.87 -0.11    14.5406
    AMT   HP    0.9  16  MLv     4.37  0.39    39.1526
    GR31  1Y    0.9  69  MLv     4.00  0.01    14.9706
    VLX   HP    1.0  49  MLv     3.73 -0.26    7.20342
    LTHK  HP    1.1 335  MLv     4.09  0.10    14.9441
    VLI   HL    1.2  89  MLv     3.74 -0.25    7.31207
    GR30  1Y    1.2  49  MLv     3.93 -0.05    8.81321
    DRO   HP    1.3  11  MLv     3.83 -0.15    13.9733
    GR32  1Y    1.3  78  MLv     3.80 -0.19    6.06964
    MNVA  HL    1.3  91  MLv     3.73 -0.26    5.03608
    RLS   HL    1.4   2  MLv     3.94 -0.05    7.61371
    KTHA  HL    1.4 108  MLv     3.90 -0.09    6.68636
    GUR   HP    1.4  31  MLv     4.14  0.15    10.8384
    KLV   HL    1.5  24  MLv     4.16  0.17    8.32835
    KRND  HT    1.5  64  MLv     3.84 -0.14      4.846
    AIOA  CL    1.6  19  MLv     4.22  0.23    2.83829
    LAKA  HA    1.6  16  MLv     3.97 -0.01    6.05753
    UPR   HP    1.6  11  MLv     3.54 -0.44    25.5784
    VLS   HL    1.6 336  MLv     3.94 -0.05    5.49328
    DIMT  CL    1.6  18  MLv     4.48  0.49    18.6942
    AGEO  CL    1.6  18  MLv     3.83 -0.16    1.18577
    ROD3  CL    1.7  13  MLv     4.05  0.07    10.3745
    ACOR  HA    1.7  44  MLv     4.13  0.14    8.09902
    THAL  HA    1.7  37  MLv     4.32  0.33    22.0958
    HAVD  HA    1.7 331  MLv     4.05  0.06    6.32206
    PLEV  HP    1.7 360  MLv     3.96 -0.03    5.09029
    AGRP  CL    1.7   8  MLv     3.97 -0.02    5.22681
    PSAM  CL    1.7  21  MLv     3.92 -0.07    4.51715
    PSAR  CL    1.7  20  MLv     1.87 -2.12   0.039629
    TRIZ  CL    1.7  17  MLv     3.97 -0.02    4.98298
    DMLN  HT    1.7 332  MLv     4.01  0.02    7.43393
    VVK   HP    1.7  10  MLv     3.29 -0.70    4.87771
    EFP   HP    1.8  13  MLv     3.92 -0.07    4.33083
    PYRG  CL    1.8  16  MLv     3.57 -0.41    1.22018
    KALE  HA    1.8  19  MLv     3.92 -0.07    4.21582
    LOUT  HA    1.8  44  MLv     4.18  0.19    7.67718
    LTK   HP    1.8  43  MLv     3.47 -0.52     5.5652
    FSK   HP    1.9 339  MLv     3.97 -0.02    4.18619
    PDO   HP    1.9 354  MLv     4.08  0.10    5.28882
    PVO   HP    1.9   3  MLv     4.06  0.07    4.97004
    DSF   HP    1.9  27  MLv     3.88 -0.10    3.26912
    PRDM  HA    1.9  36  MLv     4.01  0.02    4.26709
