Earthquake Information
 Origin Time
 2024-10-29 14:49:32 (GMT)
 Magnitude
 M 1.0
 Latitude
 38.4202° N
 Longitude
 21.9633° E
 Focal Depth
 10 km
 # of Arrivals
 16
 Location 21.7 km NNW of Aegion
27.9 km NE of Patras
162.1 km WNW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi

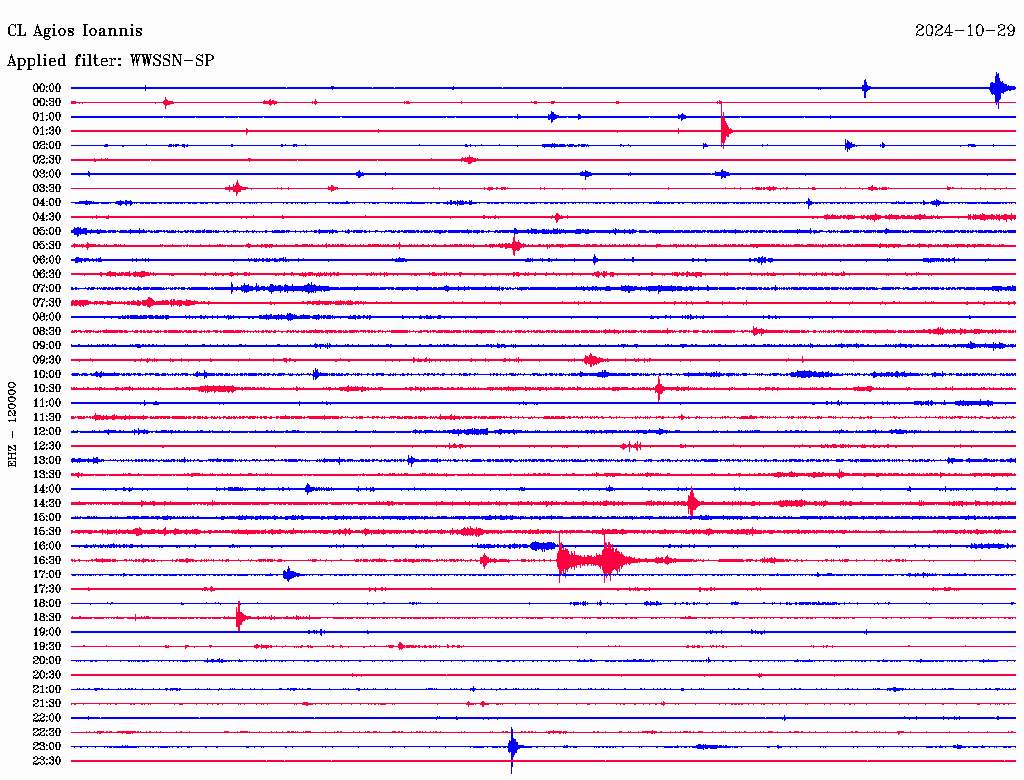

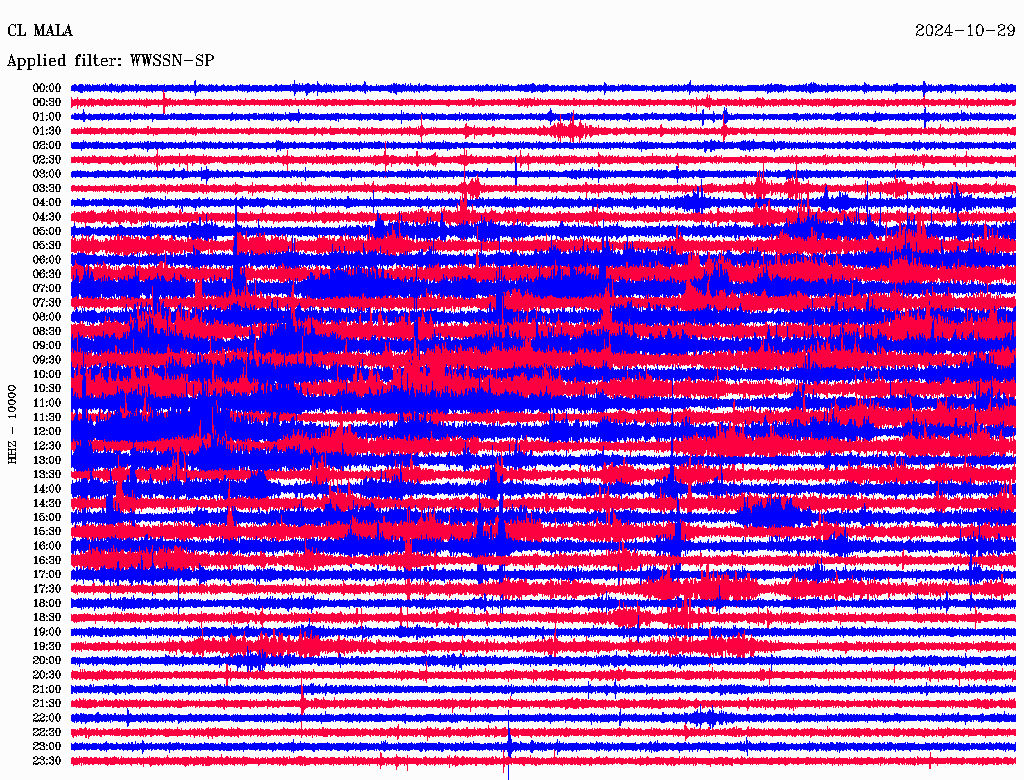

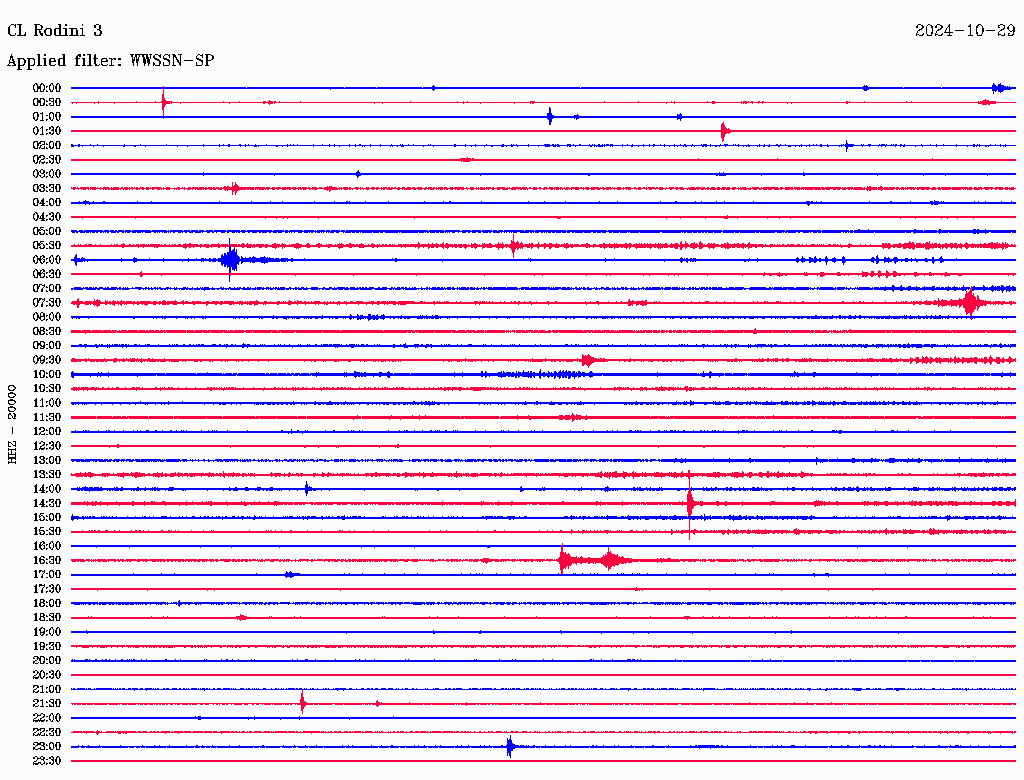

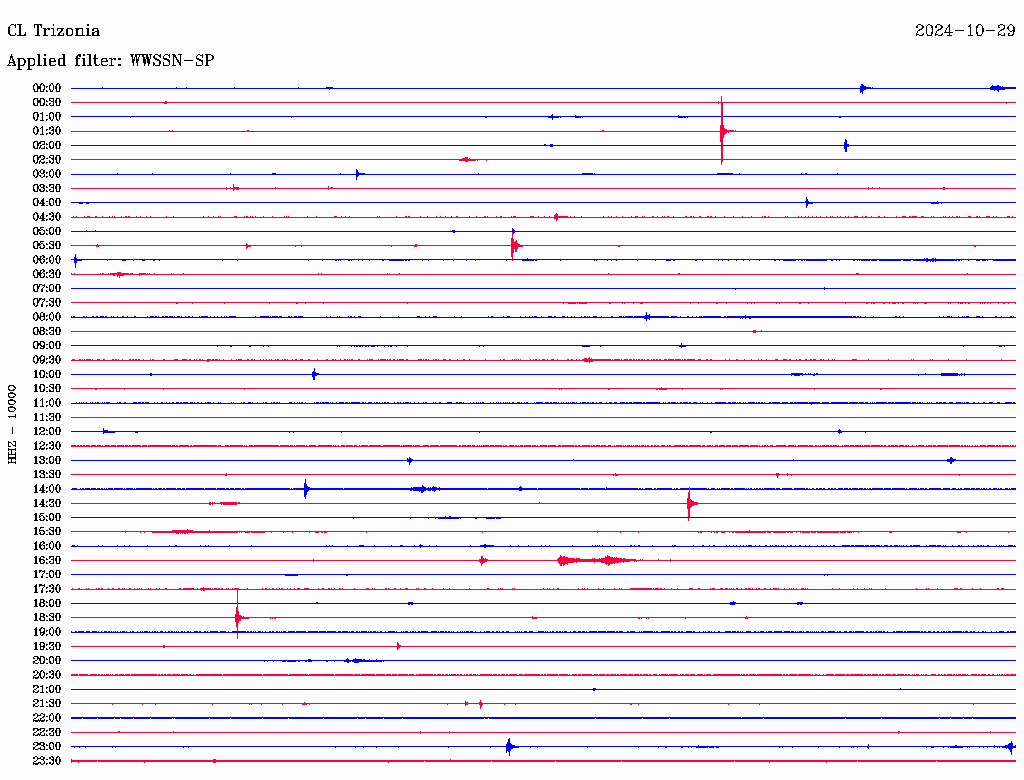

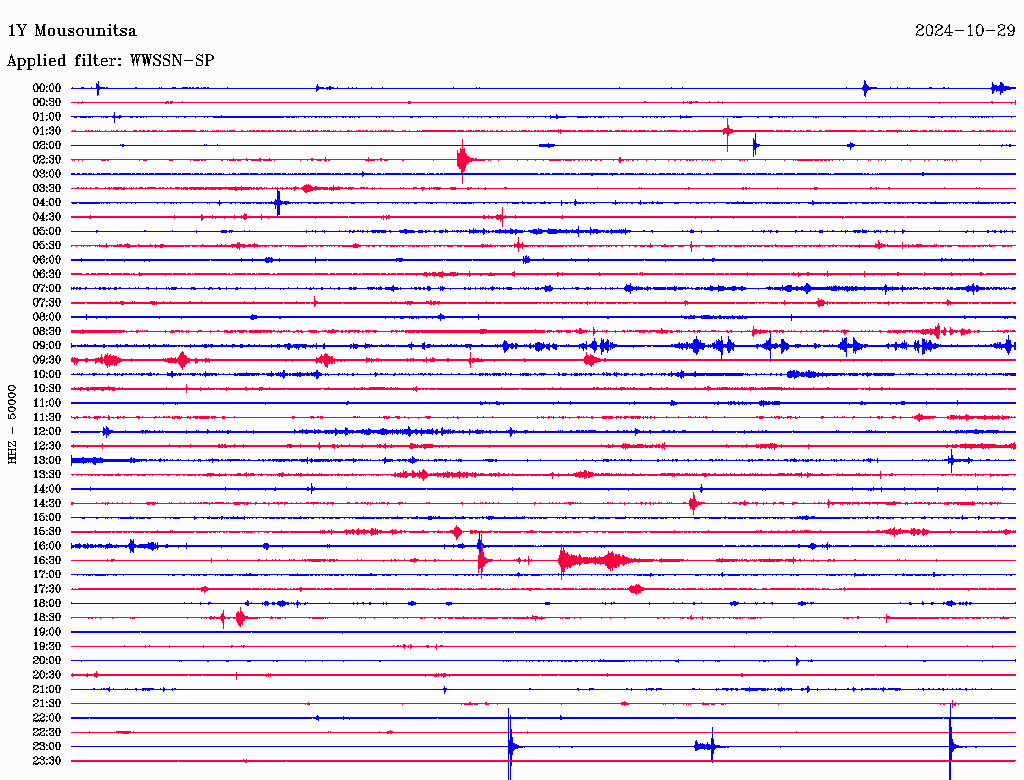

  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
PYRGCL4.8103 P14:49:34.03 0.01.0M
PYRGCL4.8103 S14:49:35.57 0.01.0M
EFPHP5.1278 P14:49:33.94 0.01.0M
EFPHP5.1278 S14:49:35.35 -0.11.0M
MALACL8.4249 P14:49:34.37 0.11.0M
MALACL8.4249 S14:49:36.15 0.11.0M
TRIZCL11.3122 P14:49:34.78 0.21.0M
TRIZCL11.3122 S14:49:36.82 0.11.0M
ROD3CL13.9207 P14:49:35.04 0.01.0M
ROD3CL13.9207 S14:49:37.42 -0.11.0M
LAKAHA20.1176 P14:49:35.93 0.01.0M
LAKAHA20.1176 S14:49:38.85 -0.31.0M
AIOACL26.5162 P14:49:36.88 -0.11.0M
AIOACL26.5162 S14:49:40.34 -0.51.0M
GR241Y36.0 34 P14:49:38.71 0.11.0M
GR241Y36.0 34 S14:49:43.57 -0.11.0M


  Solution details

Event:
    Public ID              nkua2024vgxh
    Description
      region name: Greece
Origin:
    Date                   2024-10-29
    Time                  14:49:31.85
    Latitude              38.4202 deg  +/-      0 km
    Longitude             21.9633 deg  +/-      0 km
    Depth                      10 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.12 s
    Azimuthal gap             116 deg

2 Network magnitudes:
    MLv       1.00 +/- 0.13   6
    M         1.00            6 preferred

16 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PYRG  CL    0.0 103  P       14:49:34.03   0.0 M  1.0  PYRG
    PYRG  CL    0.0 103  S       14:49:35.57  -0.0 M  1.0  PYRG
    EFP   HP    0.0 278  P       14:49:33.94   0.0 M  1.0  EFP
    EFP   HP    0.0 278  S       14:49:35.35  -0.1 M  1.0  EFP
    MALA  CL    0.1 249  P       14:49:34.37   0.1 M  1.0  MALA
    MALA  CL    0.1 249  S       14:49:36.15   0.1 M  1.0  MALA
    TRIZ  CL    0.1 122  P       14:49:34.78   0.2 M  1.0  TRIZ
    TRIZ  CL    0.1 122  S       14:49:36.82   0.1 M  1.0  TRIZ
    ROD3  CL    0.1 207  P       14:49:35.04   0.0 M  1.0  ROD3
    ROD3  CL    0.1 207  S       14:49:37.42  -0.1 M  1.0  ROD3
    LAKA  HA    0.2 176  P       14:49:35.93  -0.0 M  1.0  LAKA
    LAKA  HA    0.2 176  S       14:49:38.85  -0.3 M  1.0  LAKA
    AIOA  CL    0.2 162  P       14:49:36.88  -0.1 M  1.0  AIOA
    AIOA  CL    0.2 162  S       14:49:40.34  -0.5 M  1.0  AIOA
    GR24  1Y    0.3  34  P       14:49:38.71   0.1 M  1.0  GR24
    GR24  1Y    0.3  34  S       14:49:43.57  -0.1 M  1.0  GR24

8 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PYRG  CL    0.0 103  MLv     0.98 -0.02   0.365973
    EFP   HP    0.0 278  MLv     1.07  0.07   0.698131
    MALA  CL    0.1 249  MLv     1.49  0.49    1.17681
    TRIZ  CL    0.1 122  MLv     0.83 -0.16   0.283151
    ROD3  CL    0.1 207  MLv     1.03  0.04   0.583246
    LAKA  HA    0.2 176  MLv     0.44 -0.56   0.0681769
    AIOA  CL    0.2 162  MLv     1.20  0.20   0.0698637
    GR24  1Y    0.3  34  MLv     0.87 -0.13   0.0747815
