Earthquake Information
 Origin Time
 2024-10-02 02:36:22 (GMT)
 Magnitude
 M 1.7
 Latitude
 39.7278° N
 Longitude
 20.6007° E
 Focal Depth
 3 km
 # of Arrivals
 24
 Location 22.4 km WNW of Ioannina
38.0 km NE of Igoumenitsa
333.4 km NW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR141Y19.2354 P02:36:26.09 0.51.0M
GR141Y19.2354 S02:36:28.43 -0.31.0M

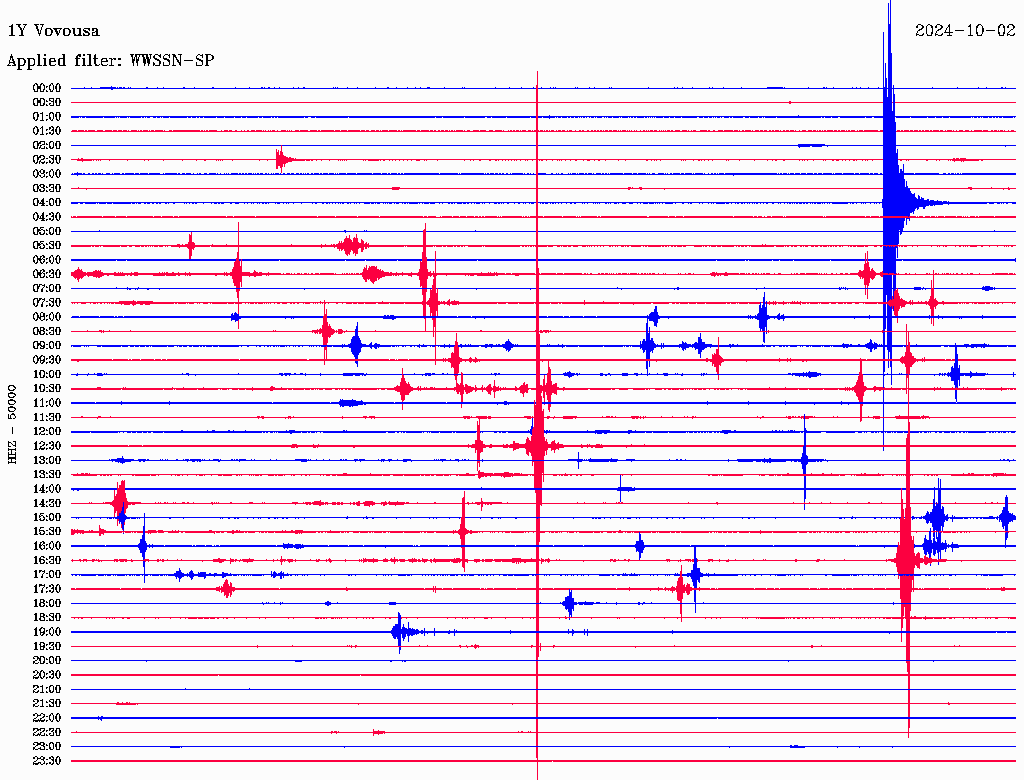

GR151Y44.9 58 P02:36:29.69 -0.51.0M
GR151Y44.9 58 S02:36:36.59 -0.11.0M
PRMDHP47.8117 P02:36:30.19 -0.51.0M
PRMDHP47.8117 S02:36:37.28 -0.21.0M

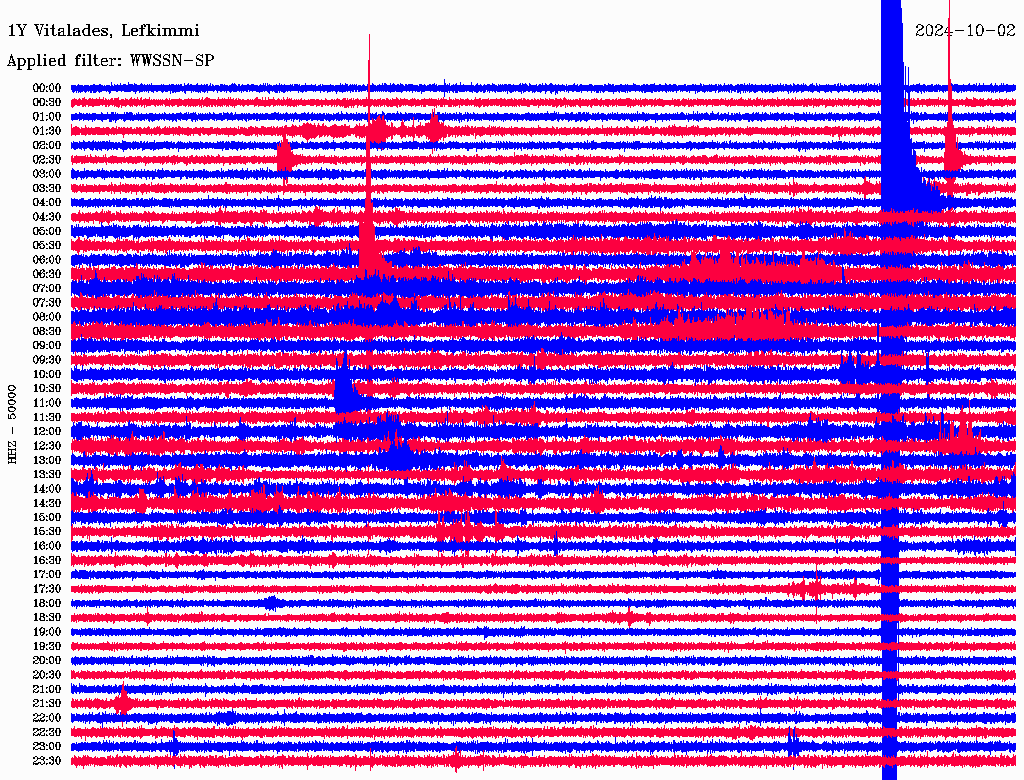

GR19B1Y61.6234 P02:36:32.92 0.11.0M
GR19B1Y61.6234 S02:36:41.13 -0.21.0M

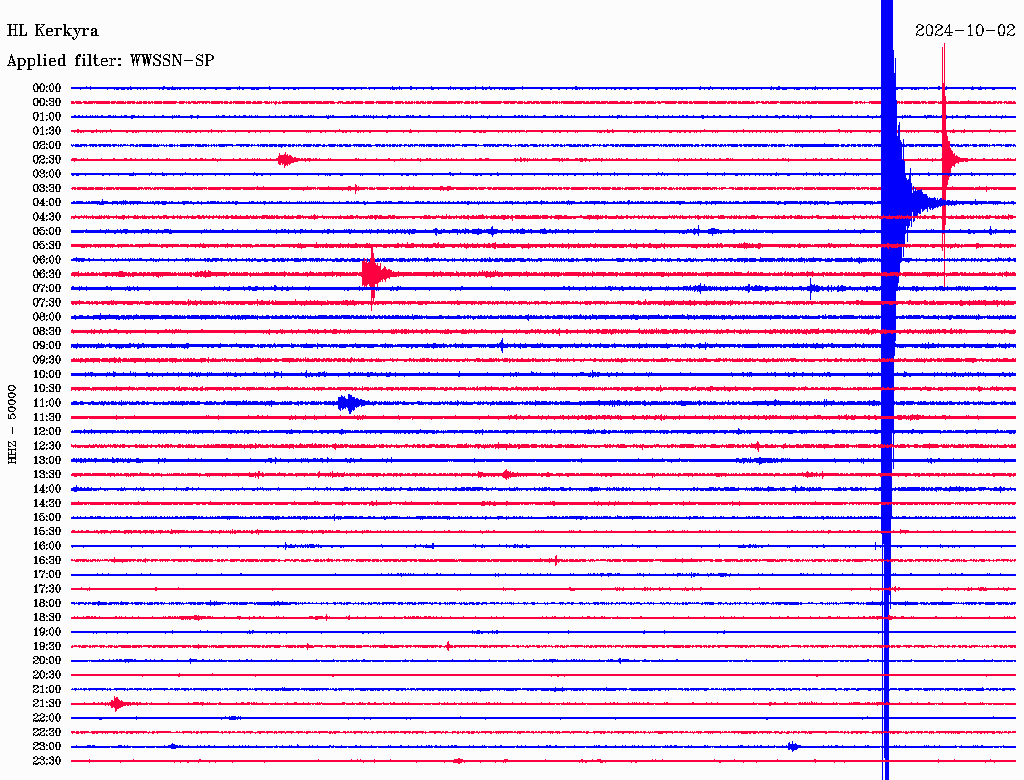

KEKHL68.8269 P02:36:33.61 -0.41.0M
KEKHL68.8269 S02:36:43.61 0.21.0M

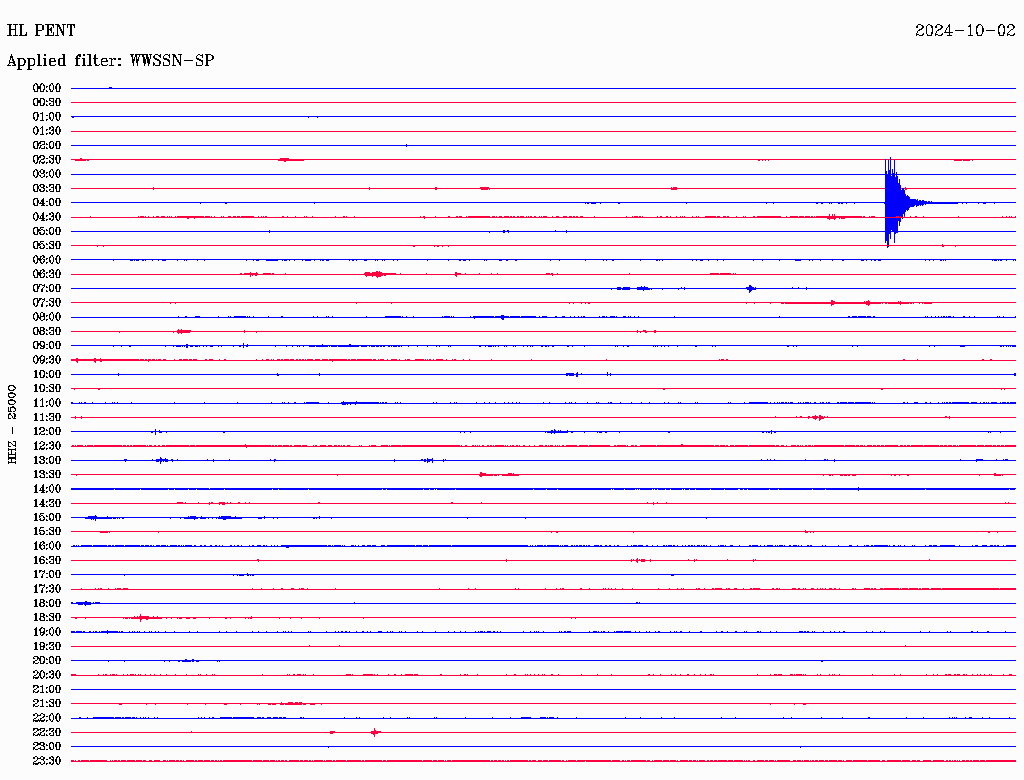

PENTHL69.3 41 P02:36:34.41 0.21.0M
PENTHL69.3 41 S02:36:43.80 0.11.0M

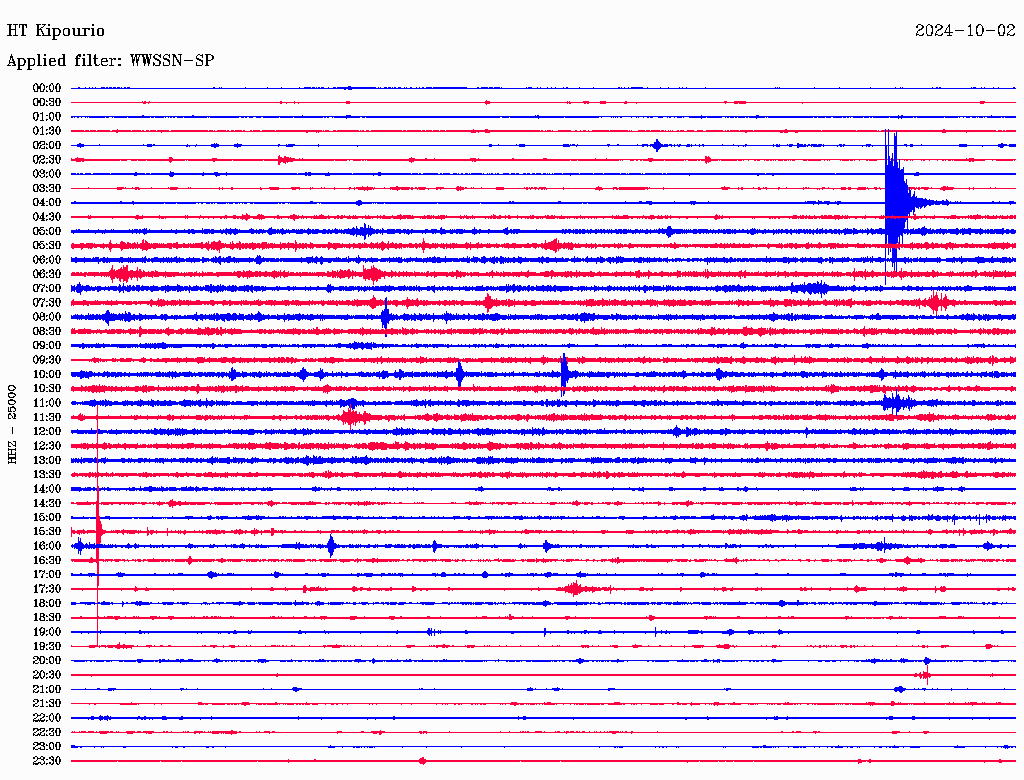

KPROHT69.8 69 P02:36:33.84 -0.41.0M
KPROHT69.8 69 S02:36:44.18 0.31.0M

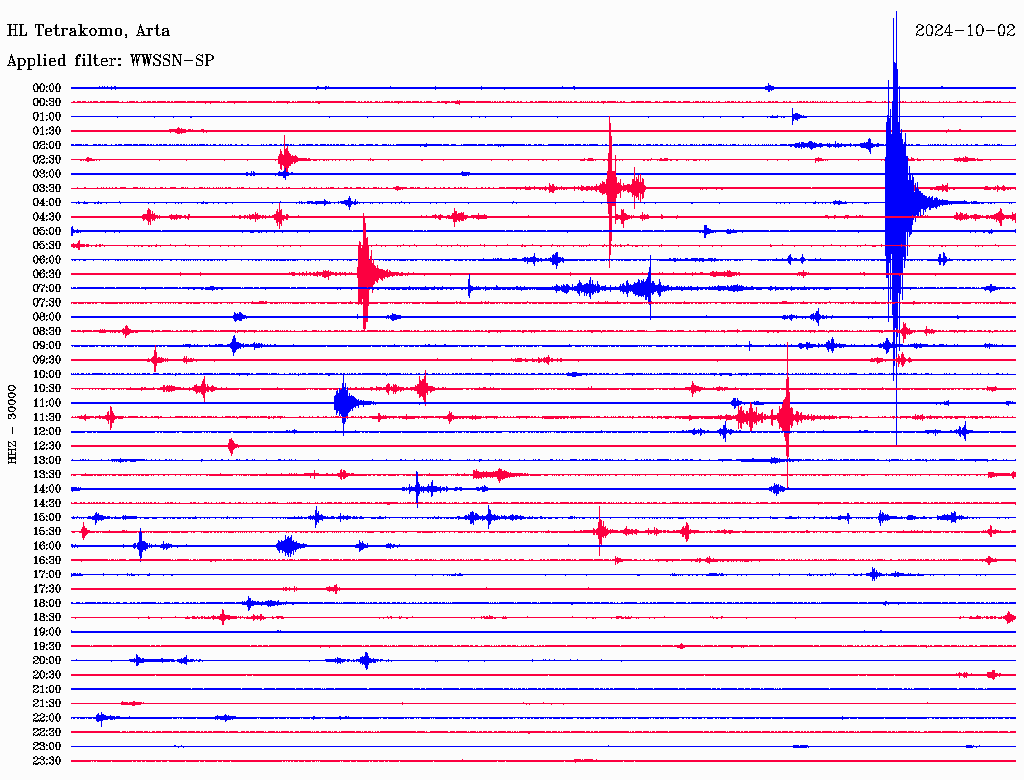

TETRHL71.8126 P02:36:33.79 -0.81.0M
TETRHL71.8126 S02:36:43.32 -1.11.0M

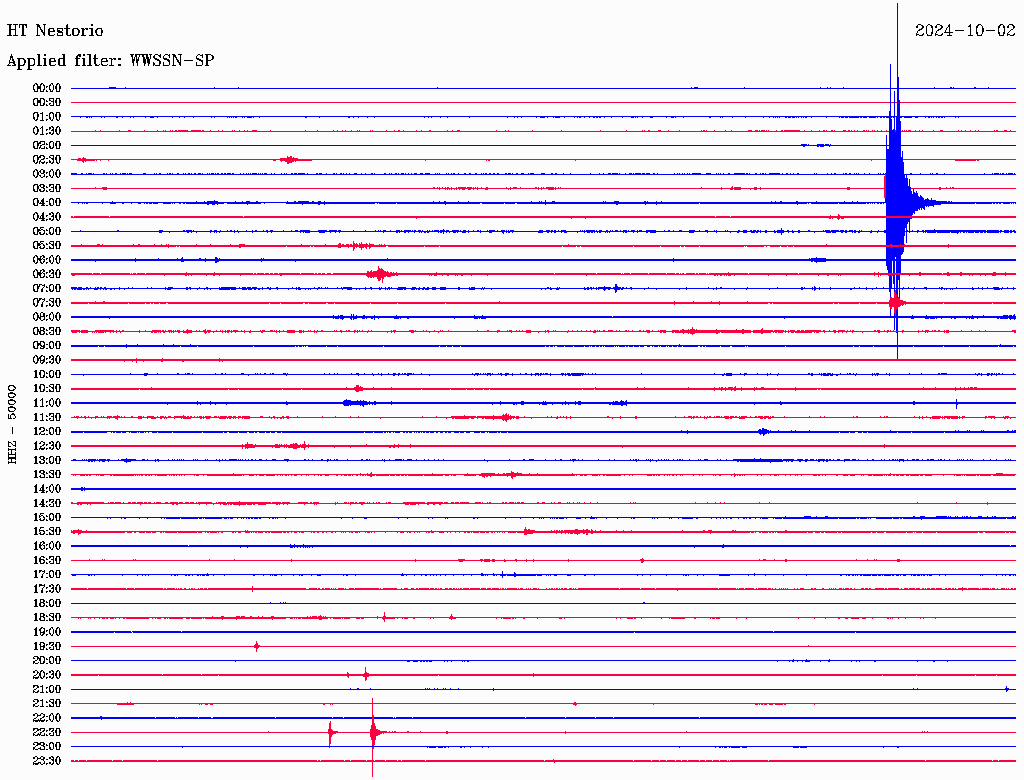

NESTHT85.4 27 P02:36:37.61 0.81.0M
NESTHT85.4 27 S02:36:48.12 -0.21.0M

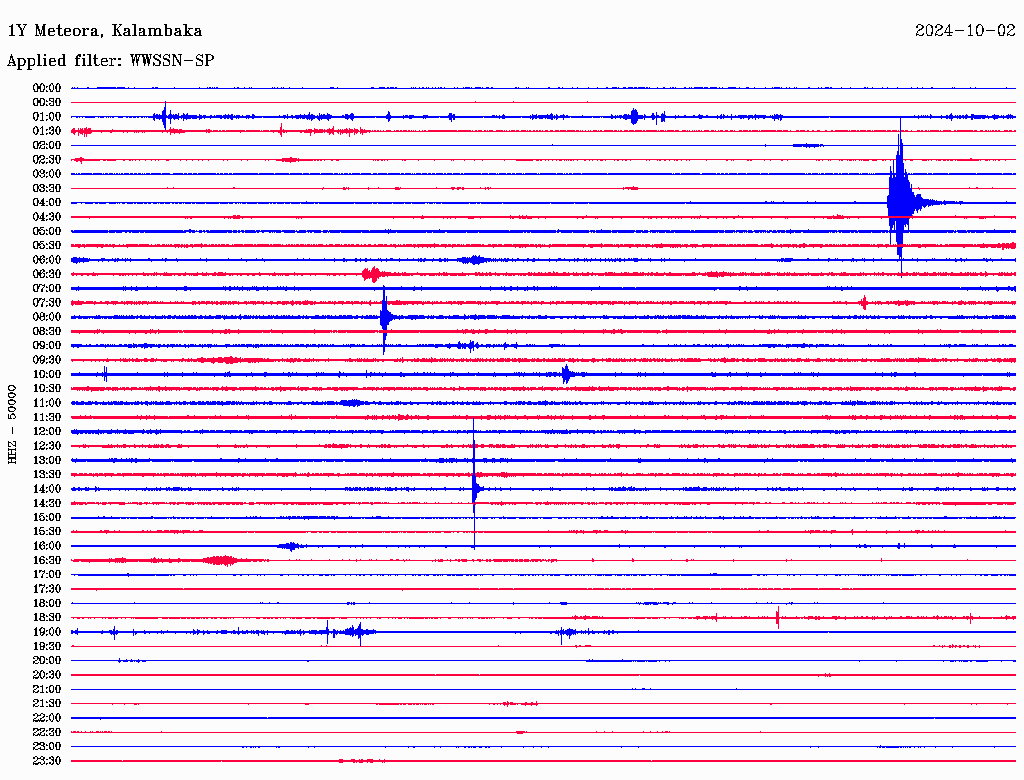

GR171Y88.1 90 P02:36:37.61 0.41.0M
GR171Y88.1 90 S02:36:48.67 -0.41.0M

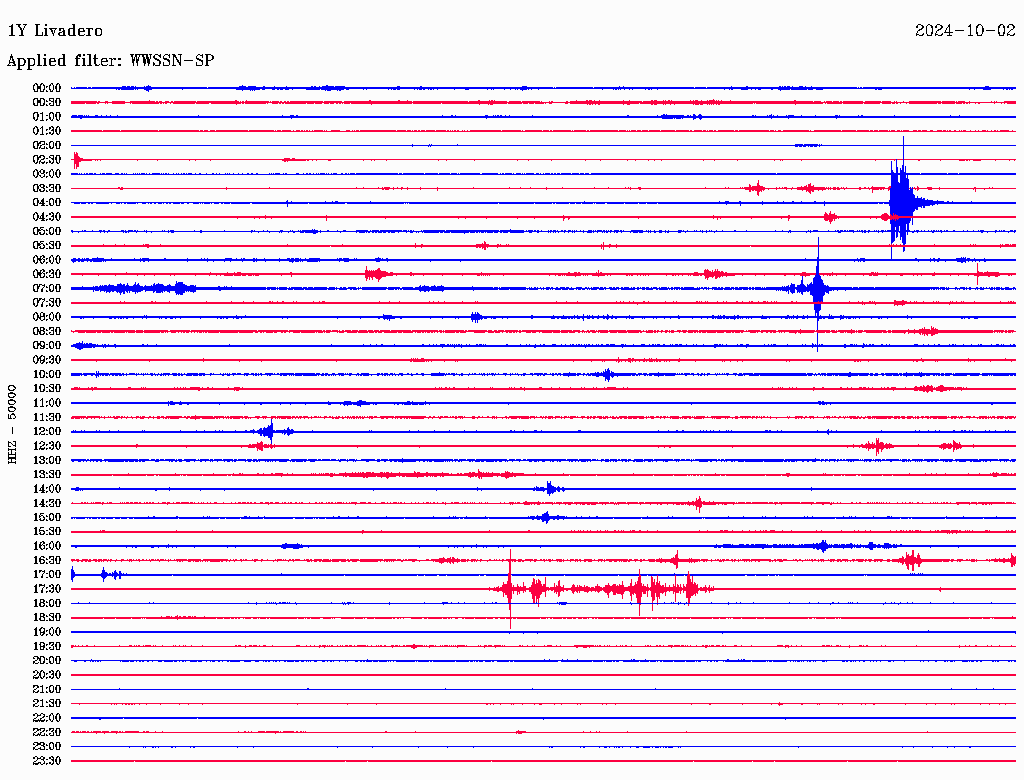

GR161Y119.3 73 P02:36:42.47 0.21.0M
GR161Y119.3 73 S02:36:58.07 0.11.0M

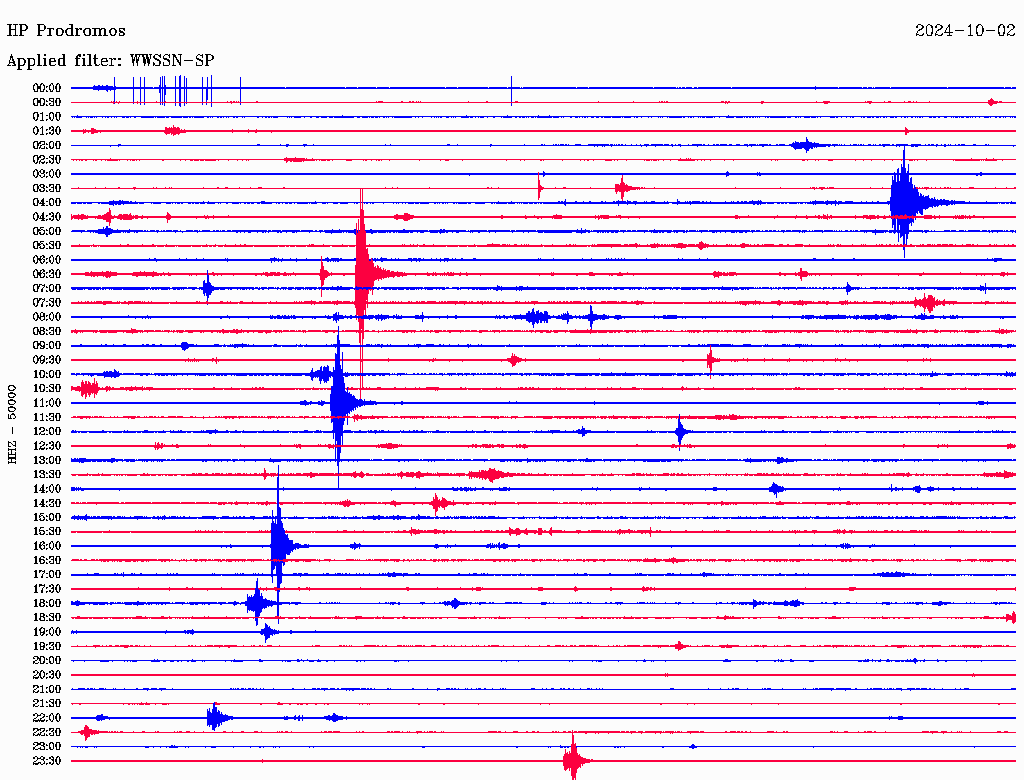

PDOHP135.2158 P02:36:44.67 0.11.0M
PDOHP135.2158 S02:37:02.11 0.11.0M


  Solution details

Event:
    Public ID              nkua2024tiqn
    Description
      region name: Greece-Albania Border Region
Origin:
    Date                   2024-10-02
    Time                  02:36:21.64
    Latitude              39.7278 deg  +/-      0 km
    Longitude             20.6007 deg  +/-      0 km
    Depth                       3 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.29 s
    Azimuthal gap              86 deg

2 Network magnitudes:
    MLv       1.66 +/- 0.19  10
    M         1.66           10 preferred

24 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR14  1Y    0.2 354  P       02:36:26.09   0.5 M  1.0  GR14
    GR14  1Y    0.2 354  S       02:36:28.43  -0.3 M  1.0  GR14
    GR15  1Y    0.4  58  P       02:36:29.69  -0.5 M  1.0  GR15
    GR15  1Y    0.4  58  S       02:36:36.59  -0.1 M  1.0  GR15
    PRMD  HP    0.4 117  P       02:36:30.19  -0.5 M  1.0  PRMD
    PRMD  HP    0.4 117  S       02:36:37.28  -0.2 M  1.0  PRMD
    GR19B 1Y    0.6 234  P       02:36:32.92   0.1 M  1.0  GR19B
    GR19B 1Y    0.6 234  S       02:36:41.13  -0.2 M  1.0  GR19B
    KEK   HL    0.6 269  P       02:36:33.61  -0.4 M  1.0  KEK
    KEK   HL    0.6 269  S       02:36:43.61   0.2 M  1.0  KEK
    PENT  HL    0.6  41  P       02:36:34.41   0.2 M  1.0  PENT
    PENT  HL    0.6  41  S       02:36:43.80   0.1 M  1.0  PENT
    KPRO  HT    0.6  69  P       02:36:33.84  -0.4 M  1.0  KPRO
    KPRO  HT    0.6  69  S       02:36:44.18   0.3 M  1.0  KPRO
    TETR  HL    0.6 126  P       02:36:33.79  -0.8 M  1.0  TETR
    TETR  HL    0.6 126  S       02:36:43.32  -1.1 M  1.0  TETR
    NEST  HT    0.8  27  P       02:36:37.61   0.8 M  1.0  NEST
    NEST  HT    0.8  27  S       02:36:48.12  -0.2 M  1.0  NEST
    GR17  1Y    0.8  90  P       02:36:37.61   0.4 M  1.0  GR17
    GR17  1Y    0.8  90  S       02:36:48.67  -0.4 M  1.0  GR17
    GR16  1Y    1.1  73  P       02:36:42.47   0.2 M  1.0  GR16
    GR16  1Y    1.1  73  S       02:36:58.07   0.1 M  1.0  GR16
    PDO   HP    1.2 158  P       02:36:44.67   0.1 M  1.0  PDO
    PDO   HP    1.2 158  S       02:37:02.11   0.1 M  1.0  PDO

12 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR14  1Y    0.2 354  MLv     1.40 -0.26   0.657052
    GR15  1Y    0.4  58  MLv     1.41 -0.25   0.155888
    PRMD  HP    0.4 117  MLv     2.01  0.35   0.514855
    GR19B 1Y    0.6 234  MLv     2.37  0.71   0.581275
    KEK   HL    0.6 269  MLv     1.58 -0.08    0.16366
    PENT  HL    0.6  41  MLv     1.57 -0.09   0.0647949
    KPRO  HT    0.6  69  MLv     1.56 -0.10   0.0813687
    TETR  HL    0.6 126  MLv     2.00  0.34   0.217969
    NEST  HT    0.8  27  MLv     1.58 -0.08   0.072006
    GR17  1Y    0.8  90  MLv     1.58 -0.08   0.0690506
    GR16  1Y    1.1  73  MLv     1.55 -0.11   0.0447299
    PDO   HP    1.2 158  MLv     1.81  0.15   0.0687725
