Earthquake Information
 Origin Time
 2024-09-30 04:43:11 (GMT)
 Magnitude
 M 1.6
 Latitude
 38.4380° N
 Longitude
 22.3576° E
 Focal Depth
 10 km
 # of Arrivals
 20
 Location 9.8 km S of Amfissa
32.0 km NE of Aegion
130.4 km WNW of Athens
 Solution type
 automatic
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

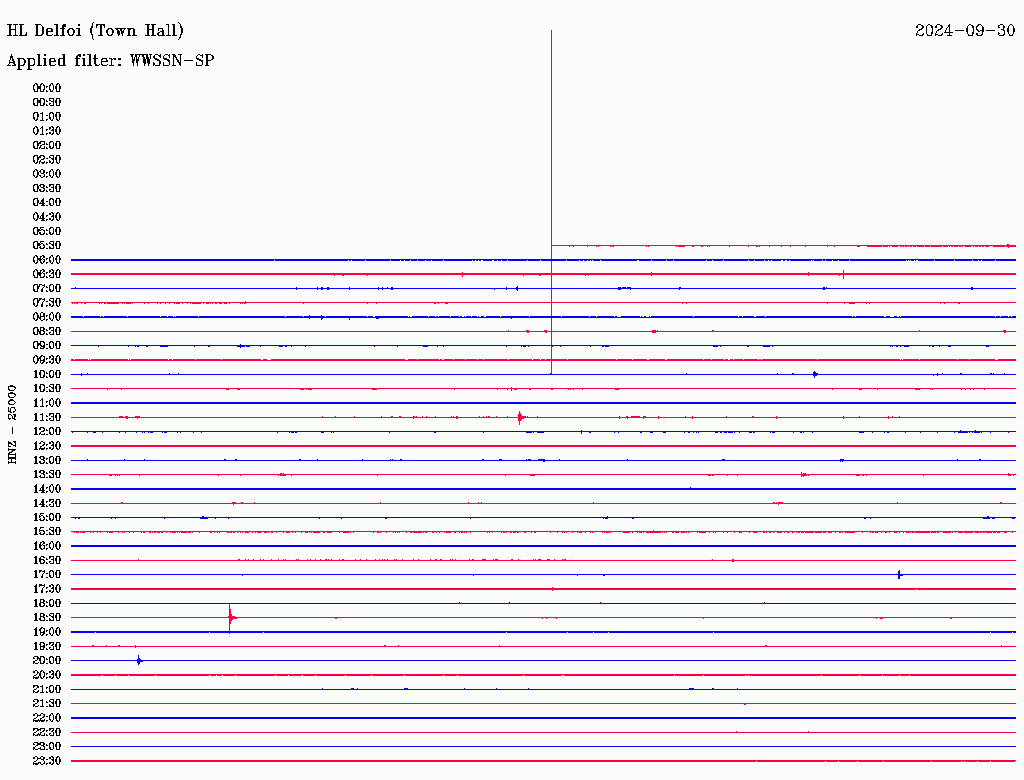

DLFAHL12.8 70 P04:43:13.89 -1.21.0A
DSFHP15.1101 P04:43:14.32 -1.11.0A

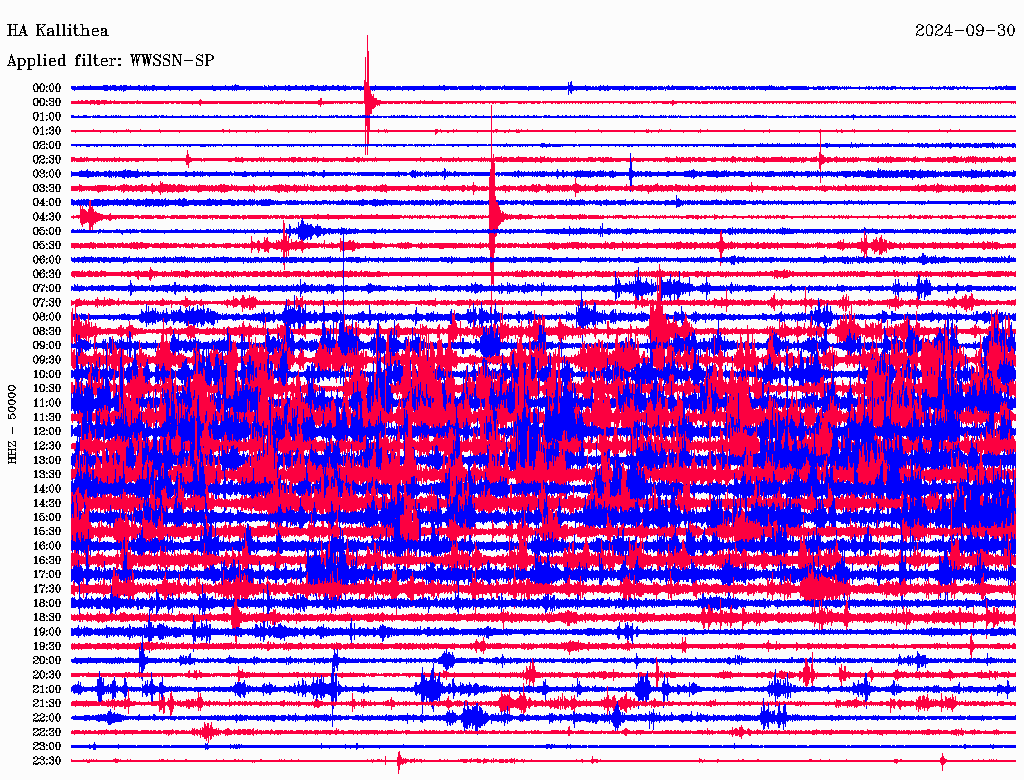

KALEHA19.7255 P04:43:16.06 -0.11.0A

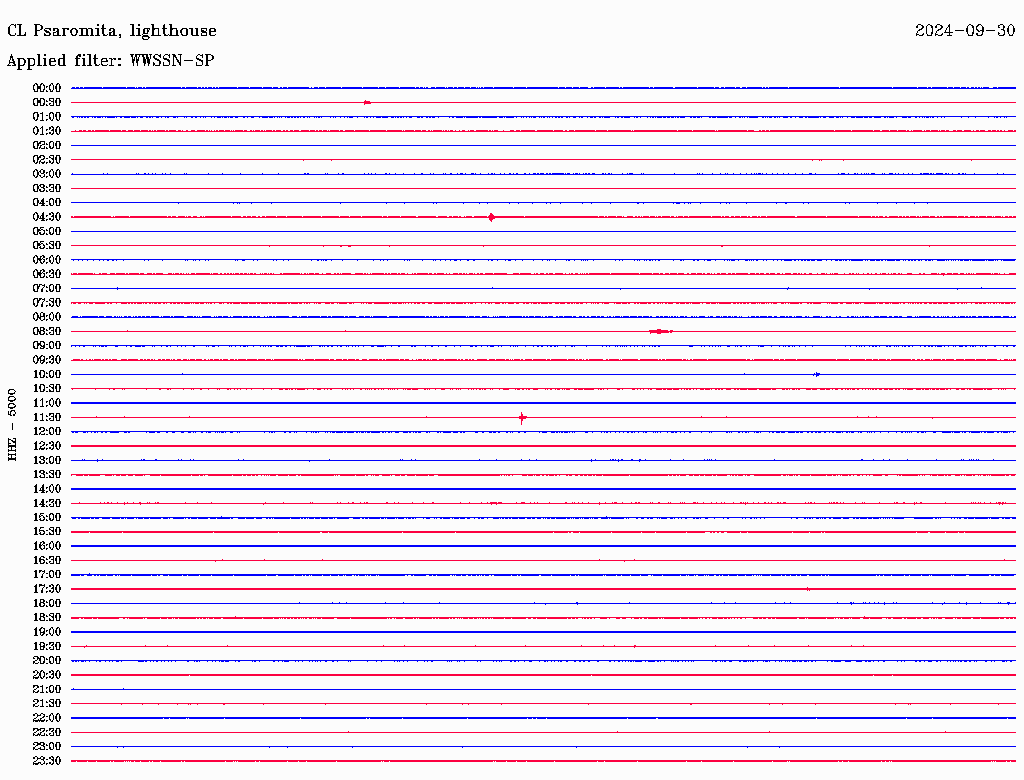

PSAMCL19.9230 P04:43:16.09 -0.11.0A

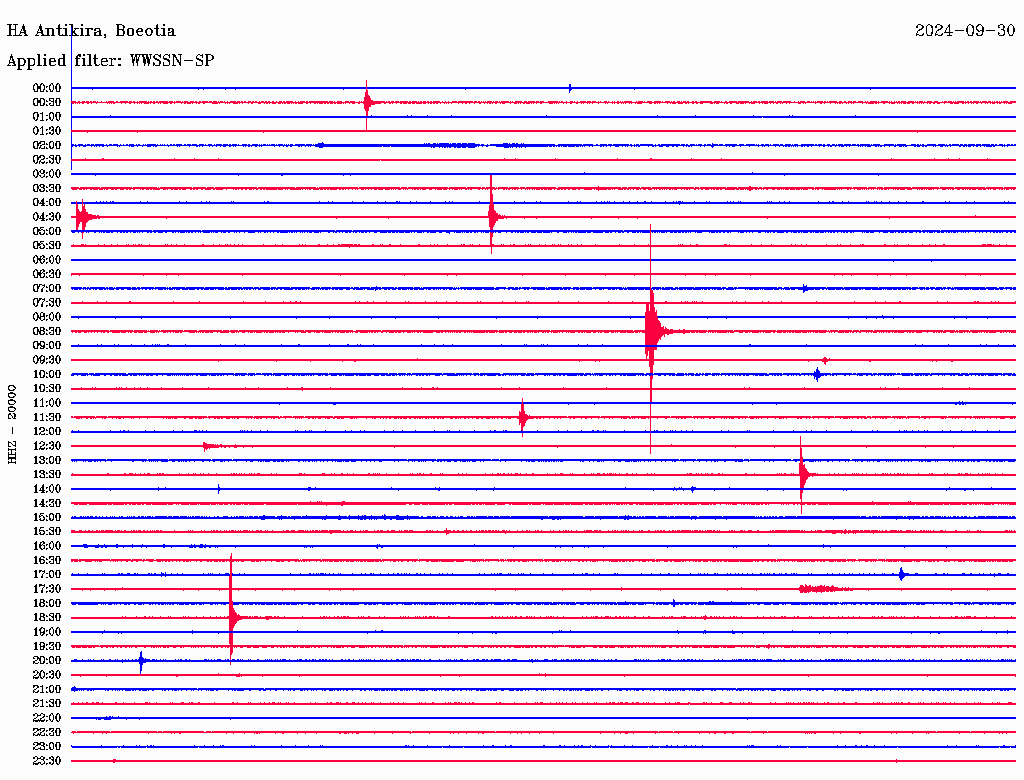

ANTKHA26.0109 P04:43:16.00 -1.21.0A
TRIZCL26.1252 P04:43:16.87 -0.31.0A

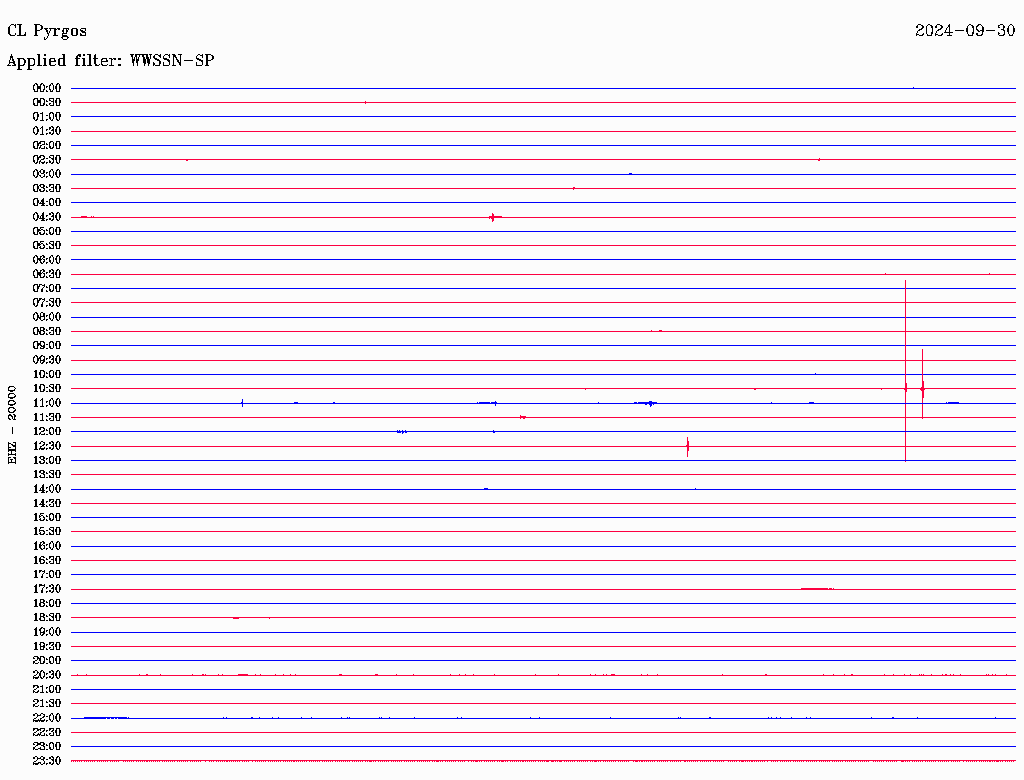

PYRGCL29.8264 P04:43:17.51 -0.31.0A
GR241Y31.3333 P04:43:17.25 -0.71.0A
EFPHP39.4268 P04:43:19.09 -0.21.0A
LAKAHA39.7236 P04:43:19.73 0.41.0A
ANXHP41.7295 P04:43:19.35 -0.31.0A
AXARHA44.9 36 P04:43:21.77 1.61.0A
PRDMHA46.1112 P04:43:20.70 0.41.0A
KLVHL47.4202 P04:43:20.15 -0.41.0A

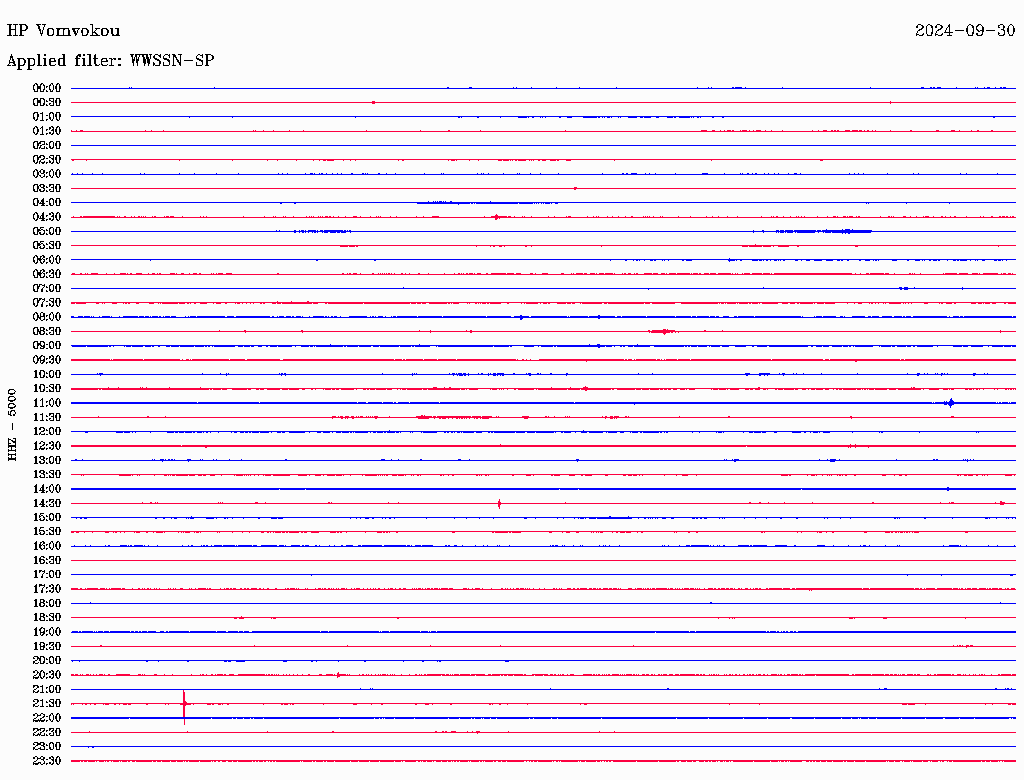

VVKHP47.6268 P04:43:20.96 0.41.0A

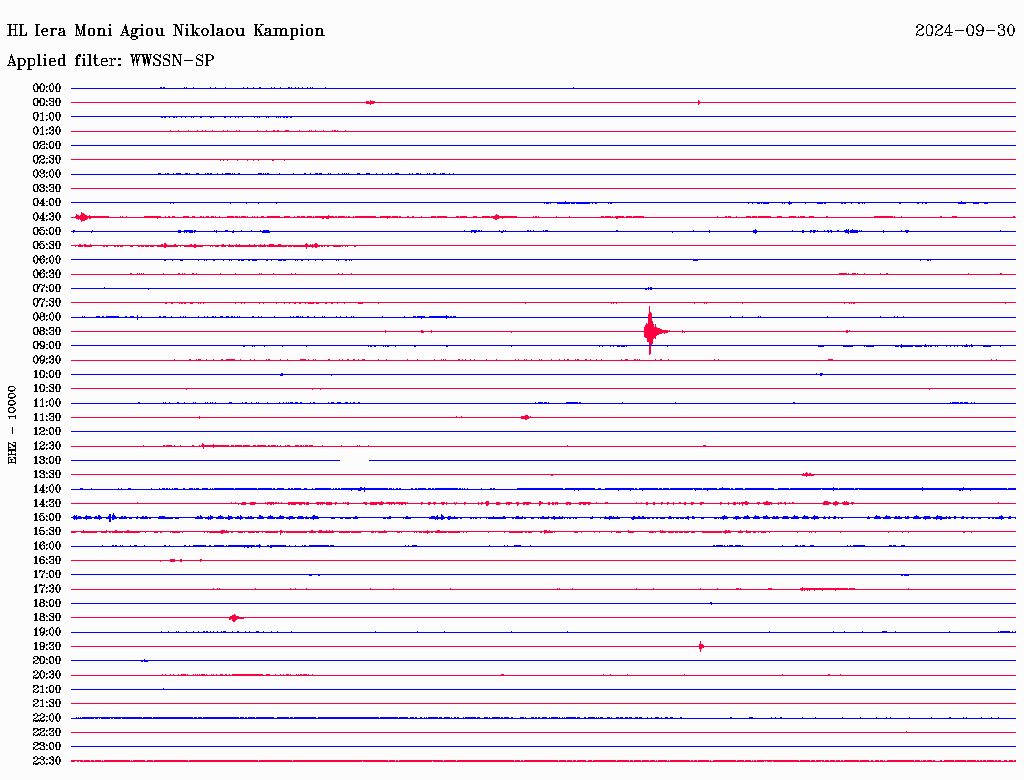

IMANHL49.0 78 P04:43:21.30 0.51.0A
GURHP55.8181 P04:43:23.42 1.61.0A
LKRHL60.5 67 P04:43:23.39 0.81.0A

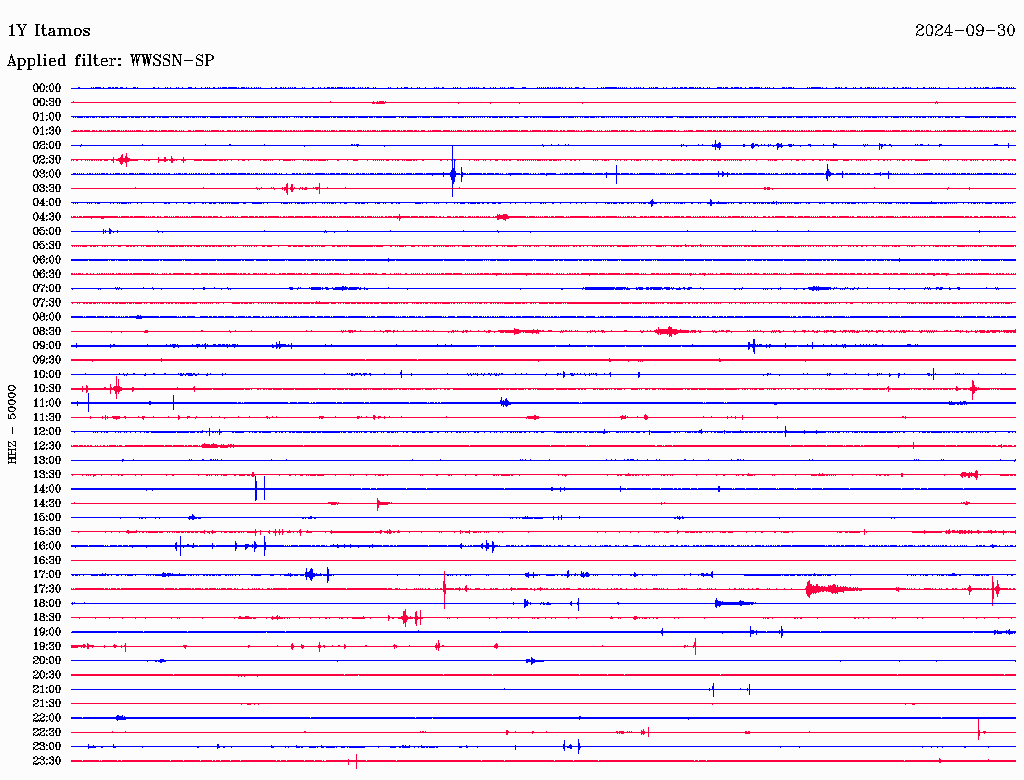

GR201Y103.2329 P04:43:29.51 0.31.0A


  Solution details

Event:
    Public ID              nkua2024tfdr
    Description
      region name: Greece
Origin:
    Date                   2024-09-30
    Time                  04:43:11.39  +/-    0.2 s
    Latitude              38.4380 deg  +/-      3 km
    Longitude             22.3576 deg  +/-      2 km
    Depth                      10 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             0.79 s
    Azimuthal gap              69 deg

2 Network magnitudes:
    MLv       1.61 +/- 0.17  14
    M         1.61           14 preferred

20 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    DLFA  HL    0.1  70  P       04:43:13.89  -1.2 A  1.0  DLFA
    DSF   HP    0.1 101  P       04:43:14.32  -1.1 A  1.0  DSF
    KALE  HA    0.2 255  P       04:43:16.06  -0.1 A  1.0  KALE
    PSAM  CL    0.2 230  P       04:43:16.09  -0.1 A  1.0  PSAM
    ANTK  HA    0.2 109  P       04:43:16.00  -1.2 A  1.0  ANTK
    TRIZ  CL    0.2 252  P       04:43:16.87  -0.3 A  1.0  TRIZ
    PYRG  CL    0.3 264  P       04:43:17.51  -0.3 A  1.0  PYRG
    GR24  1Y    0.3 333  P       04:43:17.25  -0.7 A  1.0  GR24
    EFP   HP    0.4 268  P       04:43:19.09  -0.2 A  1.0  EFP
    LAKA  HA    0.4 236  P       04:43:19.73   0.4 A  1.0  LAKA
    ANX   HP    0.4 295  P       04:43:19.35  -0.3 A  1.0  ANX
    AXAR  HA    0.4  36  P       04:43:21.77   1.6 A  1.0  AXAR
    PRDM  HA    0.4 112  P       04:43:20.70   0.4 A  1.0  PRDM
    KLV   HL    0.4 202  P       04:43:20.15  -0.4 A  1.0  KLV
    VVK   HP    0.4 268  P       04:43:20.96   0.4 A  1.0  VVK
    IMAN  HL    0.4  78  P       04:43:21.30   0.5 A  1.0  IMAN
    GUR   HP    0.5 181  P       04:43:23.42   1.6 A  1.0  GUR
    LKR   HL    0.5  67  P       04:43:23.39   0.8 A  1.0  LKR
    DRO   HP    0.7 227  P       04:43:28.90   3.5 AX 0.0  DRO
    GR20  1Y    0.9 329  P       04:43:29.51   0.3 A  1.0  GR20

18 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    DLFA  HL    0.1  70  MLv     1.86  0.25    2.76102
    DSF   HP    0.1 101  MLv     1.93  0.32    2.86908
    KALE  HA    0.2 255  MLv     1.30 -0.32   0.508802
    PSAM  CL    0.2 230  MLv     1.24 -0.37    0.43948
    ANTK  HA    0.2 109  MLv     1.54 -0.07   0.622862
    TRIZ  CL    0.2 252  MLv     1.59 -0.02   0.687674
    PYRG  CL    0.3 264  MLv     1.82  0.21   0.600491
    GR24  1Y    0.3 333  MLv     1.77  0.15   0.767698
    EFP   HP    0.4 268  MLv     1.60 -0.01   0.329581
    LAKA  HA    0.4 236  MLv     1.28 -0.33    0.15542
    ANX   HP    0.4 295  MLv     1.72  0.10     0.3753
    AXAR  HA    0.4  36  MLv     1.52 -0.10   0.782935
    PRDM  HA    0.4 112  MLv     1.79  0.17   0.340888
    KLV   HL    0.4 202  MLv     1.66  0.05   0.179833
    VVK   HP    0.4 268  MLv     1.03 -0.59   0.255626
    IMAN  HL    0.4  78  MLv     1.64  0.03   0.207507
    GUR   HP    0.5 181  MLv     1.49 -0.13   0.0980551
    LKR   HL    0.5  67  MLv     2.25  0.64   0.240266
