Event:
Public ID nkua2024srzx
Description
region name: NW Balkan Region
Origin:
Date 2024-09-23
Time 00:02:07.96
Latitude 41.9057 deg +/- 0 km
Longitude 21.7332 deg +/- 0 km
Depth 18 km +/- 1 km
Agency HA
Author A. Karakonstantis
Mode manual
Status confirmed
Residual RMS 0.29 s
Azimuthal gap 205 deg
2 Network magnitudes:
MLv 3.38 +/- 0.13 29
M 3.38 29 preferred
74 Phase arrivals:
sta net dist azi phase time res wt sta

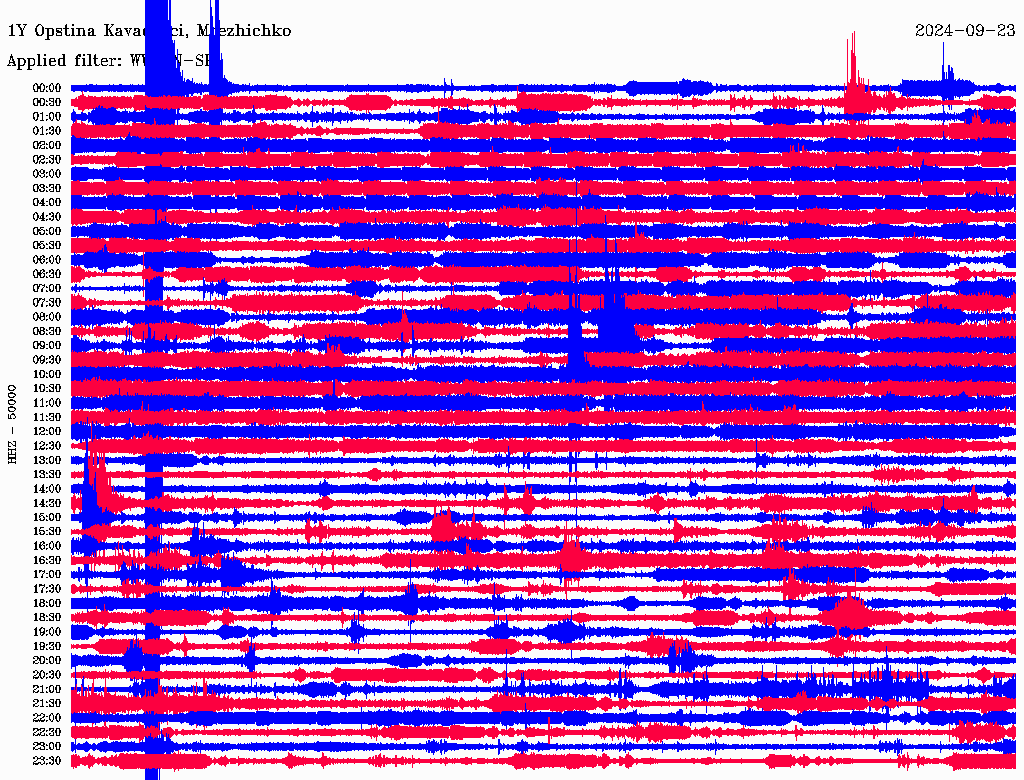

MK03A 1Y 0.7 165 P 00:02:21.15 -0.8 M 1.0 MK03A
MK03A 1Y 0.7 165 S 00:02:32.35 -0.1 M 1.0 MK03A

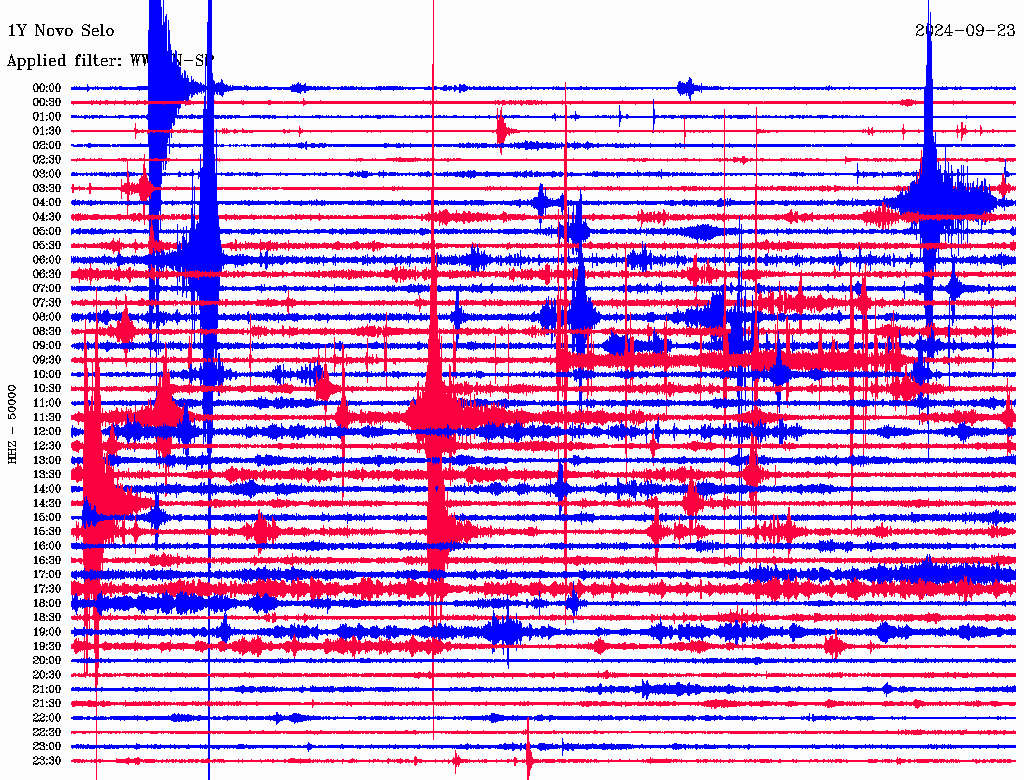

MK04A 1Y 1.0 119 P 00:02:26.28 0.0 M 1.0 MK04A
MK04A 1Y 1.0 119 S 00:02:40.53 0.4 M 1.0 MK04A

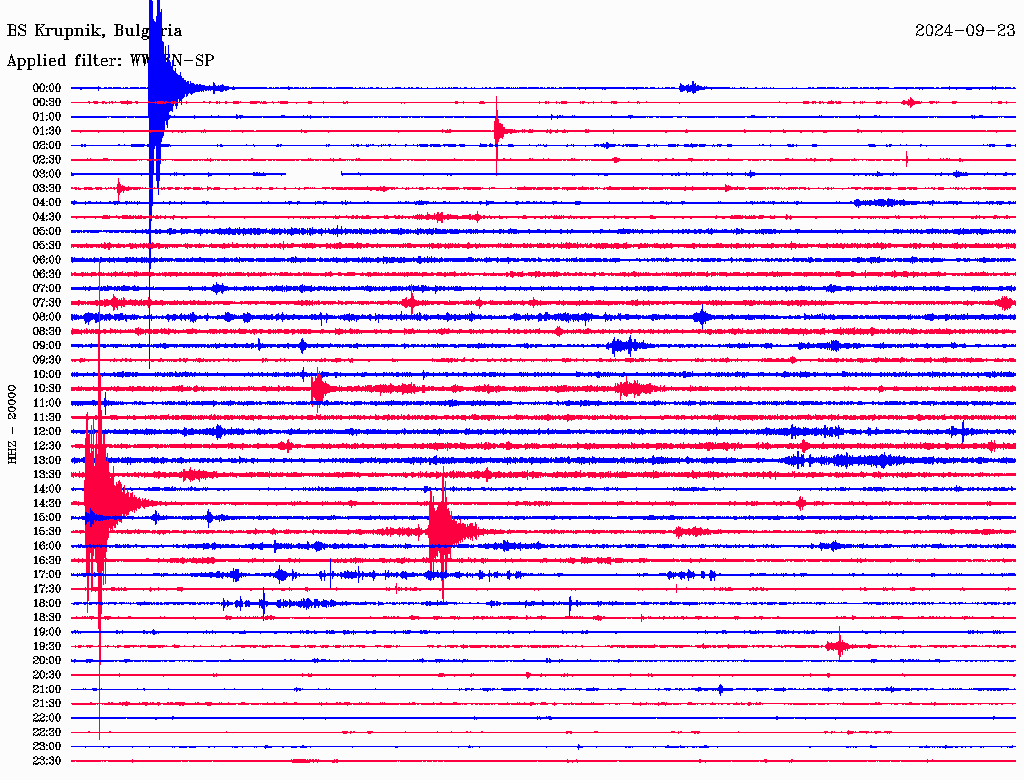

KKB BS 1.0 94 P 00:02:26.85 -0.3 M 1.0 KKB
KKB BS 1.0 94 S 00:02:42.36 0.6 M 1.0 KKB

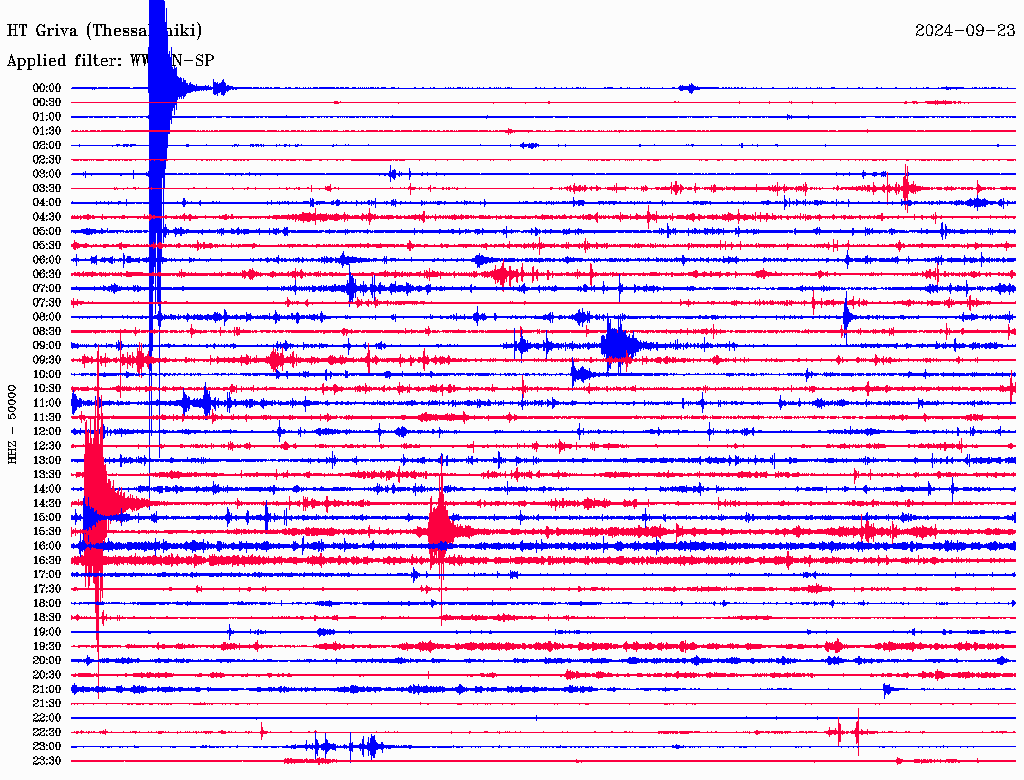

GRG HT 1.1 152 P 00:02:27.54 -0.1 M 1.0 GRG
GRG HT 1.1 152 S 00:02:43.42 0.8 M 1.0 GRG

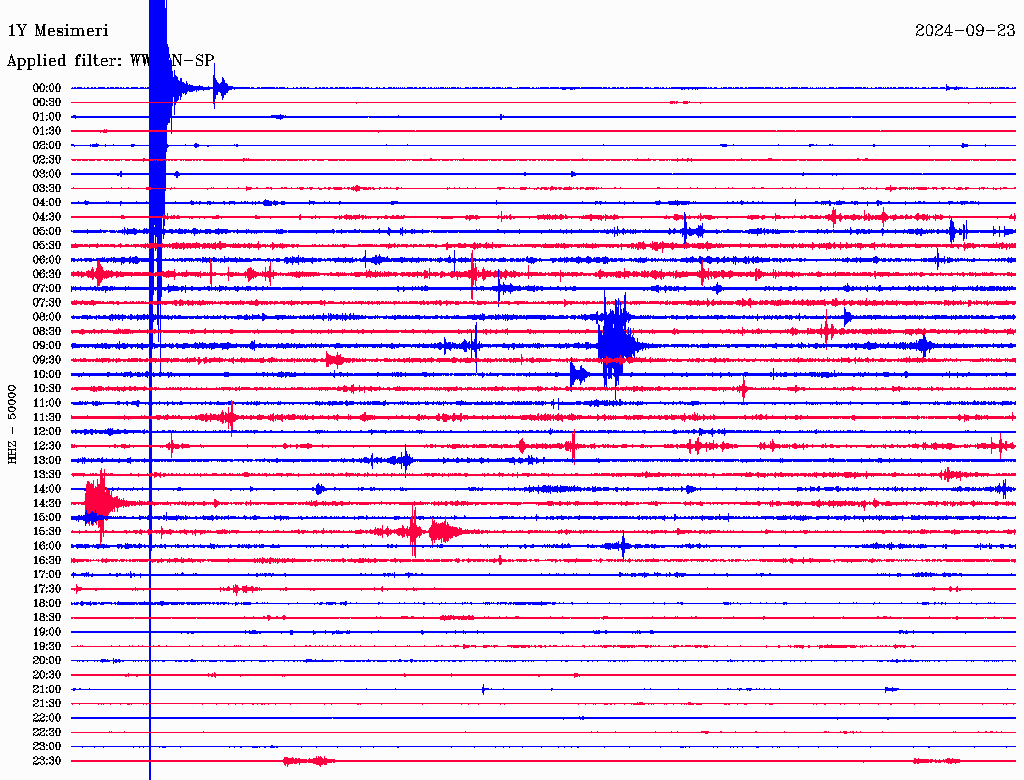

GR07 1Y 1.1 169 P 00:02:28.64 -0.2 M 1.0 GR07
GR07 1Y 1.1 169 S 00:02:44.97 0.3 M 1.0 GR07

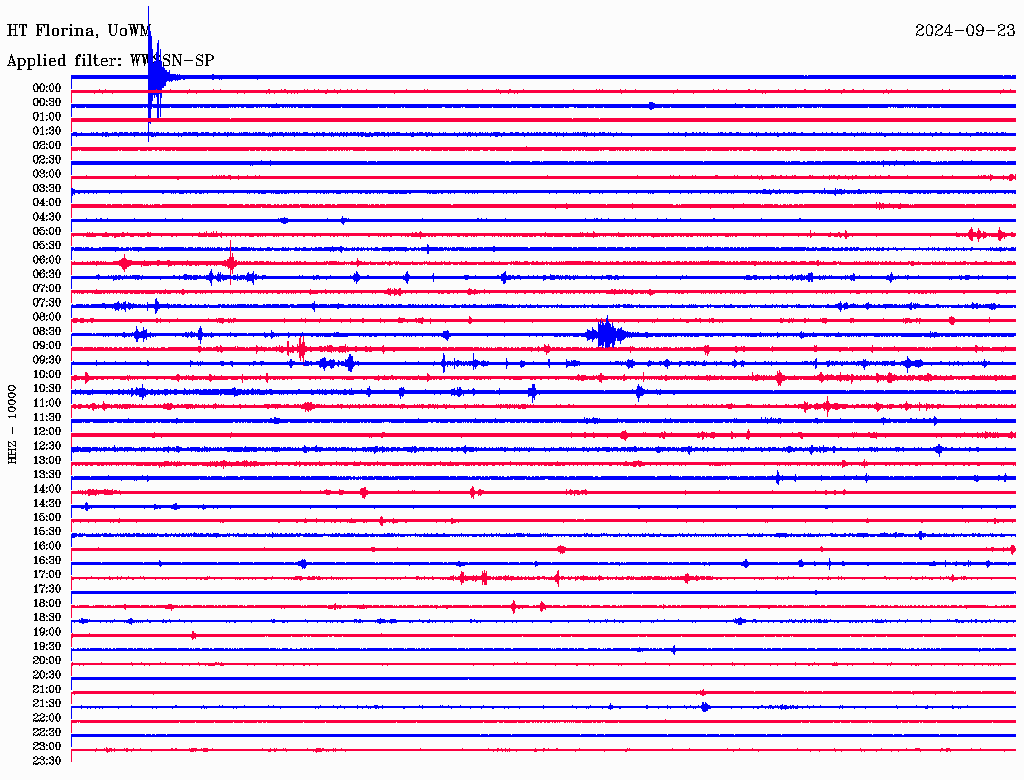

FLNA HT 1.2 193 P 00:02:25.93 -3.1 M 1.0 FLNA
FLNA HT 1.2 193 S 00:02:44.87 -0.2 M 1.0 FLNA

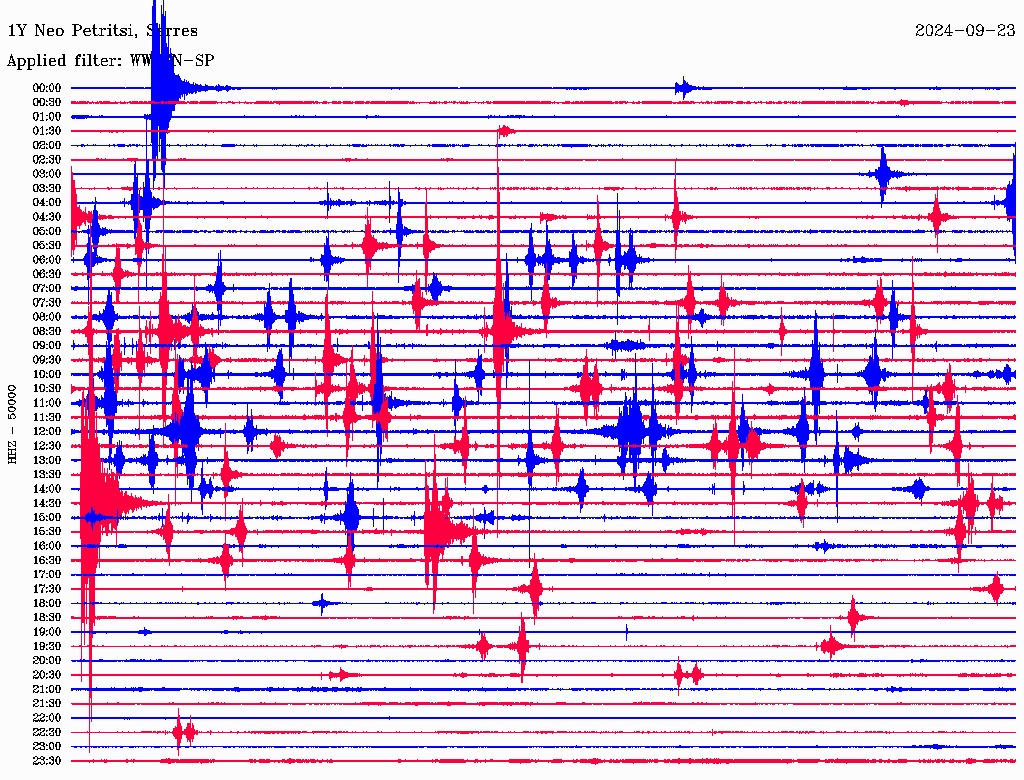

GR01 1Y 1.3 118 P 00:02:31.79 -0.1 M 1.0 GR01
GR01 1Y 1.3 118 S 00:02:50.26 0.3 M 1.0 GR01

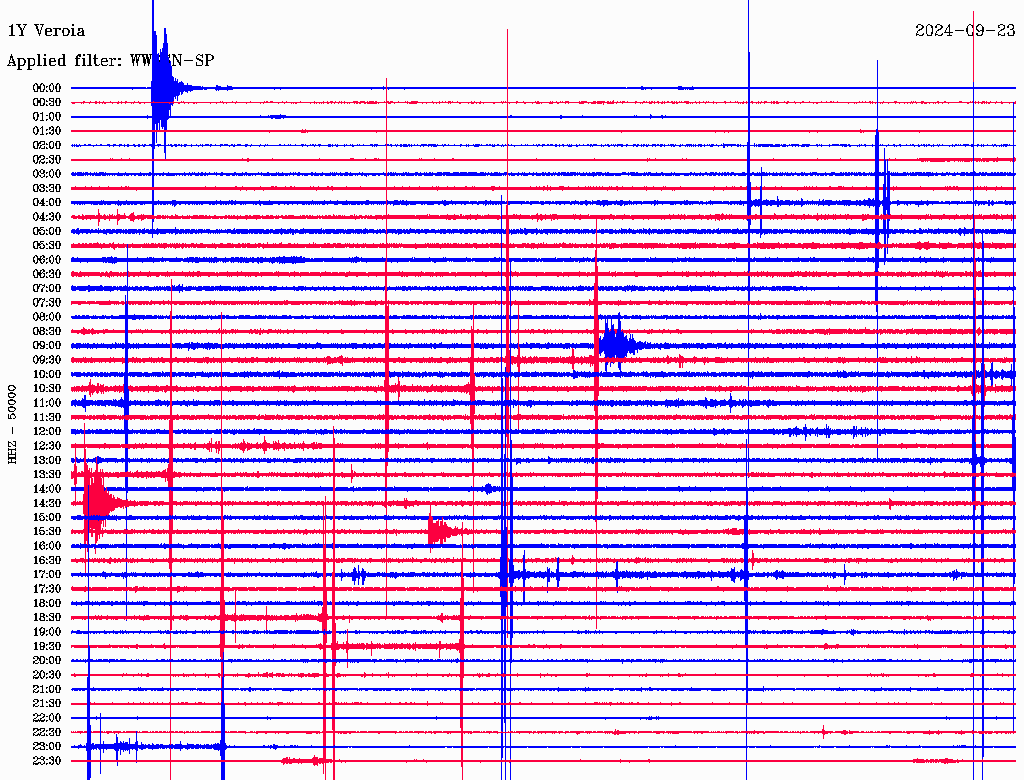

GR11 1Y 1.4 166 P 00:02:33.35 0.0 M 1.0 GR11
GR11 1Y 1.4 166 S 00:02:53.12 0.6 M 1.0 GR11

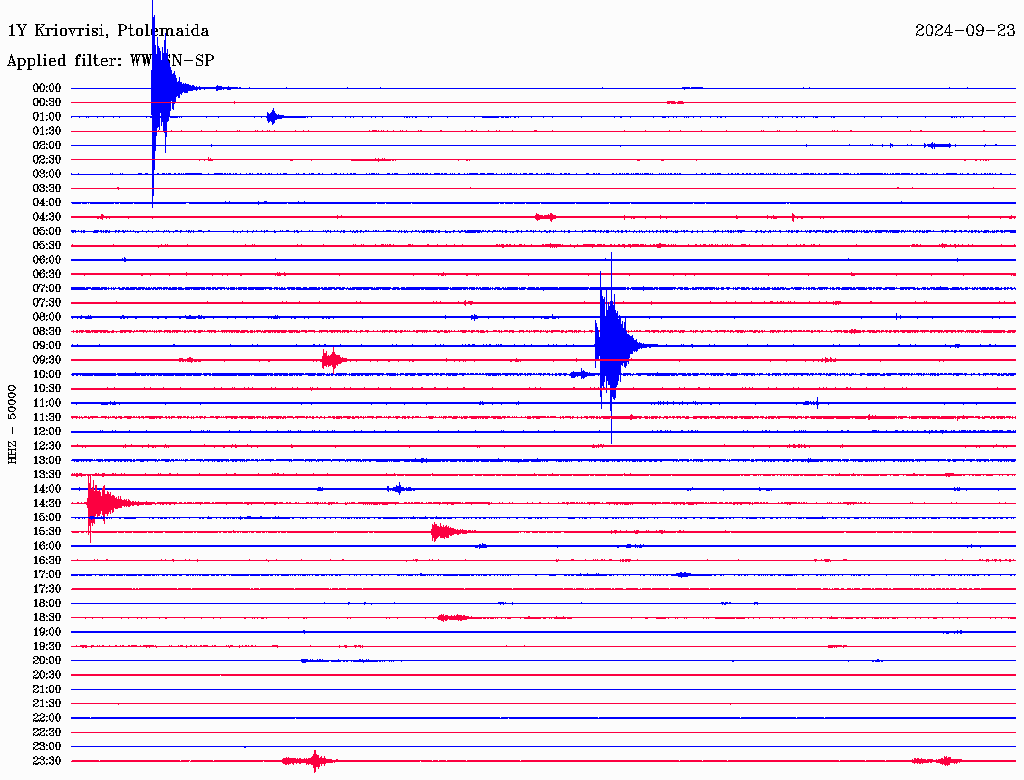

GR10 1Y 1.4 184 P 00:02:33.04 -0.4 M 1.0 GR10
GR10 1Y 1.4 184 S 00:02:52.92 0.2 M 1.0 GR10

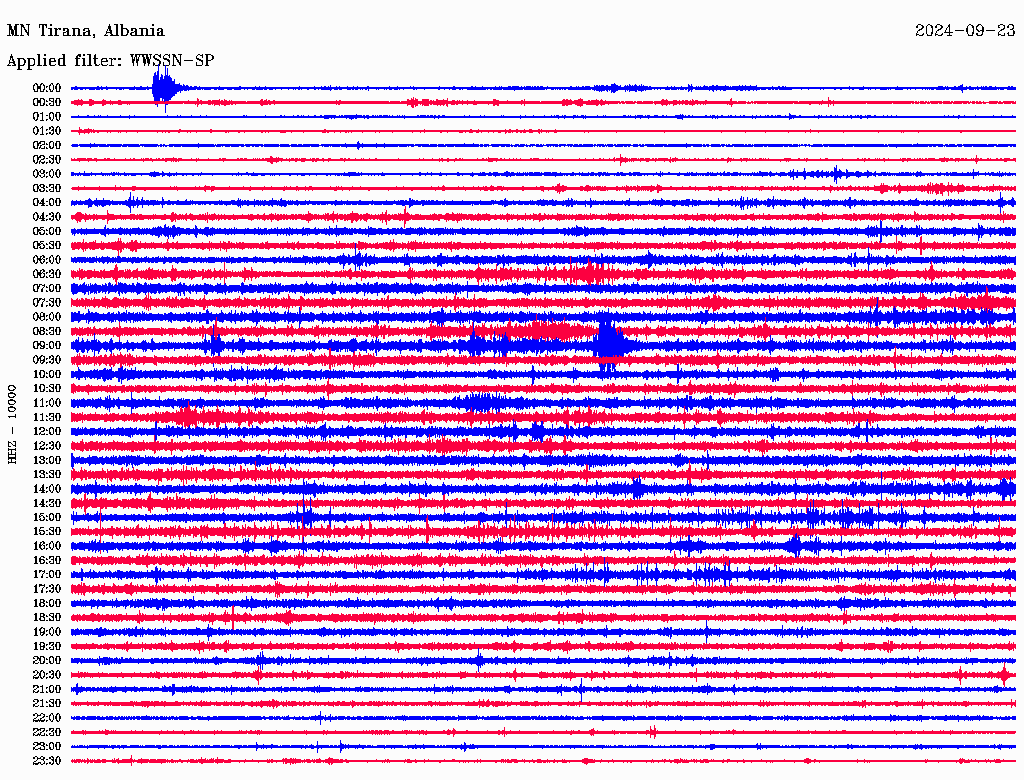

TIR MN 1.5 248 P 00:02:34.18 -0.3 M 1.0 TIR
TIR MN 1.5 248 S 00:02:54.85 0.2 M 1.0 TIR

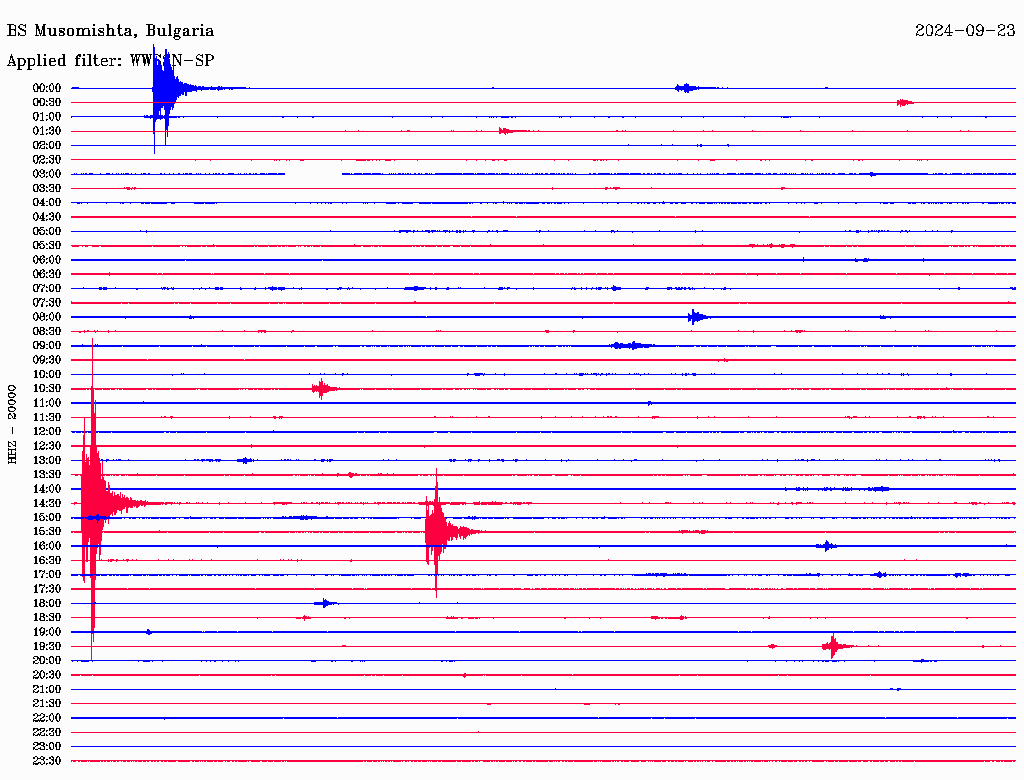

MMB BS 1.6 103 P 00:02:35.22 0.1 M 1.0 MMB
MMB BS 1.6 103 S 00:02:56.19 0.3 M 1.0 MMB

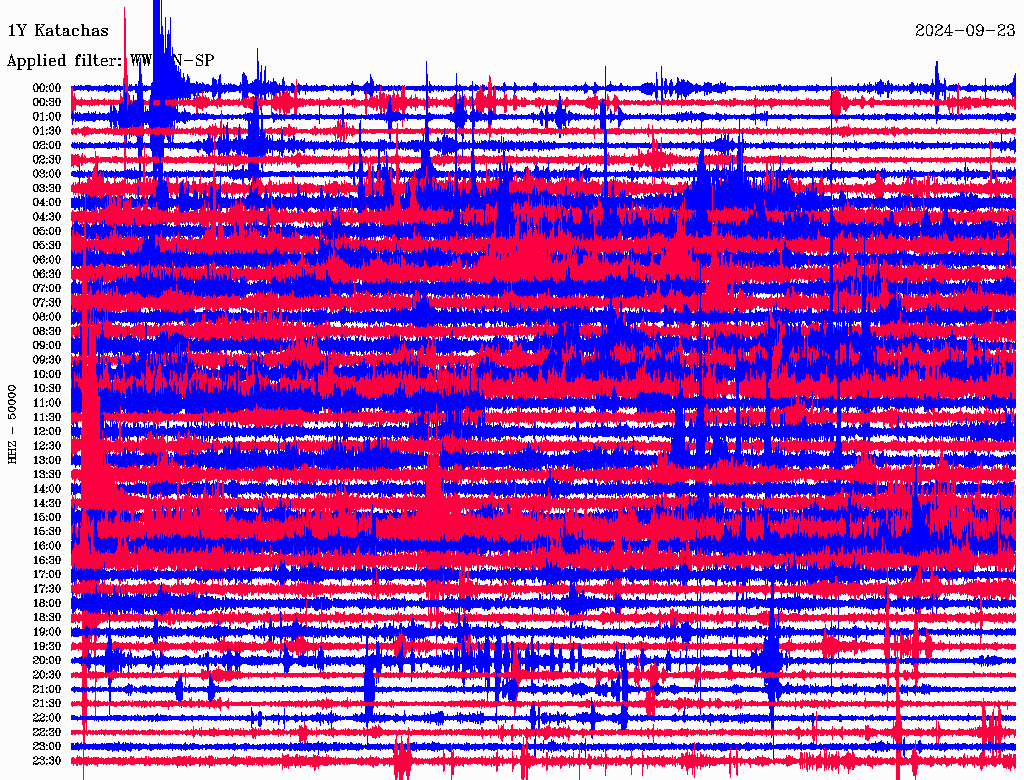

GR12 1Y 1.6 157 P 00:02:35.22 0.0 M 1.0 GR12
GR12 1Y 1.6 157 S 00:02:56.29 0.4 M 1.0 GR12

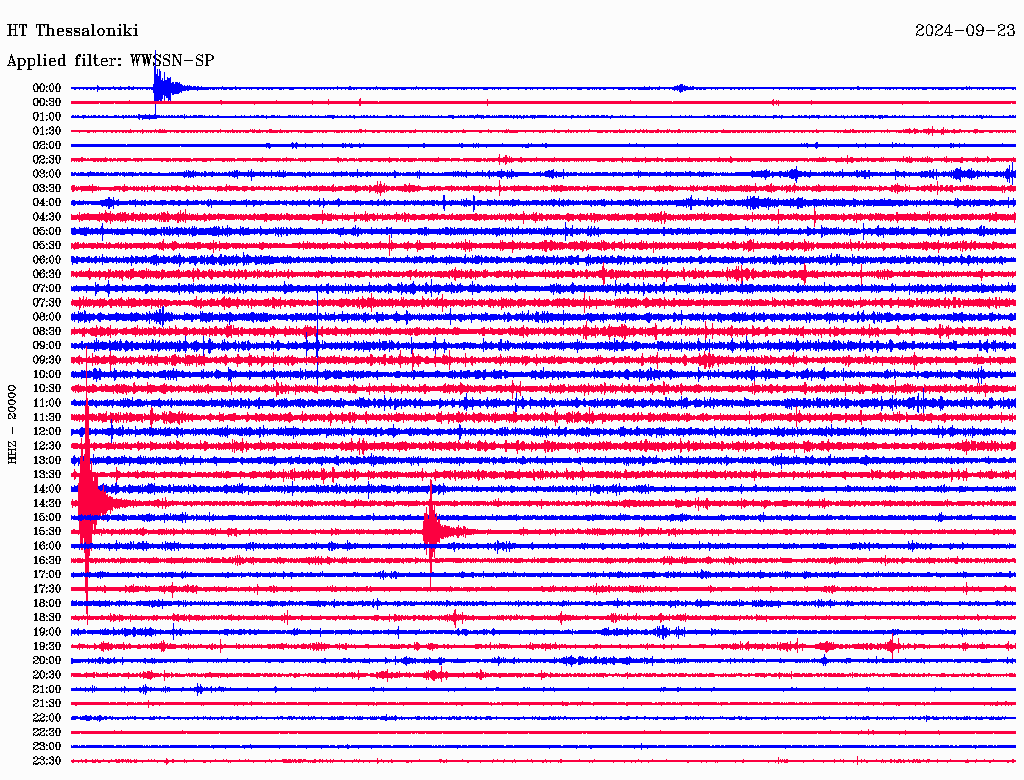

THE HT 1.6 144 P 00:02:35.71 0.3 M 1.0 THE
THE HT 1.6 144 S 00:02:56.15 -0.1 M 1.0 THE

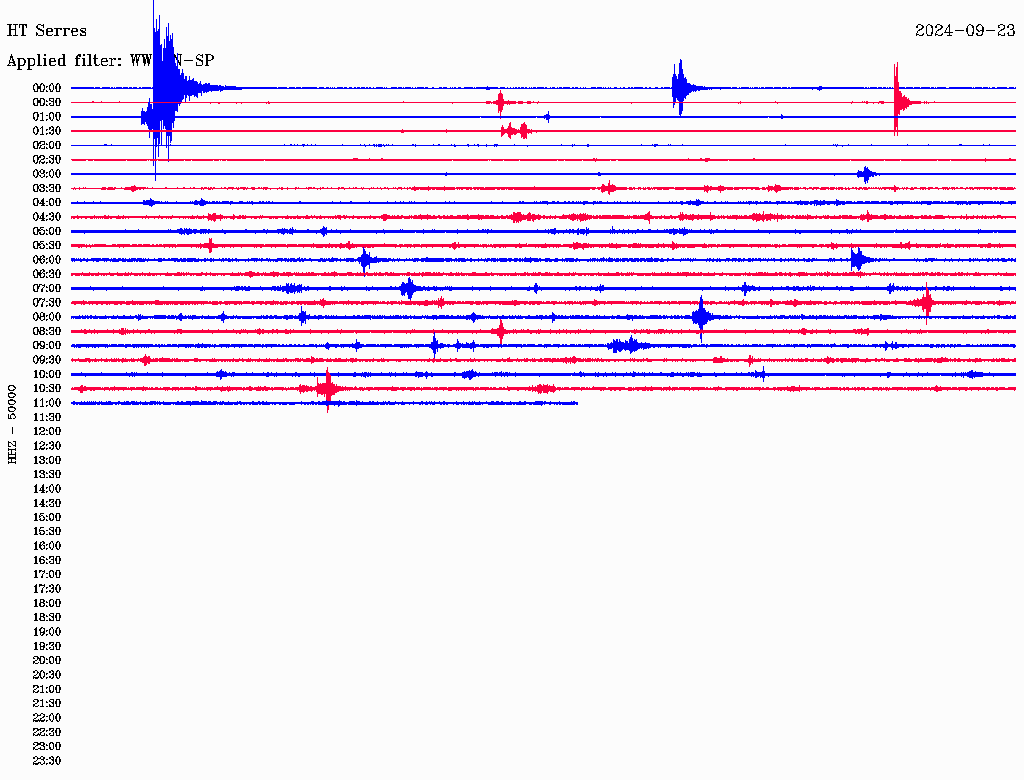

SRS HT 1.6 120 P 00:02:35.66 -0.3 M 1.0 SRS
SRS HT 1.6 120 S 00:02:56.86 -0.3 M 1.0 SRS

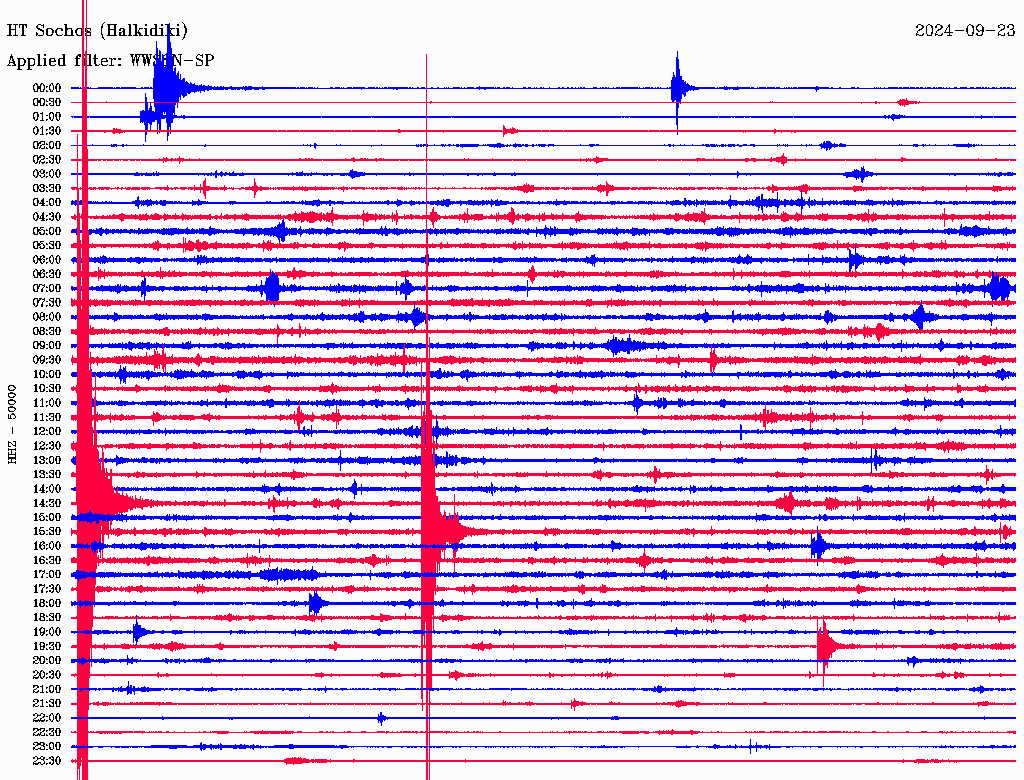

SOH HT 1.6 132 P 00:02:36.11 -0.2 M 1.0 SOH
SOH HT 1.6 132 S 00:02:57.59 -0.3 M 1.0 SOH

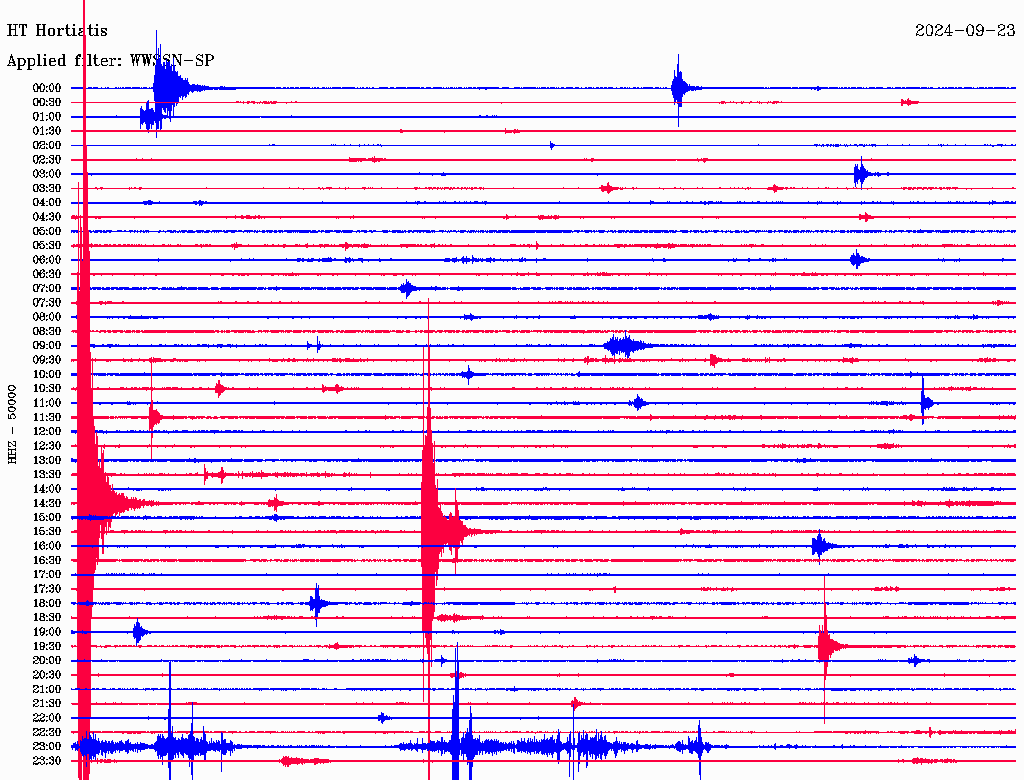

HORT HT 1.7 142 P 00:02:36.76 -0.1 M 1.0 HORT
HORT HT 1.7 142 S 00:02:58.62 -0.1 M 1.0 HORT

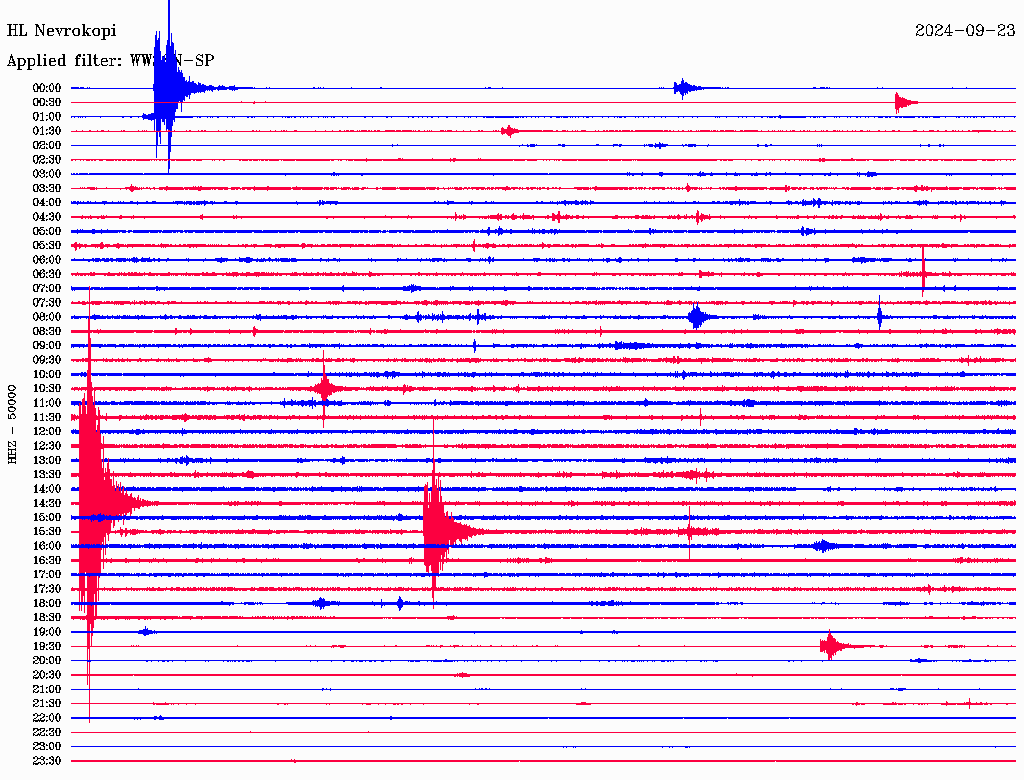

NVR HL 1.7 109 P 00:02:37.22 0.0 M 1.0 NVR
NVR HL 1.7 109 S 00:02:59.50 0.1 M 1.0 NVR

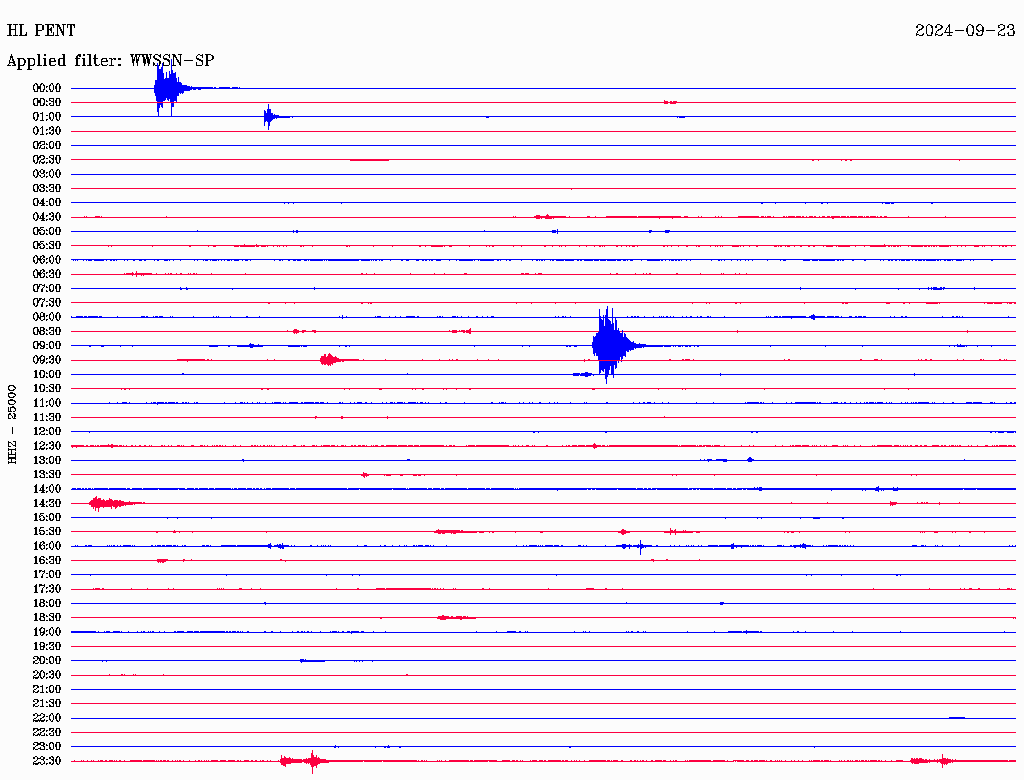

PENT HL 1.8 195 P 00:02:38.30 -0.0 M 1.0 PENT
PENT HL 1.8 195 S 00:03:01.44 0.1 M 1.0 PENT

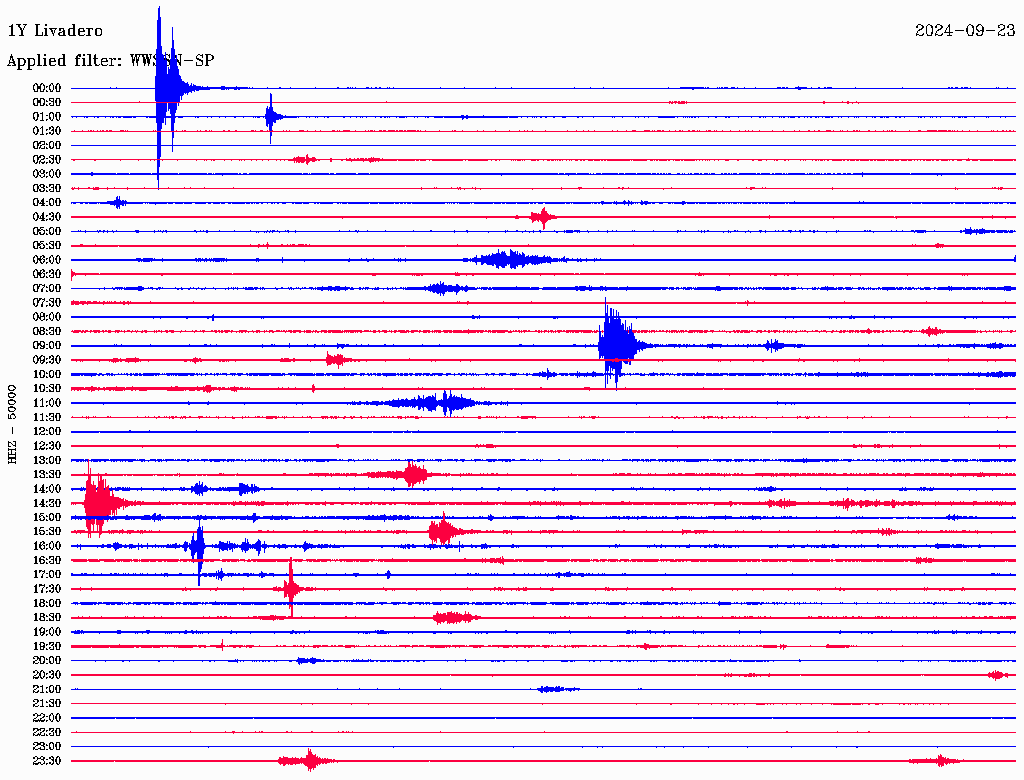

GR16 1Y 1.9 175 P 00:02:39.55 -0.2 M 1.0 GR16
GR16 1Y 1.9 175 S 00:03:03.98 0.0 M 1.0 GR16
LIT HT 1.9 162 P 00:02:39.78 -0.2 M 1.0 LIT
LIT HT 1.9 162 S 00:03:04.14 -0.2 M 1.0 LIT
GR13 1Y 1.9 145 P 00:02:39.96 -0.1 M 1.0 GR13
GR13 1Y 1.9 145 S 00:03:04.32 -0.2 M 1.0 GR13
GR09 1Y 1.9 130 P 00:02:40.61 0.2 M 1.0 GR09
GR09 1Y 1.9 130 S 00:03:05.30 0.2 M 1.0 GR09
GR02 1Y 2.0 112 P 00:02:40.80 -0.2 M 1.0 GR02
GR02 1Y 2.0 112 S 00:03:06.23 0.1 M 1.0 GR02

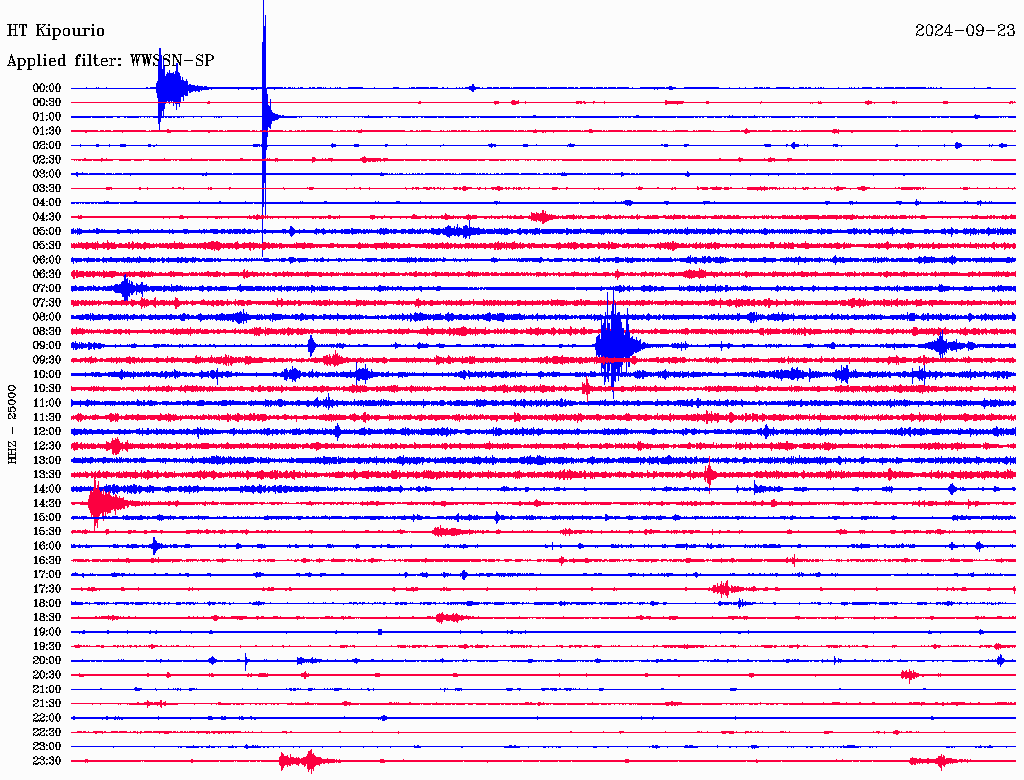

KPRO HT 2.0 188 P 00:02:41.37 0.2 M 1.0 KPRO
KPRO HT 2.0 188 S 00:03:06.46 0.1 M 1.0 KPRO

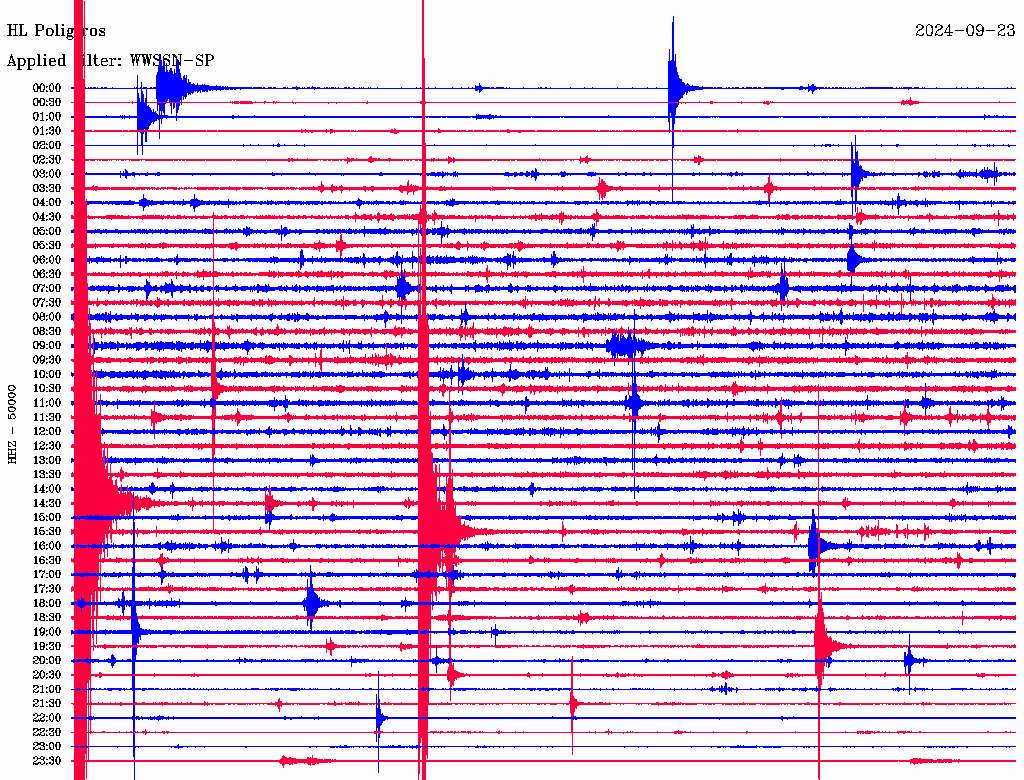

PLG HL 2.0 140 P 00:02:41.59 -0.0 M 1.0 PLG
PLG HL 2.0 140 S 00:03:07.28 0.1 M 1.0 PLG
GR15 1Y 2.0 195 P 00:02:42.33 0.3 M 1.0 GR15
GR15 1Y 2.0 195 S 00:03:07.97 0.0 M 1.0 GR15
GR17 1Y 2.2 182 P 00:02:44.08 0.1 M 1.0 GR17
GR17 1Y 2.2 182 S 00:03:11.46 0.1 M 1.0 GR17

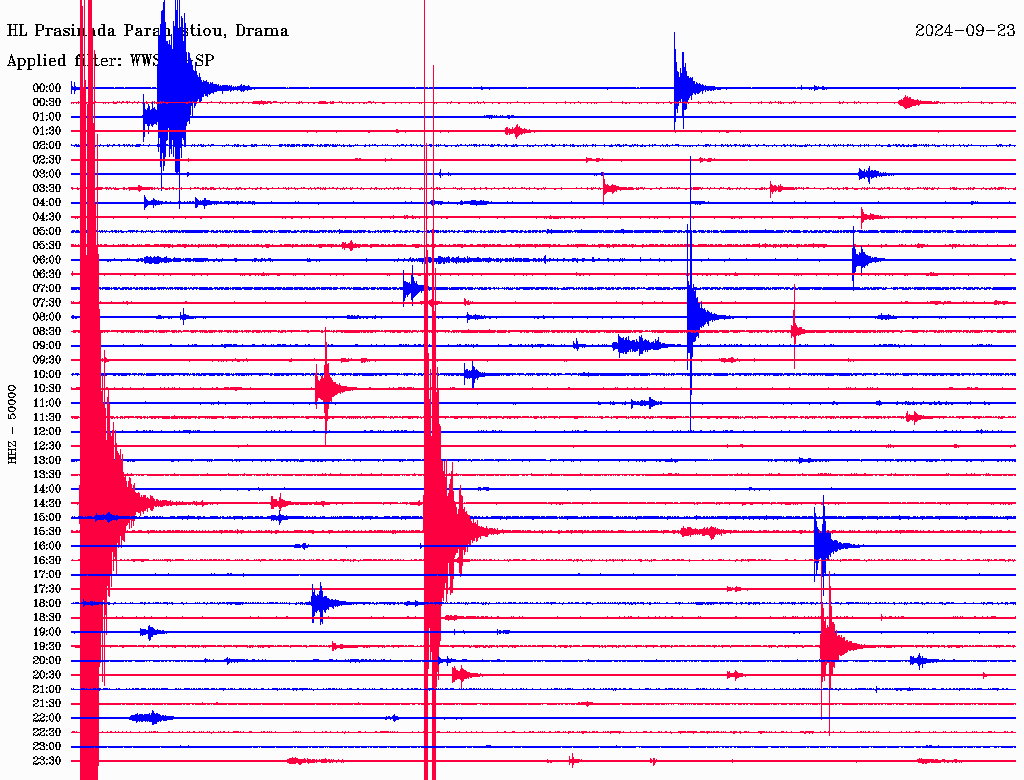

PRAS HL 2.2 105 P 00:02:44.13 -0.0 M 1.0 PRAS
PRAS HL 2.2 105 S 00:03:11.60 -0.1 M 1.0 PRAS

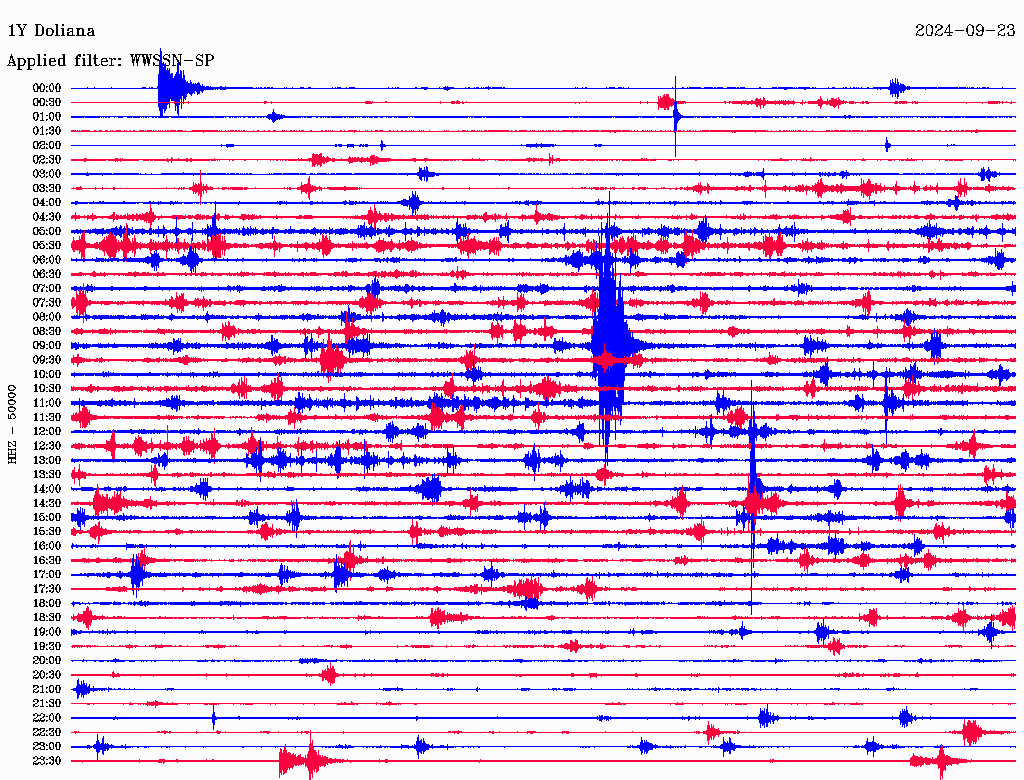

GR14 1Y 2.2 204 P 00:02:44.76 0.6 M 1.0 GR14
GR14 1Y 2.2 204 S 00:03:11.81 0.1 M 1.0 GR14

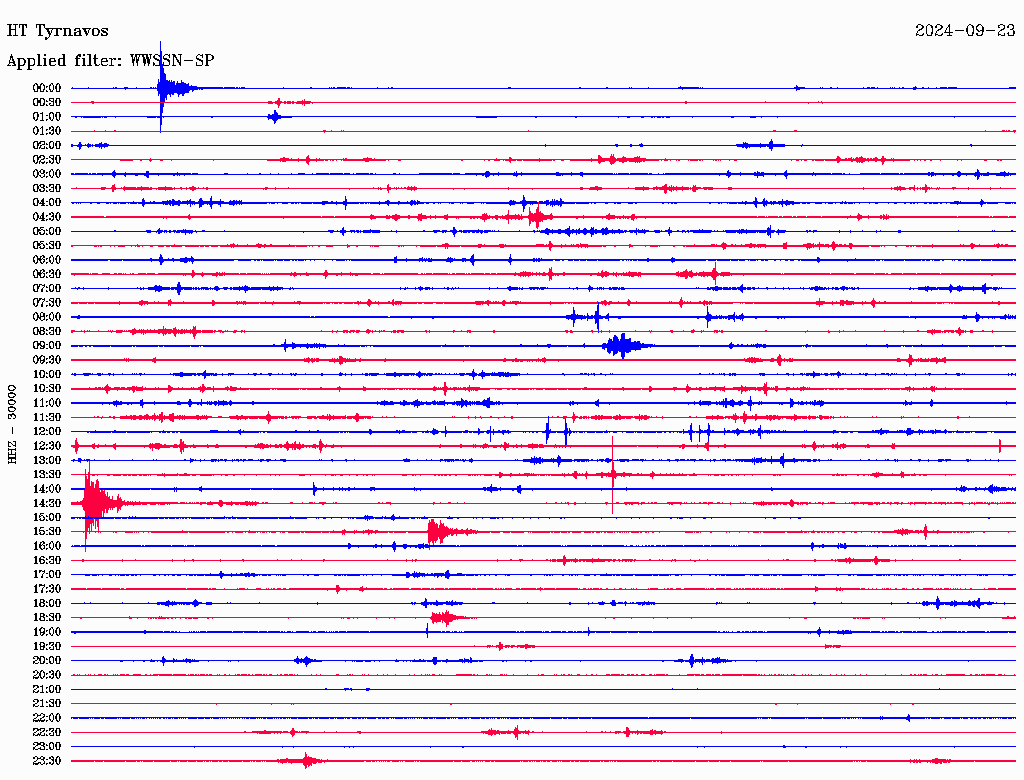

TYRN HT 2.2 170 P 00:02:44.47 -0.2 M 1.0 TYRN
TYRN HT 2.2 170 S 00:03:12.79 0.2 M 1.0 TYRN

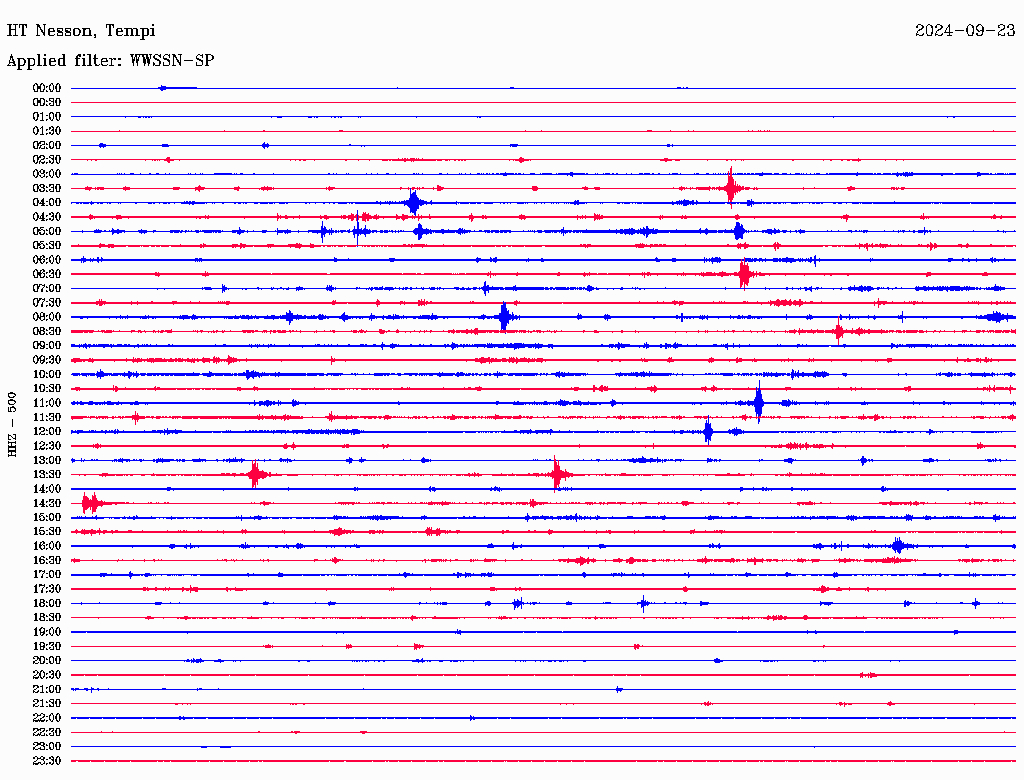

NESN HT 2.3 164 P 00:02:45.36 0.1 M 1.0 NESN
NESN HT 2.3 164 S 00:03:13.69 0.2 M 1.0 NESN
KAVA HT 2.3 113 P 00:02:45.33 -0.1 M 1.0 KAVA
KAVA HT 2.3 113 S 00:03:14.01 0.1 M 1.0 KAVA

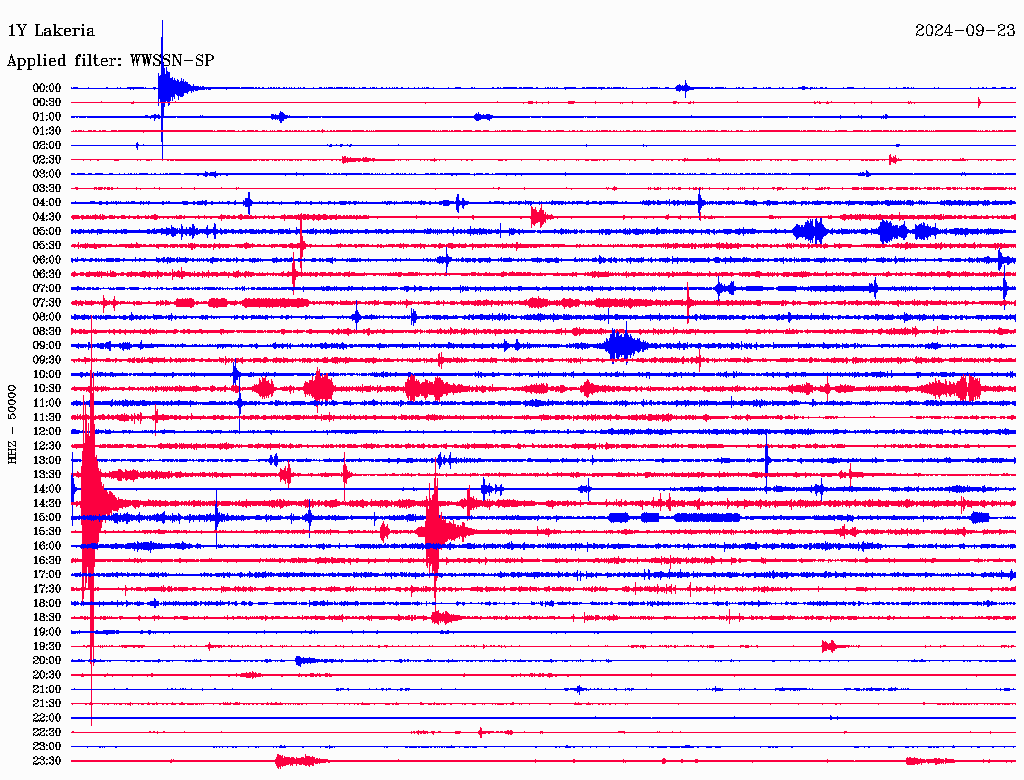

GR18 1Y 2.3 162 P 00:02:45.27 -0.5 M 1.0 GR18
GR18 1Y 2.3 162 S 00:03:13.74 -0.7 M 1.0 GR18

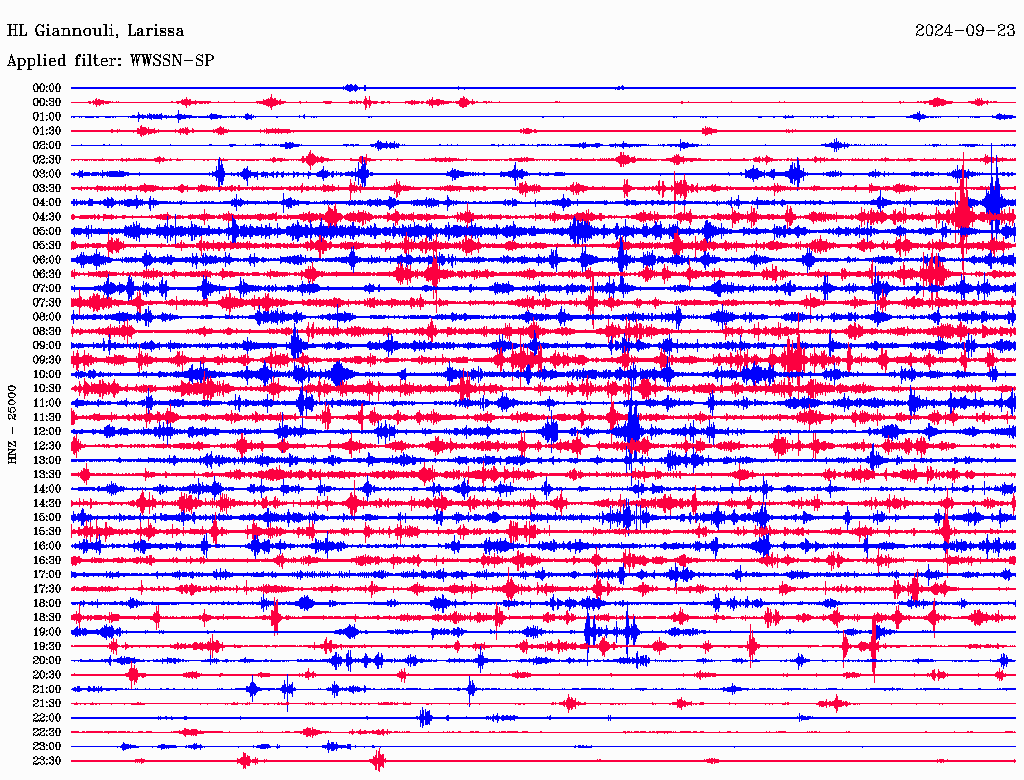

GINA HL 2.3 167 P 00:02:45.60 -0.0 M 1.0 GINA
GINA HL 2.3 167 S 00:03:13.95 -0.2 M 1.0 GINA

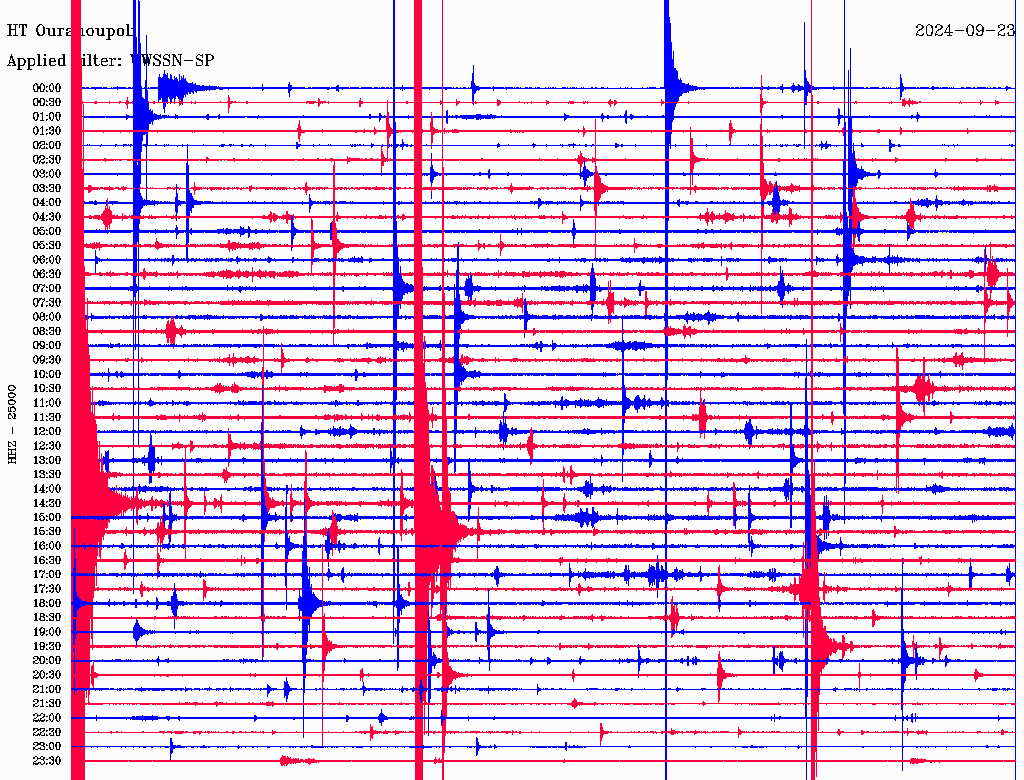

OUR HT 2.3 133 P 00:02:45.71 -0.2 M 1.0 OUR
OUR HT 2.3 133 S 00:03:14.27 -0.5 M 1.0 OUR

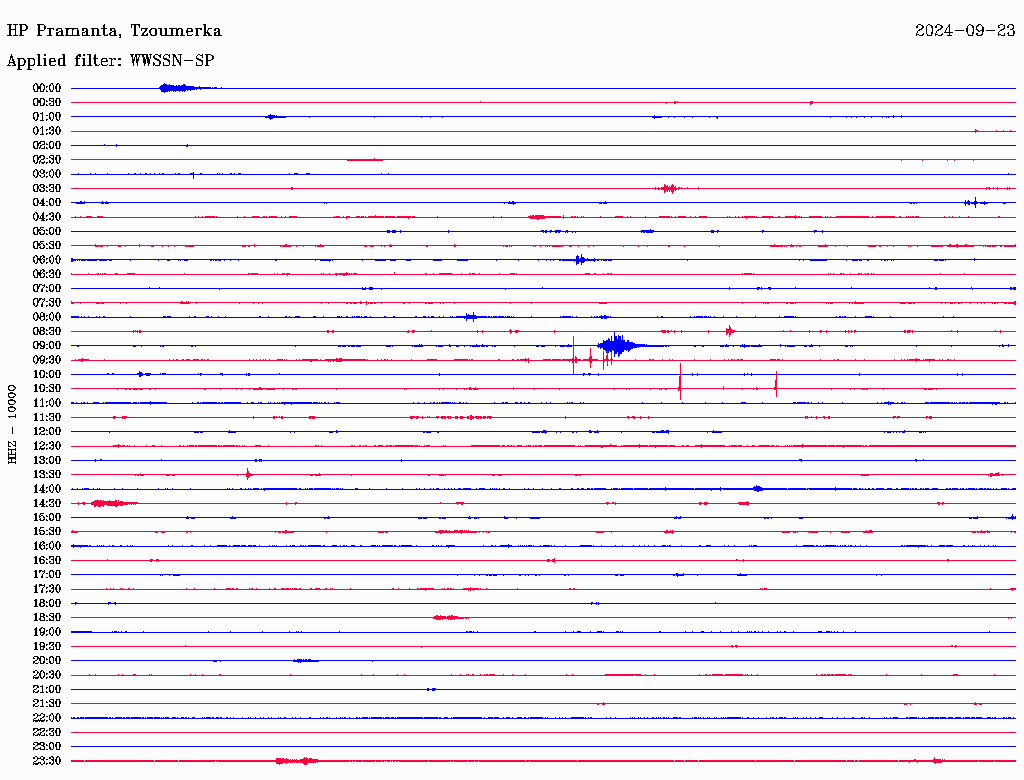

PRMD HP 2.4 192 P 00:02:48.27 0.7 M 1.0 PRMD
PRMD HP 2.4 192 S 00:03:17.20 -0.6 M 1.0 PRMD

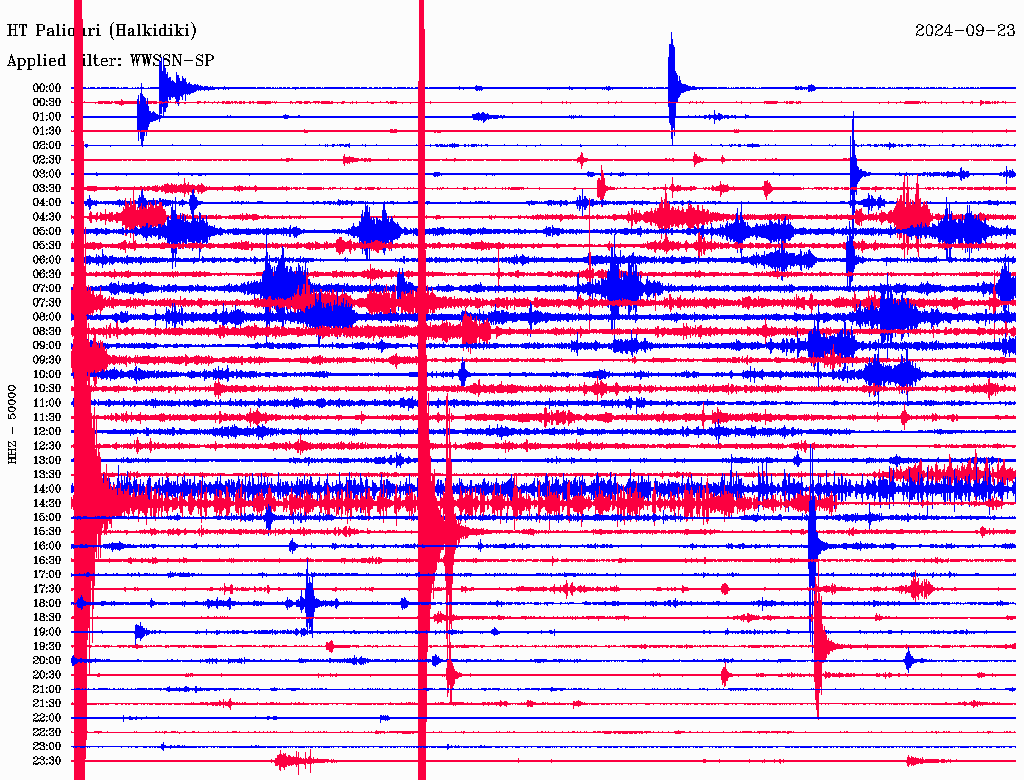

PAIG HT 2.5 143 P 00:02:47.72 -0.3 M 1.0 PAIG
PAIG HT 2.5 143 S 00:03:17.82 -0.6 M 1.0 PAIG
37 Station magnitudes:
sta net dist azi type value res amp per
MK03A 1Y 0.7 165 MLv 4.44 1.06 53.4618
MK04A 1Y 1.0 119 MLv 3.52 0.14 4.66208
KKB BS 1.0 94 MLv 3.60 0.22 5.26373
GRG HT 1.1 152 MLv 3.52 0.14 4.18521
GR07 1Y 1.1 169 MLv 3.61 0.23 4.74182
FLNA HT 1.2 193 MLv 3.39 0.01 2.79709
GR01 1Y 1.3 118 MLv 3.39 0.01 2.27216
GR11 1Y 1.4 166 MLv 3.21 -0.17 1.31675
GR10 1Y 1.4 184 MLv 3.12 -0.26 1.05962
TIR MN 1.5 248 MLv 3.42 0.04 1.91957
MMB BS 1.6 103 MLv 3.34 -0.04 1.52906
GR12 1Y 1.6 157 MLv 3.43 0.04 1.81832
THE HT 1.6 144 MLv 2.94 -0.44 0.38575
SRS HT 1.6 120 MLv 3.21 -0.17 0.738759
SOH HT 1.6 132 MLv 3.20 -0.18 0.982708
HORT HT 1.7 142 MLv 3.09 -0.29 0.491927
NVR HL 1.7 109 MLv 3.60 0.22 1.69325
PENT HL 1.8 195 MLv 3.57 0.19 1.50698
GR16 1Y 1.9 175 MLv 3.35 -0.03 1.03641
LIT HT 1.9 162 MLv 3.19 -0.19 0.503801
GR13 1Y 1.9 145 MLv 3.08 -0.30 0.529811
GR09 1Y 1.9 130 MLv 3.27 -0.11 0.796177
GR02 1Y 2.0 112 MLv 3.37 -0.01 0.949194
KPRO HT 2.0 188 MLv 3.37 -0.01 0.944029
PLG HL 2.0 140 MLv 3.24 -0.14 0.679625
GR15 1Y 2.0 195 MLv 3.52 0.14 1.22649
GR17 1Y 2.2 182 MLv 3.45 0.07 0.8691
PRAS HL 2.2 105 MLv 3.58 0.20 1.1862
GR14 1Y 2.2 204 MLv 3.43 0.05 0.82291
TYRN HT 2.2 170 MLv 3.65 0.27 0.997695
NESN HT 2.3 164 MLv 3.52 0.14 0.911691
KAVA HT 2.3 113 MLv 3.21 -0.17 0.919117
GR18 1Y 2.3 162 MLv 3.21 -0.17 0.432192
GINA HL 2.3 167 MLv 3.67 0.29 1.24267
OUR HT 2.3 133 MLv 3.29 -0.09 0.505873
PRMD HP 2.4 192 MLv 3.41 0.03 0.578689
PAIG HT 2.5 143 MLv 3.26 -0.12 0.30447
|
