Earthquake Information
 Origin Time
2023-11-21 04:41:43 (GMT)
 Magnitude
M 1.3
 Latitude
37.7745° N
 Longitude
21.1944° E
 Focal Depth
12 km
 # of Arrivals
13
 Location 15.3 km SSW of Andravida
24.7 km WNW of Pyrgos
224.0 km W of Athens
 Solution type
automatic
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

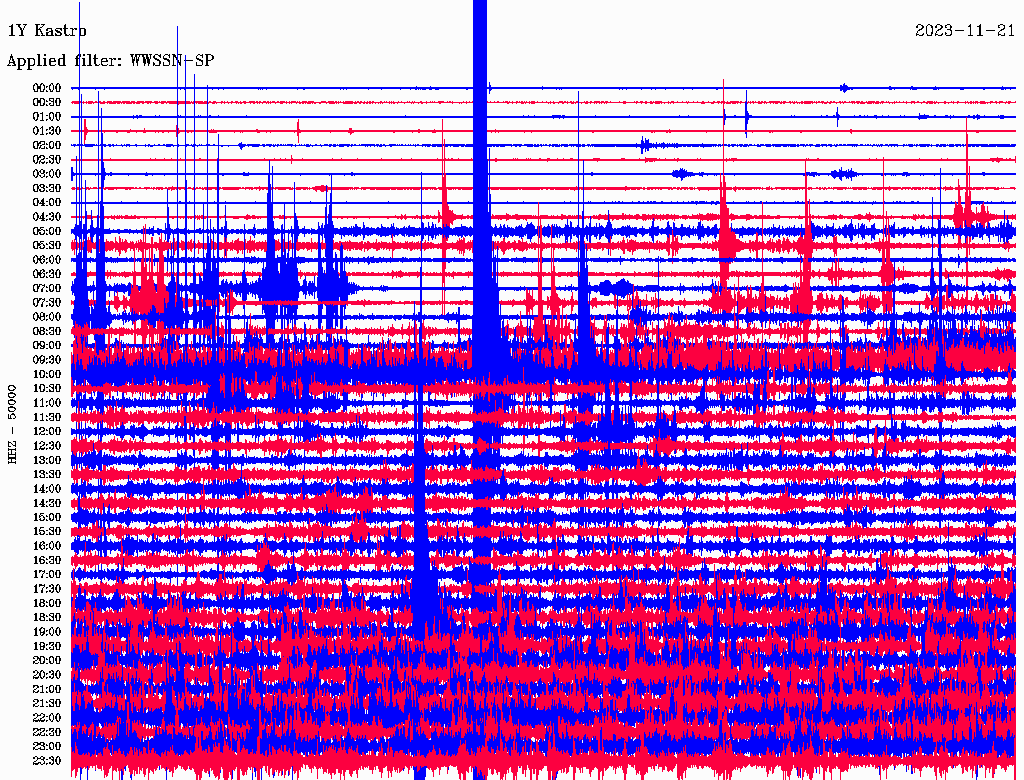

GR281Y13.7340 P04:41:47.14 -0.41.0A

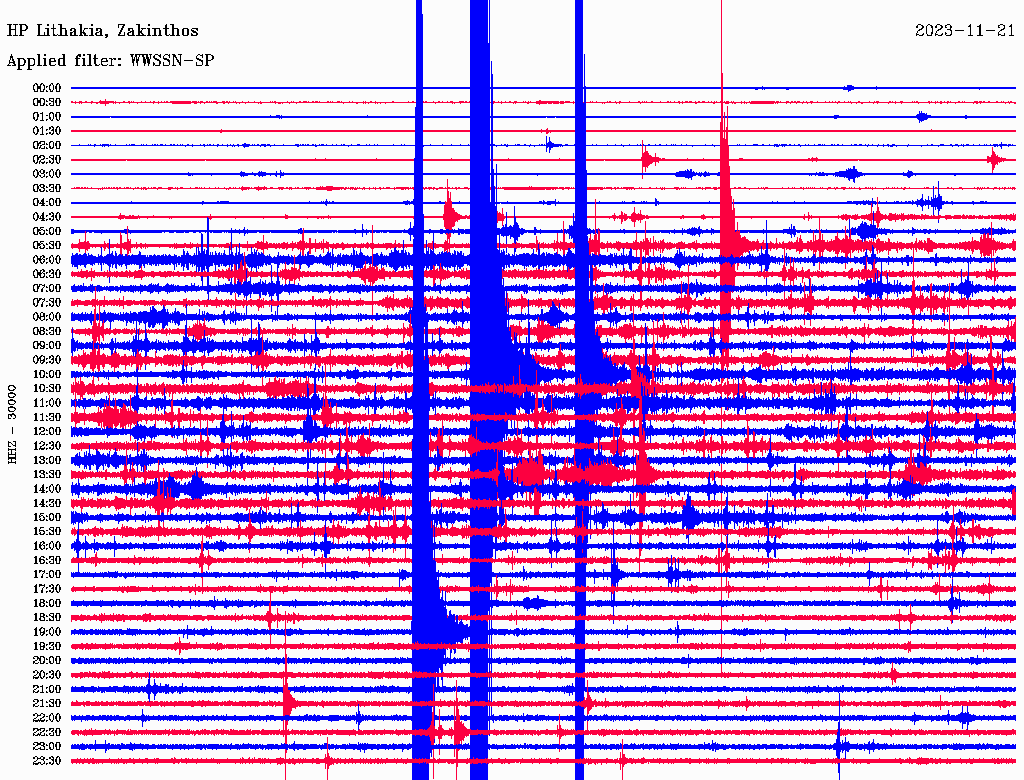

LTHKHP32.3257 P04:41:50.28 -0.11.0A
RLSHL39.3 37 P04:41:51.10 -0.31.0A

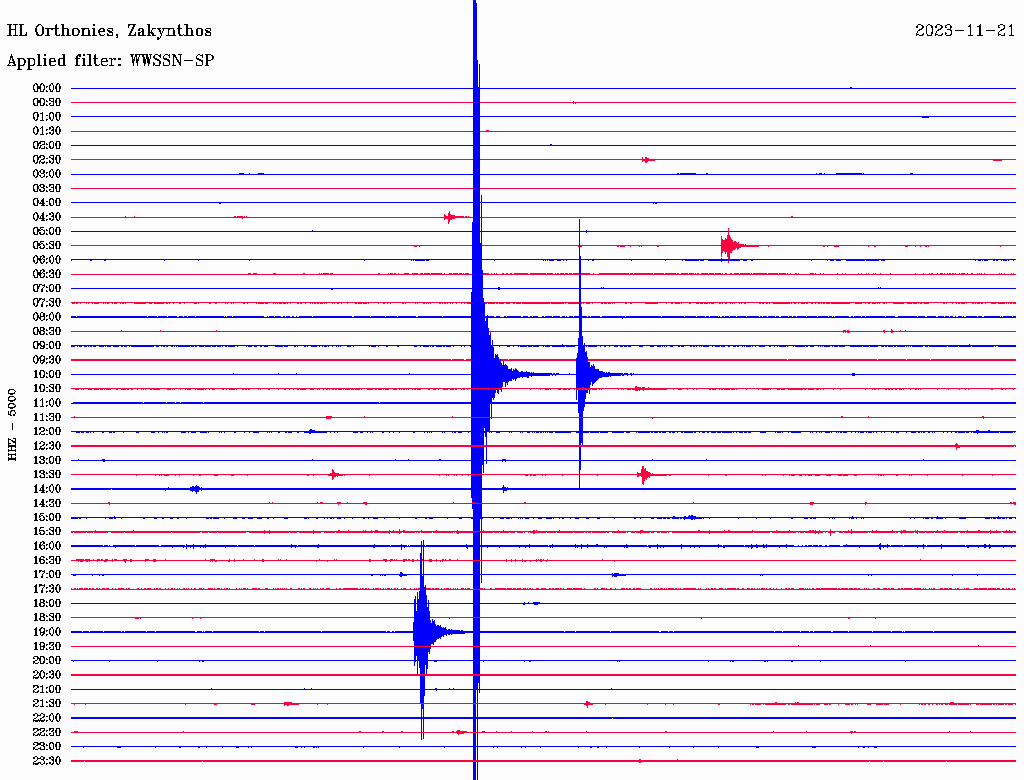

ORTHHL44.6281 P04:41:51.44 -0.81.0A
DROHP49.5 66 P04:41:53.85 0.81.0A
AXSHP49.5 19 P04:41:52.35 -0.71.0A

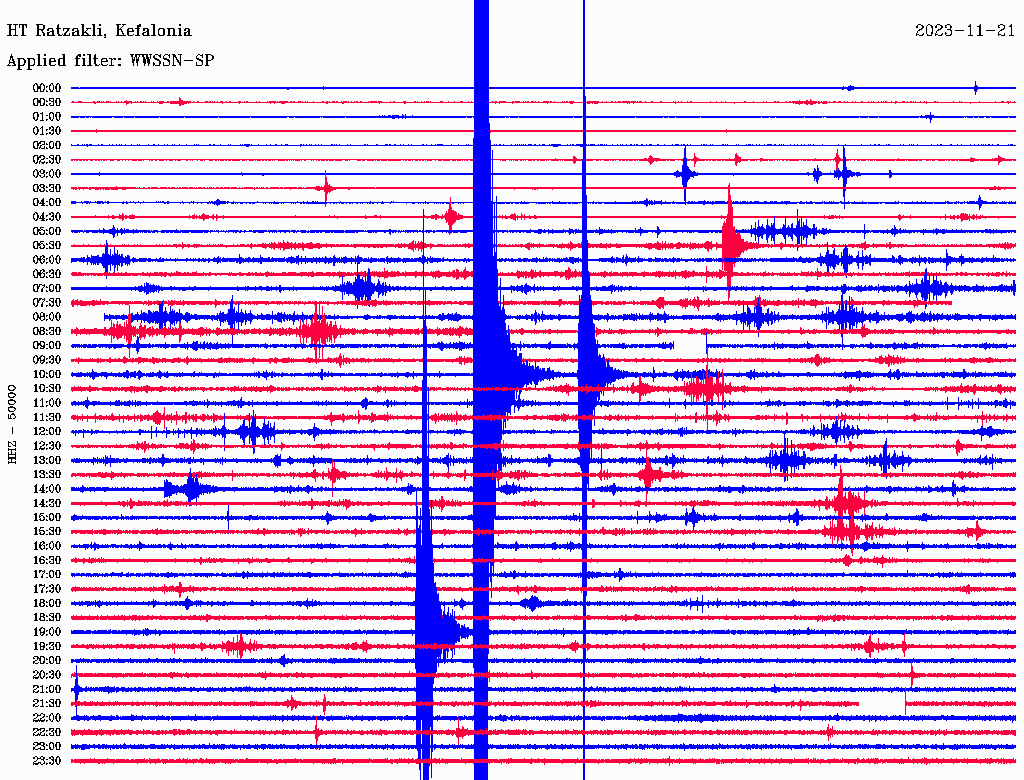

RTZLHT50.0312 P04:41:55.42 2.31.0A

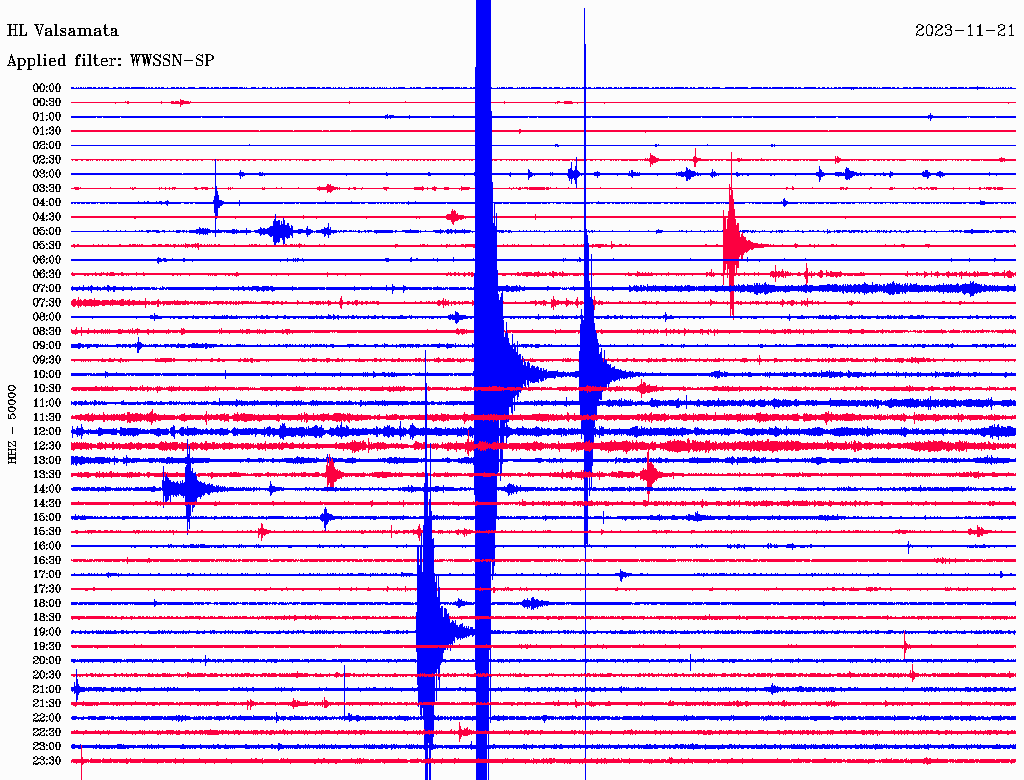

VLSHL69.4310 P04:41:55.69 -0.41.0A
PLEVHP73.3 15 P04:41:56.43 -0.21.0A

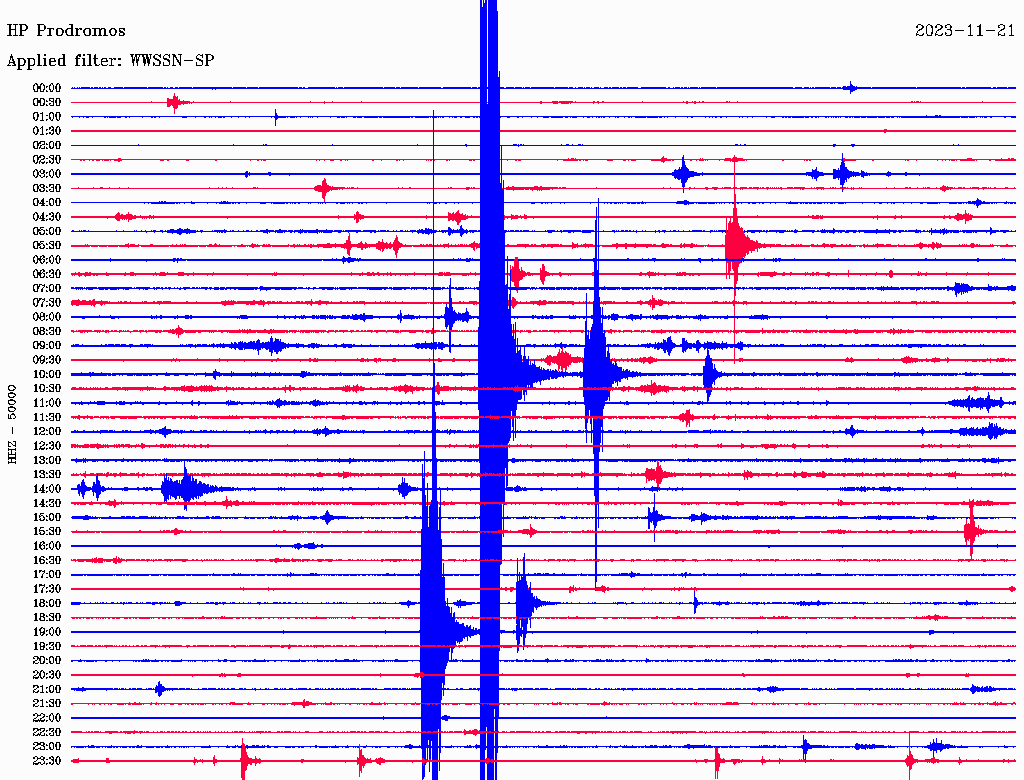

PDOHP91.6359 P04:41:59.18 -0.31.0A
PVOHP98.0 17 P04:42:00.65 0.21.0A

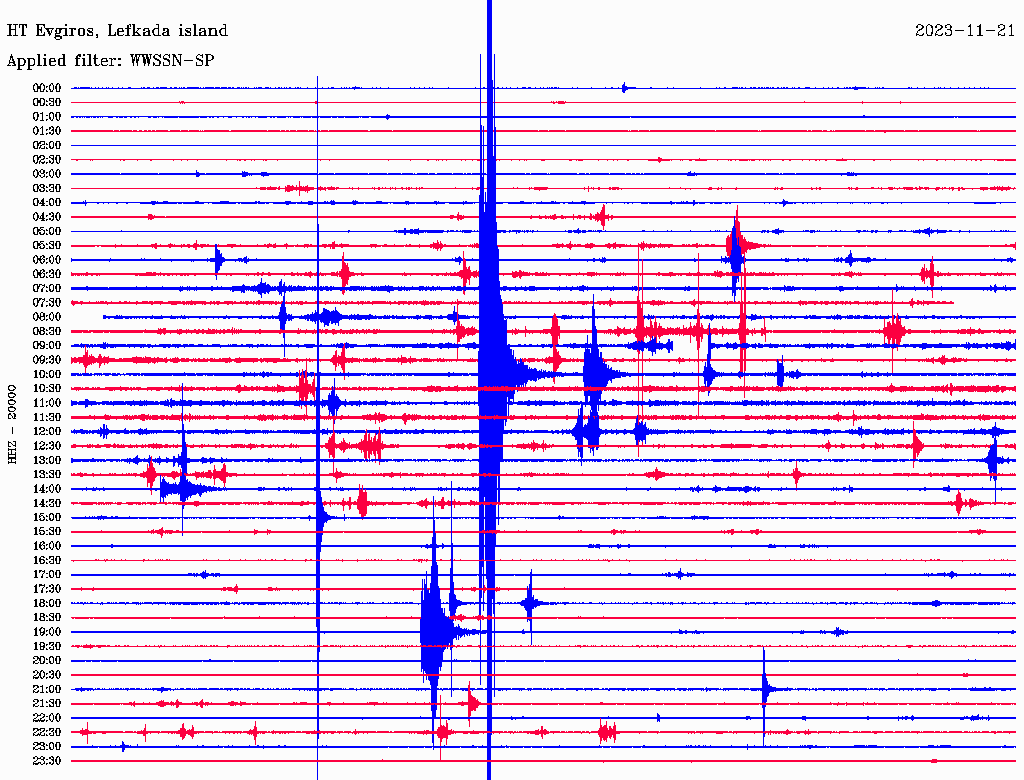

EVGIHT105.2334 P04:42:01.45 -0.11.0A

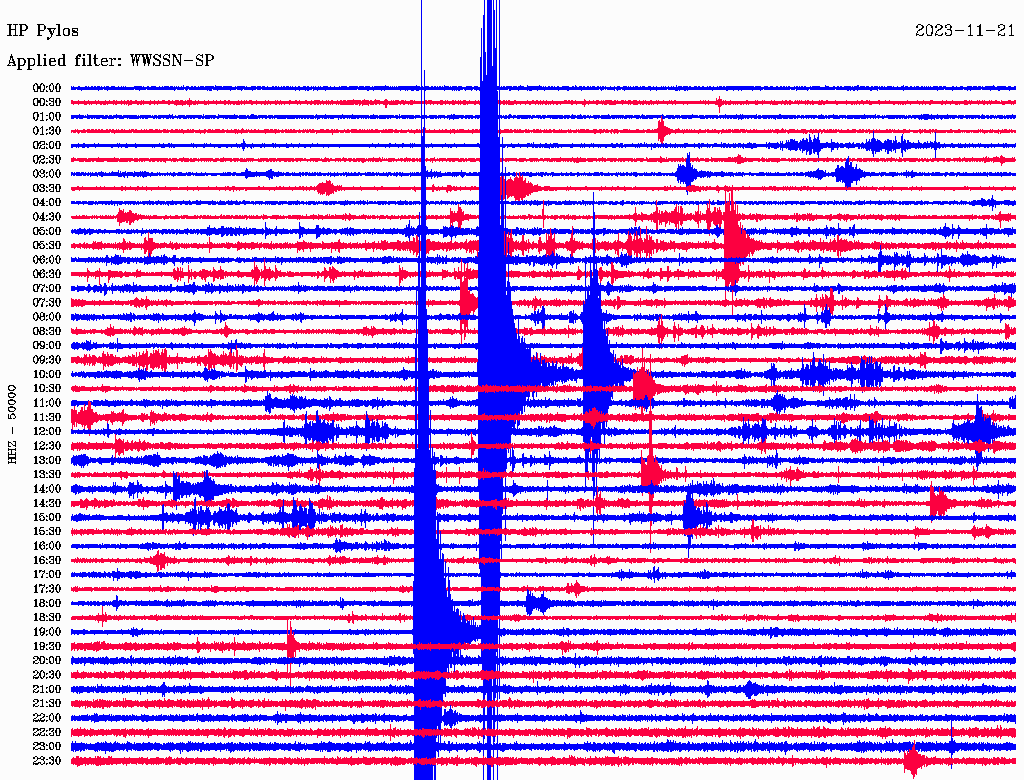

PYLHP109.1153 P04:42:02.03 -0.11.0A


  Solution details

Event:
    Public ID              nkua2023wuih
    Description
      region name: Southern Greece
Origin:
    Date                   2023-11-21
    Time                  04:41:43.39  +/-    0.5 s
    Latitude              37.7745 deg  +/-      3 km
    Longitude             21.1944 deg  +/-      3 km
    Depth                      12 km   +/-    6 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             0.78 s
    Azimuthal gap             104 deg

2 Network magnitudes:
    MLv       1.29 +/- 0.13   7
    M         1.29            7 preferred

13 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR28  1Y    0.1 340  P       04:41:47.14  -0.4 A  1.0  GR28
    LTHK  HP    0.3 257  P       04:41:50.28  -0.1 A  1.0  LTHK
    RLS   HL    0.4  37  P       04:41:51.10  -0.3 A  1.0  RLS
    ORTH  HL    0.4 281  P       04:41:51.44  -0.8 A  1.0  ORTH
    DRO   HP    0.4  66  P       04:41:53.85   0.8 A  1.0  DRO
    AXS   HP    0.4  19  P       04:41:52.35  -0.7 A  1.0  AXS
    RTZL  HT    0.4 312  P       04:41:55.42   2.3 A  1.0  RTZL
    VLS   HL    0.6 310  P       04:41:55.69  -0.4 A  1.0  VLS
    PLEV  HP    0.7  15  P       04:41:56.43  -0.2 A  1.0  PLEV
    PDO   HP    0.8 359  P       04:41:59.18  -0.3 A  1.0  PDO
    PVO   HP    0.9  17  P       04:42:00.65   0.2 A  1.0  PVO
    EVGI  HT    0.9 334  P       04:42:01.45  -0.1 A  1.0  EVGI
    PYL   HP    1.0 153  P       04:42:02.03  -0.1 A  1.0  PYL

9 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR28  1Y    0.1 340  MLv     1.26 -0.04   0.650771
    LTHK  HP    0.3 257  MLv     1.36  0.06   0.281493
    RLS   HL    0.4  37  MLv     0.97 -0.32      0.077
    ORTH  HL    0.4 281  MLv     1.79  0.50    0.37866
    DRO   HP    0.4  66  MLv     1.08 -0.21   0.116173
    AXS   HP    0.4  19  MLv     1.19 -0.11   0.0705074
    RTZL  HT    0.4 312  MLv     1.37  0.07   0.103979
    VLS   HL    0.6 310  MLv     1.51  0.22   0.0734057
    PLEV  HP    0.7  15  MLv     1.29 -0.00   0.0422392
