Earthquake Information
 Origin Time
2023-11-19 19:44:14 (GMT)
 Magnitude
M 3.7
 Latitude
39.3169° N
 Longitude
28.4060° E
 Focal Depth
21 km
 # of Arrivals
30
 Location 186.4 km E of Mitilini
213.4 km NE of Samos
432.0 km ENE of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

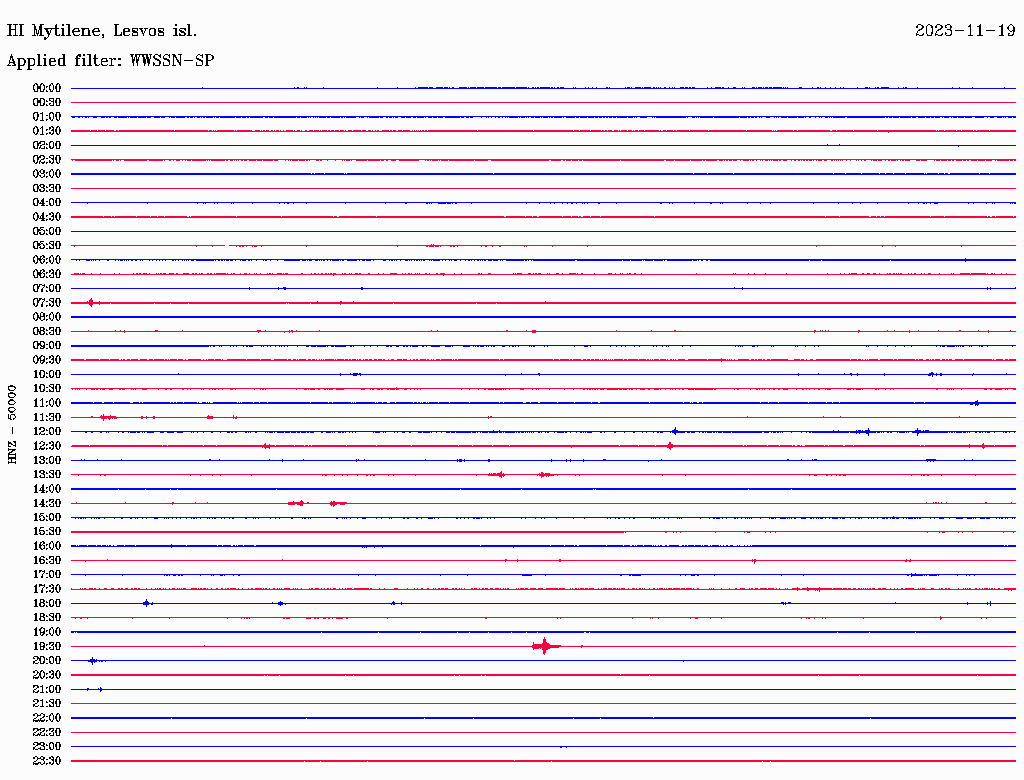

MYT1HI160.3261 P19:44:39.28 0.31.0M
MYT1HI160.3261 S19:44:58.17 0.21.0M
PRKHL184.5268 P19:44:41.92 -0.21.0M
PRKHL184.5268 S19:45:03.56 0.11.0M
LES3HT191.5270 P19:44:42.75 -0.21.0M
LES3HT191.5270 S19:45:05.01 0.01.0M
SMGHL225.3218 P19:44:47.09 0.01.0M
SMGHL225.3218 S19:45:12.70 0.11.0M
CHOSHT228.7244 P19:44:47.39 -0.21.0M
CHOSHT228.7244 S19:45:13.28 -0.11.0M

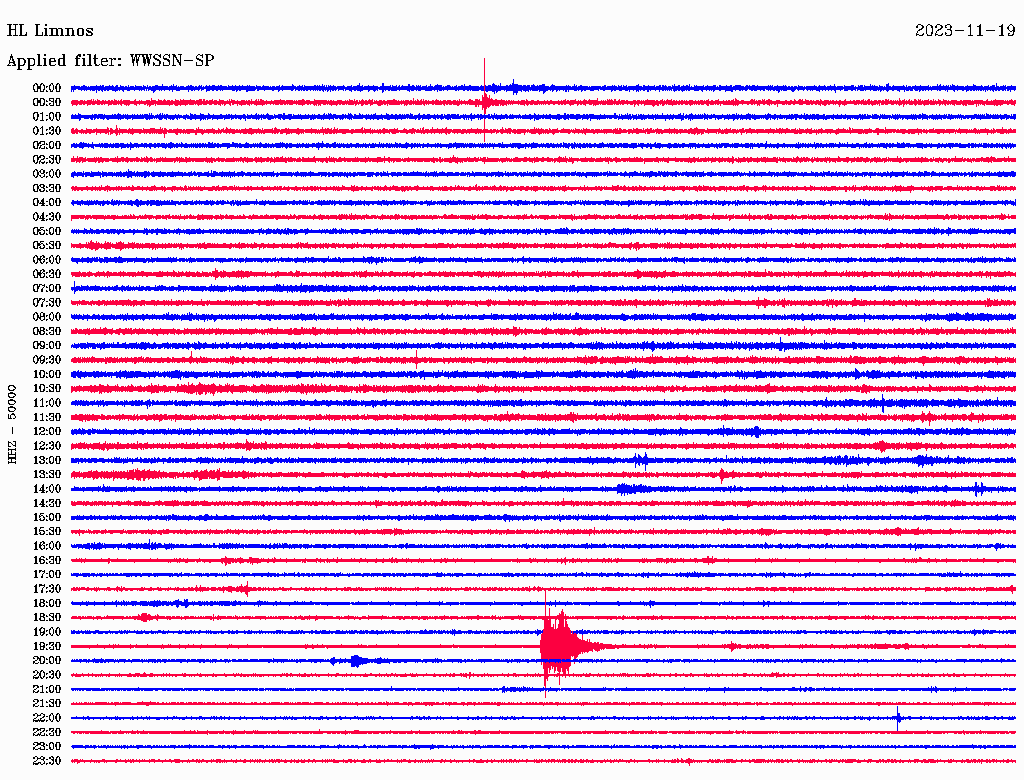

LIAHL283.7284 P19:44:54.33 -0.11.0M
LIAHL283.7284 S19:45:25.66 0.01.0M

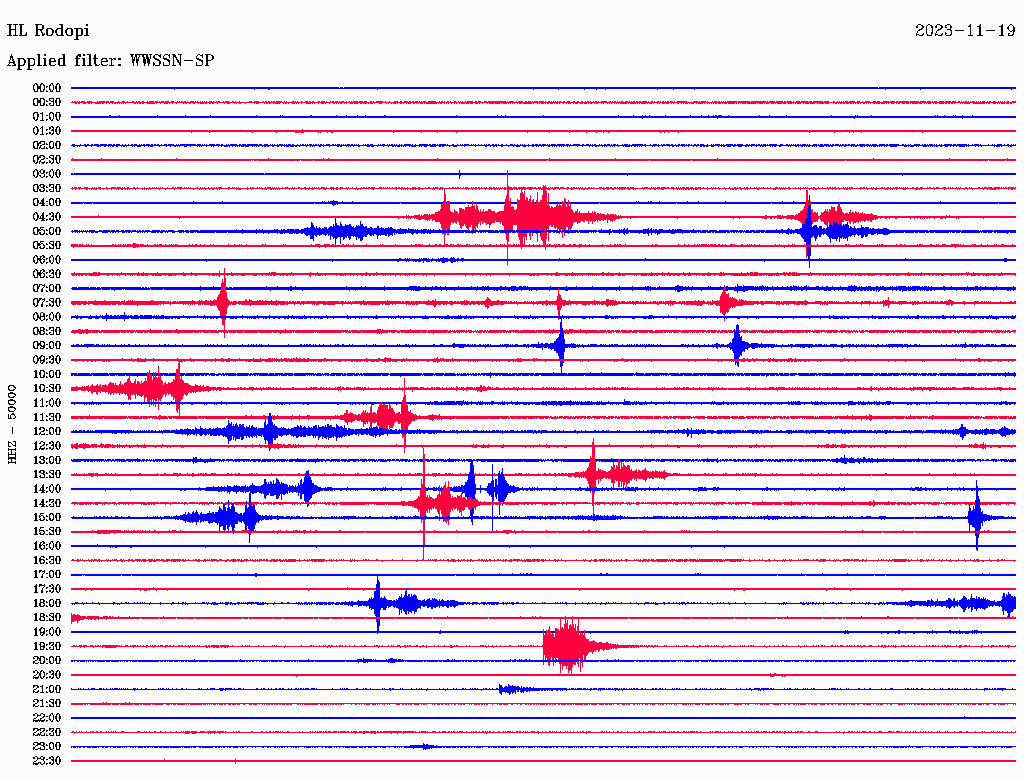

RDOHL317.3311 P19:44:58.65 0.11.0M
RDOHL317.3311 S19:45:33.05 0.01.0M
THASHT345.3296 P19:45:01.57 -0.41.0M
THASHT345.3296 S19:45:39.23 -0.21.0M

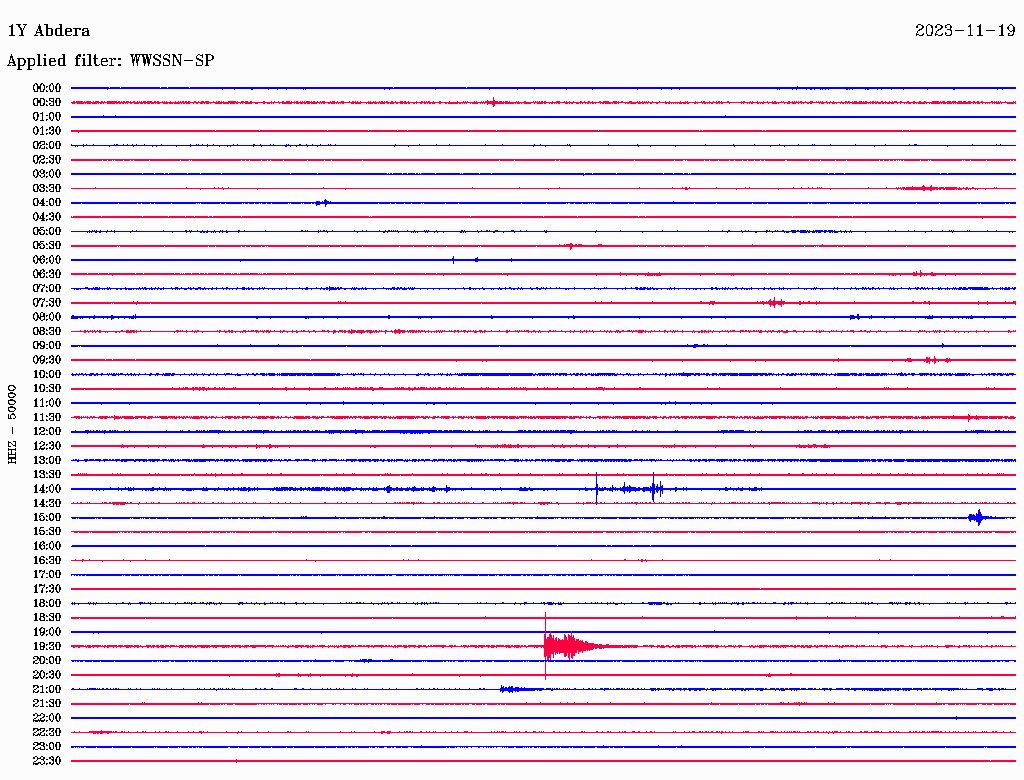

GR041Y346.1303 P19:45:02.03 -0.11.0M
GR041Y346.1303 S19:45:39.73 0.21.0M
APEHL354.6226 P19:45:03.03 -0.11.0M
APEHL354.6226 S19:45:41.37 0.01.0M
GR031Y361.9305 P19:45:04.15 0.11.0M
GR031Y361.9305 S19:45:43.06 0.01.0M

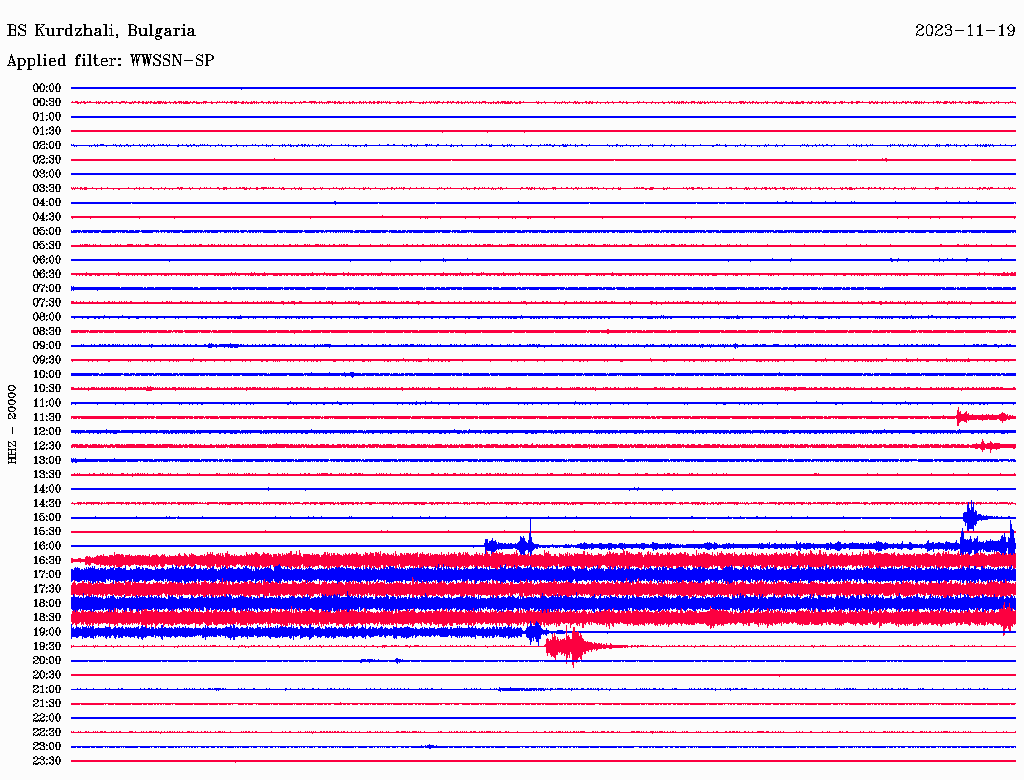

KDZBS365.2316 P19:45:04.45 0.01.0M
KDZBS365.2316 S19:45:43.85 0.11.0M

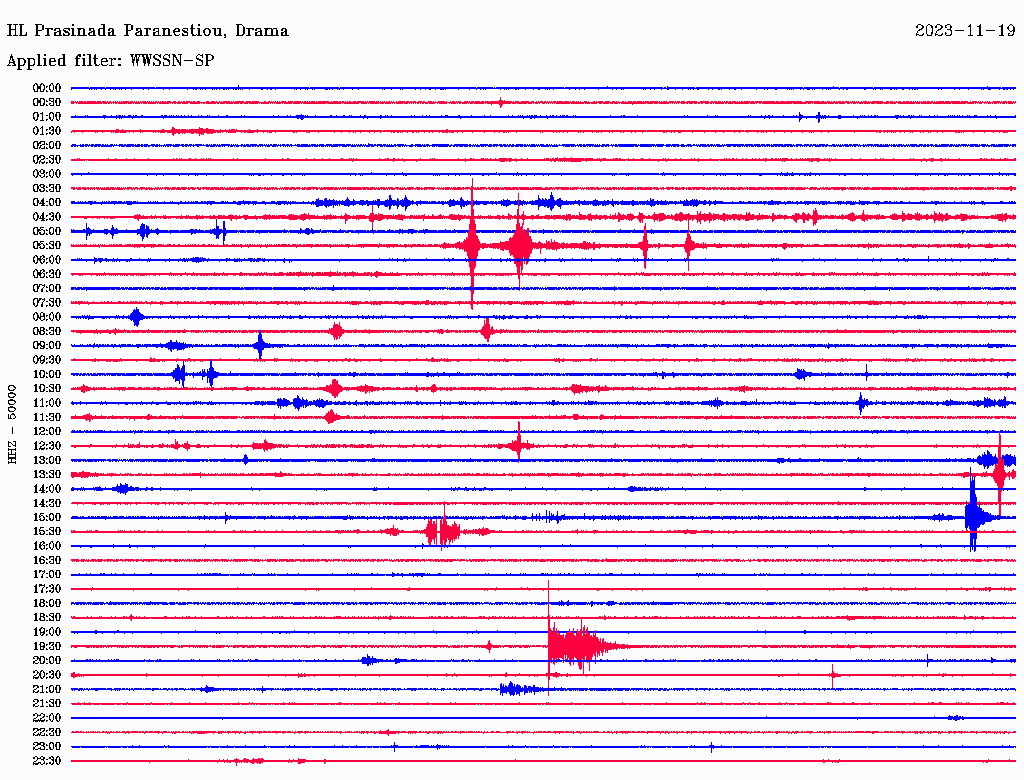

PRASHL397.5306 P19:45:08.73 0.31.0M
PRASHL397.5306 S19:45:50.99 0.01.0M

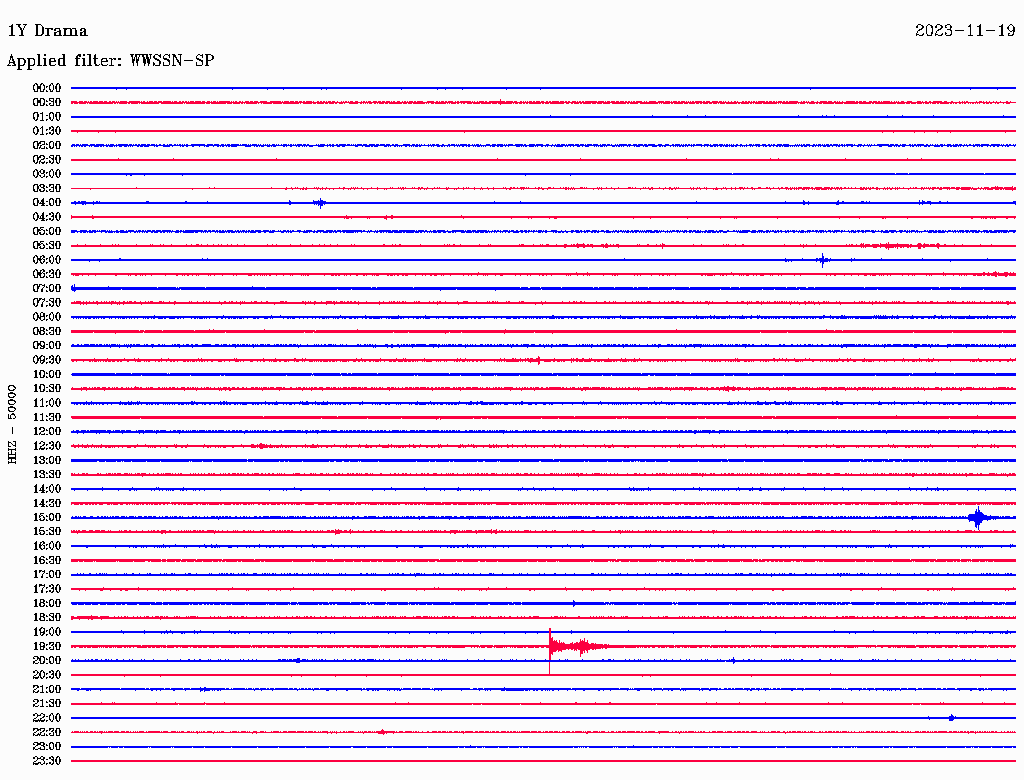

GR021Y414.6301 P19:45:10.56 0.01.0M
GR021Y414.6301 S19:45:54.77 0.01.0M

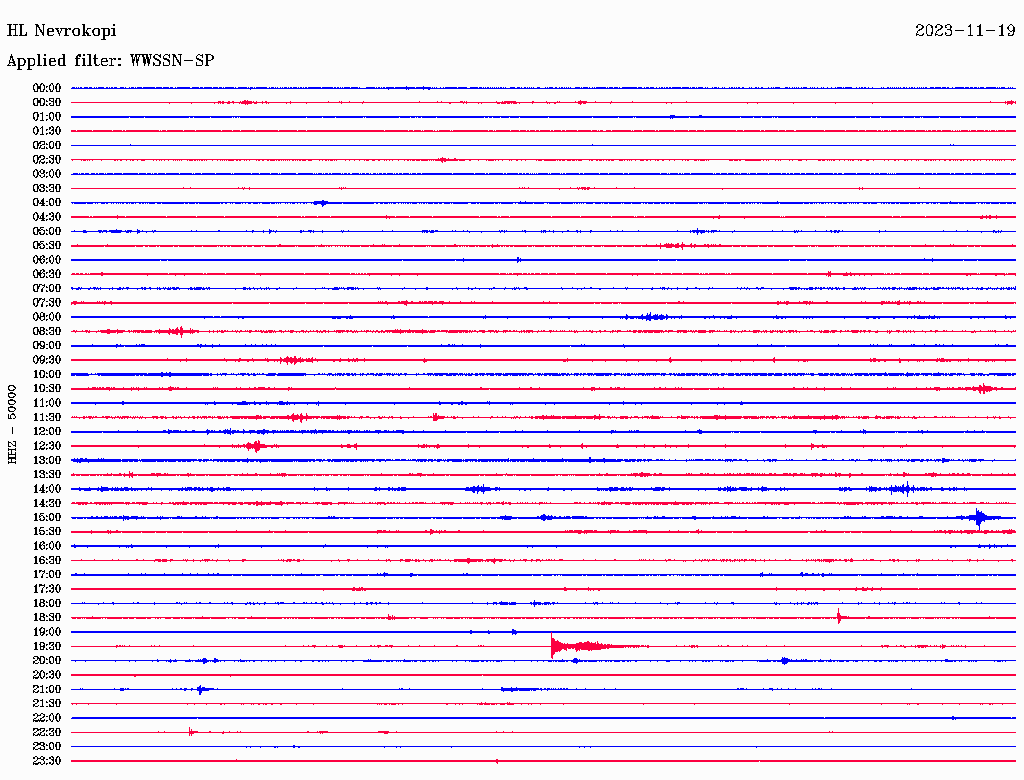

NVRHL446.2302 P19:45:14.75 0.31.0M
NVRHL446.2302 S19:46:01.43 -0.41.0M


  Solution details

Event:
    Public ID              nkua2023wrvb
    Description
      region name: Turkey
Origin:
    Date                   2023-11-19
    Time                  19:44:14.12  +/-    0.8 s
    Latitude              39.3169 deg  +/-      2 km
    Longitude             28.4060 deg  +/-      6 km
    Depth                      21 km   +/-    9 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.17 s
    Azimuthal gap             262 deg

2 Network magnitudes:
    MLv       3.68 +/- 0.14  13
    M         3.68           13 preferred

30 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    MYT1  HI    1.4 261  P       19:44:39.28   0.3 M  1.0  MYT1
    MYT1  HI    1.4 261  S       19:44:58.17   0.2 M  1.0  MYT1
    PRK   HL    1.7 268  P       19:44:41.92  -0.2 M  1.0  PRK
    PRK   HL    1.7 268  S       19:45:03.56   0.1 M  1.0  PRK
    LES3  HT    1.7 270  P       19:44:42.75  -0.2 M  1.0  LES3
    LES3  HT    1.7 270  S       19:45:05.01  -0.0 M  1.0  LES3
    SMG   HL    2.0 218  P       19:44:47.09  -0.0 M  1.0  SMG
    SMG   HL    2.0 218  S       19:45:12.70   0.1 M  1.0  SMG
    CHOS  HT    2.1 244  P       19:44:47.39  -0.2 M  1.0  CHOS
    CHOS  HT    2.1 244  S       19:45:13.28  -0.1 M  1.0  CHOS
    LIA   HL    2.6 284  P       19:44:54.33  -0.1 M  1.0  LIA
    LIA   HL    2.6 284  S       19:45:25.66  -0.0 M  1.0  LIA
    RDO   HL    2.9 311  P       19:44:58.65   0.1 M  1.0  RDO
    RDO   HL    2.9 311  S       19:45:33.05  -0.0 M  1.0  RDO
    THAS  HT    3.1 296  P       19:45:01.57  -0.4 M  1.0  THAS
    THAS  HT    3.1 296  S       19:45:39.23  -0.2 M  1.0  THAS
    GR04  1Y    3.1 303  P       19:45:02.03  -0.1 M  1.0  GR04
    GR04  1Y    3.1 303  S       19:45:39.73   0.2 M  1.0  GR04
    APE   HL    3.2 226  P       19:45:03.03  -0.1 M  1.0  APE
    APE   HL    3.2 226  S       19:45:41.37   0.0 M  1.0  APE

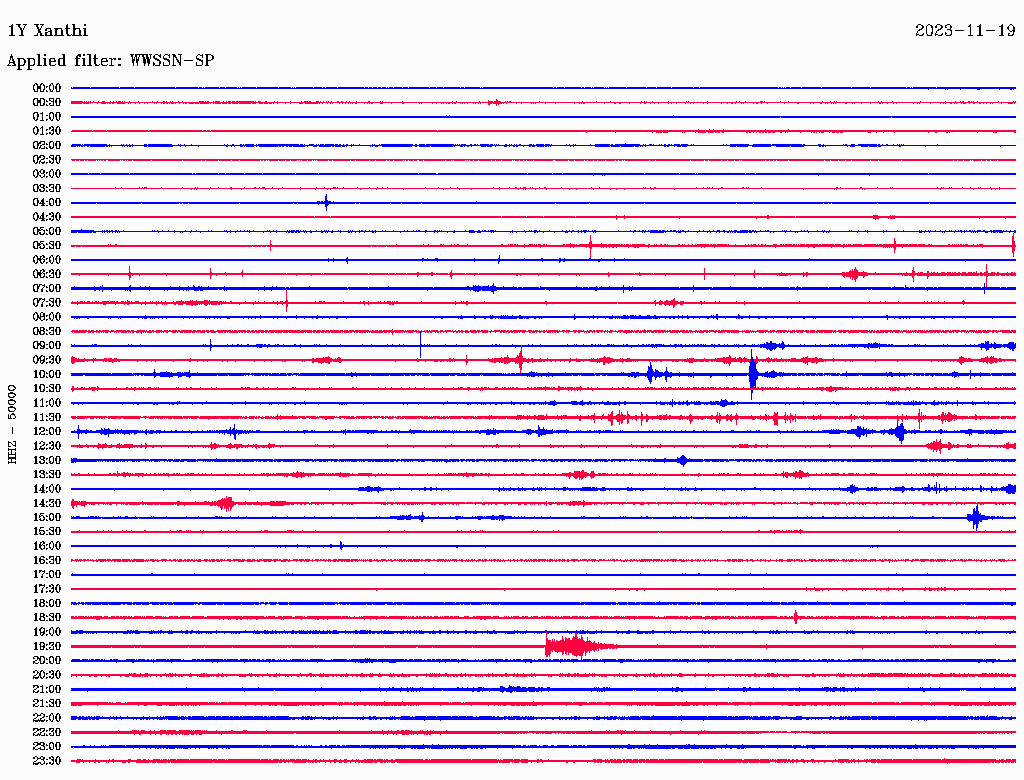

    GR03  1Y    3.3 305  P       19:45:04.15   0.1 M  1.0  GR03
    GR03  1Y    3.3 305  S       19:45:43.06   0.0 M  1.0  GR03
    KDZ   BS    3.3 316  P       19:45:04.45   0.0 M  1.0  KDZ
    KDZ   BS    3.3 316  S       19:45:43.85   0.1 M  1.0  KDZ
    PRAS  HL    3.6 306  P       19:45:08.73   0.3 M  1.0  PRAS
    PRAS  HL    3.6 306  S       19:45:50.99   0.0 M  1.0  PRAS
    GR02  1Y    3.7 301  P       19:45:10.56  -0.0 M  1.0  GR02
    GR02  1Y    3.7 301  S       19:45:54.77  -0.0 M  1.0  GR02
    NVR   HL    4.0 302  P       19:45:14.75   0.3 M  1.0  NVR
    NVR   HL    4.0 302  S       19:46:01.43  -0.4 M  1.0  NVR

15 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    MYT1  HI    1.4 261  MLv     3.98  0.30     7.4986
    PRK   HL    1.7 268  MLv     3.79  0.11    3.71459
    LES3  HT    1.7 270  MLv     3.50 -0.18    1.75121
    SMG   HL    2.0 218  MLv     3.48 -0.20    1.12264
    CHOS  HT    2.1 244  MLv     3.69  0.01     1.7531
    LIA   HL    2.6 284  MLv     3.43 -0.25    1.03852
    RDO   HL    2.9 311  MLv     3.64 -0.04   0.384656
    THAS  HT    3.1 296  MLv     3.48 -0.20   0.283553
    GR04  1Y    3.1 303  MLv     3.63 -0.05   0.394104
    APE   HL    3.2 226  MLv     3.62 -0.06   0.350688
    GR03  1Y    3.3 305  MLv     3.64 -0.04   0.341541
    KDZ   BS    3.3 316  MLv     3.89  0.21    0.57923
    PRAS  HL    3.6 306  MLv     3.97  0.29   0.480592
    GR02  1Y    3.7 301  MLv     3.86  0.18   0.339981
    NVR   HL    4.0 302  MLv     3.73  0.05   0.158712
