Earthquake Information
 Origin Time
 2023-11-16 23:43:06 (GMT)
 Magnitude
 M 0.4
 Latitude
 38.3742° N
 Longitude
 21.9330° E
 Focal Depth
 2 km
 # of Arrivals
 10
 Location 19.1 km NW of Aegion
22.6 km NE of Patras
163.3 km WNW of Athens
 Solution type
 automatic
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

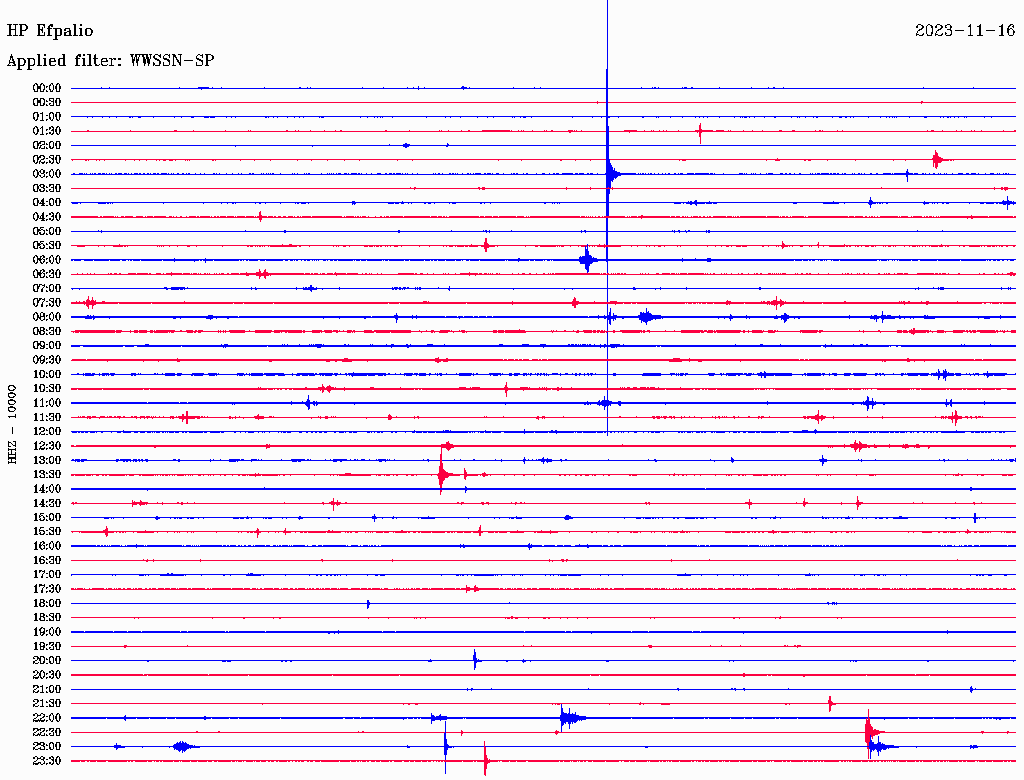

EFPHP6.3338 P23:43:07.48 -0.21.0A

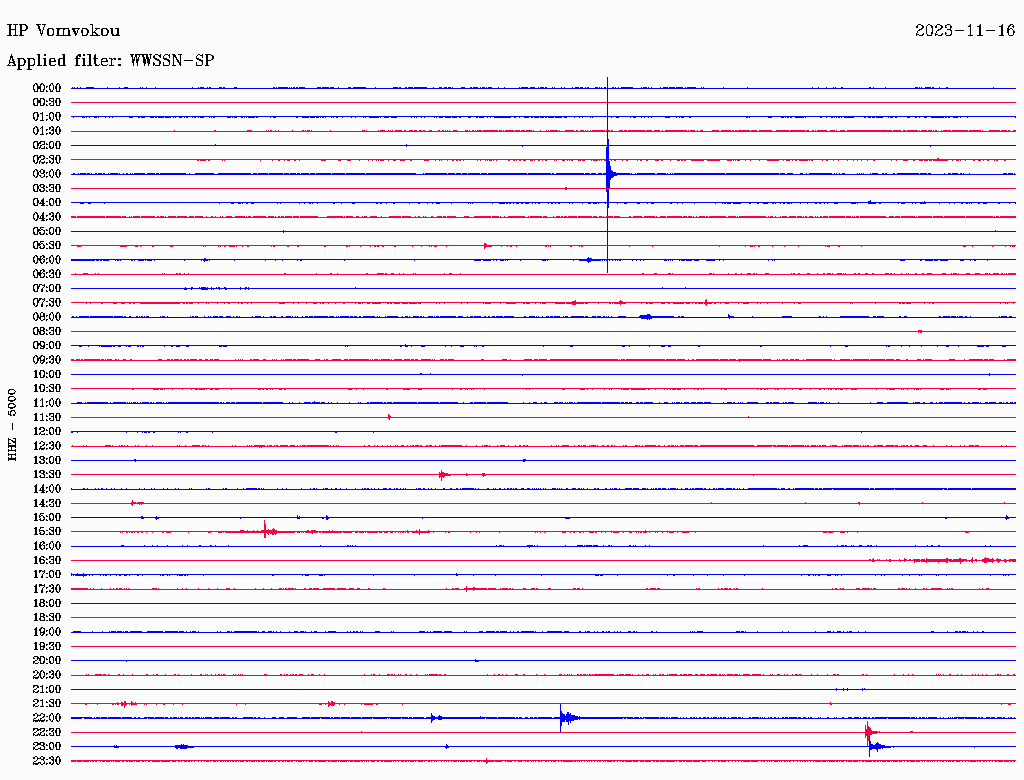

VVKHP11.8297 P23:43:08.65 0.01.0A

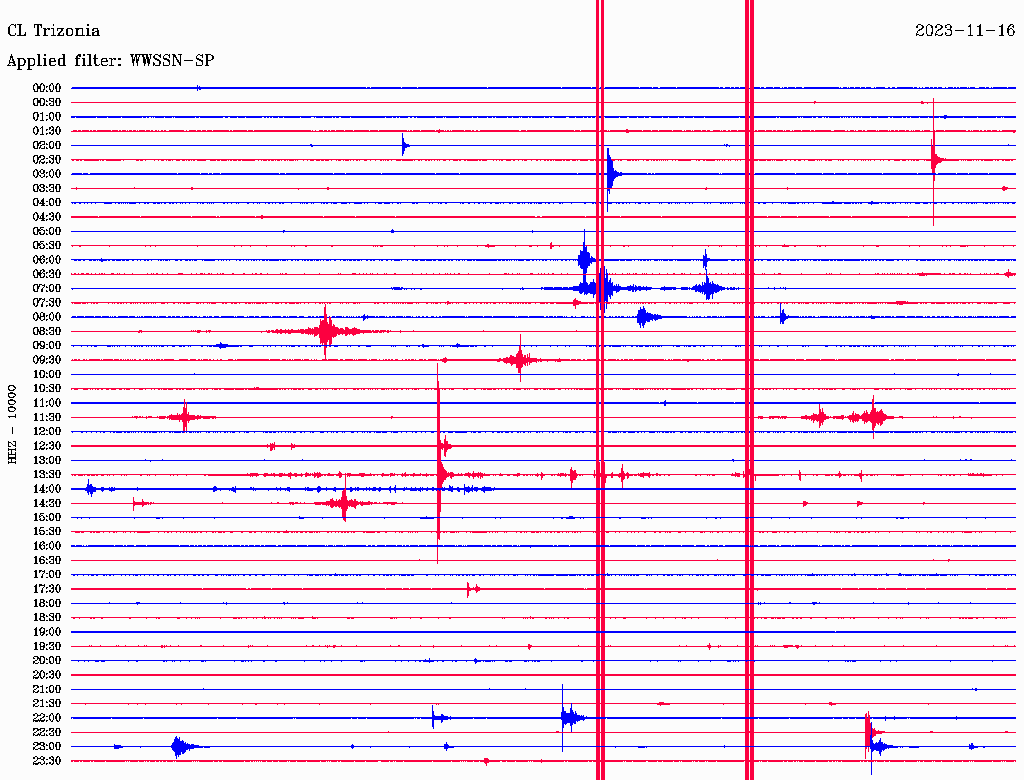

TRIZCL12.2 95 P23:43:08.21 -0.51.0A

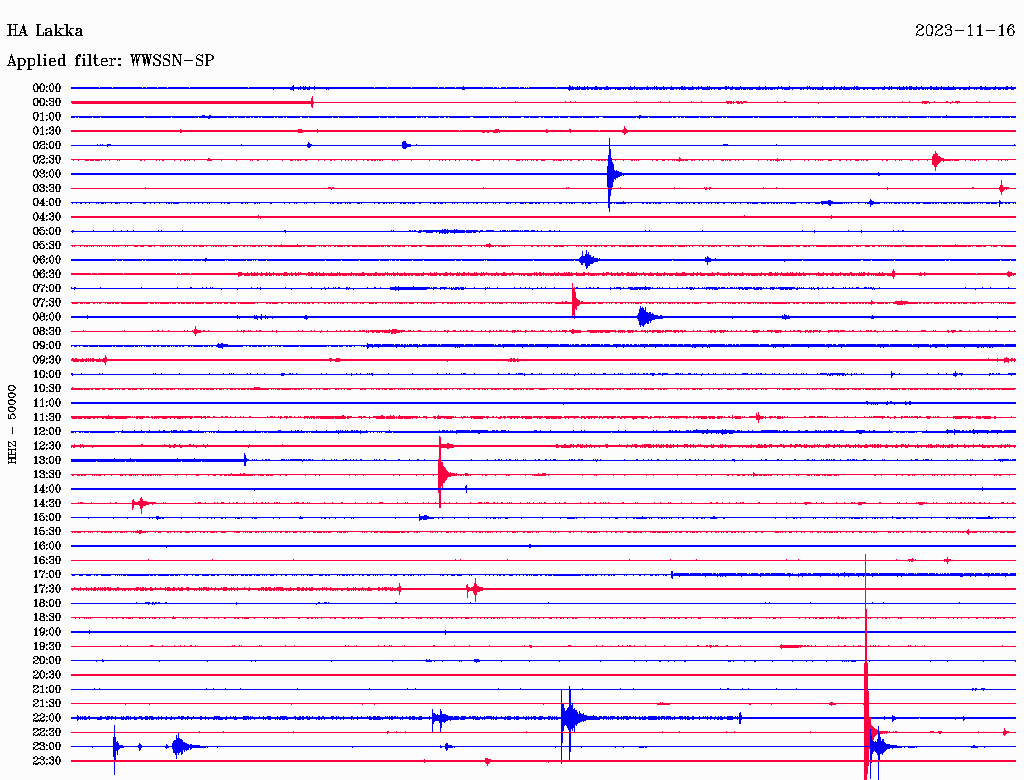

LAKAHA15.4165 P23:43:08.83 -0.41.0A

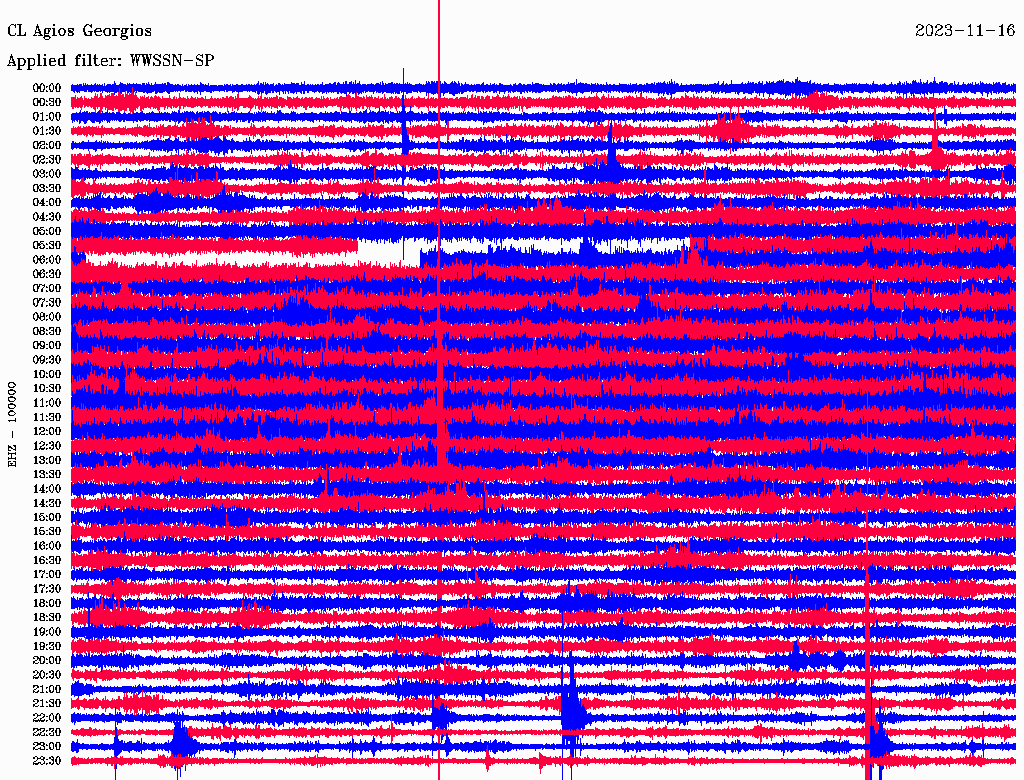

AGEOCL16.6137 P23:43:10.54 1.11.0A

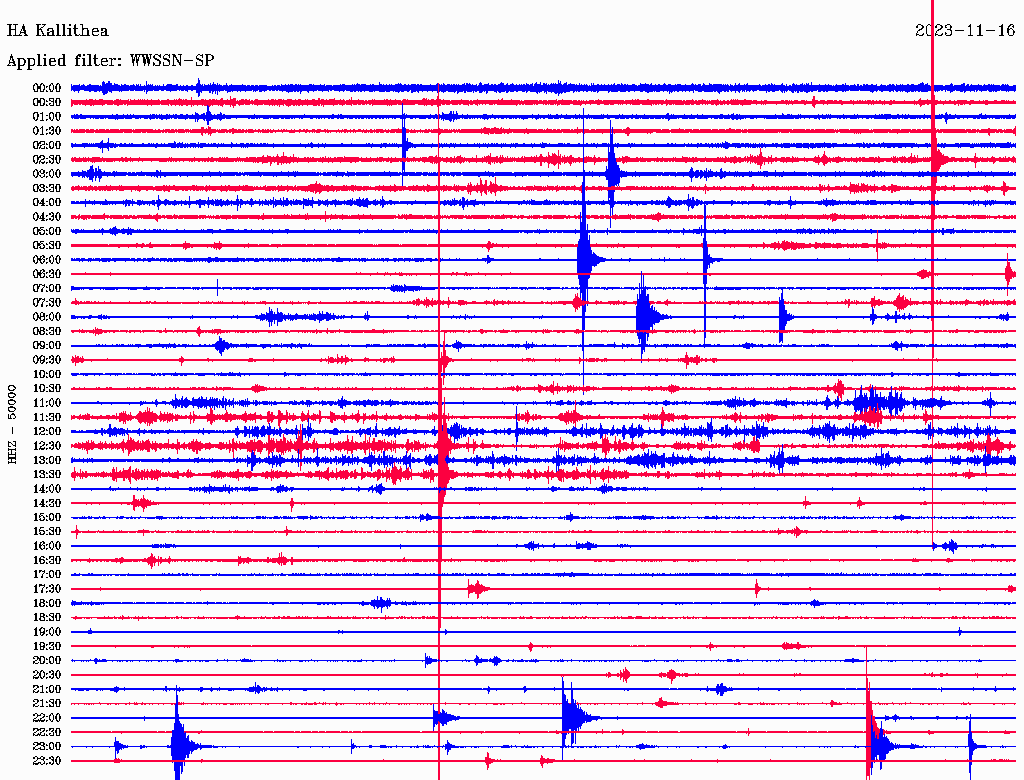

KALEHA18.1 84 P23:43:09.61 -0.11.0A

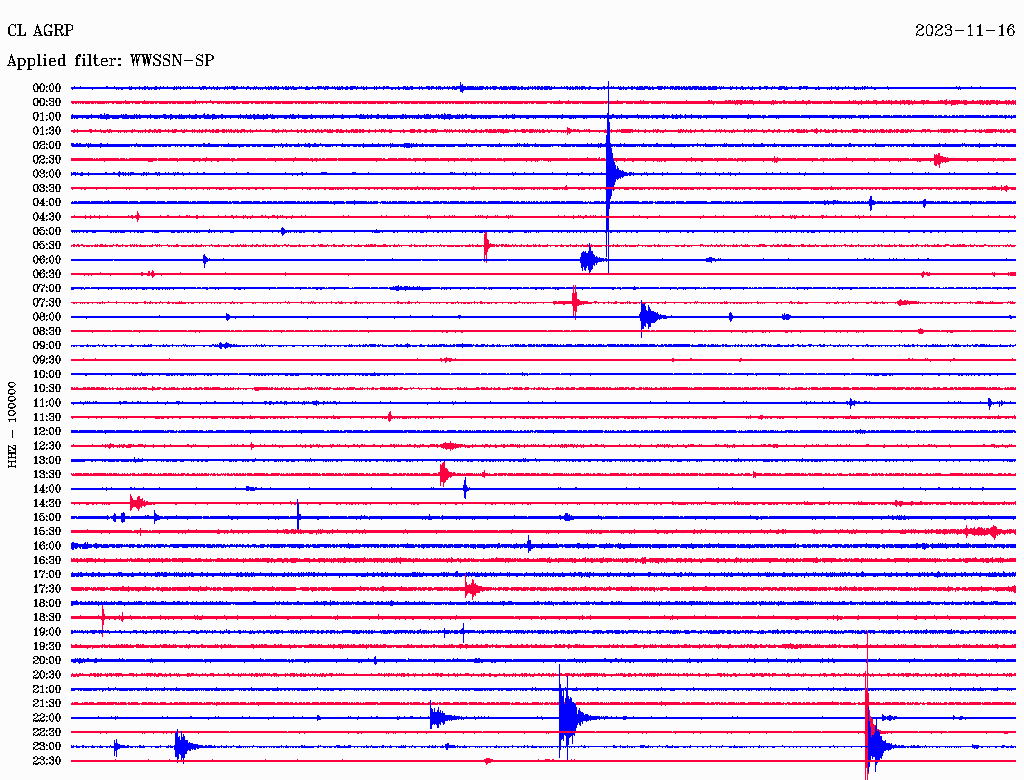

AGRPCL18.5278 P23:43:09.99 0.21.0A
AIOACL22.9151 P23:43:10.02 -0.51.0A

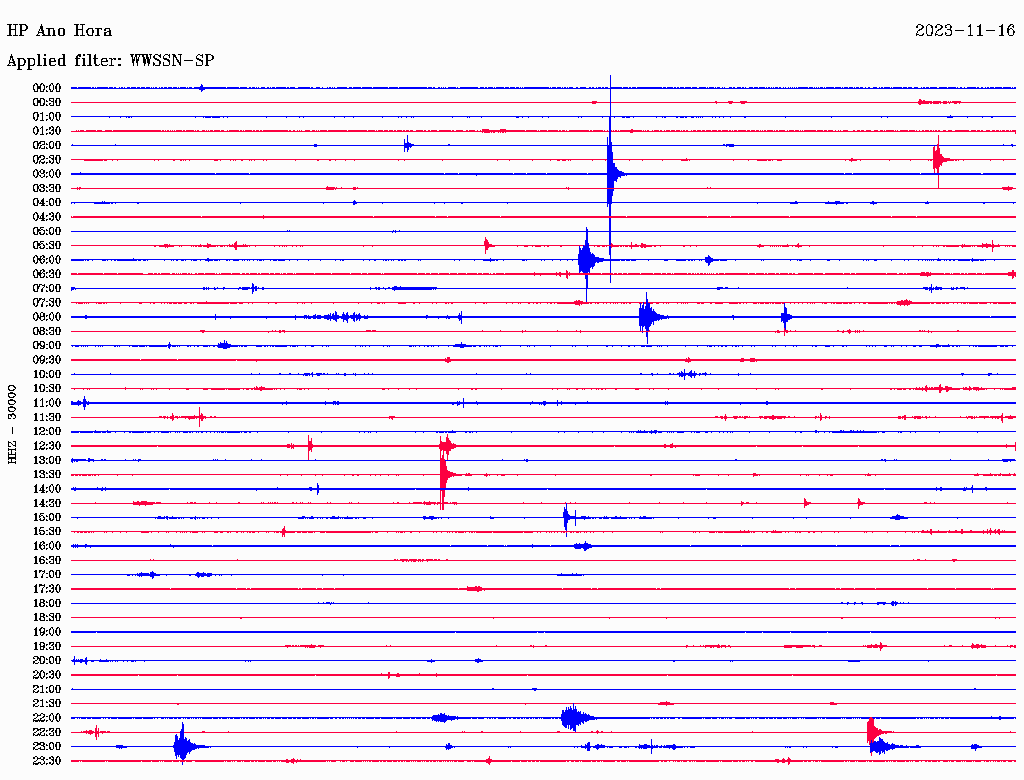

ANXHP24.4358 P23:43:10.42 -0.31.0A
GR241Y41.7 33 P23:43:14.17 0.51.0A


  Solution details

Event:
    Public ID              nkua2023wmql
    Description
      region name: Greece
Origin:
    Date                   2023-11-16
    Time                  23:43:06.19  +/-    0.3 s
    Latitude              38.3742 deg  +/-      3 km
    Longitude             21.9330 deg  +/-      3 km
    Depth                       2 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             0.48 s
    Azimuthal gap             112 deg

2 Network magnitudes:
    MLv       0.41 +/- 0.20   8
    M         0.41            8 preferred

10 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    EFP   HP    0.1 338  P       23:43:07.48  -0.2 A  1.0  EFP
    VVK   HP    0.1 297  P       23:43:08.65   0.0 A  1.0  VVK
    TRIZ  CL    0.1  95  P       23:43:08.21  -0.5 A  1.0  TRIZ
    LAKA  HA    0.1 165  P       23:43:08.83  -0.4 A  1.0  LAKA
    AGEO  CL    0.1 137  P       23:43:10.54   1.1 A  1.0  AGEO
    KALE  HA    0.2  84  P       23:43:09.61  -0.1 A  1.0  KALE
    AGRP  CL    0.2 278  P       23:43:09.99   0.2 A  1.0  AGRP
    AIOA  CL    0.2 151  P       23:43:10.02  -0.5 A  1.0  AIOA
    ANX   HP    0.2 358  P       23:43:10.42  -0.3 A  1.0  ANX
    GR24  1Y    0.4  33  P       23:43:14.17   0.5 A  1.0  GR24

10 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    EFP   HP    0.1 338  MLv     0.42  0.01   0.144177
    VVK   HP    0.1 297  MLv    -0.22 -0.62   0.114019
    TRIZ  CL    0.1  95  MLv     0.22 -0.18   0.0657642
    LAKA  HA    0.1 165  MLv     0.21 -0.20   0.0527352
    AGEO  CL    0.1 137  MLv     0.86  0.46   0.0643234
    KALE  HA    0.2  84  MLv     0.39 -0.02   0.0683072
    AGRP  CL    0.2 278  MLv     0.38 -0.02   0.0663225
    AIOA  CL    0.2 151  MLv     0.54  0.14   0.019157
    ANX   HP    0.2 358  MLv     0.30 -0.11   0.038708
    GR24  1Y    0.4  33  MLv     0.88  0.48   0.0552456
