Earthquake Information
 Origin Time
 2023-09-17 06:58:12 (GMT)
 Magnitude
 M 2.8
 Latitude
 40.3927° N
 Longitude
 21.0372° E
 Focal Depth
 9 km
 # of Arrivals
 36
 Location 23.8 km SW of Kastoria
45.1 km NNE of Konitsa
354.6 km NW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

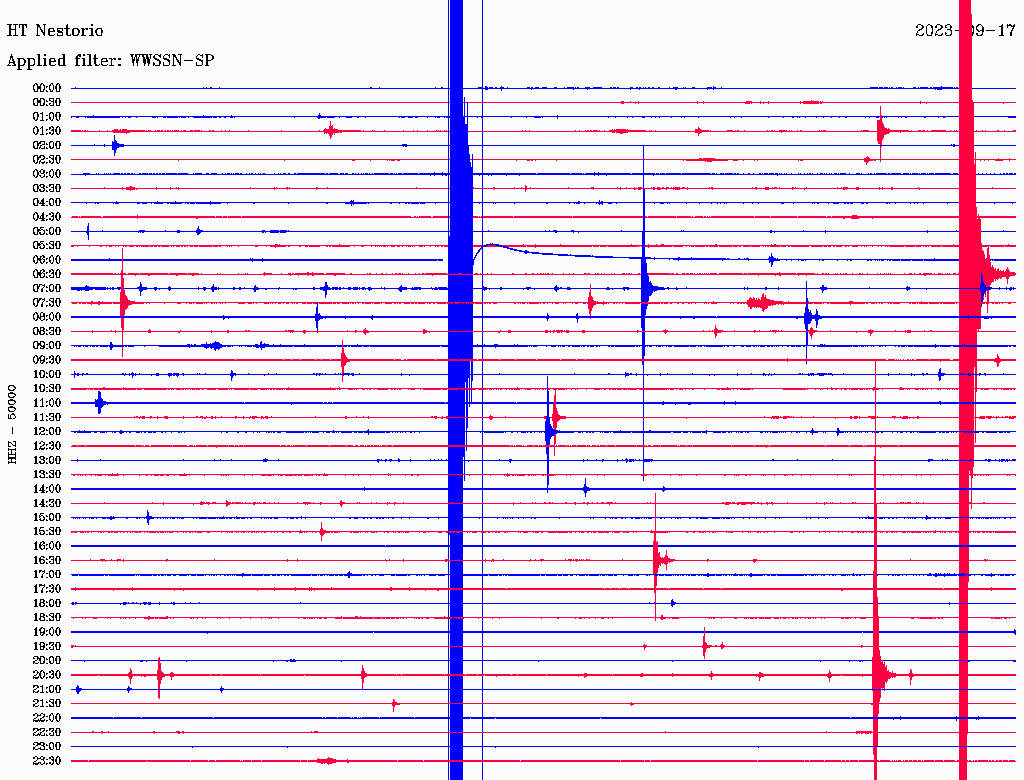

NESTHT2.6 22 P06:58:13.42 -0.31.0M
NESTHT2.6 22 S06:58:15.56 0.31.0M

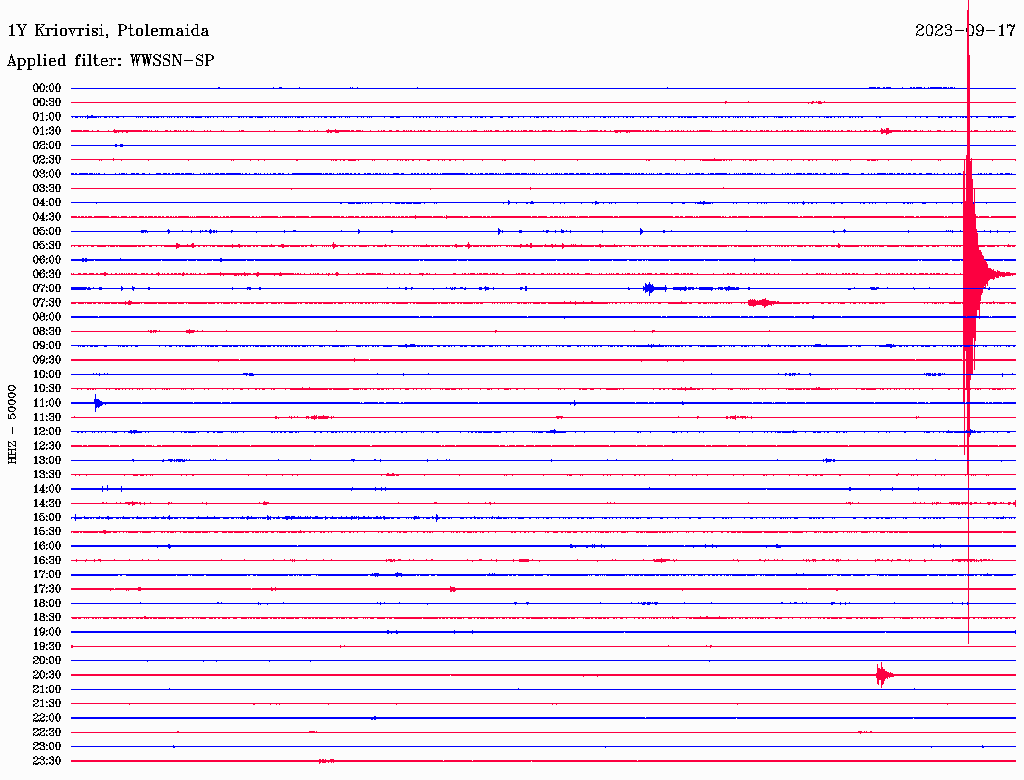

GR101Y48.2 78 P06:58:20.26 -0.21.0M
GR101Y48.2 78 S06:58:27.24 0.11.0M

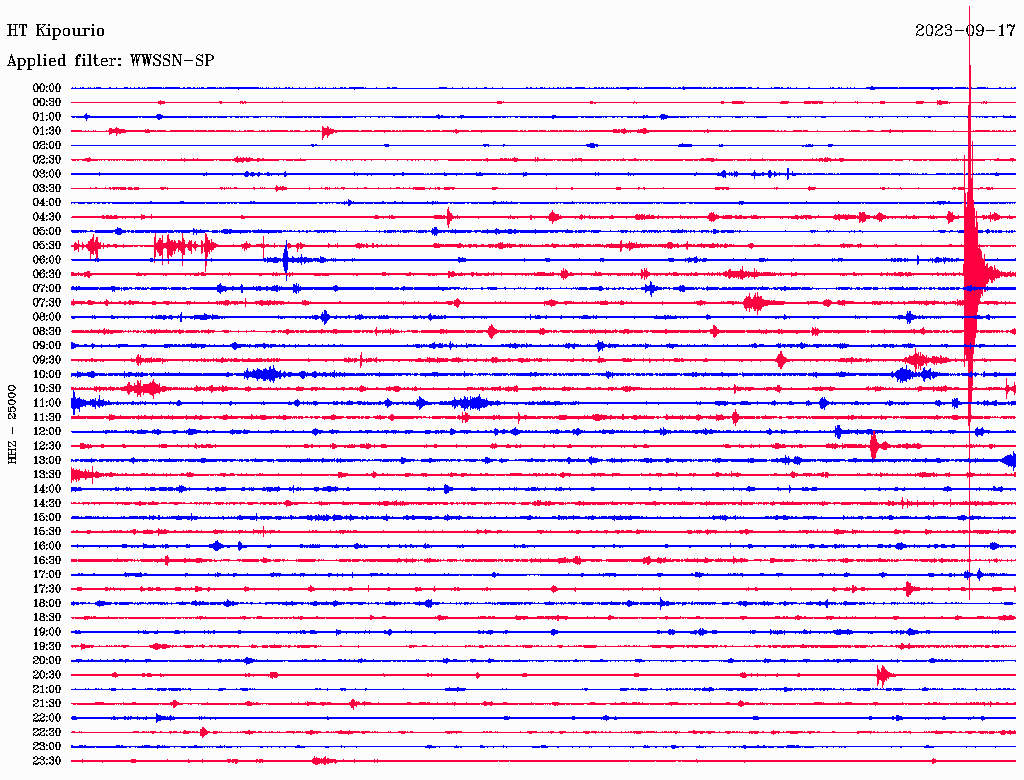

KPROHT56.0150 P06:58:21.12 -0.61.0M
KPROHT56.0150 S06:58:28.98 -0.31.0M

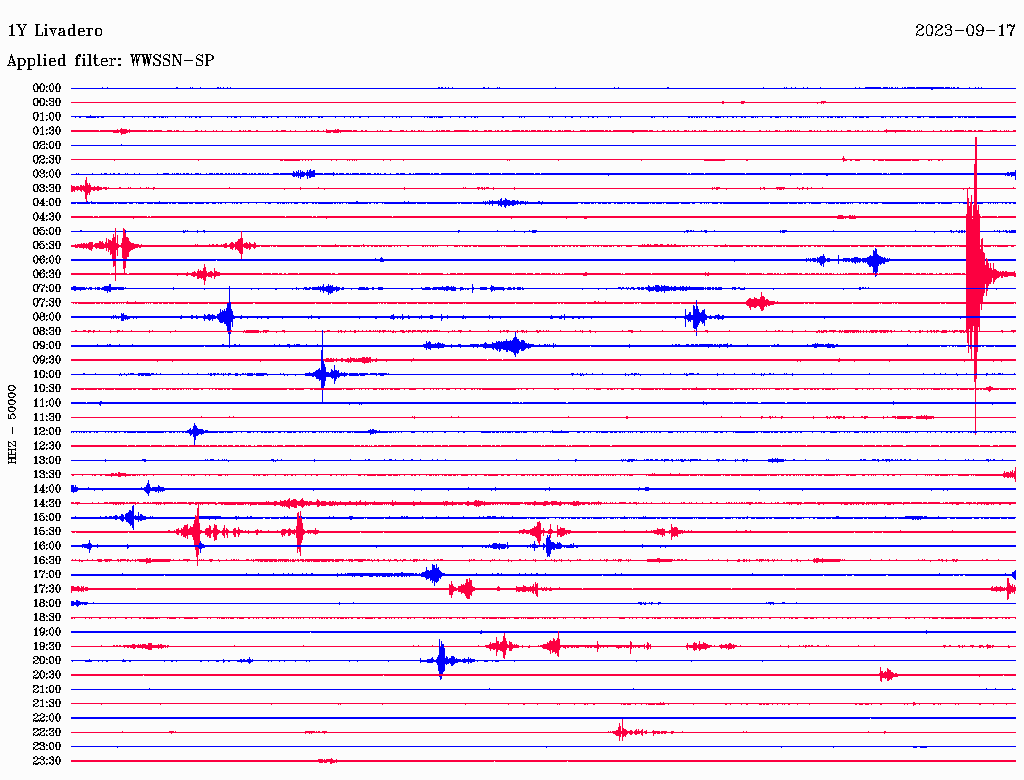

GR161Y85.9117 P06:58:26.55 0.01.0M
GR161Y85.9117 S06:58:37.90 0.11.0M

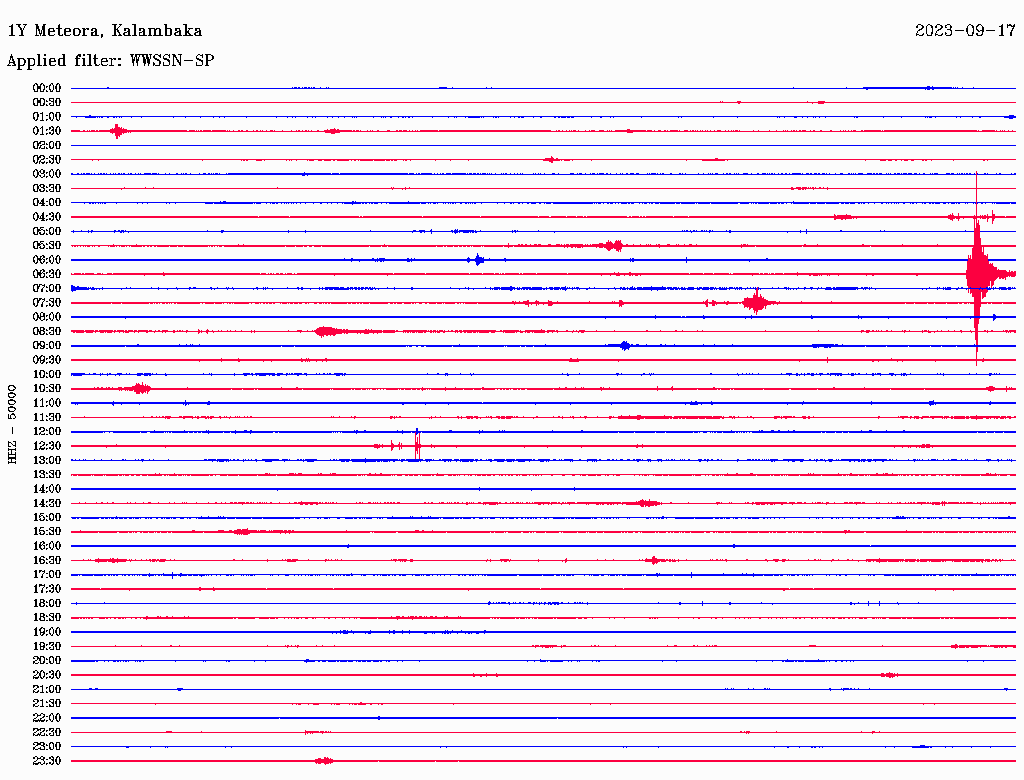

GR171Y89.0145 P06:58:26.53 -0.41.0M
GR171Y89.0145 S06:58:38.74 0.21.0M
GR071Y93.8 62 P06:58:27.37 -0.31.0M
GR071Y93.8 62 S06:58:40.29 0.41.0M

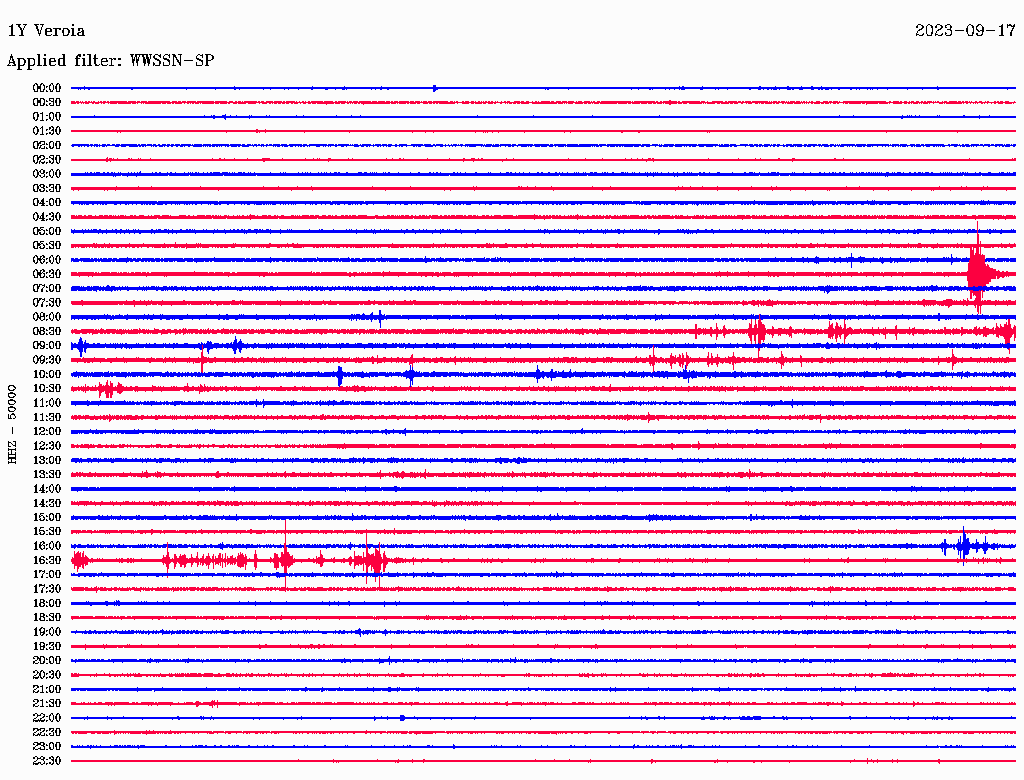

GR111Y98.6 82 P06:58:28.28 -0.21.0M
GR111Y98.6 82 S06:58:41.79 0.61.0M

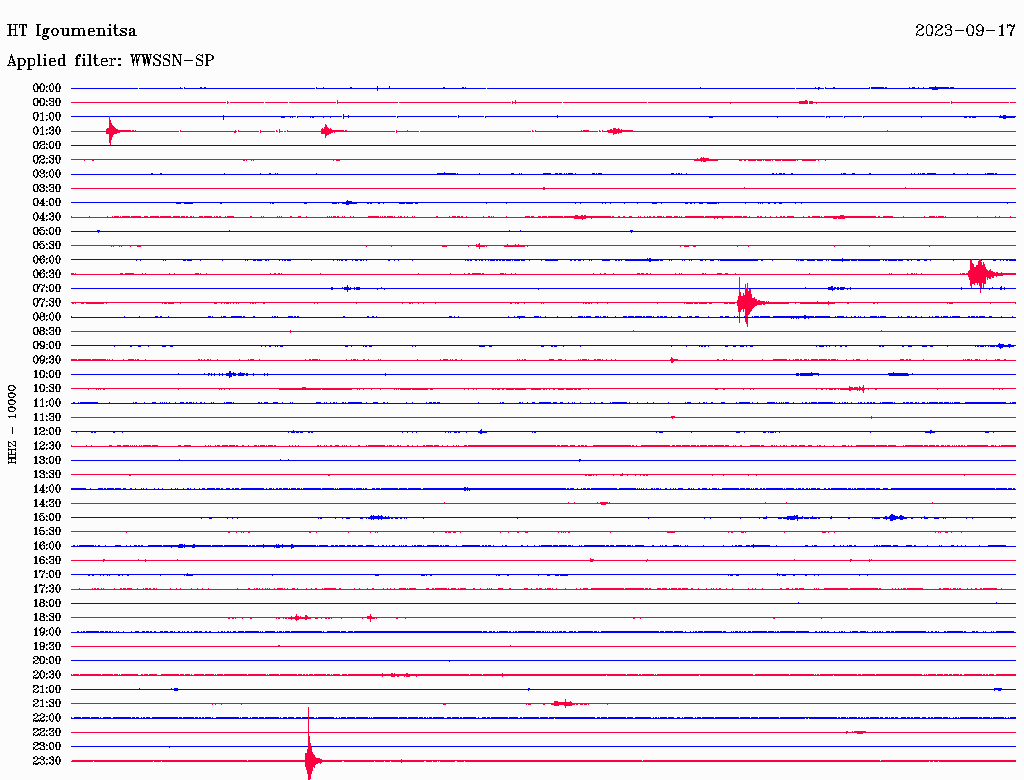

IGTHT113.2212 P06:58:30.22 -0.51.0M
IGTHT113.2212 S06:58:45.77 0.61.0M

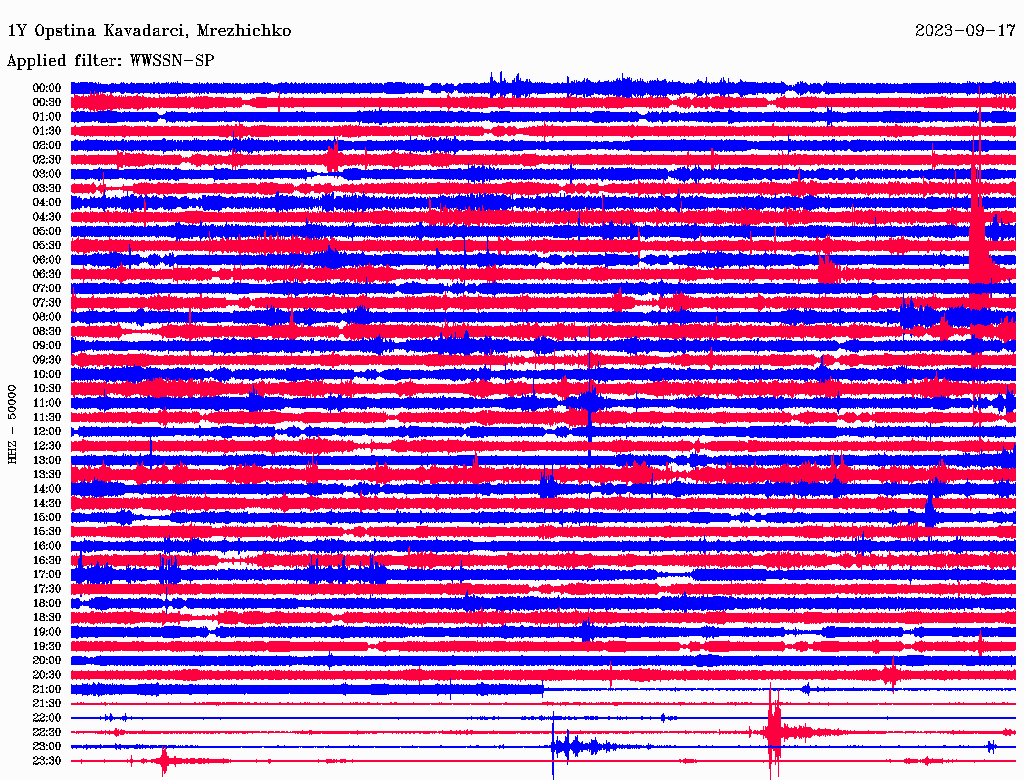

MK03A1Y120.0 42 P06:58:31.40 -0.51.0M
MK03A1Y120.0 42 S06:58:47.76 0.61.0M

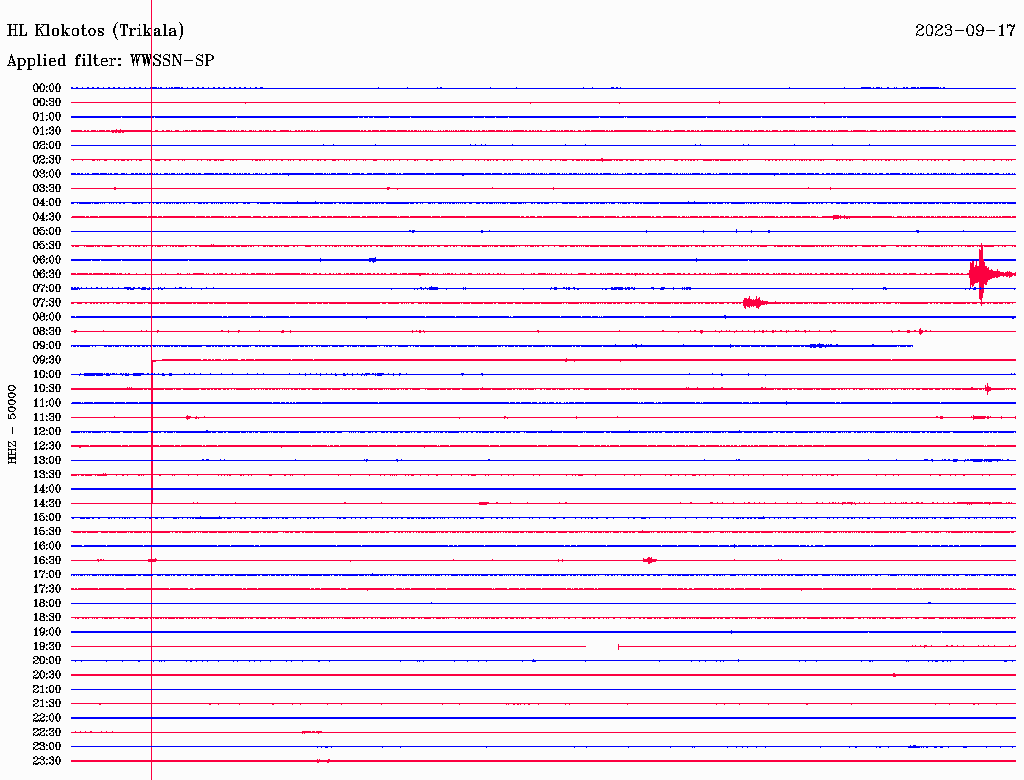

THLHL124.1138 P06:58:31.67 -0.71.0M
THLHL124.1138 S06:58:49.05 0.91.0M

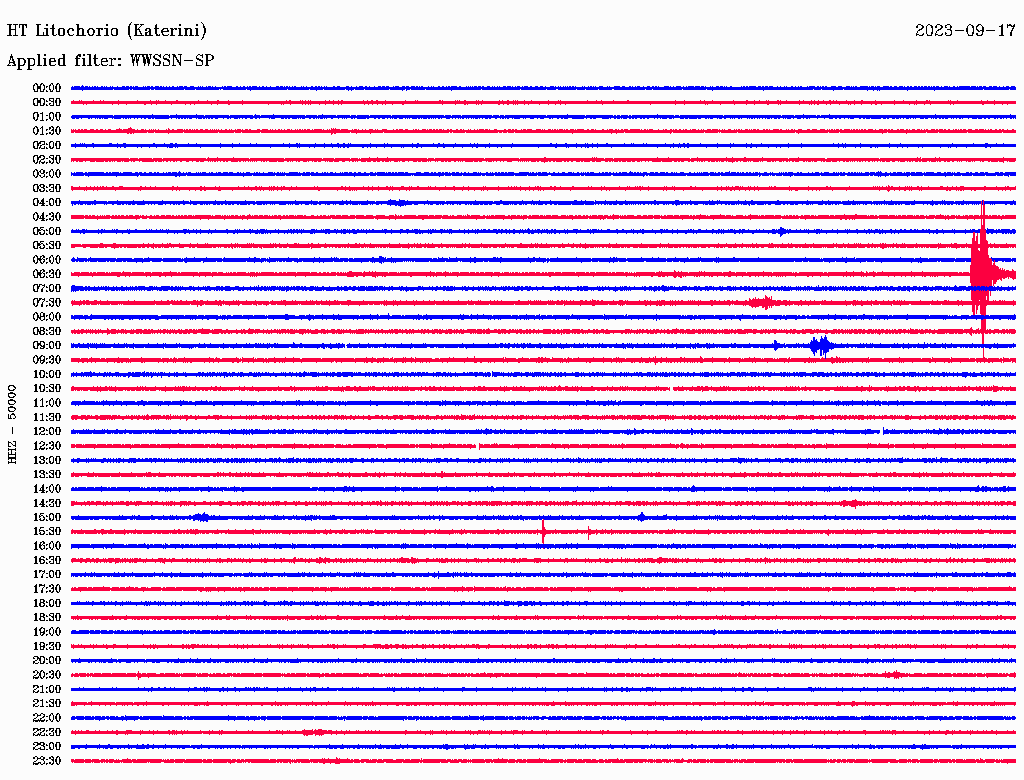

LITHT127.5105 P06:58:33.18 0.21.0M
LITHT127.5105 S06:58:50.22 1.01.0M

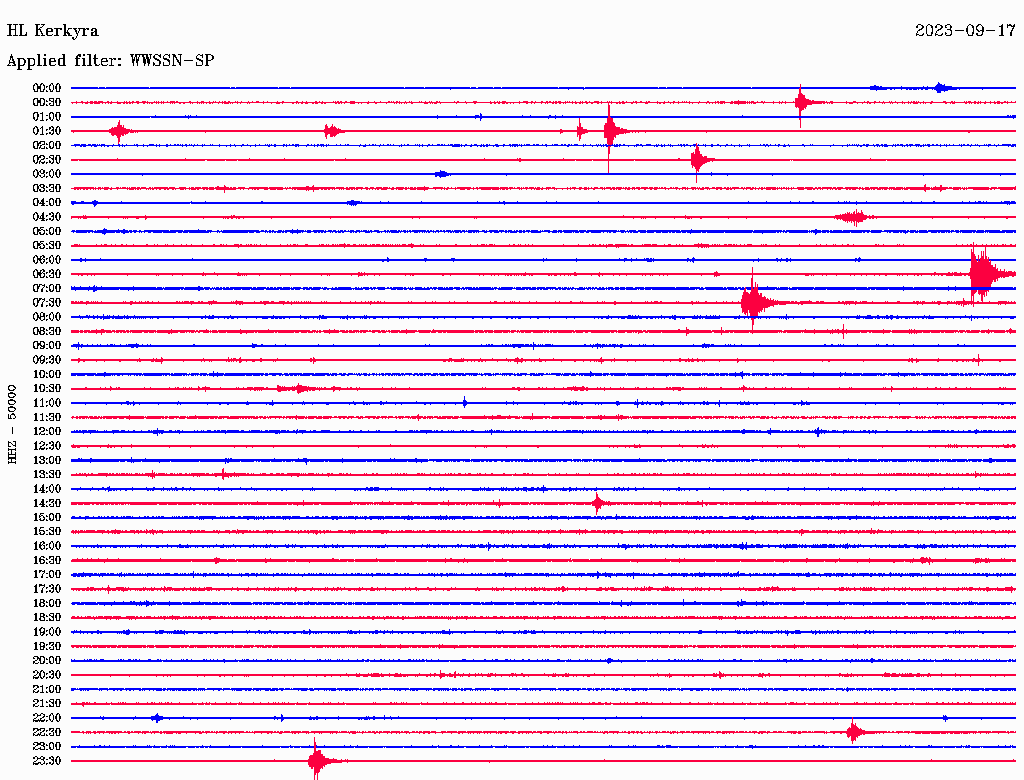

KEKHL129.9235 P06:58:32.95 -0.41.0M
KEKHL129.9235 S06:58:50.21 0.51.0M

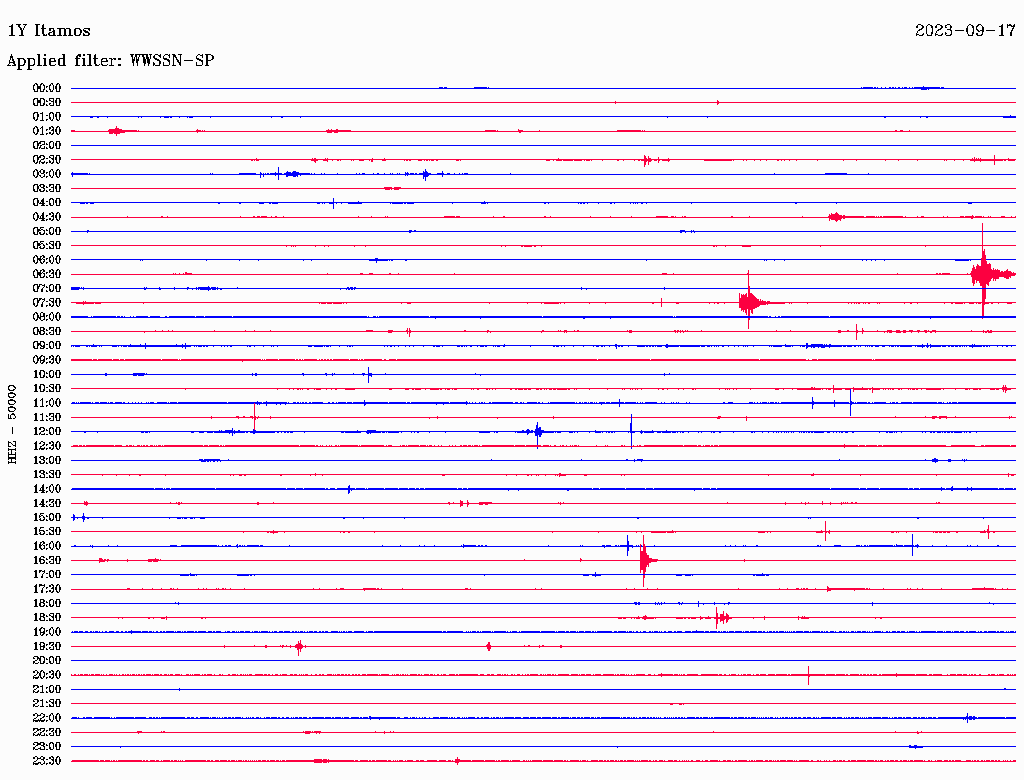

GR201Y142.3155 P06:58:34.55 -0.71.0M
GR201Y142.3155 S06:58:53.82 0.61.0M
GR181Y157.3118 P06:58:38.04 0.41.0M
GR181Y157.3118 S06:58:57.42 0.01.0M

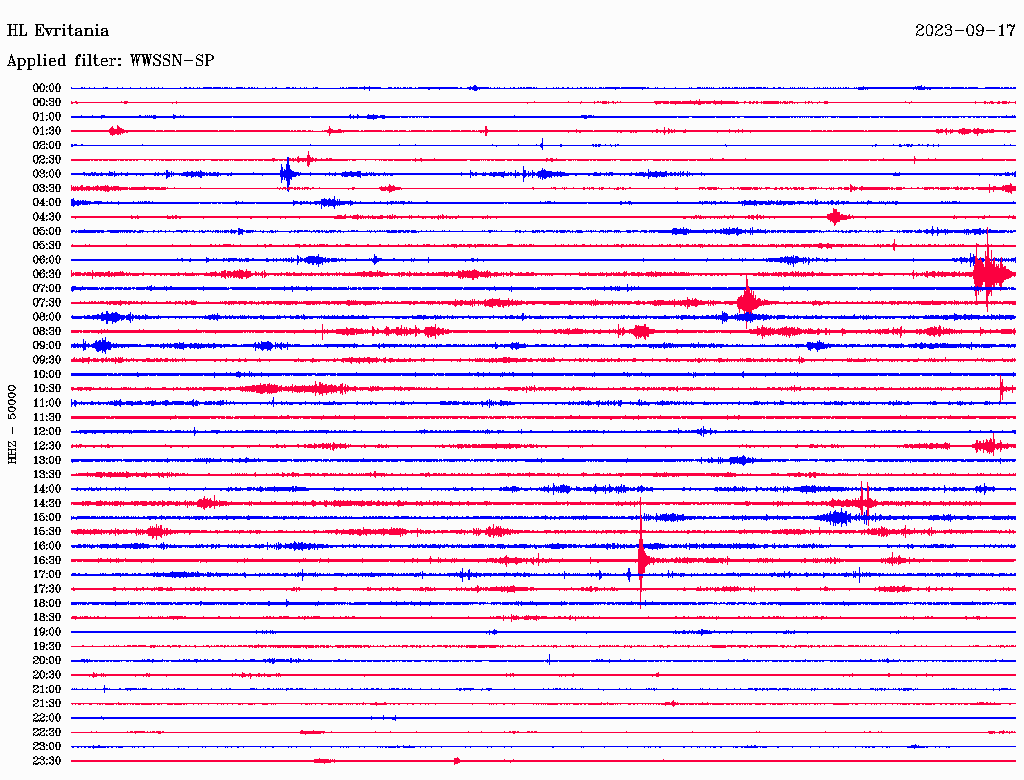

EVRHL177.0158 P06:58:40.02 -0.31.0M
EVRHL177.0158 S06:59:01.67 -0.41.0M

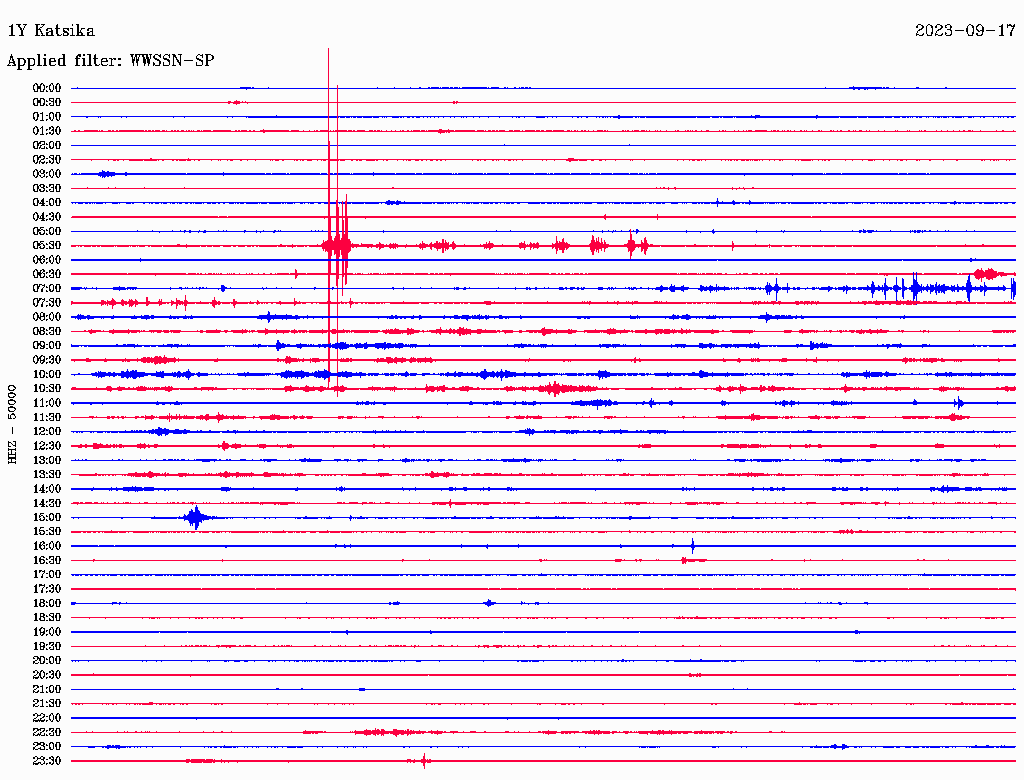

GR131Y182.1 91 P06:58:41.03 0.11.0M
GR131Y182.1 91 S06:59:02.96 -0.21.0M
GR241Y213.9152 P06:58:45.30 0.31.0M
GR241Y213.9152 S06:59:09.94 -0.41.0M

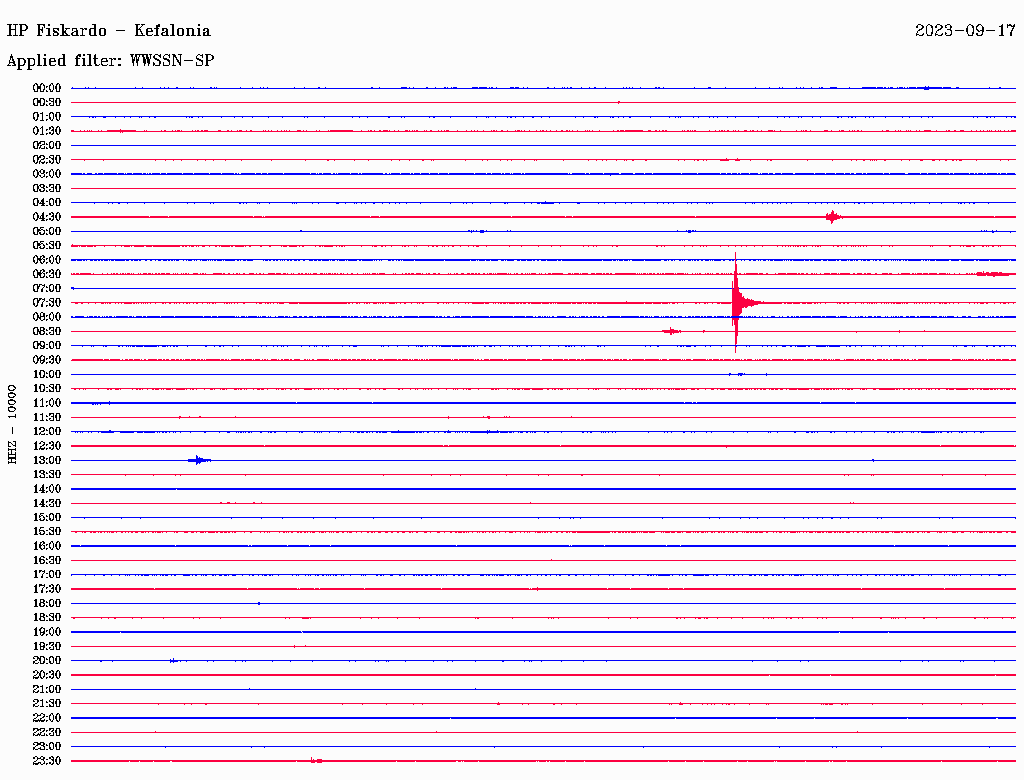

FSKHP218.8191 P06:58:45.78 0.31.0M
FSKHP218.8191 S06:59:10.90 -0.31.0M


  Solution details

Event:
    Public ID              nkua2023sftc
    Description
      region name: Greece
Origin:
    Date                   2023-09-17
    Time                  06:58:11.71
    Latitude              40.3927 deg  +/-      1 km
    Longitude             21.0372 deg  +/-      1 km
    Depth                       9 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.40 s
    Azimuthal gap             148 deg

2 Network magnitudes:
    MLv       2.83 +/- 0.12  14
    M         2.83           14 preferred

36 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    NEST  HT    0.0  22  P       06:58:13.42  -0.3 M  1.0  NEST
    NEST  HT    0.0  22  S       06:58:15.56   0.3 M  1.0  NEST
    GR10  1Y    0.4  78  P       06:58:20.26  -0.2 M  1.0  GR10
    GR10  1Y    0.4  78  S       06:58:27.24   0.1 M  1.0  GR10
    KPRO  HT    0.5 150  P       06:58:21.12  -0.6 M  1.0  KPRO
    KPRO  HT    0.5 150  S       06:58:28.98  -0.3 M  1.0  KPRO
    GR16  1Y    0.8 117  P       06:58:26.55   0.0 M  1.0  GR16
    GR16  1Y    0.8 117  S       06:58:37.90   0.1 M  1.0  GR16
    GR17  1Y    0.8 145  P       06:58:26.53  -0.4 M  1.0  GR17
    GR17  1Y    0.8 145  S       06:58:38.74   0.2 M  1.0  GR17
    GR07  1Y    0.8  62  P       06:58:27.37  -0.3 M  1.0  GR07
    GR07  1Y    0.8  62  S       06:58:40.29   0.4 M  1.0  GR07
    GR11  1Y    0.9  82  P       06:58:28.28  -0.2 M  1.0  GR11
    GR11  1Y    0.9  82  S       06:58:41.79   0.6 M  1.0  GR11
    IGT   HT    1.0 212  P       06:58:30.22  -0.5 M  1.0  IGT
    IGT   HT    1.0 212  S       06:58:45.77   0.6 M  1.0  IGT
    MK03A 1Y    1.1  42  P       06:58:31.40  -0.5 M  1.0  MK03A
    MK03A 1Y    1.1  42  S       06:58:47.76   0.6 M  1.0  MK03A
    THL   HL    1.1 138  P       06:58:31.67  -0.7 M  1.0  THL
    THL   HL    1.1 138  S       06:58:49.05   0.9 M  1.0  THL
    LIT   HT    1.1 105  P       06:58:33.18   0.2 M  1.0  LIT
    LIT   HT    1.1 105  S       06:58:50.22   1.0 M  1.0  LIT
    KEK   HL    1.2 235  P       06:58:32.95  -0.4 M  1.0  KEK
    KEK   HL    1.2 235  S       06:58:50.21   0.5 M  1.0  KEK
    GR20  1Y    1.3 155  P       06:58:34.55  -0.7 M  1.0  GR20
    GR20  1Y    1.3 155  S       06:58:53.82   0.6 M  1.0  GR20
    GR18  1Y    1.4 118  P       06:58:38.04   0.4 M  1.0  GR18
    GR18  1Y    1.4 118  S       06:58:57.42   0.0 M  1.0  GR18
    EVR   HL    1.6 158  P       06:58:40.02  -0.3 M  1.0  EVR
    EVR   HL    1.6 158  S       06:59:01.67  -0.4 M  1.0  EVR
    GR13  1Y    1.6  91  P       06:58:41.03   0.1 M  1.0  GR13
    GR13  1Y    1.6  91  S       06:59:02.96  -0.2 M  1.0  GR13
    GR24  1Y    1.9 152  P       06:58:45.30   0.3 M  1.0  GR24
    GR24  1Y    1.9 152  S       06:59:09.94  -0.4 M  1.0  GR24
    FSK   HP    2.0 191  P       06:58:45.78   0.3 M  1.0  FSK
    FSK   HP    2.0 191  S       06:59:10.90  -0.3 M  1.0  FSK

18 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    NEST  HT    0.0  22  MLv     2.85  0.01    47.9503
    GR10  1Y    0.4  78  MLv     2.80 -0.03    3.13787
    KPRO  HT    0.5 150  MLv     2.95  0.11    2.79741
    GR16  1Y    0.8 117  MLv     2.95  0.12    1.65267
    GR17  1Y    0.8 145  MLv     3.02  0.19    1.88872
    GR07  1Y    0.8  62  MLv     3.07  0.24    2.01496
    GR11  1Y    0.9  82  MLv     2.70 -0.13   0.804796
    IGT   HT    1.0 212  MLv     2.79 -0.04   0.850023
    MK03A 1Y    1.1  42  MLv     2.93  0.09    1.06332
    THL   HL    1.1 138  MLv     2.80 -0.03   0.458304
    LIT   HT    1.1 105  MLv     2.89  0.06    0.65318
    KEK   HL    1.2 235  MLv     2.30 -0.53   0.428951
    GR20  1Y    1.3 155  MLv     2.65 -0.18   0.439774
    GR18  1Y    1.4 118  MLv     2.60 -0.23   0.324926
    EVR   HL    1.6 158  MLv     2.93  0.10   0.557392
    GR13  1Y    1.6  91  MLv     2.24 -0.60   0.105982
    GR24  1Y    1.9 152  MLv     3.27  0.44   0.791336
    FSK   HP    2.0 191  MLv     2.78 -0.05   0.242623
