Earthquake Information
 Origin Time
2023-06-07 21:00:16 (GMT)
 Magnitude
M 1.6
 Latitude
38.0833° N
 Longitude
22.7033° E
 Focal Depth
10 km
 # of Arrivals
35
 Location 25.8 km NW of Korinthos
41.8 km SSW of Levadhia
90.9 km W of Athens
 Solution type
automatic
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

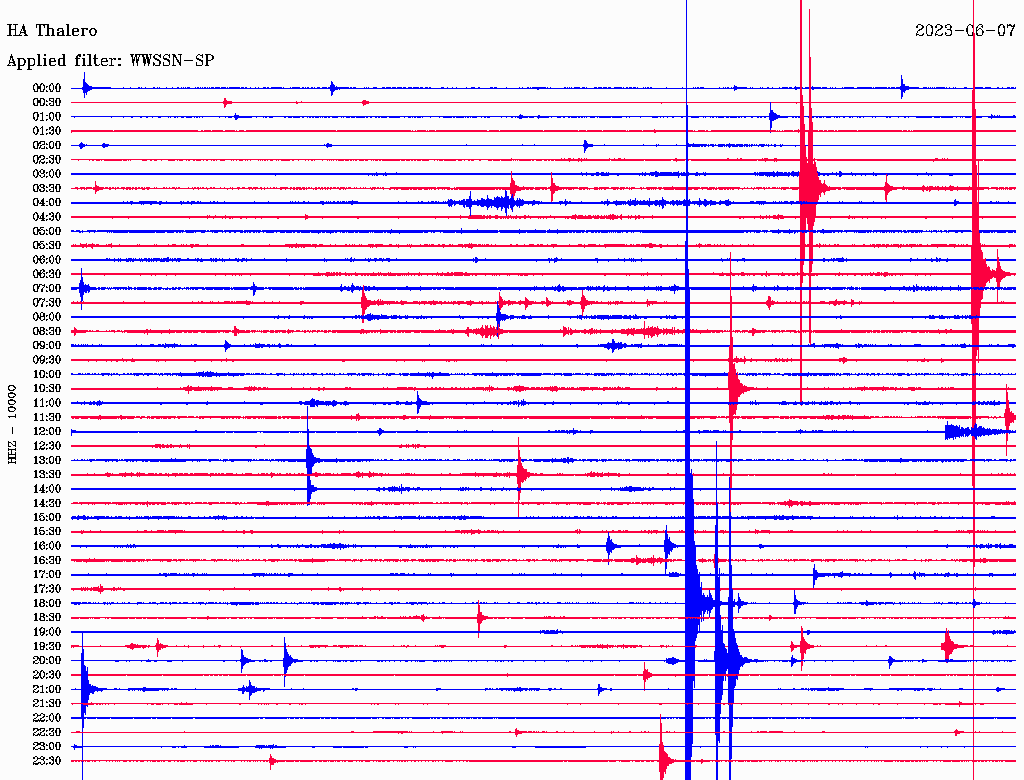

THALHA6.3213 P21:00:18.38 -0.31.0A

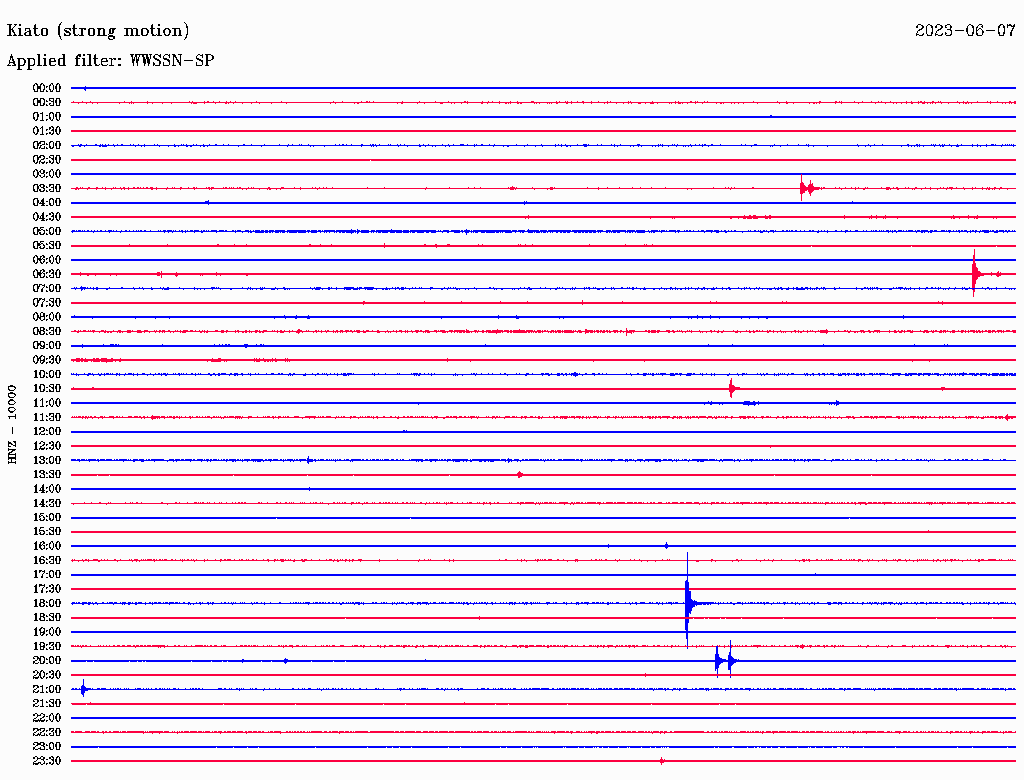

KIASHA11.6157 P21:00:19.51 0.01.0A
LTKHP24.1106 P21:00:20.80 -0.71.0A

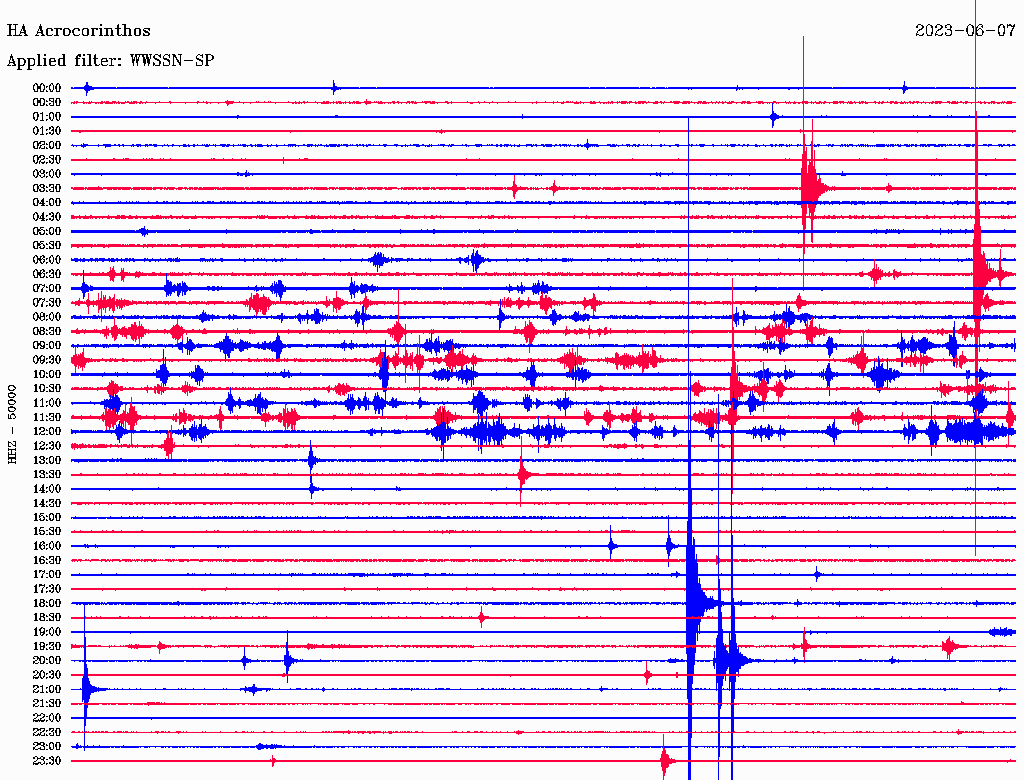

ACORHA25.9146 P21:00:21.06 -0.71.0A
LOUTHA26.0114 P21:00:21.17 -0.61.0A

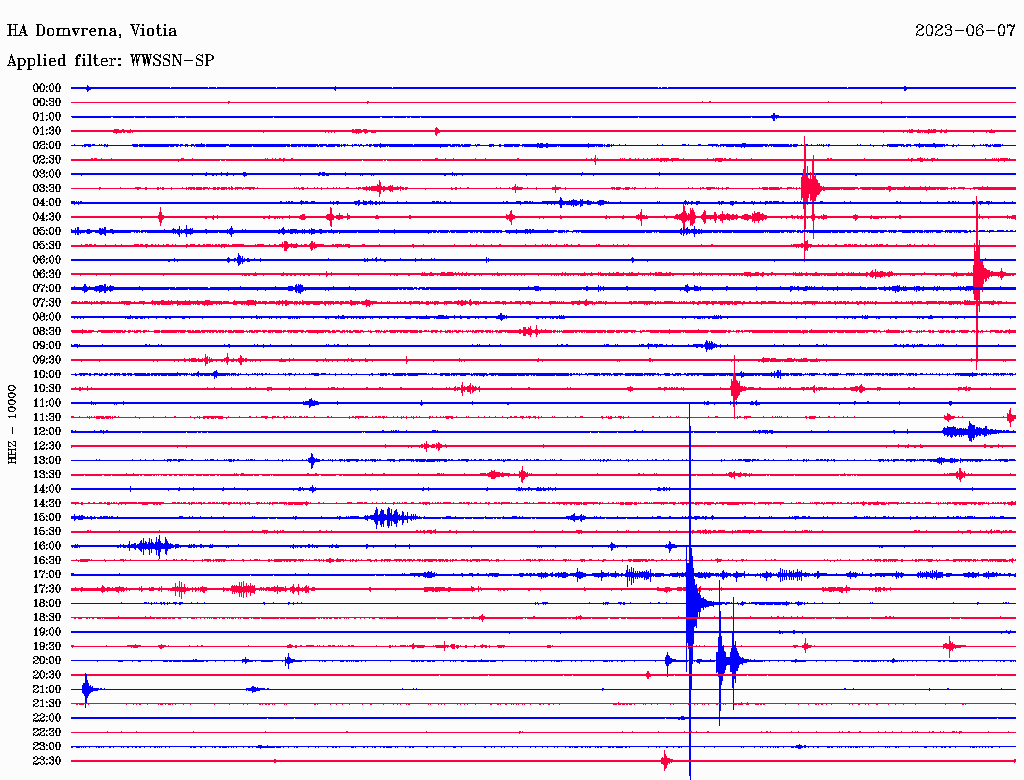

DOMVHA30.9 51 P21:00:21.96 -0.61.0A
GURHP35.6243 P21:00:22.45 -0.91.0A
DSFHP39.6337 P21:00:22.77 -1.11.0A
KLVHL48.6265 P21:00:24.17 -1.21.0A
TEMECL53.8288 P21:00:26.58 0.41.0A

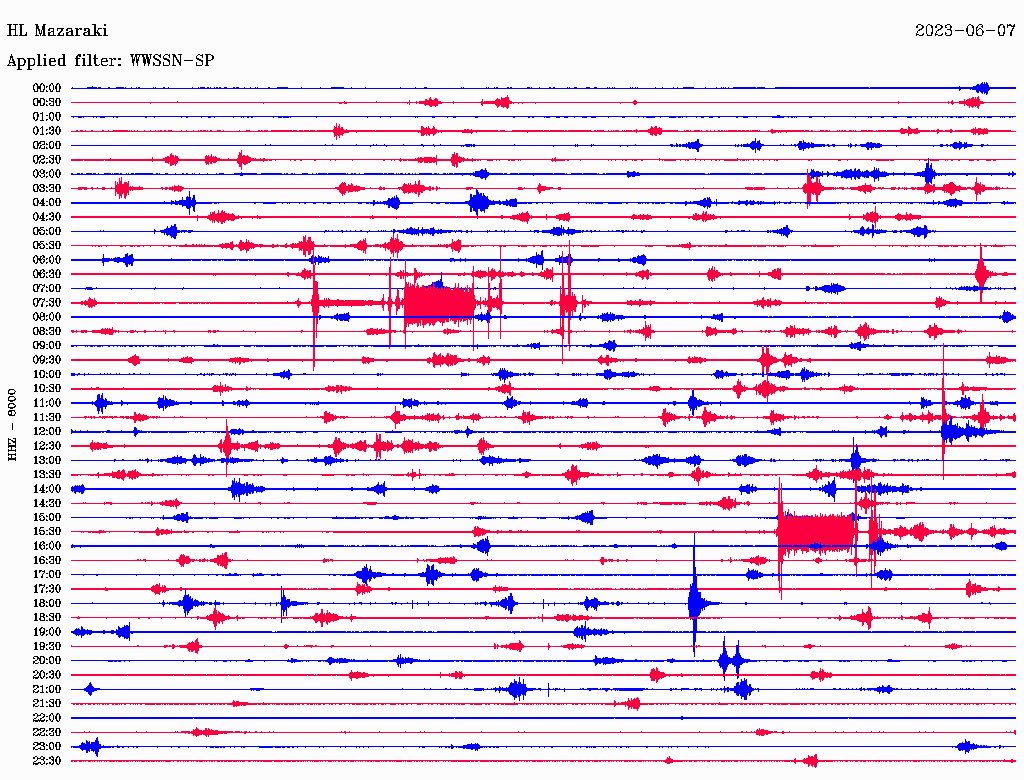

THI2HL54.8 54 P21:00:25.89 -0.41.0A
AMPEHA55.1 64 P21:00:26.78 0.41.0A
KALEHA59.9305 P21:00:27.44 0.31.0A
TRIZCL63.4300 P21:00:27.89 0.21.0A
GR301Y63.4190 P21:00:27.07 -0.51.0A
EPIDHA63.6145 P21:00:27.59 -0.11.0A
LAKAHA65.7286 P21:00:27.35 -0.71.0A
LKRHL68.0 22 P21:00:27.46 -0.91.0A

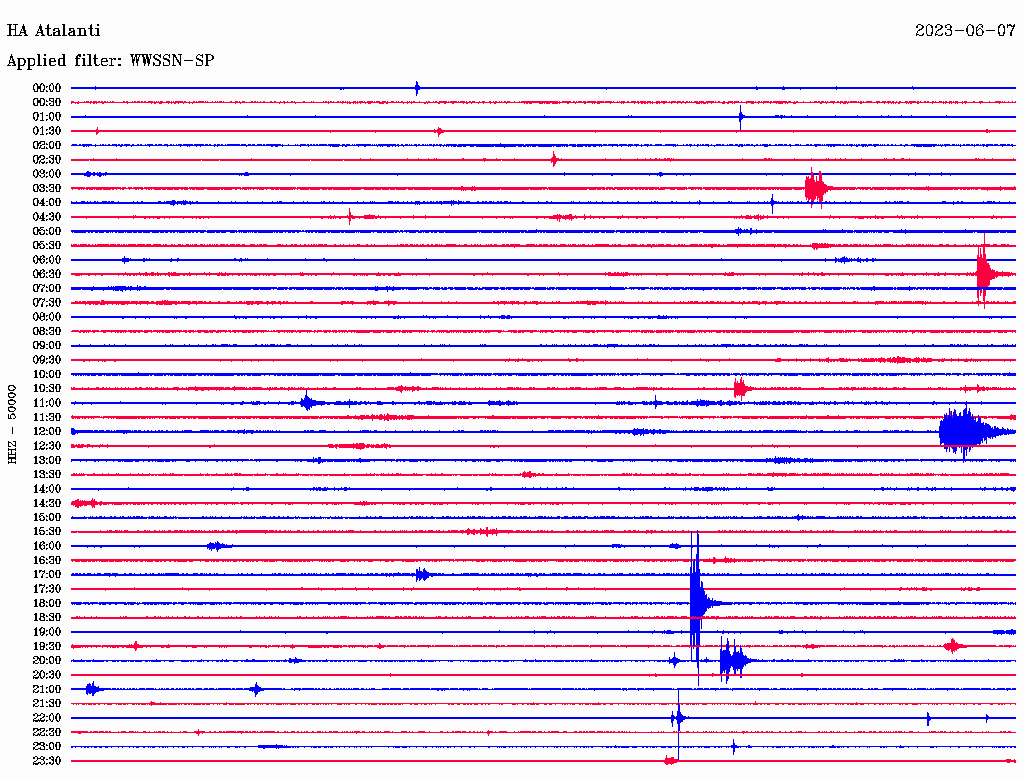

ATALHA73.2 22 P21:00:28.90 -0.31.0A
AXARHA76.1357 P21:00:28.82 -0.81.0A
EFPHP79.4299 P21:00:31.15 1.01.0A
GR291Y80.4239 P21:00:29.78 -0.61.0A
GR241Y80.6327 P21:00:29.51 -0.81.0A
VLXHP84.2200 P21:00:30.66 -0.21.0A
KRNDHT87.2153 P21:00:31.74 0.41.0A
DROHP88.1261 P21:00:31.77 0.21.0A
ANXHP88.7310 P21:00:31.71 0.11.0A
ERTRHA101.2 69 P21:00:34.32 0.81.0A

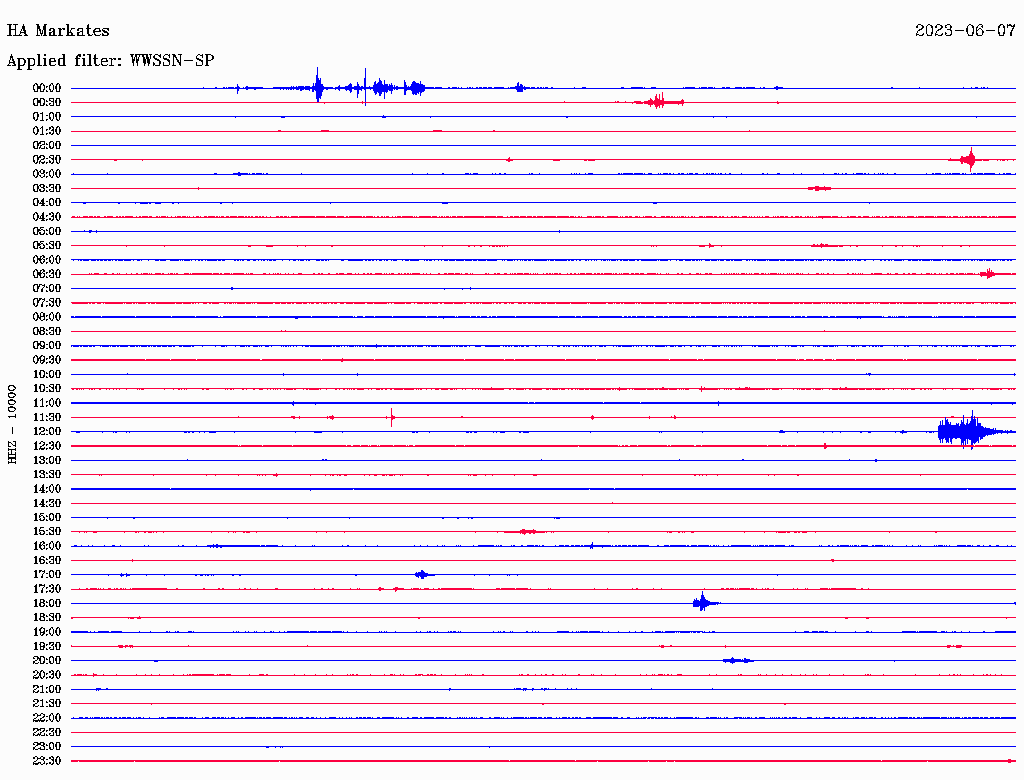

MRKAHA103.4 48 P21:00:35.20 1.31.0A

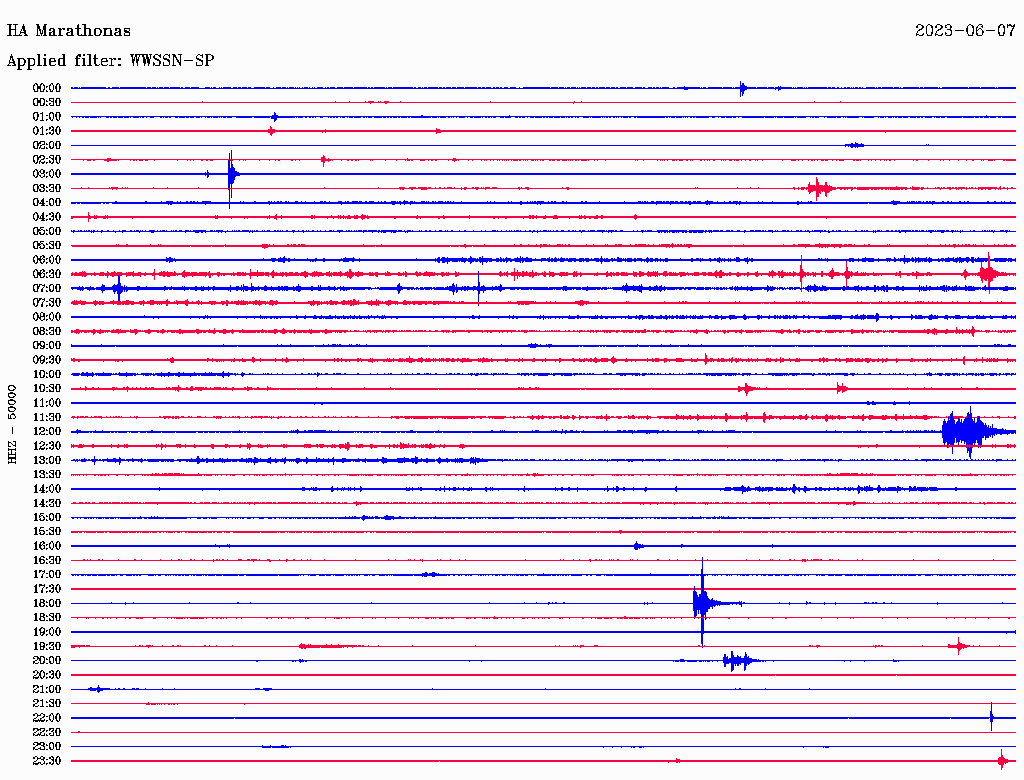

MRTHHA108.4 87 P21:00:35.89 1.11.0A
GR221Y112.4 5 P21:00:34.98 -0.31.0A
GR311Y117.9188 P21:00:36.91 0.91.0A
GR321Y126.6168 P21:00:37.92 0.71.0A
GR201Y152.7327 P21:00:41.92 1.21.0A
LX11HA198.6274 P21:00:49.47 2.61.0A


  Solution details

Event:
    Public ID              nkua2023lclo
    Description
      region name: Greece
Origin:
    Date                   2023-06-07
    Time                  21:00:16.01  +/-    0.2 s
    Latitude              38.0833 deg  +/-      2 km
    Longitude             22.7033 deg  +/-      2 km
    Depth                      10 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             0.83 s
    Azimuthal gap              31 deg

2 Network magnitudes:
    MLv       1.57 +/- 0.21  25
    M         1.57           25 preferred

35 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THAL  HA    0.1 213  P       21:00:18.38  -0.3 A  1.0  THAL
    KIAS  HA    0.1 157  P       21:00:19.51  -0.0 A  1.0  KIAS
    LTK   HP    0.2 106  P       21:00:20.80  -0.7 A  1.0  LTK
    ACOR  HA    0.2 146  P       21:00:21.06  -0.7 A  1.0  ACOR
    LOUT  HA    0.2 114  P       21:00:21.17  -0.6 A  1.0  LOUT
    DOMV  HA    0.3  51  P       21:00:21.96  -0.6 A  1.0  DOMV
    GUR   HP    0.3 243  P       21:00:22.45  -0.9 A  1.0  GUR
    DSF   HP    0.4 337  P       21:00:22.77  -1.1 A  1.0  DSF
    KLV   HL    0.4 265  P       21:00:24.17  -1.2 A  1.0  KLV
    TEME  CL    0.5 288  P       21:00:26.58   0.4 A  1.0  TEME
    THI2  HL    0.5  54  P       21:00:25.89  -0.4 A  1.0  THI2
    AMPE  HA    0.5  64  P       21:00:26.78   0.4 A  1.0  AMPE
    KALE  HA    0.5 305  P       21:00:27.44   0.3 A  1.0  KALE
    TRIZ  CL    0.6 300  P       21:00:27.89   0.2 A  1.0  TRIZ

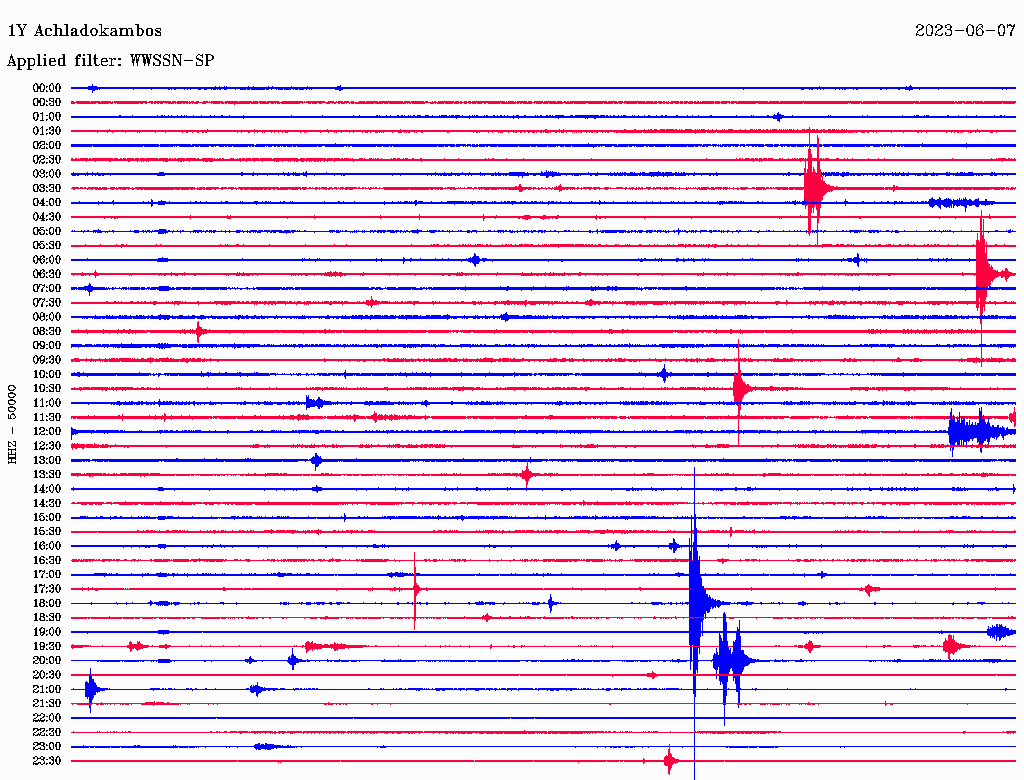

    GR30  1Y    0.6 190  P       21:00:27.07  -0.5 A  1.0  GR30
    EPID  HA    0.6 145  P       21:00:27.59  -0.1 A  1.0  EPID
    LAKA  HA    0.6 286  P       21:00:27.35  -0.7 A  1.0  LAKA

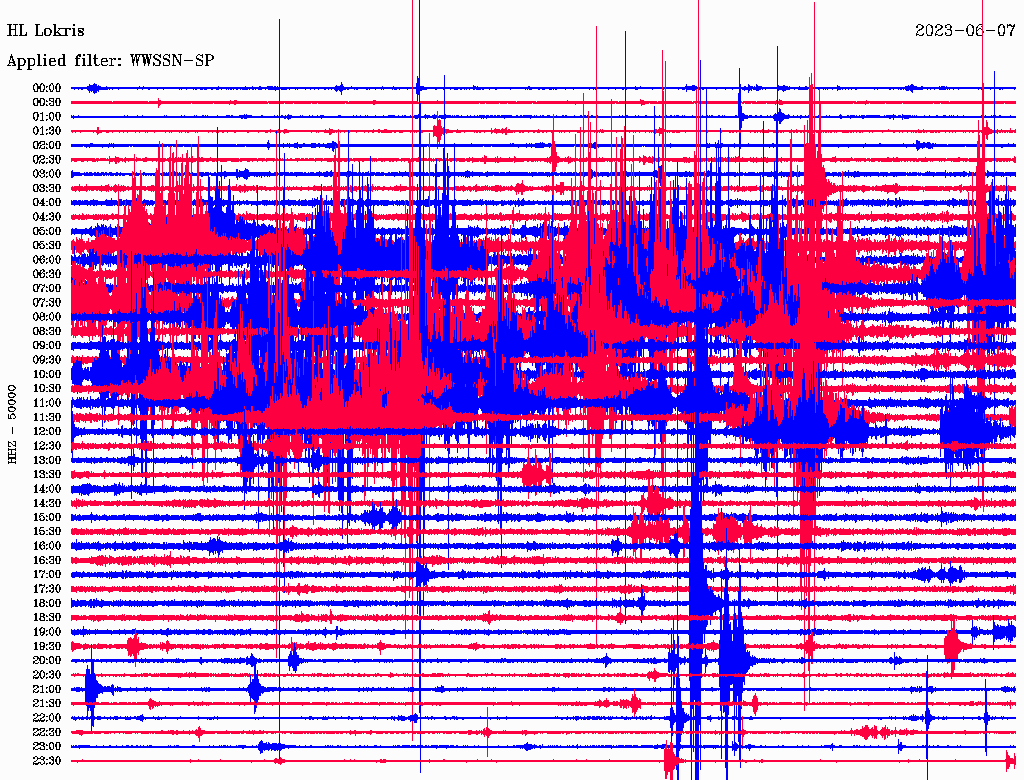

    LKR   HL    0.6  22  P       21:00:27.46  -0.9 A  1.0  LKR
    ATAL  HA    0.7  22  P       21:00:28.90  -0.3 A  1.0  ATAL

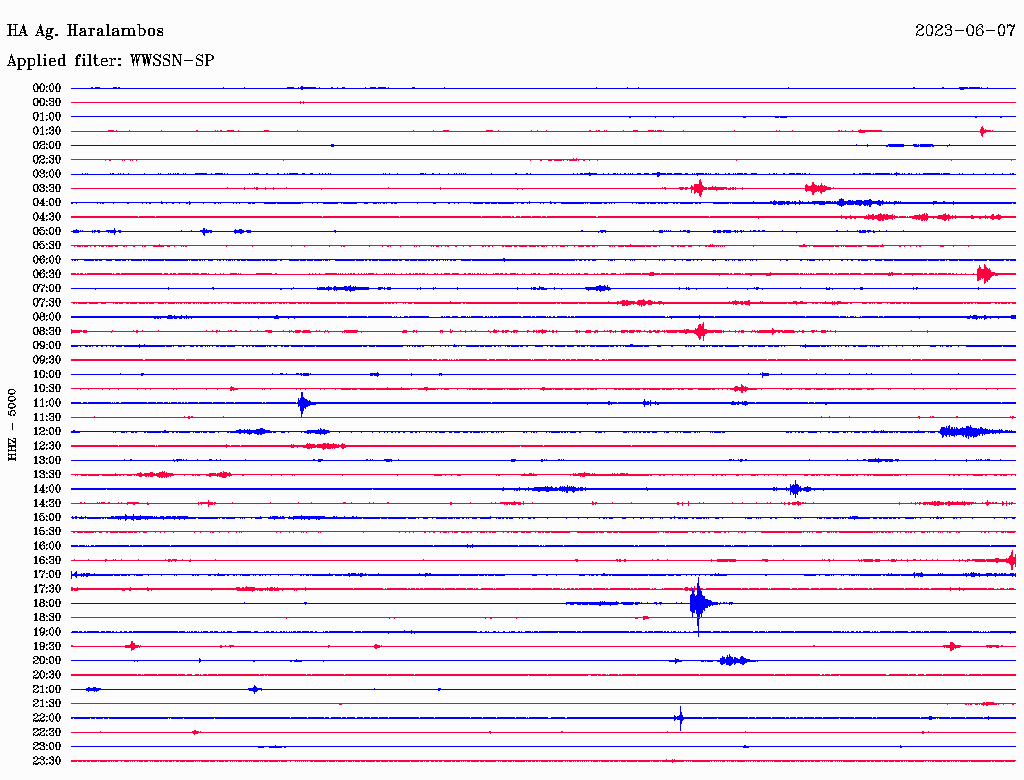

    AXAR  HA    0.7 357  P       21:00:28.82  -0.8 A  1.0  AXAR
    EFP   HP    0.7 299  P       21:00:31.15   1.0 A  1.0  EFP
    GR29  1Y    0.7 239  P       21:00:29.78  -0.6 A  1.0  GR29
    GR24  1Y    0.7 327  P       21:00:29.51  -0.8 A  1.0  GR24
    VLX   HP    0.8 200  P       21:00:30.66  -0.2 A  1.0  VLX

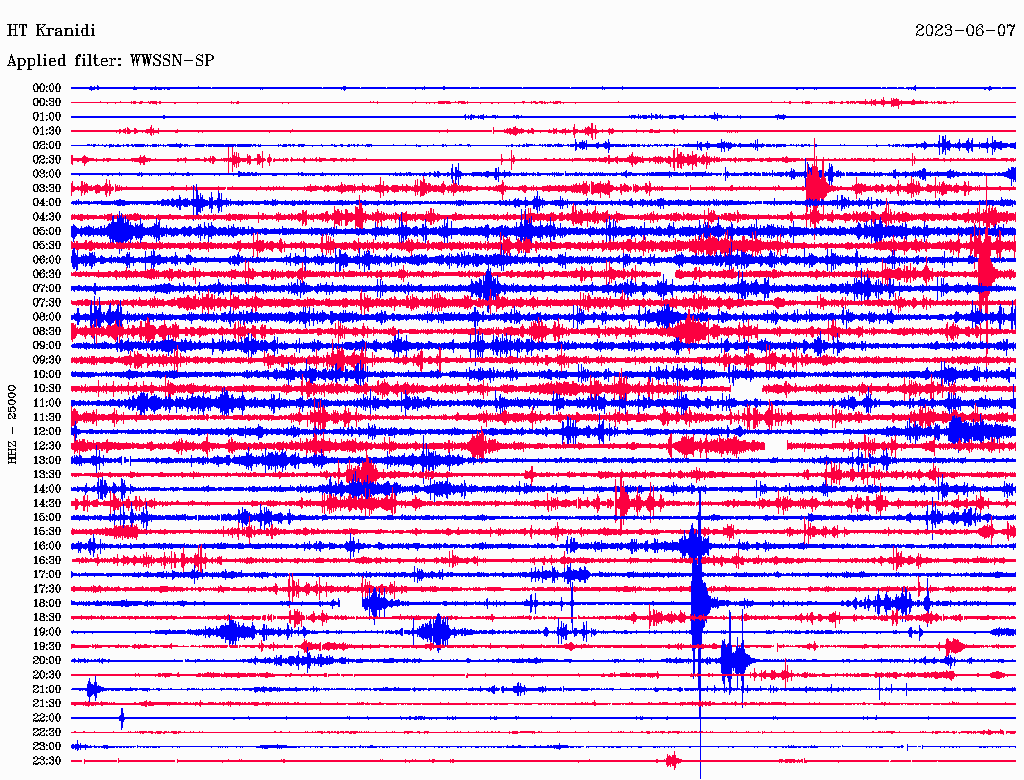

    KRND  HT    0.8 153  P       21:00:31.74   0.4 A  1.0  KRND
    DRO   HP    0.8 261  P       21:00:31.77   0.2 A  1.0  DRO
    ANX   HP    0.8 310  P       21:00:31.71   0.1 A  1.0  ANX
    ERTR  HA    0.9  69  P       21:00:34.32   0.8 A  1.0  ERTR
    MRKA  HA    0.9  48  P       21:00:35.20   1.3 A  1.0  MRKA
    MRTH  HA    1.0  87  P       21:00:35.89   1.1 A  1.0  MRTH

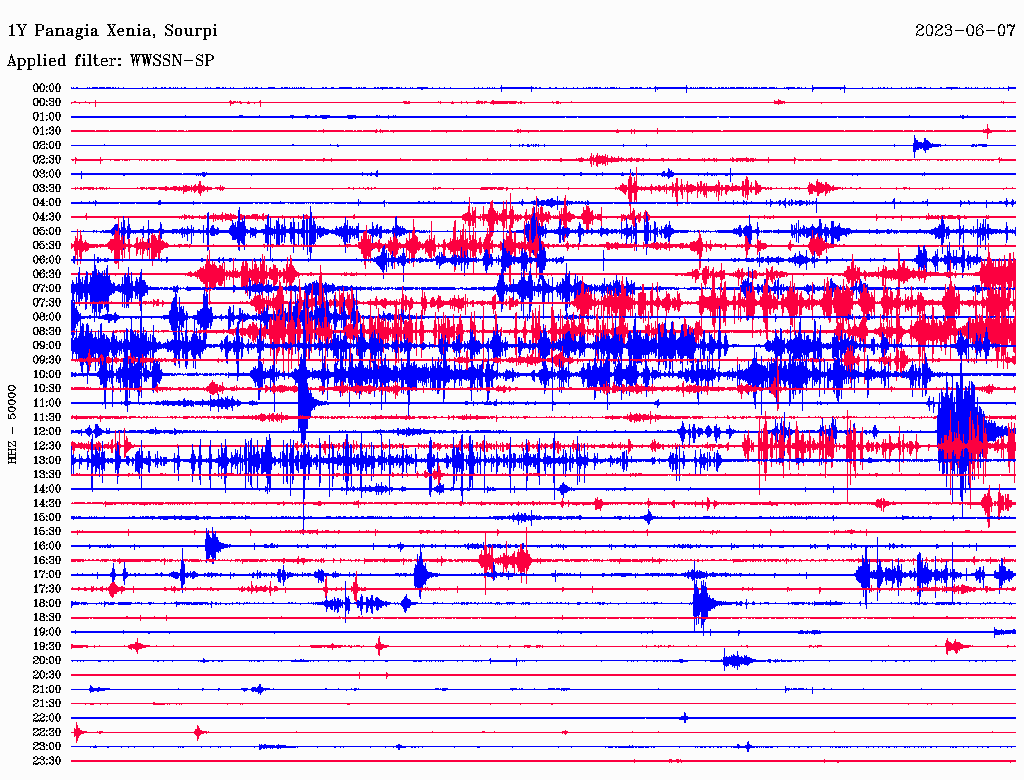

    GR22  1Y    1.0   5  P       21:00:34.98  -0.3 A  1.0  GR22

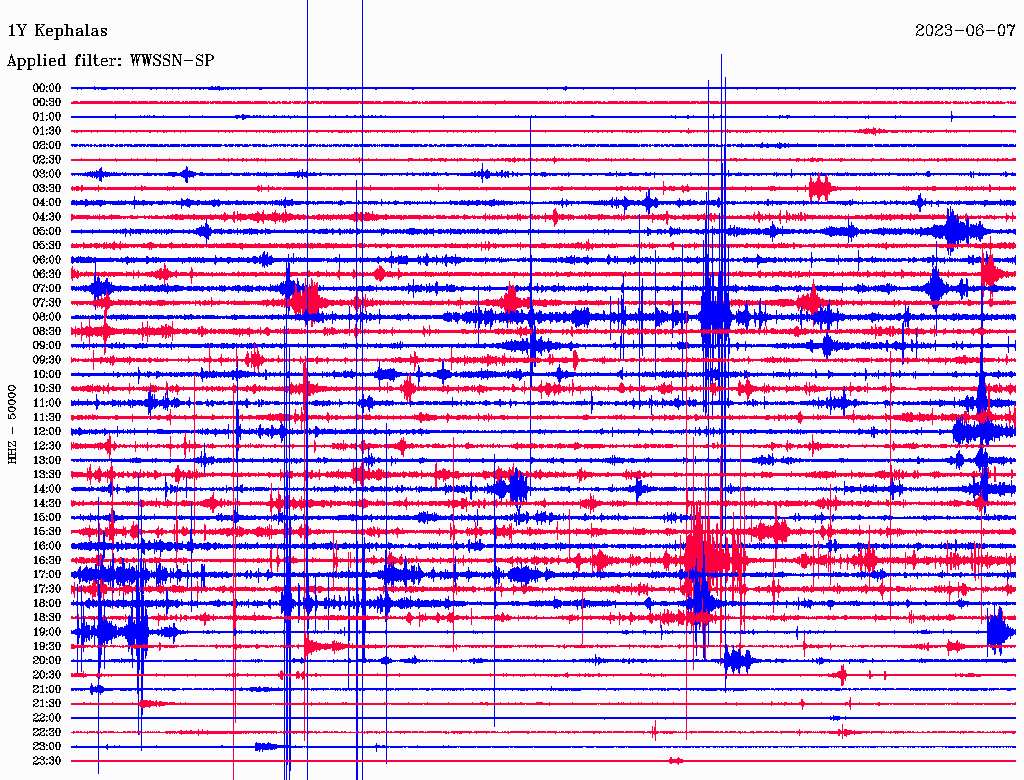

    GR31  1Y    1.1 188  P       21:00:36.91   0.9 A  1.0  GR31

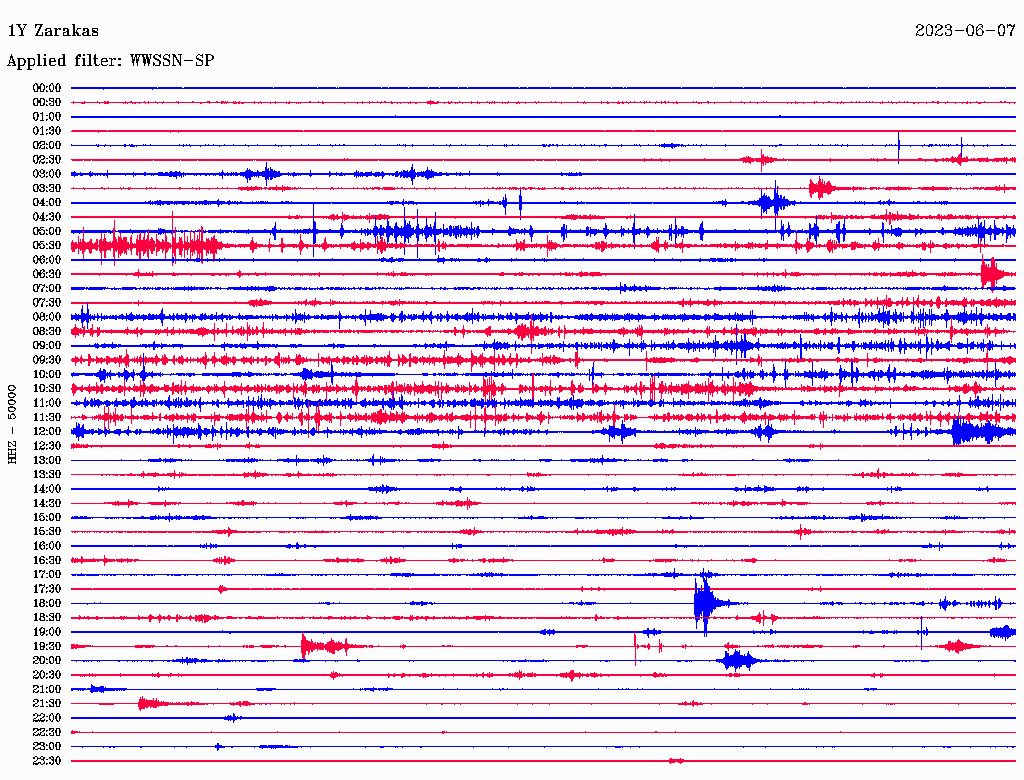

    GR32  1Y    1.1 168  P       21:00:37.92   0.7 A  1.0  GR32
    GR20  1Y    1.4 327  P       21:00:41.92   1.2 A  1.0  GR20

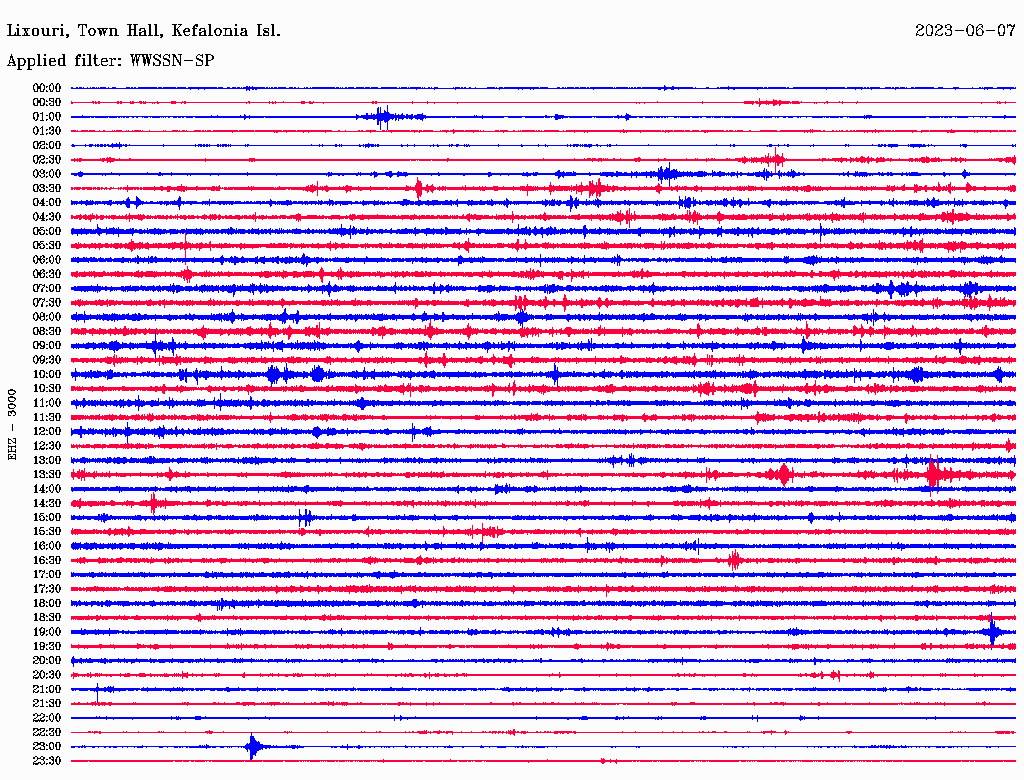

    LX11  HA    1.8 274  P       21:00:49.47   2.6 A  1.0  LX11

33 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THAL  HA    0.1 213  MLv     1.55 -0.02    3.46193
    KIAS  HA    0.1 157  MLv     2.14  0.58    5.69162
    LTK   HP    0.2 106  MLv     0.95 -0.62   0.663874
    ACOR  HA    0.2 146  MLv     1.35 -0.22    0.39568
    LOUT  HA    0.2 114  MLv     1.49 -0.08    0.55129
    DOMV  HA    0.3  51  MLv     1.38 -0.18   0.323256
    GUR   HP    0.3 243  MLv     2.01  0.44    1.04504
    DSF   HP    0.4 337  MLv     1.71  0.15   0.420458
    KLV   HL    0.4 265  MLv     1.22 -0.35   0.0603357
    TEME  CL    0.5 288  MLv     1.73  0.16   0.063774
    THI2  HL    0.5  54  MLv     2.01  0.44   0.346635
    AMPE  HA    0.5  64  MLv     1.33 -0.24   0.0710953
    KALE  HA    0.5 305  MLv     1.73  0.17   0.136451
    TRIZ  CL    0.6 300  MLv     1.95  0.38   0.213131
    GR30  1Y    0.6 190  MLv     1.67  0.10   0.112107
    EPID  HA    0.6 145  MLv     1.70  0.14   0.121795
    LAKA  HA    0.6 286  MLv     0.93 -0.64   0.0198893
    LKR   HL    0.6  22  MLv     2.00  0.43   0.122506
    ATAL  HA    0.7  22  MLv     1.18 -0.39   0.0327337
    AXAR  HA    0.7 357  MLv     1.30 -0.26   0.167514
    EFP   HP    0.7 299  MLv     1.23 -0.34   0.0340074
    GR29  1Y    0.7 239  MLv     1.61  0.04   0.0802888
    GR24  1Y    0.7 327  MLv     1.58  0.01   0.0754027
    VLX   HP    0.8 200  MLv     1.12 -0.44   0.0253192
    KRND  HT    0.8 153  MLv     1.87  0.30   0.135694
    DRO   HP    0.8 261  MLv     1.26 -0.31   0.0687802
    ANX   HP    0.8 310  MLv     1.65  0.09   0.0813623
    ERTR  HA    0.9  69  MLv     1.54 -0.03   0.0541429
    MRKA  HA    0.9  48  MLv     1.63  0.06   0.0644411
    MRTH  HA    1.0  87  MLv     1.90  0.34   0.114857
    GR22  1Y    1.0   5  MLv     1.37 -0.19   0.0323806
    GR31  1Y    1.1 188  MLv     1.76  0.19   0.0740668
    GR32  1Y    1.1 168  MLv     1.66  0.10   0.0538475
