Earthquake Information
 Origin Time
2023-06-07 20:13:12 (GMT)
 Magnitude
M 1.2
 Latitude
37.9575° N
 Longitude
21.0900° E
 Focal Depth
10 km
 # of Arrivals
10
 Location 16.8 km WNW of Andravida
25.2 km NE of Zakynthos
231.7 km W of Athens
 Solution type
automatic
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

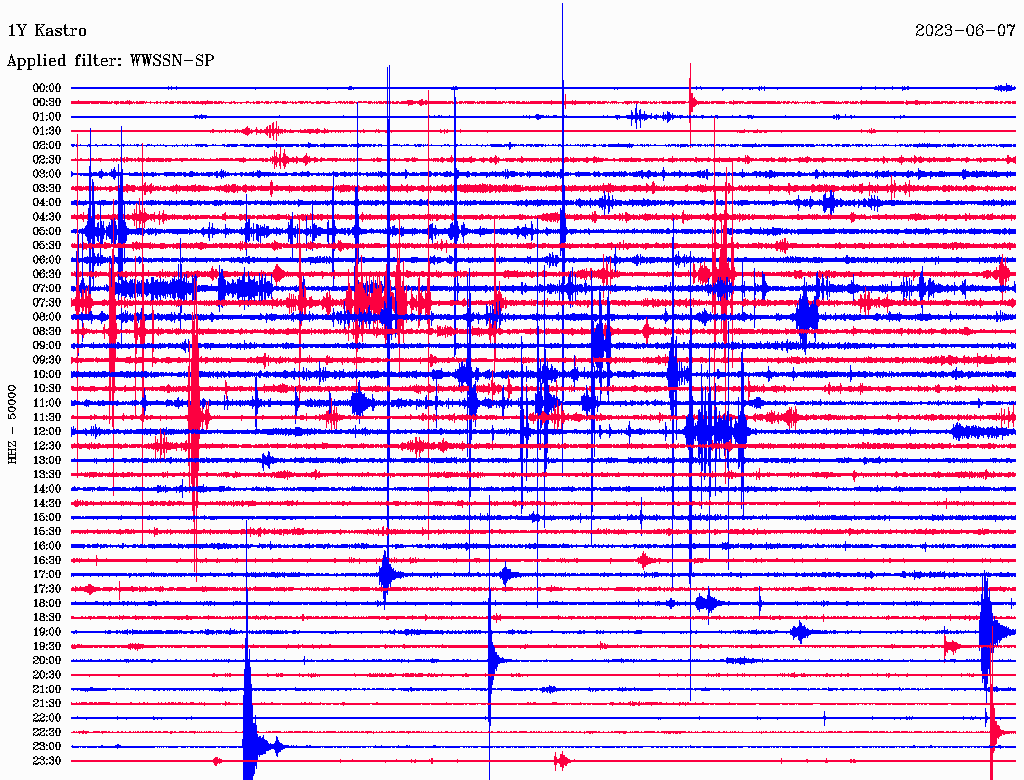

GR281Y8.7150 P20:13:14.27 -0.91.0A
RTZLHT30.9295 P20:13:18.60 0.01.0A
RLSHL34.6 71 P20:13:18.72 -0.51.0A

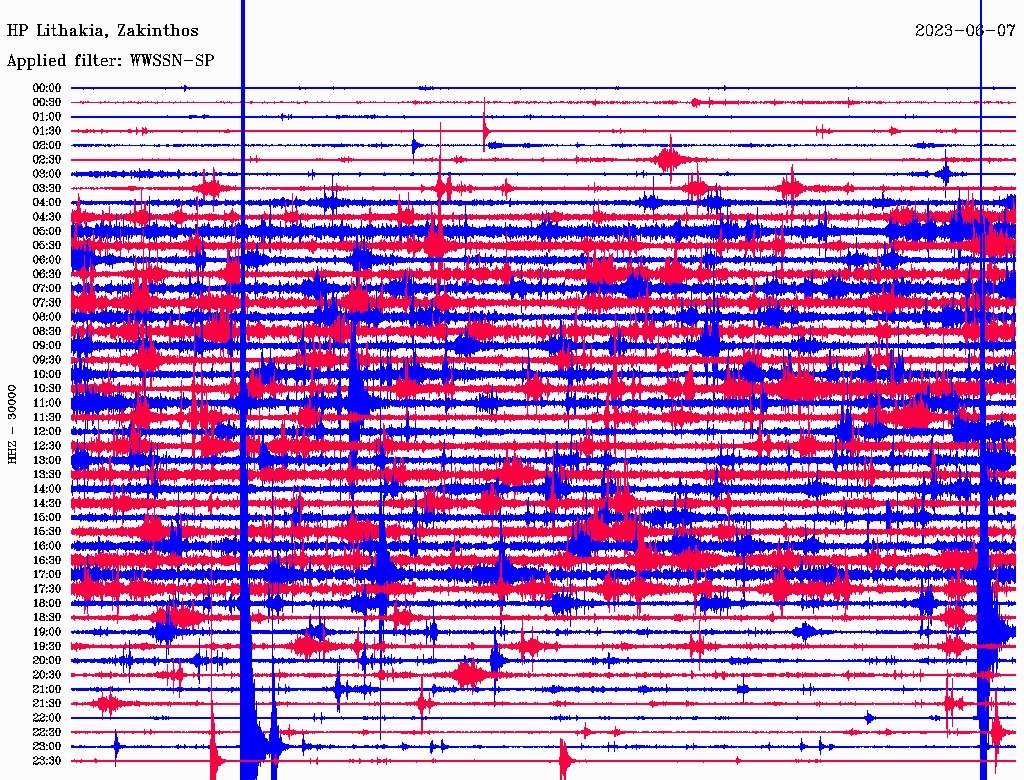

LTHKHP35.4219 P20:13:20.10 0.81.0A
AXSHP36.5 43 P20:13:19.34 -0.21.0A
PSDAHT47.6292 P20:13:20.93 -0.31.0A
VLSHL50.2299 P20:13:21.33 -0.31.0A
DROHP54.5 90 P20:13:22.31 0.01.0A
PLEVHP57.7 29 P20:13:23.47 0.71.0A
GR291Y78.4111 P20:13:26.69 0.61.0A


  Solution details

Event:
    Public ID              nkua2023lcka
    Description
      region name: Southern Greece
Origin:
    Date                   2023-06-07
    Time                  20:13:12.06  +/-    0.3 s
    Latitude              37.9575 deg  +/-      4 km
    Longitude             21.0900 deg  +/-      3 km
    Depth                      10 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             0.52 s
    Azimuthal gap              89 deg

2 Network magnitudes:
    MLv       1.23 +/- 0.14   7
    M         1.23            7 preferred

10 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR28  1Y    0.1 150  P       20:13:14.27  -0.9 A  1.0  GR28
    RTZL  HT    0.3 295  P       20:13:18.60  -0.0 A  1.0  RTZL
    RLS   HL    0.3  71  P       20:13:18.72  -0.5 A  1.0  RLS
    LTHK  HP    0.3 219  P       20:13:20.10   0.8 A  1.0  LTHK
    AXS   HP    0.3  43  P       20:13:19.34  -0.2 A  1.0  AXS
    PSDA  HT    0.4 292  P       20:13:20.93  -0.3 A  1.0  PSDA
    VLS   HL    0.5 299  P       20:13:21.33  -0.3 A  1.0  VLS
    DRO   HP    0.5  90  P       20:13:22.31   0.0 A  1.0  DRO
    PLEV  HP    0.5  29  P       20:13:23.47   0.7 A  1.0  PLEV
    GR29  1Y    0.7 111  P       20:13:26.69   0.6 A  1.0  GR29

9 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR28  1Y    0.1 150  MLv     1.33  0.09    1.02122
    RTZL  HT    0.3 295  MLv     1.01 -0.22   0.137919
    RLS   HL    0.3  71  MLv     1.15 -0.08   0.153446
    LTHK  HP    0.3 219  MLv     1.49  0.25   0.316949
    AXS   HP    0.3  43  MLv     1.07 -0.17     0.1132
    PSDA  HT    0.4 292  MLv     1.60  0.37    0.20591
    VLS   HL    0.5 299  MLv     1.25  0.02   0.0793188
    DRO   HP    0.5  90  MLv     1.24  0.01   0.126017
    PLEV  HP    0.5  29  MLv     1.12 -0.11   0.0381669
