Earthquake Information
 Origin Time
 2023-06-03 12:28:23 (GMT)
 Magnitude
 M 1.8
 Latitude
 39.7785° N
 Longitude
 20.8140° E
 Focal Depth
 7 km
 # of Arrivals
 12
 Location 12.7 km NNW of Ioannina
30.4 km S of Konitsa
322.0 km NW of Athens
 Solution type
 automatic
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

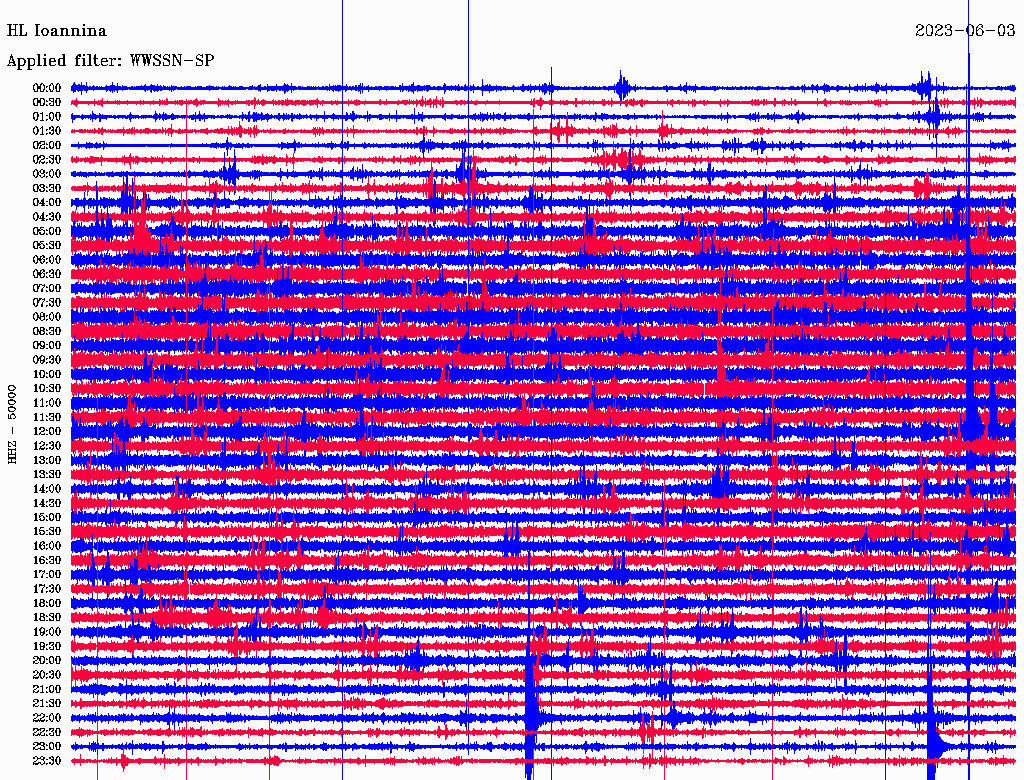

JANHL13.9168 P12:28:26.31 0.01.0A
GR141Y24.2304 P12:28:27.32 -0.61.0A
PRMDHP36.7139 P12:28:29.80 -0.11.0A
KPROHT50.8 67 P12:28:32.67 0.41.0A

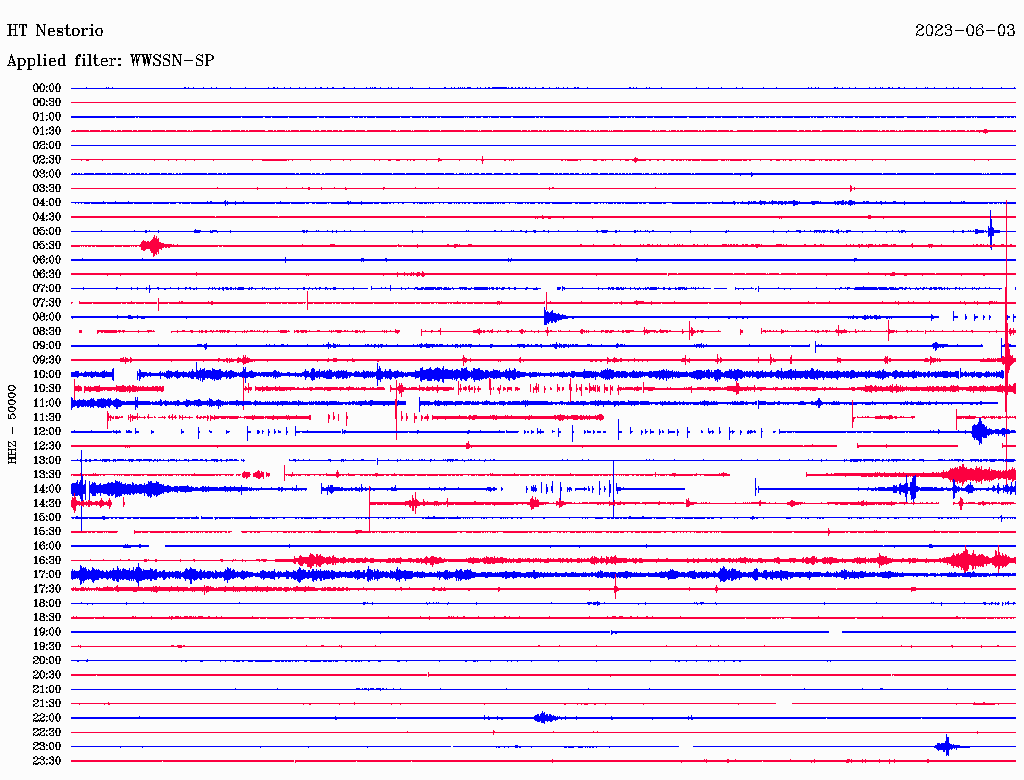

NESTHT73.5 16 P12:28:36.72 0.91.0A

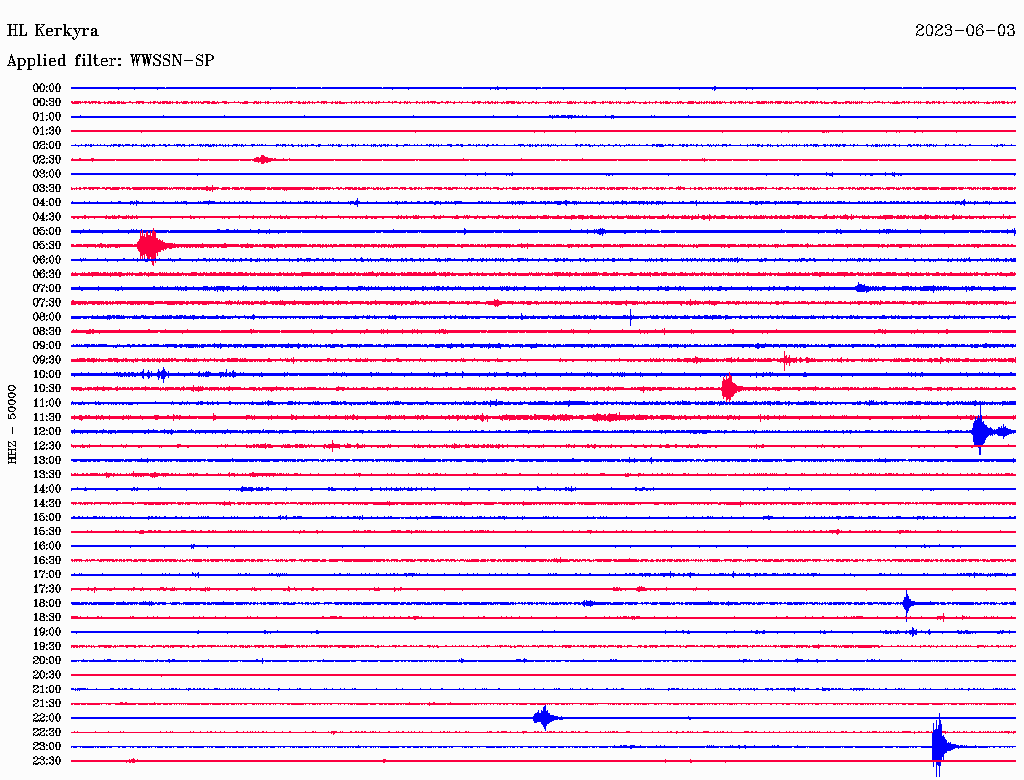

KEKHL87.3266 P12:28:37.48 -0.61.0A
GR201Y100.2127 P12:28:38.91 -1.31.0A
GR101Y102.7 40 P12:28:41.10 0.51.0A

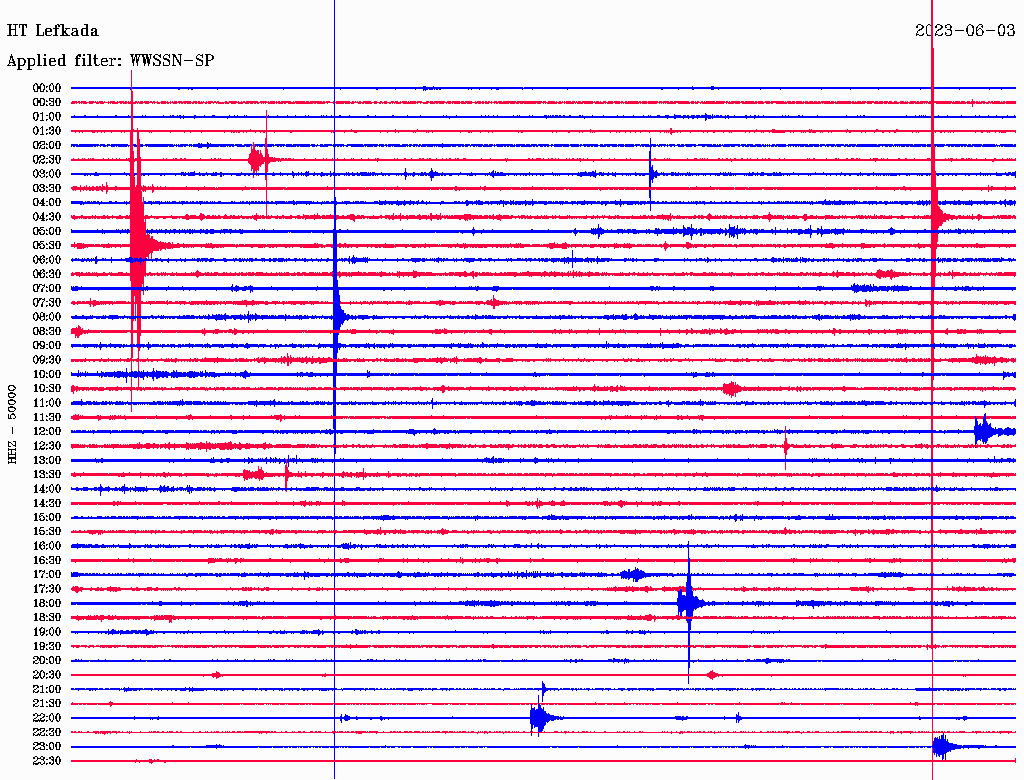

LKD2HT110.9187 P12:28:42.20 0.31.0A
PDOHP135.0166 P12:28:45.66 0.41.0A
PLEVHP160.3161 P12:28:50.81 2.11.0A
VOL2HI188.8103 P12:28:50.53 -2.11.0A


  Solution details

Event:
    Public ID              nkua2023kumr
    Description
      region name: Greece-Albania Border Region
Origin:
    Date                   2023-06-03
    Time                  12:28:22.78  +/-    0.4 s
    Latitude              39.7785 deg  +/-      3 km
    Longitude             20.8140 deg  +/-      3 km
    Depth                       7 km   +/-    4 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             1.03 s
    Azimuthal gap              79 deg

2 Network magnitudes:
    MLv       1.78 +/- 0.09   8
    M         1.78            8 preferred

12 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    JAN   HL    0.1 168  P       12:28:26.31   0.0 A  1.0  JAN
    GR14  1Y    0.2 304  P       12:28:27.32  -0.6 A  1.0  GR14
    PRMD  HP    0.3 139  P       12:28:29.80  -0.1 A  1.0  PRMD
    KPRO  HT    0.5  67  P       12:28:32.67   0.4 A  1.0  KPRO
    NEST  HT    0.7  16  P       12:28:36.72   0.9 A  1.0  NEST
    KEK   HL    0.8 266  P       12:28:37.48  -0.6 A  1.0  KEK
    GR20  1Y    0.9 127  P       12:28:38.91  -1.3 A  1.0  GR20
    GR10  1Y    0.9  40  P       12:28:41.10   0.5 A  1.0  GR10
    LKD2  HT    1.0 187  P       12:28:42.20   0.3 A  1.0  LKD2
    PDO   HP    1.2 166  P       12:28:45.66   0.4 A  1.0  PDO
    PLEV  HP    1.4 161  P       12:28:50.81   2.1 A  1.0  PLEV
    VOL2  HI    1.7 103  P       12:28:50.53  -2.1 A  1.0  VOL2

10 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    JAN   HL    0.1 168  MLv     1.74 -0.05    2.56206
    GR14  1Y    0.2 304  MLv     2.02  0.23    2.05097
    PRMD  HP    0.3 139  MLv     1.81  0.03   0.624432
    KPRO  HT    0.5  67  MLv     1.64 -0.14   0.188312
    NEST  HT    0.7  16  MLv     1.85  0.06   0.151573
    KEK   HL    0.8 266  MLv     1.67 -0.11   0.165066
    GR20  1Y    0.9 127  MLv     1.58 -0.20   0.0606977
    GR10  1Y    0.9  40  MLv     1.79  0.01   0.0956423
    LKD2  HT    1.0 187  MLv     1.90  0.12    0.11141
    PDO   HP    1.2 166  MLv     1.86  0.07   0.0763486
