Earthquake Information
 Origin Time
 2023-05-30 21:20:31 (GMT)
 Magnitude
 M 2.0
 Latitude
 35.7477° N
 Longitude
 25.4928° E
 Focal Depth
 38 km
 # of Arrivals
 27
 Location 57.3 km NE of Iraklion
74.6 km S of Thira
293.7 km SSE of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

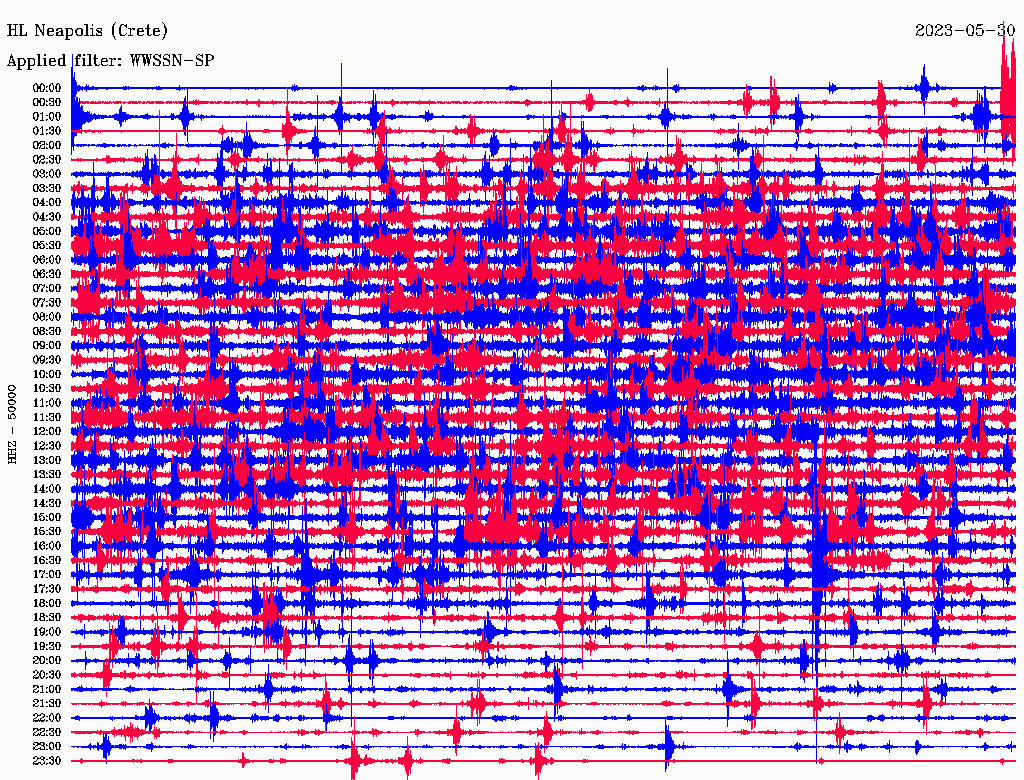

NPSHL55.1169 P21:20:41.40 -0.11.0M
NPSHL55.1169 S21:20:49.57 0.01.0M

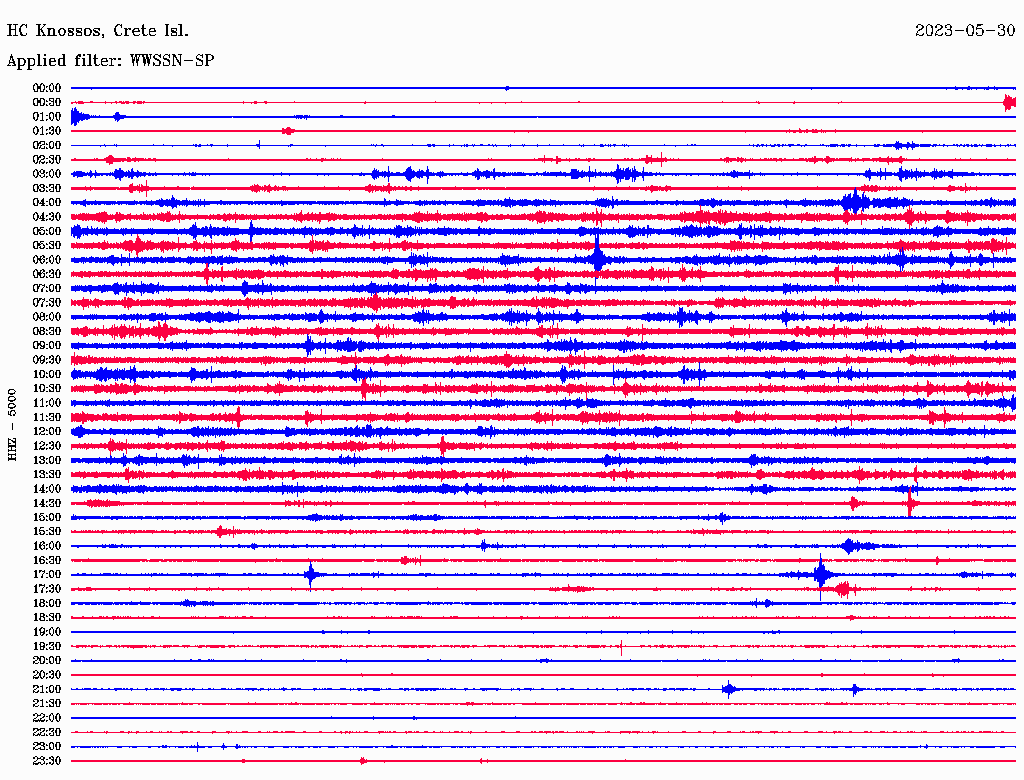

KNSSHC56.9210 P21:20:41.61 -0.11.0M
KNSSHC56.9210 S21:20:50.39 0.41.0M
KSTEHL64.7193 P21:20:42.07 -0.61.0M
KSTEHL64.7193 S21:20:51.44 -0.31.0M
THR6HT68.2353 P21:20:43.10 0.01.0M
THR6HT68.2353 S21:20:52.57 0.11.0M

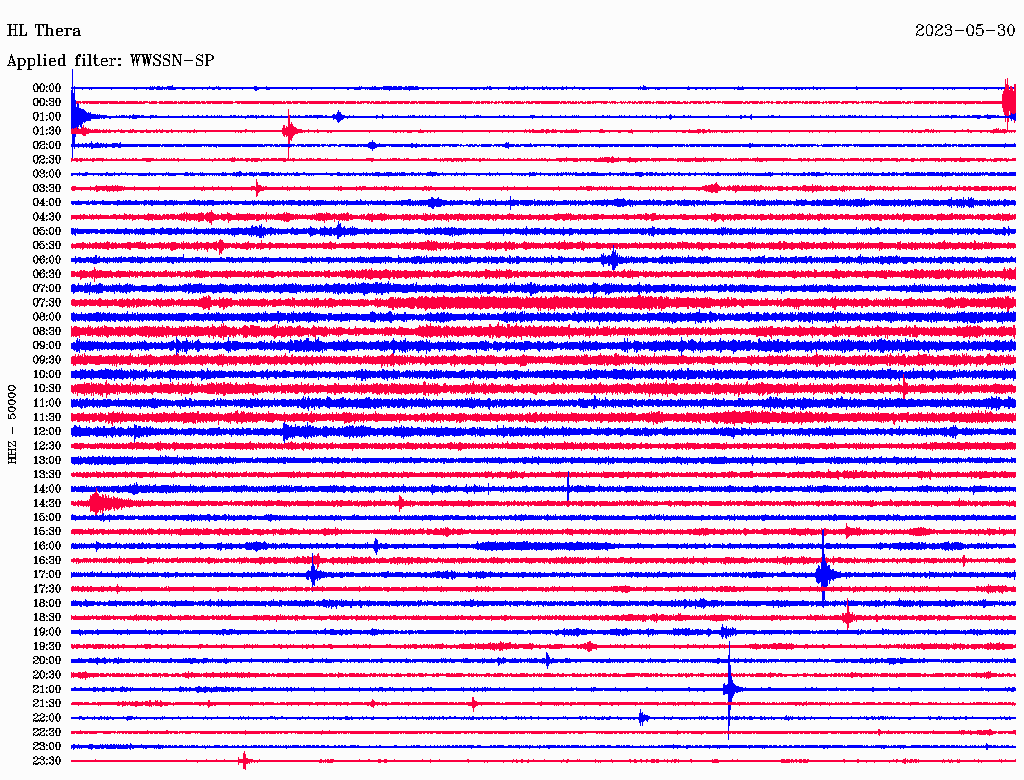

THERAHL68.9359 P21:20:42.80 -0.41.0M
THERAHL68.9359 S21:20:52.20 -0.41.0M

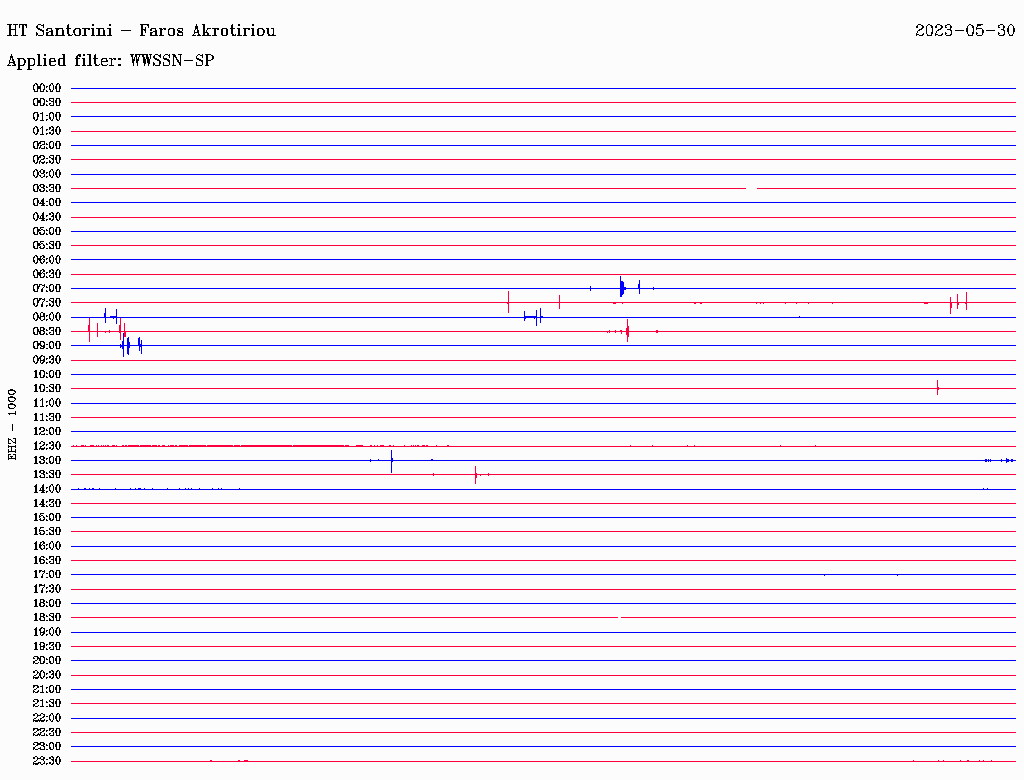

THR9HT68.9350 P21:20:43.50 0.31.0M
THR9HT68.9350 S21:20:53.17 0.61.0M

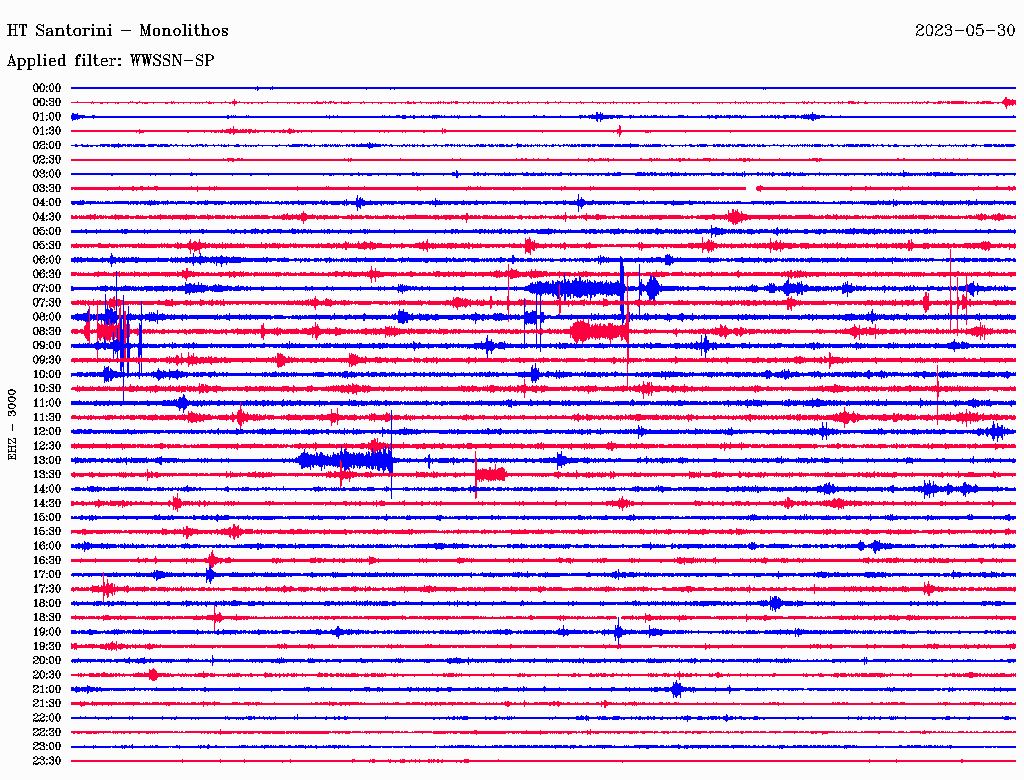

THR8HT73.3359 P21:20:43.83 0.11.0M
SNT5HA73.5353 P21:20:43.80 0.01.0M
SNT5HA73.5353 S21:20:54.10 0.51.0M
THR3HT74.0354 P21:20:43.81 0.01.0M
THR3HT74.0354 S21:20:53.79 0.11.0M
IDIMN74.8227 P21:20:44.22 0.21.0M
IDIMN74.8227 S21:20:53.78 -0.31.0M
THR5HT75.6350 P21:20:44.18 0.11.0M
THR5HT75.6350 S21:20:54.11 0.01.0M

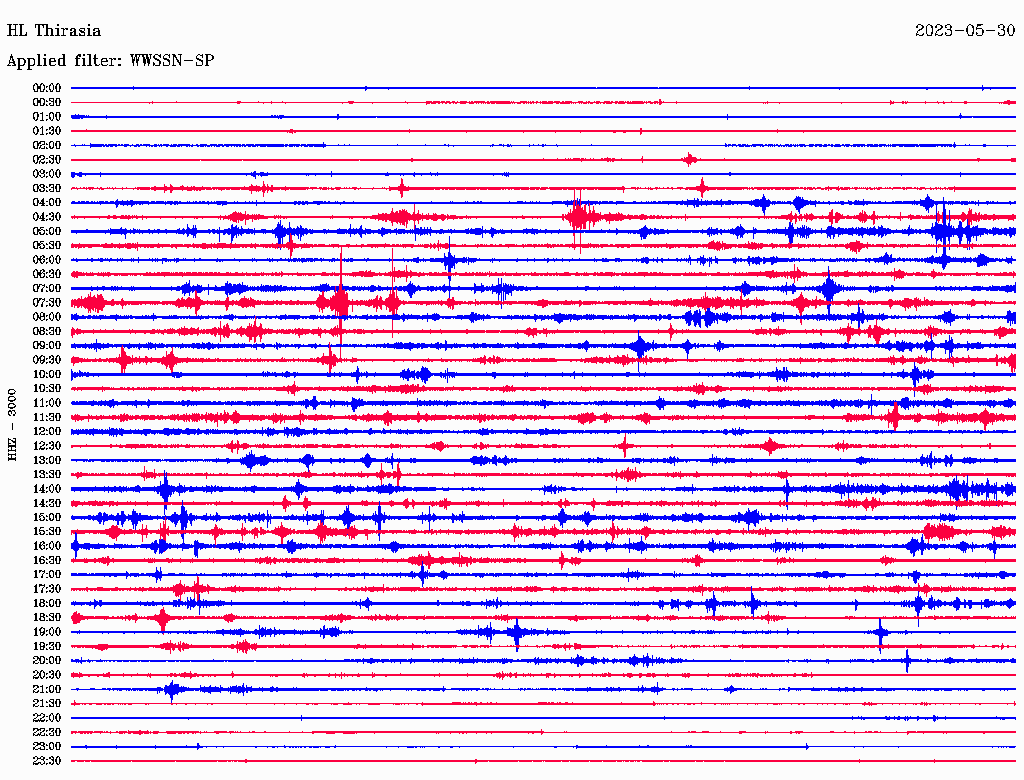

SAP3HL77.6350 P21:20:44.26 0.01.0M
SAP3HL77.6350 S21:20:54.51 -0.11.0M

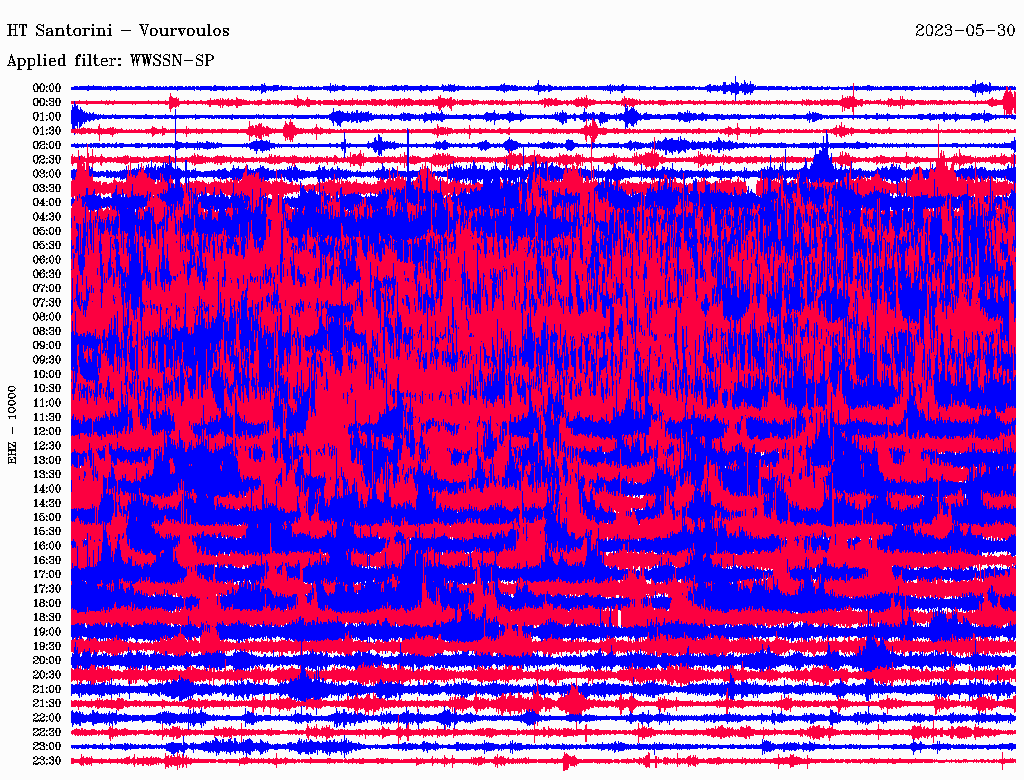

THR2HT77.9356 P21:20:44.42 0.11.0M
THR2HT77.9356 S21:20:54.65 0.01.0M

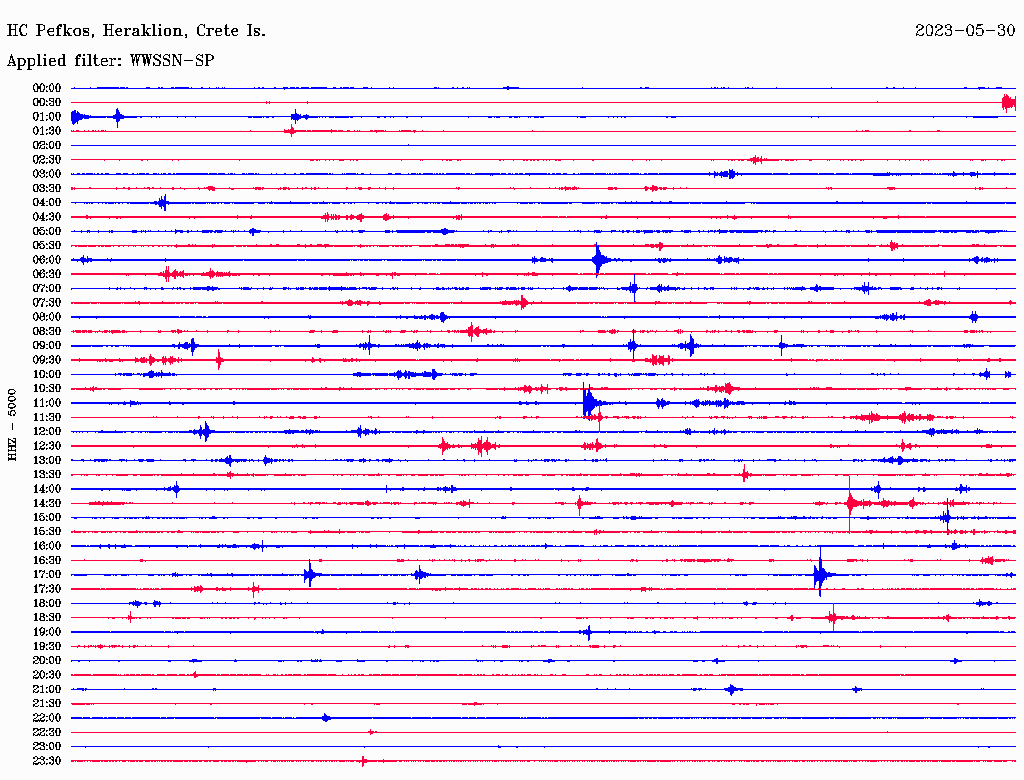

PFKSHC78.4181 P21:20:45.40 0.91.0M
PFKSHC78.4181 S21:20:55.44 0.61.0M


  Solution details

Event:
    Public ID              nkua2023knwe
    Description
      region name: Crete, Greece
Origin:
    Date                   2023-05-30
    Time                  21:20:30.80
    Latitude              35.7477 deg  +/-      1 km
    Longitude             25.4928 deg  +/-      1 km
    Depth                      38 km   +/-    6 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.27 s
    Azimuthal gap             170 deg

2 Network magnitudes:
    MLv       1.98 +/- 0.19  12
    M         1.98           12 preferred

27 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    NPS   HL    0.5 169  P       21:20:41.40  -0.1 M  1.0  NPS
    NPS   HL    0.5 169  S       21:20:49.57  -0.0 M  1.0  NPS
    KNSS  HC    0.5 210  P       21:20:41.61  -0.1 M  1.0  KNSS
    KNSS  HC    0.5 210  S       21:20:50.39   0.4 M  1.0  KNSS
    KSTE  HL    0.6 193  P       21:20:42.07  -0.6 M  1.0  KSTE
    KSTE  HL    0.6 193  S       21:20:51.44  -0.3 M  1.0  KSTE
    THR6  HT    0.6 353  P       21:20:43.10   0.0 M  1.0  THR6
    THR6  HT    0.6 353  S       21:20:52.57   0.1 M  1.0  THR6
    THERA HL    0.6 359  P       21:20:42.80  -0.4 M  1.0  THERA
    THERA HL    0.6 359  S       21:20:52.20  -0.4 M  1.0  THERA
    THR9  HT    0.6 350  P       21:20:43.50   0.3 M  1.0  THR9
    THR9  HT    0.6 350  S       21:20:53.17   0.6 M  1.0  THR9
    THR8  HT    0.7 359  P       21:20:43.83   0.1 M  1.0  THR8
    SNT5  HA    0.7 353  P       21:20:43.80   0.0 M  1.0  SNT5
    SNT5  HA    0.7 353  S       21:20:54.10   0.5 M  1.0  SNT5
    THR3  HT    0.7 354  P       21:20:43.81  -0.0 M  1.0  THR3
    THR3  HT    0.7 354  S       21:20:53.79   0.1 M  1.0  THR3
    IDI   MN    0.7 227  P       21:20:44.22   0.2 M  1.0  IDI
    IDI   MN    0.7 227  S       21:20:53.78  -0.3 M  1.0  IDI
    THR5  HT    0.7 350  P       21:20:44.18   0.1 M  1.0  THR5
    THR5  HT    0.7 350  S       21:20:54.11   0.0 M  1.0  THR5
    SAP3  HL    0.7 350  P       21:20:44.26  -0.0 M  1.0  SAP3
    SAP3  HL    0.7 350  S       21:20:54.51  -0.1 M  1.0  SAP3
    THR2  HT    0.7 356  P       21:20:44.42   0.1 M  1.0  THR2
    THR2  HT    0.7 356  S       21:20:54.65   0.0 M  1.0  THR2
    PFKS  HC    0.7 181  P       21:20:45.40   0.9 M  1.0  PFKS
    PFKS  HC    0.7 181  S       21:20:55.44   0.6 M  1.0  PFKS

14 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    NPS   HL    0.5 169  MLv     2.01  0.03   0.343742
    KNSS  HC    0.5 210  MLv     1.89 -0.09   0.235424
    KSTE  HL    0.6 193  MLv     1.60 -0.38   0.0948697
    THR6  HT    0.6 353  MLv     1.92 -0.06   0.336166
    THERA HL    0.6 359  MLv     1.96 -0.02   0.204625
    THR9  HT    0.6 350  MLv     1.17 -0.80   0.123142
    THR8  HT    0.7 359  MLv     2.07  0.09   0.583245
    SNT5  HA    0.7 353  MLv     2.07  0.09   0.150146
    THR3  HT    0.7 354  MLv     2.34  0.37    1.24469
    IDI   MN    0.7 227  MLv     1.65 -0.33   0.0937436
    THR5  HT    0.7 350  MLv     2.16  0.18    2.33281
    SAP3  HL    0.7 350  MLv     2.33  0.35    0.72421
    THR2  HT    0.7 356  MLv     2.24  0.26   0.833675
    PFKS  HC    0.7 181  MLv     1.84 -0.14   0.140164
