Earthquake Information
 Origin Time
 2023-05-26 16:10:46 (GMT)
 Magnitude
 M 2.2
 Latitude
 39.2354° N
 Longitude
 22.3208° E
 Focal Depth
 2 km
 # of Arrivals
 13
 Location 37.3 km ESE of Karditsa
38.5 km NNW of Lamia
185.6 km NW of Athens
 Solution type
 automatic
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

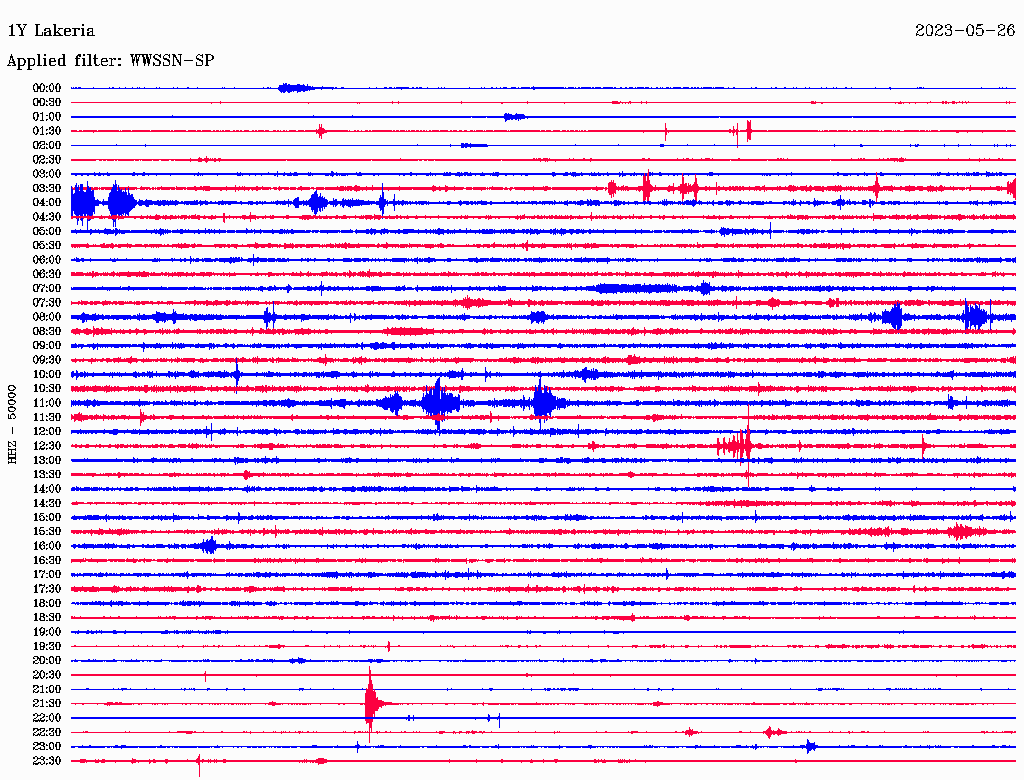

GR181Y62.4 28 P16:10:56.69 -0.31.0A
ANXHP79.3206 P16:10:59.73 -0.21.0A

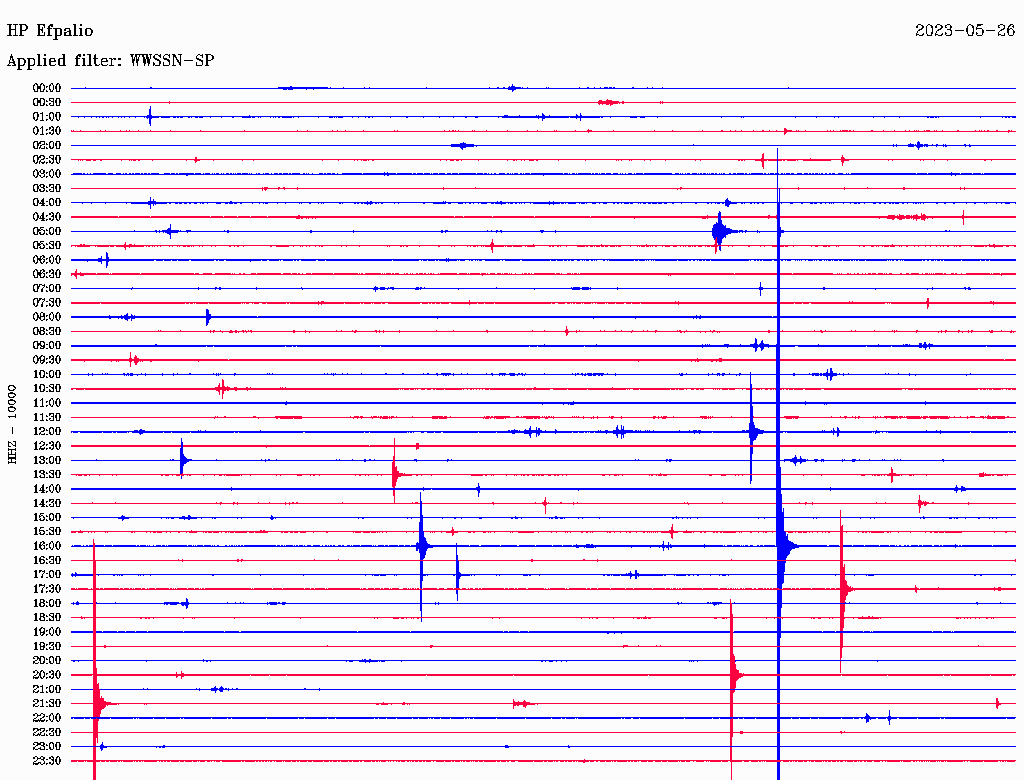

EFPHP96.8202 P16:10:57.35 -5.51.0A
AGRPCL106.8209 P16:11:05.86 1.31.0A

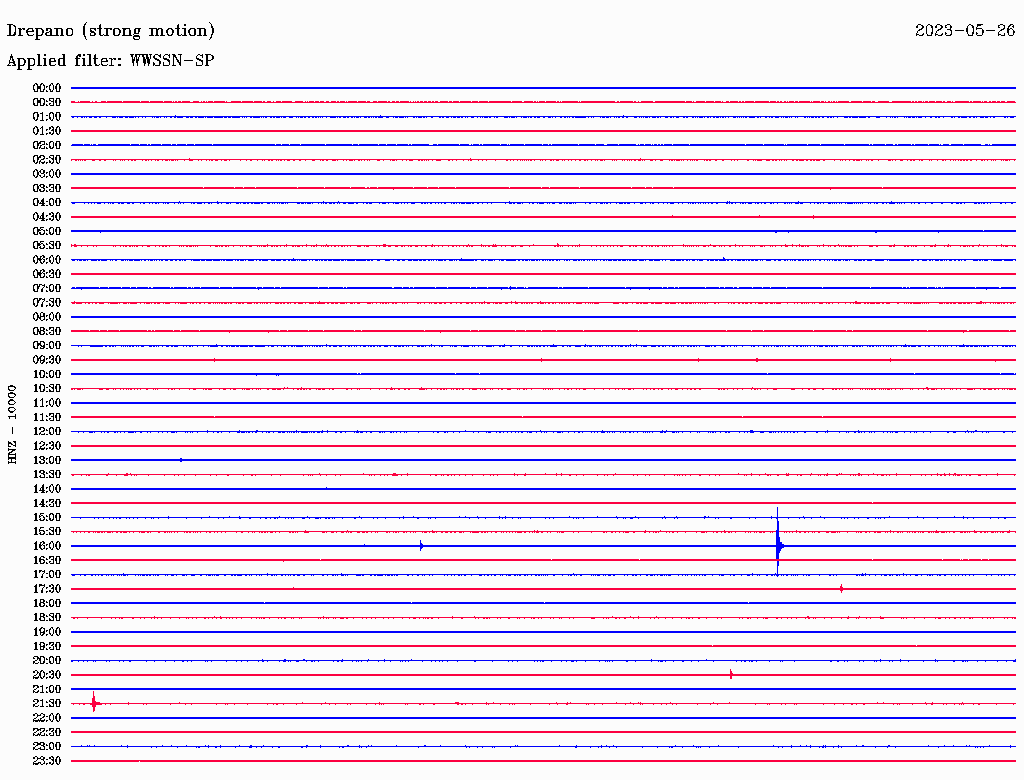

DRESHA109.6202 P16:11:04.66 -0.31.0A
TEMECL113.0189 P16:11:08.06 2.51.0A

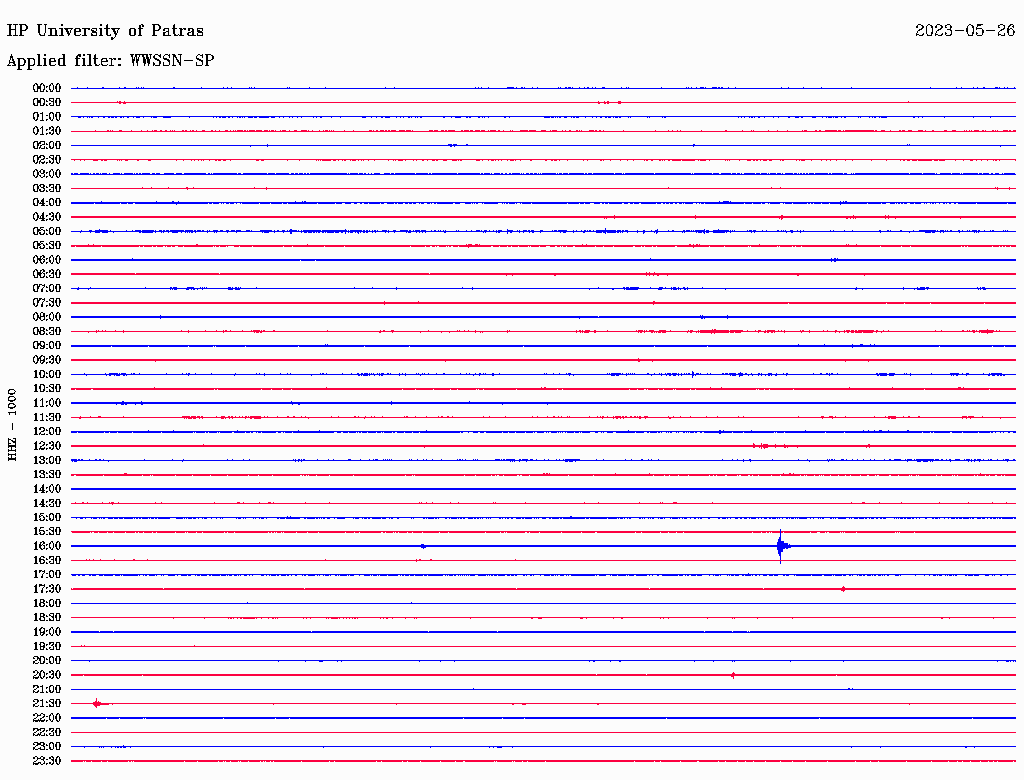

UPRHP115.5204 P16:11:06.96 1.11.0A
THI2HL123.1141 P16:11:05.07 -2.01.0A

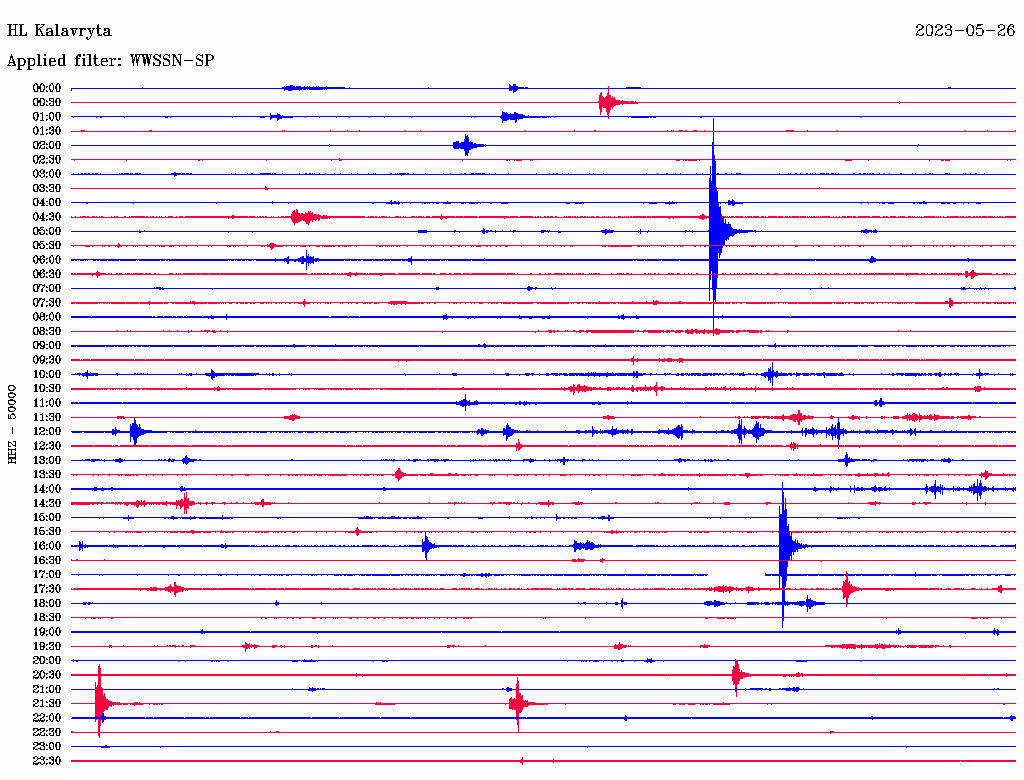

KLVHL133.3186 P16:11:08.58 0.11.0A

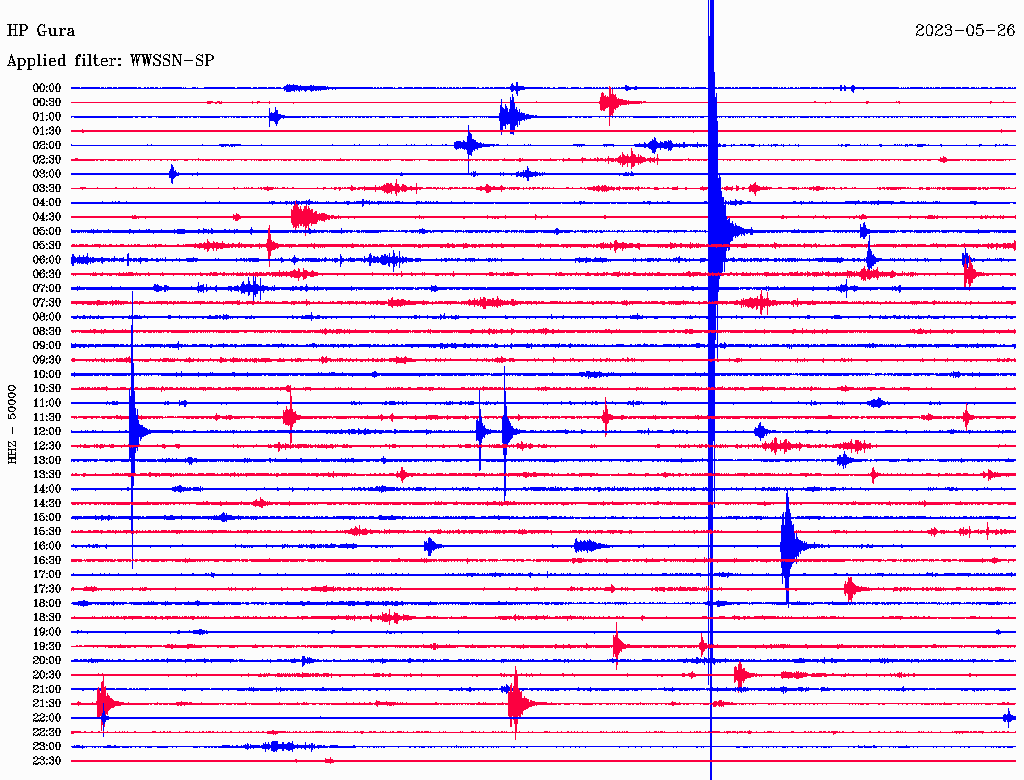

GURHP144.5179 P16:11:12.39 2.31.0A

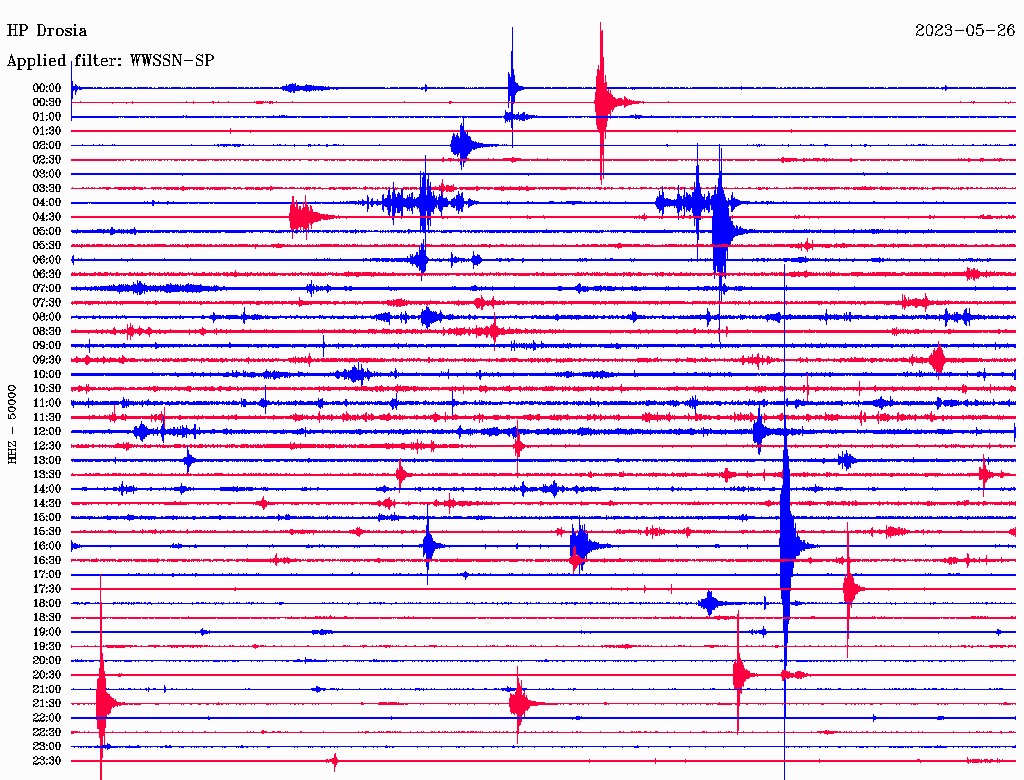

DROHP152.2201 P16:11:11.22 0.01.0A
GR291Y173.8192 P16:11:14.58 0.41.0A

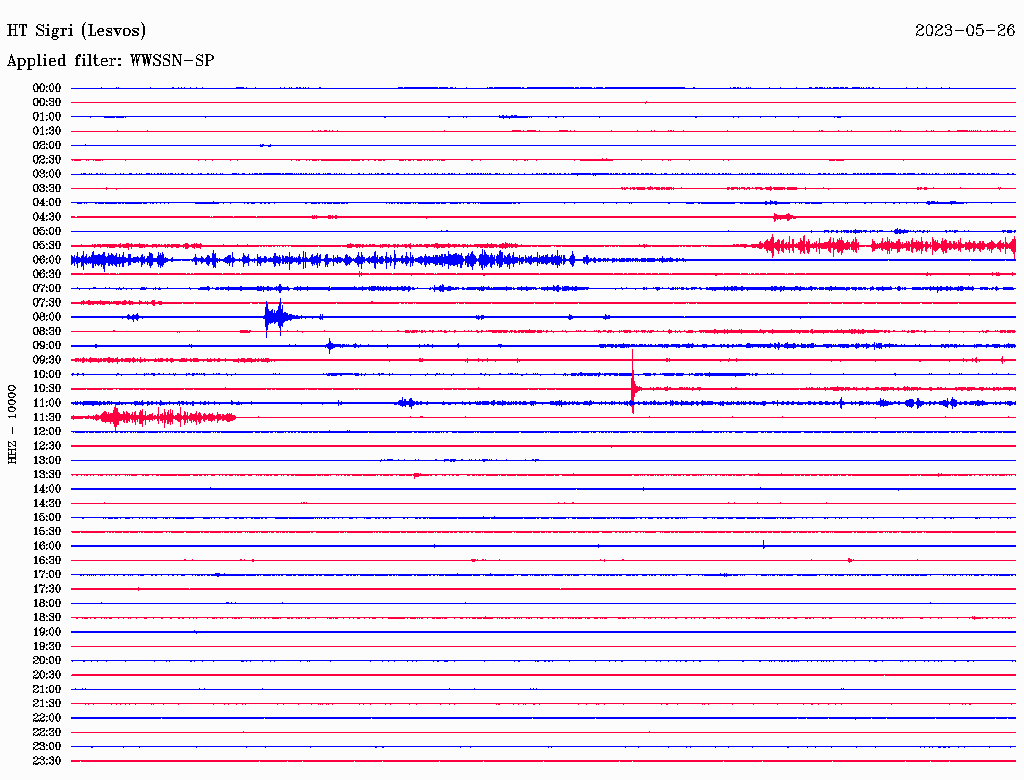

SIGRHT304.5 89 P16:11:31.64 0.61.0A


  Solution details

Event:
    Public ID              nkua2023kgdz
    Description
      region name: Greece
Origin:
    Date                   2023-05-26
    Time                  16:10:46.10  +/-    0.5 s
    Latitude              39.2354 deg  +/-      5 km
    Longitude             22.3208 deg  +/-      6 km
    Depth                       2 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             1.95 s
    Azimuthal gap             179 deg

2 Network magnitudes:
    MLv       2.21 +/- 0.30   8
    M         2.21            8 preferred

13 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR18  1Y    0.6  28  P       16:10:56.69  -0.3 A  1.0  GR18
    ANX   HP    0.7 206  P       16:10:59.73  -0.2 A  1.0  ANX
    EFP   HP    0.9 202  P       16:10:57.35  -5.5 A  1.0  EFP
    AGRP  CL    1.0 209  P       16:11:05.86   1.3 A  1.0  AGRP
    DRES  HA    1.0 202  P       16:11:04.66  -0.3 A  1.0  DRES
    TEME  CL    1.0 189  P       16:11:08.06   2.5 A  1.0  TEME
    UPR   HP    1.0 204  P       16:11:06.96   1.1 A  1.0  UPR
    THI2  HL    1.1 141  P       16:11:05.07  -2.0 A  1.0  THI2
    KLV   HL    1.2 186  P       16:11:08.58   0.1 A  1.0  KLV
    GUR   HP    1.3 179  P       16:11:12.39   2.3 A  1.0  GUR
    DRO   HP    1.4 201  P       16:11:11.22   0.0 A  1.0  DRO
    GR29  1Y    1.6 192  P       16:11:14.58   0.4 A  1.0  GR29
    SIGR  HT    2.7  89  P       16:11:31.64   0.6 A  1.0  SIGR

10 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR18  1Y    0.6  28  MLv     1.06 -1.16   0.0277982
    ANX   HP    0.7 206  MLv     2.21 -0.00   0.327329
    EFP   HP    0.9 202  MLv     2.80  0.59    1.04612
    AGRP  CL    1.0 209  MLv     2.55  0.34   0.519376
    DRES  HA    1.0 202  MLv     3.63  1.41    6.00189
    TEME  CL    1.0 189  MLv     2.25  0.03   0.0797421
    UPR   HP    1.0 204  MLv     1.95 -0.26    1.35145
    KLV   HL    1.2 186  MLv     2.00 -0.21   0.0820178
    GUR   HP    1.3 179  MLv     1.91 -0.31   0.0765168
    DRO   HP    1.4 201  MLv     2.10 -0.11   0.229511
