Earthquake Information
 Origin Time
 2023-05-25 22:54:53 (GMT)
 Magnitude
 M 2.2
 Latitude
 35.0115° N
 Longitude
 24.8712° E
 Focal Depth
 4 km
 # of Arrivals
 28
 Location 42.1 km SW of Iraklion
53.5 km SE of Rethimnon
345.7 km SSE of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
SIVAHL5.4277 P22:54:54.09 -0.31.0M
SIVAHL5.4277 S22:54:55.57 0.11.0M
IMODHC7.8237 P22:54:54.94 0.11.0M
IMODHC7.8237 S22:54:56.22 0.01.0M
IDIMN30.8 3 P22:54:58.60 -0.31.0M
IDIMN30.8 3 S22:55:03.23 -0.11.0M

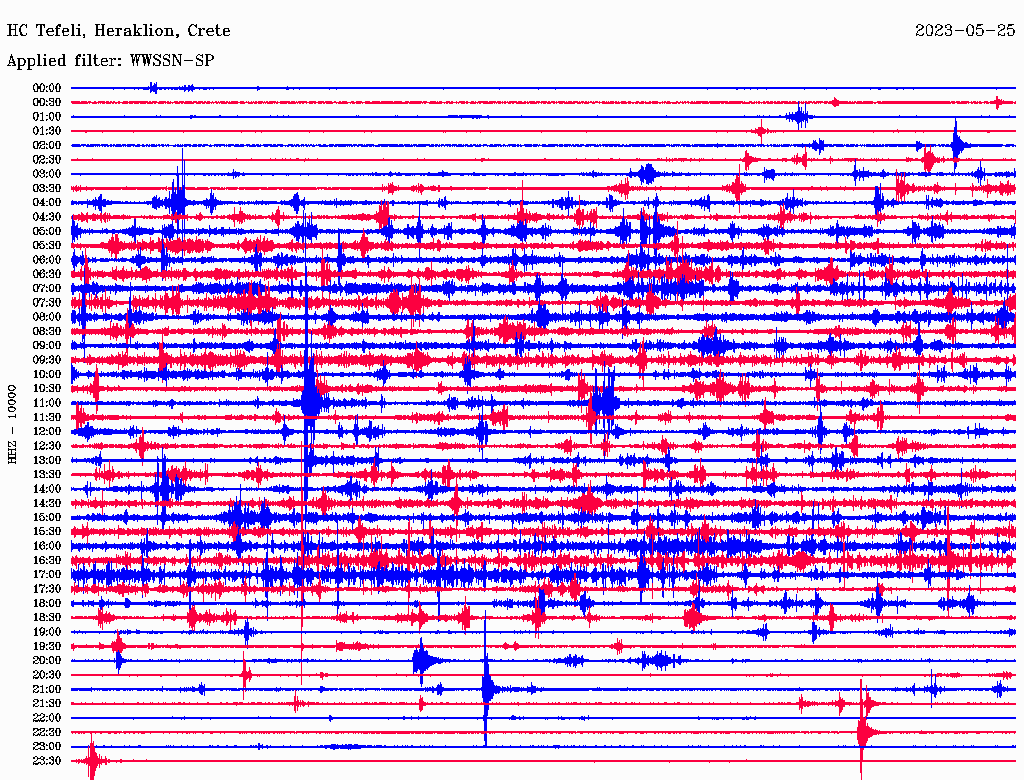

TEFLHC28.1 71 P22:54:58.36 0.01.0M
TEFLHC28.1 71 S22:55:02.74 0.21.0M

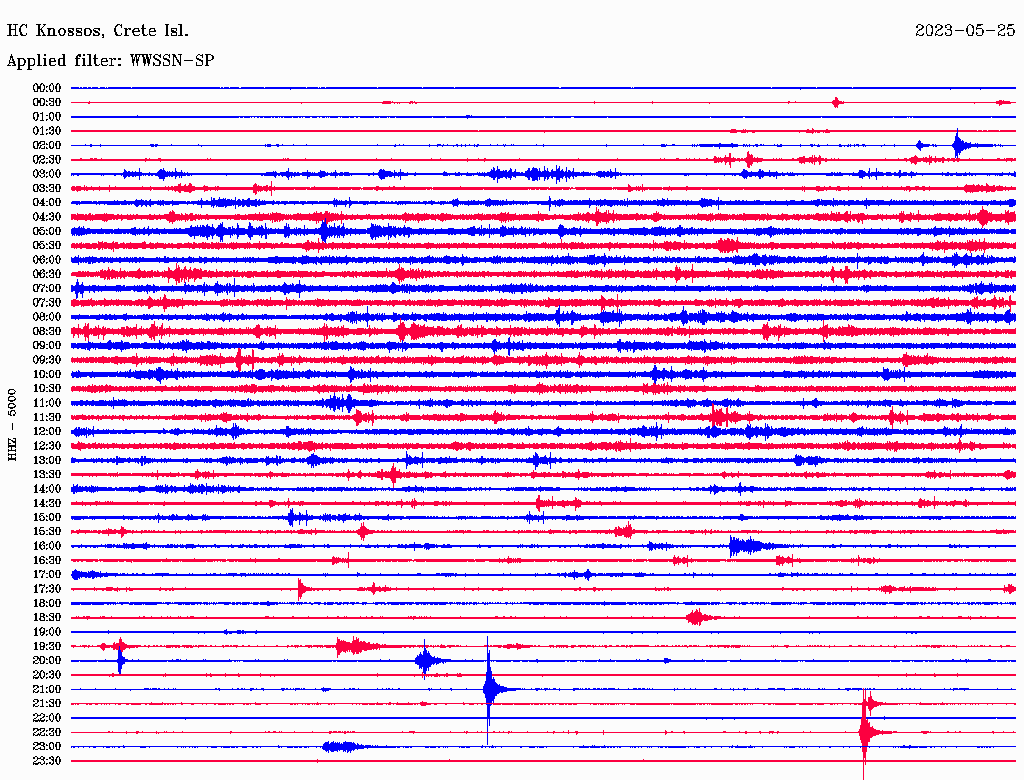

KNSSHC43.0 41 P22:55:01.20 0.31.0M
KNSSHC43.0 41 S22:55:06.51 -0.51.0M

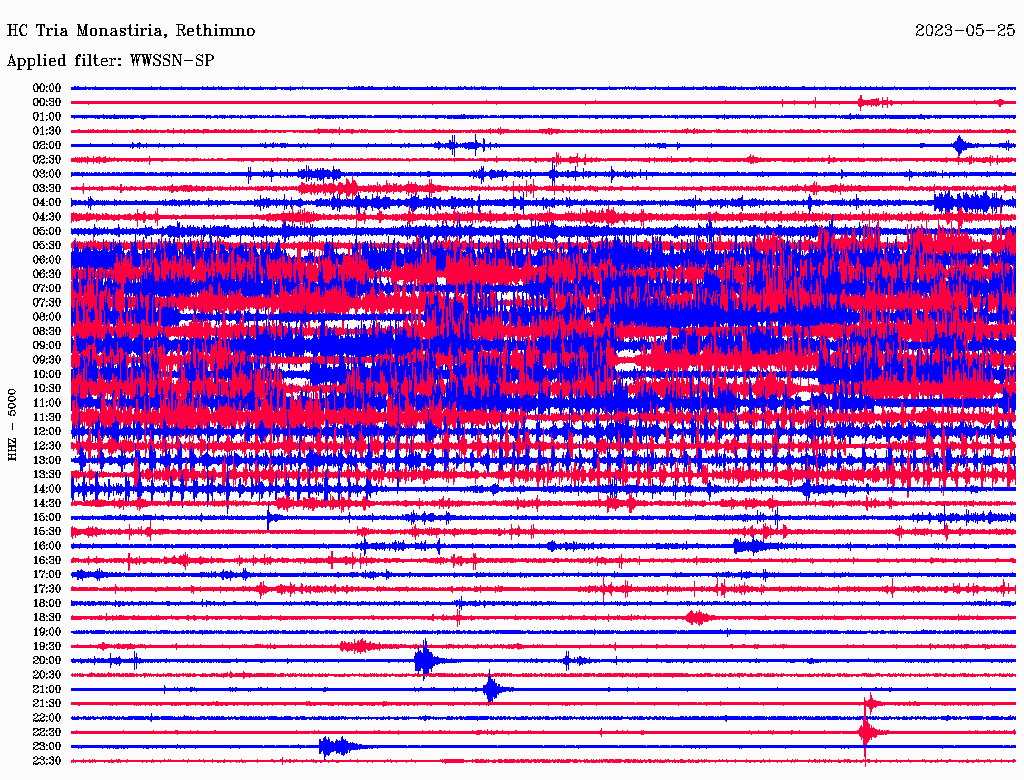

IPPLHC52.7315 P22:55:02.15 -0.41.0M
IPPLHC52.7315 S22:55:09.74 0.01.0M
PFKSHC54.9 86 P22:55:02.48 -0.51.0M
PFKSHC54.9 86 S22:55:10.50 -0.11.0M
GVDHL74.0255 P22:55:05.80 -0.21.0M
GVDHL74.0255 S22:55:15.75 -0.21.0M

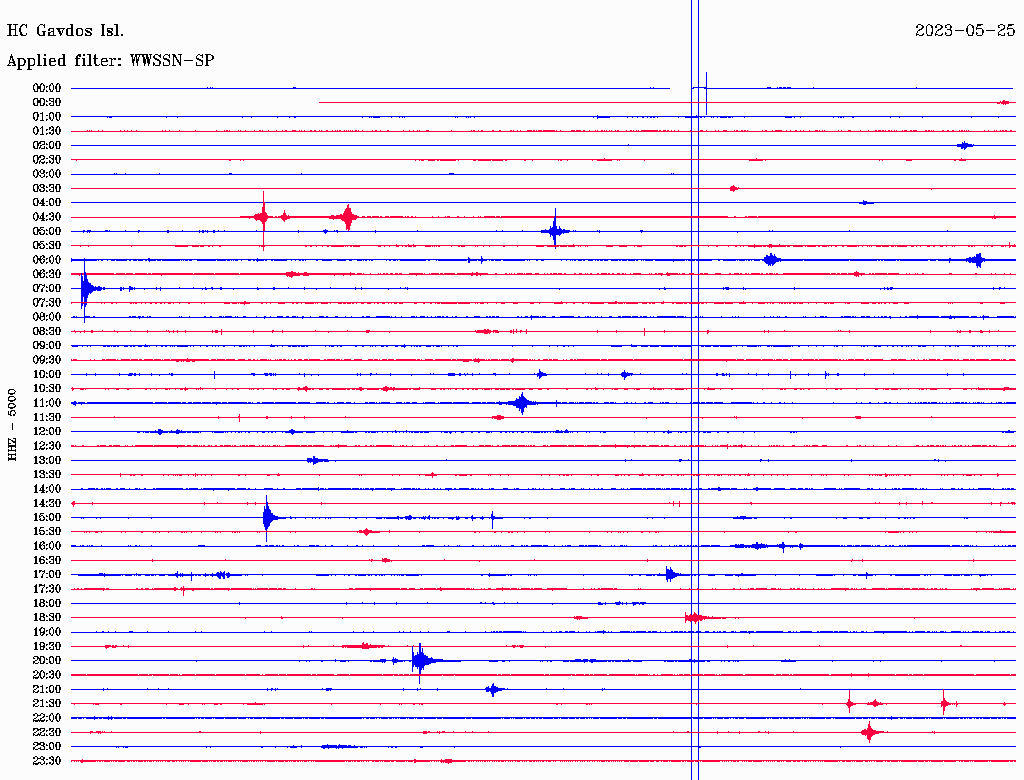

GVDSHC76.5256 P22:55:06.11 -0.41.0M
GVDSHC76.5256 S22:55:16.47 -0.31.0M

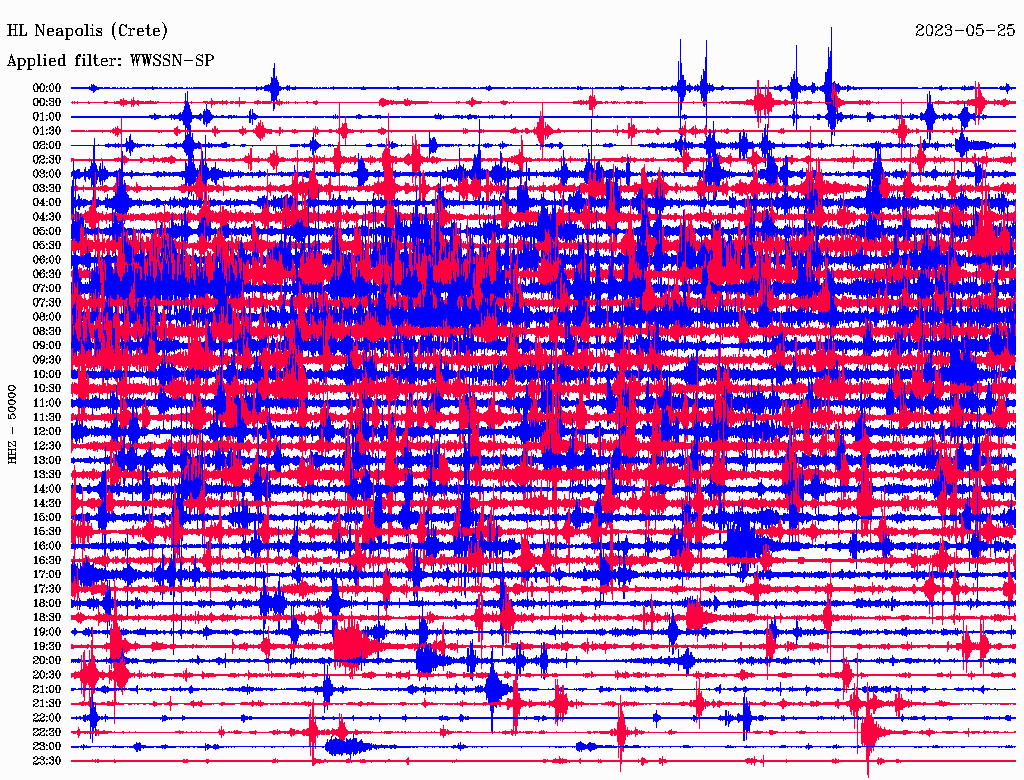

NPSHL72.7 68 P22:55:05.56 -0.31.0M
NPSHL72.7 68 S22:55:15.52 -0.11.0M

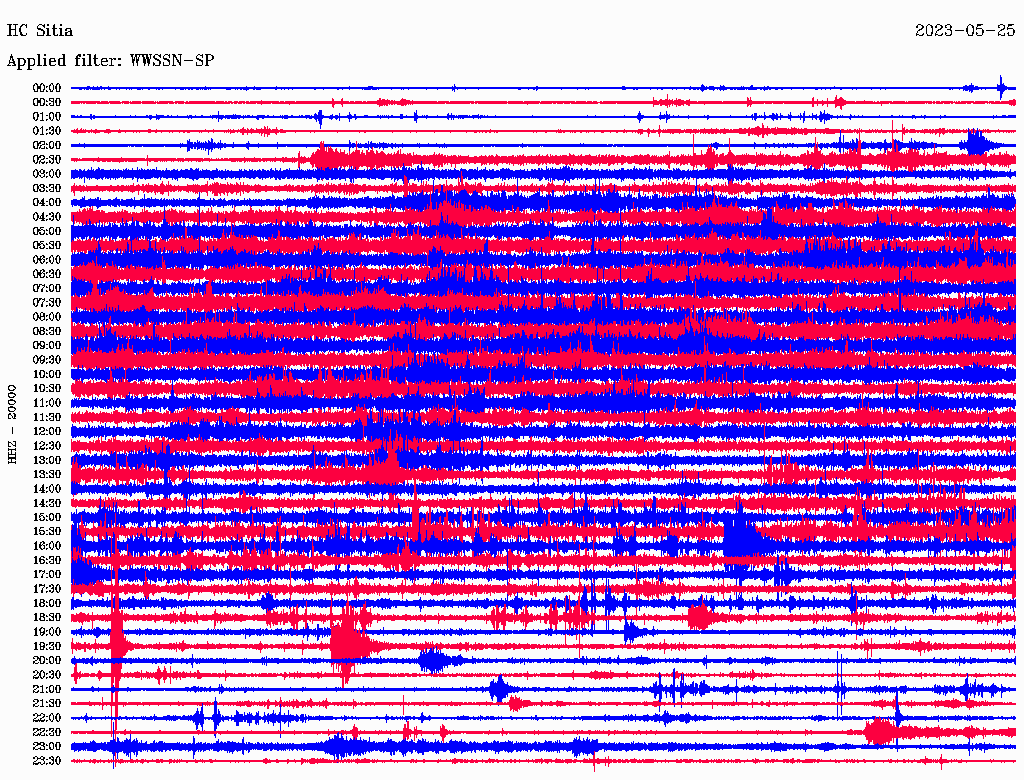

STIAHC113.0 79 P22:55:12.86 0.61.0M
STIAHC113.0 79 S22:55:27.07 0.11.0M

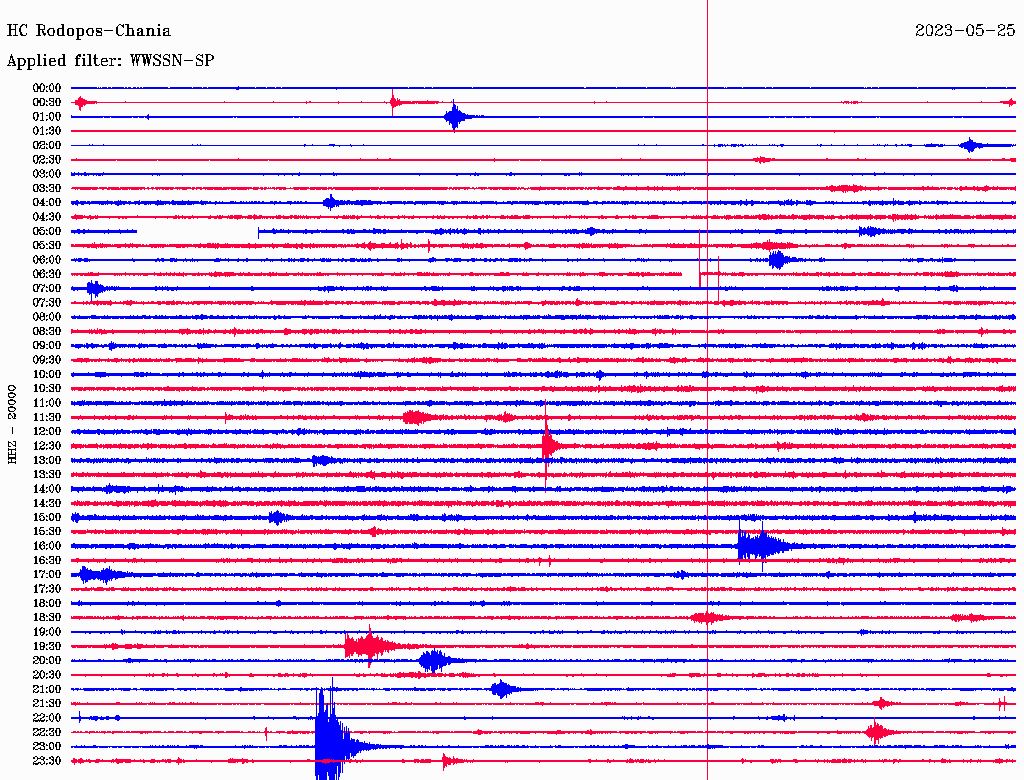

RODPHC118.1301 P22:55:13.45 0.31.0M
RODPHC118.1301 S22:55:28.52 0.11.0M

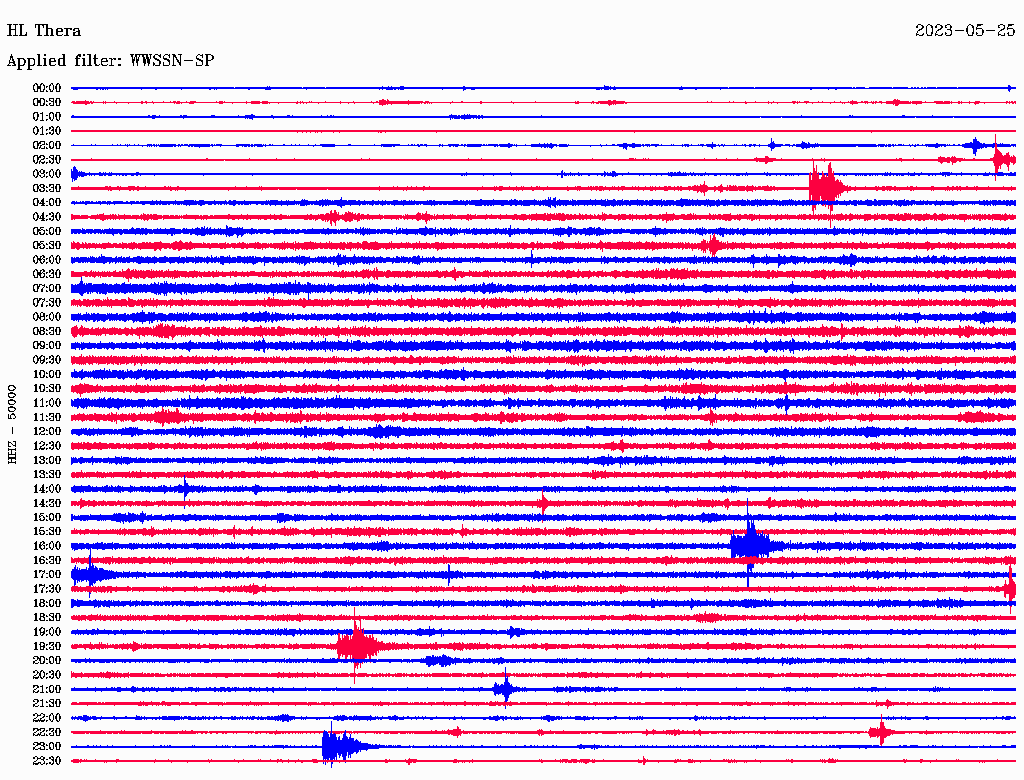

THERAHL160.3 20 P22:55:19.53 -0.11.0M
THERAHL160.3 20 S22:55:40.47 0.71.0M
ANKYHL171.1304 P22:55:22.12 0.81.0M
ANKYHL171.1304 S22:55:43.07 0.21.0M


  Solution details

Event:
    Public ID              nkua2023kevu
    Description
      region name: Crete, Greece
Origin:
    Date                   2023-05-25
    Time                  22:54:52.96
    Latitude              35.0115 deg  +/-      0 km
    Longitude             24.8712 deg  +/-      0 km
    Depth                       4 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.27 s
    Azimuthal gap             151 deg

2 Network magnitudes:
    MLv       2.21 +/- 0.17  12
    M         2.21           12 preferred

28 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    SIVA  HL    0.0 277  P       22:54:54.09  -0.3 M  1.0  SIVA
    SIVA  HL    0.0 277  S       22:54:55.57   0.1 M  1.0  SIVA
    IMOD  HC    0.1 237  P       22:54:54.94   0.1 M  1.0  IMOD
    IMOD  HC    0.1 237  S       22:54:56.22   0.0 M  1.0  IMOD
    TEFL  HC    0.3  71  P       22:54:58.36  -0.0 M  1.0  TEFL
    TEFL  HC    0.3  71  S       22:55:02.74   0.2 M  1.0  TEFL
    IDI   MN    0.3   3  P       22:54:58.60  -0.3 M  1.0  IDI
    IDI   MN    0.3   3  S       22:55:03.23  -0.1 M  1.0  IDI
    KNSS  HC    0.4  41  P       22:55:01.20   0.3 M  1.0  KNSS
    KNSS  HC    0.4  41  S       22:55:06.51  -0.5 M  1.0  KNSS
    IPPL  HC    0.5 315  P       22:55:02.15  -0.4 M  1.0  IPPL
    IPPL  HC    0.5 315  S       22:55:09.74  -0.0 M  1.0  IPPL
    PFKS  HC    0.5  86  P       22:55:02.48  -0.5 M  1.0  PFKS
    PFKS  HC    0.5  86  S       22:55:10.50  -0.1 M  1.0  PFKS
    NPS   HL    0.7  68  P       22:55:05.56  -0.3 M  1.0  NPS
    NPS   HL    0.7  68  S       22:55:15.52  -0.1 M  1.0  NPS
    GVD   HL    0.7 255  P       22:55:05.80  -0.2 M  1.0  GVD
    GVD   HL    0.7 255  S       22:55:15.75  -0.2 M  1.0  GVD
    GVDS  HC    0.7 256  P       22:55:06.11  -0.4 M  1.0  GVDS
    GVDS  HC    0.7 256  S       22:55:16.47  -0.3 M  1.0  GVDS
    STIA  HC    1.0  79  P       22:55:12.86   0.6 M  1.0  STIA
    STIA  HC    1.0  79  S       22:55:27.07   0.1 M  1.0  STIA
    RODP  HC    1.1 301  P       22:55:13.45   0.3 M  1.0  RODP
    RODP  HC    1.1 301  S       22:55:28.52   0.1 M  1.0  RODP
    THERA HL    1.4  20  P       22:55:19.53  -0.1 M  1.0  THERA
    THERA HL    1.4  20  S       22:55:40.47   0.7 M  1.0  THERA
    ANKY  HL    1.5 304  P       22:55:22.12   0.8 M  1.0  ANKY
    ANKY  HL    1.5 304  S       22:55:43.07   0.2 M  1.0  ANKY

14 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    SIVA  HL    0.0 277  MLv     2.56  0.35    21.1875
    IMOD  HC    0.1 237  MLv     2.44  0.23     13.838
    TEFL  HC    0.3  71  MLv     2.12 -0.09    2.09458
    IDI   MN    0.3   3  MLv     1.95 -0.26    1.21142
    KNSS  HC    0.4  41  MLv     2.16 -0.05   0.971138
    IPPL  HC    0.5 315  MLv     2.40  0.19   0.949845
    PFKS  HC    0.5  86  MLv     2.25  0.04   0.603502
    NPS   HL    0.7  68  MLv     2.17 -0.04    0.32228
    GVD   HL    0.7 255  MLv     2.55  0.34   0.587082
    GVDS  HC    0.7 256  MLv     2.39  0.18   0.512504
    STIA  HC    1.0  79  MLv     2.04 -0.17    0.14986
    RODP  HC    1.1 301  MLv     2.01 -0.20   0.132411
    THERA HL    1.4  20  MLv     2.08 -0.13   0.0957399
    ANKY  HL    1.5 304  MLv     1.94 -0.27   0.0610899
