Earthquake Information
 Origin Time
 2023-05-24 14:54:11 (GMT)
 Magnitude
 M 2.5
 Latitude
 35.0140° N
 Longitude
 24.8483° E
 Focal Depth
 9 km
 # of Arrivals
 20
 Location 43.1 km SW of Iraklion
51.9 km SE of Rethimnon
344.9 km SSE of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

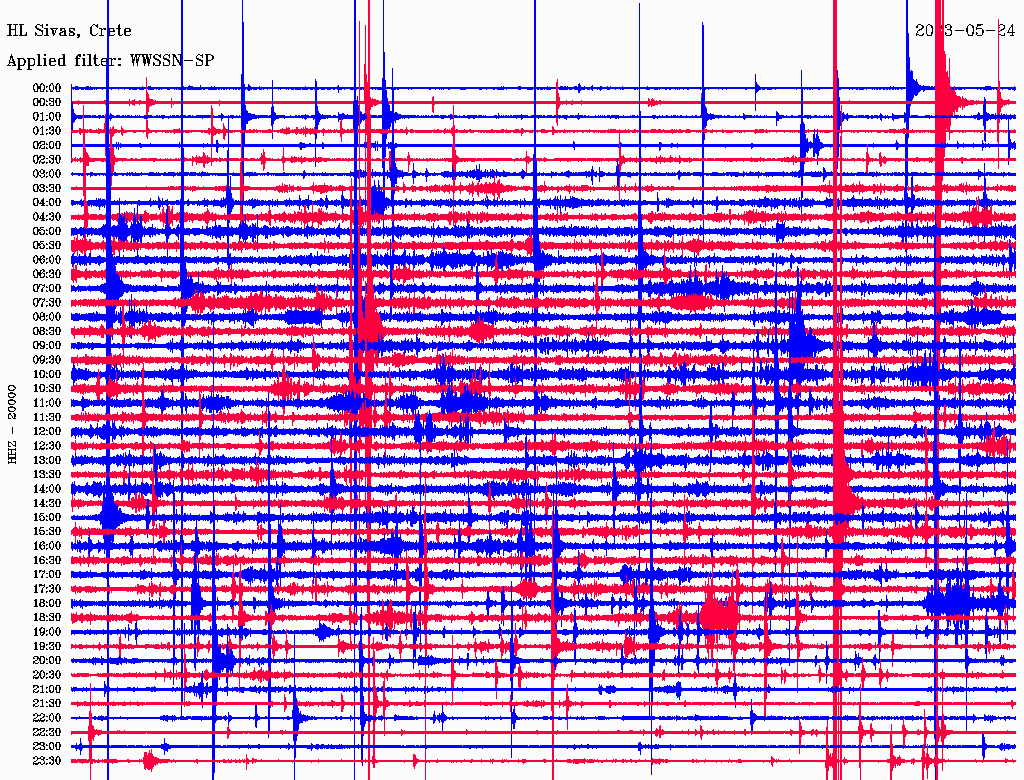

SIVAHL3.3277 P14:54:12.73 -0.41.0M
SIVAHL3.3277 S14:54:14.55 0.01.0M

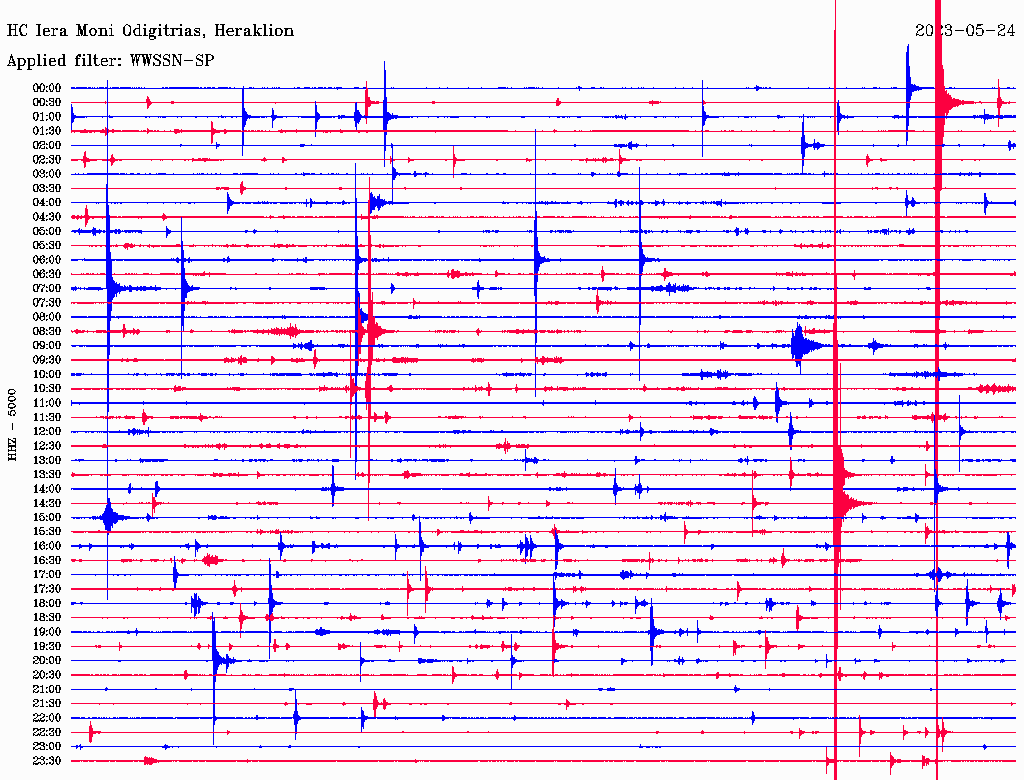

IMODHC6.4225 P14:54:13.57 0.21.0M
IMODHC6.4225 S14:54:15.02 0.01.0M

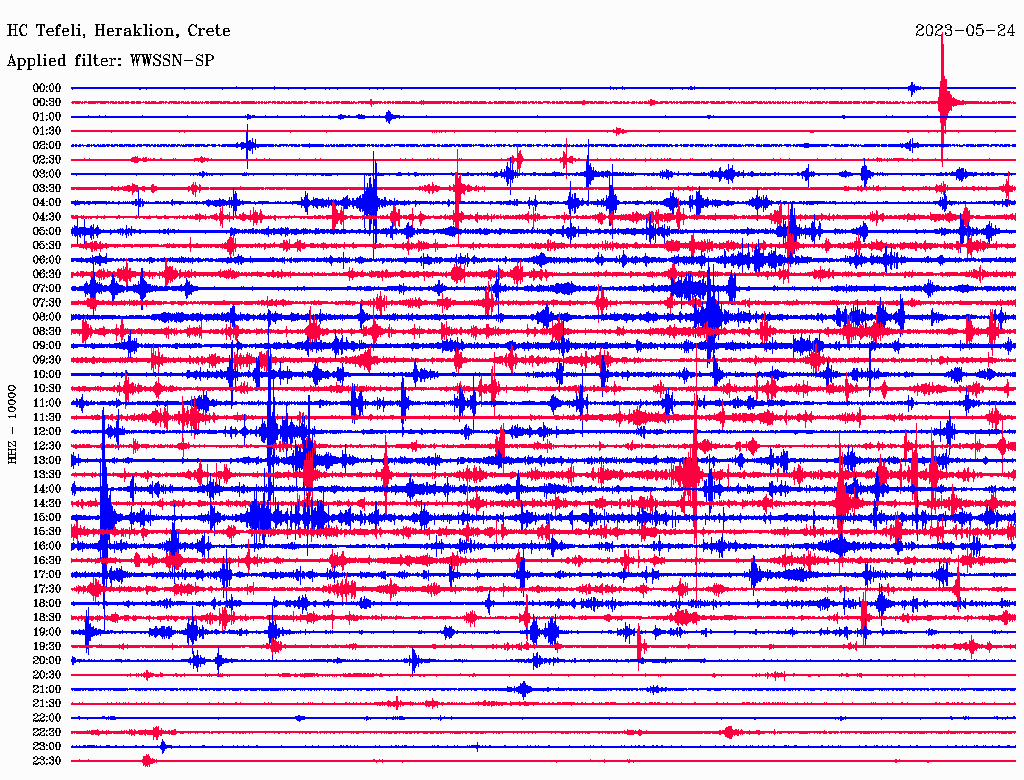

TEFLHC30.0 73 P14:54:17.10 0.11.0M
TEFLHC30.0 73 S14:54:21.08 -0.21.0M

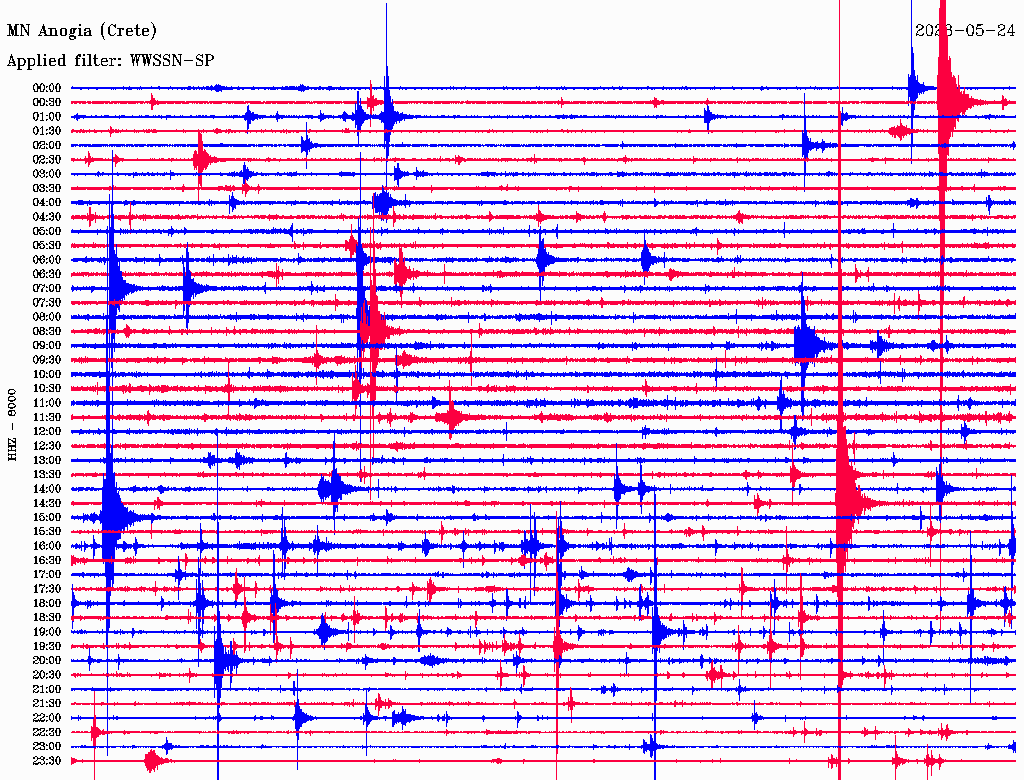

IDIMN30.7 7 P14:54:17.30 0.21.0M
IDIMN30.7 7 S14:54:21.37 -0.21.0M

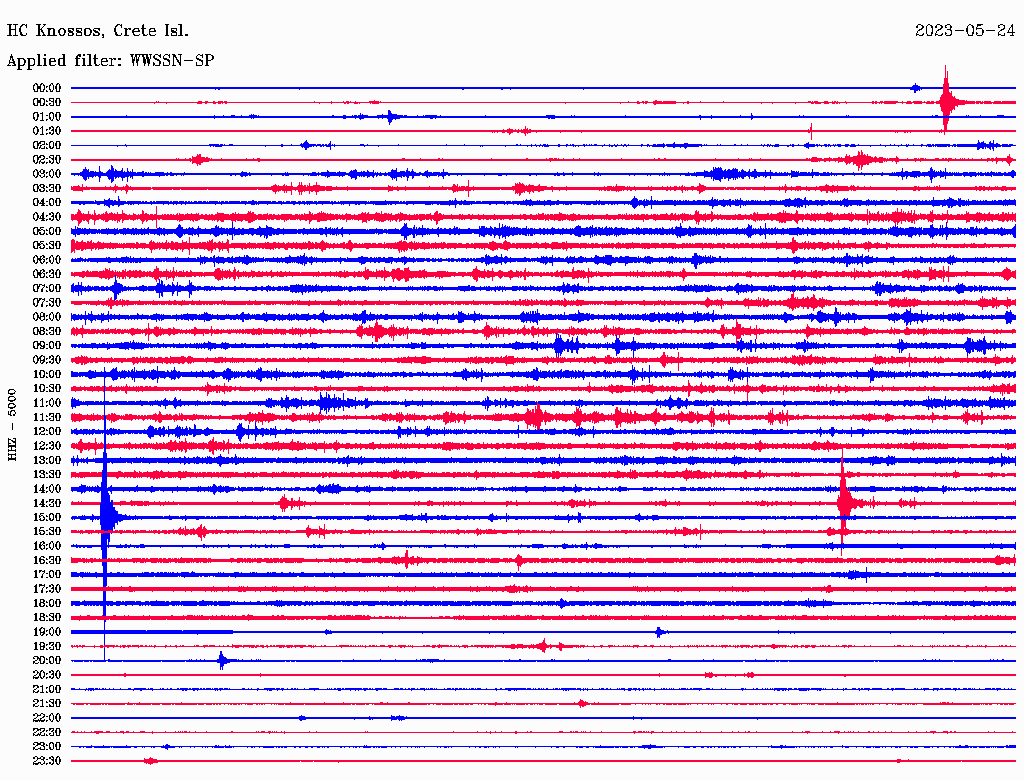

KNSSHC44.2 43 P14:54:19.87 0.61.0M
KNSSHC44.2 43 S14:54:25.29 -0.11.0M

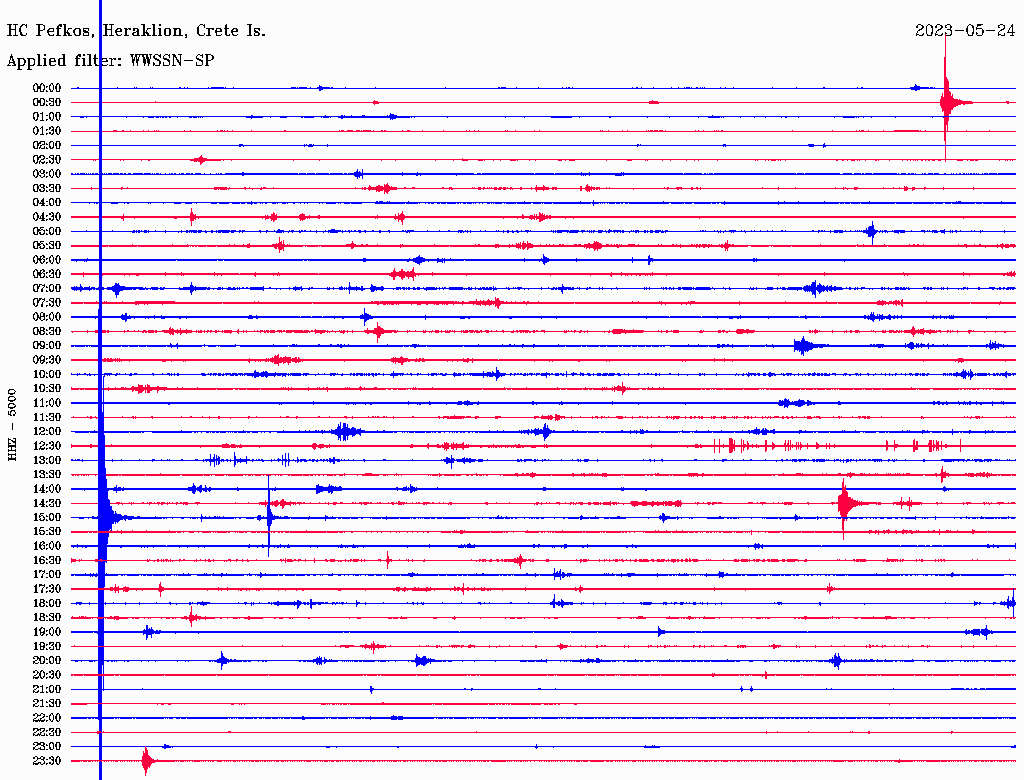

PFKSHC57.0 87 P14:54:21.13 -0.31.0M
PFKSHC57.0 87 S14:54:28.97 -0.21.0M
GVDHL72.0254 P14:54:23.88 0.11.0M
GVDHL72.0254 S14:54:33.16 -0.11.0M

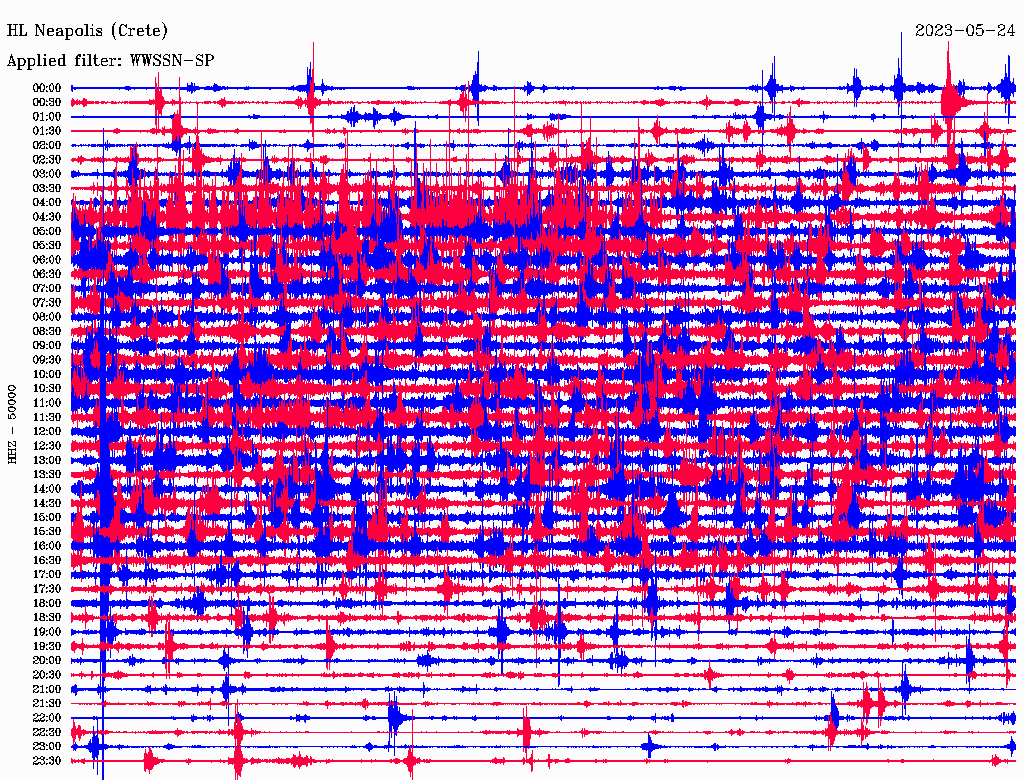

NPSHL74.5 68 P14:54:24.32 0.11.0M
NPSHL74.5 68 S14:54:34.16 0.21.0M

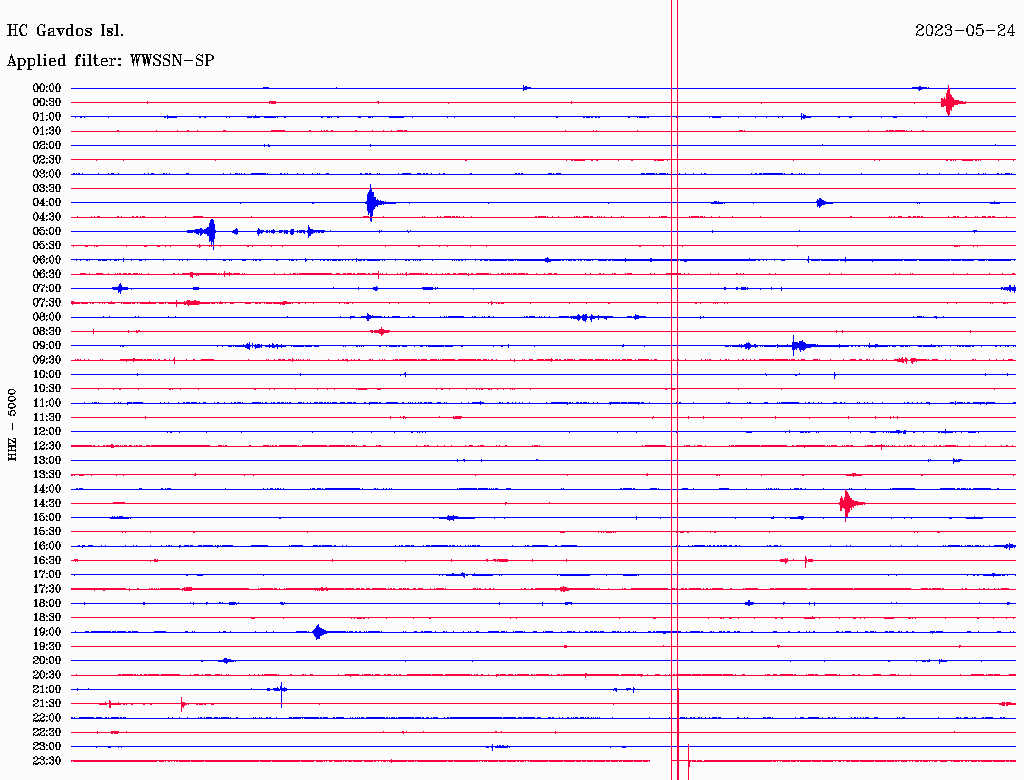

GVDSHC74.6255 P14:54:24.10 -0.11.0M
GVDSHC74.6255 S14:54:33.87 -0.21.0M

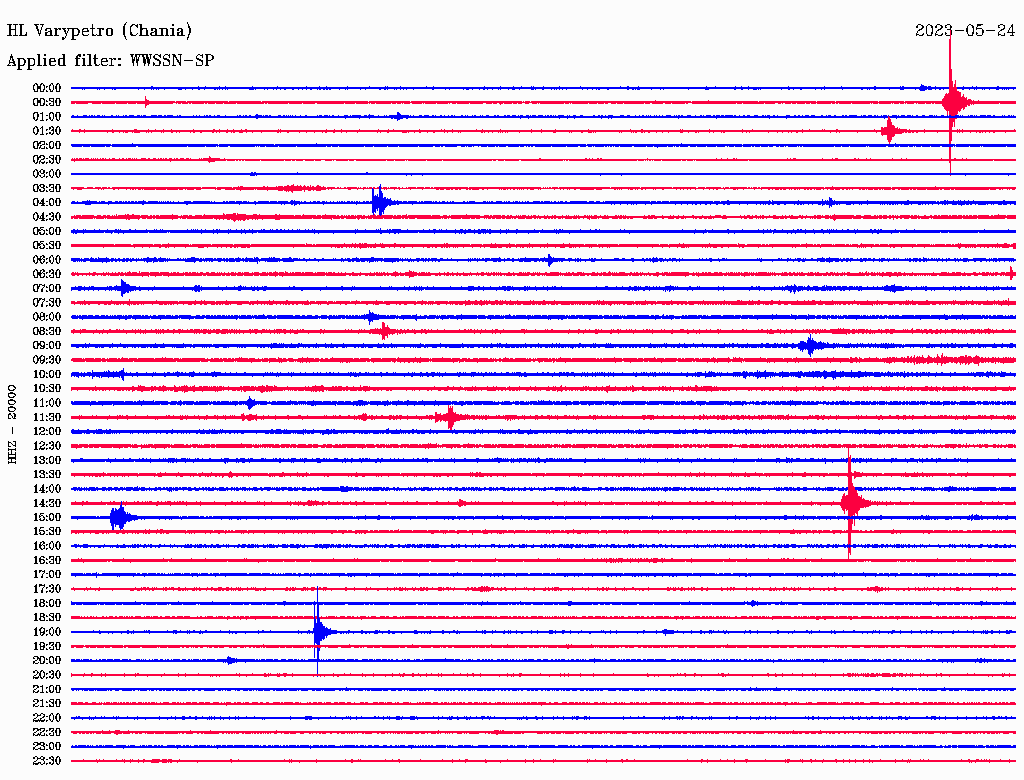

IMMVHL93.1302 P14:54:26.78 -0.31.0M
IMMVHL93.1302 S14:54:39.39 0.21.0M


  Solution details

Event:
    Public ID              nkua2023kckl
    Description
      region name: Crete, Greece
Origin:
    Date                   2023-05-24
    Time                  14:54:11.25
    Latitude              35.0140 deg  +/-      0 km
    Longitude             24.8483 deg  +/-      0 km
    Depth                       9 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.20 s
    Azimuthal gap             138 deg

2 Network magnitudes:
    MLv       2.46 +/- 0.15   8
    M         2.46            8 preferred

20 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    SIVA  HL    0.0 277  P       14:54:12.73  -0.4 M  1.0  SIVA
    SIVA  HL    0.0 277  S       14:54:14.55   0.0 M  1.0  SIVA
    IMOD  HC    0.1 225  P       14:54:13.57   0.2 M  1.0  IMOD
    IMOD  HC    0.1 225  S       14:54:15.02  -0.0 M  1.0  IMOD
    TEFL  HC    0.3  73  P       14:54:17.10   0.1 M  1.0  TEFL
    TEFL  HC    0.3  73  S       14:54:21.08  -0.2 M  1.0  TEFL
    IDI   MN    0.3   7  P       14:54:17.30   0.2 M  1.0  IDI
    IDI   MN    0.3   7  S       14:54:21.37  -0.2 M  1.0  IDI
    KNSS  HC    0.4  43  P       14:54:19.87   0.6 M  1.0  KNSS
    KNSS  HC    0.4  43  S       14:54:25.29  -0.1 M  1.0  KNSS
    PFKS  HC    0.5  87  P       14:54:21.13  -0.3 M  1.0  PFKS
    PFKS  HC    0.5  87  S       14:54:28.97  -0.2 M  1.0  PFKS
    GVD   HL    0.6 254  P       14:54:23.88   0.1 M  1.0  GVD
    GVD   HL    0.6 254  S       14:54:33.16  -0.1 M  1.0  GVD
    NPS   HL    0.7  68  P       14:54:24.32   0.1 M  1.0  NPS
    NPS   HL    0.7  68  S       14:54:34.16   0.2 M  1.0  NPS
    GVDS  HC    0.7 255  P       14:54:24.10  -0.1 M  1.0  GVDS
    GVDS  HC    0.7 255  S       14:54:33.87  -0.2 M  1.0  GVDS
    IMMV  HL    0.8 302  P       14:54:26.78  -0.3 M  1.0  IMMV
    IMMV  HL    0.8 302  S       14:54:39.39   0.2 M  1.0  IMMV

10 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    SIVA  HL    0.0 277  MLv     2.46  0.00    19.0542
    IMOD  HC    0.1 225  MLv     2.45 -0.01    15.5322
    TEFL  HC    0.3  73  MLv     2.39 -0.07     3.4997
    IDI   MN    0.3   7  MLv     2.10 -0.36    1.69914
    KNSS  HC    0.4  43  MLv     2.32 -0.15     1.2932
    PFKS  HC    0.5  87  MLv     2.47  0.01   0.885003
    GVD   HL    0.6 254  MLv     2.98  0.52    1.61442
    NPS   HL    0.7  68  MLv     2.26 -0.20   0.384157
    GVDS  HC    0.7 255  MLv     2.60  0.14   0.843577
    IMMV  HL    0.8 302  MLv     2.77  0.31    1.01563
