Earthquake Information
 Origin Time
2023-01-24 08:43:46 (GMT)
 Magnitude
M 1.6
 Latitude
37.8719° N
 Longitude
21.3512° E
 Focal Depth
7 km
 # of Arrivals
21
 Location 8.0 km ESE of Andravida
22.7 km NNW of Pyrgos
209.3 km W of Athens
 Solution type
automatic
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR281Y18.6276 P08:43:50.39 0.21.0A
RLSHL22.7 26 P08:43:50.97 0.11.0A
AXSHP36.1 3 P08:43:52.66 -0.31.0A
DROHP32.8 74 P08:43:52.71 0.21.0A
AMTHP49.1140 P08:43:54.09 -1.01.0A
GR291Y53.6110 P08:43:55.38 -0.51.0A
ORTHHL57.5268 P08:43:57.01 0.51.0A
PLEVHP60.3 5 P08:43:56.51 -0.41.0A
RTZLHT55.7294 P08:43:56.56 0.41.0A
AGRPCL66.7 29 P08:43:57.29 -0.61.0A
AIOACL71.6 60 P08:43:59.70 1.01.0A
LAKAHA68.5 53 P08:43:59.14 0.91.0A
KLVHL72.6 75 P08:43:58.89 0.01.0A
PDOHP82.1350 P08:43:59.85 -0.51.0A
VVKHP73.2 33 P08:43:58.34 -0.61.0A
GURHP87.3 85 P08:44:01.83 0.61.0A
PVOHP84.2 10 P08:44:00.66 0.01.0A
TRIZCL83.6 49 P08:44:01.14 0.51.0A
AMPLHP117.4354 P08:44:05.60 -0.41.0A


  Solution details

Event:
    Public ID              nkua2023bqrw
    Description
      region name: Southern Greece
Origin:
    Date                   2023-01-24
    Time                  08:43:45.94  +/-    0.6 s
    Latitude              37.8719 deg  +/-      3 km
    Longitude             21.3512 deg  +/-      2 km
    Depth                       7 km   +/-    6 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             0.54 s
    Azimuthal gap             128 deg

2 Network magnitudes:
    MLv       1.62 +/- 0.20  15
    M         1.62           15 preferred

21 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR28  1Y    0.2 276  P       08:43:50.39   0.2 A  1.0  GR28
    RLS   HL    0.2  26  P       08:43:50.97   0.1 A  1.0  RLS
    DRO   HP    0.3  74  P       08:43:52.71   0.2 A  1.0  DRO
    AXS   HP    0.3   3  P       08:43:52.66  -0.3 A  1.0  AXS
    AMT   HP    0.4 140  P       08:43:54.09  -1.0 A  1.0  AMT
    GR29  1Y    0.5 110  P       08:43:55.38  -0.5 A  1.0  GR29

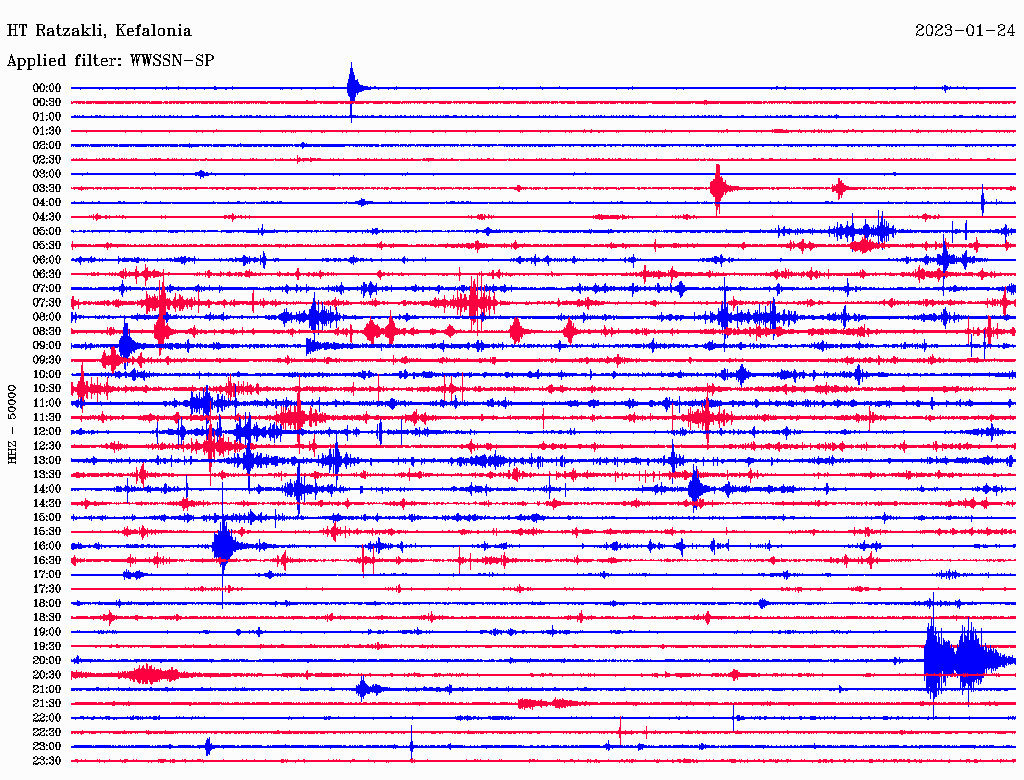

    RTZL  HT    0.5 294  P       08:43:56.56   0.4 A  1.0  RTZL

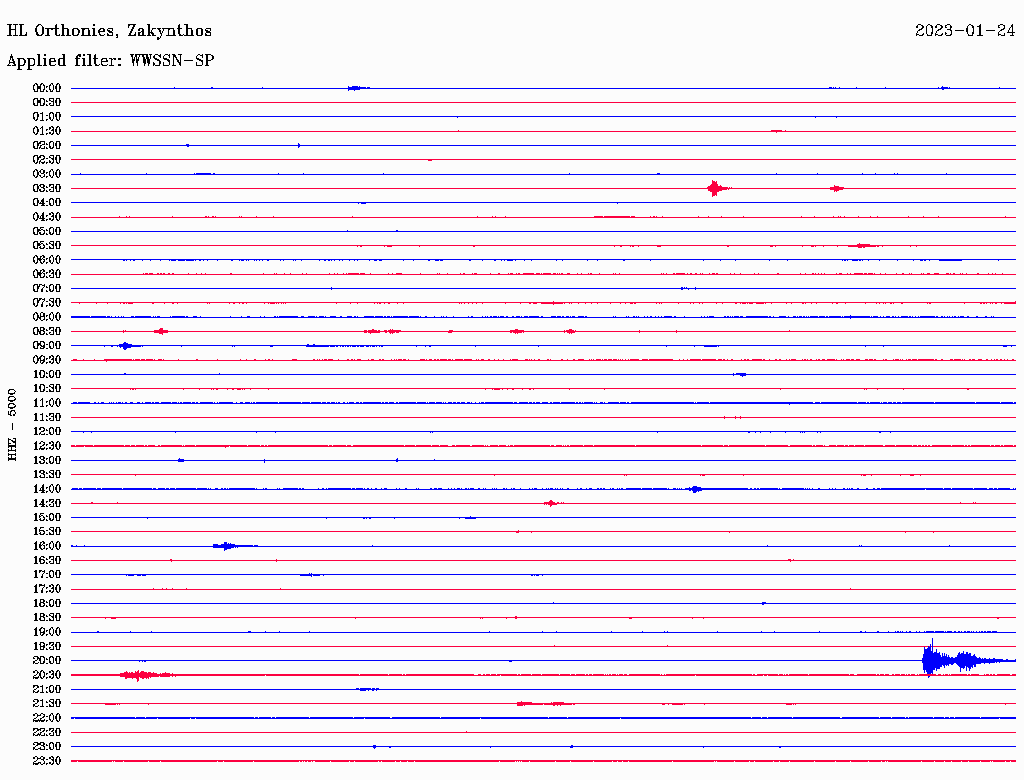

    ORTH  HL    0.5 268  P       08:43:57.01   0.5 A  1.0  ORTH
    PLEV  HP    0.5   5  P       08:43:56.51  -0.4 A  1.0  PLEV
    AGRP  CL    0.6  29  P       08:43:57.29  -0.6 A  1.0  AGRP
    LAKA  HA    0.6  53  P       08:43:59.14   0.9 A  1.0  LAKA
    AIOA  CL    0.6  60  P       08:43:59.70   1.0 A  1.0  AIOA
    KLV   HL    0.7  75  P       08:43:58.89  -0.0 A  1.0  KLV
    VVK   HP    0.7  33  P       08:43:58.34  -0.6 A  1.0  VVK
    PDO   HP    0.7 350  P       08:43:59.85  -0.5 A  1.0  PDO
    TRIZ  CL    0.8  49  P       08:44:01.14   0.5 A  1.0  TRIZ
    PVO   HP    0.8  10  P       08:44:00.66  -0.0 A  1.0  PVO
    GUR   HP    0.8  85  P       08:44:01.83   0.6 A  1.0  GUR

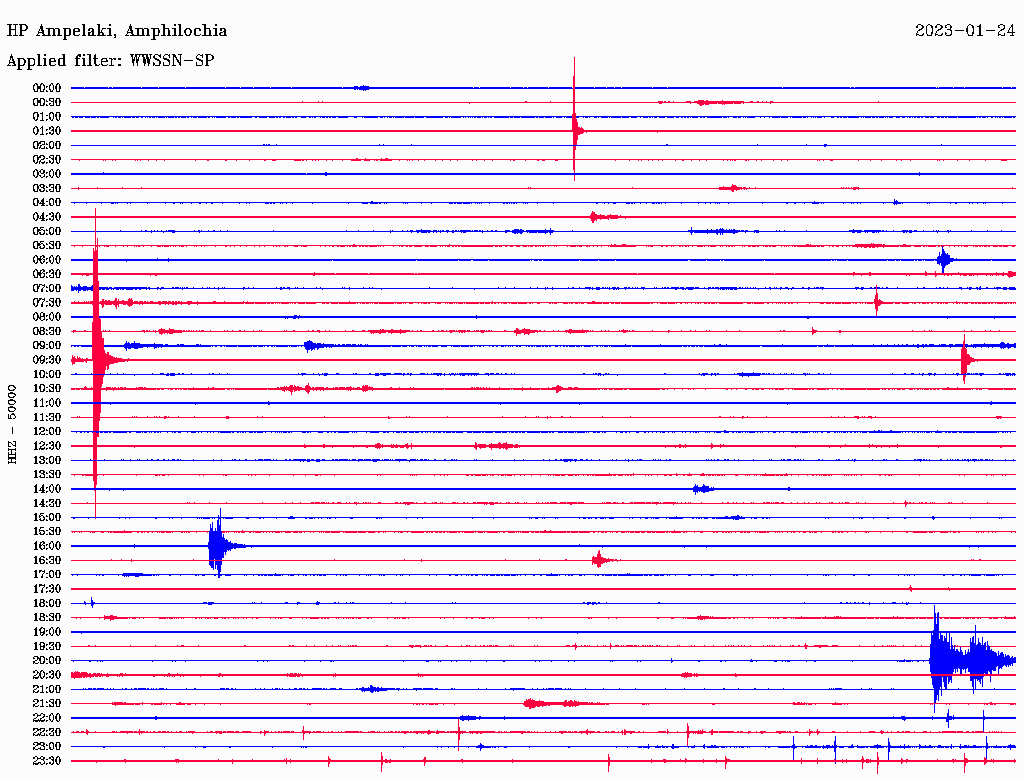

    AMPL  HP    1.1 354  P       08:44:05.60  -0.4 A  1.0  AMPL
    GR20  1Y    1.4  13  P       08:44:14.64   3.5 AX 0.0  GR20
    IMOD  HC    4.0 135  P       08:44:47.53  -0.2 AX 0.0  IMOD

19 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR28  1Y    0.2 276  MLv     1.20 -0.42   0.434822
    RLS   HL    0.2  26  MLv     1.60 -0.03   0.846277
    DRO   HP    0.3  74  MLv     1.15 -0.48   0.355175
    AXS   HP    0.3   3  MLv     1.39 -0.23   0.242887
    AMT   HP    0.4 140  MLv     1.77  0.15   0.279381
    GR29  1Y    0.5 110  MLv     1.73  0.11   0.195556
    RTZL  HT    0.5 294  MLv     1.56 -0.06   0.117298
    ORTH  HL    0.5 268  MLv     1.70  0.08   0.145252
    PLEV  HP    0.5   5  MLv     1.81  0.18   0.160689
    AGRP  CL    0.6  29  MLv     1.72  0.10   0.121516
    LAKA  HA    0.6  53  MLv     1.18 -0.44   0.0343877
    AIOA  CL    0.6  60  MLv     1.59 -0.03   0.0220195
    KLV   HL    0.7  75  MLv     1.75  0.13   0.0923164
    VVK   HP    0.7  33  MLv     1.20 -0.42   0.161446
    PDO   HP    0.7 350  MLv     2.39  0.76   0.474232
    TRIZ  CL    0.8  49  MLv     1.60 -0.03   0.0754404
    PVO   HP    0.8  10  MLv     2.04  0.41   0.207498
    GUR   HP    0.8  85  MLv     1.82  0.19   0.120033
    AMPL  HP    1.1 354  MLv     1.84  0.21   0.0887752
