Earthquake Information
 Origin Time
2023-01-24 08:32:28 (GMT)
 Magnitude
M 1.6
 Latitude
37.8446° N
 Longitude
21.3160° E
 Focal Depth
7 km
 # of Arrivals
23
 Location 7.5 km SE of Andravida
21.5 km NNW of Pyrgos
212.6 km W of Athens
 Solution type
automatic
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR281Y16.2288 P08:32:32.50 0.61.0A
RLSHL26.9 29 P08:32:33.60 0.01.0A
DROHP36.7 71 P08:32:35.07 -0.11.0A
AMTHP49.0135 P08:32:37.13 0.01.0A
AXSHP39.5 8 P08:32:35.24 -0.41.0A

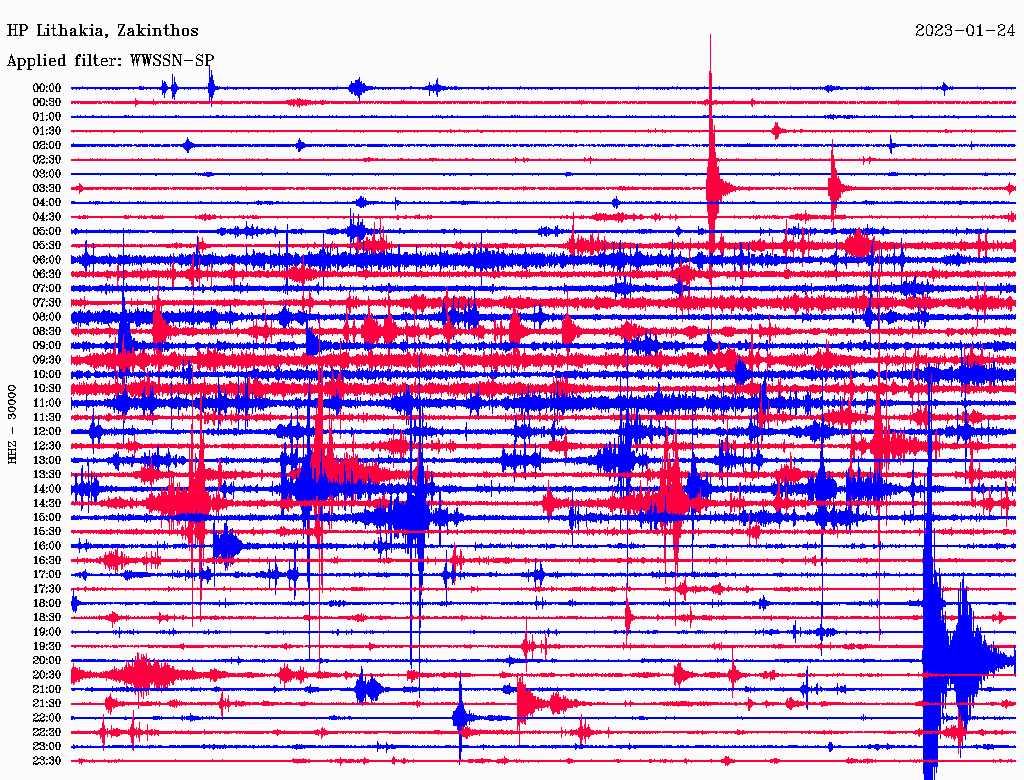

LTHKHP44.7251 P08:32:36.37 -0.11.0A
GR291Y55.5106 P08:32:38.04 -0.21.0A
ORTHHL54.4271 P08:32:37.83 -0.21.0A
RTZLHT54.2298 P08:32:38.53 0.51.0A
AGRPCL70.9 30 P08:32:39.95 -0.71.0A
PLEVHP63.6 7 P08:32:39.12 -0.41.0A
AIOACL75.8 59 P08:32:42.23 0.71.0A

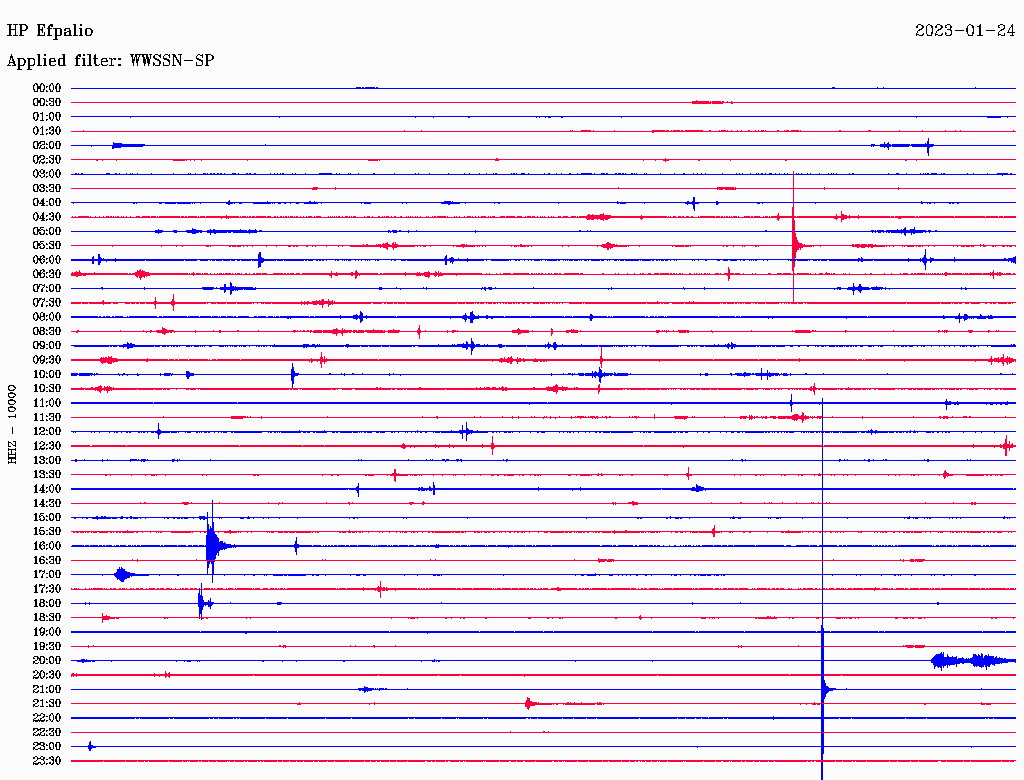

EFPHP82.8 38 P08:32:45.06 2.41.0A
KLVHL76.4 73 P08:32:41.21 -0.41.0A

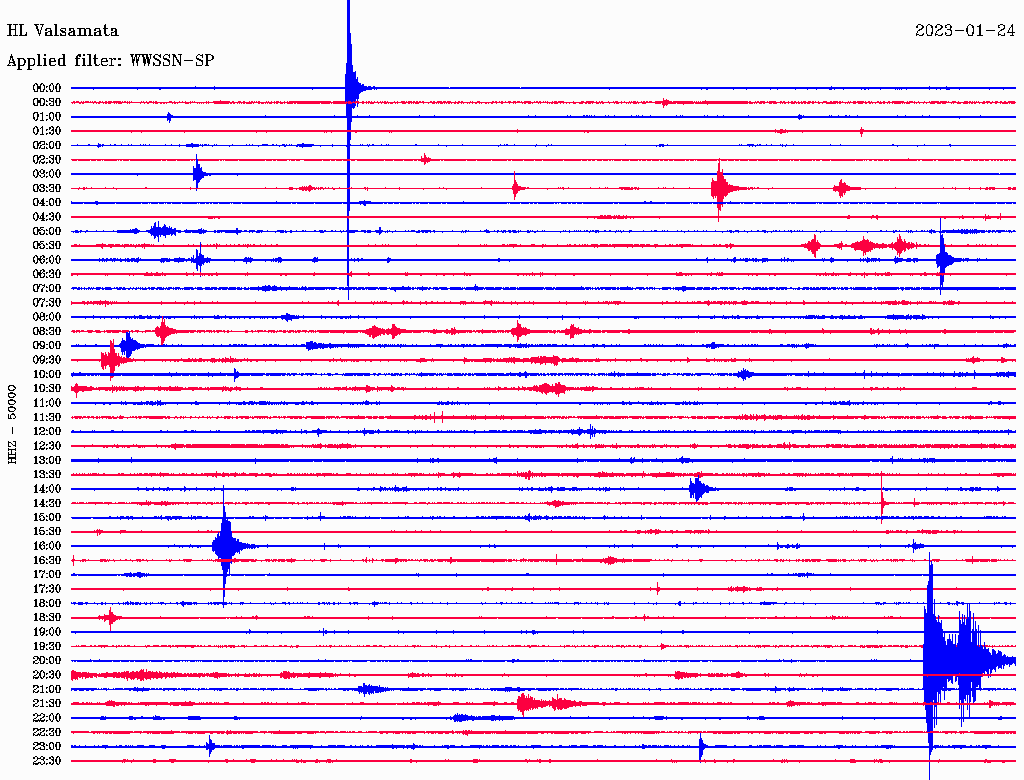

VLSHL73.7300 P08:32:41.06 -0.11.0A
VVKHP77.5 34 P08:32:41.02 -0.71.0A
GURHP90.6 83 P08:32:43.62 -0.31.0A
PDOHP84.6352 P08:32:42.36 -0.51.0A
PVOHP87.8 12 P08:32:43.36 0.01.0A
TRIZCL88.0 49 P08:32:43.63 0.21.0A

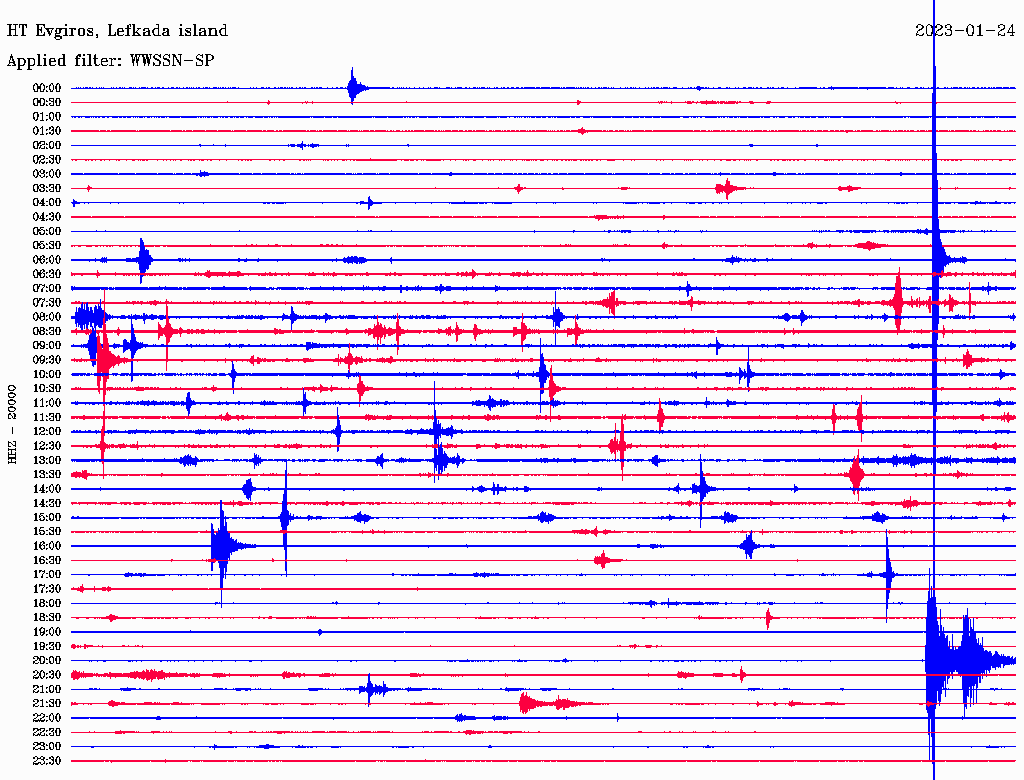

EVGIHT103.8326 P08:32:45.38 -0.61.0A

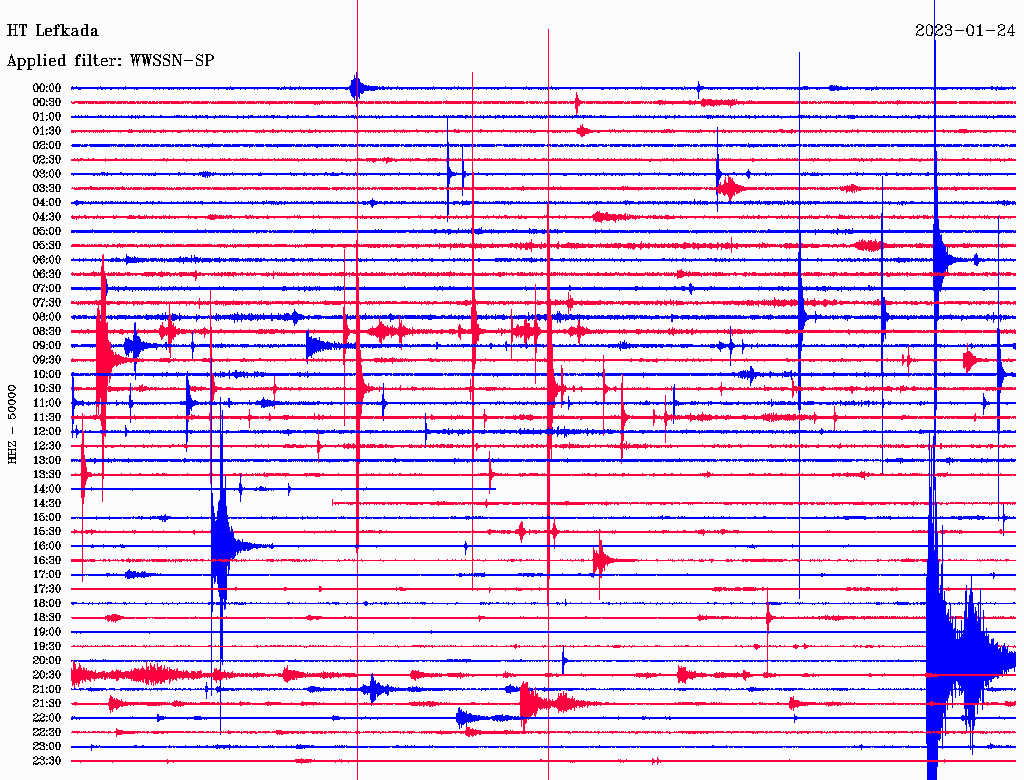

LKD2HT119.7332 P08:32:48.86 0.51.0A


  Solution details

Event:
    Public ID              nkua2023bqrl
    Description
      region name: Southern Greece
Origin:
    Date                   2023-01-24
    Time                  08:32:28.04  +/-    0.5 s
    Latitude              37.8446 deg  +/-      3 km
    Longitude             21.3160 deg  +/-      2 km
    Depth                       7 km   +/-    6 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             0.67 s
    Azimuthal gap             116 deg

2 Network magnitudes:
    MLv       1.61 +/- 0.20  14
    M         1.61           14 preferred

23 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR28  1Y    0.1 288  P       08:32:32.50   0.6 A  1.0  GR28
    RLS   HL    0.2  29  P       08:32:33.60   0.0 A  1.0  RLS
    DRO   HP    0.3  71  P       08:32:35.07  -0.1 A  1.0  DRO
    AXS   HP    0.4   8  P       08:32:35.24  -0.4 A  1.0  AXS
    LTHK  HP    0.4 251  P       08:32:36.37  -0.1 A  1.0  LTHK
    AMT   HP    0.4 135  P       08:32:37.13  -0.0 A  1.0  AMT
    RTZL  HT    0.5 298  P       08:32:38.53   0.5 A  1.0  RTZL
    ORTH  HL    0.5 271  P       08:32:37.83  -0.2 A  1.0  ORTH
    GR29  1Y    0.5 106  P       08:32:38.04  -0.2 A  1.0  GR29
    PLEV  HP    0.6   7  P       08:32:39.12  -0.4 A  1.0  PLEV
    AGRP  CL    0.6  30  P       08:32:39.95  -0.7 A  1.0  AGRP
    VLS   HL    0.7 300  P       08:32:41.06  -0.1 A  1.0  VLS
    AIOA  CL    0.7  59  P       08:32:42.23   0.7 A  1.0  AIOA
    KLV   HL    0.7  73  P       08:32:41.21  -0.4 A  1.0  KLV
    VVK   HP    0.7  34  P       08:32:41.02  -0.7 A  1.0  VVK
    EFP   HP    0.7  38  P       08:32:45.06   2.4 A  1.0  EFP
    PDO   HP    0.8 352  P       08:32:42.36  -0.5 A  1.0  PDO
    PVO   HP    0.8  12  P       08:32:43.36  -0.0 A  1.0  PVO
    TRIZ  CL    0.8  49  P       08:32:43.63   0.2 A  1.0  TRIZ
    GUR   HP    0.8  83  P       08:32:43.62  -0.3 A  1.0  GUR
    EVGI  HT    0.9 326  P       08:32:45.38  -0.6 A  1.0  EVGI
    LKD2  HT    1.1 332  P       08:32:48.86   0.5 A  1.0  LKD2
    GR20  1Y    1.4  13  P       08:32:57.05   3.3 AX 0.0  GR20

18 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR28  1Y    0.1 288  MLv     1.25 -0.36   0.551286
    RLS   HL    0.2  29  MLv     1.30 -0.31   0.335942
    DRO   HP    0.3  71  MLv     1.18 -0.43   0.303268
    AXS   HP    0.4   8  MLv     1.36 -0.25   0.186806
    AMT   HP    0.4 135  MLv     1.80  0.19   0.300397
    RTZL  HT    0.5 298  MLv     1.62  0.01   0.146607
    ORTH  HL    0.5 271  MLv     1.77  0.17   0.206614
    GR29  1Y    0.5 106  MLv     1.77  0.16   0.189529
    PLEV  HP    0.6   7  MLv     1.80  0.19   0.153388
    AGRP  CL    0.6  30  MLv     1.66  0.05   0.100315
    VLS   HL    0.7 300  MLv     1.83  0.22   0.145523
    AIOA  CL    0.7  59  MLv     1.76  0.16   0.0313122
    KLV   HL    0.7  73  MLv     1.74  0.13   0.087327
    VVK   HP    0.7  34  MLv     1.16 -0.45   0.139675
    EFP   HP    0.7  38  MLv     1.38 -0.23   0.0466485
    PVO   HP    0.8  12  MLv     2.03  0.43   0.197648
    TRIZ  CL    0.8  49  MLv     1.52 -0.09   0.0600626
    GUR   HP    0.8  83  MLv     1.75  0.14   0.0991774
