Earthquake Information
 Origin Time
2023-01-23 21:40:19 (GMT)
 Magnitude
M 1.6
 Latitude
38.2886° N
 Longitude
23.3401° E
 Focal Depth
16 km
 # of Arrivals
24
 Location 4.2 km SSE of Thiva
29.8 km SW of Chalkida
48.3 km NW of Athens
 Solution type
automatic
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
THIVHA1.4328 P21:40:20.86 -1.01.0A
THVAHL4.6356 P21:40:20.97 -1.31.0A
AMPEHA6.4283 P21:40:21.09 -1.51.0A
GR261Y13.8 26 P21:40:22.37 -1.31.0A
THI1HL12.0 23 P21:40:22.12 -1.21.0A
VILLHA14.0190 P21:40:22.30 -1.41.0A
DOMVHA31.7264 P21:40:26.51 0.31.0A

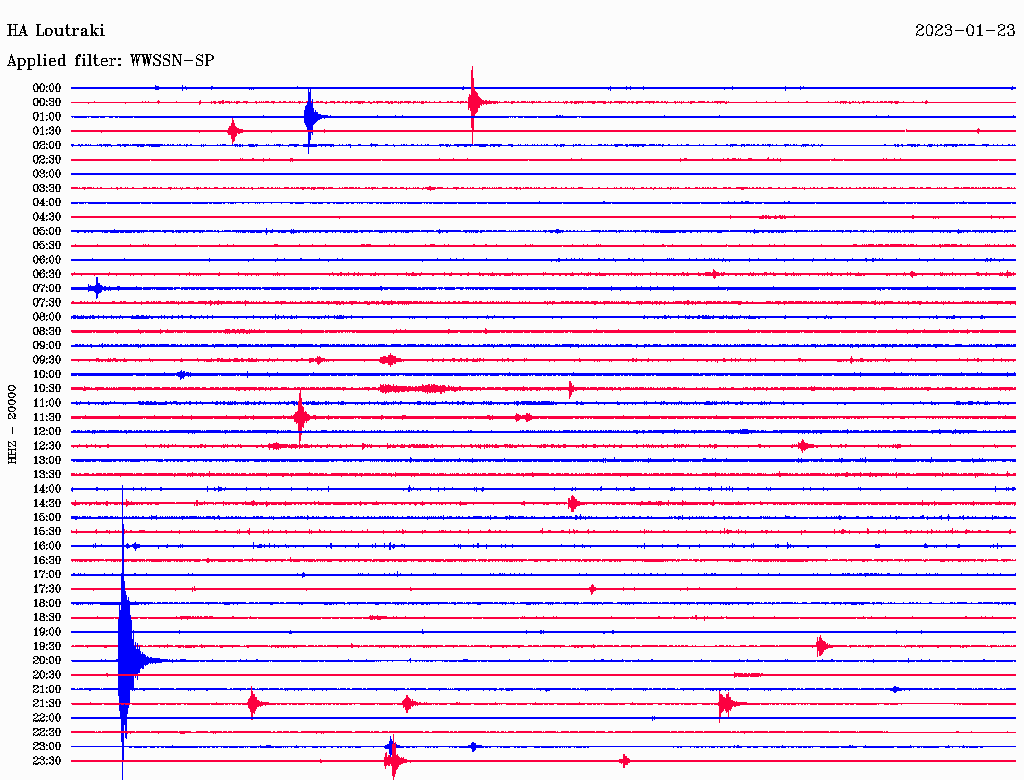

LOUTHA46.3224 P21:40:31.88 3.51.0A
LTKHP44.0228 P21:40:31.04 3.01.0A
ACORHA60.5223 P21:40:31.85 1.41.0A
ATALHA52.8328 P21:40:31.19 1.91.0A
DSFHP72.2281 P21:40:29.96 -2.21.0A

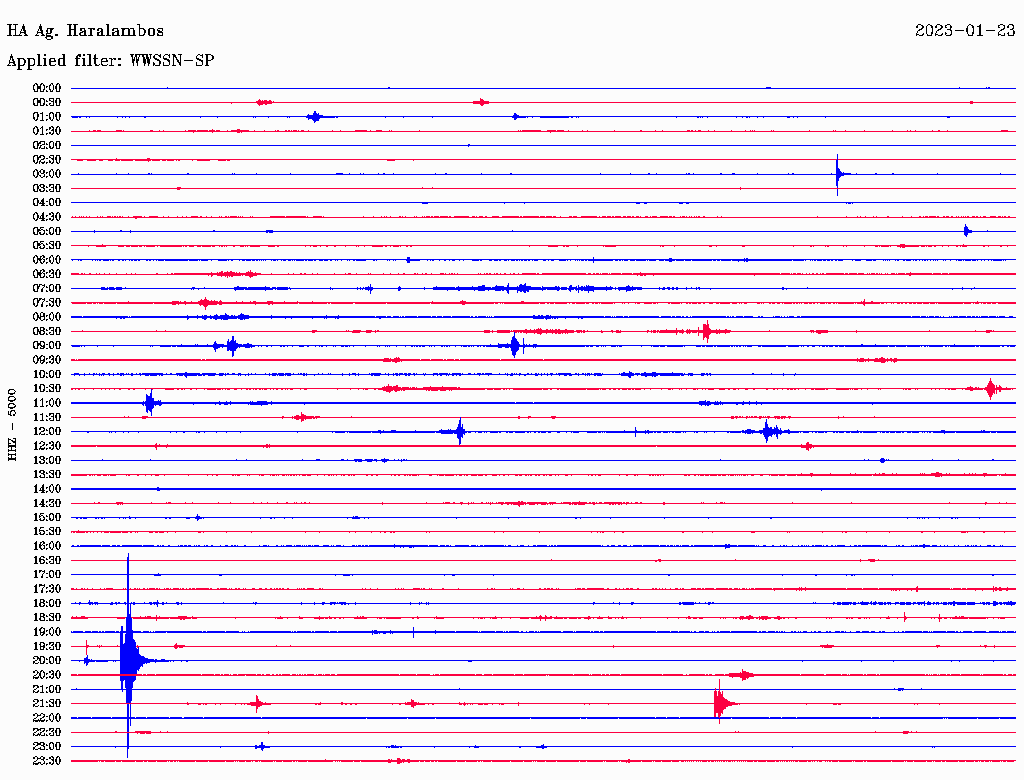

AXARHA79.6312 P21:40:39.00 5.81.0A

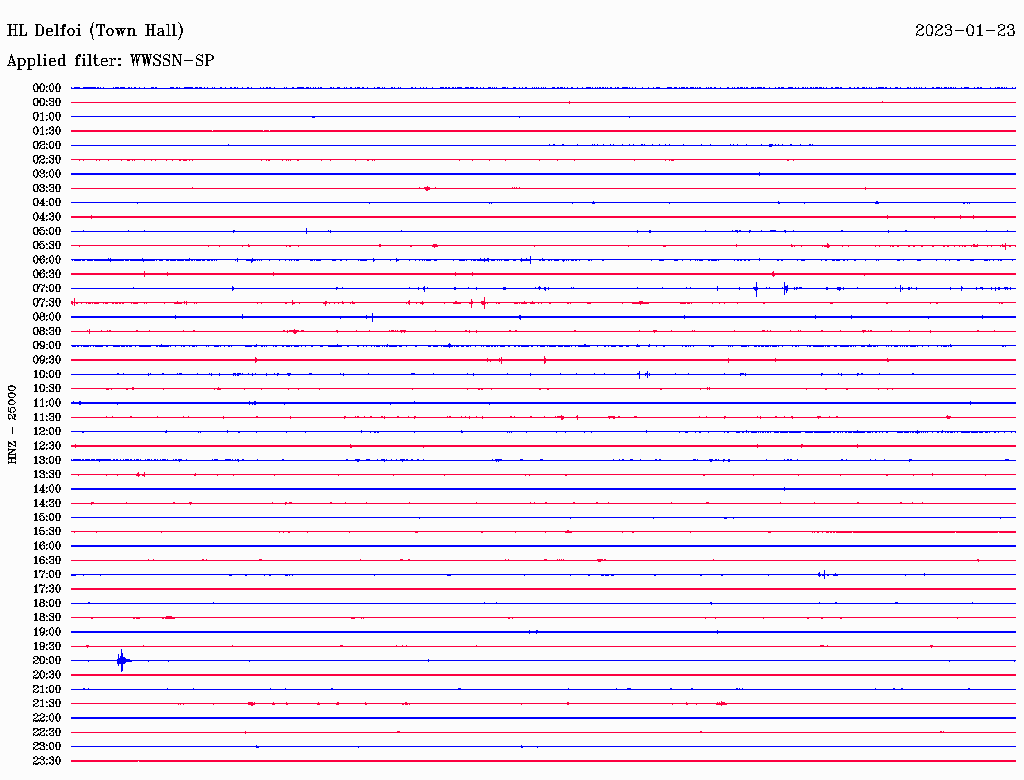

DLFAHL76.6286 P21:40:37.33 4.51.0A
GURHP95.7246 P21:40:31.24 -4.31.0A

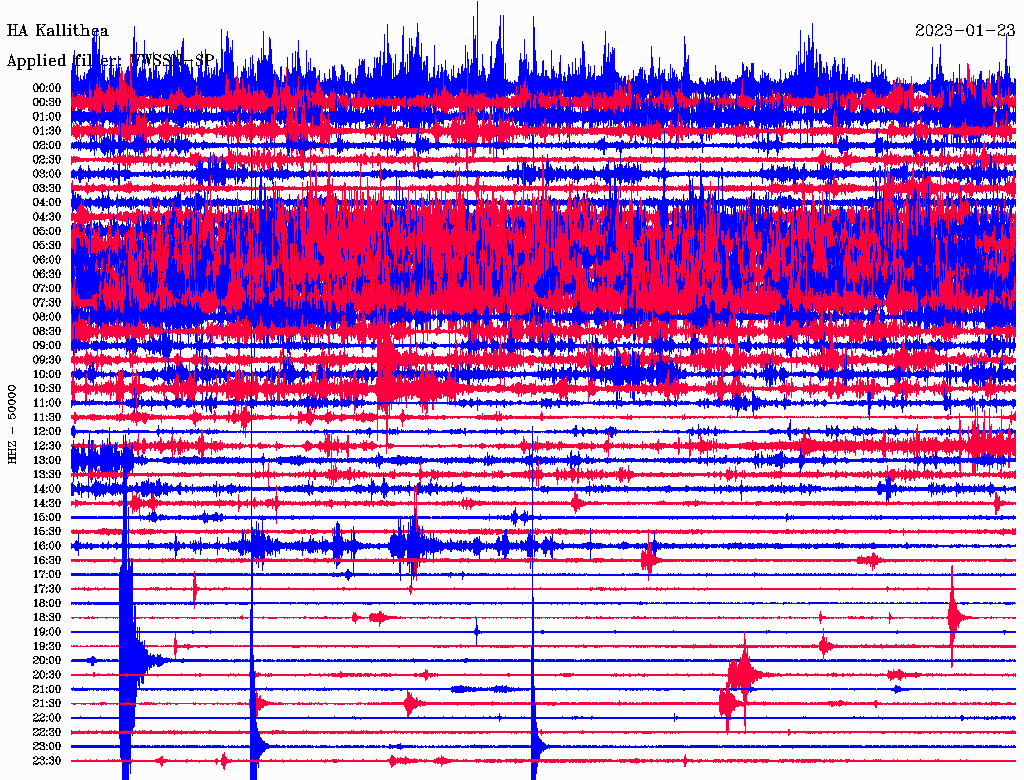

KALEHA105.3277 P21:40:35.31 -1.71.0A

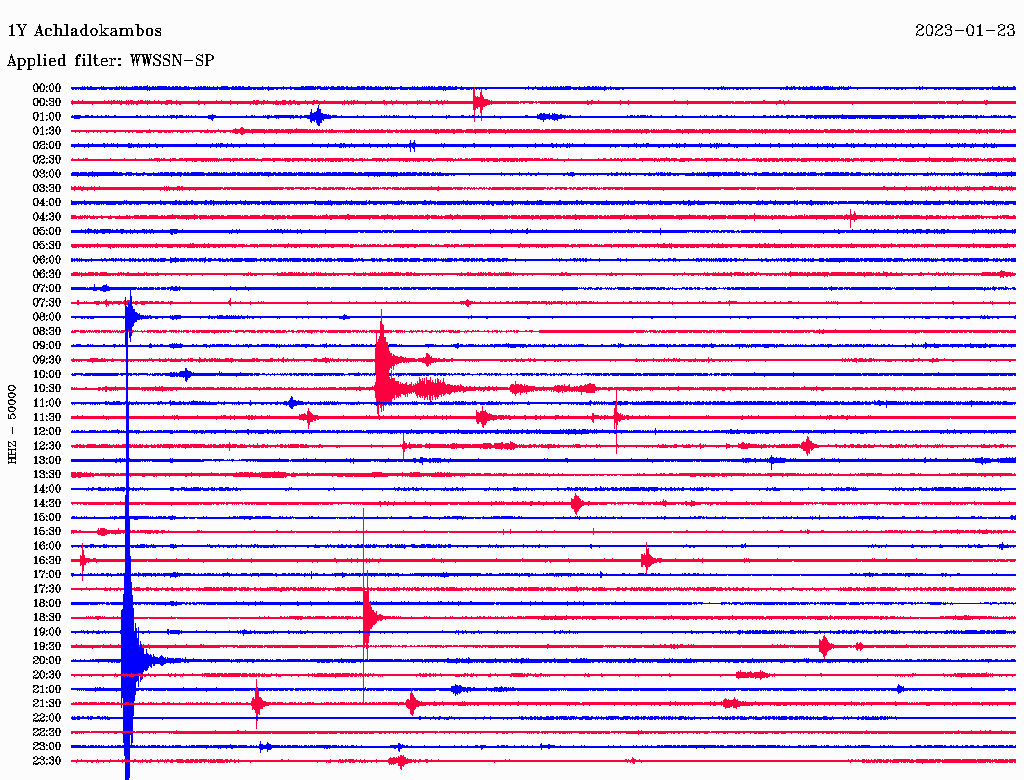

GR301Y108.4218 P21:40:40.57 3.21.0A
KLVHL107.5256 P21:40:32.45 -4.91.0A

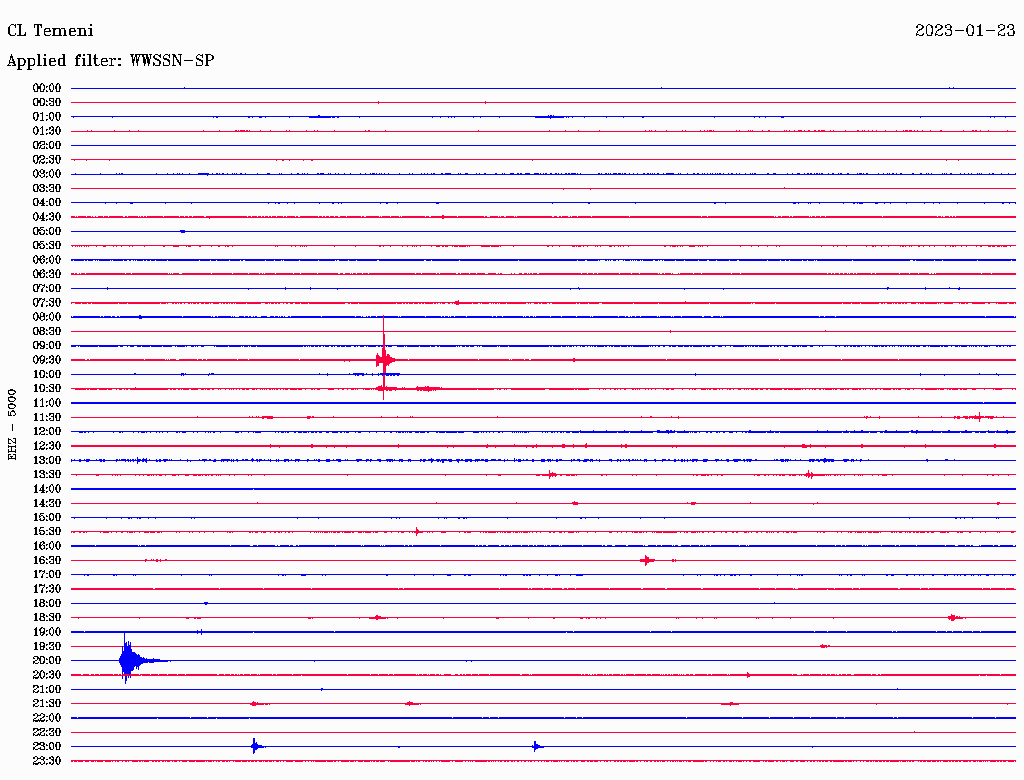

TEMECL106.9267 P21:40:36.51 -0.71.0A
TRIZCL110.9275 P21:40:34.75 -3.01.0A

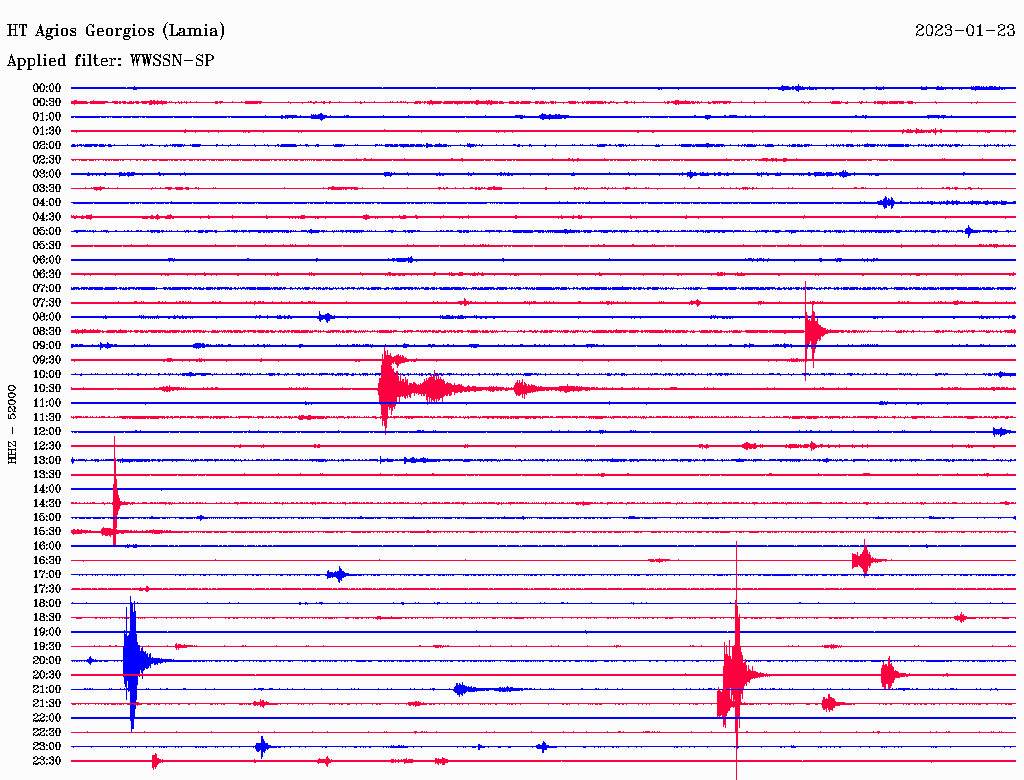

AGGHT119.3313 P21:40:42.48 3.61.0A

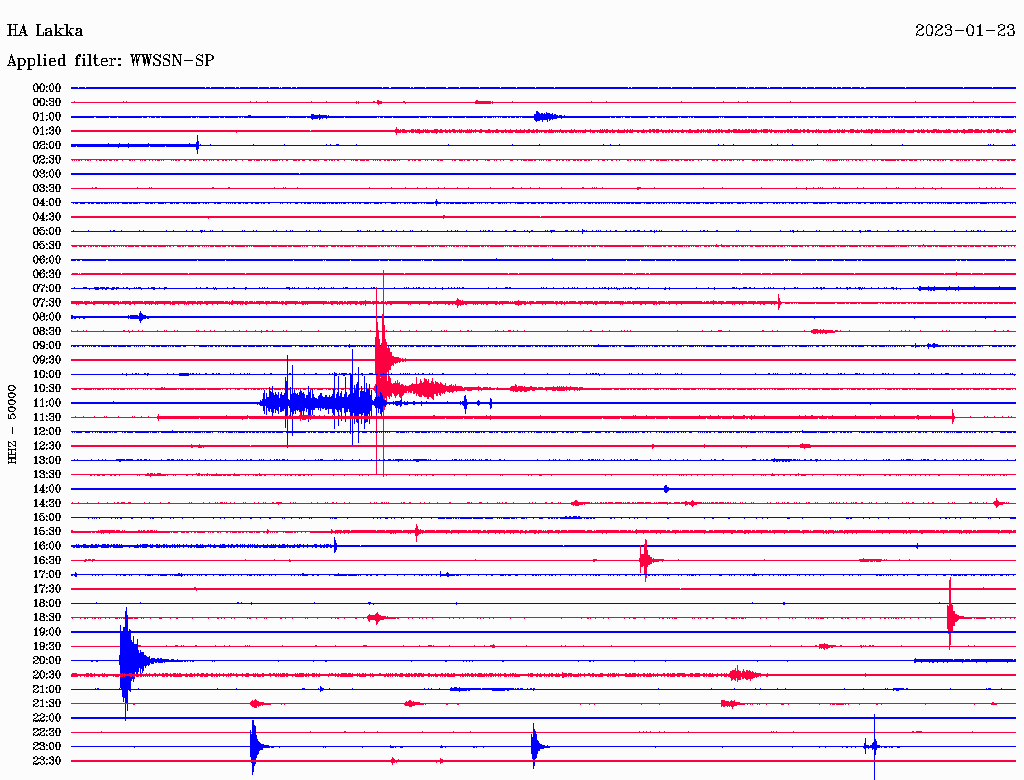

LAKAHA119.0268 P21:40:35.97 -2.91.0A

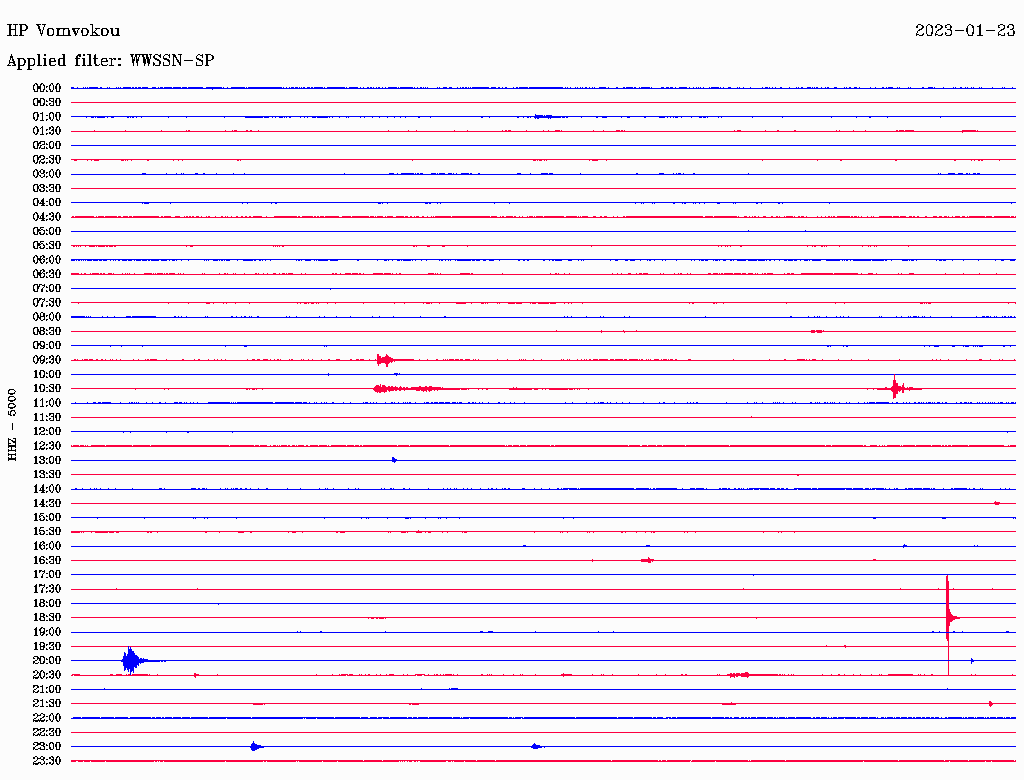

VVKHP134.1277 P21:40:41.50 0.71.0A

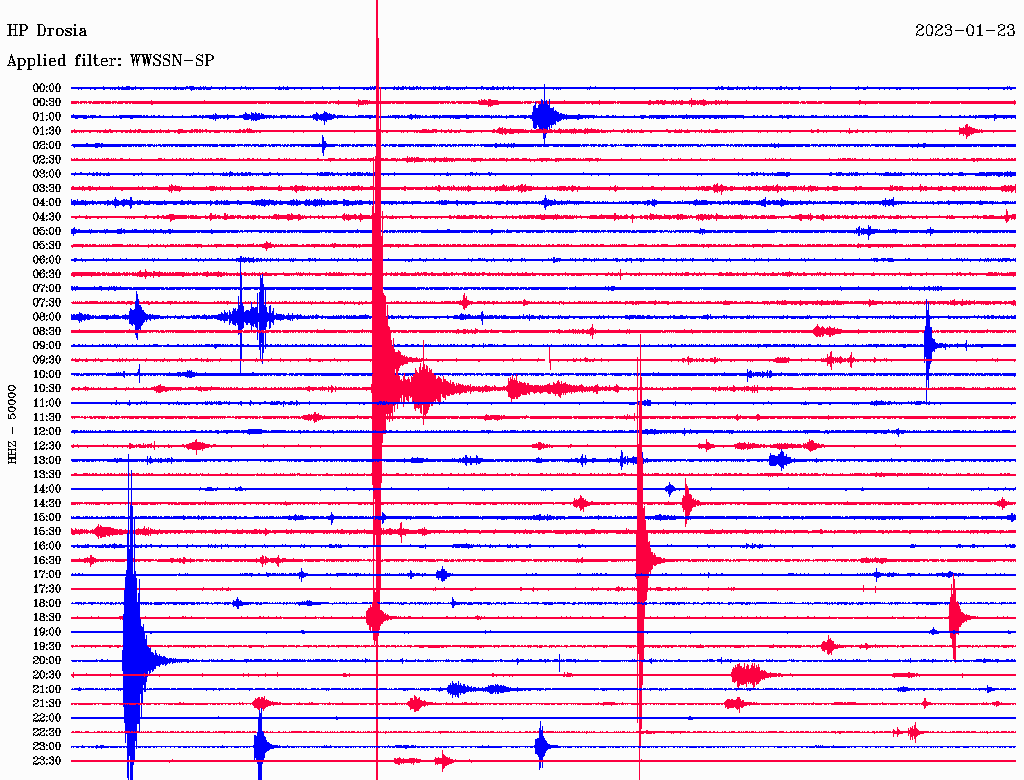

DROHP147.3256 P21:40:41.80 -0.71.0A


  Solution details

Event:
    Public ID              nkua2023bpvy
    Description
      region name: Greece
Origin:
    Date                   2023-01-23
    Time                  21:40:18.86  +/-    0.5 s
    Latitude              38.2886 deg  +/-      3 km
    Longitude             23.3401 deg  +/-      5 km
    Depth                      16 km   +/-    3 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             2.76 s
    Azimuthal gap             164 deg

2 Network magnitudes:
    MLv       1.57 +/- 0.35  16
    M         1.57           16 preferred

24 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THIV  HA    0.0 328  P       21:40:20.86  -1.0 A  1.0  THIV
    THVA  HL    0.0 356  P       21:40:20.97  -1.3 A  1.0  THVA
    AMPE  HA    0.1 283  P       21:40:21.09  -1.5 A  1.0  AMPE
    THI1  HL    0.1  23  P       21:40:22.12  -1.2 A  1.0  THI1
    GR26  1Y    0.1  26  P       21:40:22.37  -1.3 A  1.0  GR26
    VILL  HA    0.1 190  P       21:40:22.30  -1.4 A  1.0  VILL
    DOMV  HA    0.3 264  P       21:40:26.51   0.3 A  1.0  DOMV
    LTK   HP    0.4 228  P       21:40:31.04   3.0 A  1.0  LTK
    LOUT  HA    0.4 224  P       21:40:31.88   3.5 A  1.0  LOUT
    ATAL  HA    0.5 328  P       21:40:31.19   1.9 A  1.0  ATAL
    ACOR  HA    0.5 223  P       21:40:31.85   1.4 A  1.0  ACOR
    DSF   HP    0.6 281  P       21:40:29.96  -2.2 A  1.0  DSF
    DLFA  HL    0.7 286  P       21:40:37.33   4.5 A  1.0  DLFA
    AXAR  HA    0.7 312  P       21:40:39.00   5.8 A  1.0  AXAR
    GUR   HP    0.9 246  P       21:40:31.24  -4.3 A  1.0  GUR
    KALE  HA    0.9 277  P       21:40:35.31  -1.7 A  1.0  KALE
    TEME  CL    1.0 267  P       21:40:36.51  -0.7 A  1.0  TEME
    KLV   HL    1.0 256  P       21:40:32.45  -4.9 A  1.0  KLV
    GR30  1Y    1.0 218  P       21:40:40.57   3.2 A  1.0  GR30
    TRIZ  CL    1.0 275  P       21:40:34.75  -3.0 A  1.0  TRIZ
    LAKA  HA    1.1 268  P       21:40:35.97  -2.9 A  1.0  LAKA
    AGG   HT    1.1 313  P       21:40:42.48   3.6 A  1.0  AGG
    VVK   HP    1.2 277  P       21:40:41.50   0.7 A  1.0  VVK
    DRO   HP    1.3 256  P       21:40:41.80  -0.7 A  1.0  DRO

20 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THIV  HA    0.0 328  MLv     1.34 -0.23    1.60708
    THVA  HL    0.0 356  MLv     1.64  0.06    2.63586
    AMPE  HA    0.1 283  MLv     1.08 -0.49   0.659129
    THI1  HL    0.1  23  MLv     1.38 -0.20   0.948014
    GR26  1Y    0.1  26  MLv     0.53 -1.04   0.121566
    VILL  HA    0.1 190  MLv     0.66 -0.92   0.160469
    DOMV  HA    0.3 264  MLv     1.10 -0.47   0.160588
    LTK   HP    0.4 228  MLv     0.96 -0.62   0.215226
    LOUT  HA    0.4 224  MLv     1.60  0.03   0.223113
    ATAL  HA    0.5 328  MLv     1.36 -0.21   0.0879334
    ACOR  HA    0.5 223  MLv     1.76  0.18   0.142363
    DSF   HP    0.6 281  MLv     2.38  0.81   0.521296
    DLFA  HL    0.7 286  MLv     2.43  0.86   0.564925
    AXAR  HA    0.7 312  MLv     1.52 -0.06   0.262541
    GUR   HP    0.9 246  MLv     2.56  0.99    0.60829
    KALE  HA    0.9 277  MLv     1.87  0.30   0.111317
    KLV   HL    1.0 256  MLv     2.07  0.50   0.129972
    GR30  1Y    1.0 218  MLv     2.03  0.46   0.153862
    TRIZ  CL    1.0 275  MLv     1.73  0.16   0.0752406
    LAKA  HA    1.1 268  MLv     1.44 -0.13   0.0351362
