Earthquake Information
 Origin Time
2022-11-24 15:37:26 (GMT)
 Magnitude
M 1.8
 Latitude
38.6917° N
 Longitude
20.5868° E
 Focal Depth
5 km
 # of Arrivals
24
 Location 4.9 km SW of Leukada
32.0 km SSW of Preveza
285.5 km WNW of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

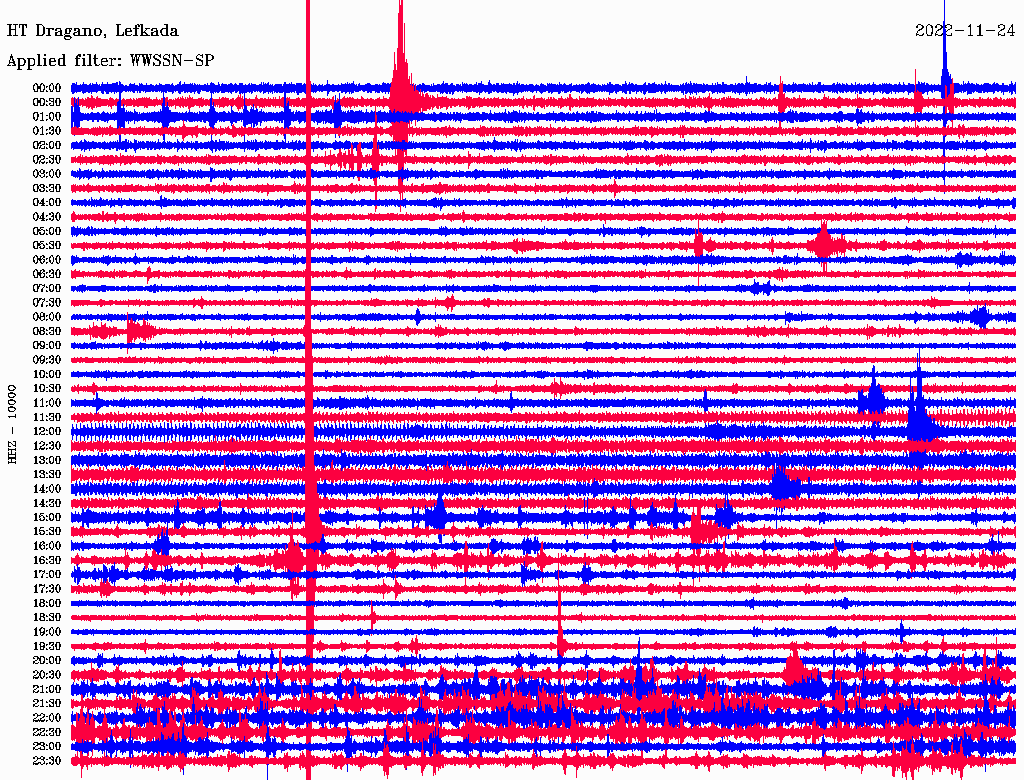

DRAGHT1.4231 P15:37:26.92 -0.21.0M
DRAGHT1.4231 S15:37:27.61 -0.41.0M

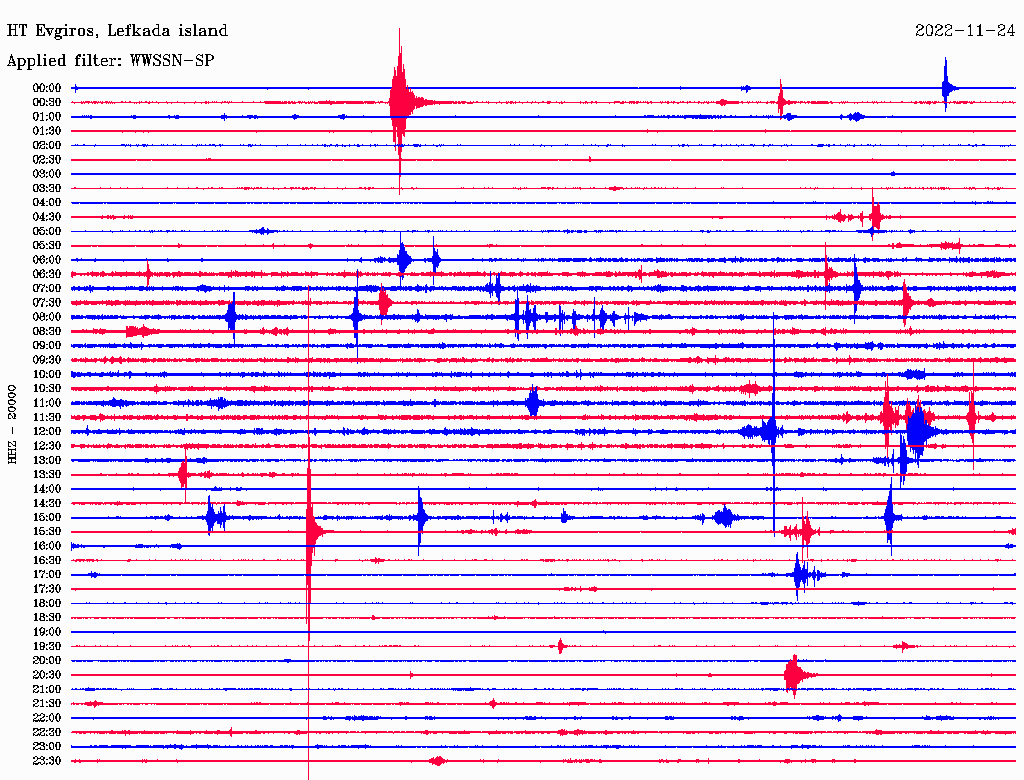

EVGIHT9.9143 P15:37:28.62 0.31.0M
EVGIHT9.9143 S15:37:29.95 -0.11.0M

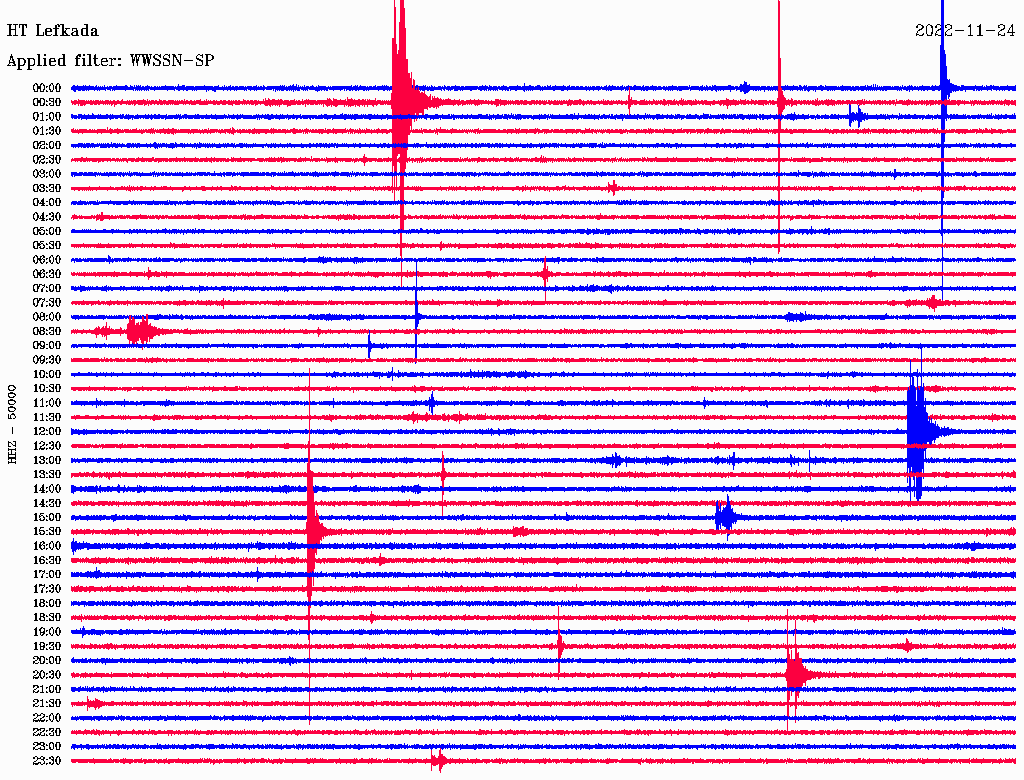

LKD2HT12.4 30 P15:37:28.78 0.01.0M
LKD2HT12.4 30 S15:37:30.69 -0.11.0M
NYDRHT10.0 76 P15:37:28.29 0.01.0M
NYDRHT10.0 76 S15:37:29.95 0.01.0M

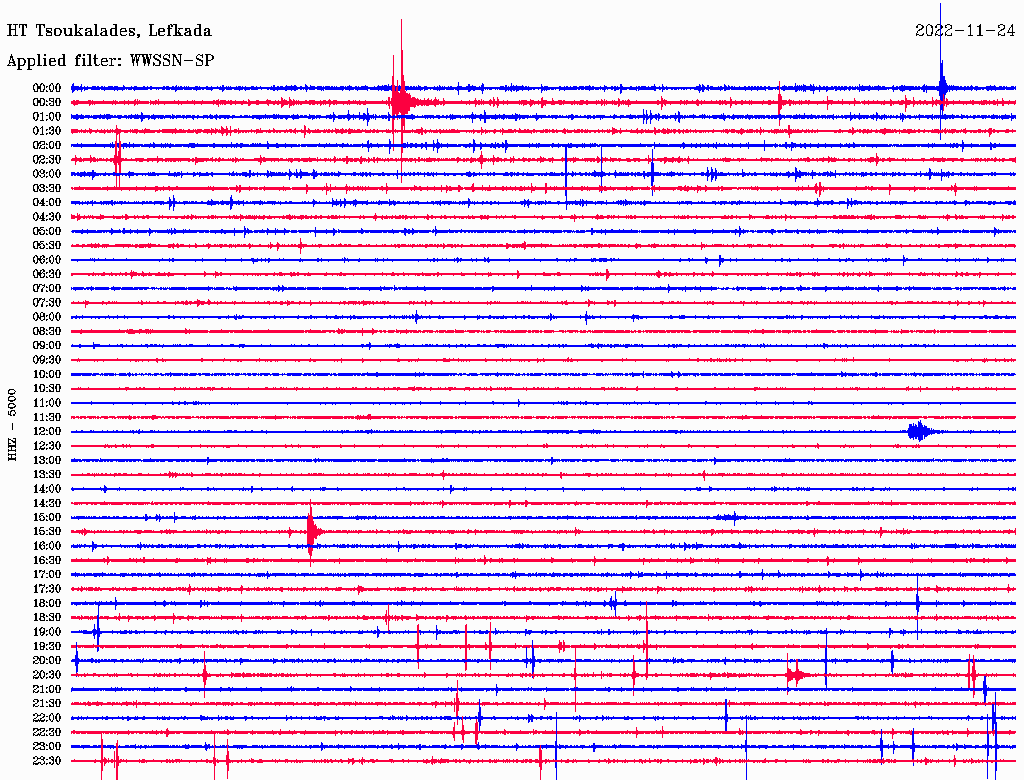

TSLKHT16.0 22 P15:37:29.64 0.31.0M
TSLKHT16.0 22 S15:37:32.15 0.31.0M
FSKHP25.9185 P15:37:31.38 0.31.0M
FSKHP25.9185 S15:37:35.27 0.41.0M
AMPLHP60.1 65 P15:37:37.02 0.21.0M
AMPLHP60.1 65 S15:37:44.70 -0.31.0M
PDOHP52.8101 P15:37:35.98 0.31.0M
PDOHP52.8101 S15:37:42.28 -0.61.0M

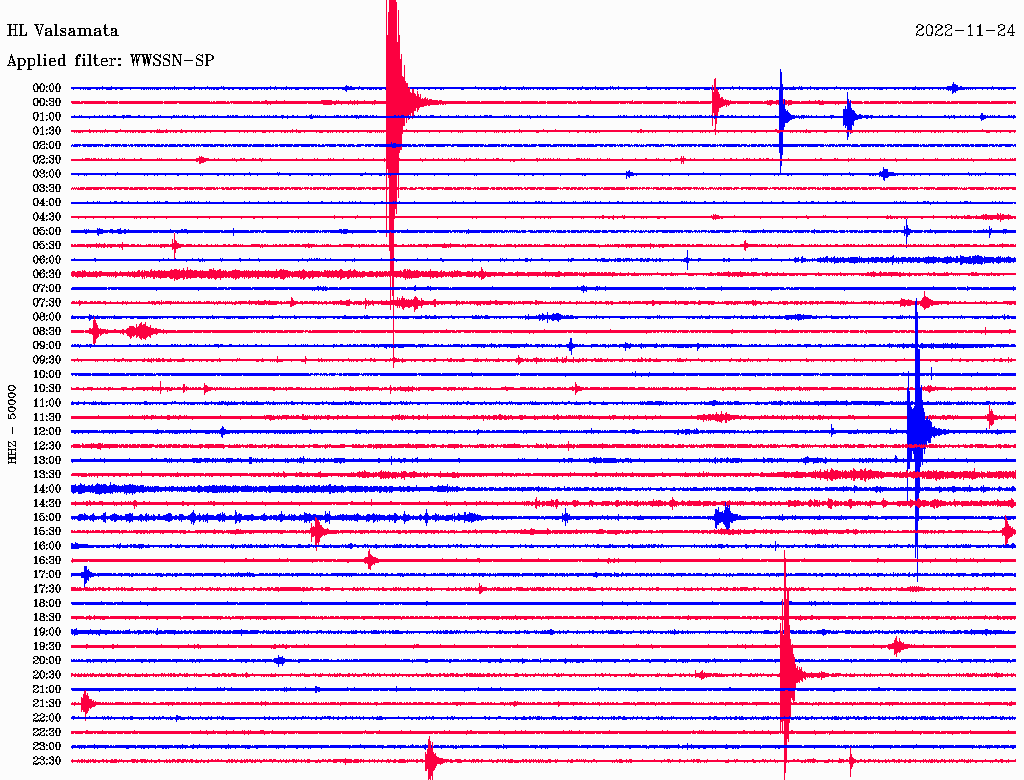

VLSHL57.3180 P15:37:36.25 -0.11.0M
VLSHL57.3180 S15:37:43.55 -0.61.0M

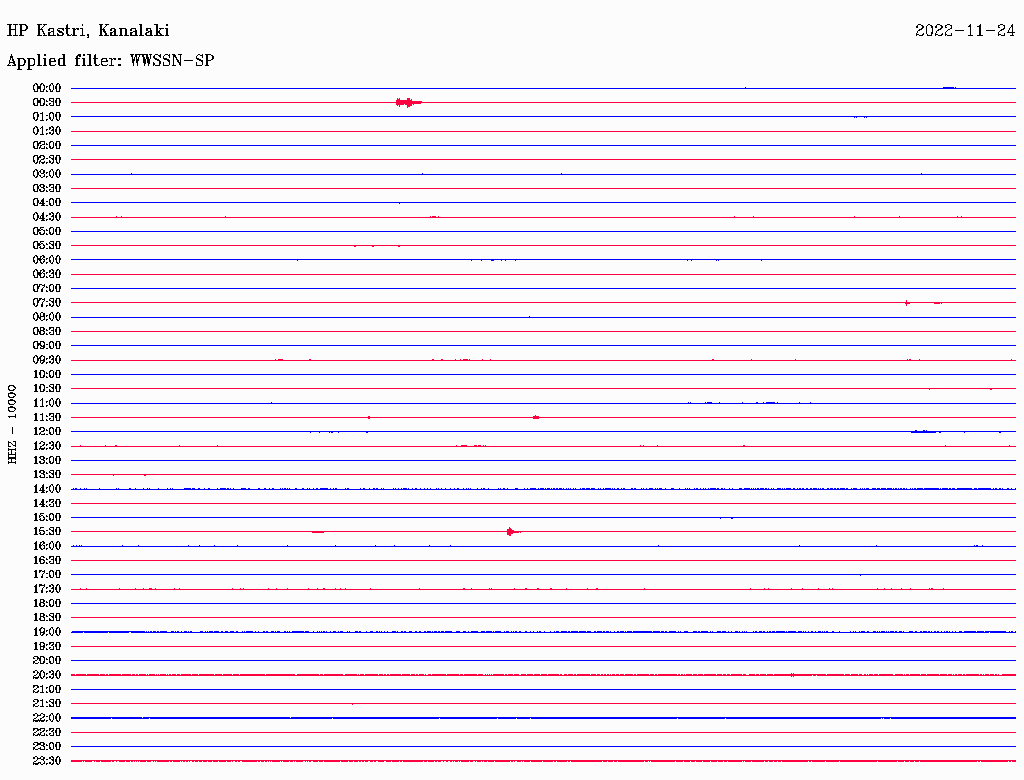

KSTRHP62.0359 P15:37:37.39 0.31.0M
KSTRHP62.0359 S15:37:44.93 -0.51.0M

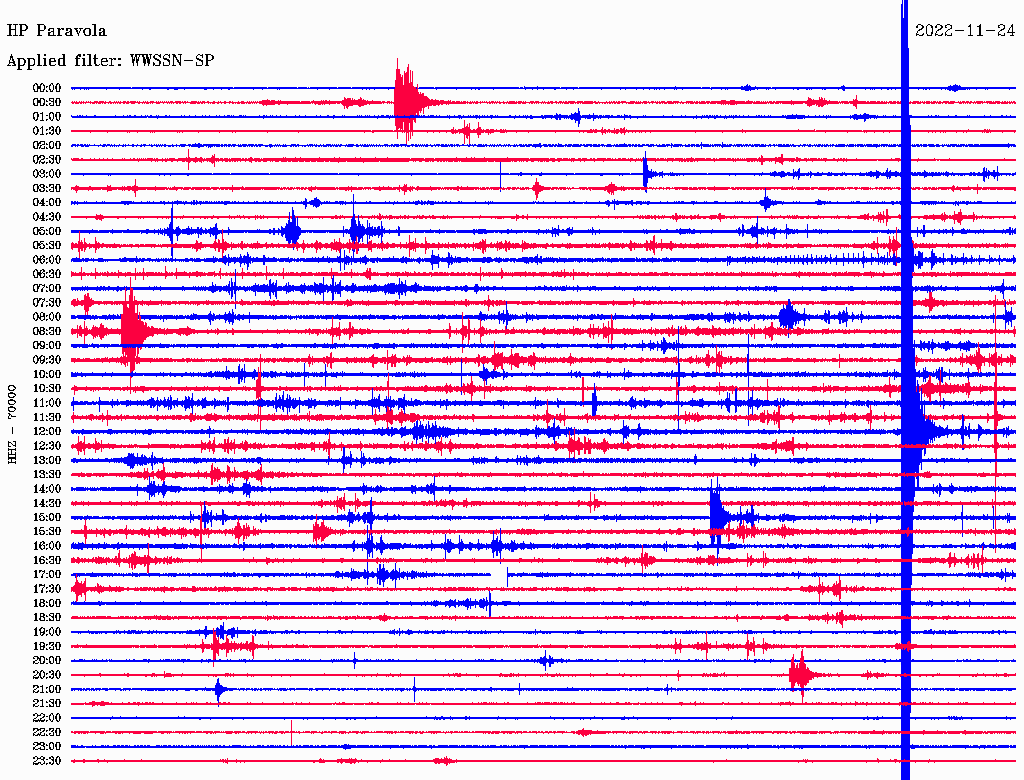

PVOHP82.0 96 P15:37:41.17 0.81.0M
PVOHP82.0 96 S15:37:51.29 0.01.0M

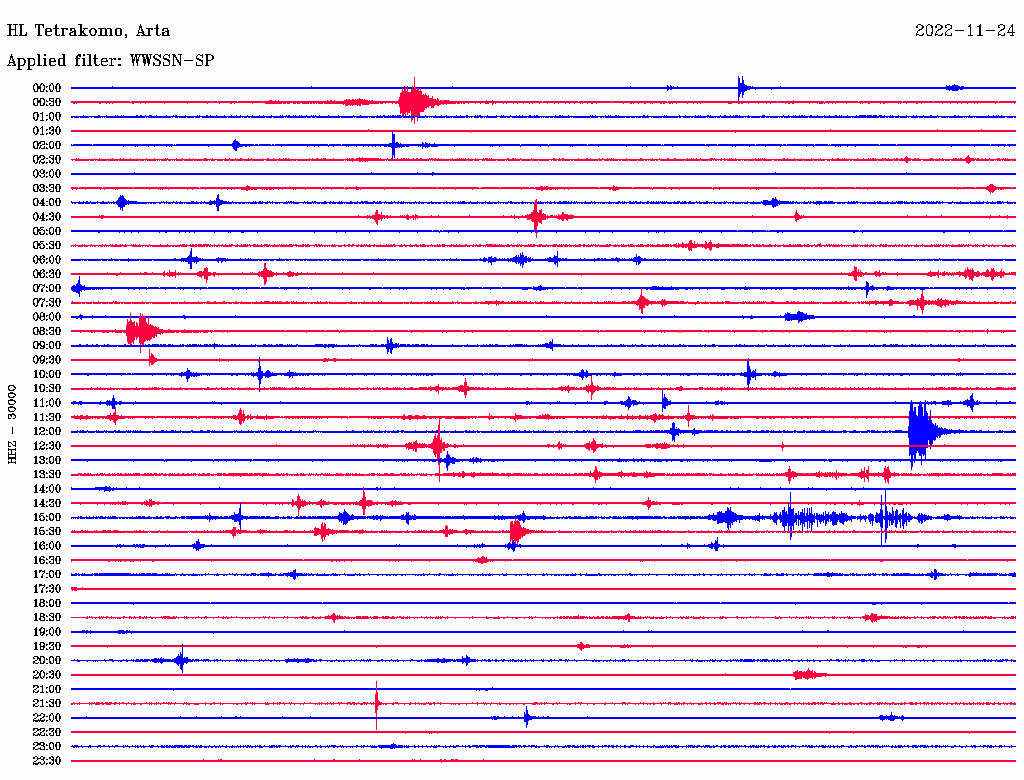

TETRHL93.8 39 P15:37:42.35 -0.11.0M
TETRHL93.8 39 S15:37:54.71 -0.11.0M


  Solution details

Event:
    Public ID              nkua2022xaql
    Description
      region name: Greece
Origin:
    Date                   2022-11-24
    Time                  15:37:26.08
    Latitude              38.6917 deg  +/-      1 km
    Longitude             20.5868 deg  +/-      1 km
    Depth                       5 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.31 s
    Azimuthal gap             128 deg

2 Network magnitudes:
    MLv       1.78 +/- 0.14  10
    M         1.78           10 preferred

24 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    DRAG  HT    0.0 231  P       15:37:26.92  -0.2 M  1.0  DRAG
    DRAG  HT    0.0 231  S       15:37:27.61  -0.4 M  1.0  DRAG
    EVGI  HT    0.1 143  P       15:37:28.62   0.3 M  1.0  EVGI
    EVGI  HT    0.1 143  S       15:37:29.95  -0.1 M  1.0  EVGI
    NYDR  HT    0.1  76  P       15:37:28.29  -0.0 M  1.0  NYDR
    NYDR  HT    0.1  76  S       15:37:29.95  -0.0 M  1.0  NYDR
    LKD2  HT    0.1  30  P       15:37:28.78   0.0 M  1.0  LKD2
    LKD2  HT    0.1  30  S       15:37:30.69  -0.1 M  1.0  LKD2
    TSLK  HT    0.1  22  P       15:37:29.64   0.3 M  1.0  TSLK
    TSLK  HT    0.1  22  S       15:37:32.15   0.3 M  1.0  TSLK
    FSK   HP    0.2 185  P       15:37:31.38   0.3 M  1.0  FSK
    FSK   HP    0.2 185  S       15:37:35.27   0.4 M  1.0  FSK
    PDO   HP    0.5 101  P       15:37:35.98   0.3 M  1.0  PDO
    PDO   HP    0.5 101  S       15:37:42.28  -0.6 M  1.0  PDO
    VLS   HL    0.5 180  P       15:37:36.25  -0.1 M  1.0  VLS
    VLS   HL    0.5 180  S       15:37:43.55  -0.6 M  1.0  VLS
    AMPL  HP    0.5  65  P       15:37:37.02   0.2 M  1.0  AMPL
    AMPL  HP    0.5  65  S       15:37:44.70  -0.3 M  1.0  AMPL
    KSTR  HP    0.6 359  P       15:37:37.39   0.3 M  1.0  KSTR
    KSTR  HP    0.6 359  S       15:37:44.93  -0.5 M  1.0  KSTR
    PVO   HP    0.7  96  P       15:37:41.17   0.8 M  1.0  PVO
    PVO   HP    0.7  96  S       15:37:51.29   0.0 M  1.0  PVO
    TETR  HL    0.8  39  P       15:37:42.35  -0.1 M  1.0  TETR
    TETR  HL    0.8  39  S       15:37:54.71  -0.1 M  1.0  TETR

12 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    DRAG  HT    0.0 231  MLv     2.80  1.02     46.607
    EVGI  HT    0.1 143  MLv     2.00  0.22    4.48847
    NYDR  HT    0.1  76  MLv     1.67 -0.11    1.50865
    LKD2  HT    0.1  30  MLv     1.68 -0.10    1.85263
    TSLK  HT    0.1  22  MLv     1.64 -0.14    1.37749
    FSK   HP    0.2 185  MLv     1.47 -0.31   0.531099
    PDO   HP    0.5 101  MLv     1.62 -0.16    0.15815
    VLS   HL    0.5 180  MLv     2.02  0.24   0.310344
    AMPL  HP    0.5  65  MLv     1.80  0.02    0.15881
    KSTR  HP    0.6 359  MLv     1.72 -0.06   0.128016
    PVO   HP    0.7  96  MLv     1.92  0.14   0.163026
    TETR  HL    0.8  39  MLv     1.77 -0.01   0.100063
