Earthquake Information
 Origin Time
2022-11-24 11:39:53 (GMT)
 Magnitude
M 2.1
 Latitude
38.1842° N
 Longitude
23.3422° E
 Focal Depth
8 km
 # of Arrivals
52
 Location 15.5 km S of Thiva
38.3 km SW of Chalkida
40.9 km WNW of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

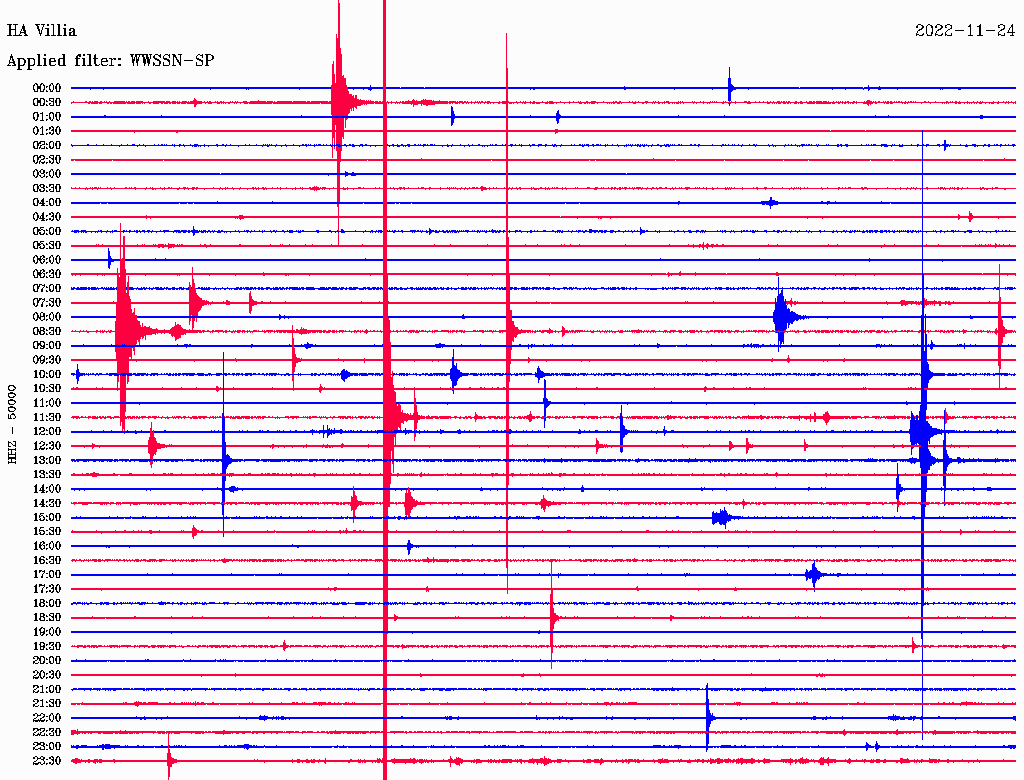

VILLHA3.4230 P11:39:54.61 -0.11.0M
VILLHA3.4230 S11:39:55.83 -0.31.0M
AMPEHA14.5334 P11:39:56.40 0.41.0M
AMPEHA14.5334 S11:39:58.86 0.41.0M

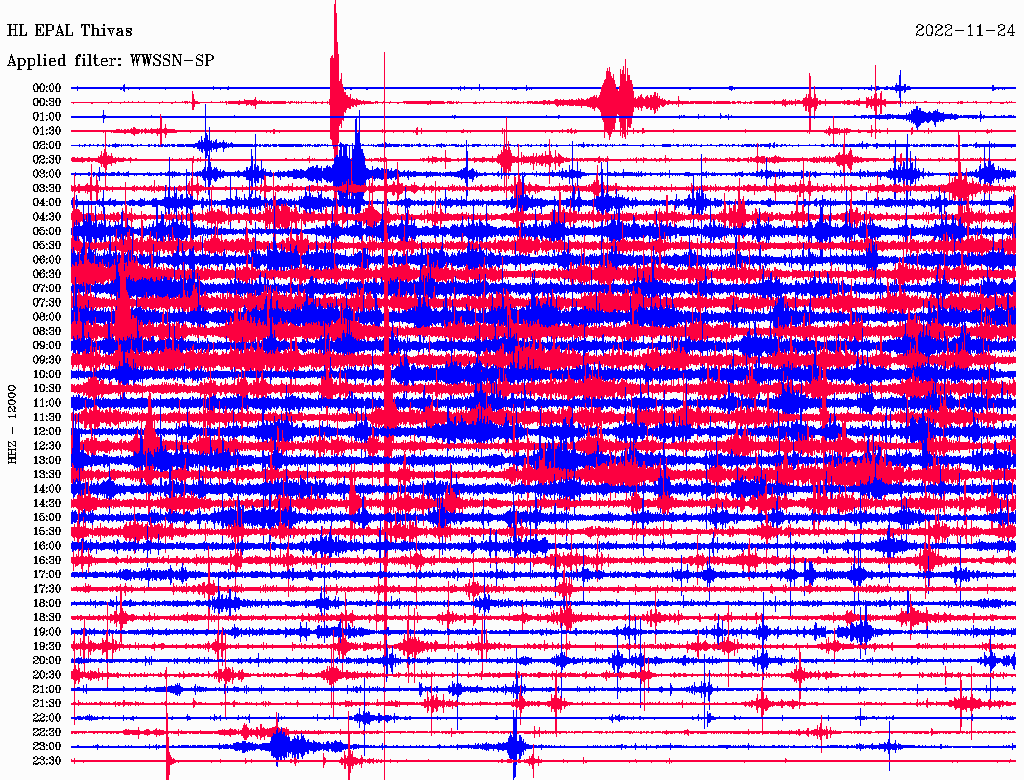

THVAHL16.2358 P11:39:56.52 0.31.0M
THVAHL16.2358 S11:39:59.32 0.51.0M

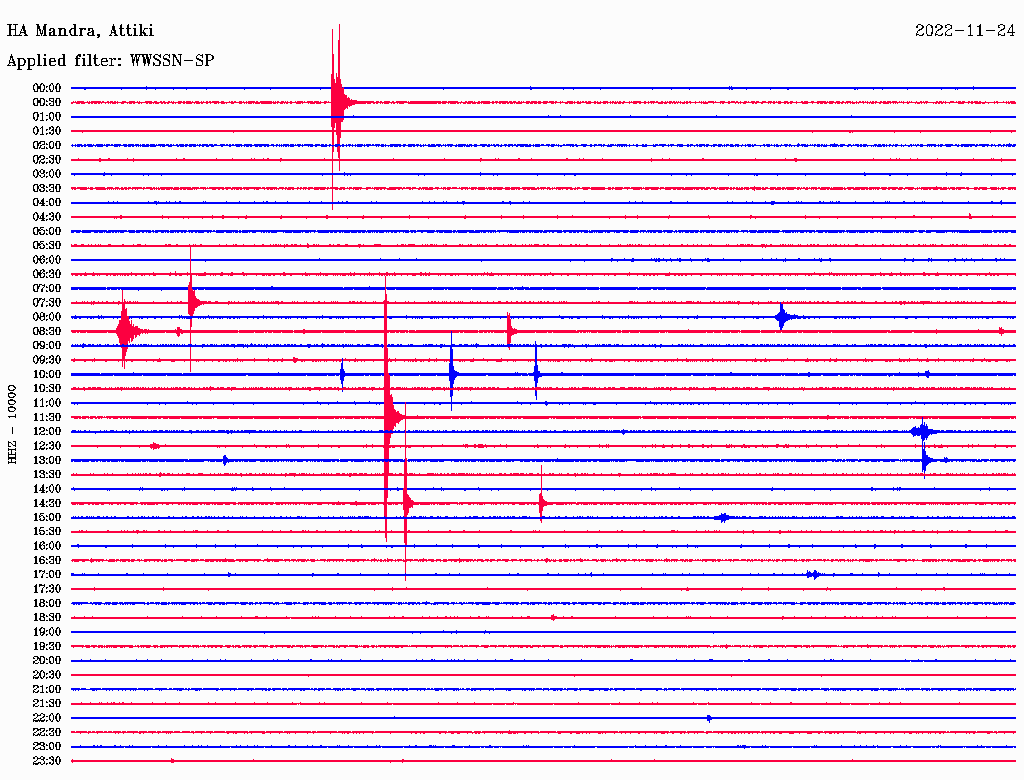

MDRAHA17.5142 P11:39:56.49 0.01.0M
MDRAHA17.5142 S11:39:59.03 -0.21.0M

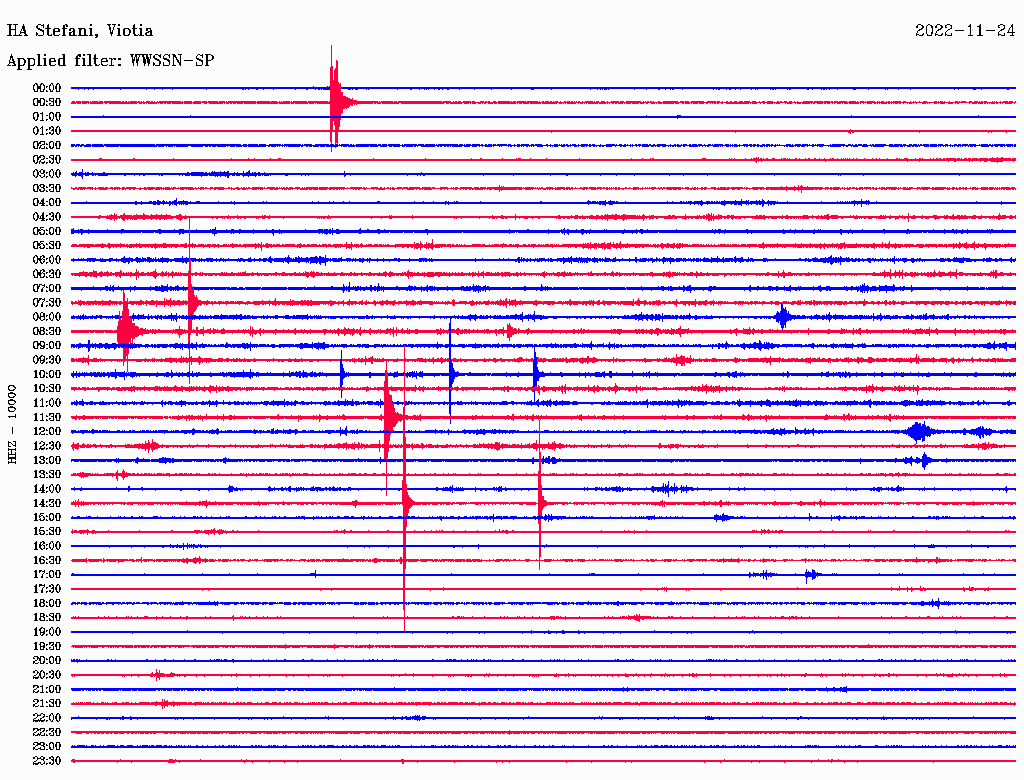

STFNHA17.7 93 P11:39:56.71 0.11.0M
STFNHA17.7 93 S11:39:59.41 0.01.0M

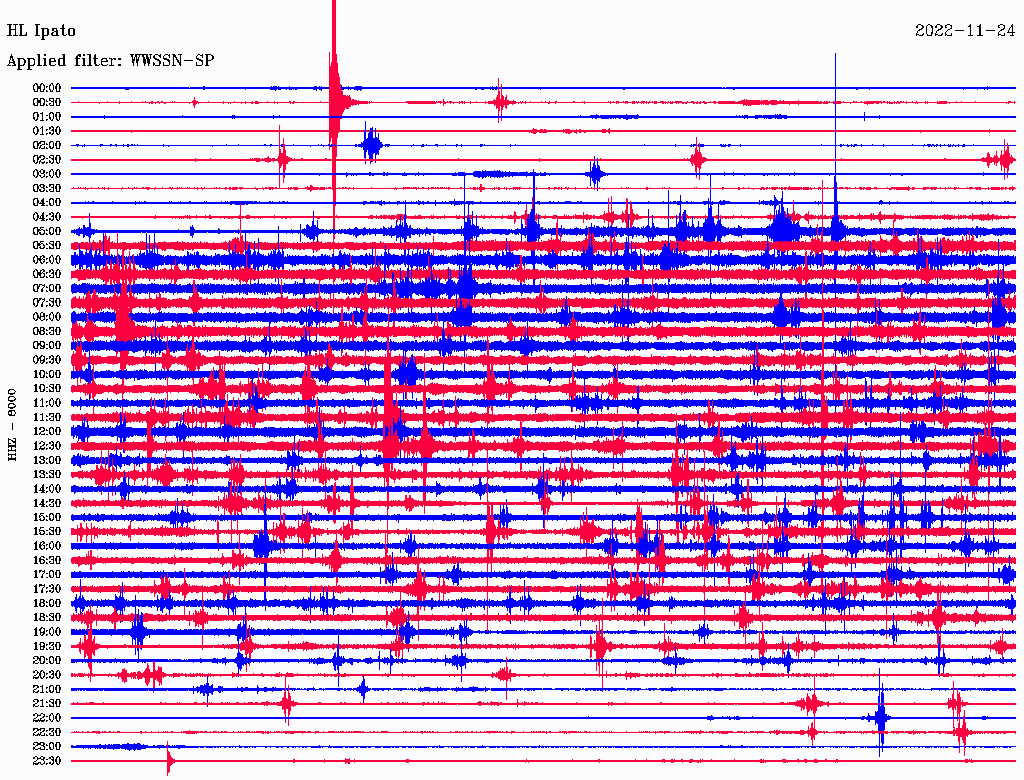

THI1HL23.1 11 P11:39:57.50 0.11.0M
THI1HL23.1 11 S11:40:00.84 0.01.0M

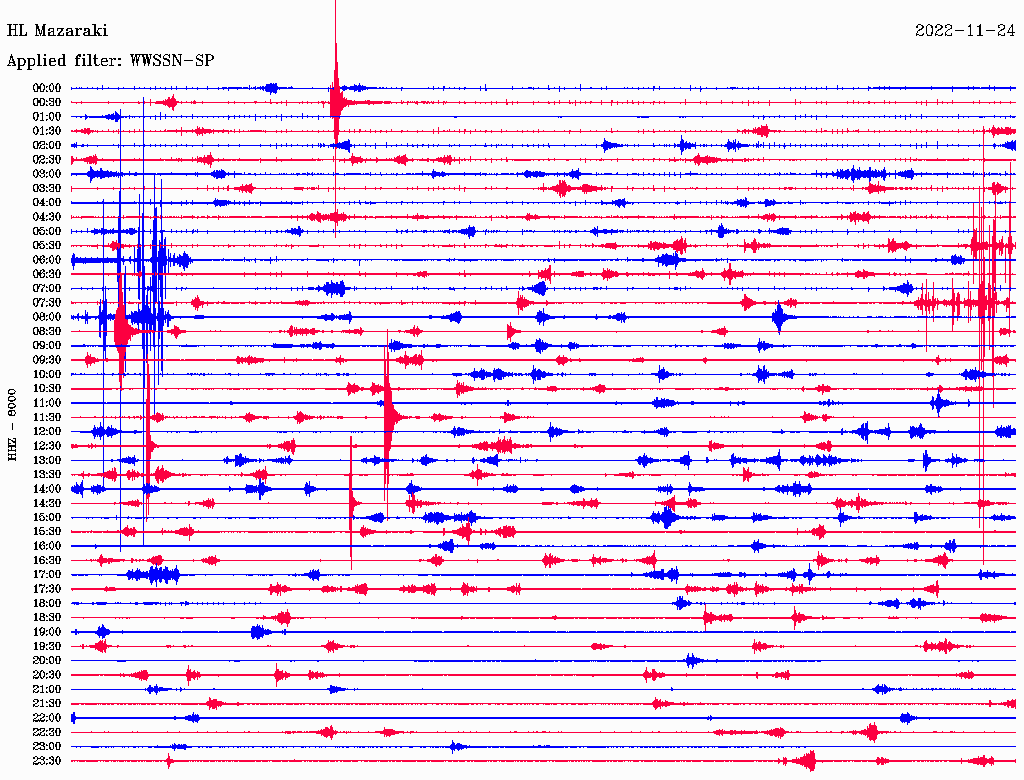

THI2HL23.9331 P11:39:57.49 0.01.0M
THI2HL23.9331 S11:40:01.10 0.01.0M
DOMVHA32.7284 P11:39:58.91 -0.11.0M
DOMVHA32.7284 S11:40:03.67 0.11.0M
LTKHP37.4241 P11:40:00.01 0.31.0M
LTKHP37.4241 S11:40:04.89 -0.11.0M

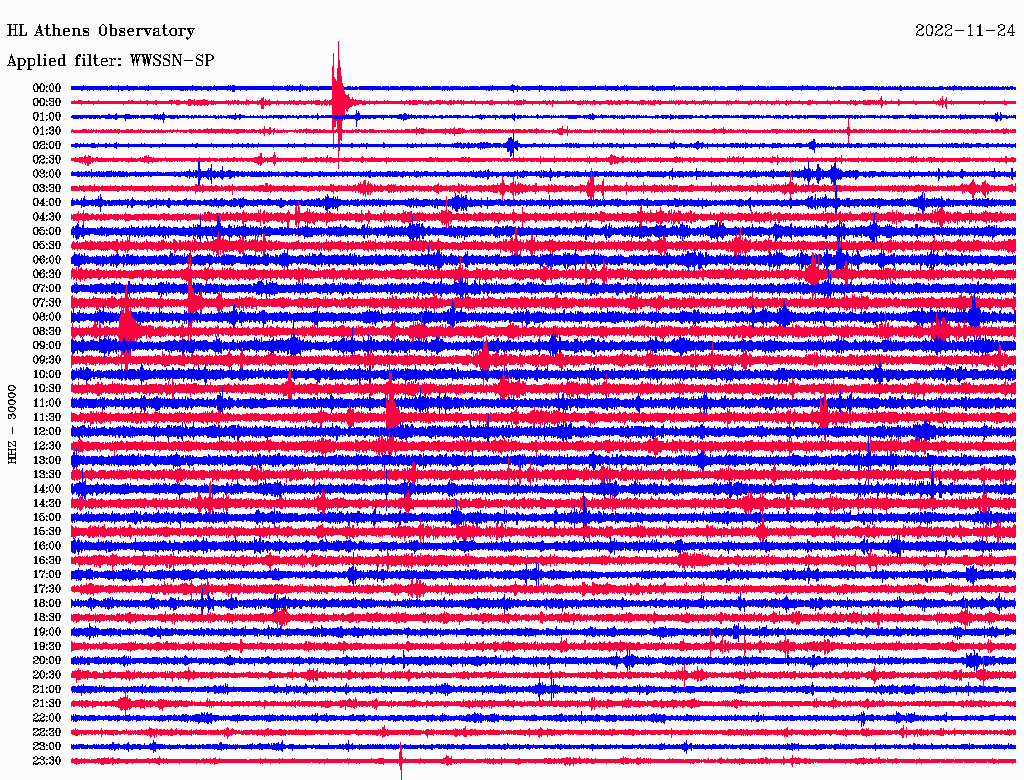

ATHHL40.3125 P11:40:00.45 0.31.0M
ATHHL40.3125 S11:40:05.70 -0.11.0M
ERTRHA46.0 58 P11:40:01.16 0.01.0M
ERTRHA46.0 58 S11:40:07.28 -0.11.0M

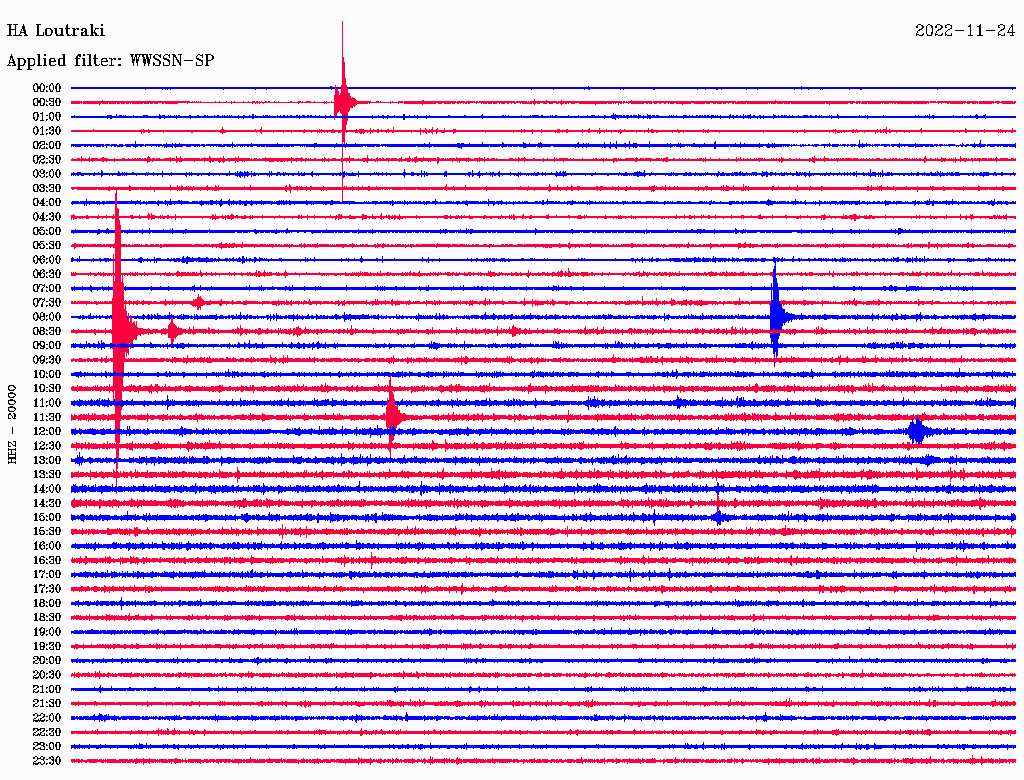

LOUTHA38.9236 P11:40:00.28 0.31.0M
LOUTHA38.9236 S11:40:05.32 -0.11.0M

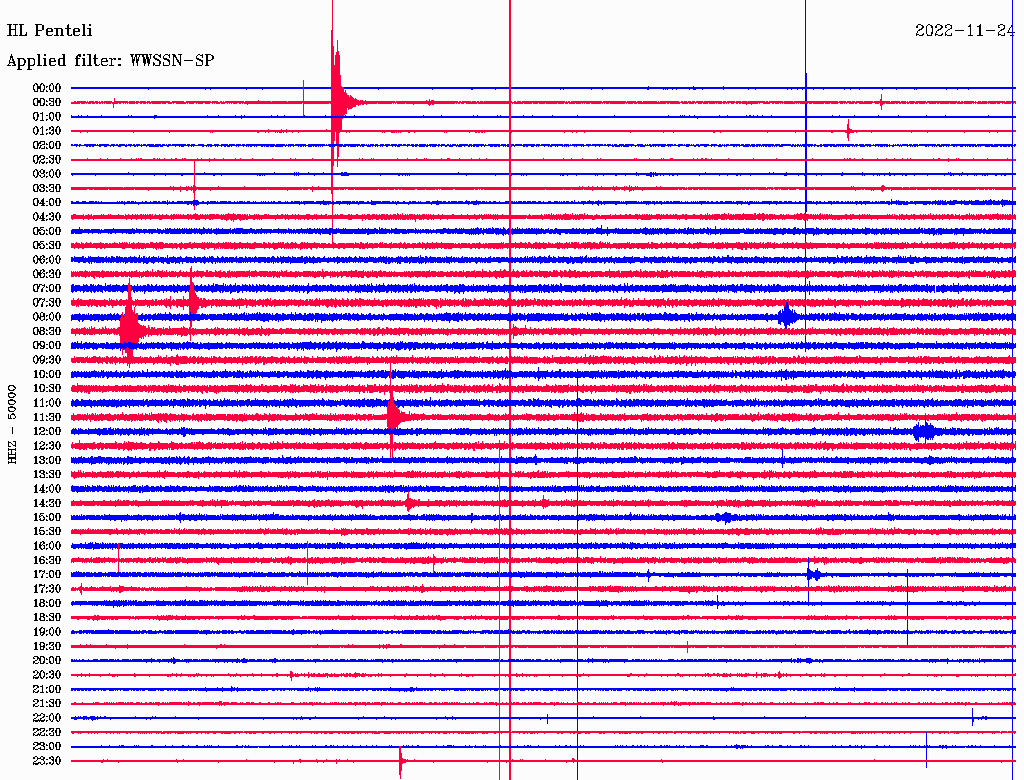

PTLHL48.1108 P11:40:01.61 0.11.0M
PTLHL48.1108 S11:40:07.89 -0.21.0M

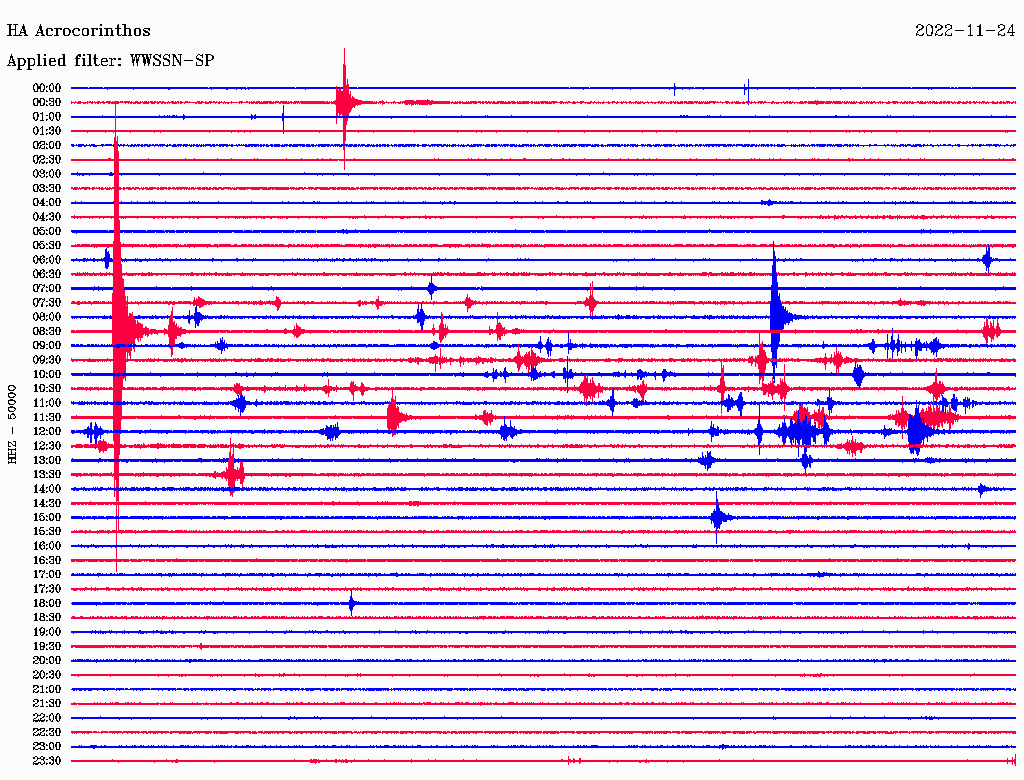

ACORHA52.7232 P11:40:02.36 0.11.0M
ACORHA52.7232 S11:40:09.24 -0.21.0M

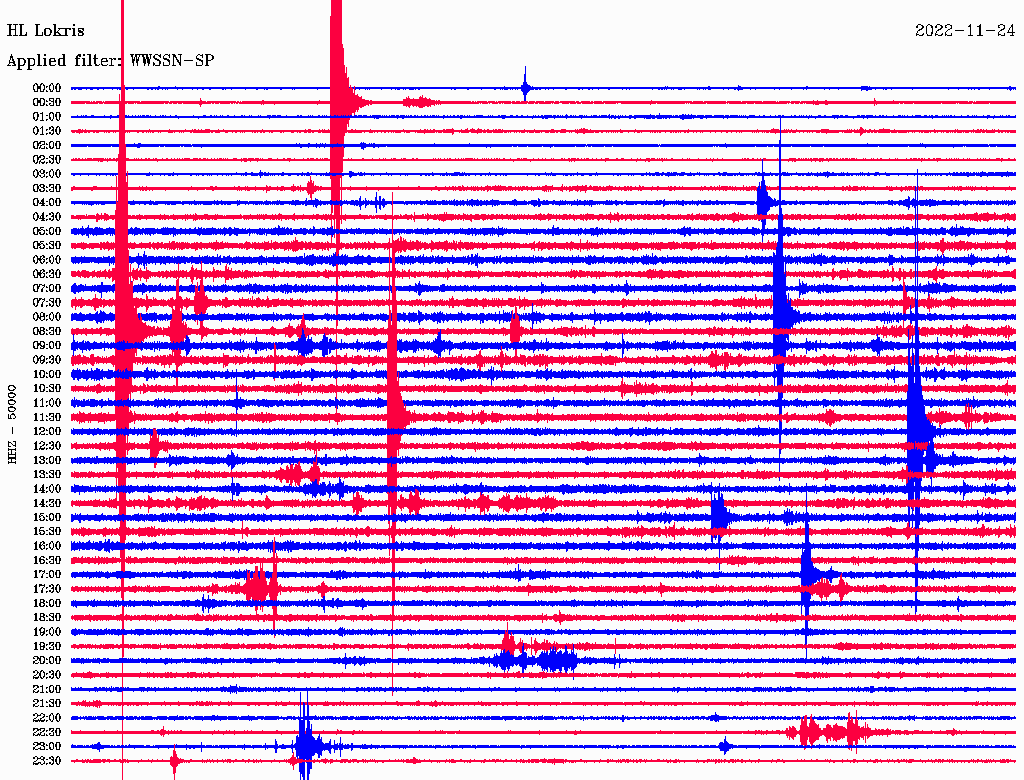

LKRHL59.8330 P11:40:02.95 -0.41.0M
LKRHL59.8330 S11:40:11.04 -0.31.0M

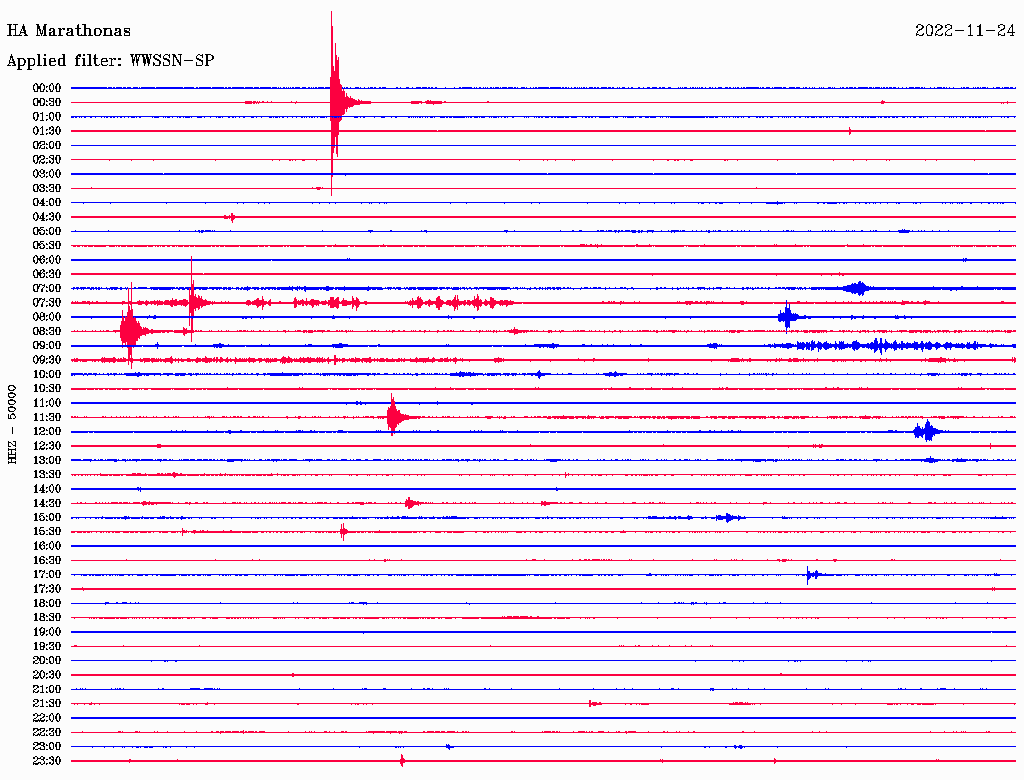

MRTHHA52.8 97 P11:40:02.28 0.01.0M
MRTHHA52.8 97 S11:40:09.23 -0.21.0M

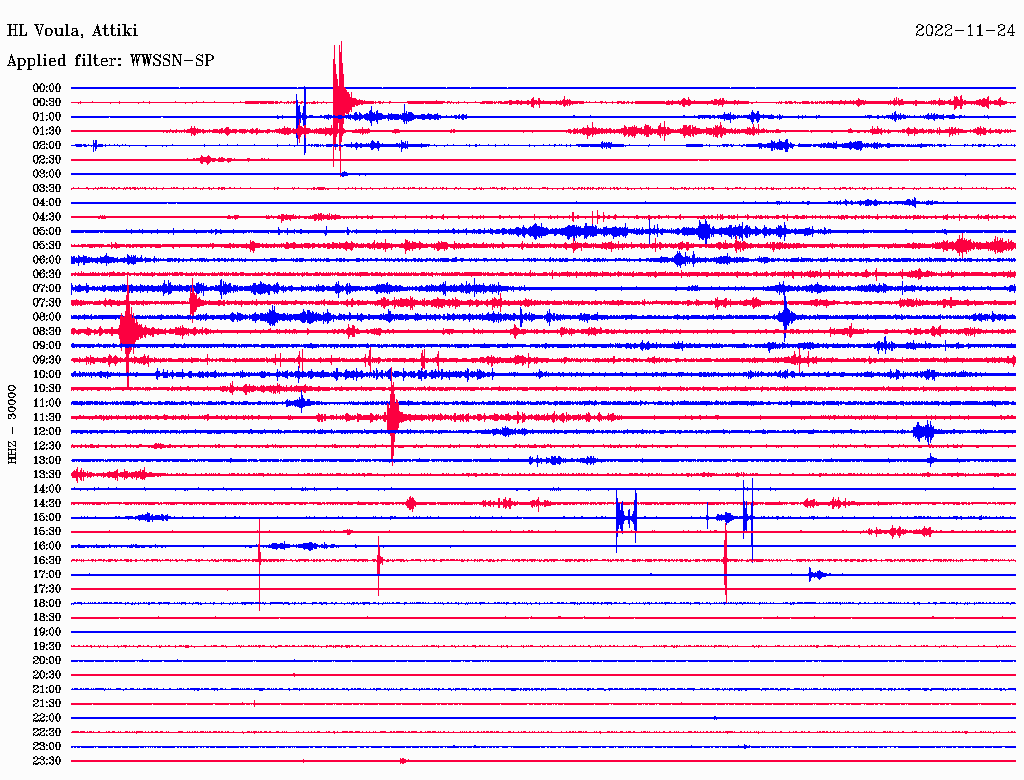

VLYHL54.1133 P11:40:02.46 0.01.0M
VLYHL54.1133 S11:40:09.53 -0.21.0M

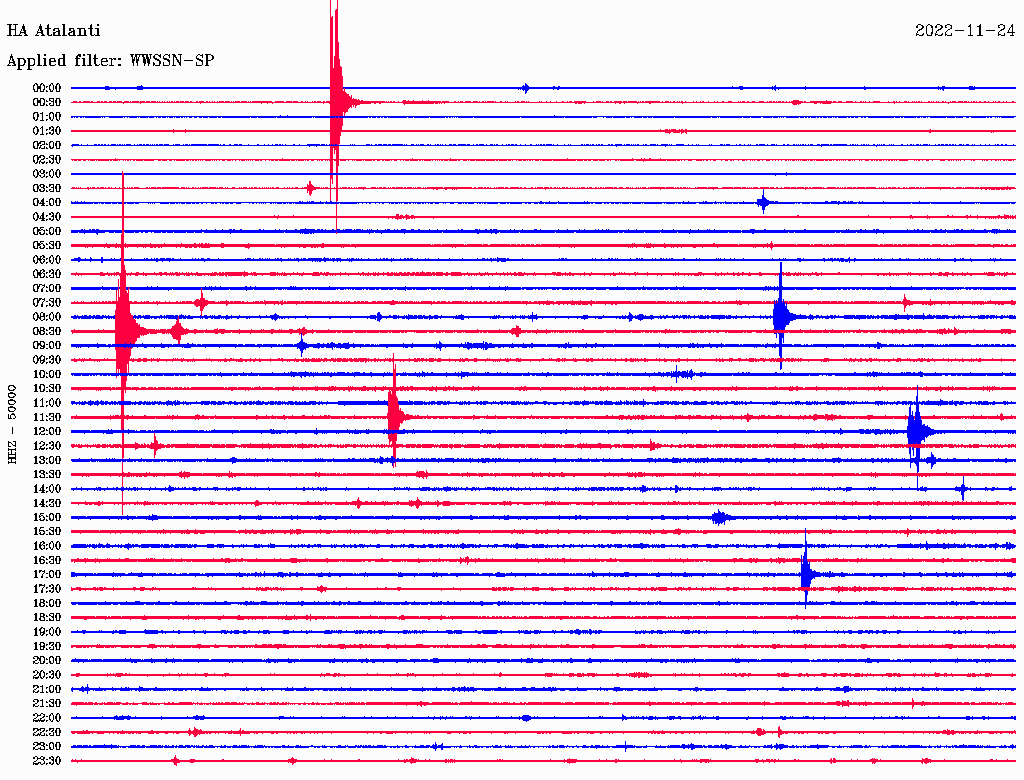

ATALHA63.1334 P11:40:03.51 -0.41.0M
ATALHA63.1334 S11:40:12.03 -0.31.0M

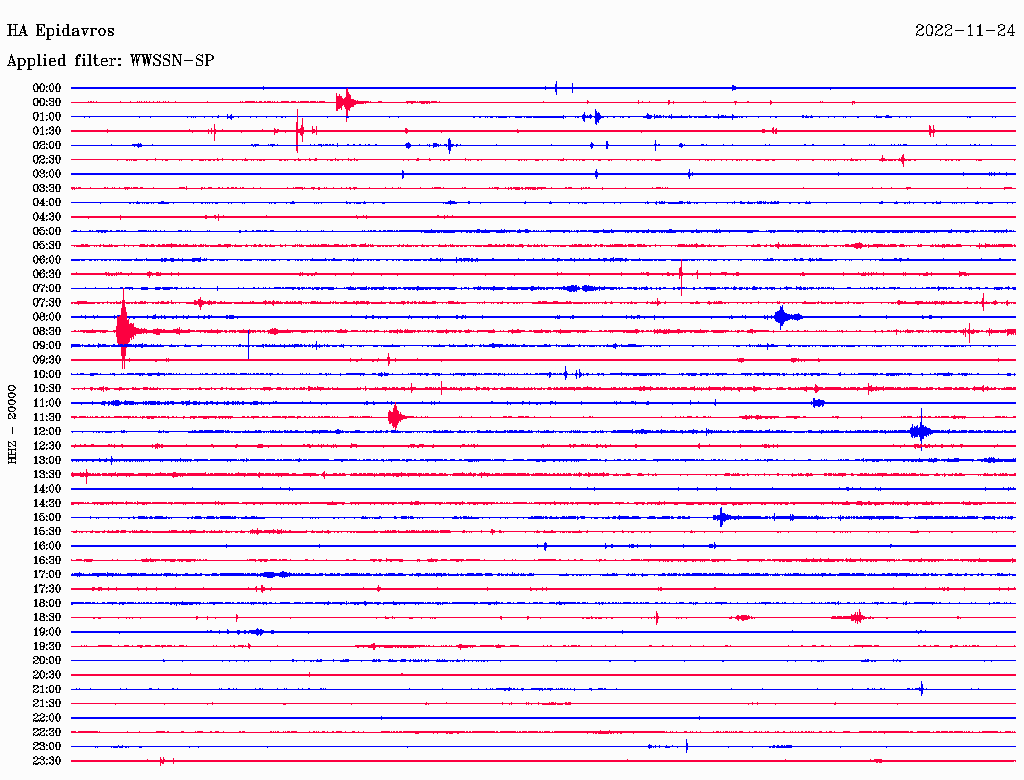

EPIDHA66.3197 P11:40:04.49 0.01.0M
EPIDHA66.3197 S11:40:13.28 0.01.0M

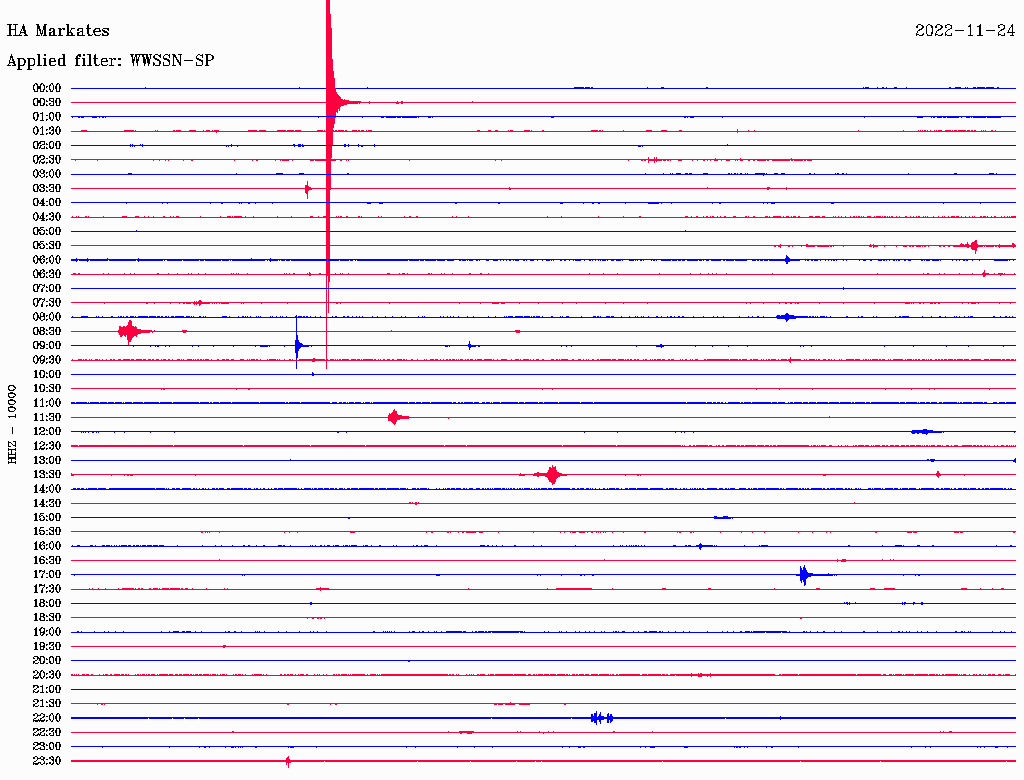

MRKAHA61.7 20 P11:40:03.59 -0.11.0M
MRKAHA61.7 20 S11:40:11.58 -0.41.0M

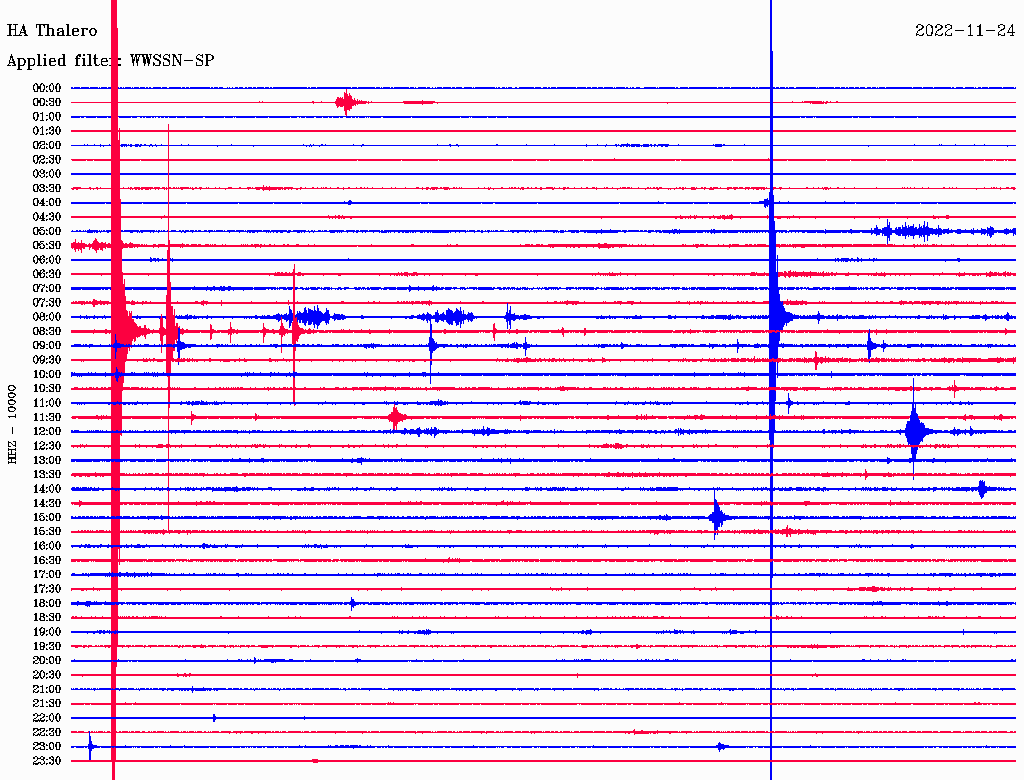

THALHA61.6255 P11:40:04.02 0.31.0M
THALHA61.6255 S11:40:11.86 -0.11.0M

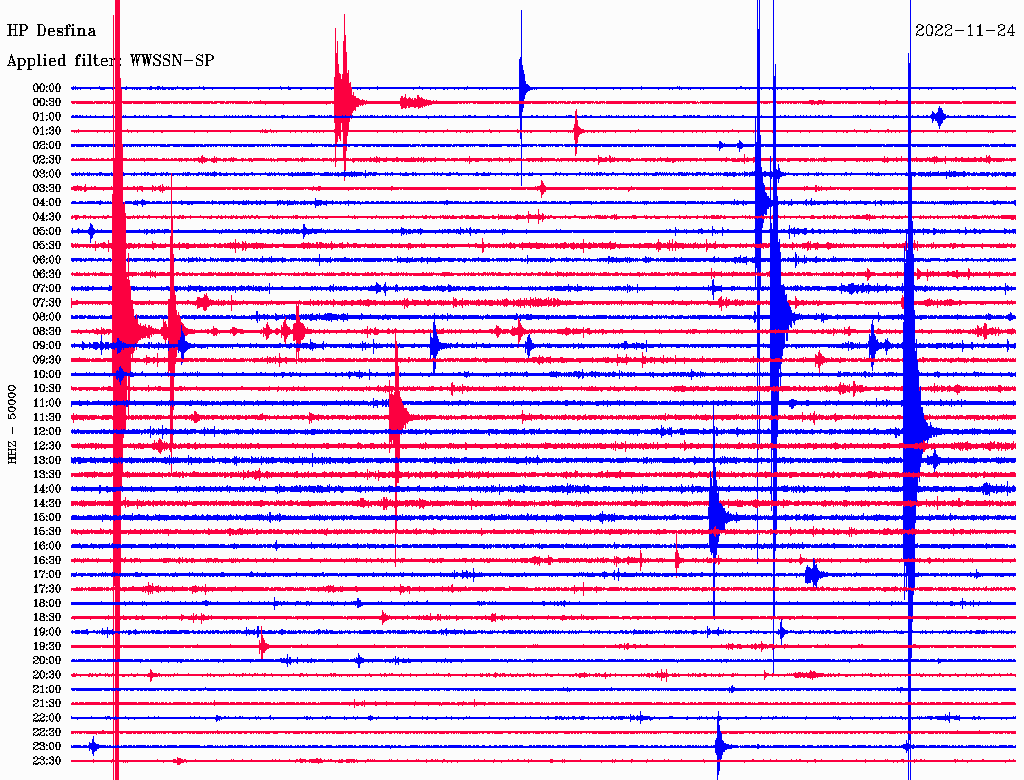

DSFHP75.5289 P11:40:05.32 -0.71.0M
DSFHP75.5289 S11:40:15.96 -0.11.0M

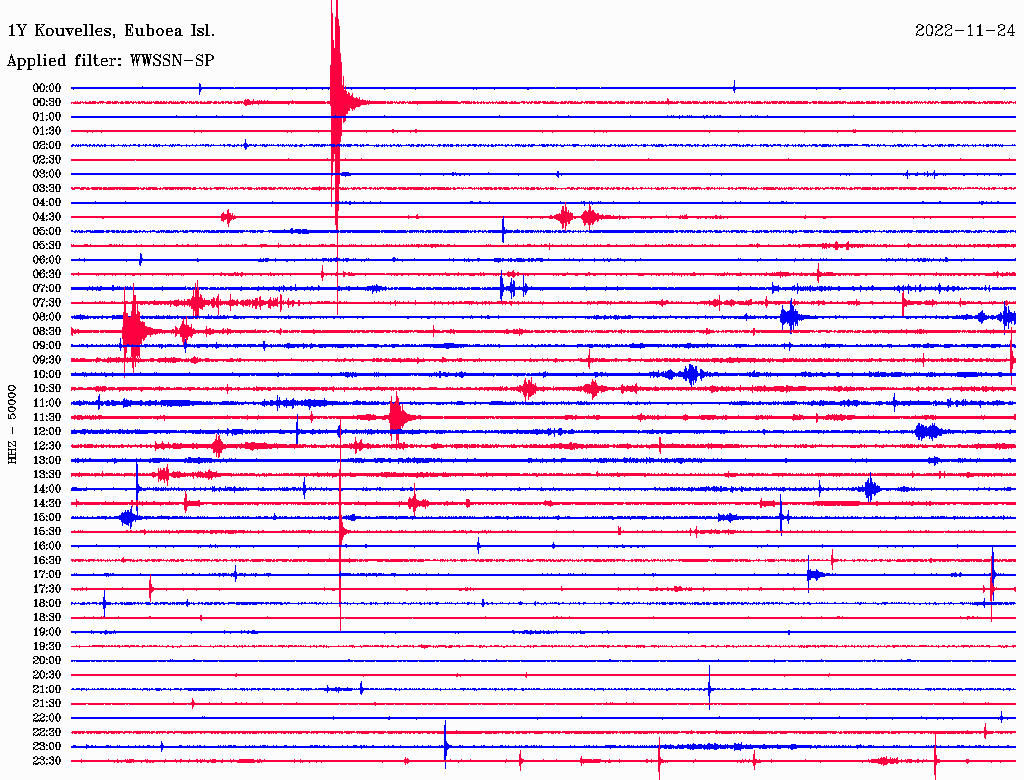

GR271Y77.9 90 P11:40:06.62 0.31.0M
GR271Y77.9 90 S11:40:16.70 0.11.0M

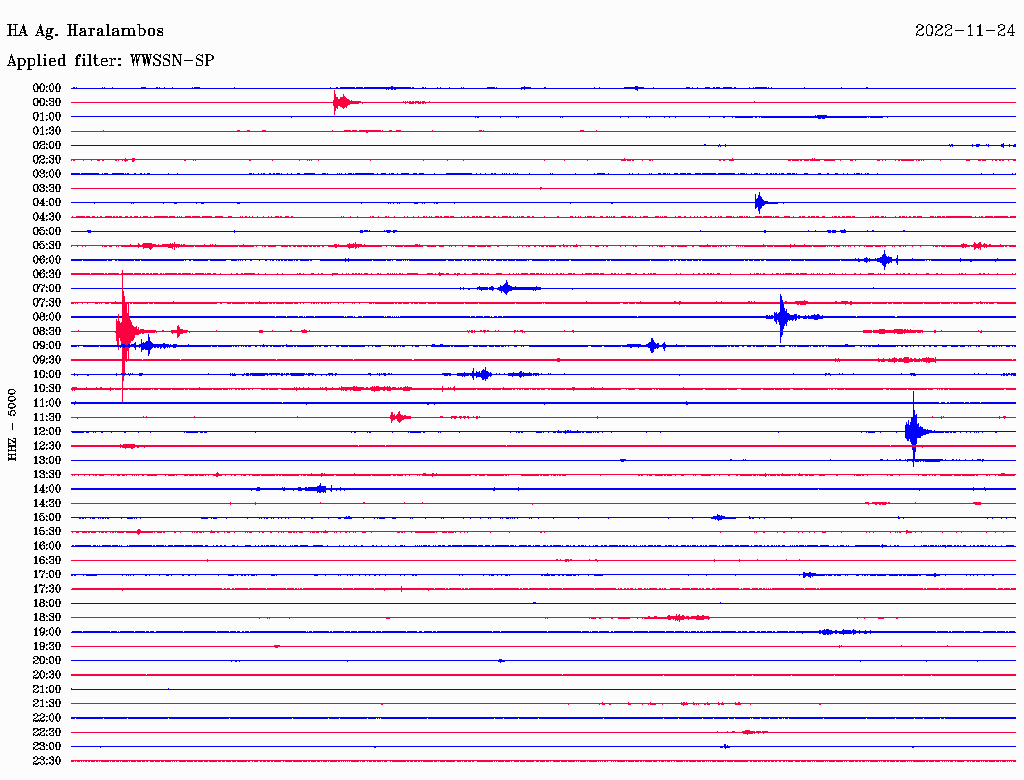

AXARHA87.9317 P11:40:07.91 0.01.0M
AXARHA87.9317 S11:40:19.42 0.01.0M
GURHP91.8253 P11:40:09.28 0.61.0M
GURHP91.8253 S11:40:20.77 0.11.0M

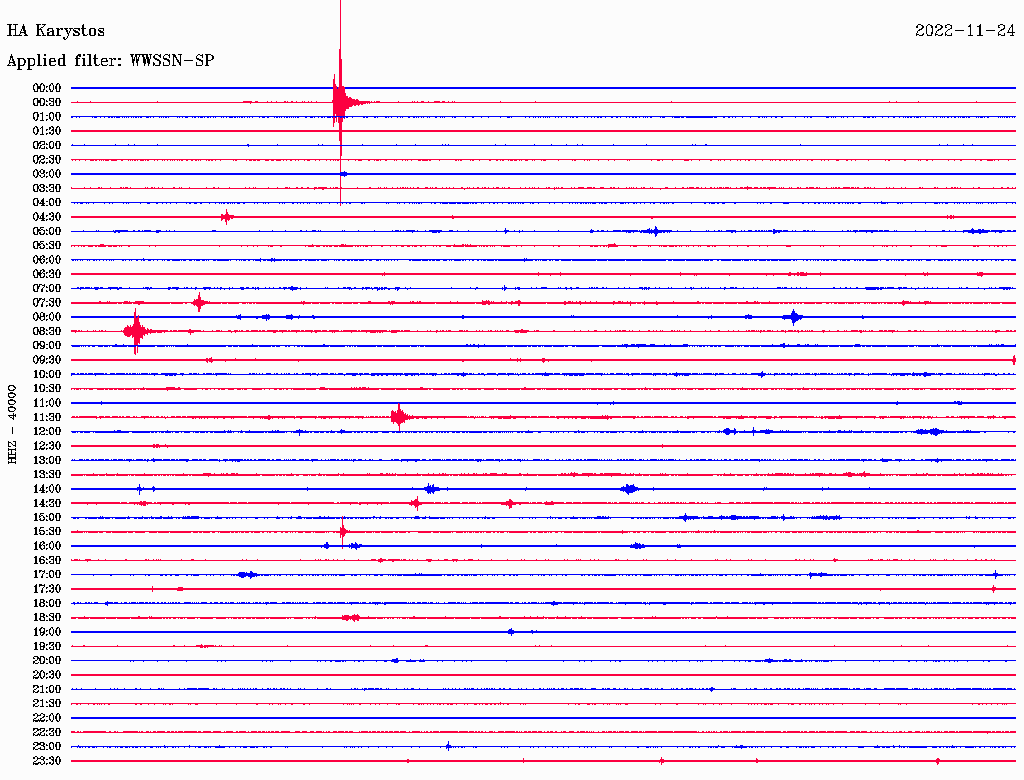

KARYHA97.3100 P11:40:09.46 0.01.0M
KARYHA97.3100 S11:40:22.34 0.31.0M


  Solution details

Event:
    Public ID              nkua2022xaip
    Description
      region name: Greece
Origin:
    Date                   2022-11-24
    Time                  11:39:52.85
    Latitude              38.1842 deg  +/-      0 km
    Longitude             23.3422 deg  +/-      0 km
    Depth                       8 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.23 s
    Azimuthal gap              56 deg

2 Network magnitudes:
    MLv       2.10 +/- 0.22  20
    M         2.10           20 preferred

52 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    VILL  HA    0.0 230  P       11:39:54.61  -0.1 M  1.0  VILL
    VILL  HA    0.0 230  S       11:39:55.83  -0.3 M  1.0  VILL
    AMPE  HA    0.1 334  P       11:39:56.40   0.4 M  1.0  AMPE
    AMPE  HA    0.1 334  S       11:39:58.86   0.4 M  1.0  AMPE
    THVA  HL    0.1 358  P       11:39:56.52   0.3 M  1.0  THVA
    THVA  HL    0.1 358  S       11:39:59.32   0.5 M  1.0  THVA
    MDRA  HA    0.2 142  P       11:39:56.49  -0.0 M  1.0  MDRA
    MDRA  HA    0.2 142  S       11:39:59.03  -0.2 M  1.0  MDRA
    STFN  HA    0.2  93  P       11:39:56.71   0.1 M  1.0  STFN
    STFN  HA    0.2  93  S       11:39:59.41   0.0 M  1.0  STFN
    THI1  HL    0.2  11  P       11:39:57.50   0.1 M  1.0  THI1
    THI1  HL    0.2  11  S       11:40:00.84   0.0 M  1.0  THI1
    THI2  HL    0.2 331  P       11:39:57.49  -0.0 M  1.0  THI2
    THI2  HL    0.2 331  S       11:40:01.10   0.0 M  1.0  THI2
    DOMV  HA    0.3 284  P       11:39:58.91  -0.1 M  1.0  DOMV
    DOMV  HA    0.3 284  S       11:40:03.67   0.1 M  1.0  DOMV
    LTK   HP    0.3 241  P       11:40:00.01   0.3 M  1.0  LTK
    LTK   HP    0.3 241  S       11:40:04.89  -0.1 M  1.0  LTK
    LOUT  HA    0.4 236  P       11:40:00.28   0.3 M  1.0  LOUT
    LOUT  HA    0.4 236  S       11:40:05.32  -0.1 M  1.0  LOUT
    ATH   HL    0.4 125  P       11:40:00.45   0.3 M  1.0  ATH
    ATH   HL    0.4 125  S       11:40:05.70  -0.1 M  1.0  ATH
    ERTR  HA    0.4  58  P       11:40:01.16   0.0 M  1.0  ERTR
    ERTR  HA    0.4  58  S       11:40:07.28  -0.1 M  1.0  ERTR
    PTL   HL    0.4 108  P       11:40:01.61   0.1 M  1.0  PTL
    PTL   HL    0.4 108  S       11:40:07.89  -0.2 M  1.0  PTL
    ACOR  HA    0.5 232  P       11:40:02.36   0.1 M  1.0  ACOR
    ACOR  HA    0.5 232  S       11:40:09.24  -0.2 M  1.0  ACOR
    MRTH  HA    0.5  97  P       11:40:02.28   0.0 M  1.0  MRTH
    MRTH  HA    0.5  97  S       11:40:09.23  -0.2 M  1.0  MRTH
    VLY   HL    0.5 133  P       11:40:02.46  -0.0 M  1.0  VLY
    VLY   HL    0.5 133  S       11:40:09.53  -0.2 M  1.0  VLY
    LKR   HL    0.5 330  P       11:40:02.95  -0.4 M  1.0  LKR
    LKR   HL    0.5 330  S       11:40:11.04  -0.3 M  1.0  LKR
    MRKA  HA    0.6  20  P       11:40:03.59  -0.1 M  1.0  MRKA
    MRKA  HA    0.6  20  S       11:40:11.58  -0.4 M  1.0  MRKA
    THAL  HA    0.6 255  P       11:40:04.02   0.3 M  1.0  THAL
    THAL  HA    0.6 255  S       11:40:11.86  -0.1 M  1.0  THAL
    ATAL  HA    0.6 334  P       11:40:03.51  -0.4 M  1.0  ATAL
    ATAL  HA    0.6 334  S       11:40:12.03  -0.3 M  1.0  ATAL
    EPID  HA    0.6 197  P       11:40:04.49   0.0 M  1.0  EPID
    EPID  HA    0.6 197  S       11:40:13.28  -0.0 M  1.0  EPID
    DSF   HP    0.7 289  P       11:40:05.32  -0.7 M  1.0  DSF
    DSF   HP    0.7 289  S       11:40:15.96  -0.1 M  1.0  DSF
    GR27  1Y    0.7  90  P       11:40:06.62   0.3 M  1.0  GR27
    GR27  1Y    0.7  90  S       11:40:16.70   0.1 M  1.0  GR27
    AXAR  HA    0.8 317  P       11:40:07.91  -0.0 M  1.0  AXAR
    AXAR  HA    0.8 317  S       11:40:19.42   0.0 M  1.0  AXAR
    GUR   HP    0.8 253  P       11:40:09.28   0.6 M  1.0  GUR
    GUR   HP    0.8 253  S       11:40:20.77   0.1 M  1.0  GUR
    KARY  HA    0.9 100  P       11:40:09.46   0.0 M  1.0  KARY
    KARY  HA    0.9 100  S       11:40:22.34   0.3 M  1.0  KARY

26 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    VILL  HA    0.0 230  MLv     2.19  0.09    10.1311
    AMPE  HA    0.1 334  MLv     1.90 -0.20    2.75554
    THVA  HL    0.1 358  MLv     2.63  0.53    13.3545
    MDRA  HA    0.2 142  MLv     1.81 -0.30    1.85361
    STFN  HA    0.2  93  MLv     1.58 -0.52    1.10538
    THI1  HL    0.2  11  MLv     2.47  0.37    6.27162
    THI2  HL    0.2 331  MLv     2.39  0.29    4.96922
    DOMV  HA    0.3 284  MLv     2.23  0.13    2.05008
    LTK   HP    0.3 241  MLv     1.33 -0.77   0.747253
    LOUT  HA    0.4 236  MLv     2.20  0.10    1.34185
    ATH   HL    0.4 125  MLv     1.96 -0.15   0.707174
    ERTR  HA    0.4  58  MLv     1.67 -0.43   0.263673
    PTL   HL    0.4 108  MLv     1.71 -0.39   0.255125
    ACOR  HA    0.5 232  MLv     1.82 -0.29   0.250393
    MRTH  HA    0.5  97  MLv     2.13  0.03   0.513671
    VLY   HL    0.5 133  MLv     2.40  0.29   0.882731
    LKR   HL    0.5 330  MLv     2.76  0.66   0.793076
    MRKA  HA    0.6  20  MLv     2.18  0.07   0.370715
    THAL  HA    0.6 255  MLv     2.17  0.06   0.642128
    ATAL  HA    0.6 334  MLv     2.18  0.07   0.364079
    EPID  HA    0.6 197  MLv     2.33  0.22   0.496055
    DSF   HP    0.7 289  MLv     2.46  0.35   0.601463
    GR27  1Y    0.7  90  MLv     2.06 -0.04   0.236548
    AXAR  HA    0.8 317  MLv     1.91 -0.19   0.589678
    GUR   HP    0.8 253  MLv     1.73 -0.37   0.0938794
    KARY  HA    0.9 100  MLv     2.32  0.21   0.338842
