Earthquake Information
 Origin Time
2022-11-24 00:53:04 (GMT)
 Magnitude
M 1.8
 Latitude
37.5598° N
 Longitude
21.6758° E
 Focal Depth
7 km
 # of Arrivals
30
 Location 24.2 km SE of Pyrgos
52.2 km SE of Andravida
186.9 km WSW of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

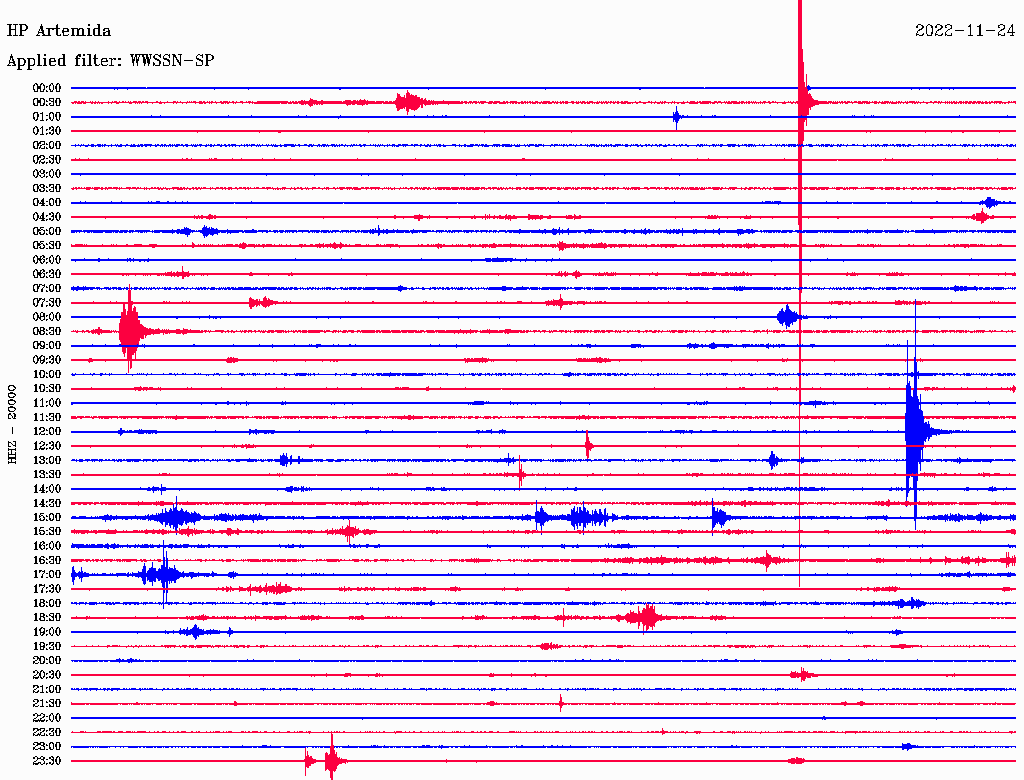

AMTHP4.2136 P00:53:05.26 0.01.0M
AMTHP4.2136 S00:53:06.65 0.11.0M

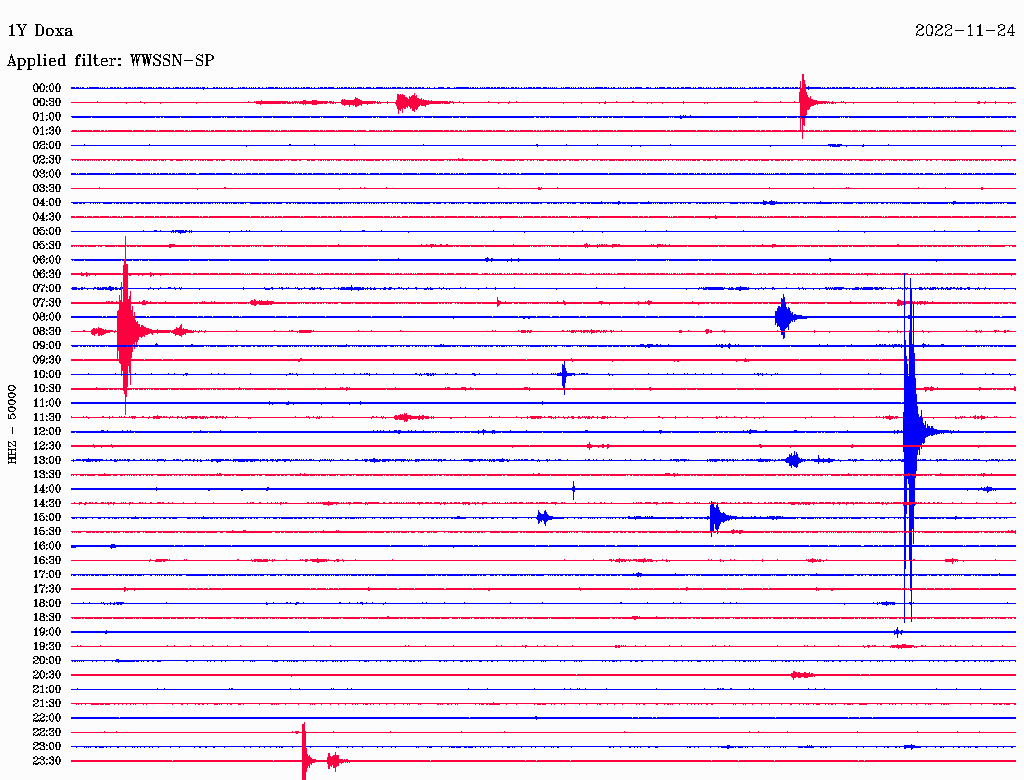

GR291Y27.0 54 P00:53:08.83 0.01.0M
GR291Y27.0 54 S00:53:12.85 0.11.0M

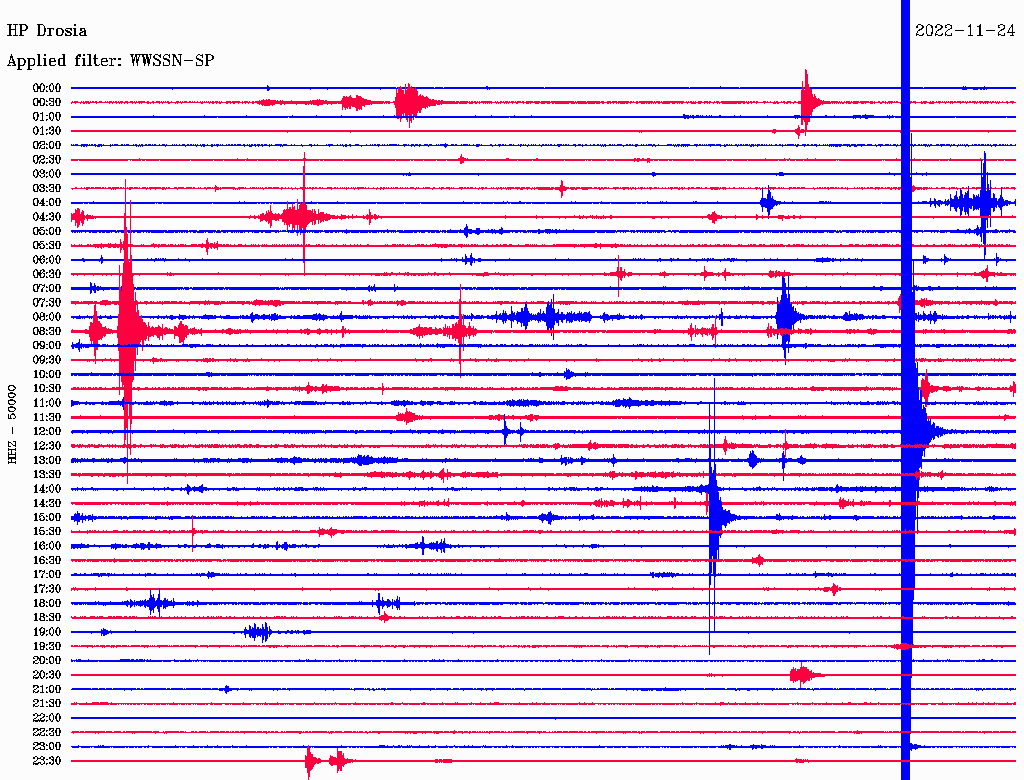

DROHP43.7 4 P00:53:11.09 -0.41.0M
DROHP43.7 4 S00:53:17.44 -0.11.0M

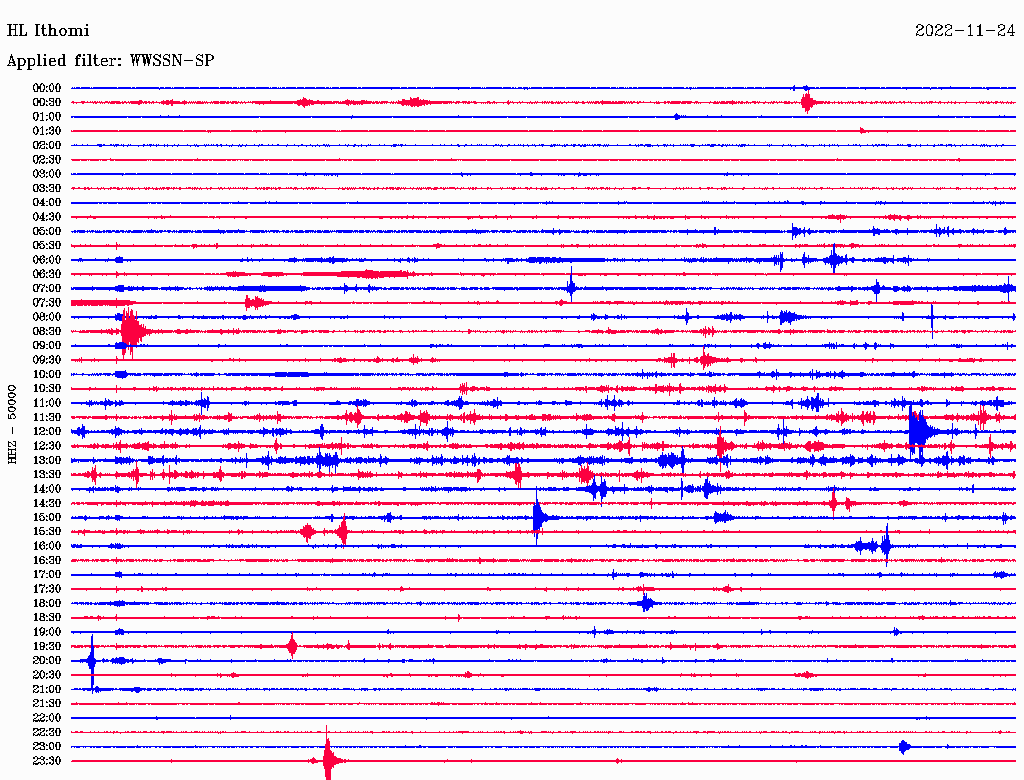

ITMHL47.8152 P00:53:12.30 0.11.0M
ITMHL47.8152 S00:53:18.66 0.01.0M

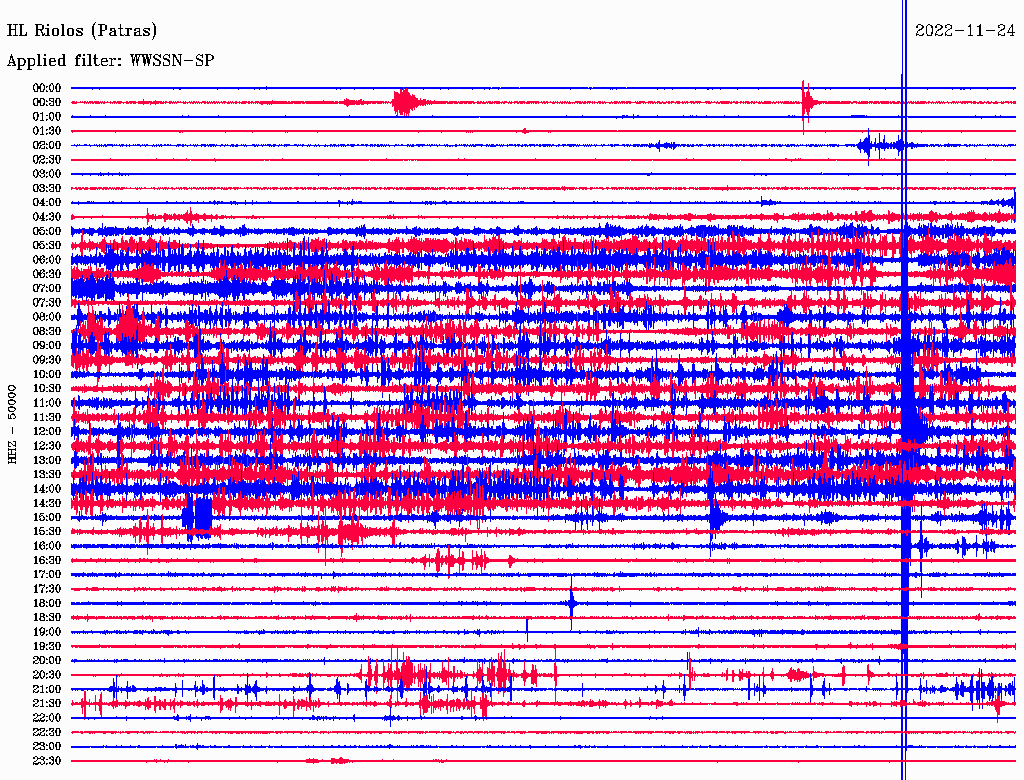

RLSHL58.2341 P00:53:13.09 -0.71.0M
RLSHL58.2341 S00:53:21.38 -0.21.0M
KLVHL68.1 38 P00:53:15.17 -0.41.0M
KLVHL68.1 38 S00:53:24.43 -0.21.0M

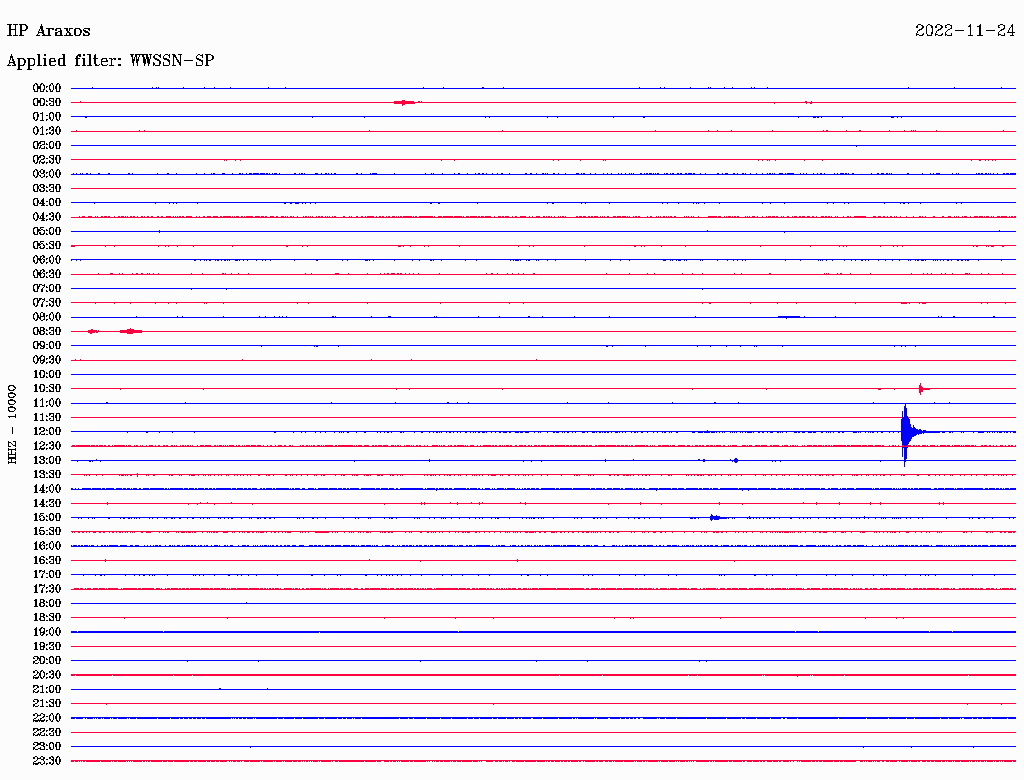

AXSHP75.5340 P00:53:16.06 -0.61.0M
AXSHP75.5340 S00:53:26.54 -0.11.0M

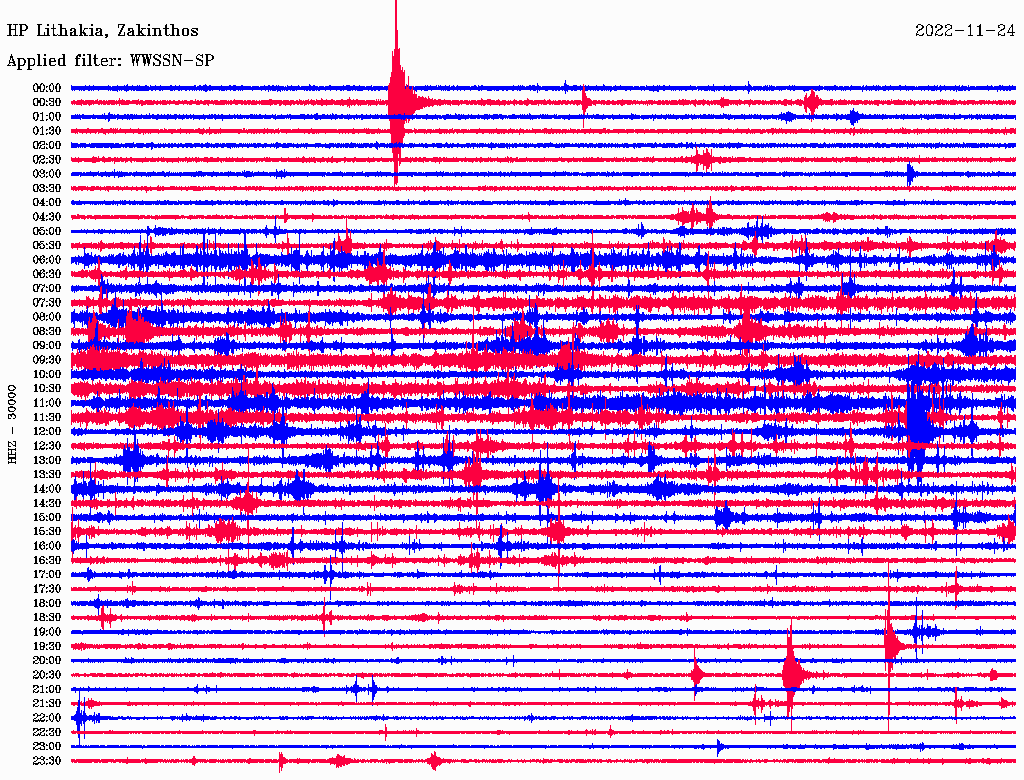

LTHKHP75.7283 P00:53:16.76 0.01.0M
LTHKHP75.7283 S00:53:26.77 0.01.0M
PYLHP74.1175 P00:53:16.21 -0.21.0M
PYLHP74.1175 S00:53:26.29 0.11.0M
EFPHP98.5 12 P00:53:20.69 0.41.0M
EFPHP98.5 12 S00:53:33.19 0.11.0M

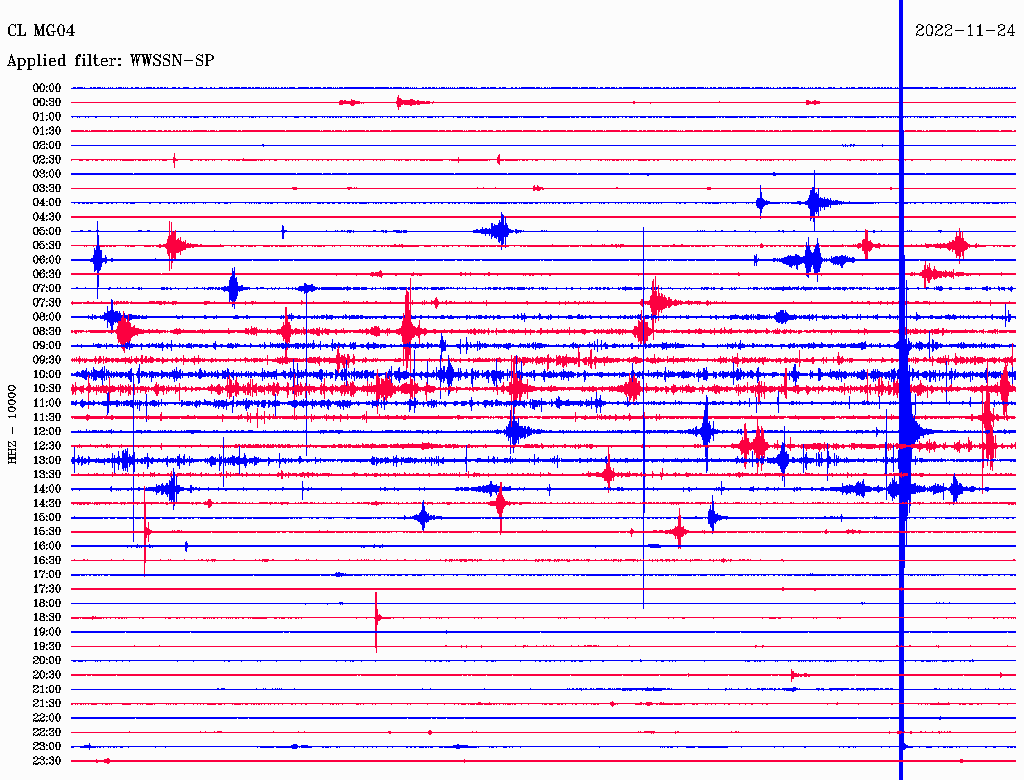

MG04CL98.0 14 P00:53:20.14 -0.11.0M
MG04CL98.0 14 S00:53:33.08 0.21.0M
SERGHP100.6 19 P00:53:20.47 -0.31.0M
SERGHP100.6 19 S00:53:33.87 0.11.0M
TRIZCL96.1 21 P00:53:19.21 -0.71.0M
TRIZCL96.1 21 S00:53:32.51 0.11.0M

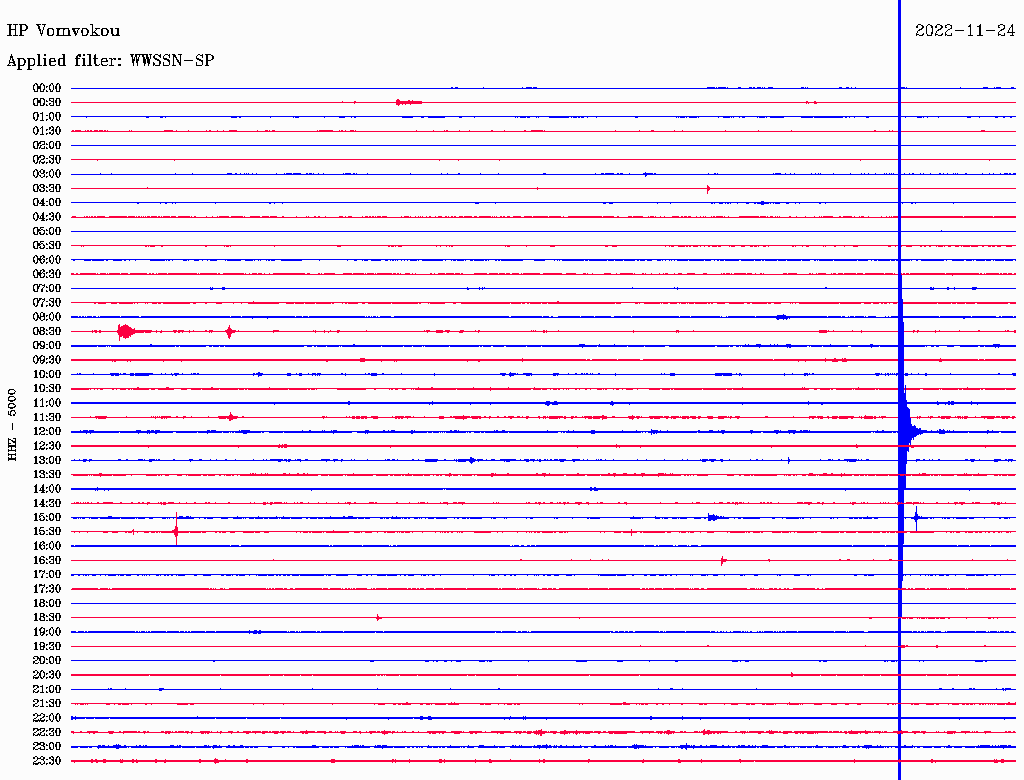

VVKHP96.6 7 P00:53:20.14 0.01.0M
VVKHP96.6 7 S00:53:32.65 0.01.0M

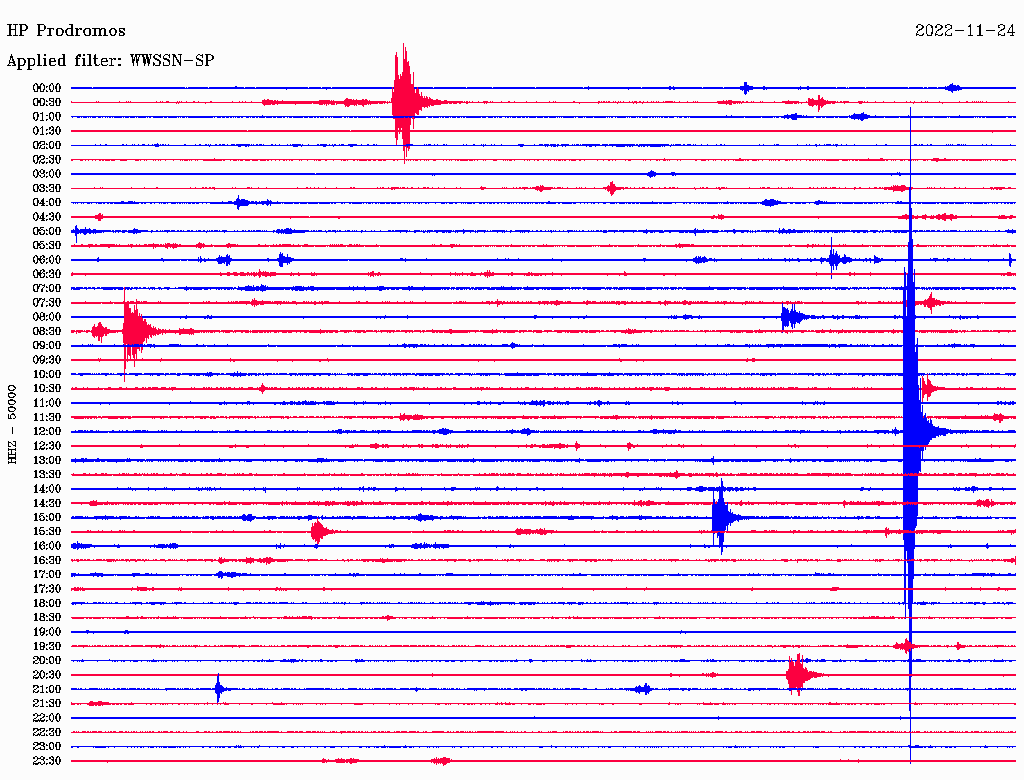

PDOHP123.3339 P00:53:24.32 0.11.0M
PDOHP123.3339 S00:53:40.74 0.81.0M


  Solution details

Event:
    Public ID              nkua2022wzng
    Description
      region name: Southern Greece
Origin:
    Date                   2022-11-24
    Time                  00:53:03.60
    Latitude              37.5598 deg  +/-      0 km
    Longitude             21.6758 deg  +/-      0 km
    Depth                       7 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.13 s
    Azimuthal gap             107 deg

2 Network magnitudes:
    MLv       1.85 +/- 0.25  13
    M         1.85           13 preferred

30 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    AMT   HP    0.0 136  P       00:53:05.26  -0.0 M  1.0  AMT
    AMT   HP    0.0 136  S       00:53:06.65   0.1 M  1.0  AMT
    GR29  1Y    0.2  54  P       00:53:08.83   0.0 M  1.0  GR29
    GR29  1Y    0.2  54  S       00:53:12.85   0.1 M  1.0  GR29
    DRO   HP    0.4   4  P       00:53:11.09  -0.4 M  1.0  DRO
    DRO   HP    0.4   4  S       00:53:17.44  -0.1 M  1.0  DRO
    ITM   HL    0.4 152  P       00:53:12.30   0.1 M  1.0  ITM
    ITM   HL    0.4 152  S       00:53:18.66  -0.0 M  1.0  ITM
    RLS   HL    0.5 341  P       00:53:13.09  -0.7 M  1.0  RLS
    RLS   HL    0.5 341  S       00:53:21.38  -0.2 M  1.0  RLS
    KLV   HL    0.6  38  P       00:53:15.17  -0.4 M  1.0  KLV
    KLV   HL    0.6  38  S       00:53:24.43  -0.2 M  1.0  KLV
    PYL   HP    0.7 175  P       00:53:16.21  -0.2 M  1.0  PYL
    PYL   HP    0.7 175  S       00:53:26.29   0.1 M  1.0  PYL
    AXS   HP    0.7 340  P       00:53:16.06  -0.6 M  1.0  AXS
    AXS   HP    0.7 340  S       00:53:26.54  -0.1 M  1.0  AXS
    LTHK  HP    0.7 283  P       00:53:16.76   0.0 M  1.0  LTHK
    LTHK  HP    0.7 283  S       00:53:26.77   0.0 M  1.0  LTHK
    TRIZ  CL    0.9  21  P       00:53:19.21  -0.7 M  1.0  TRIZ
    TRIZ  CL    0.9  21  S       00:53:32.51   0.1 M  1.0  TRIZ
    VVK   HP    0.9   7  P       00:53:20.14   0.0 M  1.0  VVK
    VVK   HP    0.9   7  S       00:53:32.65  -0.0 M  1.0  VVK
    MG04  CL    0.9  14  P       00:53:20.14  -0.1 M  1.0  MG04
    MG04  CL    0.9  14  S       00:53:33.08   0.2 M  1.0  MG04
    EFP   HP    0.9  12  P       00:53:20.69   0.4 M  1.0  EFP
    EFP   HP    0.9  12  S       00:53:33.19   0.1 M  1.0  EFP
    SERG  HP    0.9  19  P       00:53:20.47  -0.3 M  1.0  SERG
    SERG  HP    0.9  19  S       00:53:33.87   0.1 M  1.0  SERG
    PDO   HP    1.1 339  P       00:53:24.32   0.1 M  1.0  PDO
    PDO   HP    1.1 339  S       00:53:40.74   0.8 M  1.0  PDO

15 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    AMT   HP    0.0 136  MLv     1.88  0.03    4.72387
    GR29  1Y    0.2  54  MLv     1.32 -0.53   0.350842
    DRO   HP    0.4   4  MLv     1.34 -0.51   0.291835
    ITM   HL    0.4 152  MLv     1.85 -0.00   0.359156
    RLS   HL    0.5 341  MLv     1.91  0.06   0.228149
    KLV   HL    0.6  38  MLv     1.90  0.05   0.137036
    PYL   HP    0.7 175  MLv     2.80  0.95   0.498549
    AXS   HP    0.7 340  MLv     1.81 -0.04   0.136305
    LTHK  HP    0.7 283  MLv     2.36  0.51    0.48482
    TRIZ  CL    0.9  21  MLv     1.81 -0.04   0.106348
    VVK   HP    0.9   7  MLv     1.29 -0.56   0.149641
    MG04  CL    0.9  14  MLv     1.94  0.08   0.140313
    EFP   HP    0.9  12  MLv     1.61 -0.24   0.0664705
    SERG  HP    0.9  19  MLv     2.06  0.20   0.178901
    PDO   HP    1.1 339  MLv     2.27  0.42   0.227385
