Earthquake Information
 Origin Time
2022-11-23 19:59:04 (GMT)
 Magnitude
M 3.6
 Latitude
34.9788° N
 Longitude
23.6058° E
 Focal Depth
29 km
 # of Arrivals
57
 Location 70.0 km SSW of Chania
89.6 km WSW of Rethimnon
334.3 km S of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi  ShakeMap

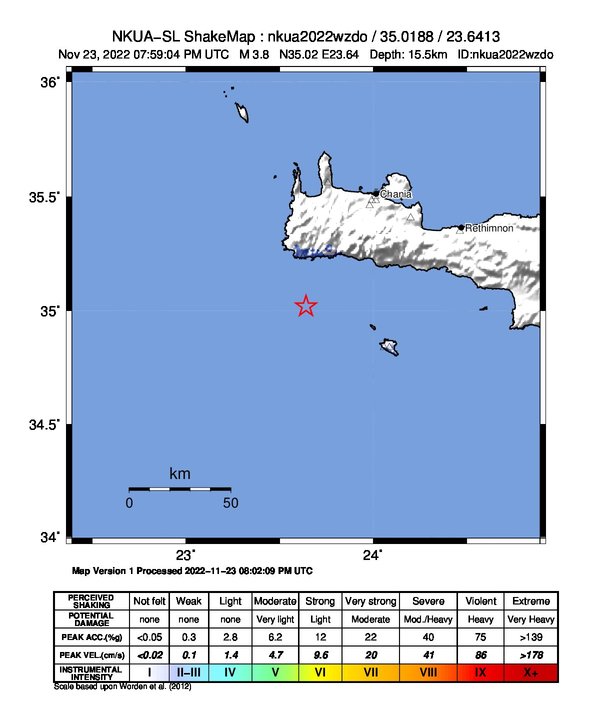

  Intensity map

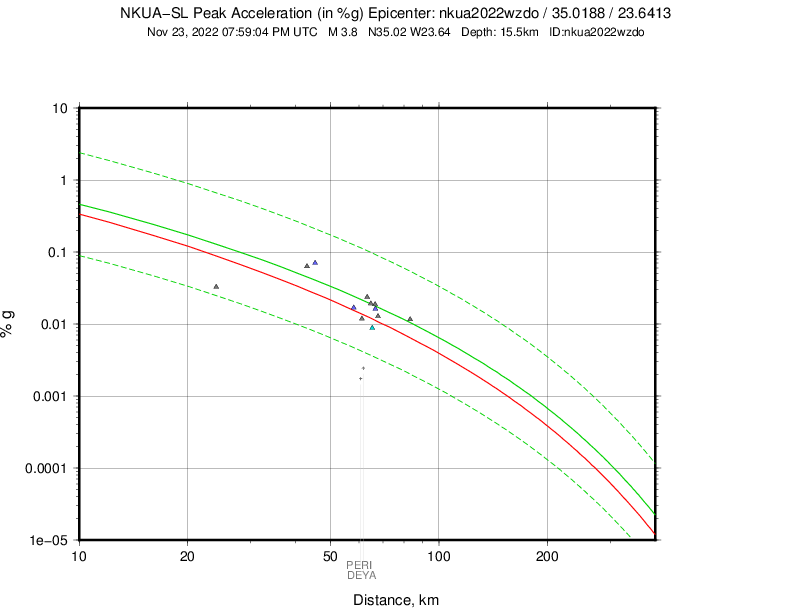

PGA

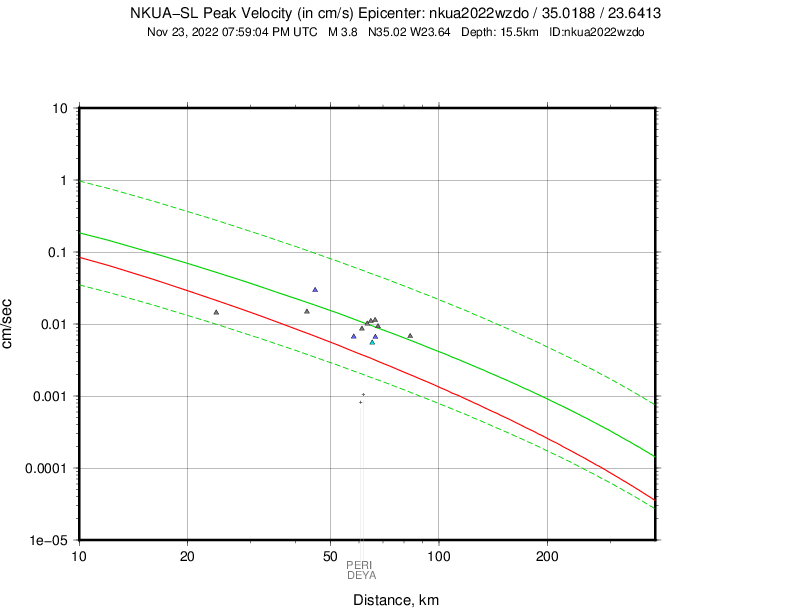

PGV

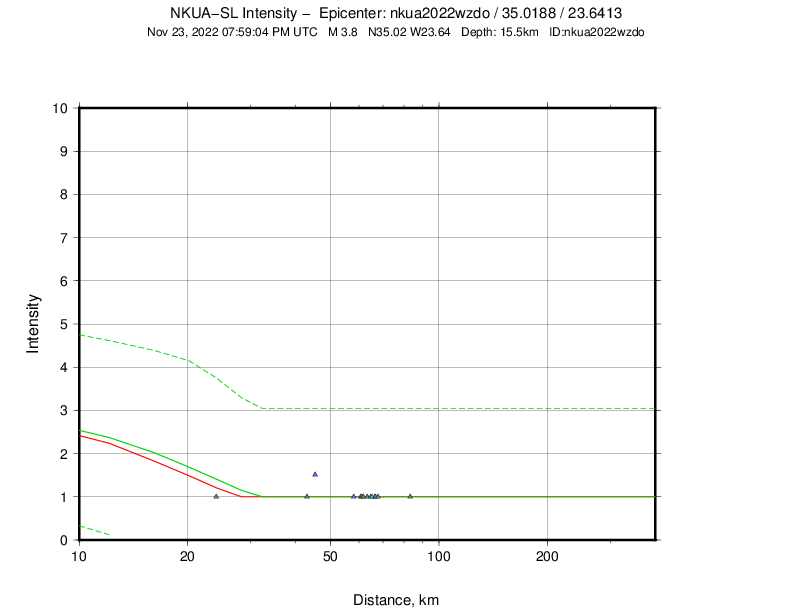

MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
KNDRHC28.5 3 P19:59:10.77 -0.31.0M
KNDRHC28.5 3 S19:59:16.71 0.51.0M
GVDHL46.6109 P19:59:12.66 -0.81.0M
GVDHL46.6109 S19:59:20.36 0.11.0M
GVDSHC44.1111 P19:59:12.31 -0.81.0M
GVDSHC44.1111 S19:59:19.13 -0.61.0M
CHANHC72.0 34 P19:59:17.49 0.51.0M
CHANHC72.0 34 S19:59:27.11 0.51.0M
IMMVHL63.5 33 P19:59:16.02 0.21.0M
RODPHC66.1 12 P19:59:16.62 0.51.0M
RODPHC66.1 12 S19:59:24.93 -0.21.0M
IMODHC108.8 90 P19:59:22.54 0.21.0M
IMODHC108.8 90 S19:59:36.19 0.11.0M

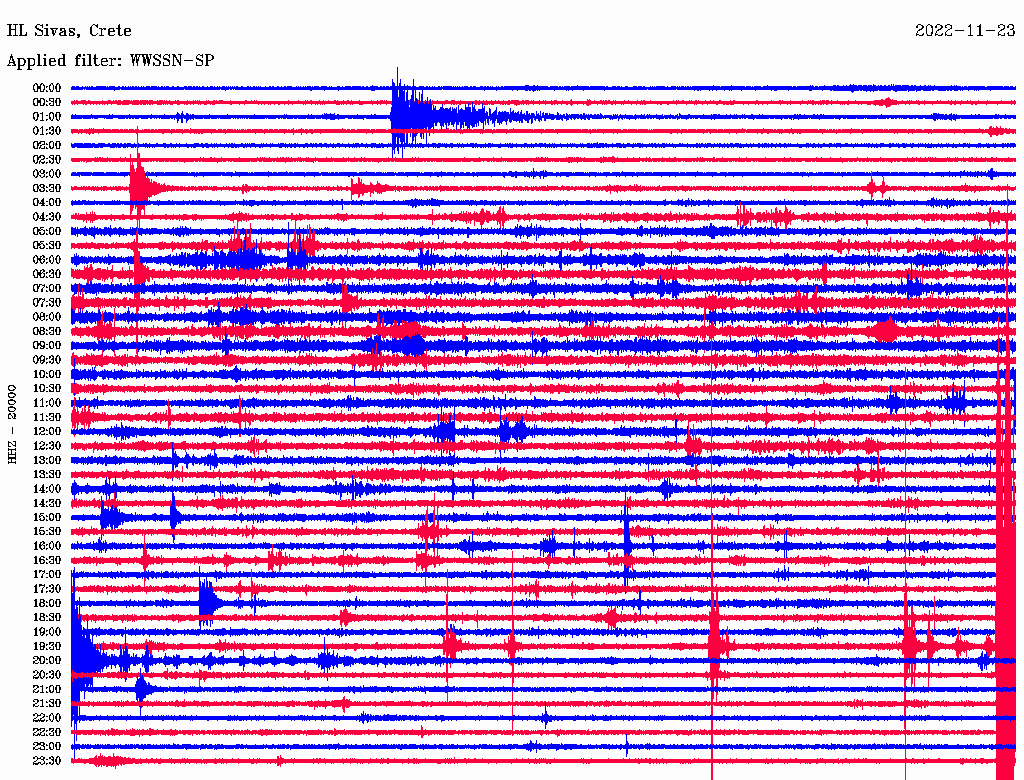

SIVAHL110.0 88 P19:59:21.61 -0.91.0M
SIVAHL110.0 88 S19:59:36.81 0.51.0M
IDIMN121.7 74 P19:59:24.18 0.11.0M
IDIMN121.7 74 S19:59:39.41 0.31.0M
KNSSHC147.7 76 P19:59:28.27 0.91.0M
KNSSHC147.7 76 S19:59:45.23 0.41.0M
TEFLHC142.4 85 P19:59:27.24 0.51.0M
TEFLHC142.4 85 S19:59:43.43 -0.31.0M
KTHAHL150.3341 P19:59:28.26 0.61.0M

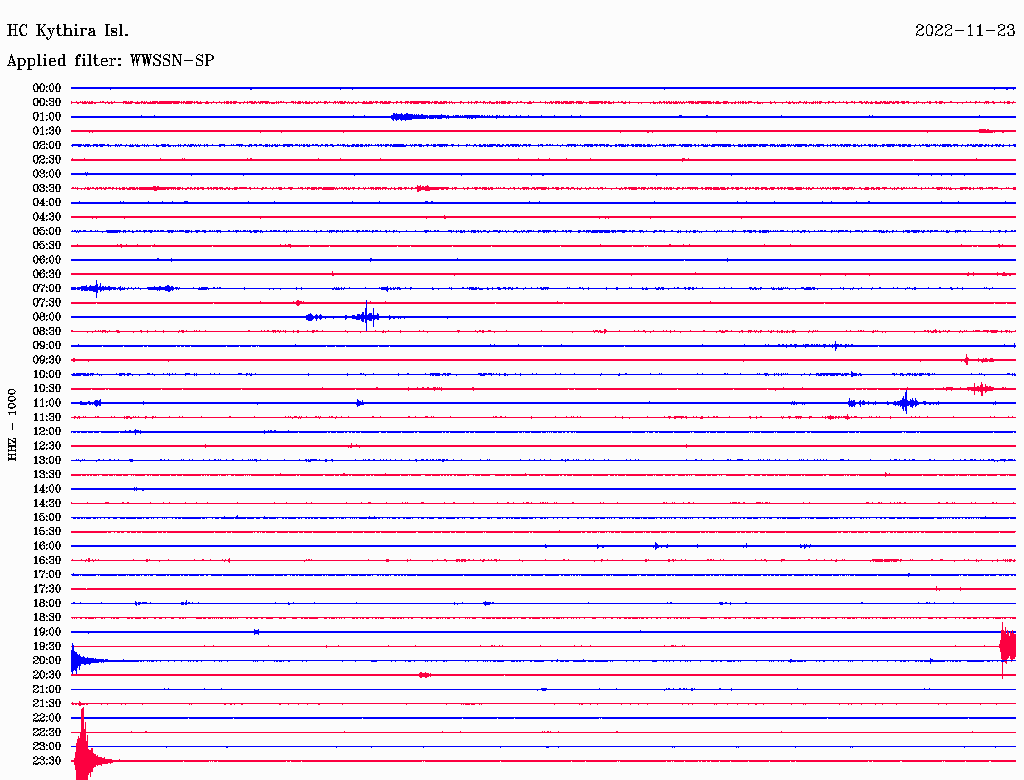

KTHRHC151.2338 P19:59:28.09 0.31.0M
KTHRHC151.2338 S19:59:45.72 0.21.0M
PFKSHC170.2 88 P19:59:30.77 0.41.0M
PFKSHC170.2 88 S19:59:49.88 -0.21.0M
NPSHL185.0 80 P19:59:32.84 0.71.0M
VLIHL202.3343 P19:59:34.84 0.61.0M
VLIHL202.3343 S19:59:57.02 0.01.0M
GR321Y228.0346 P19:59:37.80 0.31.0M
GR321Y228.0346 S20:00:02.83 0.11.0M
SAP3HL225.6 44 P19:59:36.79 -0.51.0M
SAP3HL225.6 44 S20:00:02.51 0.11.0M
SNT5HA226.3 46 P19:59:36.96 -0.41.0M
SNT5HA226.3 46 S20:00:02.42 -0.11.0M

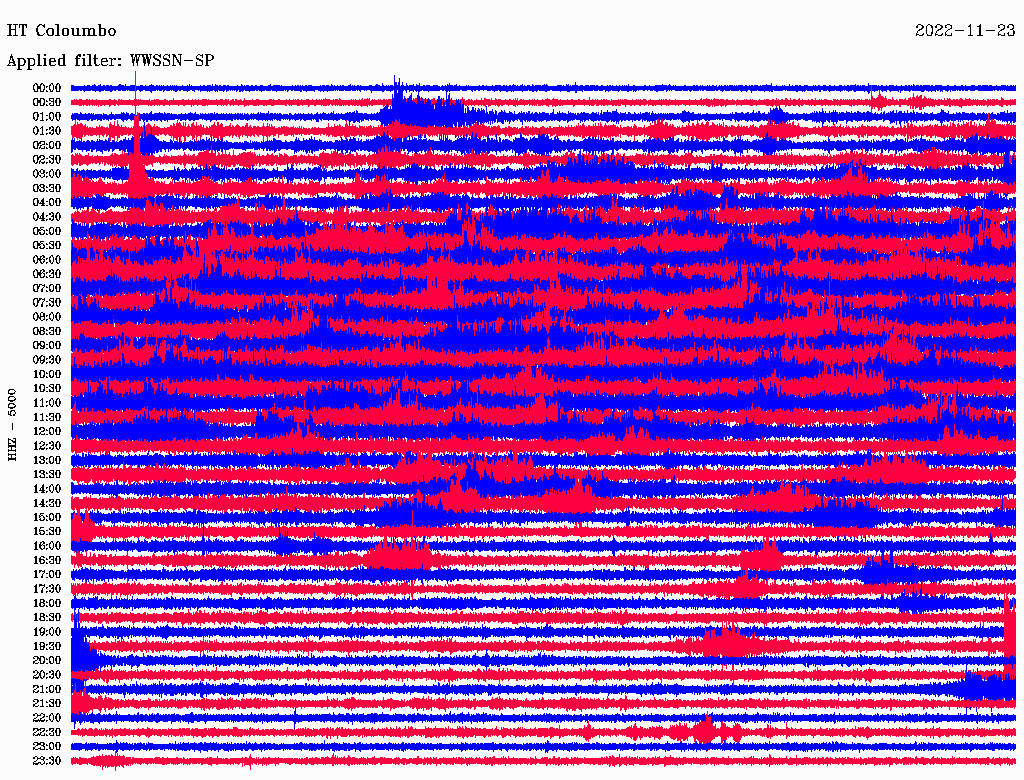

CMBOHT232.2 45 P19:59:37.85 -0.31.0M
CMBOHT232.2 45 S20:00:03.49 -0.31.0M

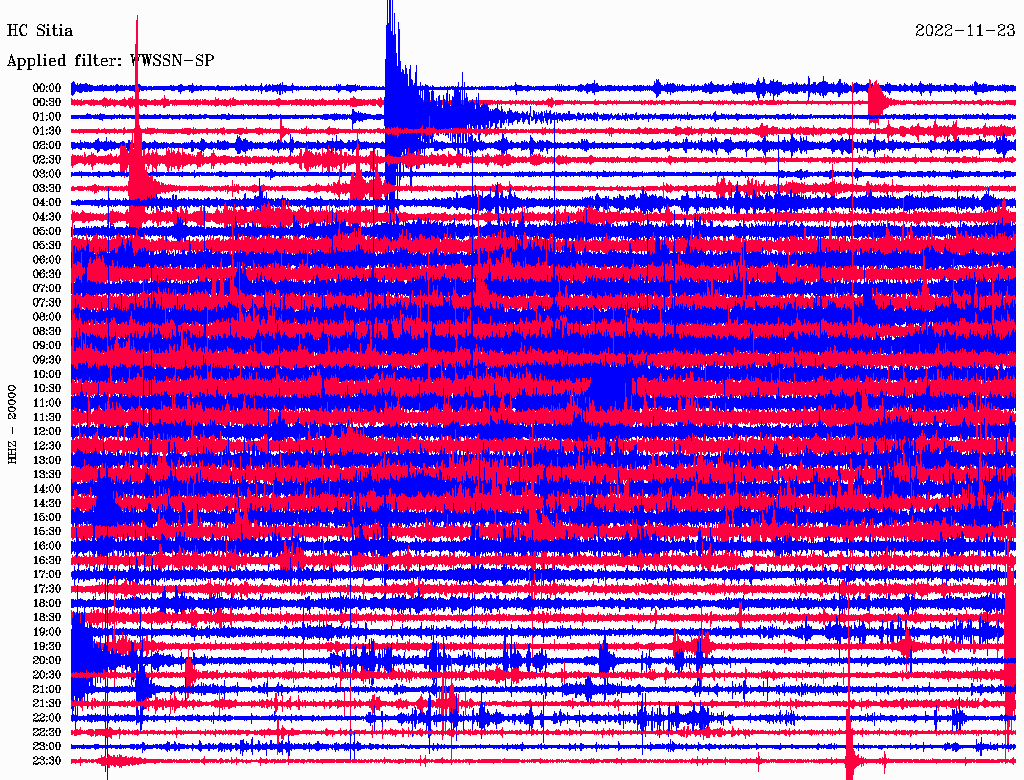

STIAHC227.5 84 P19:59:38.68 1.11.0M
THERAHL228.8 48 P19:59:36.93 -0.81.0M
THERAHL228.8 48 S20:00:02.87 -0.21.0M
ZKRHL238.2 86 P19:59:39.25 0.21.0M
ZKRHL238.2 86 S20:00:04.98 -0.31.0M
SERIHA255.2 18 P19:59:40.03 -1.11.0M
SERIHA255.2 18 S20:00:08.76 -0.21.0M
KRNDHT270.4351 P19:59:43.12 0.11.0M
KRNDHT270.4351 S20:00:12.17 -0.21.0M
YDRAHL263.9357 P19:59:42.00 -0.11.0M
YDRAHL263.9357 S20:00:10.61 -0.21.0M

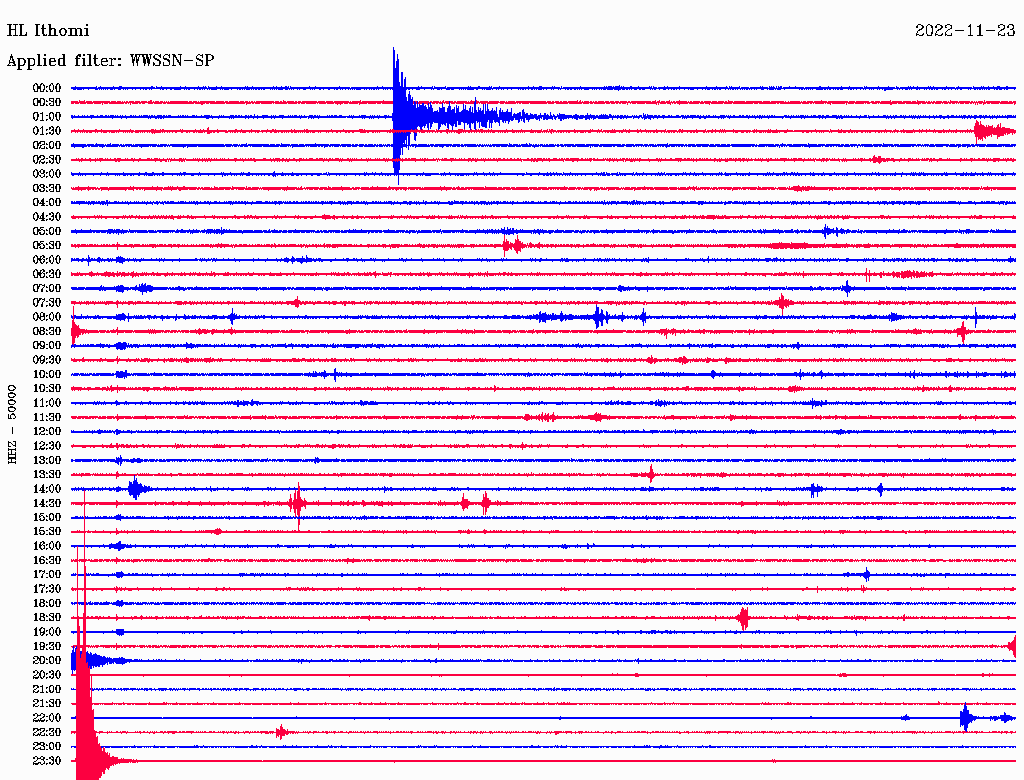

ITMHL287.5328 P19:59:44.81 -0.41.0M
EPIDHA296.3351 P19:59:46.00 -0.31.0M
EPIDHA296.3351 S20:00:17.97 -0.31.0M
GR301Y297.4342 P19:59:47.03 0.51.0M
GR301Y297.4342 S20:00:18.29 -0.21.0M

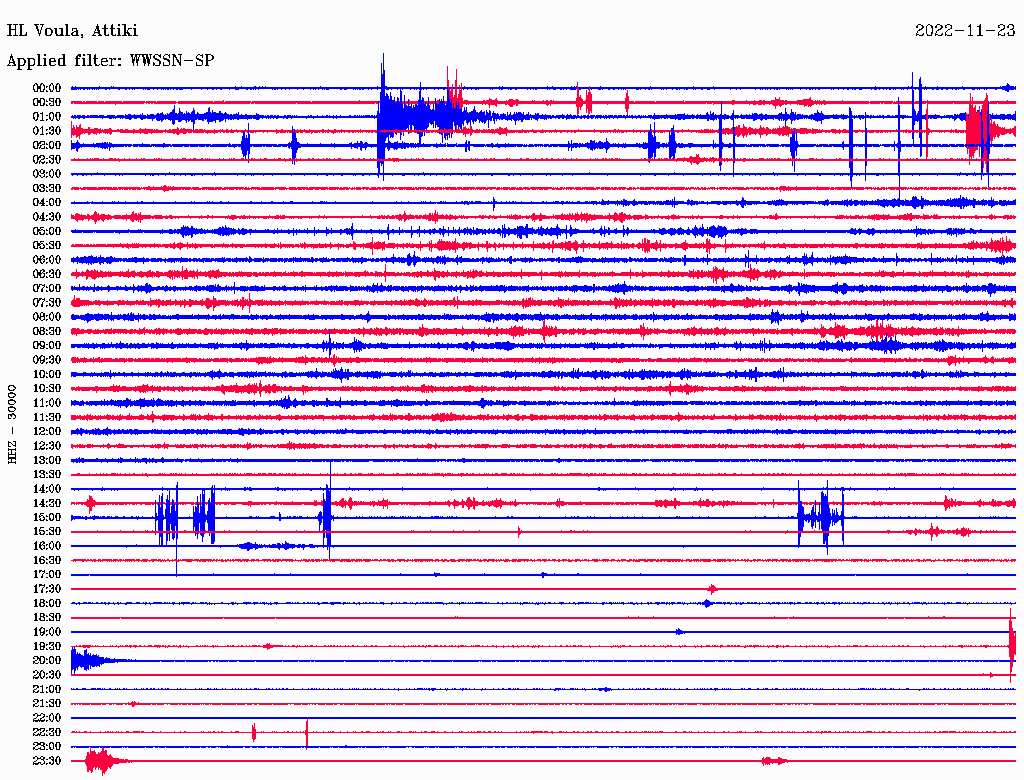

VLYHL320.0 3 P19:59:48.30 -1.01.0M
VLYHL320.0 3 S20:00:23.14 -0.41.0M

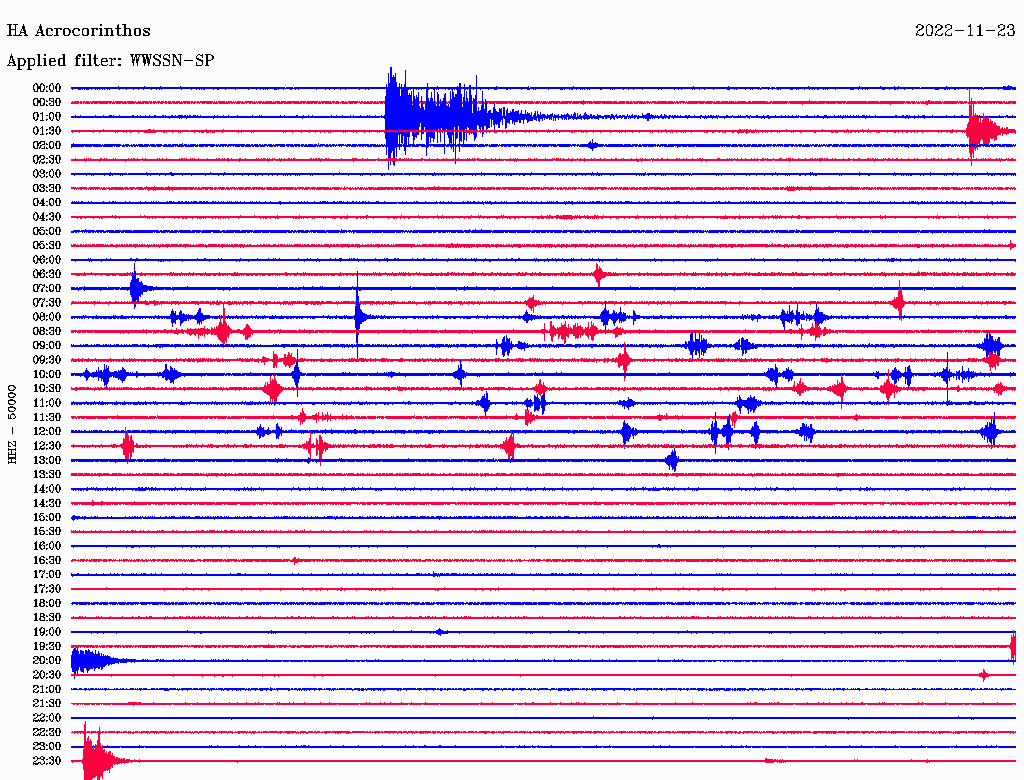

ACORHA330.4348 P19:59:50.17 -0.51.0M
ACORHA330.4348 S20:00:25.37 -0.61.0M


  Solution details

Event:
    Public ID              nkua2022wzdo
    Description
      region name: Crete, Greece
Origin:
    Date                   2022-11-23
    Time                  19:59:04.33
    Latitude              34.9788 deg  +/-      1 km
    Longitude             23.6058 deg  +/-      1 km
    Depth                      29 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.46 s
    Azimuthal gap             218 deg

2 Network magnitudes:
    MLv       3.65 +/- 0.20  27
    M         3.65           27 preferred

57 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KNDR  HC    0.3   3  P       19:59:10.77  -0.3 M  1.0  KNDR
    KNDR  HC    0.3   3  S       19:59:16.71   0.5 M  1.0  KNDR
    GVDS  HC    0.4 111  P       19:59:12.31  -0.8 M  1.0  GVDS
    GVDS  HC    0.4 111  S       19:59:19.13  -0.6 M  1.0  GVDS
    GVD   HL    0.4 109  P       19:59:12.66  -0.8 M  1.0  GVD
    GVD   HL    0.4 109  S       19:59:20.36   0.1 M  1.0  GVD

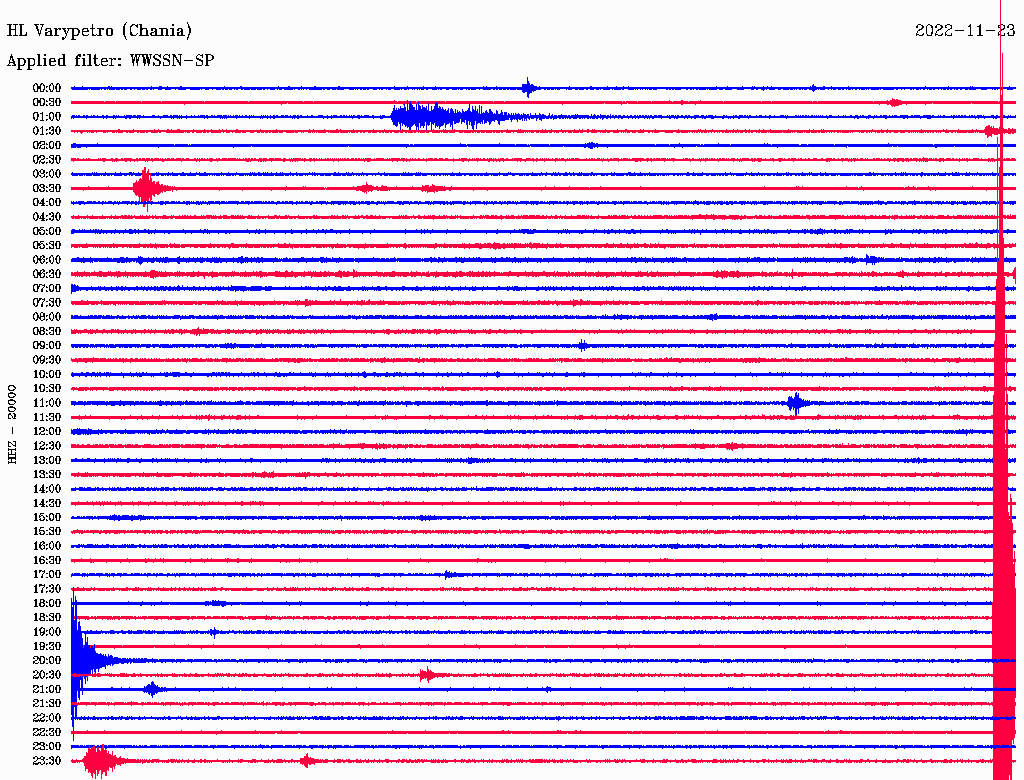

    IMMV  HL    0.6  33  P       19:59:16.02   0.2 M  1.0  IMMV

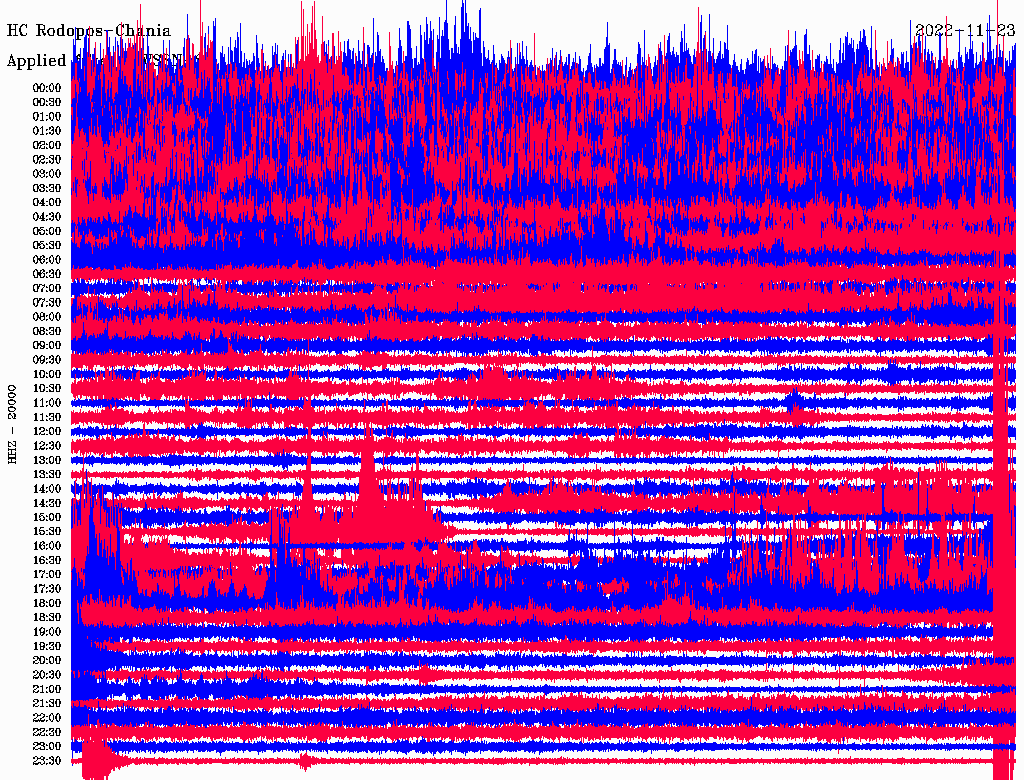

    RODP  HC    0.6  12  P       19:59:16.62   0.5 M  1.0  RODP
    RODP  HC    0.6  12  S       19:59:24.93  -0.2 M  1.0  RODP
    CHAN  HC    0.6  34  P       19:59:17.49   0.5 M  1.0  CHAN
    CHAN  HC    0.6  34  S       19:59:27.11   0.5 M  1.0  CHAN
    IMOD  HC    1.0  90  P       19:59:22.54   0.2 M  1.0  IMOD
    IMOD  HC    1.0  90  S       19:59:36.19   0.1 M  1.0  IMOD
    SIVA  HL    1.0  88  P       19:59:21.61  -0.9 M  1.0  SIVA
    SIVA  HL    1.0  88  S       19:59:36.81   0.5 M  1.0  SIVA

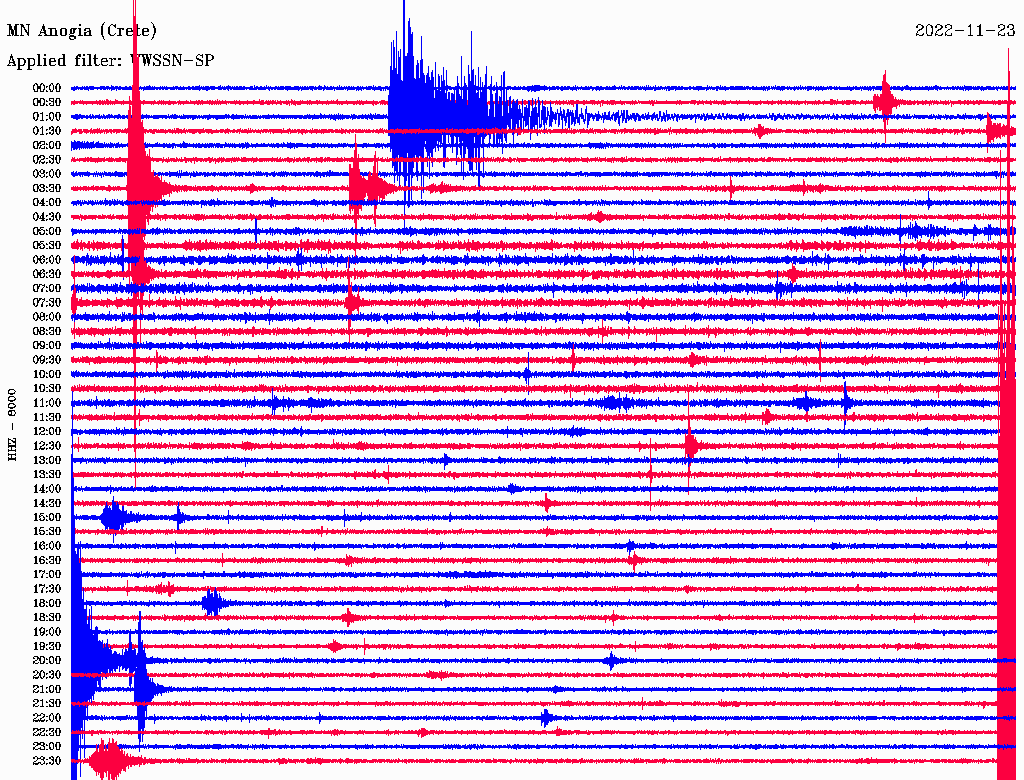

    IDI   MN    1.1  74  P       19:59:24.18   0.1 M  1.0  IDI
    IDI   MN    1.1  74  S       19:59:39.41   0.3 M  1.0  IDI

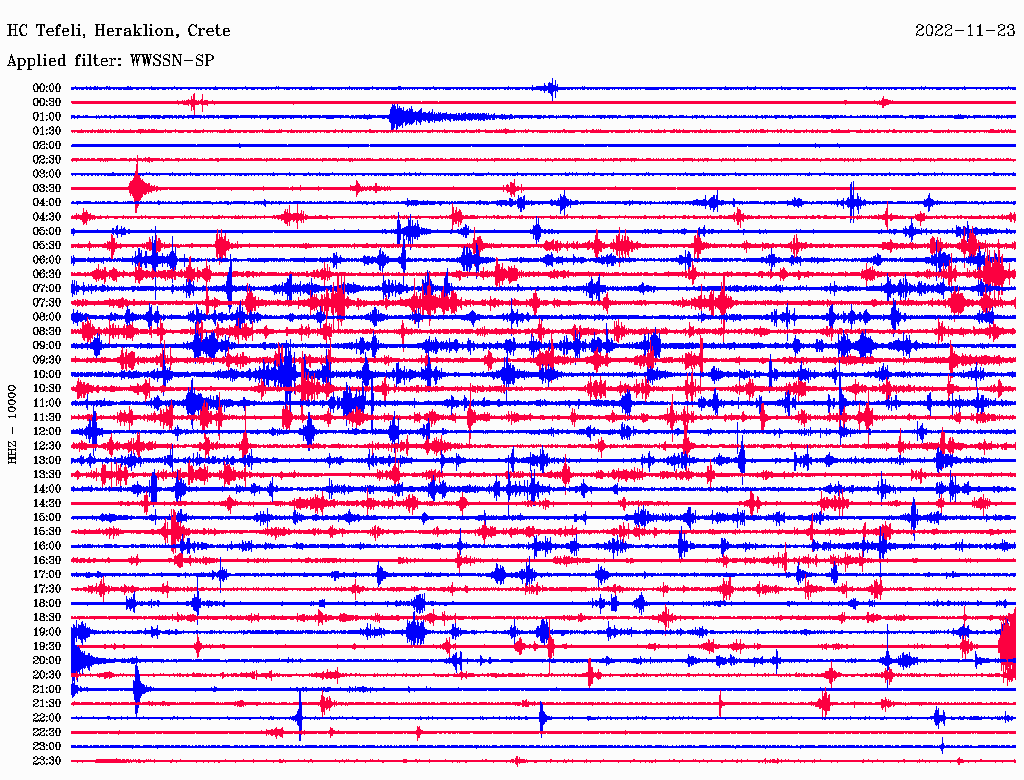

    TEFL  HC    1.3  85  P       19:59:27.24   0.5 M  1.0  TEFL
    TEFL  HC    1.3  85  S       19:59:43.43  -0.3 M  1.0  TEFL
    KNSS  HC    1.3  76  P       19:59:28.27   0.9 M  1.0  KNSS
    KNSS  HC    1.3  76  S       19:59:45.23   0.4 M  1.0  KNSS
    KTHA  HL    1.4 341  P       19:59:28.26   0.6 M  1.0  KTHA
    KTHR  HC    1.4 338  P       19:59:28.09   0.3 M  1.0  KTHR
    KTHR  HC    1.4 338  S       19:59:45.72   0.2 M  1.0  KTHR
    PFKS  HC    1.5  88  P       19:59:30.77   0.4 M  1.0  PFKS
    PFKS  HC    1.5  88  S       19:59:49.88  -0.2 M  1.0  PFKS

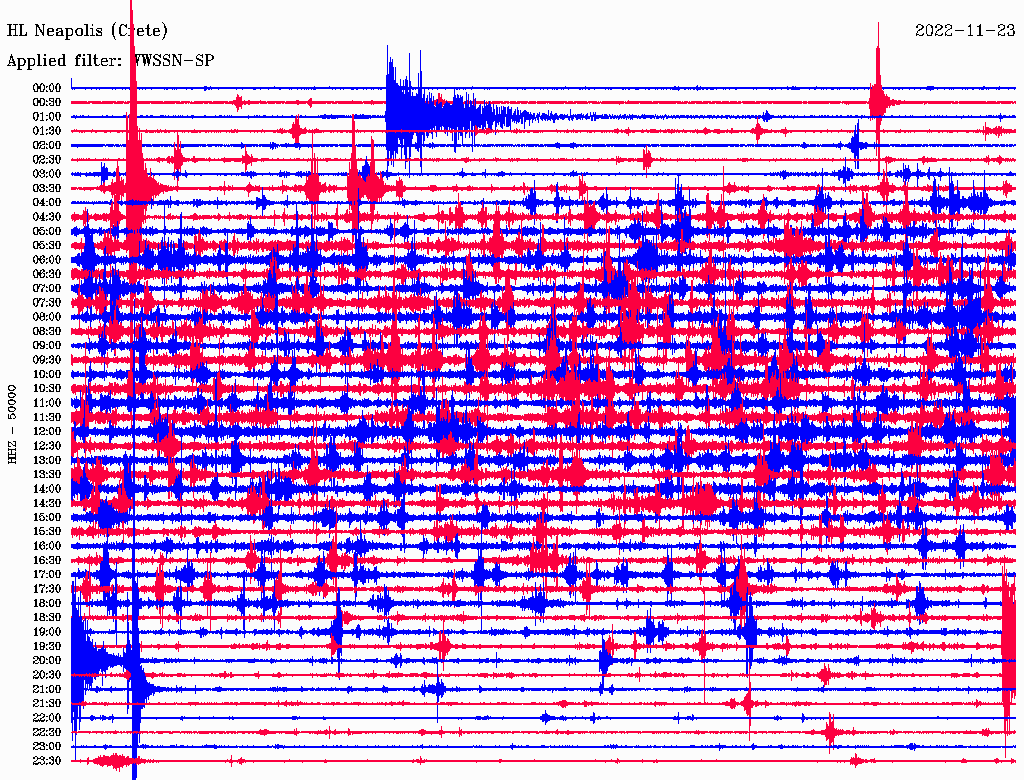

    NPS   HL    1.7  80  P       19:59:32.84   0.7 M  1.0  NPS
    VLI   HL    1.8 343  P       19:59:34.84   0.6 M  1.0  VLI
    VLI   HL    1.8 343  S       19:59:57.02   0.0 M  1.0  VLI

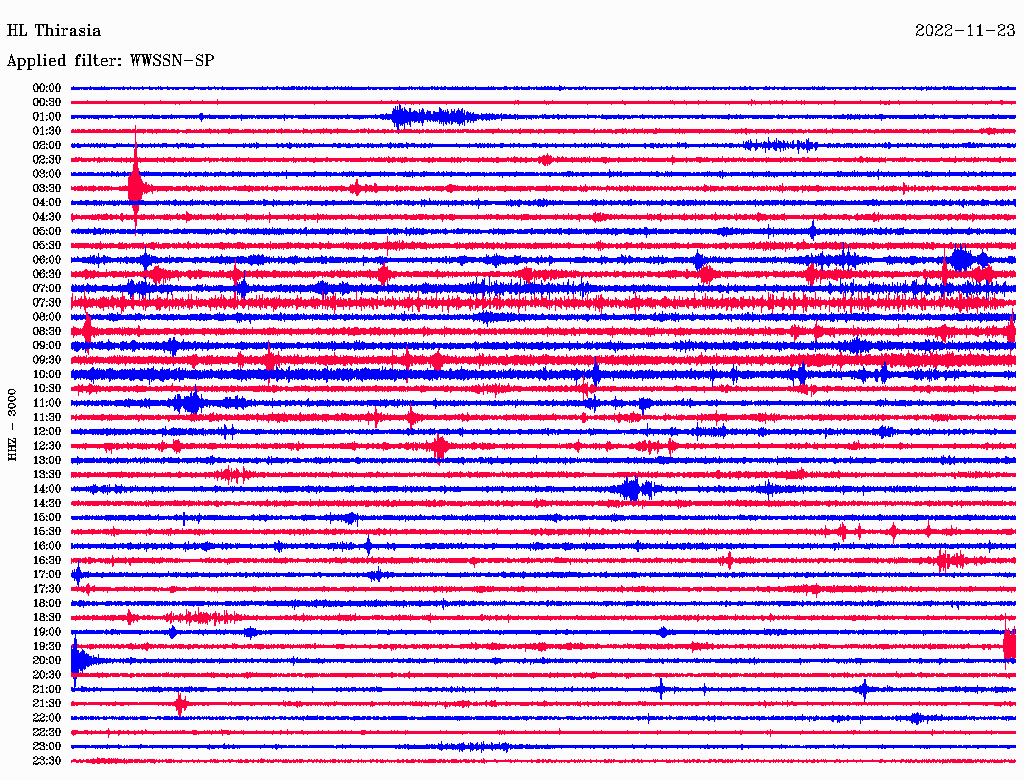

    SAP3  HL    2.0  44  P       19:59:36.79  -0.5 M  1.0  SAP3
    SAP3  HL    2.0  44  S       20:00:02.51   0.1 M  1.0  SAP3
    SNT5  HA    2.0  46  P       19:59:36.96  -0.4 M  1.0  SNT5
    SNT5  HA    2.0  46  S       20:00:02.42  -0.1 M  1.0  SNT5
    GR32  1Y    2.0 346  P       19:59:37.80   0.3 M  1.0  GR32
    GR32  1Y    2.0 346  S       20:00:02.83   0.1 M  1.0  GR32
    STIA  HC    2.1  84  P       19:59:38.68   1.1 M  1.0  STIA

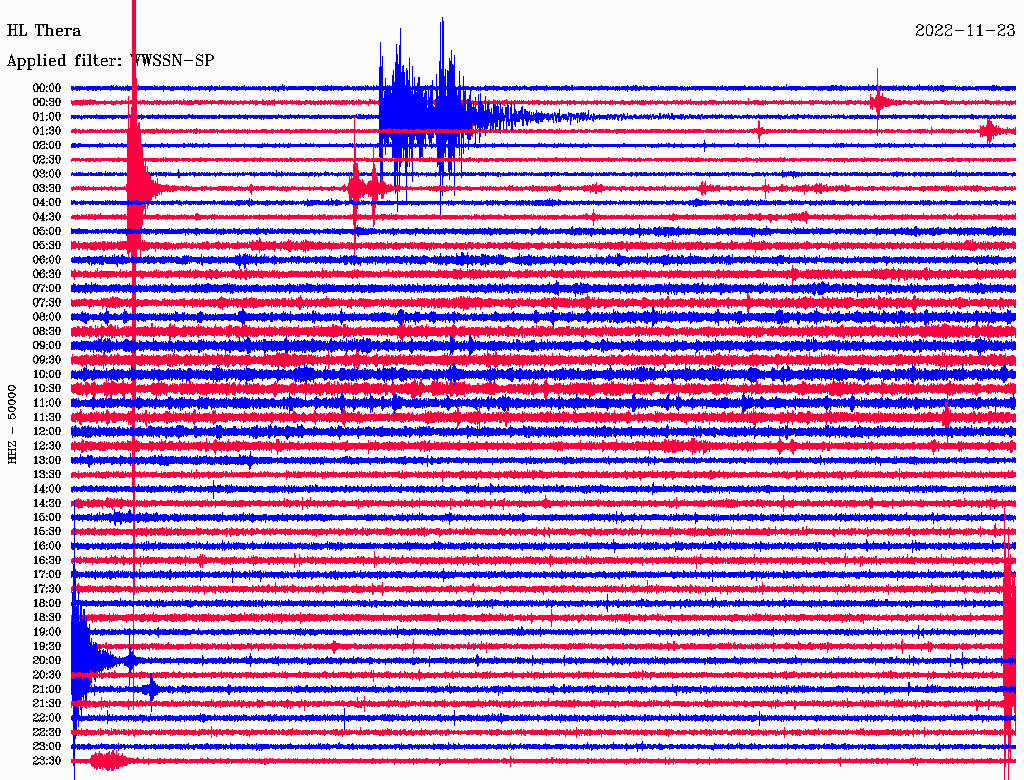

    THERA HL    2.1  48  P       19:59:36.93  -0.8 M  1.0  THERA
    THERA HL    2.1  48  S       20:00:02.87  -0.2 M  1.0  THERA
    CMBO  HT    2.1  45  P       19:59:37.85  -0.3 M  1.0  CMBO
    CMBO  HT    2.1  45  S       20:00:03.49  -0.3 M  1.0  CMBO

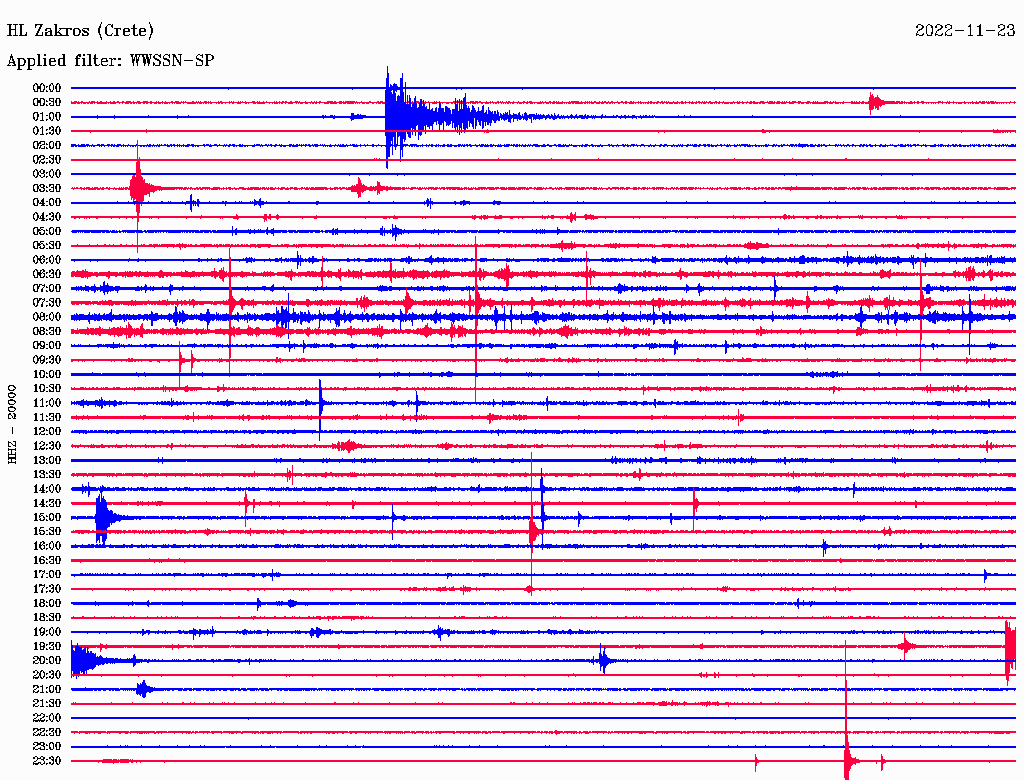

    ZKR   HL    2.1  86  P       19:59:39.25   0.2 M  1.0  ZKR
    ZKR   HL    2.1  86  S       20:00:04.98  -0.3 M  1.0  ZKR

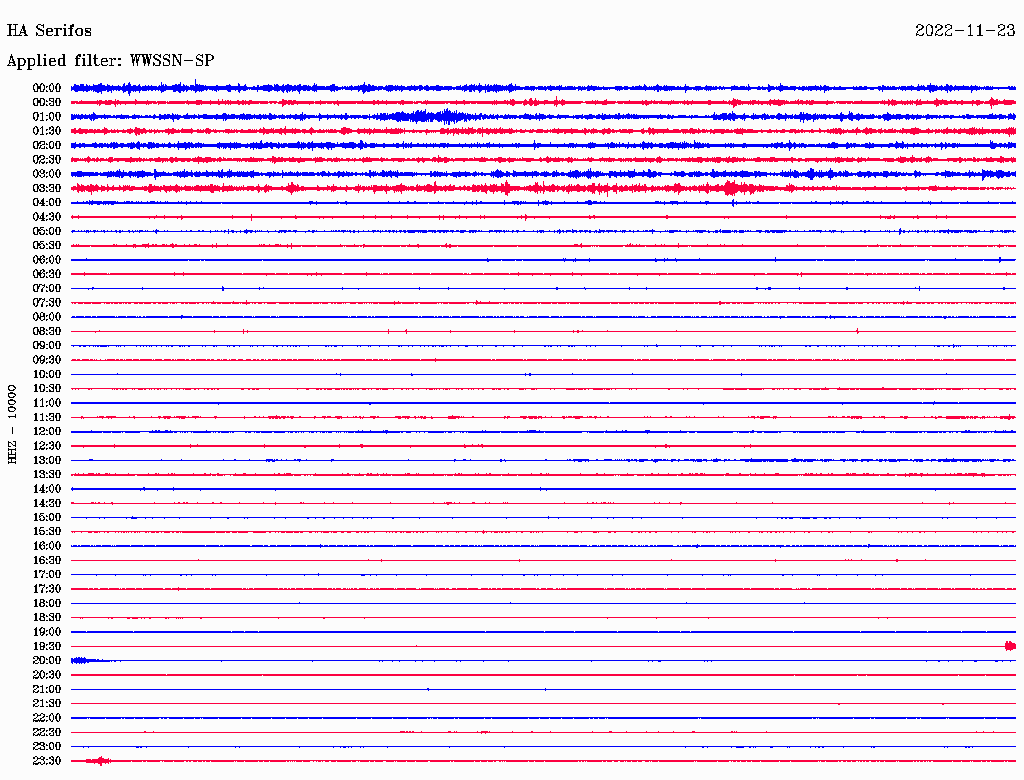

    SERI  HA    2.3  18  P       19:59:40.03  -1.1 M  1.0  SERI
    SERI  HA    2.3  18  S       20:00:08.76  -0.2 M  1.0  SERI

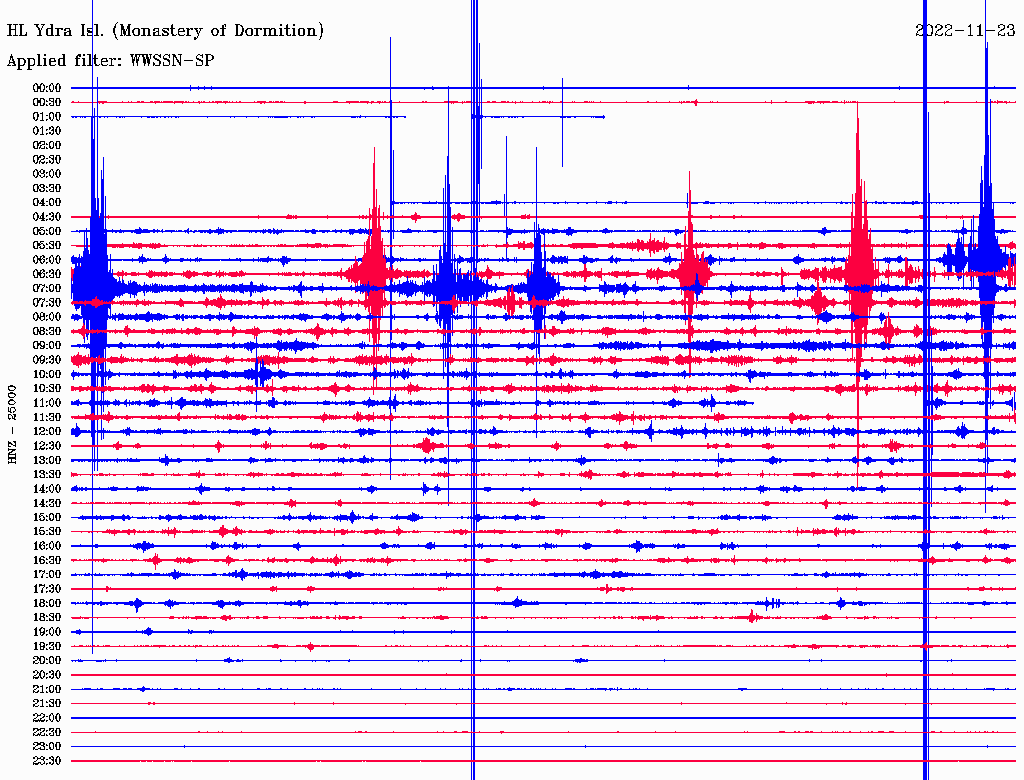

    YDRA  HL    2.4 357  P       19:59:42.00  -0.1 M  1.0  YDRA
    YDRA  HL    2.4 357  S       20:00:10.61  -0.2 M  1.0  YDRA
    KRND  HT    2.4 351  P       19:59:43.12   0.1 M  1.0  KRND
    KRND  HT    2.4 351  S       20:00:12.17  -0.2 M  1.0  KRND
    ITM   HL    2.6 328  P       19:59:44.81  -0.4 M  1.0  ITM
    EPID  HA    2.7 351  P       19:59:46.00  -0.3 M  1.0  EPID
    EPID  HA    2.7 351  S       20:00:17.97  -0.3 M  1.0  EPID
    GR30  1Y    2.7 342  P       19:59:47.03   0.5 M  1.0  GR30
    GR30  1Y    2.7 342  S       20:00:18.29  -0.2 M  1.0  GR30
    VLY   HL    2.9   3  P       19:59:48.30  -1.0 M  1.0  VLY
    VLY   HL    2.9   3  S       20:00:23.14  -0.4 M  1.0  VLY
    ACOR  HA    3.0 348  P       19:59:50.17  -0.5 M  1.0  ACOR
    ACOR  HA    3.0 348  S       20:00:25.37  -0.6 M  1.0  ACOR

31 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KNDR  HC    0.3   3  MLv     3.31 -0.34     31.229
    GVDS  HC    0.4 111  MLv     3.63 -0.02     26.491
    GVD   HL    0.4 109  MLv     3.88  0.23    32.2027
    IMMV  HL    0.6  33  MLv     4.01  0.36    24.6986
    RODP  HC    0.6  12  MLv     3.73  0.08    12.5006
    CHAN  HC    0.6  34  MLv     3.85  0.20    30.8579
    IMOD  HC    1.0  90  MLv     3.81  0.16    9.20218
    SIVA  HL    1.0  88  MLv     3.95  0.30    12.7027
    IDI   MN    1.1  74  MLv     3.53 -0.12    4.21179
    TEFL  HC    1.3  85  MLv     3.72  0.07    5.13242
    KNSS  HC    1.3  76  MLv     3.62 -0.03    3.80777
    KTHA  HL    1.4 341  MLv     3.50 -0.15     2.7909
    KTHR  HC    1.4 338  MLv     3.80  0.15    5.59054
    PFKS  HC    1.5  88  MLv     3.35 -0.30    1.58468
    NPS   HL    1.7  80  MLv     3.37 -0.28    1.38317
    VLI   HL    1.8 343  MLv     3.43 -0.22    1.70799
    SAP3  HL    2.0  44  MLv     4.05  0.40    6.90158
    SNT5  HA    2.0  46  MLv     3.83  0.18    1.47694
    GR32  1Y    2.0 346  MLv     3.37 -0.28   0.856611
    STIA  HC    2.1  84  MLv     3.67  0.02    1.70389
    THERA HL    2.1  48  MLv     3.54 -0.11    1.24441
    CMBO  HT    2.1  45  MLv     4.31  0.66    7.04871
    ZKR   HL    2.1  86  MLv     3.46 -0.19    0.93625
    SERI  HA    2.3  18  MLv     3.32 -0.33   0.553901
    YDRA  HL    2.4 357  MLv     3.43 -0.22   0.652576
    KRND  HT    2.4 351  MLv     3.49 -0.16     0.6923
    ITM   HL    2.6 328  MLv     3.58 -0.07   0.699328
    EPID  HA    2.7 351  MLv     3.55 -0.10   0.584462
    GR30  1Y    2.7 342  MLv     3.46 -0.19   0.470933
    VLY   HL    2.9   3  MLv     3.73  0.08   0.670324
    ACOR  HA    3.0 348  MLv     3.55 -0.10   0.393823
