Earthquake Information
 Origin Time
2022-11-20 23:25:00 (GMT)
 Magnitude
M 5.6
 Latitude
35.8413° N
 Longitude
26.4487° E
 Focal Depth
70 km
 # of Arrivals
98
 Location 65.8 km WNW of Karpathos
111.4 km SE of Thira
339.1 km SE of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.

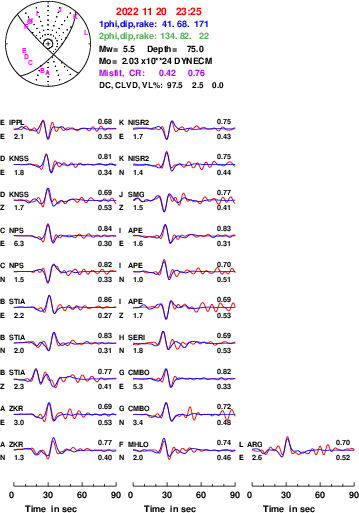

  Focal Mechanism (automatic solution)

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
13221139 3.53E+23

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
35.841526.43599.05.0

Source parameters determination

Click here for detailed focal mechanism automatic solution

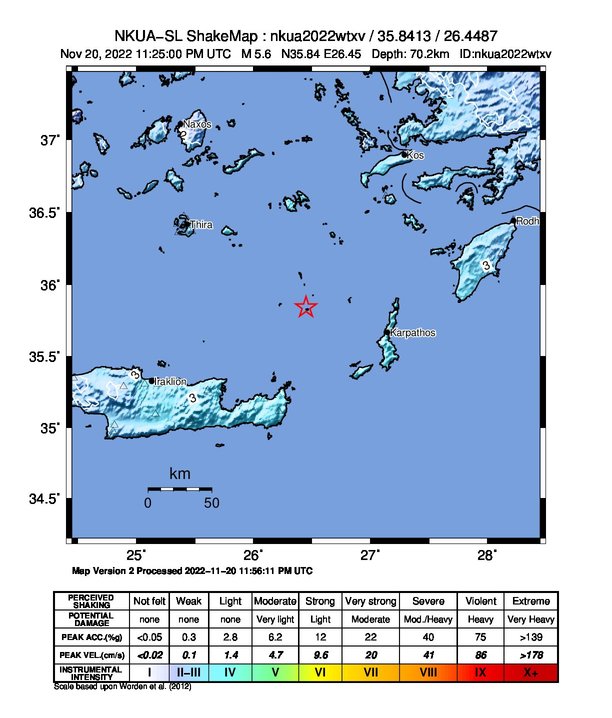

  Intensity map

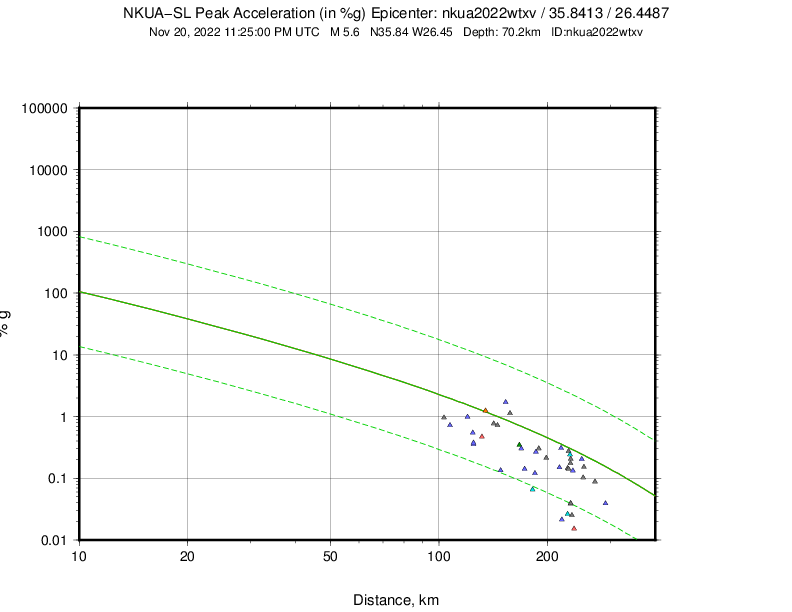

PGA
PGV

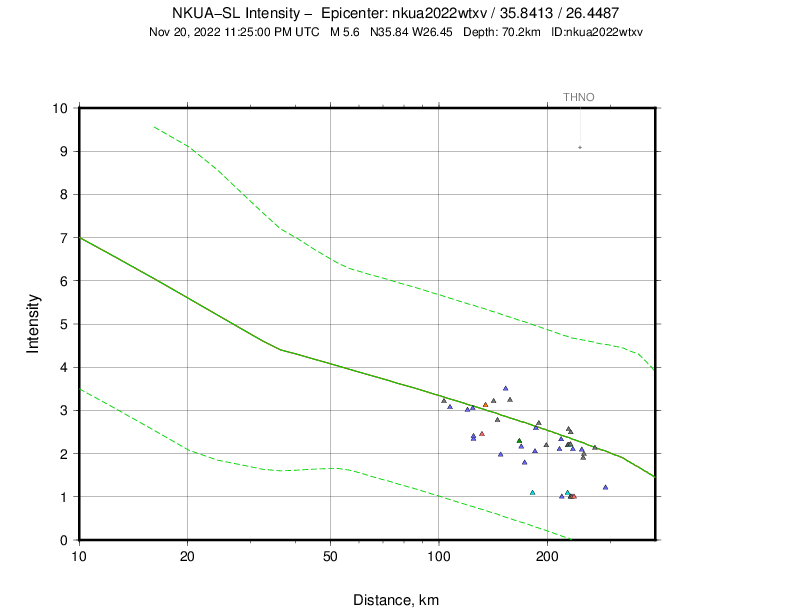

MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
KSS1HI63.4138 P23:25:14.06 -0.11.0M
KSS1HI63.4138 S23:25:24.49 -0.11.0M
STIAHC78.1205 P23:25:15.62 0.01.0M
STIAHC78.1205 S23:25:26.29 -0.81.0M
ZKRHL83.5195 P23:25:16.65 0.51.0M
ZKRHL83.5195 S23:25:28.30 0.11.0M
NISRHL105.2 36 P23:25:19.02 0.51.0M
NISRHL105.2 36 S23:25:32.79 0.41.0M
NISR2HL104.5 39 P23:25:19.16 0.61.0M
NPSHL99.6230 P23:25:17.78 -0.21.0M
NPSHL99.6230 S23:25:30.11 -1.21.0M
THERAHL105.2304 P23:25:18.82 0.21.0M
THERAHL105.2304 S23:25:31.95 -0.51.0M
SNT5HA113.4303 P23:25:19.85 0.31.0M
SNT5HA113.4303 S23:25:34.34 0.31.0M
THR8HT107.4306 P23:25:18.80 0.01.0M
CMBOHT116.9307 P23:25:20.29 0.31.0M
CMBOHT116.9307 S23:25:34.56 -0.21.0M
PFKSHC125.2225 P23:25:21.22 0.21.0M
PFKSHC125.2225 S23:25:36.52 -0.21.0M
IACMHL138.1245 P23:25:22.49 0.01.0M
IACMHL138.1245 S23:25:39.23 0.01.0M
KLNAHL132.6 21 P23:25:21.74 0.01.0M
KLNAHL132.6 21 S23:25:37.78 -0.21.0M
KNSSHC129.3243 P23:25:21.43 0.01.0M
KNSSHC129.3243 S23:25:36.33 -1.11.0M
TEFLHC143.1235 P23:25:23.38 0.31.0M
TEFLHC143.1235 S23:25:39.80 -0.61.0M
APEHL160.0329 P23:25:25.34 0.11.0M
APEHL160.0329 S23:25:43.54 -0.51.0M
ARGHL156.0 75 P23:25:24.98 0.31.0M
ARGHL156.0 75 S23:25:42.39 -0.71.0M
IDIMN153.8247 P23:25:24.14 -0.41.0M
IDIMN153.8247 S23:25:42.20 -0.61.0M
NAX1HI169.9325 P23:25:27.35 1.01.0M
NAX1HI169.9325 S23:25:46.20 0.21.0M
IMODHC177.9237 P23:25:28.52 1.11.0M
IMODHC177.9237 S23:25:48.02 0.11.0M
RODBHL172.8 67 P23:25:26.02 -0.71.0M
RODBHL172.8 67 S23:25:46.34 -0.41.0M
SIVAHL174.3238 P23:25:26.73 -0.21.0M
SIVAHL174.3238 S23:25:46.97 -0.11.0M
IPPLHC187.7253 P23:25:28.25 -0.41.0M
IPPLHC187.7253 S23:25:49.62 -0.41.0M
MHLOHL206.3297 P23:25:31.62 0.71.0M
MHLOHL206.3297 S23:25:54.54 0.41.0M
SMGHL210.0 10 P23:25:31.26 -0.11.0M
SMGHL210.0 10 S23:25:54.51 -0.31.0M
CH01HI222.2261 P23:25:33.00 0.11.0M
CHANHC220.2261 P23:25:32.47 -0.21.0M
CHANHC220.2261 S23:25:56.75 -0.51.0M
IMMVHL226.9259 P23:25:33.42 -0.11.0M
KRL1HI218.5 6 P23:25:32.52 0.21.0M
KRL1HI218.5 6 S23:25:56.60 0.01.0M
THNOHC238.3328 P23:25:35.43 0.51.0M
THNOHC238.3328 S23:26:01.04 -0.11.0M
GVDHL241.4243 P23:25:36.08 0.71.0M
GVDHL241.4243 S23:26:01.76 -0.21.0M
GVDSHC243.8243 P23:25:36.44 0.81.0M
GVDSHC243.8243 S23:26:02.12 -0.41.0M
RODPHC245.0263 P23:25:35.54 -0.31.0M
RODPHC245.0263 S23:26:02.60 -0.21.0M
KNDRHC264.3255 P23:25:39.25 1.01.0M
KNDRHC264.3255 S23:26:06.61 -0.41.0M
ANKYHL283.7271 P23:25:40.15 -0.61.0M
ANKYHL283.7271 S23:26:10.92 -0.51.0M
KARYHA302.2324 P23:25:43.81 0.81.0M
KARYHA302.2324 S23:26:14.88 -0.51.0M
KTHAHL307.9279 P23:25:43.69 -0.21.0M
KTHAHL307.9279 S23:26:16.03 -0.81.0M
KTHRHC313.8278 P23:25:44.14 -0.51.0M
NPS1HI312.9284 P23:25:44.16 -0.31.0M
NPS1HI312.9284 S23:26:17.53 -0.41.0M
GR271Y326.3323 P23:25:46.49 0.51.0M
GR271Y326.3323 S23:26:20.03 -0.71.0M
MNVAHL320.0287 P23:25:45.43 0.11.0M
MNVAHL320.0287 S23:26:18.86 -0.61.0M
VLYHL325.2313 P23:25:46.59 0.61.0M
VLYHL325.2313 S23:26:19.89 -0.71.0M
ATH5HI338.3314 P23:25:47.63 0.01.0M
ATH5HI338.3314 S23:26:22.87 -0.61.0M
GR321Y334.1292 P23:25:47.40 0.31.0M
GR321Y334.1292 S23:26:21.95 -0.71.0M
MRTHHA337.6319 P23:25:48.44 0.91.0M
MRTHHA337.6319 S23:26:22.77 -0.51.0M
PTLHL336.0317 P23:25:48.10 0.71.0M
VLIHL328.7287 P23:25:46.39 -0.11.0M
VLIHL328.7287 S23:26:20.38 -1.11.0M
ATHHL339.4314 P23:25:48.63 0.91.0M
ATHHL339.4314 S23:26:23.55 -0.21.0M
KRNDHT340.6300 P23:25:48.62 0.71.0M
KRNDHT340.6300 S23:26:23.93 -0.21.0M
NOACHL339.4314 P23:25:48.68 0.91.0M
ERTRHA370.2320 P23:25:52.42 0.81.0M
PRKHL378.9358 P23:25:52.15 -0.51.0M
PRKHL378.9358 S23:26:31.31 -1.11.0M
GR301Y392.5298 P23:25:55.36 0.71.0M
GR301Y392.5298 S23:26:35.40 -0.51.0M


  Solution details

Event:
    Public ID              nkua2022wtxv
    Type                   earthquake
    Description
      region name: Crete, Greece
Origin:
    Date                   2022-11-20
    Time                  23:25:00.42
    Latitude              35.8413 deg  +/-      0 km
    Longitude             26.4487 deg  +/-      0 km
    Depth                      70 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.42 s
    Azimuthal gap              63 deg

2 Network magnitudes:
    MLv       5.60 +/- 0.24  40
    M         5.60           40 preferred

98 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KSS1  HI    0.6 138  P       23:25:14.06  -0.1 M  1.0  KSS1
    KSS1  HI    0.6 138  S       23:25:24.49  -0.1 M  1.0  KSS1
    STIA  HC    0.7 205  P       23:25:15.62   0.0 M  1.0  STIA
    STIA  HC    0.7 205  S       23:25:26.29  -0.8 M  1.0  STIA
    ZKR   HL    0.7 195  P       23:25:16.65   0.5 M  1.0  ZKR
    ZKR   HL    0.7 195  S       23:25:28.30   0.1 M  1.0  ZKR
    NPS   HL    0.9 230  P       23:25:17.78  -0.2 M  1.0  NPS
    NPS   HL    0.9 230  S       23:25:30.11  -1.2 M  1.0  NPS
    NISR2 HL    0.9  39  P       23:25:19.16   0.6 M  1.0  NISR2
    NISR  HL    0.9  36  P       23:25:19.02   0.5 M  1.0  NISR
    NISR  HL    0.9  36  S       23:25:32.79   0.4 M  1.0  NISR
    THERA HL    0.9 304  P       23:25:18.82   0.2 M  1.0  THERA
    THERA HL    0.9 304  S       23:25:31.95  -0.5 M  1.0  THERA
    THR8  HT    1.0 306  P       23:25:18.80  -0.0 M  1.0  THR8
    SNT5  HA    1.0 303  P       23:25:19.85   0.3 M  1.0  SNT5
    SNT5  HA    1.0 303  S       23:25:34.34   0.3 M  1.0  SNT5
    CMBO  HT    1.1 307  P       23:25:20.29   0.3 M  1.0  CMBO
    CMBO  HT    1.1 307  S       23:25:34.56  -0.2 M  1.0  CMBO
    PFKS  HC    1.1 225  P       23:25:21.22   0.2 M  1.0  PFKS
    PFKS  HC    1.1 225  S       23:25:36.52  -0.2 M  1.0  PFKS
    KNSS  HC    1.2 243  P       23:25:21.43  -0.0 M  1.0  KNSS
    KNSS  HC    1.2 243  S       23:25:36.33  -1.1 M  1.0  KNSS
    KLNA  HL    1.2  21  P       23:25:21.74  -0.0 M  1.0  KLNA
    KLNA  HL    1.2  21  S       23:25:37.78  -0.2 M  1.0  KLNA
    IACM  HL    1.2 245  P       23:25:22.49   0.0 M  1.0  IACM
    IACM  HL    1.2 245  S       23:25:39.23  -0.0 M  1.0  IACM
    TEFL  HC    1.3 235  P       23:25:23.38   0.3 M  1.0  TEFL
    TEFL  HC    1.3 235  S       23:25:39.80  -0.6 M  1.0  TEFL
    IDI   MN    1.4 247  P       23:25:24.14  -0.4 M  1.0  IDI
    IDI   MN    1.4 247  S       23:25:42.20  -0.6 M  1.0  IDI
    ARG   HL    1.4  75  P       23:25:24.98   0.3 M  1.0  ARG
    ARG   HL    1.4  75  S       23:25:42.39  -0.7 M  1.0  ARG
    APE   HL    1.4 329  P       23:25:25.34   0.1 M  1.0  APE
    APE   HL    1.4 329  S       23:25:43.54  -0.5 M  1.0  APE
    NAX1  HI    1.5 325  P       23:25:27.35   1.0 M  1.0  NAX1
    NAX1  HI    1.5 325  S       23:25:46.20   0.2 M  1.0  NAX1
    RODB  HL    1.6  67  P       23:25:26.02  -0.7 M  1.0  RODB
    RODB  HL    1.6  67  S       23:25:46.34  -0.4 M  1.0  RODB
    SIVA  HL    1.6 238  P       23:25:26.73  -0.2 M  1.0  SIVA
    SIVA  HL    1.6 238  S       23:25:46.97  -0.1 M  1.0  SIVA
    IMOD  HC    1.6 237  P       23:25:28.52   1.1 M  1.0  IMOD
    IMOD  HC    1.6 237  S       23:25:48.02   0.1 M  1.0  IMOD
    IPPL  HC    1.7 253  P       23:25:28.25  -0.4 M  1.0  IPPL
    IPPL  HC    1.7 253  S       23:25:49.62  -0.4 M  1.0  IPPL
    MHLO  HL    1.9 297  P       23:25:31.62   0.7 M  1.0  MHLO
    MHLO  HL    1.9 297  S       23:25:54.54   0.4 M  1.0  MHLO
    SMG   HL    1.9  10  P       23:25:31.26  -0.1 M  1.0  SMG
    SMG   HL    1.9  10  S       23:25:54.51  -0.3 M  1.0  SMG
    KRL1  HI    2.0   6  P       23:25:32.52   0.2 M  1.0  KRL1
    KRL1  HI    2.0   6  S       23:25:56.60   0.0 M  1.0  KRL1
    CHAN  HC    2.0 261  P       23:25:32.47  -0.2 M  1.0  CHAN
    CHAN  HC    2.0 261  S       23:25:56.75  -0.5 M  1.0  CHAN
    CH01  HI    2.0 261  P       23:25:33.00   0.1 M  1.0  CH01
    IMMV  HL    2.0 259  P       23:25:33.42  -0.1 M  1.0  IMMV
    THNO  HC    2.1 328  P       23:25:35.43   0.5 M  1.0  THNO
    THNO  HC    2.1 328  S       23:26:01.04  -0.1 M  1.0  THNO
    GVD   HL    2.2 243  P       23:25:36.08   0.7 M  1.0  GVD
    GVD   HL    2.2 243  S       23:26:01.76  -0.2 M  1.0  GVD
    GVDS  HC    2.2 243  P       23:25:36.44   0.8 M  1.0  GVDS
    GVDS  HC    2.2 243  S       23:26:02.12  -0.4 M  1.0  GVDS
    RODP  HC    2.2 263  P       23:25:35.54  -0.3 M  1.0  RODP
    RODP  HC    2.2 263  S       23:26:02.60  -0.2 M  1.0  RODP
    KNDR  HC    2.4 255  P       23:25:39.25   1.0 M  1.0  KNDR
    KNDR  HC    2.4 255  S       23:26:06.61  -0.4 M  1.0  KNDR
    ANKY  HL    2.6 271  P       23:25:40.15  -0.6 M  1.0  ANKY
    ANKY  HL    2.6 271  S       23:26:10.92  -0.5 M  1.0  ANKY
    KARY  HA    2.7 324  P       23:25:43.81   0.8 M  1.0  KARY
    KARY  HA    2.7 324  S       23:26:14.88  -0.5 M  1.0  KARY
    KTHA  HL    2.8 279  P       23:25:43.69  -0.2 M  1.0  KTHA
    KTHA  HL    2.8 279  S       23:26:16.03  -0.8 M  1.0  KTHA
    NPS1  HI    2.8 284  P       23:25:44.16  -0.3 M  1.0  NPS1
    NPS1  HI    2.8 284  S       23:26:17.53  -0.4 M  1.0  NPS1
    KTHR  HC    2.8 278  P       23:25:44.14  -0.5 M  1.0  KTHR
    MNVA  HL    2.9 287  P       23:25:45.43   0.1 M  1.0  MNVA
    MNVA  HL    2.9 287  S       23:26:18.86  -0.6 M  1.0  MNVA
    VLY   HL    2.9 313  P       23:25:46.59   0.6 M  1.0  VLY
    VLY   HL    2.9 313  S       23:26:19.89  -0.7 M  1.0  VLY
    GR27  1Y    2.9 323  P       23:25:46.49   0.5 M  1.0  GR27
    GR27  1Y    2.9 323  S       23:26:20.03  -0.7 M  1.0  GR27
    VLI   HL    3.0 287  P       23:25:46.39  -0.1 M  1.0  VLI
    VLI   HL    3.0 287  S       23:26:20.38  -1.1 M  1.0  VLI
    GR32  1Y    3.0 292  P       23:25:47.40   0.3 M  1.0  GR32
    GR32  1Y    3.0 292  S       23:26:21.95  -0.7 M  1.0  GR32
    PTL   HL    3.0 317  P       23:25:48.10   0.7 M  1.0  PTL
    MRTH  HA    3.0 319  P       23:25:48.44   0.9 M  1.0  MRTH
    MRTH  HA    3.0 319  S       23:26:22.77  -0.5 M  1.0  MRTH
    ATH5  HI    3.0 314  P       23:25:47.63   0.0 M  1.0  ATH5
    ATH5  HI    3.0 314  S       23:26:22.87  -0.6 M  1.0  ATH5
    ATH   HL    3.1 314  P       23:25:48.63   0.9 M  1.0  ATH
    ATH   HL    3.1 314  S       23:26:23.55  -0.2 M  1.0  ATH
    NOAC  HL    3.1 314  P       23:25:48.68   0.9 M  1.0  NOAC
    KRND  HT    3.1 300  P       23:25:48.62   0.7 M  1.0  KRND
    KRND  HT    3.1 300  S       23:26:23.93  -0.2 M  1.0  KRND
    ERTR  HA    3.3 320  P       23:25:52.42   0.8 M  1.0  ERTR
    PRK   HL    3.4 358  P       23:25:52.15  -0.5 M  1.0  PRK
    PRK   HL    3.4 358  S       23:26:31.31  -1.1 M  1.0  PRK
    GR30  1Y    3.5 298  P       23:25:55.36   0.7 M  1.0  GR30
    GR30  1Y    3.5 298  S       23:26:35.40  -0.5 M  1.0  GR30

53 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KSS1  HI    0.6 138  MLv     2.47 -3.13   0.712795
    STIA  HC    0.7 205  MLv     5.62  0.03    859.168
    ZKR   HL    0.7 195  MLv     5.51 -0.09    614.879
    NPS   HL    0.9 230  MLv     5.72  0.12    837.697
    NISR2 HL    0.9  39  MLv     5.36 -0.24    342.841
    NISR  HL    0.9  36  MLv     5.12 -0.48    197.631
    THERA HL    0.9 304  MLv     5.09 -0.51    184.463
    THR8  HT    1.0 306  MLv     4.28 -1.32     63.415
    SNT5  HA    1.0 303  MLv     5.18 -0.41     122.24
    CMBO  HT    1.1 307  MLv     5.70  0.11    660.607
    PFKS  HC    1.1 225  MLv     5.71  0.11    605.825
    KNSS  HC    1.2 243  MLv     5.60  0.00    450.744
    KLNA  HL    1.2  21  MLv     4.90 -0.70    86.7692
    IACM  HL    1.2 245  MLv     5.86  0.26    1655.14
    TEFL  HC    1.3 235  MLv     6.01  0.42    999.656
    IDI   MN    1.4 247  MLv     5.54 -0.06    293.797
    ARG   HL    1.4  75  MLv     5.35 -0.24    187.454
    APE   HL    1.4 329  MLv     5.21 -0.39     127.94
    NAX1  HI    1.5 325  MLv     4.98 -0.62    68.0272
    RODB  HL    1.6  67  MLv     5.44 -0.16    187.614
    SIVA  HL    1.6 238  MLv     5.87  0.27    499.887
    IMOD  HC    1.6 237  MLv     6.02  0.43    684.005
    IPPL  HC    1.7 253  MLv     5.53 -0.07    196.656
    MHLO  HL    1.9 297  MLv     5.15 -0.45    134.568
    SMG   HL    1.9  10  MLv     4.68 -0.92    21.1876
    KRL1  HI    2.0   6  MLv     5.10 -0.50    51.0367
    CHAN  HC    2.0 261  MLv     5.66  0.06     361.05
    CH01  HI    2.0 261  MLv     5.78  0.18    231.988
    IMMV  HL    2.0 259  MLv     5.71  0.11    187.952
    THNO  HC    2.1 328  MLv     4.81 -0.79    20.7447
    GVD   HL    2.2 243  MLv     5.61  0.01    97.5364
    GVDS  HC    2.2 243  MLv     5.51 -0.09    97.7057
    RODP  HC    2.2 263  MLv     5.69  0.09    146.873
    KNDR  HC    2.4 255  MLv     5.61  0.02    98.5964
    ANKY  HL    2.6 271  MLv     5.39 -0.21    46.6932
    KARY  HA    2.7 324  MLv     5.18 -0.41    23.6205
    KTHA  HL    2.8 279  MLv     5.47 -0.13    42.6405
    NPS1  HI    2.8 284  MLv     5.90  0.31    109.858
    KTHR  HC    2.8 278  MLv     5.92  0.32    111.393
    MNVA  HL    2.9 287  MLv     5.59 -0.01    49.1388
    VLY   HL    2.9 313  MLv     5.34 -0.26    25.7134
    GR27  1Y    2.9 323  MLv     5.17 -0.43    17.3413
    VLI   HL    3.0 287  MLv     5.87  0.28    110.119
    GR32  1Y    3.0 292  MLv     5.98  0.38    102.919
    PTL   HL    3.0 317  MLv     5.10 -0.49    13.2927
    MRTH  HA    3.0 319  MLv     5.24 -0.36    17.7232
    ATH5  HI    3.0 314  MLv     5.49 -0.11    31.4092
    ATH   HL    3.1 314  MLv     5.46 -0.14    28.8108
    NOAC  HL    3.1 314  MLv     5.45 -0.14    28.7122
    KRND  HT    3.1 300  MLv     5.74  0.15     55.131
    ERTR  HA    3.3 320  MLv     5.05 -0.54    8.02877
    PRK   HL    3.4 358  MLv     5.14 -0.45    8.94265
    GR30  1Y    3.5 298  MLv     5.90  0.30    43.1245
