Earthquake Information
 Origin Time
 2022-10-04 13:28:29 (GMT)
 Magnitude
 M 3.1
 Latitude
 36.2712° N
 Longitude
 26.3980° E
 Focal Depth
 119 km
 # of Arrivals
 32
 Location 87.9 km E of Thira
95.1 km NW of Karpathos
303.4 km SE of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
NISR2HL77.4 64 P13:28:48.52 0.21.0M
NISR2HL77.4 64 S13:29:03.30 0.21.0M
THERAHL83.4277 P13:28:49.50 0.81.0M
THERAHL83.4277 S13:29:03.37 -0.51.0M
SNT1HA88.3280 P13:28:49.79 0.71.0M
SNT1HA88.3280 S13:29:03.95 -0.51.0M
THR3HT90.6280 P13:28:50.22 0.91.0M
THR3HT90.6280 S13:29:04.48 -0.31.0M
KARPHL105.9139 P13:28:50.13 -0.51.0M
KARPHL105.9139 S13:29:07.01 -0.21.0M
APEHL118.5319 P13:28:51.76 0.01.0M
APEHL118.5319 S13:29:08.78 -0.51.0M
STIAHC122.1193 P13:28:53.27 1.21.0M
STIAHC122.1193 S13:29:10.66 1.01.0M
IDIMN174.5231 P13:28:58.41 0.91.0M
IDIMN174.5231 S13:29:20.17 0.81.0M
IMMVHL235.7248 P13:29:05.33 1.01.0M
IMMVHL235.7248 S13:29:30.91 -0.51.0M
RODPHC250.6252 P13:29:06.83 0.71.0M
RODPHC250.6252 S13:29:34.25 -0.21.0M
VLXHP378.0289 P13:29:20.83 -0.71.0M
VLXHP378.0289 S13:30:00.38 -1.21.0M
GURHP404.5297 P13:29:23.78 -1.01.0M
GURHP404.5297 S13:30:06.18 -1.11.0M
ITMHL411.2284 P13:29:25.14 -0.31.0M
ITMHL411.2284 S13:30:07.60 -0.91.0M
PYLHP421.4279 P13:29:25.62 -1.11.0M
PYLHP421.4279 S13:30:10.28 -0.41.0M
KLVHL424.8298 P13:29:26.20 -1.01.0M
KLVHL424.8298 S13:30:10.82 -0.71.0M
PDOHP528.0299 P13:29:39.48 -0.21.0M
PDOHP528.0299 S13:30:33.69 0.11.0M


  Solution details

Event:
    Public ID              nkua2022tlhm
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2022-10-04
    Time                  13:28:28.82
    Latitude              36.2712 deg  +/-      1 km
    Longitude             26.3980 deg  +/-      1 km
    Depth                     119 km   +/-    3 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.49 s
    Azimuthal gap             106 deg

2 Network magnitudes:
    MLv       3.10 +/- 0.43  12
    M         3.10           12 preferred

32 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    NISR2 HL    0.7  64  P       13:28:48.52   0.2 M  1.0  NISR2
    NISR2 HL    0.7  64  S       13:29:03.30   0.2 M  1.0  NISR2

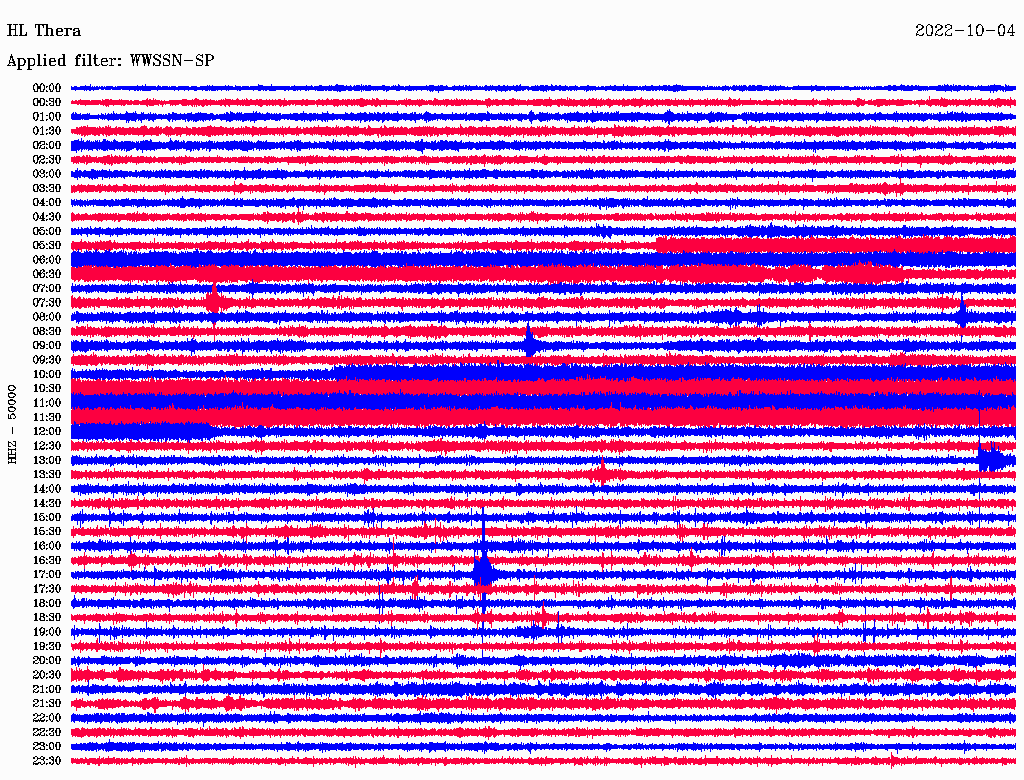

    THERA HL    0.8 277  P       13:28:49.50   0.8 M  1.0  THERA
    THERA HL    0.8 277  S       13:29:03.37  -0.5 M  1.0  THERA

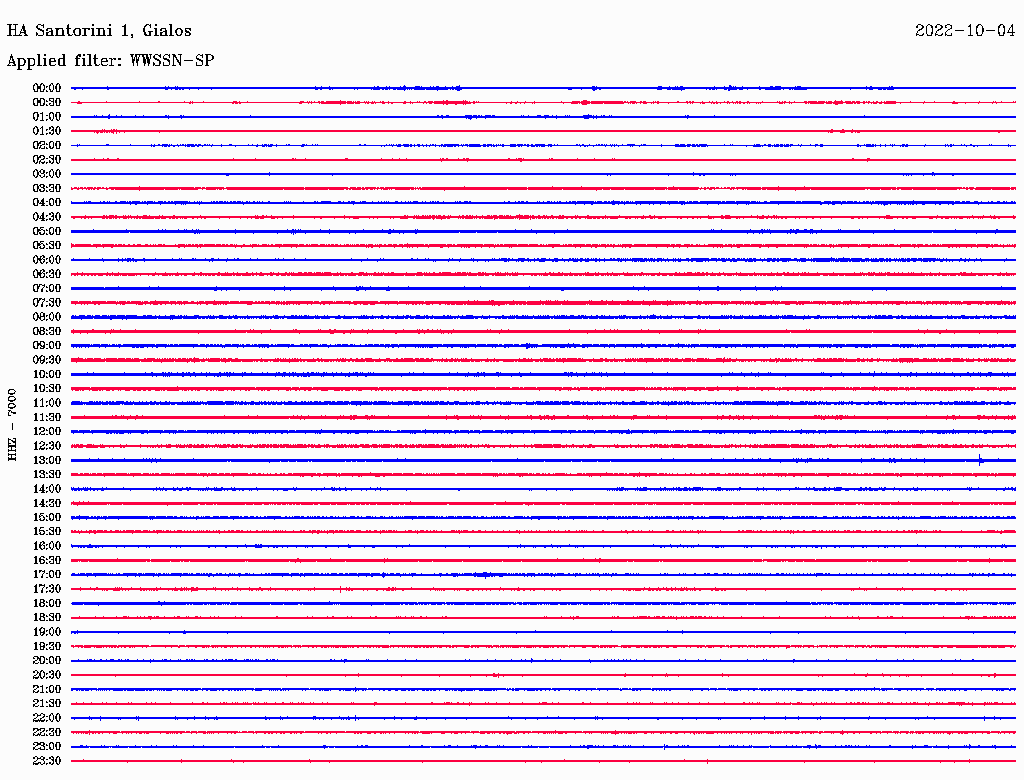

    SNT1  HA    0.8 280  P       13:28:49.79   0.7 M  1.0  SNT1
    SNT1  HA    0.8 280  S       13:29:03.95  -0.5 M  1.0  SNT1

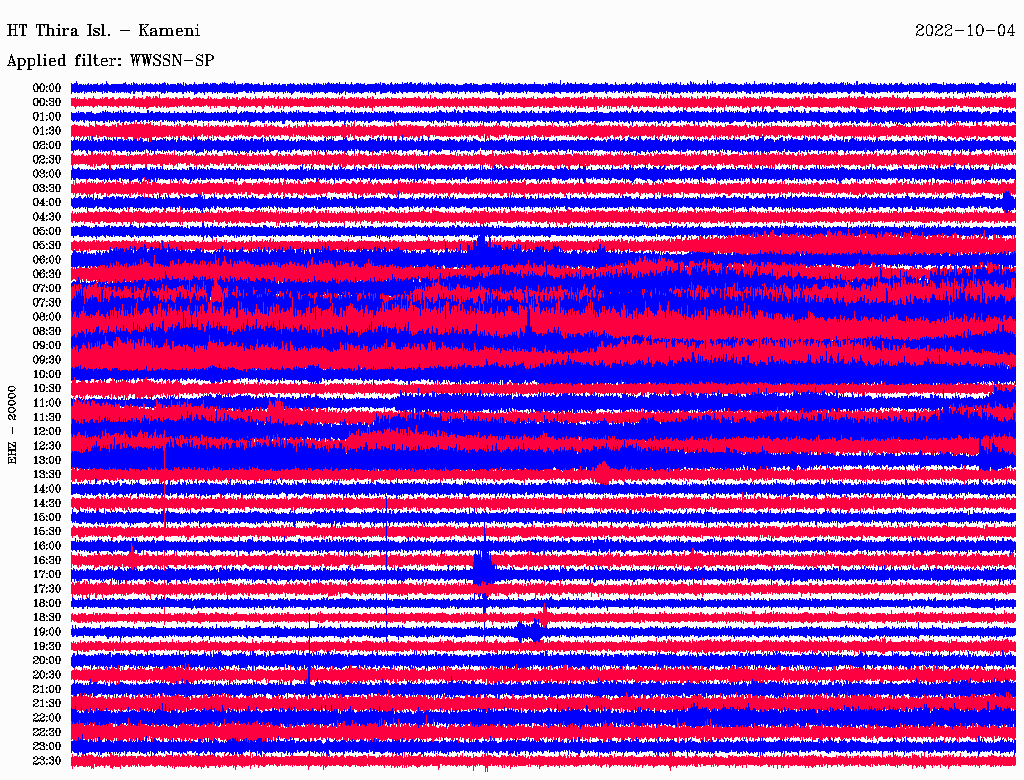

    THR3  HT    0.8 280  P       13:28:50.22   0.9 M  1.0  THR3
    THR3  HT    0.8 280  S       13:29:04.48  -0.3 M  1.0  THR3

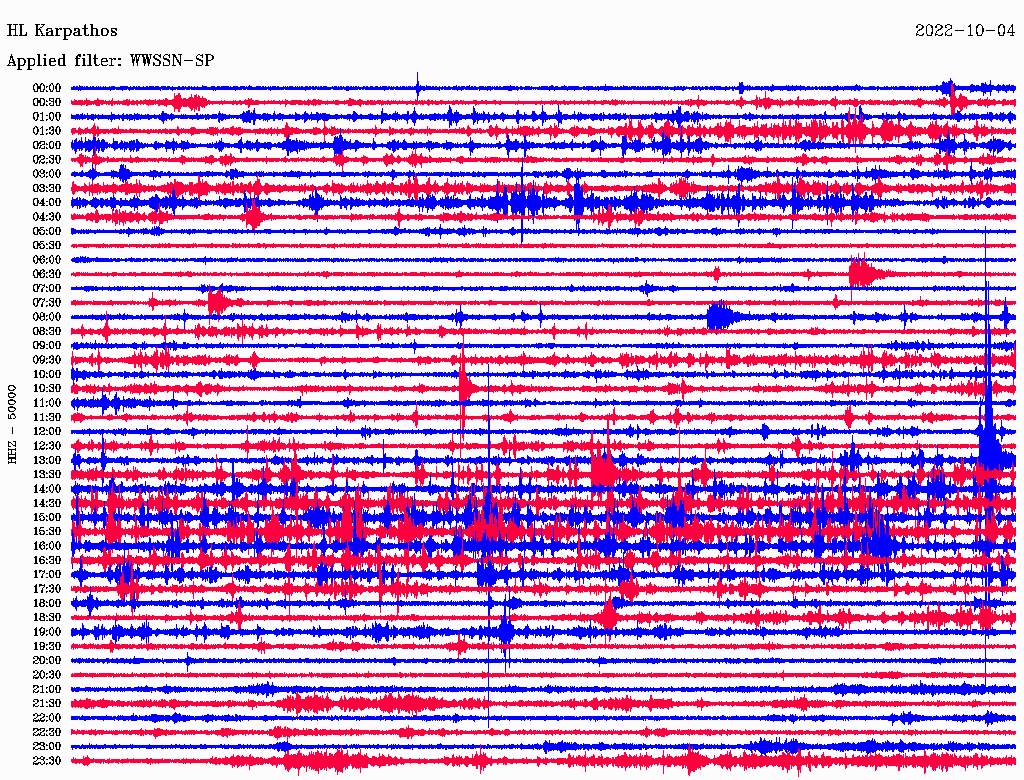

    KARP  HL    1.0 139  P       13:28:50.13  -0.5 M  1.0  KARP
    KARP  HL    1.0 139  S       13:29:07.01  -0.2 M  1.0  KARP
    APE   HL    1.1 319  P       13:28:51.76  -0.0 M  1.0  APE
    APE   HL    1.1 319  S       13:29:08.78  -0.5 M  1.0  APE

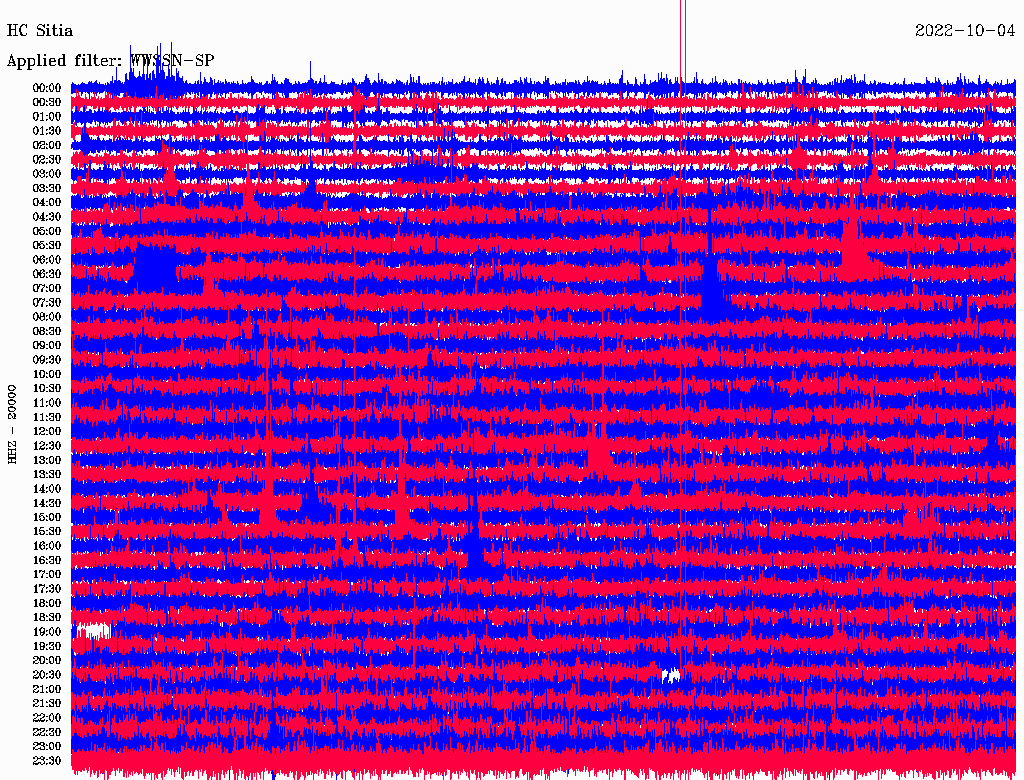

    STIA  HC    1.1 193  P       13:28:53.27   1.2 M  1.0  STIA
    STIA  HC    1.1 193  S       13:29:10.66   1.0 M  1.0  STIA

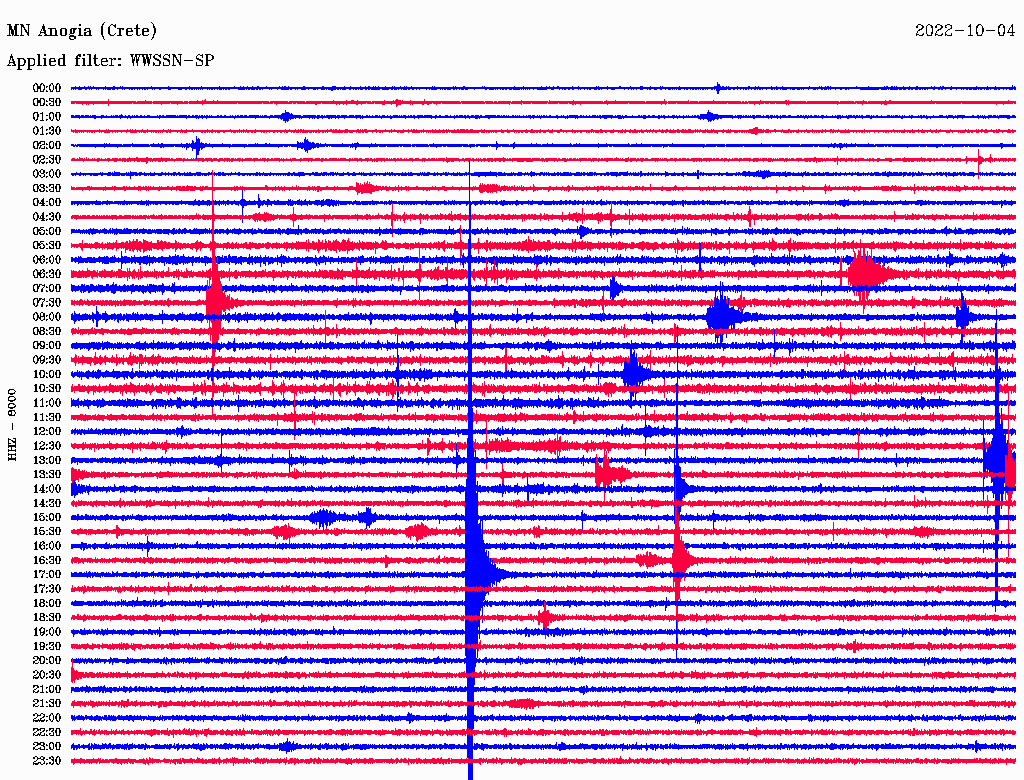

    IDI   MN    1.6 231  P       13:28:58.41   0.9 M  1.0  IDI
    IDI   MN    1.6 231  S       13:29:20.17   0.8 M  1.0  IDI

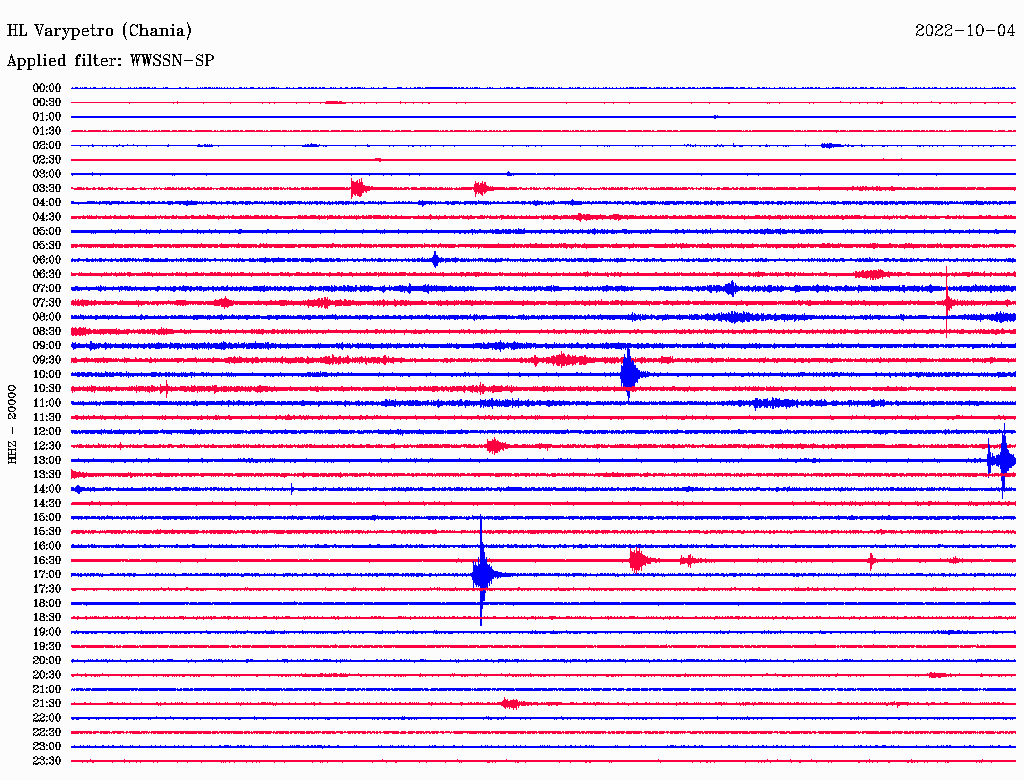

    IMMV  HL    2.1 248  P       13:29:05.33   1.0 M  1.0  IMMV
    IMMV  HL    2.1 248  S       13:29:30.91  -0.5 M  1.0  IMMV

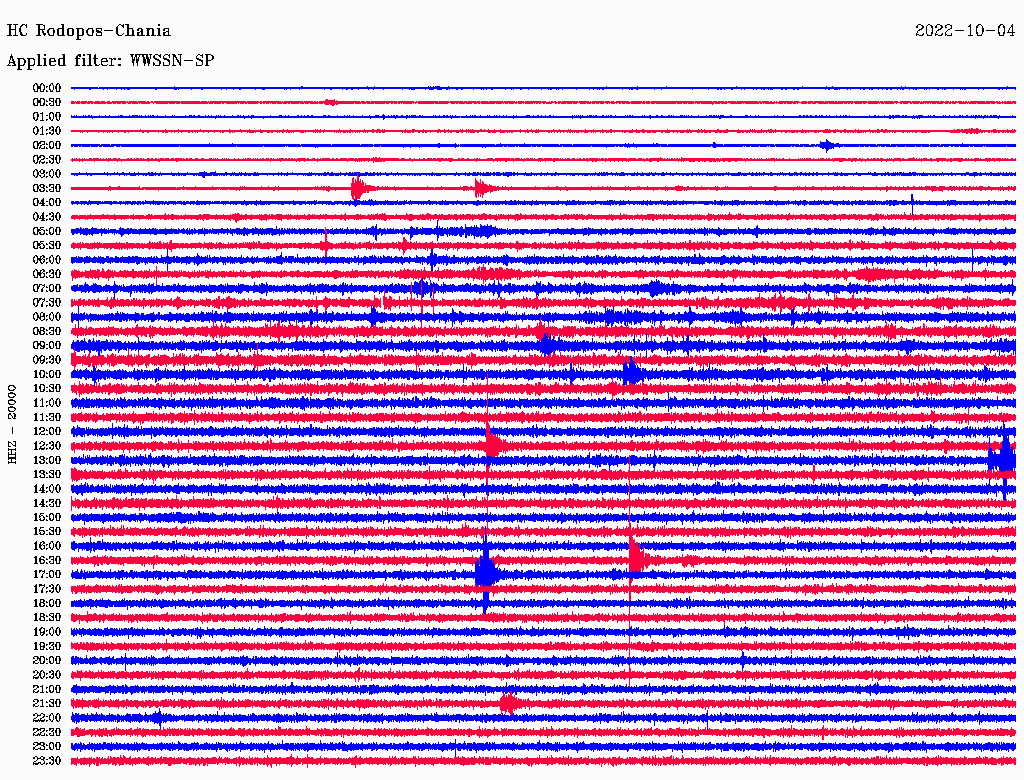

    RODP  HC    2.3 252  P       13:29:06.83   0.7 M  1.0  RODP
    RODP  HC    2.3 252  S       13:29:34.25  -0.2 M  1.0  RODP

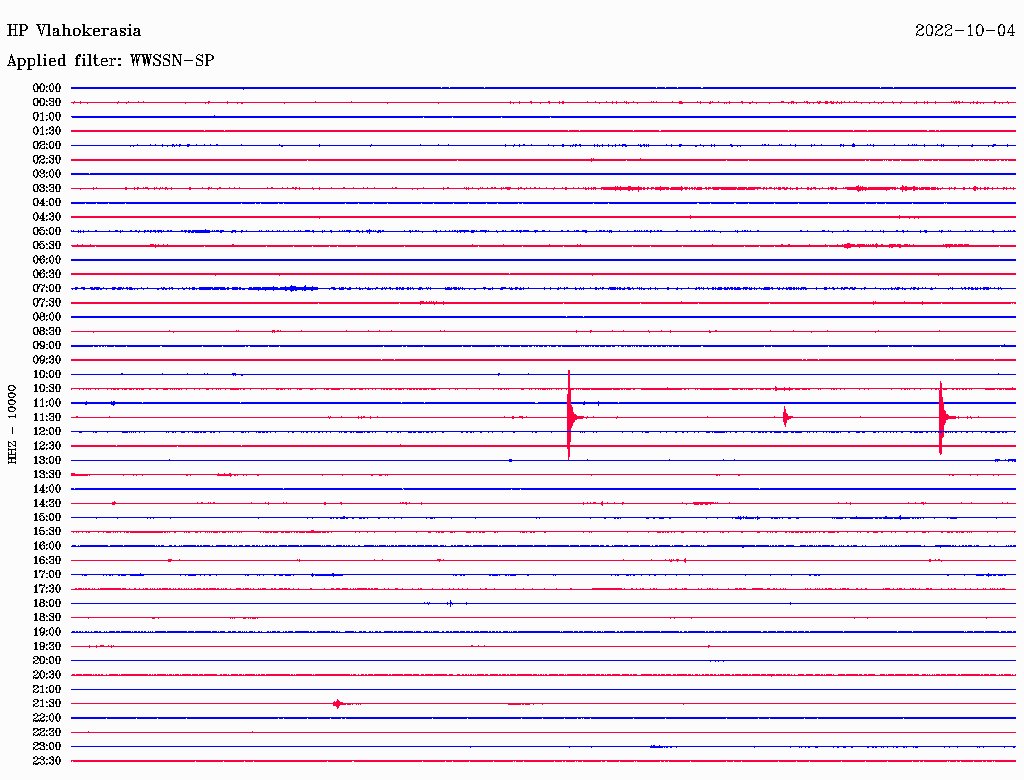

    VLX   HP    3.4 289  P       13:29:20.83  -0.7 M  1.0  VLX
    VLX   HP    3.4 289  S       13:30:00.38  -1.2 M  1.0  VLX

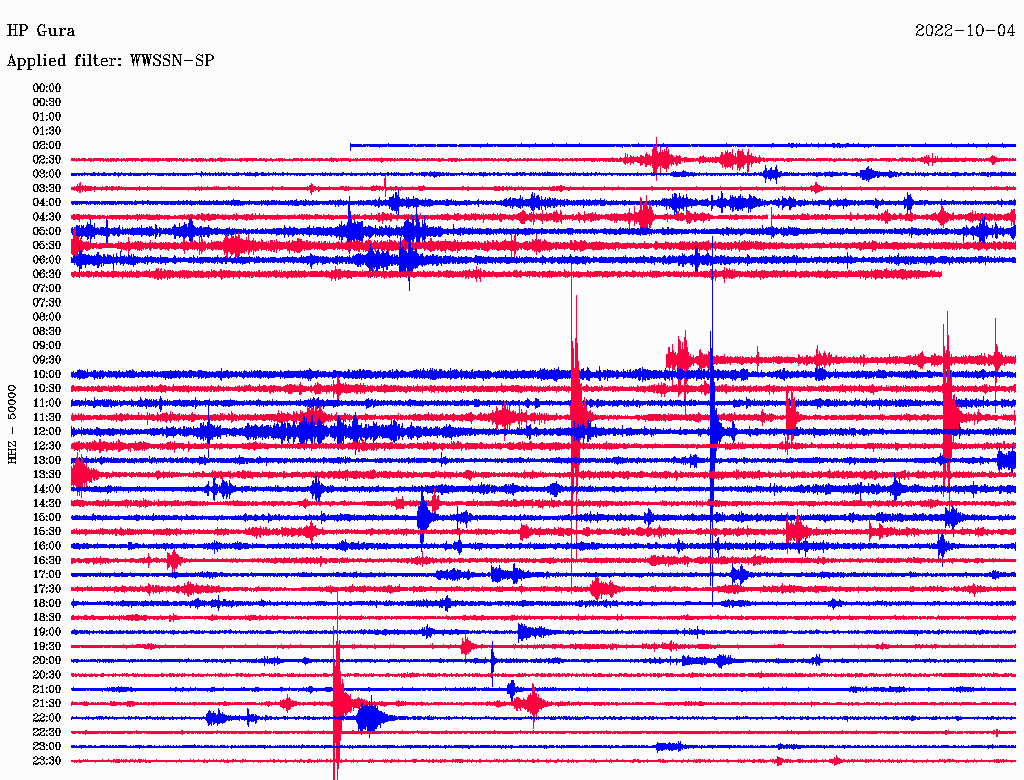

    GUR   HP    3.6 297  P       13:29:23.78  -1.0 M  1.0  GUR
    GUR   HP    3.6 297  S       13:30:06.18  -1.1 M  1.0  GUR

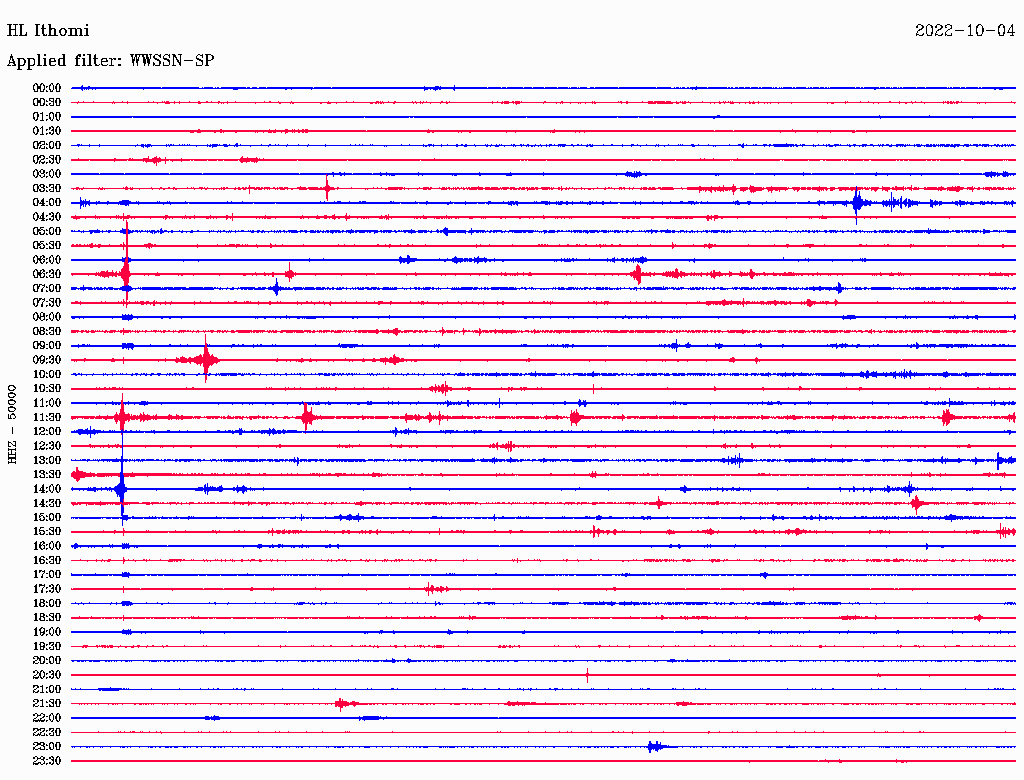

    ITM   HL    3.7 284  P       13:29:25.14  -0.3 M  1.0  ITM
    ITM   HL    3.7 284  S       13:30:07.60  -0.9 M  1.0  ITM

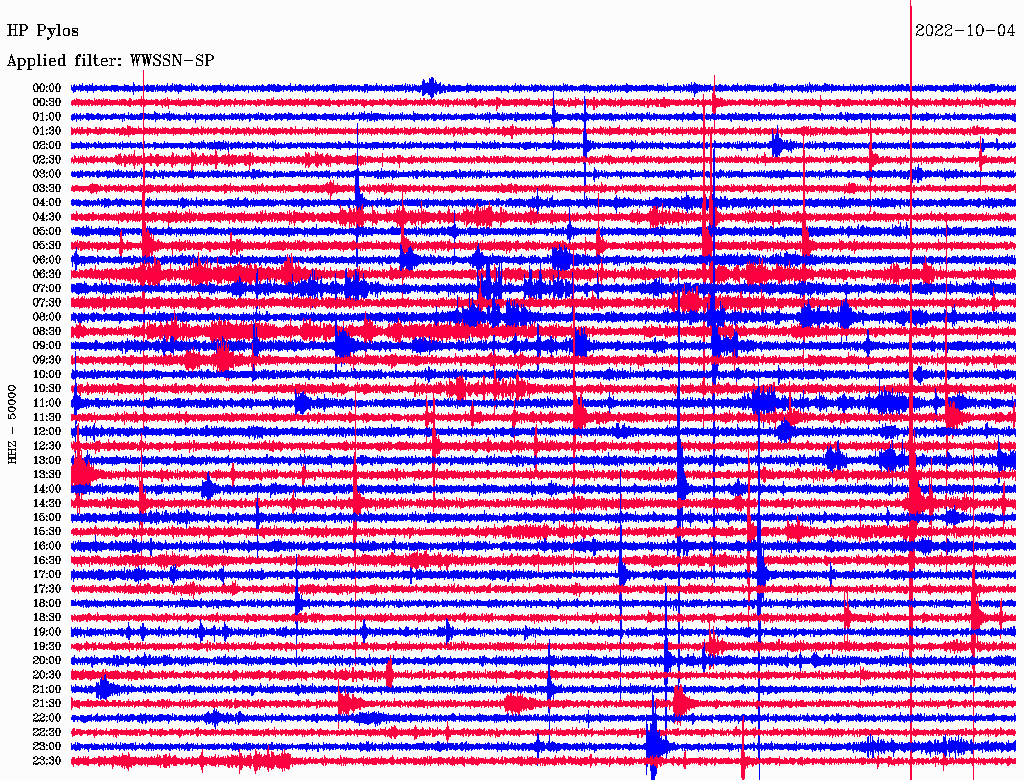

    PYL   HP    3.8 279  P       13:29:25.62  -1.1 M  1.0  PYL
    PYL   HP    3.8 279  S       13:30:10.28  -0.4 M  1.0  PYL
    KLV   HL    3.8 298  P       13:29:26.20  -1.0 M  1.0  KLV
    KLV   HL    3.8 298  S       13:30:10.82  -0.7 M  1.0  KLV

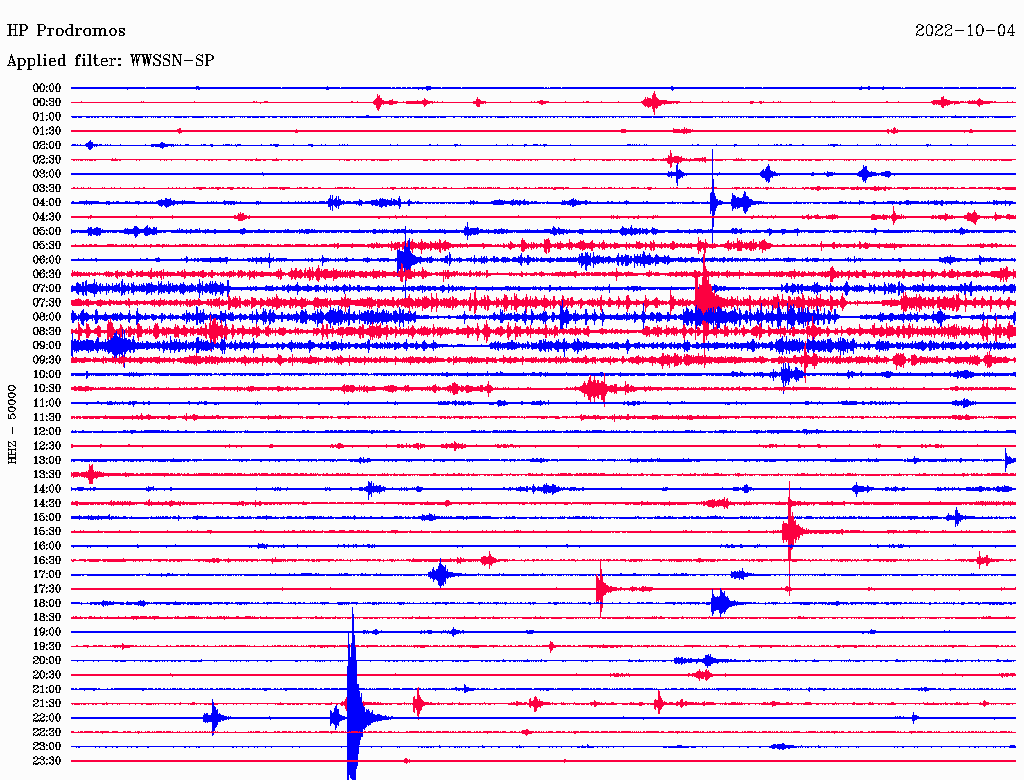

    PDO   HP    4.8 299  P       13:29:39.48  -0.2 M  1.0  PDO
    PDO   HP    4.8 299  S       13:30:33.69   0.1 M  1.0  PDO

16 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    NISR2 HL    0.7  64  MLv     2.53 -0.57   0.691694
    THERA HL    0.8 277  MLv     2.45 -0.65   0.543649
    SNT1  HA    0.8 280  MLv     2.56 -0.54   0.441356
    THR3  HT    0.8 280  MLv     2.51 -0.59    1.50739
    KARP  HL    1.0 139  MLv     2.65 -0.45   0.872682
    APE   HL    1.1 319  MLv     2.58 -0.52   0.485307
    STIA  HC    1.1 193  MLv     2.64 -0.46   0.538635
    IDI   MN    1.6 231  MLv     2.90 -0.20   0.533948
    IMMV  HL    2.1 248  MLv     3.23  0.13   0.566618
    RODP  HC    2.3 252  MLv     3.49  0.39   0.870063
    VLX   HP    3.4 289  MLv     2.97 -0.13   0.0607423
    GUR   HP    3.6 297  MLv     3.35  0.25   0.108873
    ITM   HL    3.7 284  MLv     3.68  0.59   0.228691
    PYL   HP    3.8 279  MLv     4.24  1.14   0.313637
    KLV   HL    3.8 298  MLv     3.44  0.34   0.0920095
    PDO   HP    4.8 299  MLv     3.69  0.59   0.127213
