Earthquake Information
 Origin Time
2022-09-22 22:40:13 (GMT)
 Magnitude
M 1.0
 Latitude
38.3562° N
 Longitude
22.0178° E
 Focal Depth
10 km
 # of Arrivals
24
 Location 13.2 km NNW of Aegion
27.7 km ENE of Patras
155.6 km WNW of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

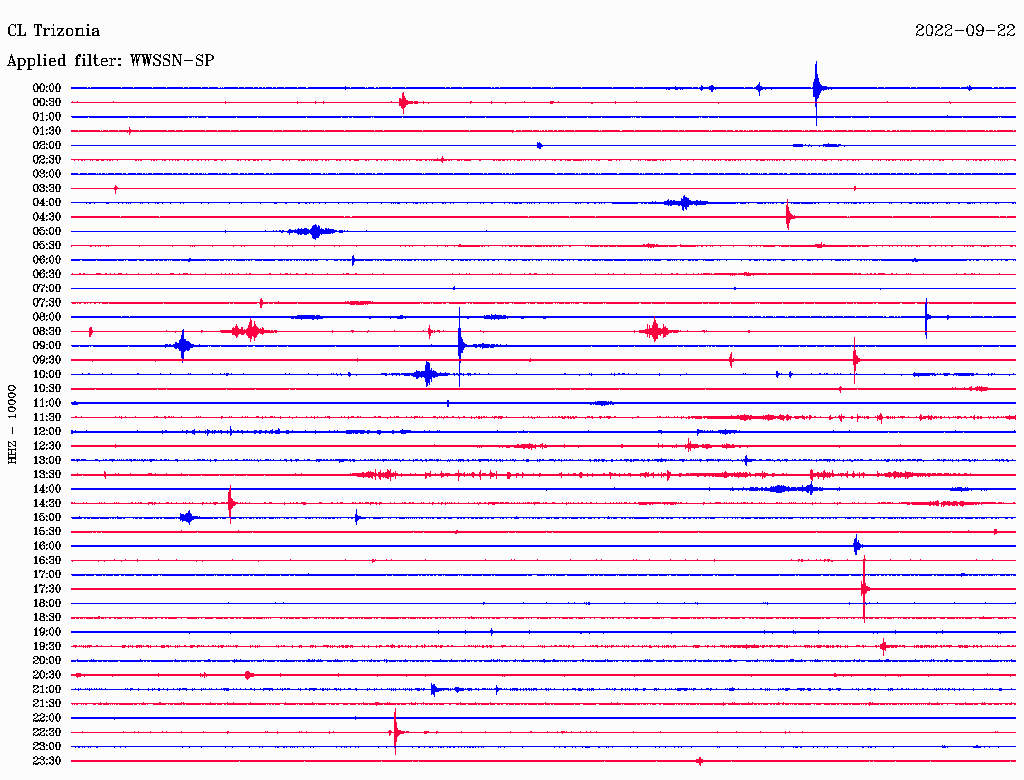

TRIZCL4.9 78 P22:40:15.54 0.21.0M
TRIZCL4.9 78 S22:40:16.90 0.01.0M

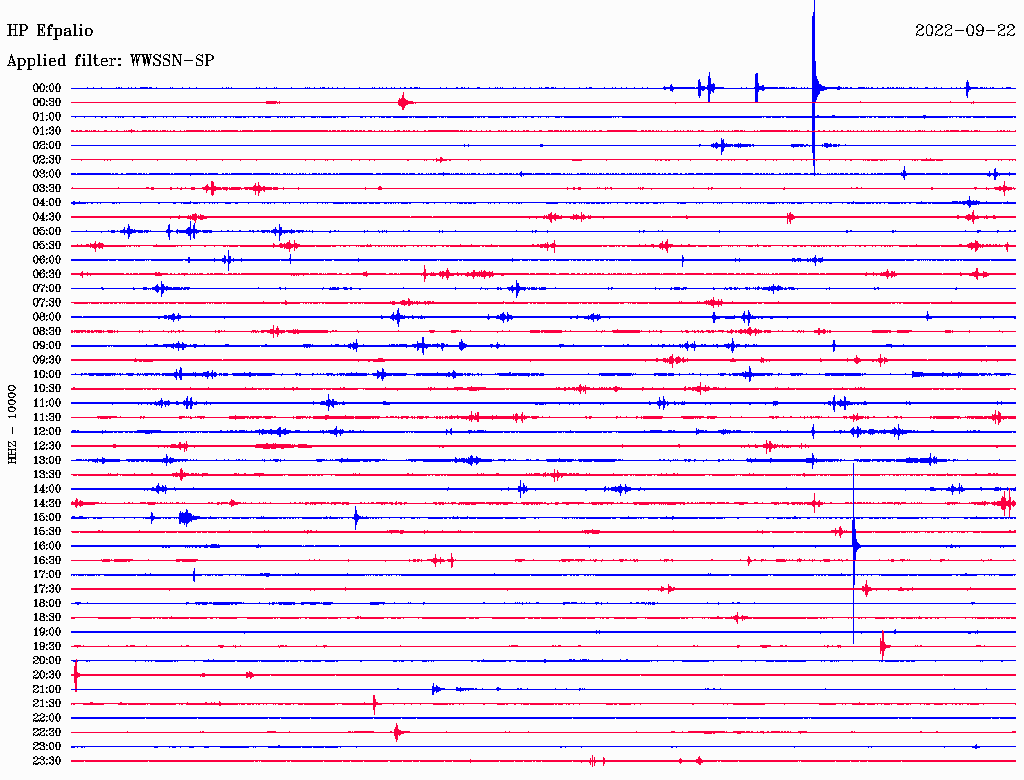

EFPHP12.5309 P22:40:16.45 0.21.0M
EFPHP12.5309 S22:40:18.43 -0.11.0M

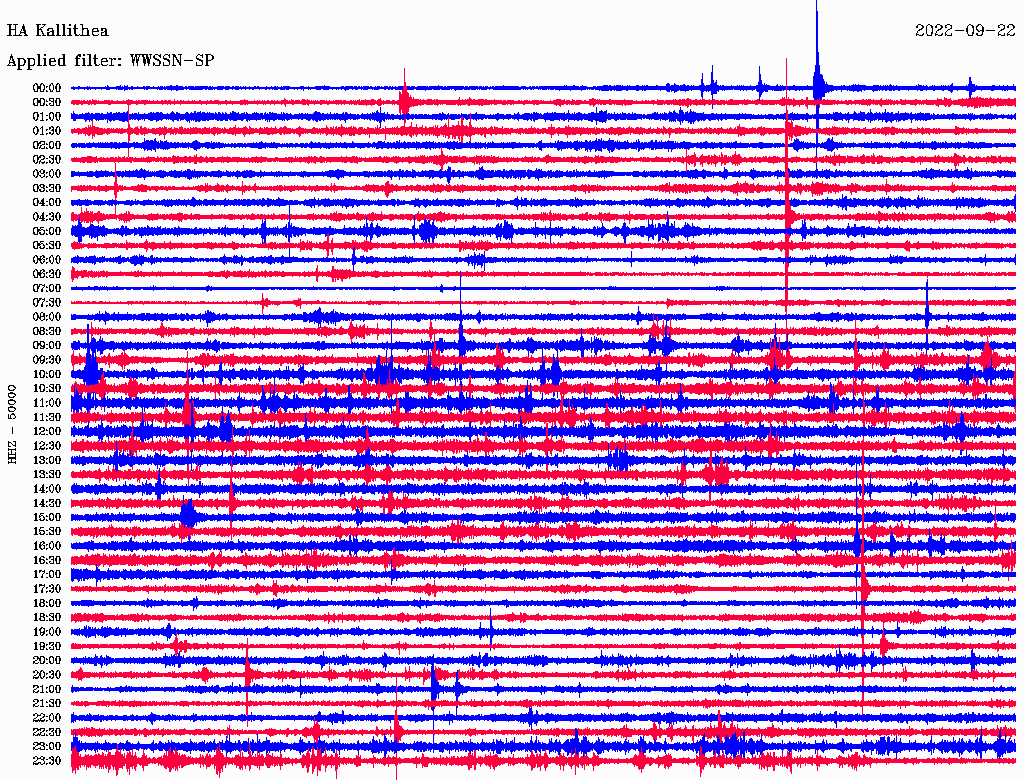

KALEHA11.3 70 P22:40:16.39 0.21.0M
KALEHA11.3 70 S22:40:18.23 -0.21.0M

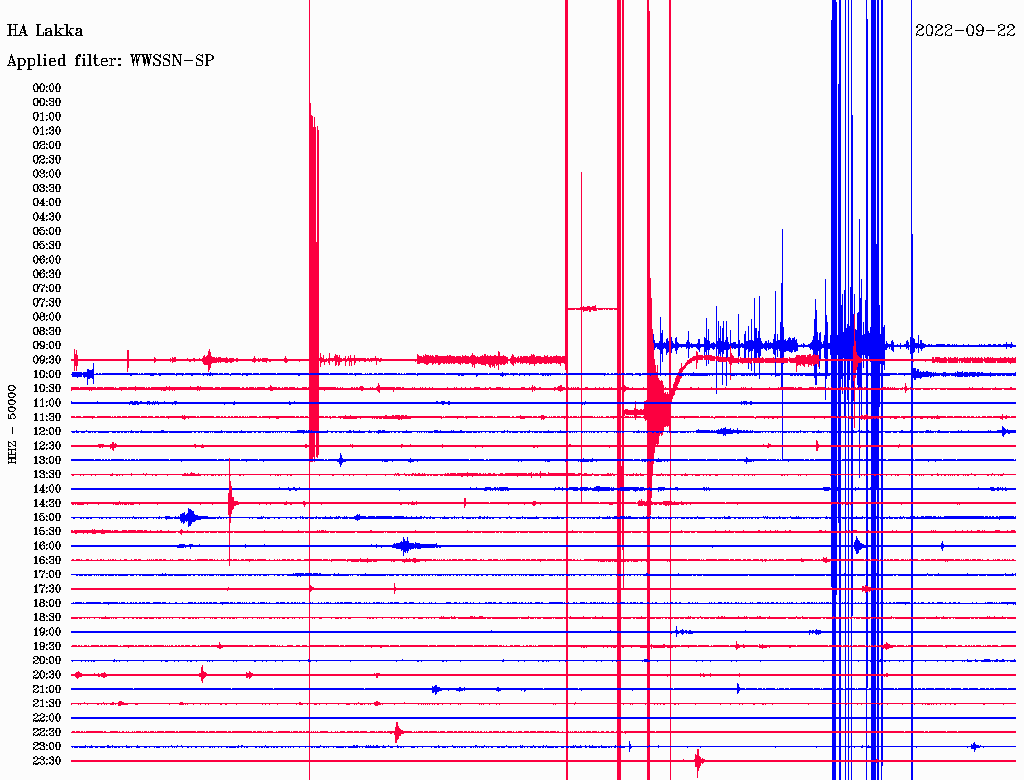

LAKAHA13.4195 P22:40:16.70 0.21.0M
LAKAHA13.4195 S22:40:18.63 -0.21.0M
TEMECL16.4148 P22:40:17.42 0.61.0M
TEMECL16.4148 S22:40:19.36 -0.11.0M

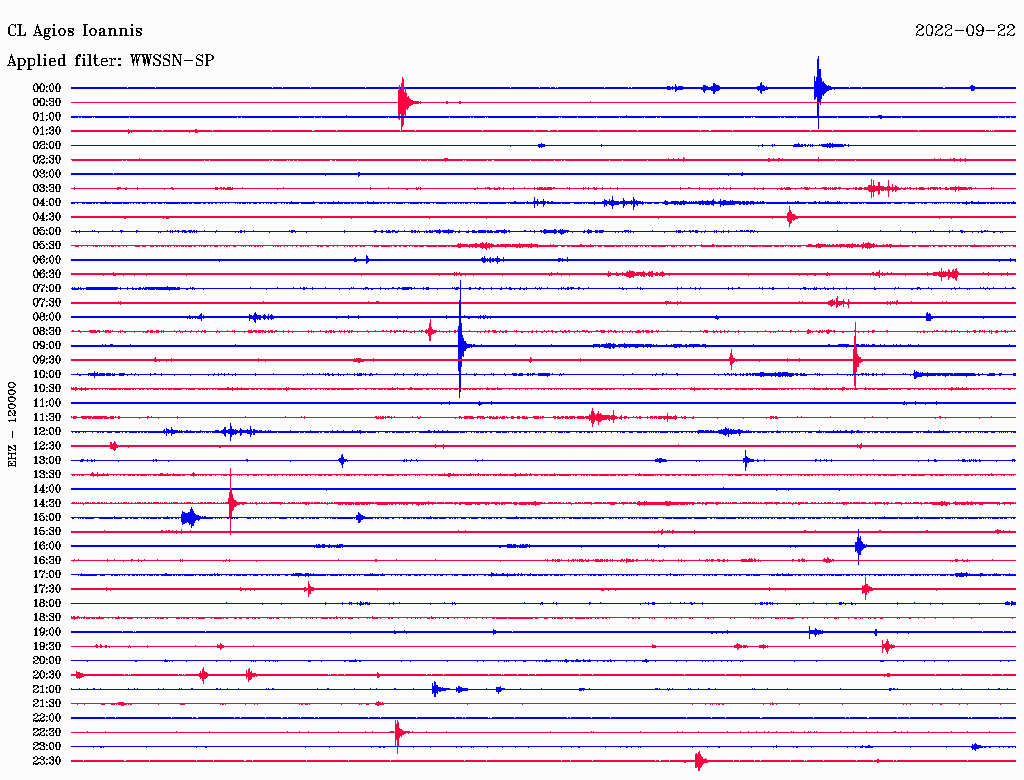

AIOACL18.4169 P22:40:17.50 0.31.0M
AIOACL18.4169 S22:40:19.93 -0.11.0M

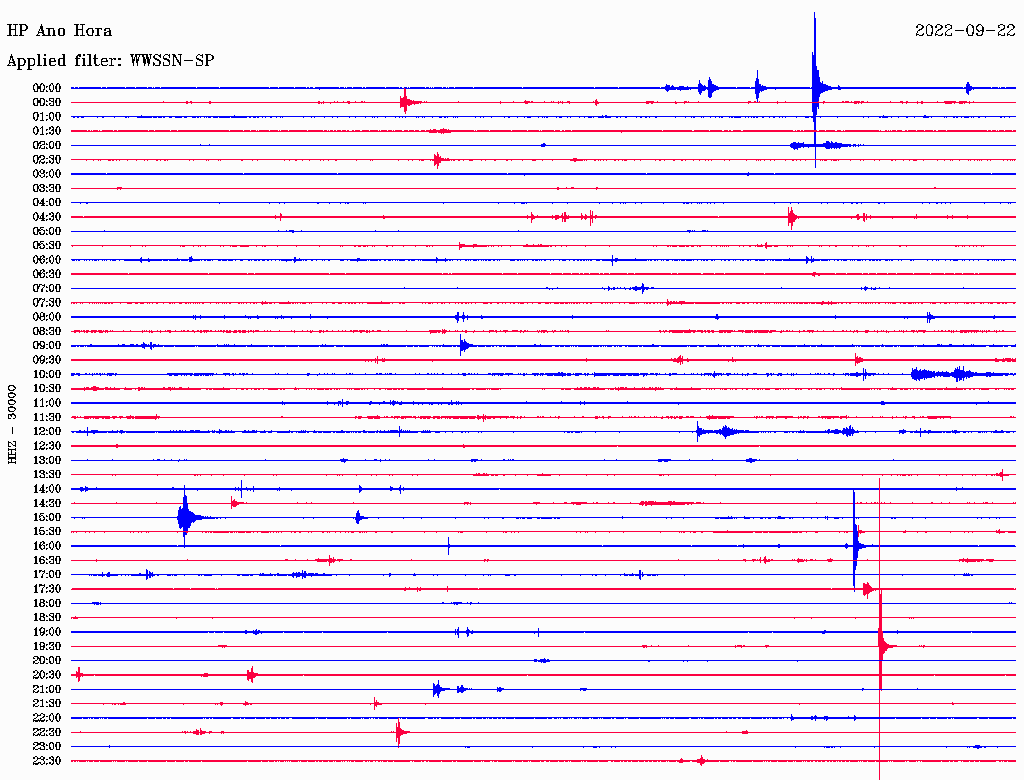

ANXHP27.7342 P22:40:18.86 0.11.0M
ANXHP27.7342 S22:40:22.42 -0.41.0M

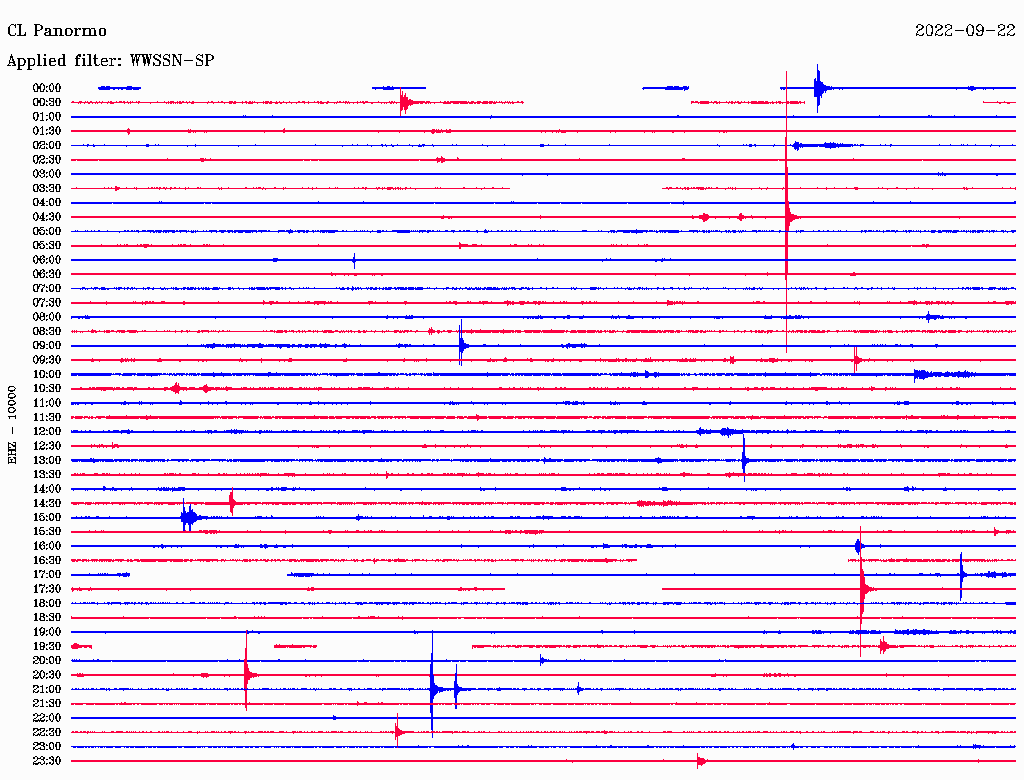

PANRCL20.3 85 P22:40:17.79 0.31.0M
PANRCL20.3 85 S22:40:20.42 -0.21.0M

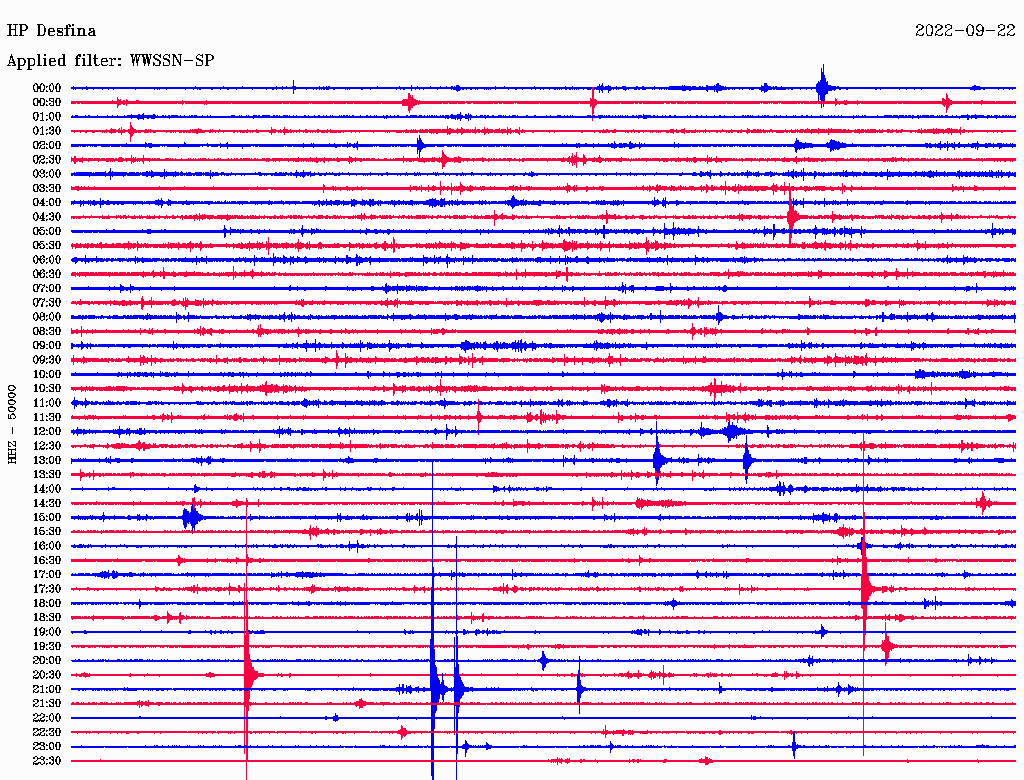

DSFHP44.8 82 P22:40:21.55 0.01.0M
DSFHP44.8 82 S22:40:27.40 -0.31.0M

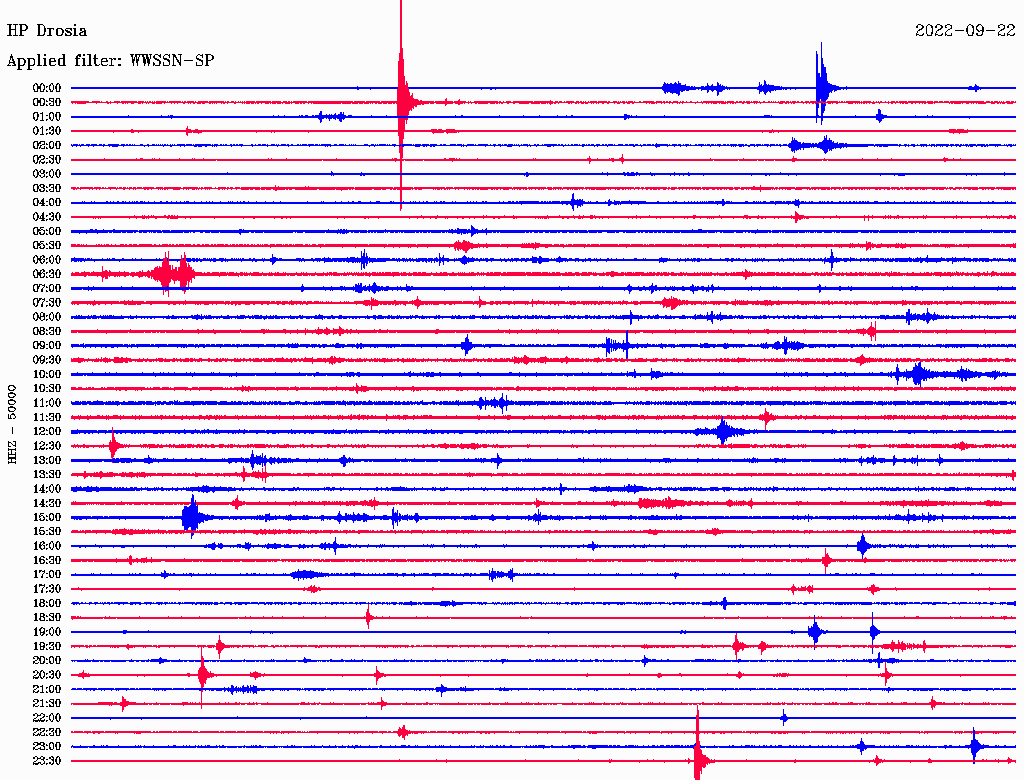

DROHP52.3211 P22:40:22.85 0.11.0M
DROHP52.3211 S22:40:29.58 -0.21.0M

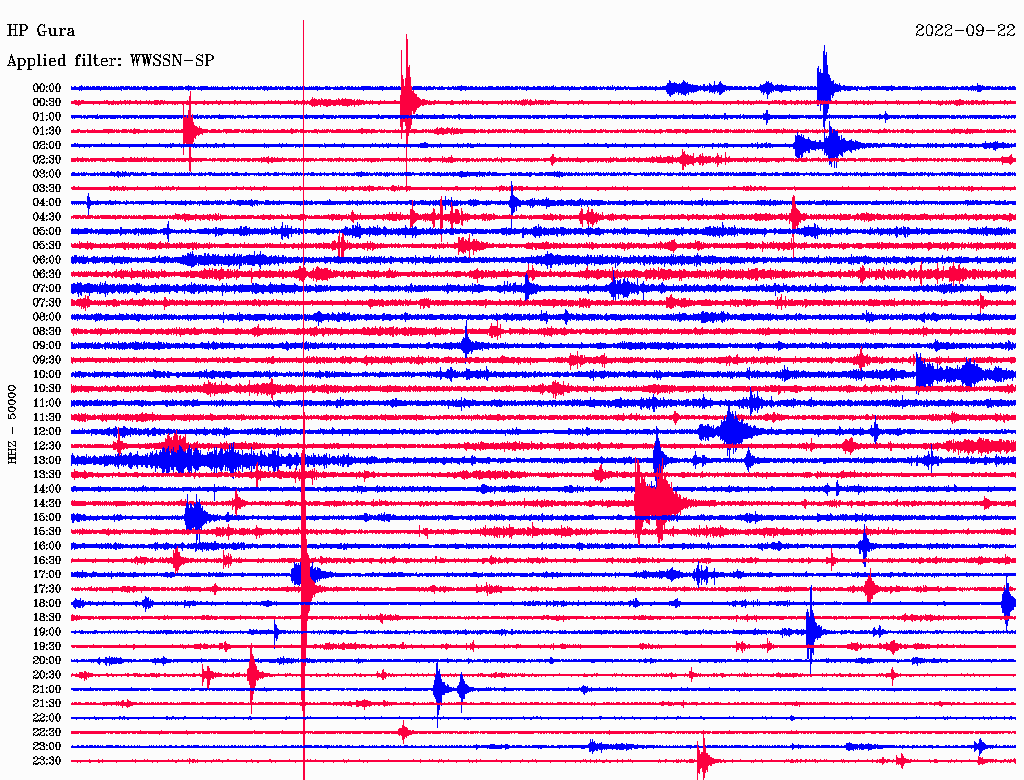

GURHP54.6149 P22:40:23.25 0.11.0M
GURHP54.6149 S22:40:30.23 -0.41.0M
EVRHL64.9344 P22:40:25.12 0.31.0M
EVRHL64.9344 S22:40:33.28 -0.21.0M


  Solution details

Event:
    Public ID              nkua2022sqbr
    Description
      region name: Greece
Origin:
    Date                   2022-09-22
    Time                  22:40:13.36
    Latitude              38.3562 deg  +/-      0 km
    Longitude             22.0178 deg  +/-      0 km
    Depth                      10 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.22 s
    Azimuthal gap              98 deg

2 Network magnitudes:
    MLv       0.95 +/- 0.26  10
    M         0.95           10 preferred

24 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    TRIZ  CL    0.0  78  P       22:40:15.54   0.2 M  1.0  TRIZ
    TRIZ  CL    0.0  78  S       22:40:16.90   0.0 M  1.0  TRIZ
    KALE  HA    0.1  70  P       22:40:16.39   0.2 M  1.0  KALE
    KALE  HA    0.1  70  S       22:40:18.23  -0.2 M  1.0  KALE
    EFP   HP    0.1 309  P       22:40:16.45   0.2 M  1.0  EFP
    EFP   HP    0.1 309  S       22:40:18.43  -0.1 M  1.0  EFP
    LAKA  HA    0.1 195  P       22:40:16.70   0.2 M  1.0  LAKA
    LAKA  HA    0.1 195  S       22:40:18.63  -0.2 M  1.0  LAKA
    TEME  CL    0.1 148  P       22:40:17.42   0.6 M  1.0  TEME
    TEME  CL    0.1 148  S       22:40:19.36  -0.1 M  1.0  TEME
    AIOA  CL    0.2 169  P       22:40:17.50   0.3 M  1.0  AIOA
    AIOA  CL    0.2 169  S       22:40:19.93  -0.1 M  1.0  AIOA
    PANR  CL    0.2  85  P       22:40:17.79   0.3 M  1.0  PANR
    PANR  CL    0.2  85  S       22:40:20.42  -0.2 M  1.0  PANR
    ANX   HP    0.2 342  P       22:40:18.86   0.1 M  1.0  ANX
    ANX   HP    0.2 342  S       22:40:22.42  -0.4 M  1.0  ANX
    DSF   HP    0.4  82  P       22:40:21.55   0.0 M  1.0  DSF
    DSF   HP    0.4  82  S       22:40:27.40  -0.3 M  1.0  DSF
    DRO   HP    0.5 211  P       22:40:22.85   0.1 M  1.0  DRO
    DRO   HP    0.5 211  S       22:40:29.58  -0.2 M  1.0  DRO
    GUR   HP    0.5 149  P       22:40:23.25   0.1 M  1.0  GUR
    GUR   HP    0.5 149  S       22:40:30.23  -0.4 M  1.0  GUR
    EVR   HL    0.6 344  P       22:40:25.12   0.3 M  1.0  EVR
    EVR   HL    0.6 344  S       22:40:33.28  -0.2 M  1.0  EVR

12 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    TRIZ  CL    0.0  78  MLv     0.81 -0.14   0.388917
    KALE  HA    0.1  70  MLv     0.77 -0.18   0.243254
    EFP   HP    0.1 309  MLv     0.41 -0.53   0.100232
    LAKA  HA    0.1 195  MLv     0.39 -0.56   0.0896547
    TEME  CL    0.1 148  MLv     0.64 -0.31   0.0444771
    AIOA  CL    0.2 169  MLv     0.93 -0.01   0.0609068
    PANR  CL    0.2  85  MLv     2.22  1.27   0.0792354
    ANX   HP    0.2 342  MLv     1.01  0.06   0.164374
    DSF   HP    0.4  82  MLv     1.10  0.15   0.075185
    DRO   HP    0.5 211  MLv     1.15  0.20    0.11516
    GUR   HP    0.5 149  MLv     1.20  0.26   0.0548879
    EVR   HL    0.6 344  MLv     1.44  0.49   0.0658784
