Earthquake Information
 Origin Time
 2022-09-22 01:40:53 (GMT)
 Magnitude
 M 2.0
 Latitude
 39.4000° N
 Longitude
 20.6173° E
 Focal Depth
 8 km
 # of Arrivals
 20
 Location 32.3 km ESE of Igoumenitsa
35.9 km SW of Ioannina
312.9 km WNW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
KSTRHP17.1192 P01:40:55.94 -0.31.0M
KSTRHP17.1192 S01:40:58.96 0.11.0M

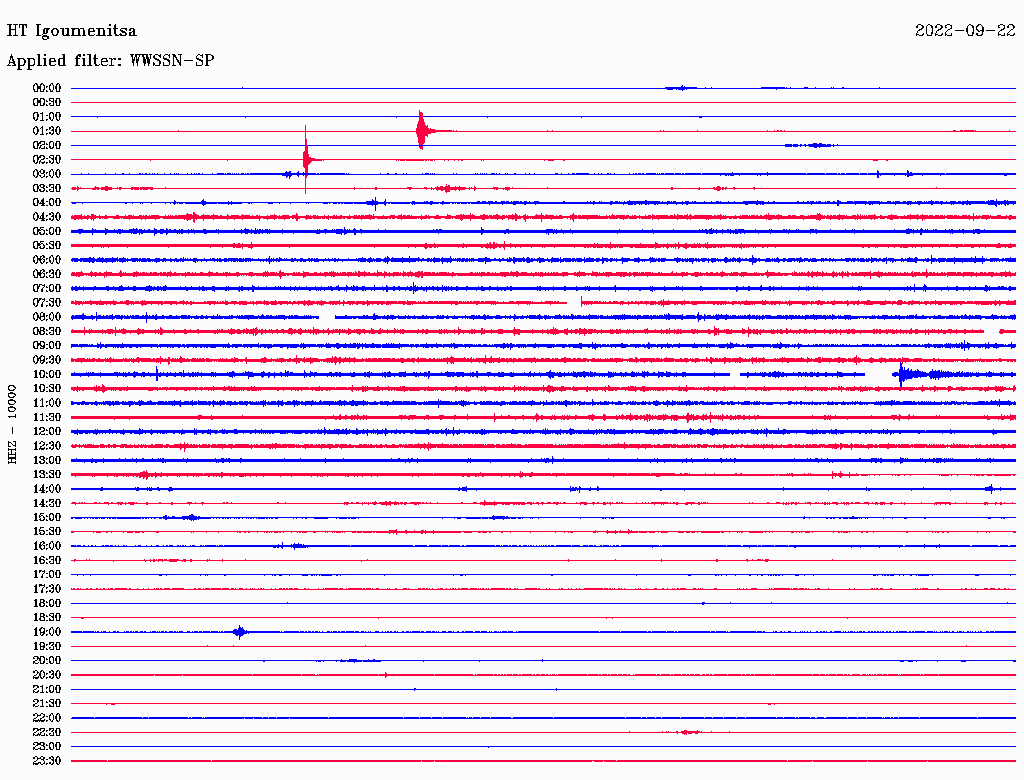

IGTHT28.7301 P01:40:58.15 0.01.0M
IGTHT28.7301 S01:41:02.22 -0.11.0M

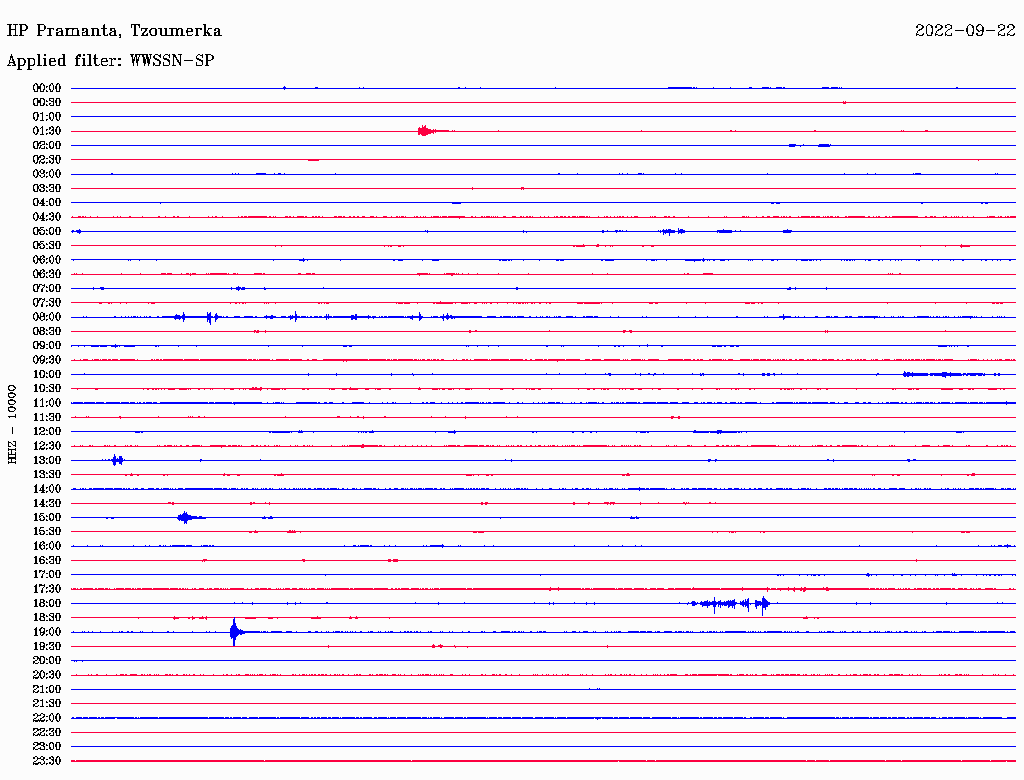

PRMDHP43.6 71 P01:41:00.96 0.31.0M
PRMDHP43.6 71 S01:41:06.55 -0.21.0M

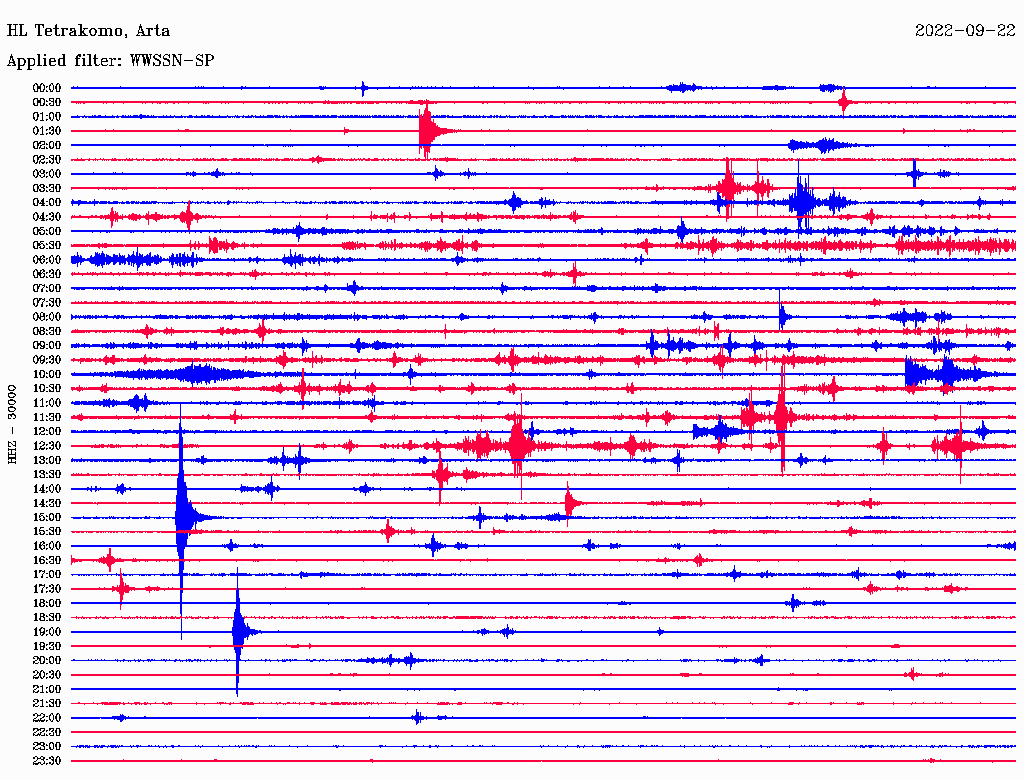

TETRHL56.8 96 P01:41:02.39 -0.51.0M
TETRHL56.8 96 S01:41:09.99 -0.61.0M
LKD2HT68.0177 P01:41:05.38 0.81.0M
LKD2HT68.0177 S01:41:13.22 -0.41.0M
AMPLHP73.9136 P01:41:06.38 0.81.0M
AMPLHP73.9136 S01:41:14.96 -0.31.0M
NYDRHT76.7175 P01:41:06.31 0.41.0M
NYDRHT76.7175 S01:41:15.78 -0.21.0M
KEKHL78.5296 P01:41:06.90 0.61.0M
KEKHL78.5296 S01:41:16.11 -0.51.0M
EVGIHT86.7178 P01:41:07.90 0.41.0M
EVGIHT86.7178 S01:41:18.58 -0.31.0M
PDOHP101.7151 P01:41:11.07 1.11.0M
PDOHP101.7151 S01:41:23.24 0.21.0M


  Solution details

Event:
    Public ID              nkua2022somd
    Description
      region name: Greece-Albania Border Region
Origin:
    Date                   2022-09-22
    Time                  01:40:52.68
    Latitude              39.4000 deg  +/-      1 km
    Longitude             20.6173 deg  +/-      1 km
    Depth                       8 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.35 s
    Azimuthal gap             130 deg

2 Network magnitudes:
    MLv       2.00 +/- 0.18   8
    M         2.00            8 preferred

20 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KSTR  HP    0.2 192  P       01:40:55.94  -0.3 M  1.0  KSTR
    KSTR  HP    0.2 192  S       01:40:58.96   0.1 M  1.0  KSTR
    IGT   HT    0.3 301  P       01:40:58.15   0.0 M  1.0  IGT
    IGT   HT    0.3 301  S       01:41:02.22  -0.1 M  1.0  IGT
    PRMD  HP    0.4  71  P       01:41:00.96   0.3 M  1.0  PRMD
    PRMD  HP    0.4  71  S       01:41:06.55  -0.2 M  1.0  PRMD
    TETR  HL    0.5  96  P       01:41:02.39  -0.5 M  1.0  TETR
    TETR  HL    0.5  96  S       01:41:09.99  -0.6 M  1.0  TETR
    LKD2  HT    0.6 177  P       01:41:05.38   0.8 M  1.0  LKD2
    LKD2  HT    0.6 177  S       01:41:13.22  -0.4 M  1.0  LKD2
    AMPL  HP    0.7 136  P       01:41:06.38   0.8 M  1.0  AMPL
    AMPL  HP    0.7 136  S       01:41:14.96  -0.3 M  1.0  AMPL
    NYDR  HT    0.7 175  P       01:41:06.31   0.4 M  1.0  NYDR
    NYDR  HT    0.7 175  S       01:41:15.78  -0.2 M  1.0  NYDR
    KEK   HL    0.7 296  P       01:41:06.90   0.6 M  1.0  KEK
    KEK   HL    0.7 296  S       01:41:16.11  -0.5 M  1.0  KEK
    EVGI  HT    0.8 178  P       01:41:07.90   0.4 M  1.0  EVGI
    EVGI  HT    0.8 178  S       01:41:18.58  -0.3 M  1.0  EVGI
    PDO   HP    0.9 151  P       01:41:11.07   1.1 M  1.0  PDO
    PDO   HP    0.9 151  S       01:41:23.24   0.2 M  1.0  PDO

10 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KSTR  HP    0.2 192  MLv     1.68 -0.32    1.41774
    IGT   HT    0.3 301  MLv     1.67 -0.34   0.710532
    PRMD  HP    0.4  71  MLv     1.91 -0.10   0.520043
    TETR  HL    0.5  96  MLv     2.18  0.18   0.455456
    LKD2  HT    0.6 177  MLv     2.15  0.15   0.325771
    AMPL  HP    0.7 136  MLv     2.17  0.16   0.313491
    NYDR  HT    0.7 175  MLv     2.03  0.03   0.160909
    KEK   HL    0.7 296  MLv     1.81 -0.19   0.251209
    EVGI  HT    0.8 178  MLv     2.28  0.28    0.35487
    PDO   HP    0.9 151  MLv     2.07  0.06   0.181663
