Earthquake Information
 Origin Time
2022-09-21 19:03:04 (GMT)
 Magnitude
M 2.2
 Latitude
38.3203° N
 Longitude
21.8265° E
 Focal Depth
7 km
 # of Arrivals
38
 Location 11.7 km NE of Patras
23.7 km WNW of Aegion
170.9 km WNW of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
DRESHA2.3 92 P19:03:05.56 0.31.0M
DRESHA2.3 92 S19:03:06.42 0.01.0M
UPRHP5.4221 P19:03:05.55 0.01.0M
UPRHP5.4221 S19:03:06.90 0.01.0M
AGRPCL12.3313 P19:03:06.58 0.01.0M
AGRPCL12.3313 S19:03:08.49 -0.21.0M
EFPHP13.7 30 P19:03:07.18 0.41.0M
EFPHP13.7 30 S19:03:08.98 0.01.0M
PATCHL8.1226 P19:03:06.08 0.21.0M
PATCHL8.1226 S19:03:07.45 -0.11.0M
VVKHP11.4353 P19:03:06.70 0.21.0M
VVKHP11.4353 S19:03:08.32 -0.21.0M
AIOACL24.7125 P19:03:08.96 0.41.0M
AIOACL24.7125 S19:03:12.03 -0.21.0M
TEMECL27.3111 P19:03:09.46 0.51.0M
TEMECL27.3111 S19:03:12.64 -0.31.0M
TRIZCL22.1 77 P19:03:08.55 0.41.0M
TRIZCL22.1 77 S19:03:11.20 -0.21.0M
ANXHP31.4 15 P19:03:10.09 0.31.0M
ANXHP31.4 15 S19:03:13.84 -0.51.0M
KALEHA28.4 74 P19:03:09.59 0.31.0M
KALEHA28.4 74 S19:03:13.02 -0.41.0M
PANRCL37.4 81 P19:03:10.95 0.31.0M
PANRCL37.4 81 S19:03:15.68 -0.21.0M
AXSHP41.7251 P19:03:11.67 0.31.0M
AXSHP41.7251 S19:03:16.67 -0.41.0M
DROHP42.2194 P19:03:11.71 0.21.0M
DROHP42.2194 S19:03:17.10 -0.21.0M
KLVHL41.8137 P19:03:11.62 0.21.0M
KLVHL41.8137 S19:03:16.83 -0.41.0M
KLV1HI40.4142 P19:03:11.58 0.41.0M
KLV1HI40.4142 S19:03:16.46 -0.41.0M
PVOHP42.1321 P19:03:11.69 0.31.0M
PVOHP42.1321 S19:03:16.75 -0.51.0M
RLSHL43.2227 P19:03:12.02 0.41.0M
RLSHL43.2227 S19:03:17.25 -0.31.0M
GURHP62.1133 P19:03:14.74 -0.11.0M
GURHP62.1133 S19:03:22.92 -0.31.0M


  Solution details

Event:
    Public ID              nkua2022snyz
    Description
      region name: Greece
Origin:
    Date                   2022-09-21
    Time                  19:03:03.79
    Latitude              38.3203 deg  +/-      0 km
    Longitude             21.8265 deg  +/-      0 km
    Depth                       7 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.29 s
    Azimuthal gap              62 deg

2 Network magnitudes:
    MLv       2.23 +/- 0.30  15
    M         2.23           15 preferred

38 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta

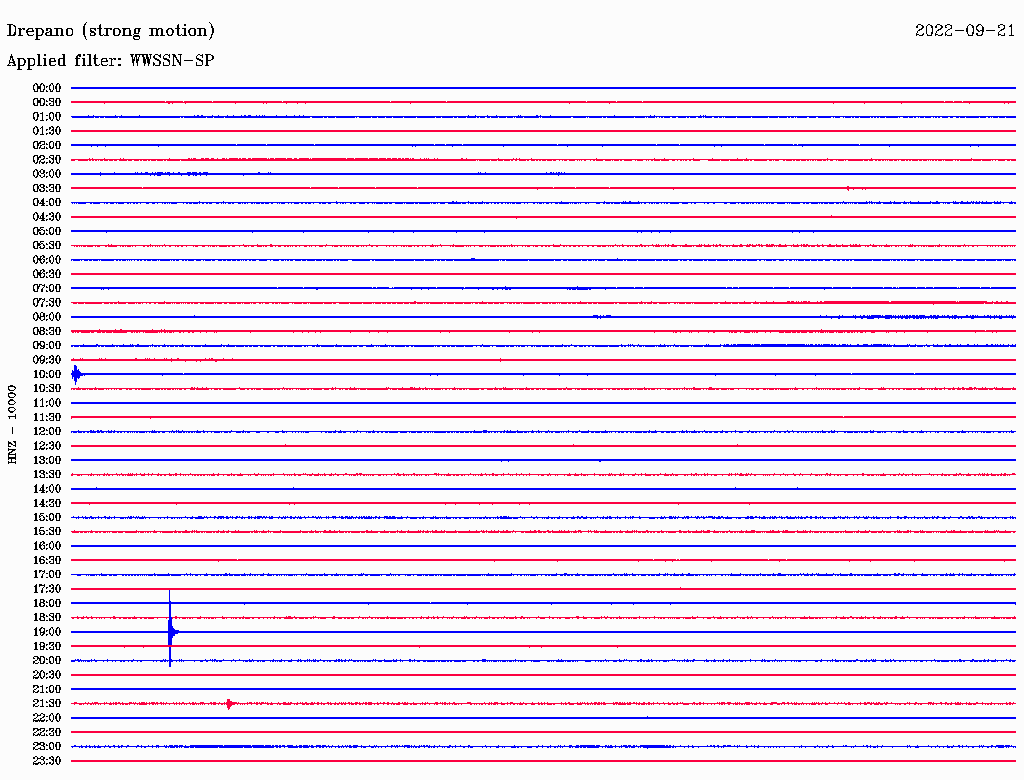

    DRES  HA    0.0  92  P       19:03:05.56   0.3 M  1.0  DRES
    DRES  HA    0.0  92  S       19:03:06.42  -0.0 M  1.0  DRES

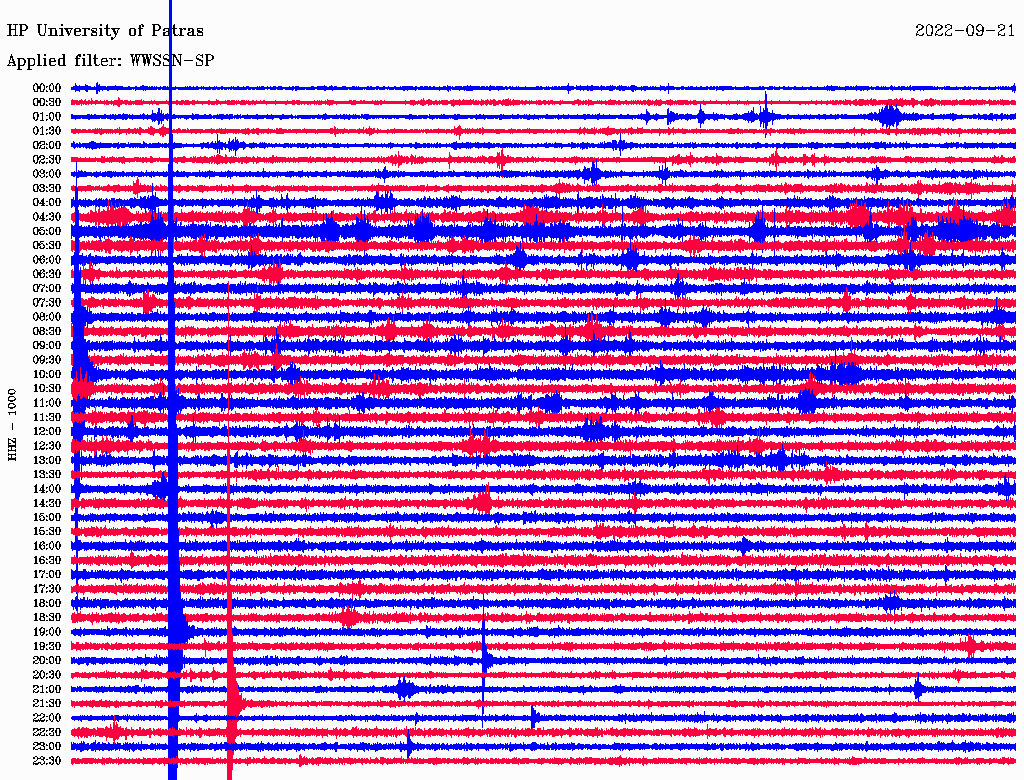

    UPR   HP    0.0 221  P       19:03:05.55  -0.0 M  1.0  UPR
    UPR   HP    0.0 221  S       19:03:06.90  -0.0 M  1.0  UPR
    PATC  HL    0.1 226  P       19:03:06.08   0.2 M  1.0  PATC
    PATC  HL    0.1 226  S       19:03:07.45  -0.1 M  1.0  PATC
    VVK   HP    0.1 353  P       19:03:06.70   0.2 M  1.0  VVK
    VVK   HP    0.1 353  S       19:03:08.32  -0.2 M  1.0  VVK
    AGRP  CL    0.1 313  P       19:03:06.58   0.0 M  1.0  AGRP
    AGRP  CL    0.1 313  S       19:03:08.49  -0.2 M  1.0  AGRP
    EFP   HP    0.1  30  P       19:03:07.18   0.4 M  1.0  EFP
    EFP   HP    0.1  30  S       19:03:08.98  -0.0 M  1.0  EFP
    TRIZ  CL    0.2  77  P       19:03:08.55   0.4 M  1.0  TRIZ
    TRIZ  CL    0.2  77  S       19:03:11.20  -0.2 M  1.0  TRIZ

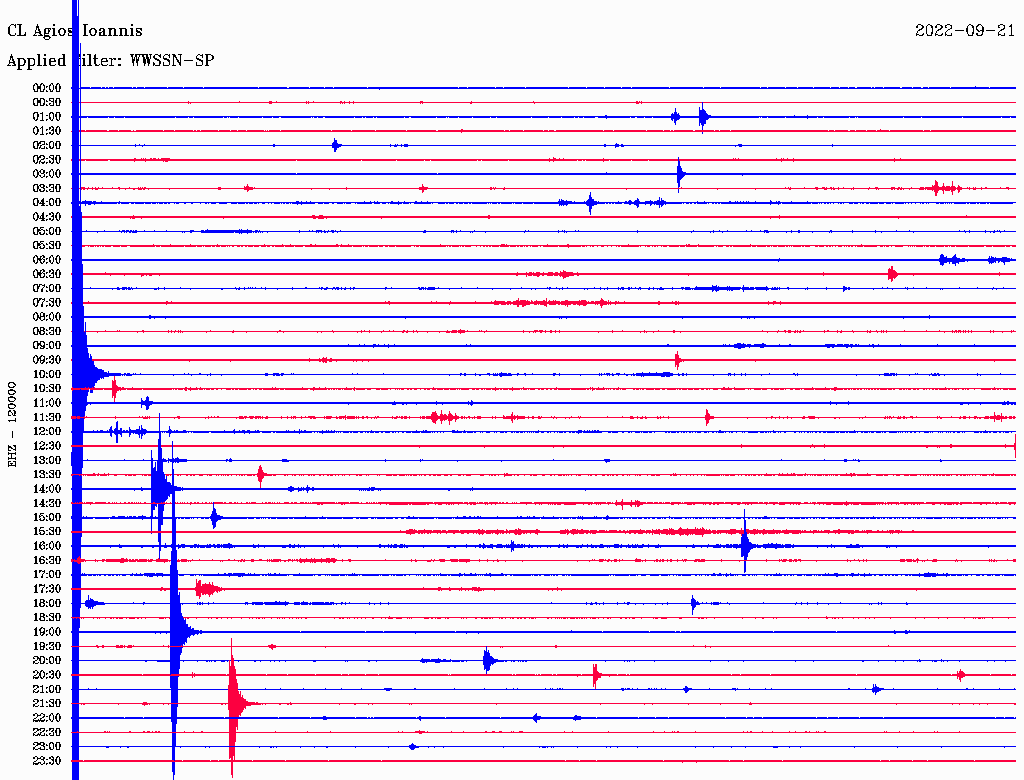

    AIOA  CL    0.2 125  P       19:03:08.96   0.4 M  1.0  AIOA
    AIOA  CL    0.2 125  S       19:03:12.03  -0.2 M  1.0  AIOA
    TEME  CL    0.2 111  P       19:03:09.46   0.5 M  1.0  TEME
    TEME  CL    0.2 111  S       19:03:12.64  -0.3 M  1.0  TEME
    KALE  HA    0.3  74  P       19:03:09.59   0.3 M  1.0  KALE
    KALE  HA    0.3  74  S       19:03:13.02  -0.4 M  1.0  KALE

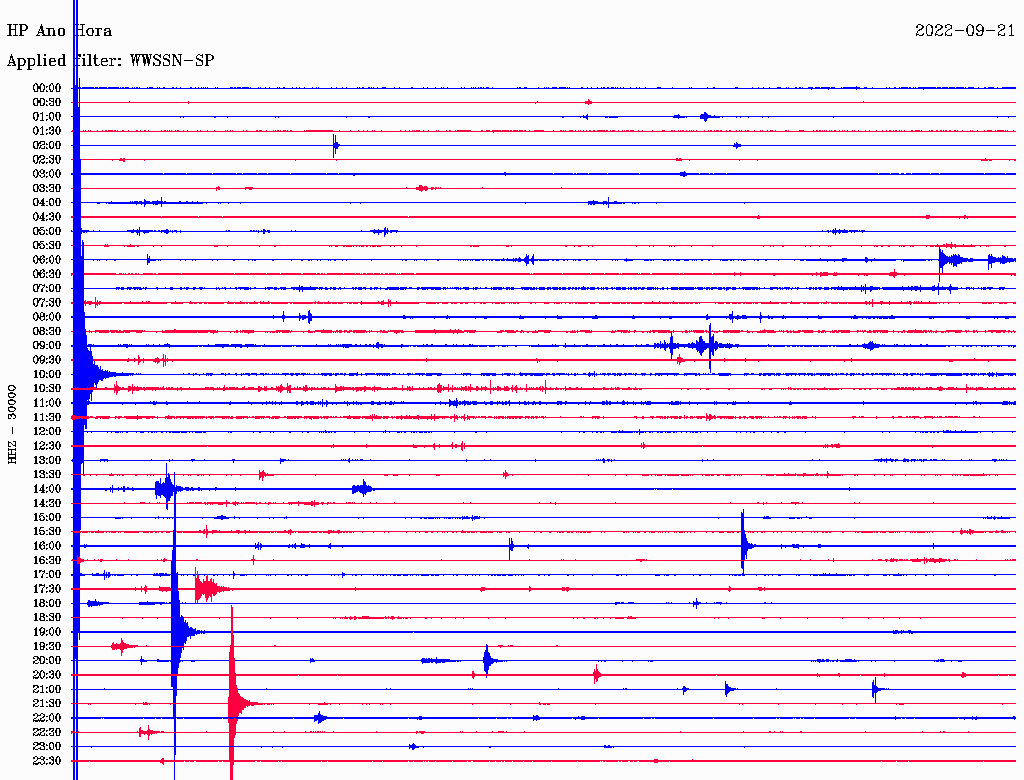

    ANX   HP    0.3  15  P       19:03:10.09   0.3 M  1.0  ANX
    ANX   HP    0.3  15  S       19:03:13.84  -0.5 M  1.0  ANX

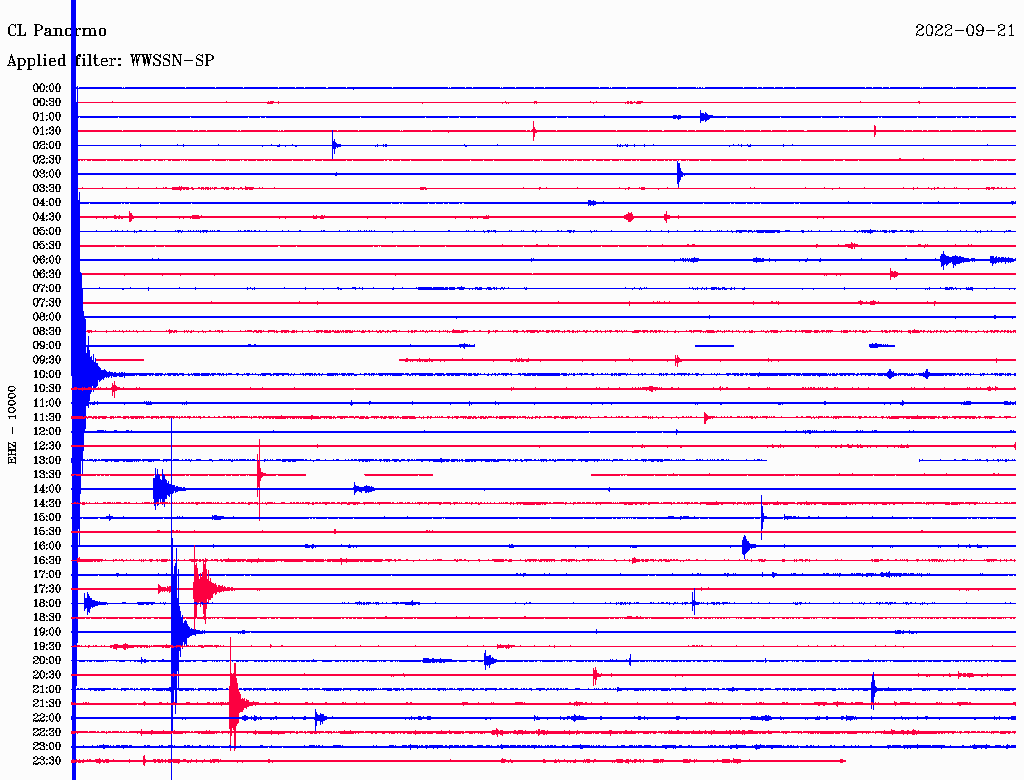

    PANR  CL    0.3  81  P       19:03:10.95   0.3 M  1.0  PANR
    PANR  CL    0.3  81  S       19:03:15.68  -0.2 M  1.0  PANR
    KLV1  HI    0.4 142  P       19:03:11.58   0.4 M  1.0  KLV1
    KLV1  HI    0.4 142  S       19:03:16.46  -0.4 M  1.0  KLV1
    AXS   HP    0.4 251  P       19:03:11.67   0.3 M  1.0  AXS
    AXS   HP    0.4 251  S       19:03:16.67  -0.4 M  1.0  AXS
    KLV   HL    0.4 137  P       19:03:11.62   0.2 M  1.0  KLV
    KLV   HL    0.4 137  S       19:03:16.83  -0.4 M  1.0  KLV

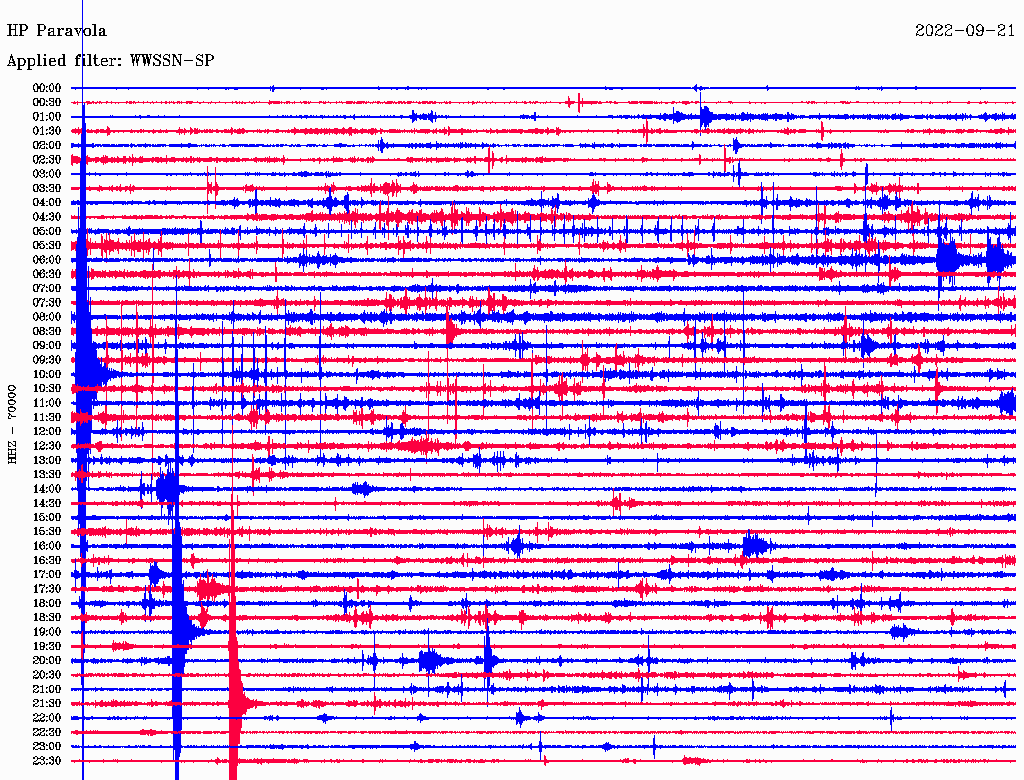

    PVO   HP    0.4 321  P       19:03:11.69   0.3 M  1.0  PVO
    PVO   HP    0.4 321  S       19:03:16.75  -0.5 M  1.0  PVO

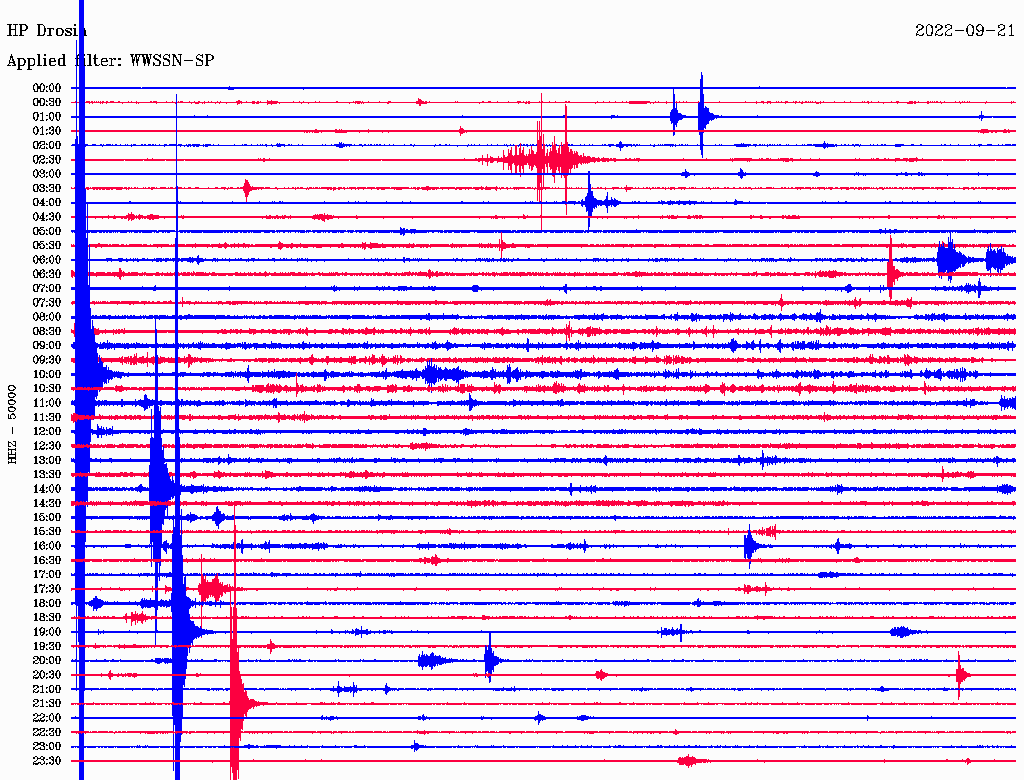

    DRO   HP    0.4 194  P       19:03:11.71   0.2 M  1.0  DRO
    DRO   HP    0.4 194  S       19:03:17.10  -0.2 M  1.0  DRO

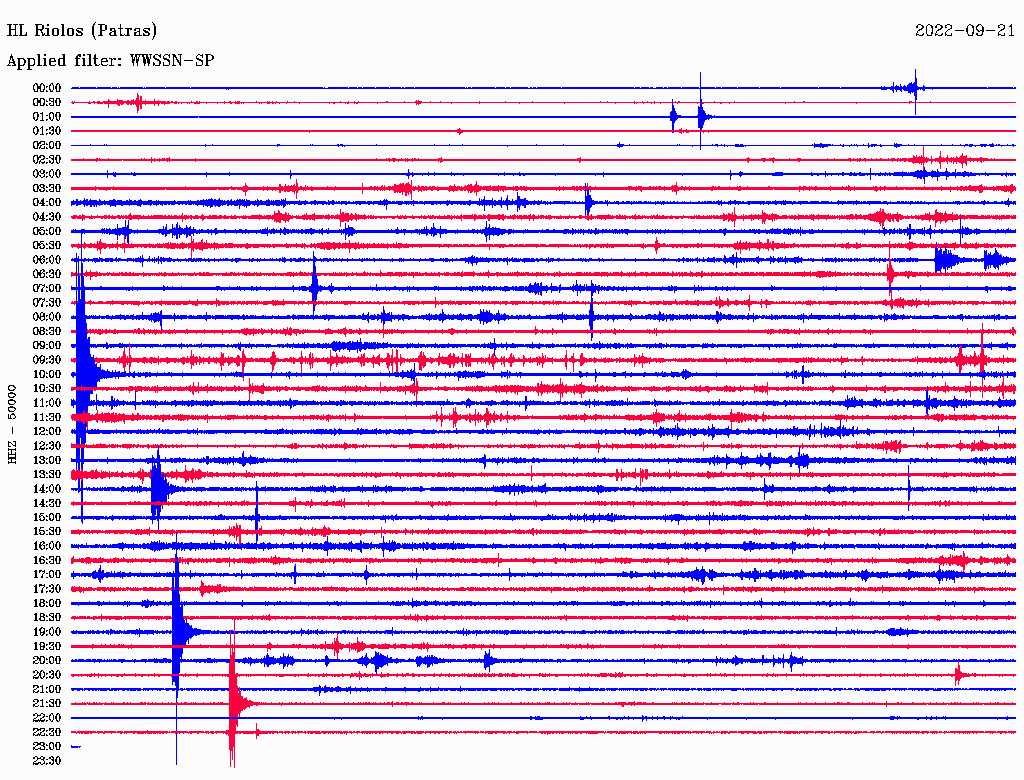

    RLS   HL    0.4 227  P       19:03:12.02   0.4 M  1.0  RLS
    RLS   HL    0.4 227  S       19:03:17.25  -0.3 M  1.0  RLS
    GUR   HP    0.6 133  P       19:03:14.74  -0.1 M  1.0  GUR
    GUR   HP    0.6 133  S       19:03:22.92  -0.3 M  1.0  GUR

19 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    DRES  HA    0.0  92  MLv     2.72  0.49    36.2689
    UPR   HP    0.0 221  MLv     1.81 -0.42    43.0941
    PATC  HL    0.1 226  MLv     2.74  0.52    27.6857
    VVK   HP    0.1 353  MLv     1.80 -0.42    12.2489
    AGRP  CL    0.1 313  MLv     2.43  0.21    10.6001
    EFP   HP    0.1  30  MLv     1.76 -0.47    2.08354
    TRIZ  CL    0.2  77  MLv     1.77 -0.46    1.31992
    AIOA  CL    0.2 125  MLv     2.19 -0.04   0.757229
    TEME  CL    0.2 111  MLv     1.96 -0.27   0.500633
    KALE  HA    0.3  74  MLv     1.82 -0.40    1.03025
    ANX   HP    0.3  15  MLv     2.33  0.10    2.76719
    PANR  CL    0.3  81  MLv     3.74  1.51   0.983071
    KLV1  HI    0.4 142  MLv     2.54  0.32    2.73004
    AXS   HP    0.4 251  MLv     2.01 -0.22   0.736839
    KLV   HL    0.4 137  MLv     2.33  0.10    1.15426
    PVO   HP    0.4 321  MLv     2.42  0.19     1.8393
    DRO   HP    0.4 194  MLv     2.27  0.05    2.75235
    RLS   HL    0.4 227  MLv     2.09 -0.14   0.815714
    GUR   HP    0.6 133  MLv     2.72  0.49    1.28022
