Earthquake Information
 Origin Time
2022-09-21 14:02:18 (GMT)
 Magnitude
M 2.4
 Latitude
37.4462° N
 Longitude
21.9555° E
 Focal Depth
7 km
 # of Arrivals
46
 Location 38.1 km W of Tripolis
47.4 km NNW of Kalamata
167.4 km WSW of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

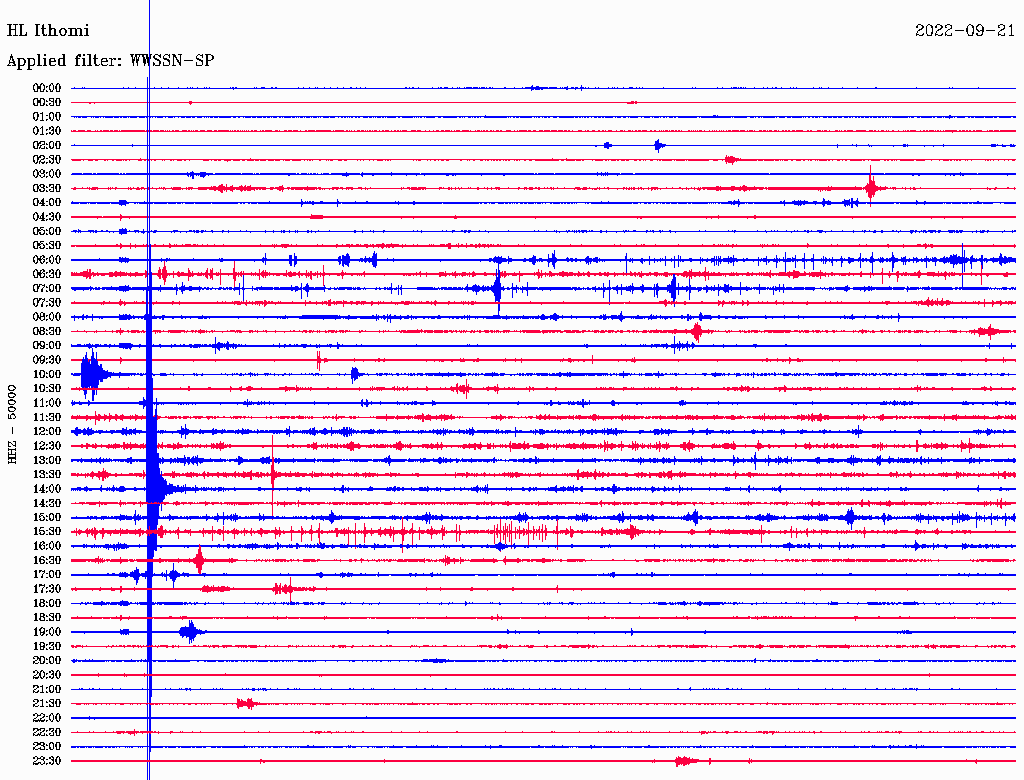

ITMHL29.9185 P14:02:23.98 0.31.0M
ITMHL29.9185 S14:02:27.61 -0.41.0M

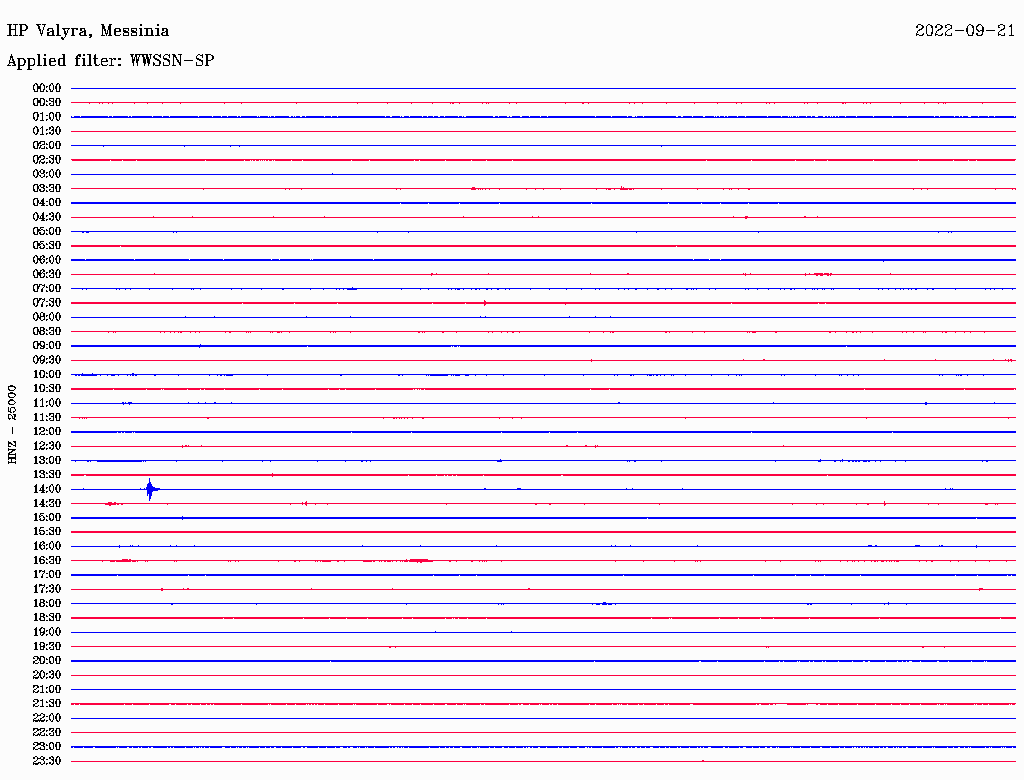

VALYHP31.5175 P14:02:24.14 0.21.0M
VALYHP31.5175 S14:02:28.05 -0.31.0M

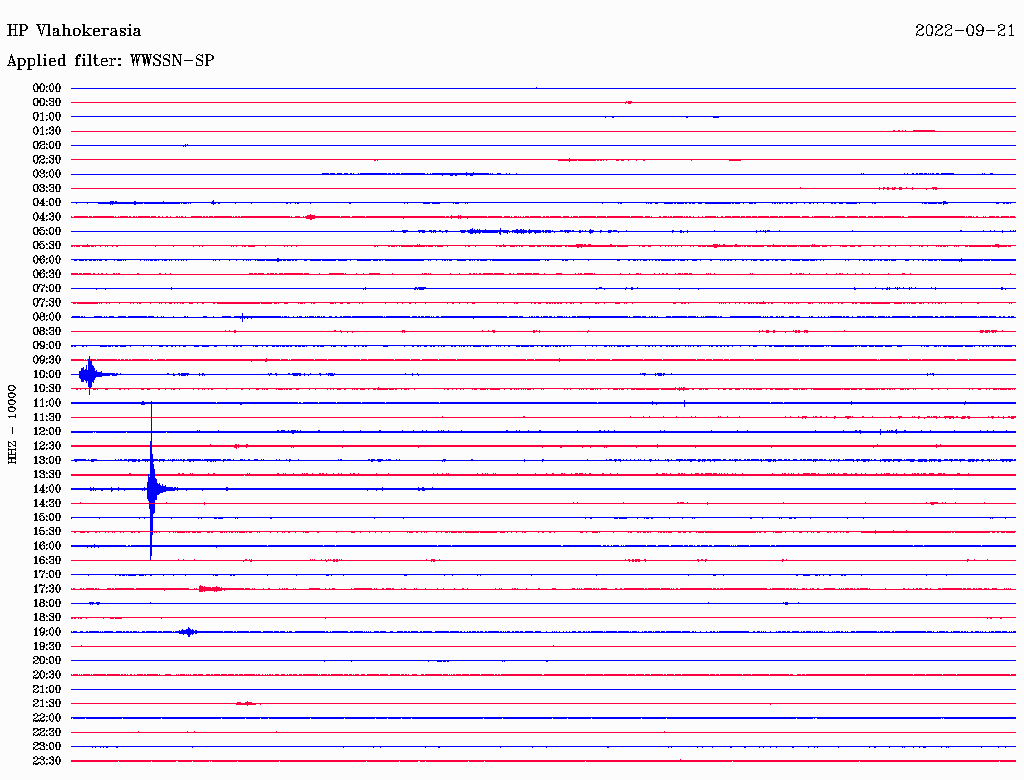

VLXHP38.4103 P14:02:25.50 0.31.0M
VLXHP38.4103 S14:02:30.04 -0.61.0M
DROHP60.2339 P14:02:29.01 0.31.0M
DROHP60.2339 S14:02:36.22 -0.51.0M
GURHP64.3 32 P14:02:29.09 -0.31.0M
GURHP64.3 32 S14:02:37.50 -0.61.0M
KLVHL68.6 15 P14:02:29.74 -0.31.0M
KLVHL68.6 15 S14:02:38.63 -0.61.0M
PYLHP64.1197 P14:02:29.16 -0.11.0M
PYLHP64.1197 S14:02:37.63 -0.21.0M
RLSHL80.4327 P14:02:31.96 0.01.0M
RLSHL80.4327 S14:02:42.06 -0.51.0M
AIOACL83.6 6 P14:02:32.22 -0.31.0M
AIOACL83.6 6 S14:02:43.02 -0.41.0M
TEMECL88.5 9 P14:02:32.92 -0.31.0M
TEMECL88.5 9 S14:02:44.47 -0.31.0M

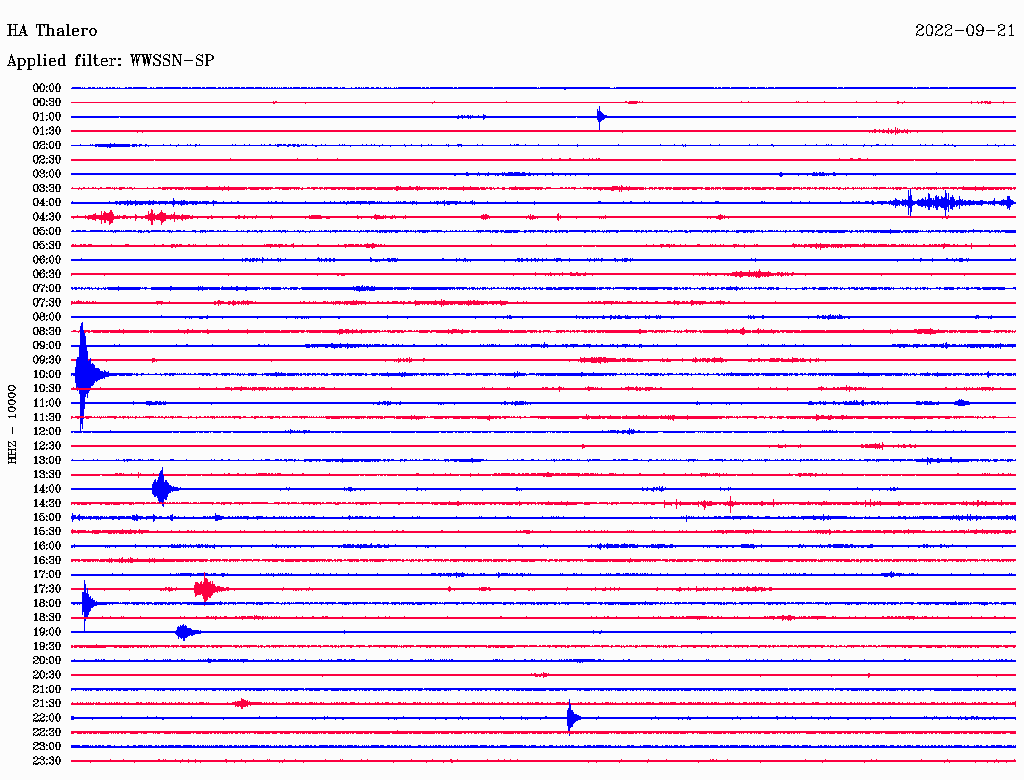

THALHA90.4 44 P14:02:33.70 0.11.0M
THALHA90.4 44 S14:02:45.17 -0.21.0M

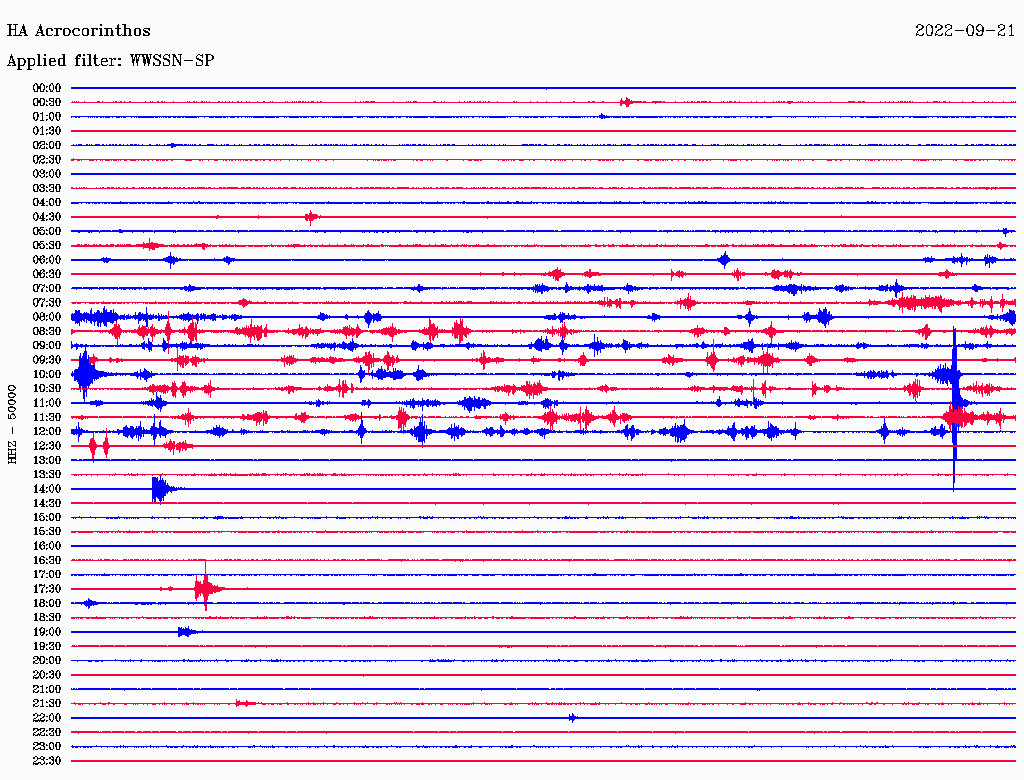

ACORHA94.4 59 P14:02:34.15 -0.11.0M
ACORHA94.4 59 S14:02:46.43 -0.11.0M
AXSHP97.7328 P14:02:34.85 0.11.0M
AXSHP97.7328 S14:02:47.37 0.01.0M
EPIDHA104.3 80 P14:02:36.13 0.31.0M
EPIDHA104.3 80 S14:02:49.45 0.11.0M
TRIZCL102.7 6 P14:02:35.22 -0.31.0M
TRIZCL102.7 6 S14:02:48.76 0.01.0M
AGRPCL107.6349 P14:02:36.60 0.31.0M
AGRPCL107.6349 S14:02:50.18 0.11.0M
KALEHA106.3 9 P14:02:36.00 -0.11.0M
KALEHA106.3 9 S14:02:49.79 -0.11.0M

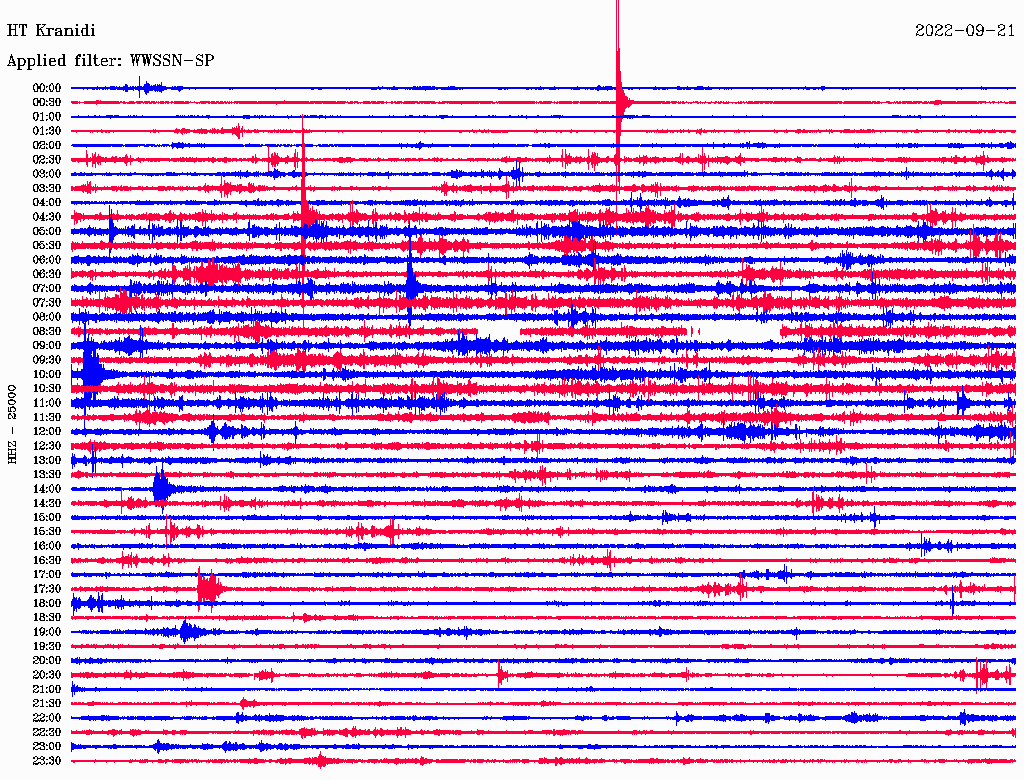

KRNDHT105.7 94 P14:02:36.47 0.41.0M
KRNDHT105.7 94 S14:02:49.98 0.31.0M

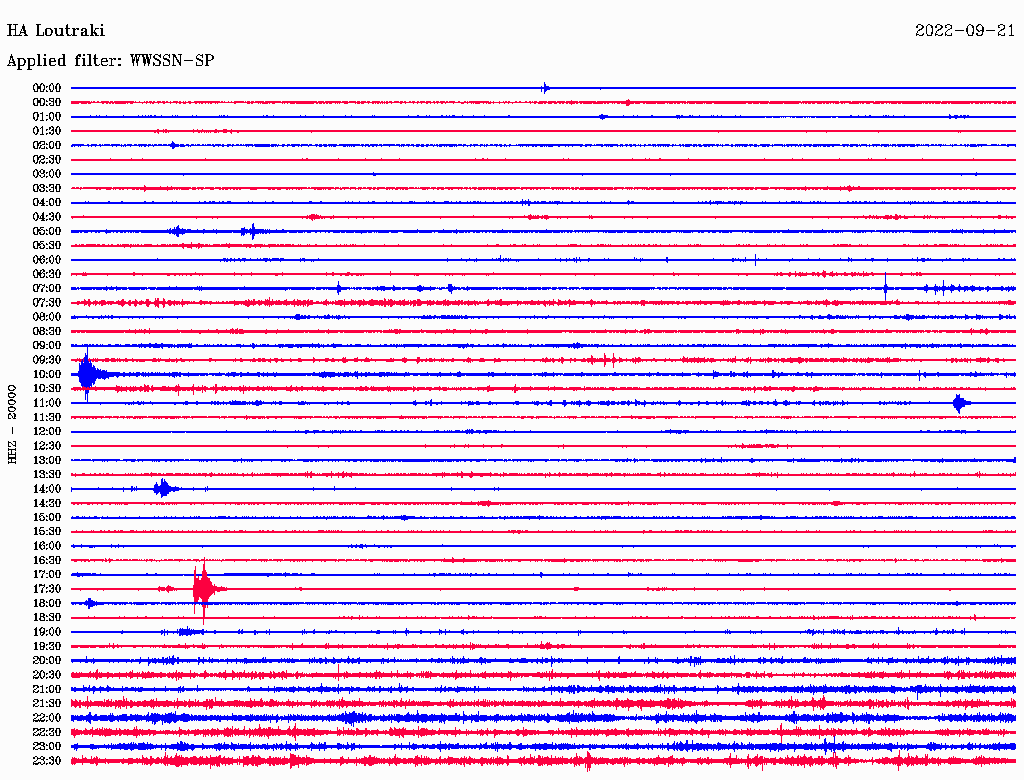

LOUTHA108.0 56 P14:02:36.47 0.11.0M
LOUTHA108.0 56 S14:02:50.40 0.11.0M
LTKHP109.7 54 P14:02:36.71 0.01.0M
LTKHP109.7 54 S14:02:50.85 0.01.0M
PANRCL106.3 14 P14:02:35.76 -0.31.0M
PANRCL106.3 14 S14:02:49.59 -0.21.0M
VVKHP109.3353 P14:02:36.67 0.11.0M
VVKHP109.3353 S14:02:50.74 0.01.0M

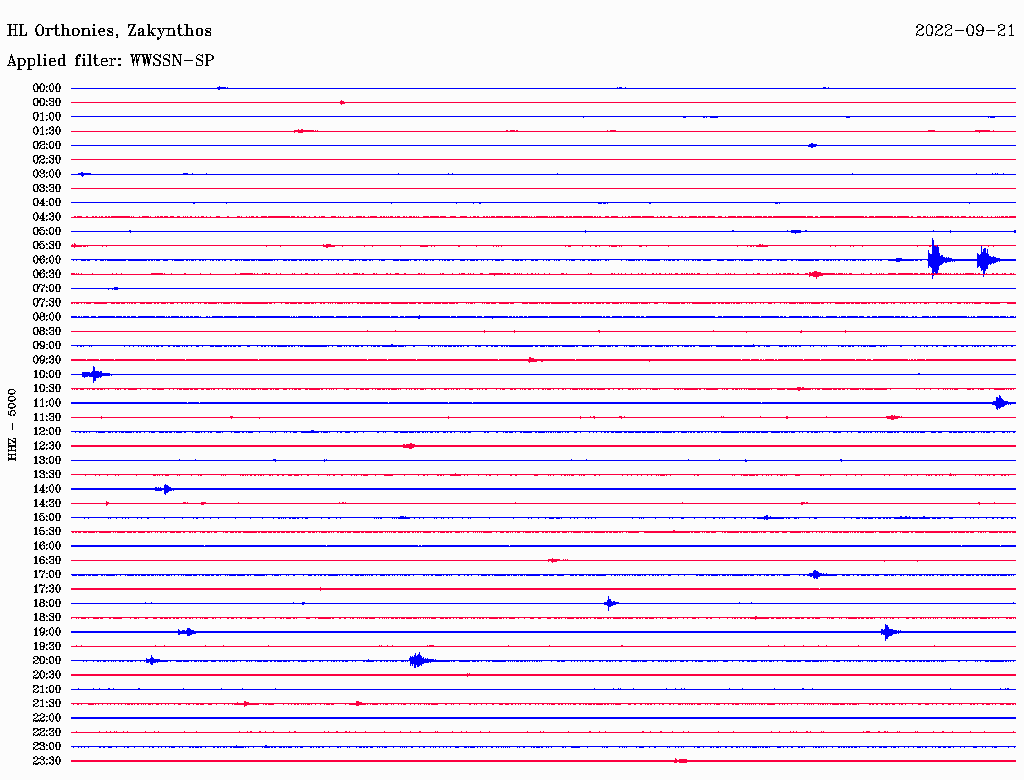

ORTHHL119.7292 P14:02:38.65 0.41.0M
ORTHHL119.7292 S14:02:54.09 0.41.0M


  Solution details

Event:
    Public ID              nkua2022snpb
    Description
      region name: Southern Greece
Origin:
    Date                   2022-09-21
    Time                  14:02:18.07
    Latitude              37.4462 deg  +/-      0 km
    Longitude             21.9555 deg  +/-      0 km
    Depth                       7 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.30 s
    Azimuthal gap              95 deg

2 Network magnitudes:
    MLv       2.43 +/- 0.20  19
    M         2.43           19 preferred

46 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ITM   HL    0.3 185  P       14:02:23.98   0.3 M  1.0  ITM
    ITM   HL    0.3 185  S       14:02:27.61  -0.4 M  1.0  ITM
    VALY  HP    0.3 175  P       14:02:24.14   0.2 M  1.0  VALY
    VALY  HP    0.3 175  S       14:02:28.05  -0.3 M  1.0  VALY
    VLX   HP    0.3 103  P       14:02:25.50   0.3 M  1.0  VLX
    VLX   HP    0.3 103  S       14:02:30.04  -0.6 M  1.0  VLX
    DRO   HP    0.5 339  P       14:02:29.01   0.3 M  1.0  DRO
    DRO   HP    0.5 339  S       14:02:36.22  -0.5 M  1.0  DRO

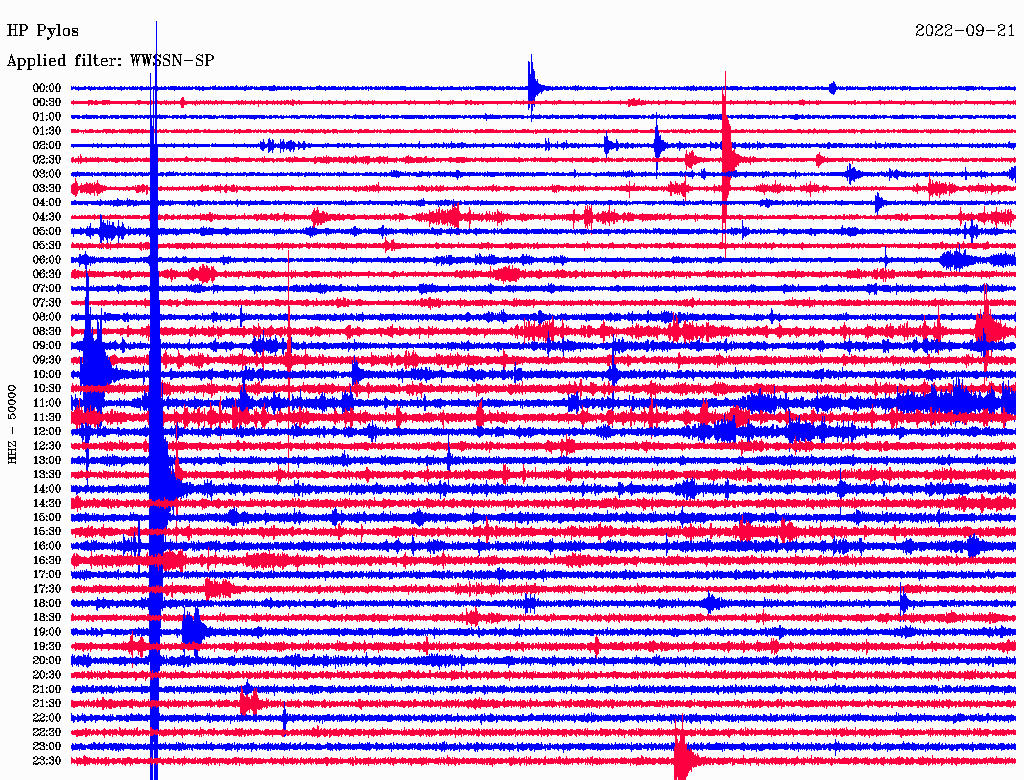

    PYL   HP    0.6 197  P       14:02:29.16  -0.1 M  1.0  PYL
    PYL   HP    0.6 197  S       14:02:37.63  -0.2 M  1.0  PYL
    GUR   HP    0.6  32  P       14:02:29.09  -0.3 M  1.0  GUR
    GUR   HP    0.6  32  S       14:02:37.50  -0.6 M  1.0  GUR
    KLV   HL    0.6  15  P       14:02:29.74  -0.3 M  1.0  KLV
    KLV   HL    0.6  15  S       14:02:38.63  -0.6 M  1.0  KLV
    RLS   HL    0.7 327  P       14:02:31.96   0.0 M  1.0  RLS
    RLS   HL    0.7 327  S       14:02:42.06  -0.5 M  1.0  RLS
    AIOA  CL    0.8   6  P       14:02:32.22  -0.3 M  1.0  AIOA
    AIOA  CL    0.8   6  S       14:02:43.02  -0.4 M  1.0  AIOA
    TEME  CL    0.8   9  P       14:02:32.92  -0.3 M  1.0  TEME
    TEME  CL    0.8   9  S       14:02:44.47  -0.3 M  1.0  TEME
    THAL  HA    0.8  44  P       14:02:33.70   0.1 M  1.0  THAL
    THAL  HA    0.8  44  S       14:02:45.17  -0.2 M  1.0  THAL
    ACOR  HA    0.9  59  P       14:02:34.15  -0.1 M  1.0  ACOR
    ACOR  HA    0.9  59  S       14:02:46.43  -0.1 M  1.0  ACOR
    AXS   HP    0.9 328  P       14:02:34.85   0.1 M  1.0  AXS
    AXS   HP    0.9 328  S       14:02:47.37   0.0 M  1.0  AXS
    TRIZ  CL    0.9   6  P       14:02:35.22  -0.3 M  1.0  TRIZ
    TRIZ  CL    0.9   6  S       14:02:48.76   0.0 M  1.0  TRIZ

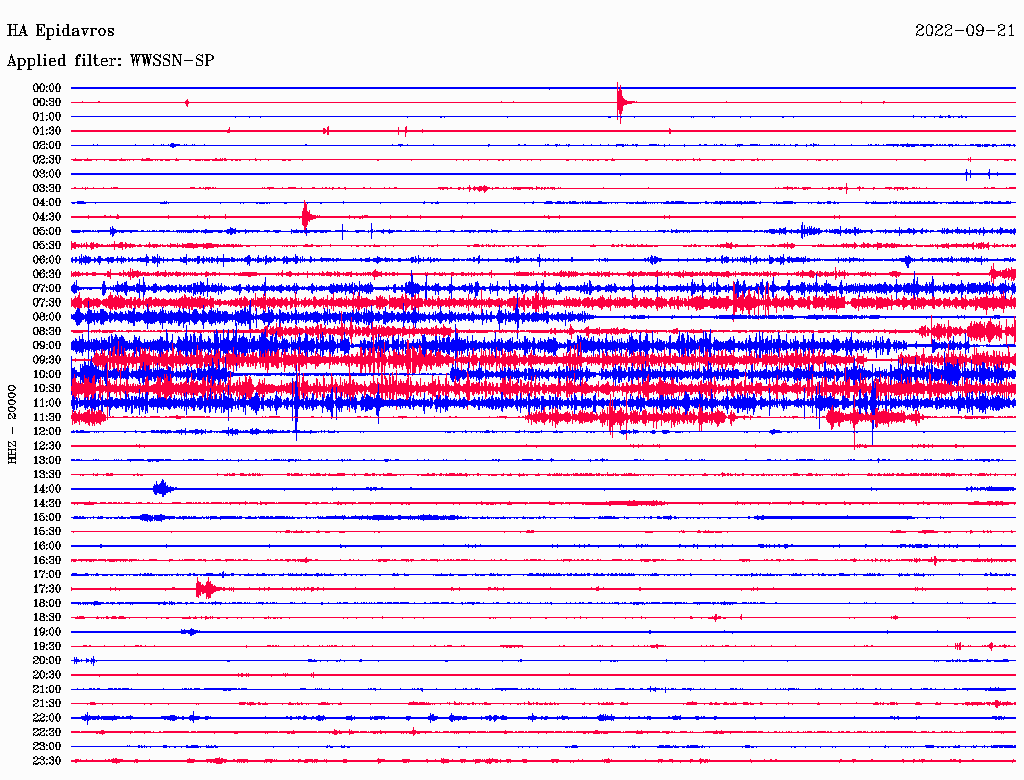

    EPID  HA    0.9  80  P       14:02:36.13   0.3 M  1.0  EPID
    EPID  HA    0.9  80  S       14:02:49.45   0.1 M  1.0  EPID
    KRND  HT    1.0  94  P       14:02:36.47   0.4 M  1.0  KRND
    KRND  HT    1.0  94  S       14:02:49.98   0.3 M  1.0  KRND
    KALE  HA    1.0   9  P       14:02:36.00  -0.1 M  1.0  KALE
    KALE  HA    1.0   9  S       14:02:49.79  -0.1 M  1.0  KALE
    PANR  CL    1.0  14  P       14:02:35.76  -0.3 M  1.0  PANR
    PANR  CL    1.0  14  S       14:02:49.59  -0.2 M  1.0  PANR
    AGRP  CL    1.0 349  P       14:02:36.60   0.3 M  1.0  AGRP
    AGRP  CL    1.0 349  S       14:02:50.18   0.1 M  1.0  AGRP
    LOUT  HA    1.0  56  P       14:02:36.47   0.1 M  1.0  LOUT
    LOUT  HA    1.0  56  S       14:02:50.40   0.1 M  1.0  LOUT
    VVK   HP    1.0 353  P       14:02:36.67   0.1 M  1.0  VVK
    VVK   HP    1.0 353  S       14:02:50.74   0.0 M  1.0  VVK

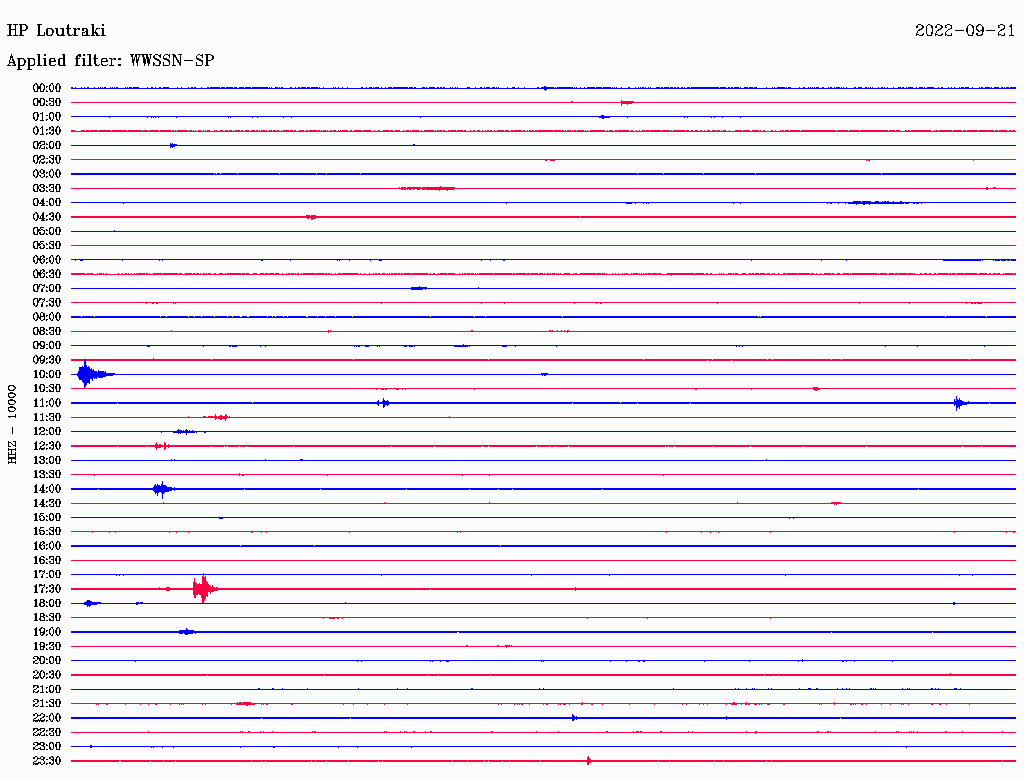

    LTK   HP    1.0  54  P       14:02:36.71   0.0 M  1.0  LTK
    LTK   HP    1.0  54  S       14:02:50.85   0.0 M  1.0  LTK
    ORTH  HL    1.1 292  P       14:02:38.65   0.4 M  1.0  ORTH
    ORTH  HL    1.1 292  S       14:02:54.09   0.4 M  1.0  ORTH

23 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ITM   HL    0.3 185  MLv     2.41 -0.03    3.64664
    VALY  HP    0.3 175  MLv     2.27 -0.17    2.40463
    VLX   HP    0.3 103  MLv     2.32 -0.12    1.80905
    DRO   HP    0.5 339  MLv     2.36 -0.08    1.18991
    PYL   HP    0.6 197  MLv     2.97  0.54   0.866671
    GUR   HP    0.6  32  MLv     2.87  0.43    1.76393
    KLV   HL    0.6  15  MLv     2.73  0.30    0.93093
    RLS   HL    0.7 327  MLv     2.20 -0.23   0.315157
    AIOA  CL    0.8   6  MLv     2.72  0.28   0.257006
    TEME  CL    0.8   9  MLv     2.72  0.29   0.316688
    THAL  HA    0.8  44  MLv     2.66  0.23    1.45061
    ACOR  HA    0.9  59  MLv     2.16 -0.27   0.243578
    AXS   HP    0.9 328  MLv     2.16 -0.27   0.235489
    TRIZ  CL    0.9   6  MLv     2.27 -0.17   0.283874
    EPID  HA    0.9  80  MLv     2.36 -0.07   0.347748
    KRND  HT    1.0  94  MLv     2.26 -0.17   0.271406
    KALE  HA    1.0   9  MLv     2.45  0.01   0.413755
    PANR  CL    1.0  14  MLv     3.62  1.19   0.120701
    AGRP  CL    1.0 349  MLv     2.45  0.02   0.408576
    LOUT  HA    1.0  56  MLv     2.38 -0.05   0.349559
    VVK   HP    1.0 353  MLv     1.80 -0.63   0.420002
    LTK   HP    1.0  54  MLv     1.77 -0.67   0.315206
    ORTH  HL    1.1 292  MLv     2.63  0.19    0.53575
