Earthquake Information
 Origin Time
2022-09-21 11:29:07 (GMT)
 Magnitude
M 2.0
 Latitude
38.1587° N
 Longitude
20.3012° E
 Focal Depth
13 km
 # of Arrivals
24
 Location 15.9 km W of Argostoli
66.2 km NW of Zakynthos
301.1 km W of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
DMLNHT10.9 35 P11:29:09.91 -0.21.0M
DMLNHT10.9 35 S11:29:12.66 0.21.0M
HAVDHA8.9 56 P11:29:09.74 -0.11.0M
HAVDHA8.9 56 S11:29:12.16 0.11.0M
LX11HA12.7 69 P11:29:10.31 0.11.0M
LX11HA12.7 69 S11:29:13.48 0.71.0M
ATHRHA20.3 30 P11:29:10.85 -0.51.0M
ATHRHA20.3 30 S11:29:13.98 -0.61.0M
PSDAHT25.2101 P11:29:11.96 -0.11.0M
PSDAHT25.2101 S11:29:16.19 0.31.0M
VLSHL25.2 85 P11:29:11.85 -0.21.0M
VLSHL25.2 85 S11:29:15.86 -0.11.0M

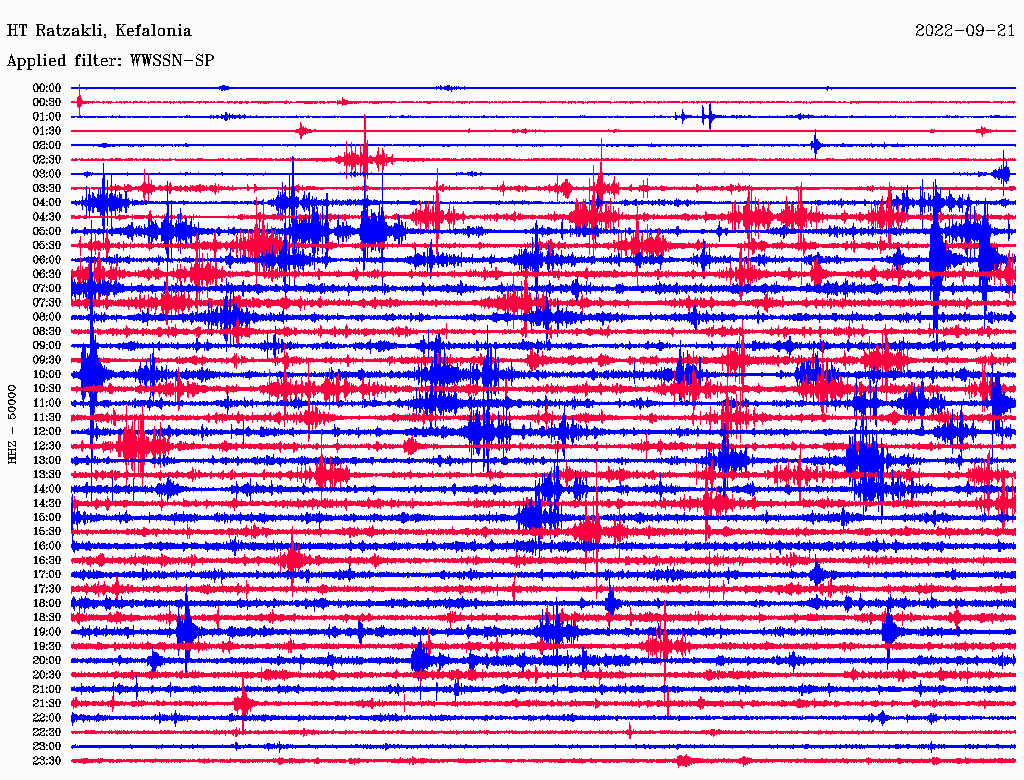

RTZLHT42.2103 P11:29:14.38 -0.31.0M
RTZLHT42.2103 S11:29:20.37 -0.11.0M

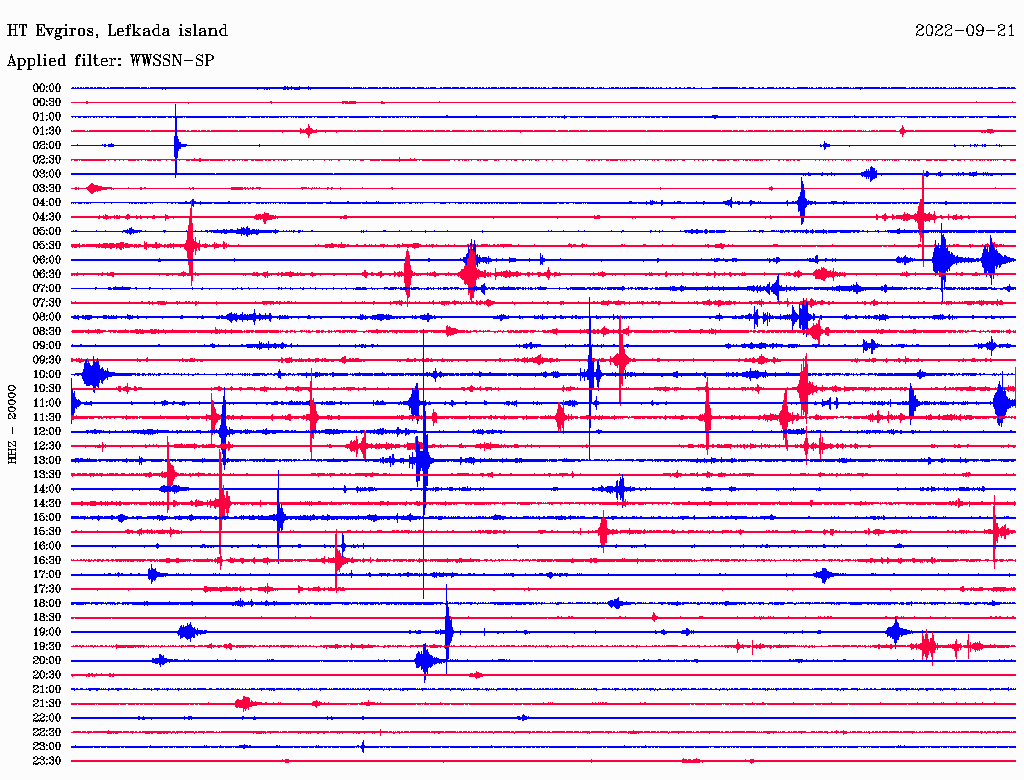

EVGIHT60.0 31 P11:29:17.19 -0.31.0M
EVGIHT60.0 31 S11:29:25.05 -0.41.0M

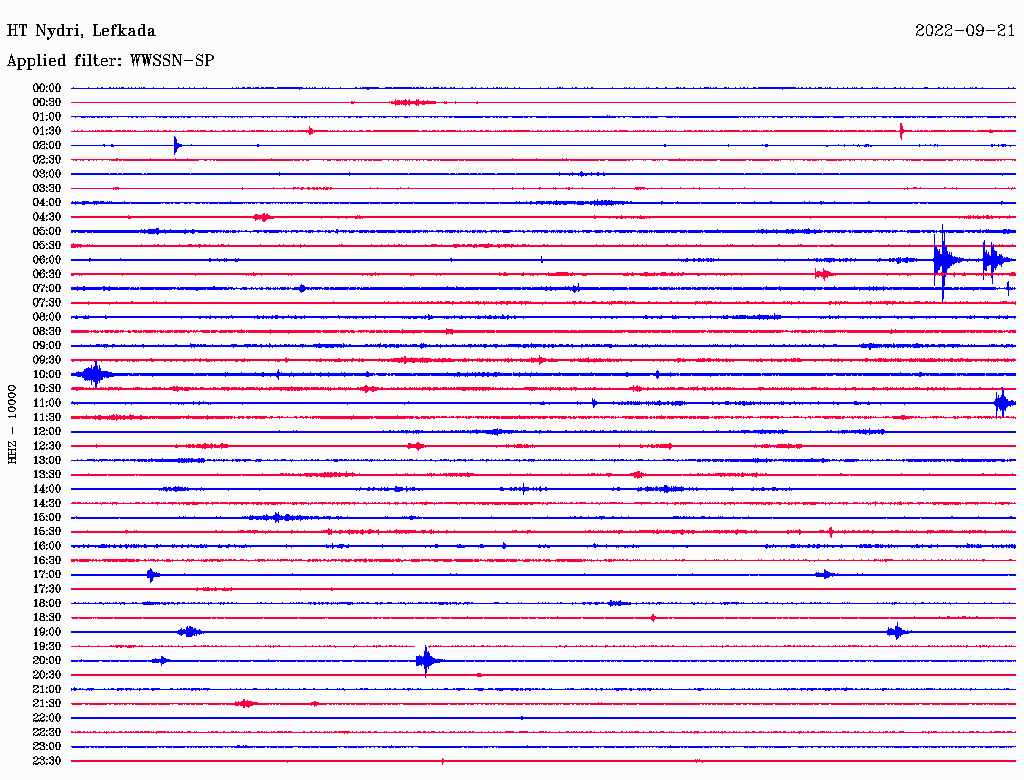

NYDRHT70.7 29 P11:29:19.20 0.11.0M
NYDRHT70.7 29 S11:29:28.24 -0.21.0M

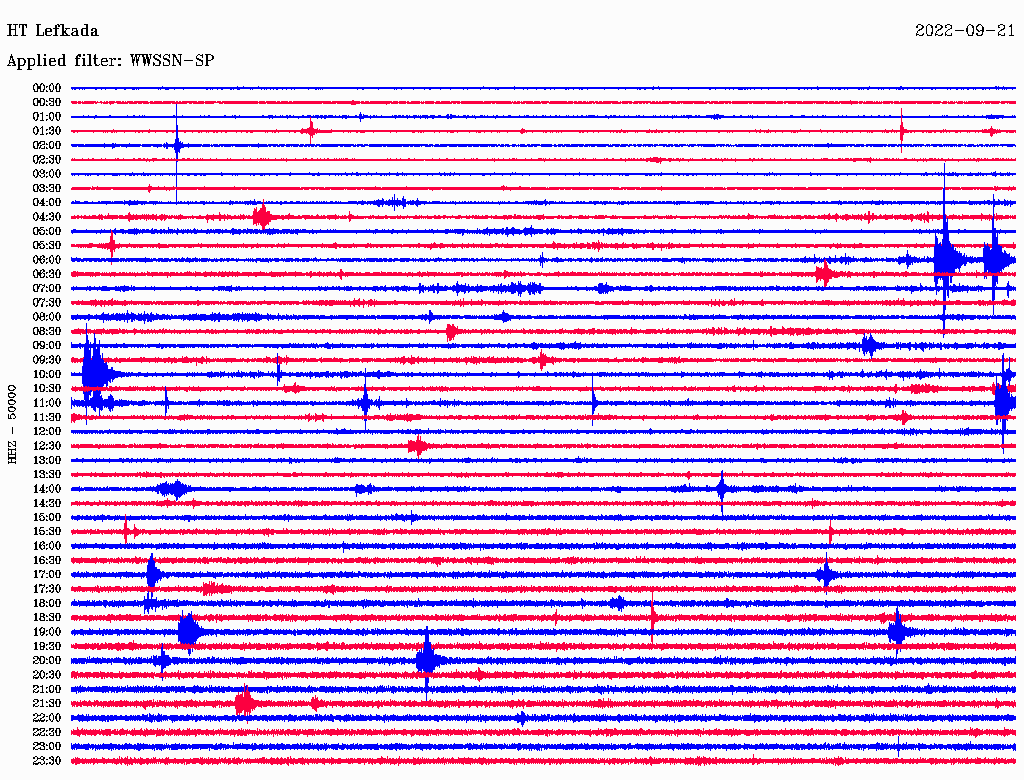

LKD2HT76.6 24 P11:29:19.71 -0.51.0M
LKD2HT76.6 24 S11:29:30.13 0.01.0M
KSTRHP123.6 11 P11:29:28.21 0.81.0M
KSTRHP123.6 11 S11:29:43.46 0.61.0M

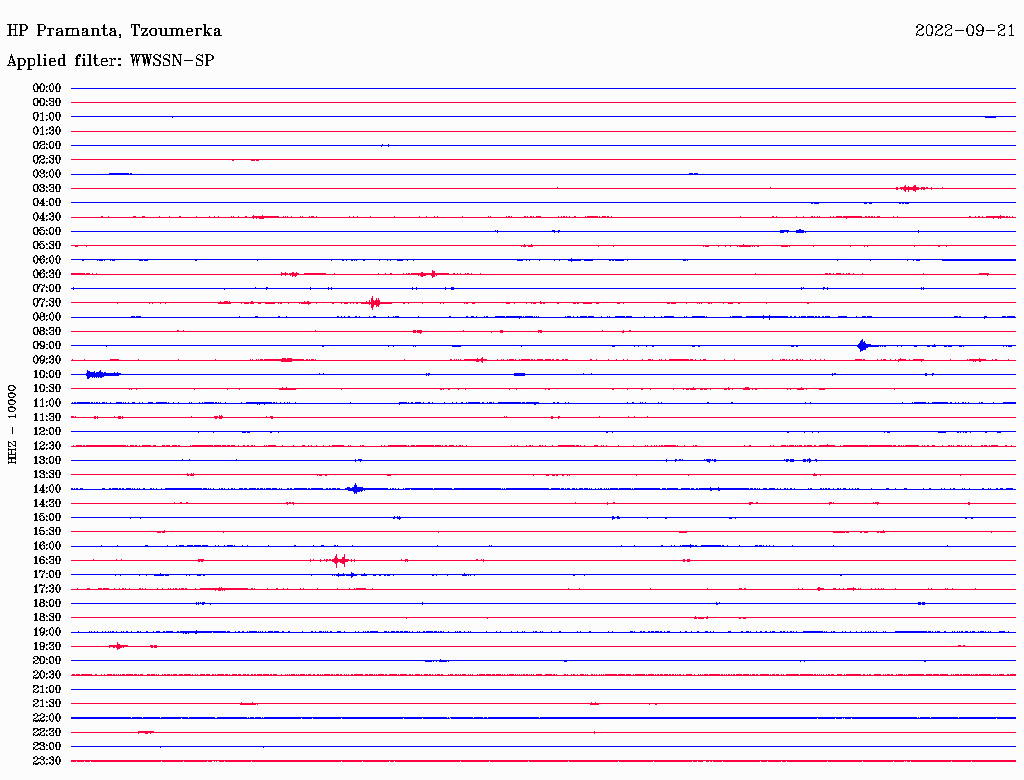

PRMDHP167.3 24 P11:29:34.57 0.61.0M
PRMDHP167.3 24 S11:29:54.72 0.31.0M


  Solution details

Event:
    Public ID              nkua2022snka
    Description
      region name: Greece
Origin:
    Date                   2022-09-21
    Time                  11:29:06.98
    Latitude              38.1587 deg  +/-      1 km
    Longitude             20.3012 deg  +/-      1 km
    Depth                      13 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.35 s
    Azimuthal gap             269 deg

2 Network magnitudes:
    MLv       1.95 +/- 0.15  10
    M         1.95           10 preferred

24 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    HAVD  HA    0.1  56  P       11:29:09.74  -0.1 M  1.0  HAVD
    HAVD  HA    0.1  56  S       11:29:12.16   0.1 M  1.0  HAVD
    DMLN  HT    0.1  35  P       11:29:09.91  -0.2 M  1.0  DMLN
    DMLN  HT    0.1  35  S       11:29:12.66   0.2 M  1.0  DMLN
    LX11  HA    0.1  69  P       11:29:10.31   0.1 M  1.0  LX11
    LX11  HA    0.1  69  S       11:29:13.48   0.7 M  1.0  LX11
    ATHR  HA    0.2  30  P       11:29:10.85  -0.5 M  1.0  ATHR
    ATHR  HA    0.2  30  S       11:29:13.98  -0.6 M  1.0  ATHR
    PSDA  HT    0.2 101  P       11:29:11.96  -0.1 M  1.0  PSDA
    PSDA  HT    0.2 101  S       11:29:16.19   0.3 M  1.0  PSDA
    VLS   HL    0.2  85  P       11:29:11.85  -0.2 M  1.0  VLS
    VLS   HL    0.2  85  S       11:29:15.86  -0.1 M  1.0  VLS
    RTZL  HT    0.4 103  P       11:29:14.38  -0.3 M  1.0  RTZL
    RTZL  HT    0.4 103  S       11:29:20.37  -0.1 M  1.0  RTZL
    EVGI  HT    0.5  31  P       11:29:17.19  -0.3 M  1.0  EVGI
    EVGI  HT    0.5  31  S       11:29:25.05  -0.4 M  1.0  EVGI
    NYDR  HT    0.6  29  P       11:29:19.20   0.1 M  1.0  NYDR
    NYDR  HT    0.6  29  S       11:29:28.24  -0.2 M  1.0  NYDR
    LKD2  HT    0.7  24  P       11:29:19.71  -0.5 M  1.0  LKD2
    LKD2  HT    0.7  24  S       11:29:30.13  -0.0 M  1.0  LKD2
    KSTR  HP    1.1  11  P       11:29:28.21   0.8 M  1.0  KSTR
    KSTR  HP    1.1  11  S       11:29:43.46   0.6 M  1.0  KSTR
    PRMD  HP    1.5  24  P       11:29:34.57   0.6 M  1.0  PRMD
    PRMD  HP    1.5  24  S       11:29:54.72   0.3 M  1.0  PRMD

12 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    HAVD  HA    0.1  56  MLv     1.88 -0.07    3.60322
    DMLN  HT    0.1  35  MLv     1.97  0.02     5.3862
    LX11  HA    0.1  69  MLv     1.98  0.03    3.66452
    ATHR  HA    0.2  30  MLv     1.60 -0.35   0.980668
    PSDA  HT    0.2 101  MLv     1.73 -0.22    1.00861
    VLS   HL    0.2  85  MLv     1.88 -0.07    1.39843
    RTZL  HT    0.4 103  MLv     1.63 -0.32   0.298581
    EVGI  HT    0.5  31  MLv     2.13  0.18   0.336856
    NYDR  HT    0.6  29  MLv     2.08  0.13   0.192451
    LKD2  HT    0.7  24  MLv     2.02  0.07   0.218212
    KSTR  HP    1.1  11  MLv     2.25  0.30    0.21668
    PRMD  HP    1.5  24  MLv     2.13  0.18   0.0992906
