Earthquake Information
 Origin Time
 2022-06-24 00:38:17 (GMT)
 Magnitude
 M 2.0
 Latitude
 36.3932° N
 Longitude
 22.7728° E
 Focal Depth
 2 km
 # of Arrivals
 26
 Location 27.0 km NW of Kithira
81.6 km SSE of Sparti
196.2 km SSW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
KTHRHC25.8130 P00:38:22.75 0.31.0M
KTHRHC25.8130 S00:38:26.59 0.21.0M

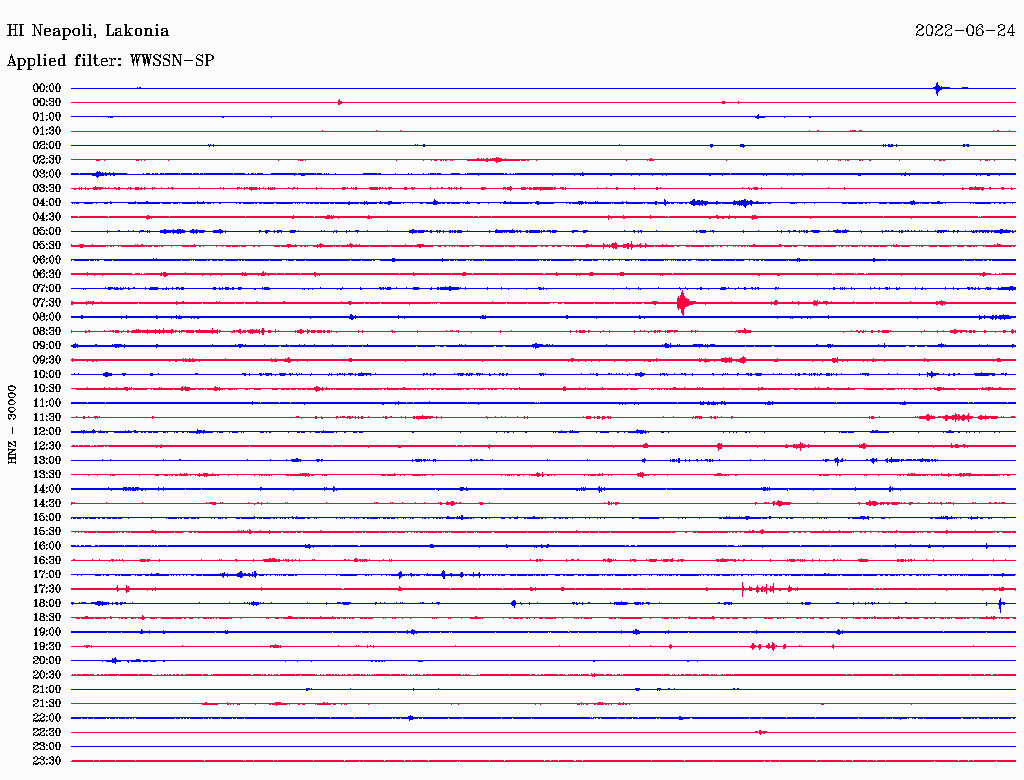

NPS1HI29.1 63 P00:38:23.45 0.51.0M
NPS1HI29.1 63 S00:38:27.78 0.41.0M

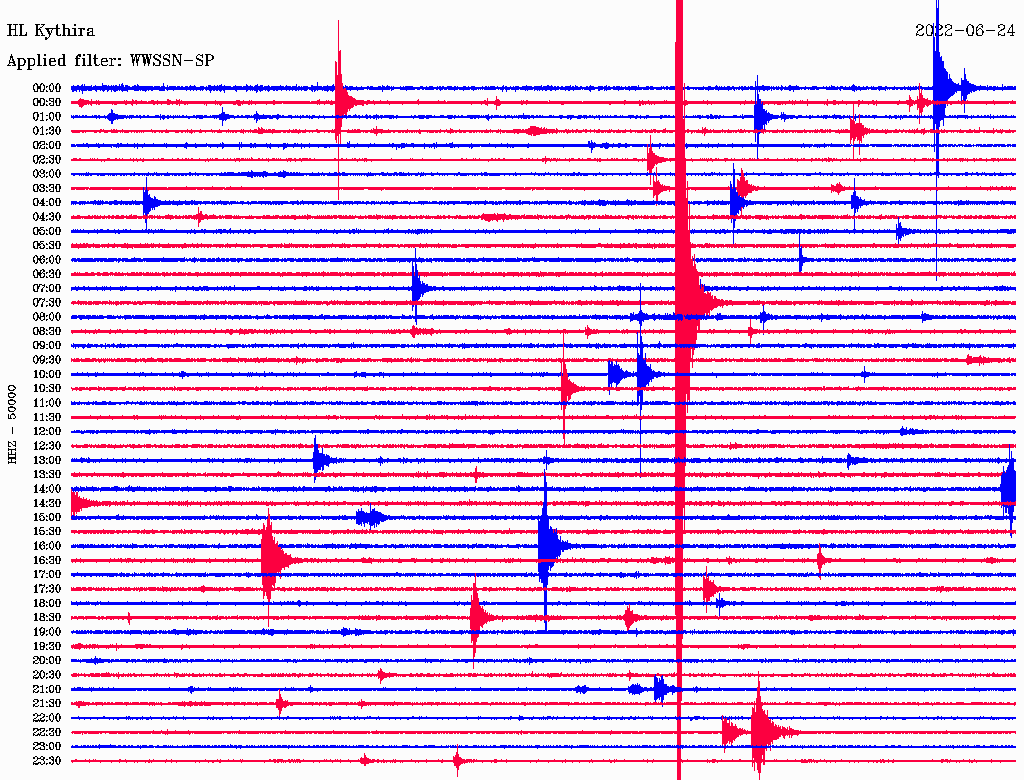

KTHAHL30.0120 P00:38:23.43 0.21.0M
KTHAHL30.0120 S00:38:27.88 0.21.0M

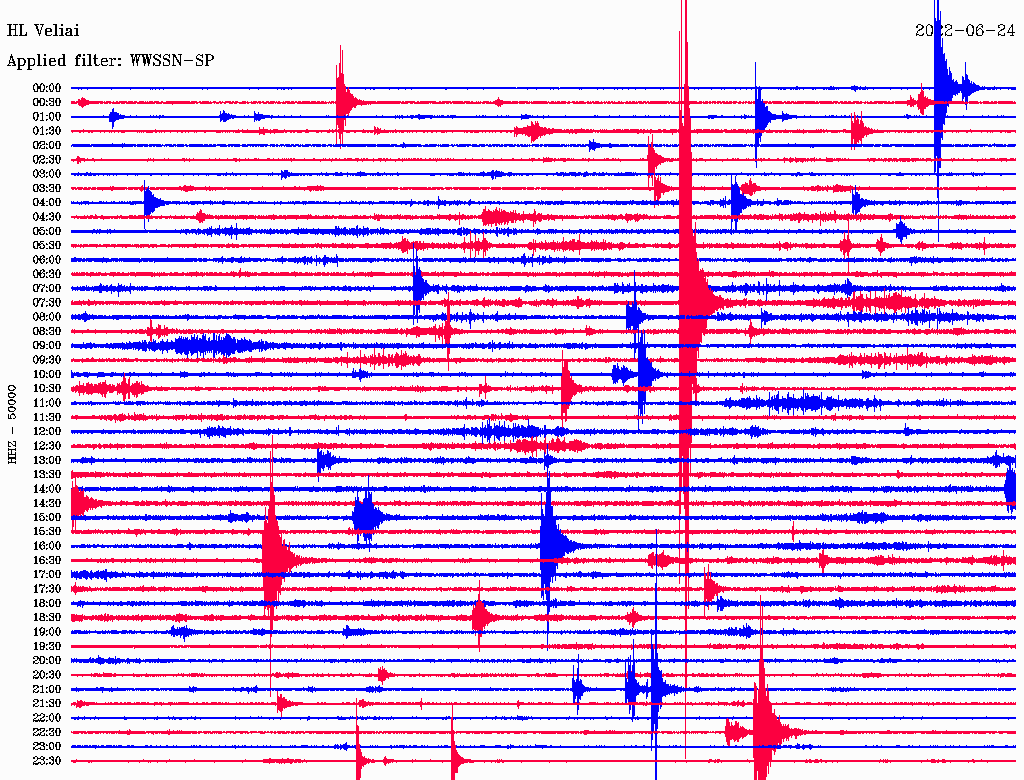

VLIHL39.3 23 P00:38:24.75 0.01.0M
VLIHL39.3 23 S00:38:29.23 -1.31.0M

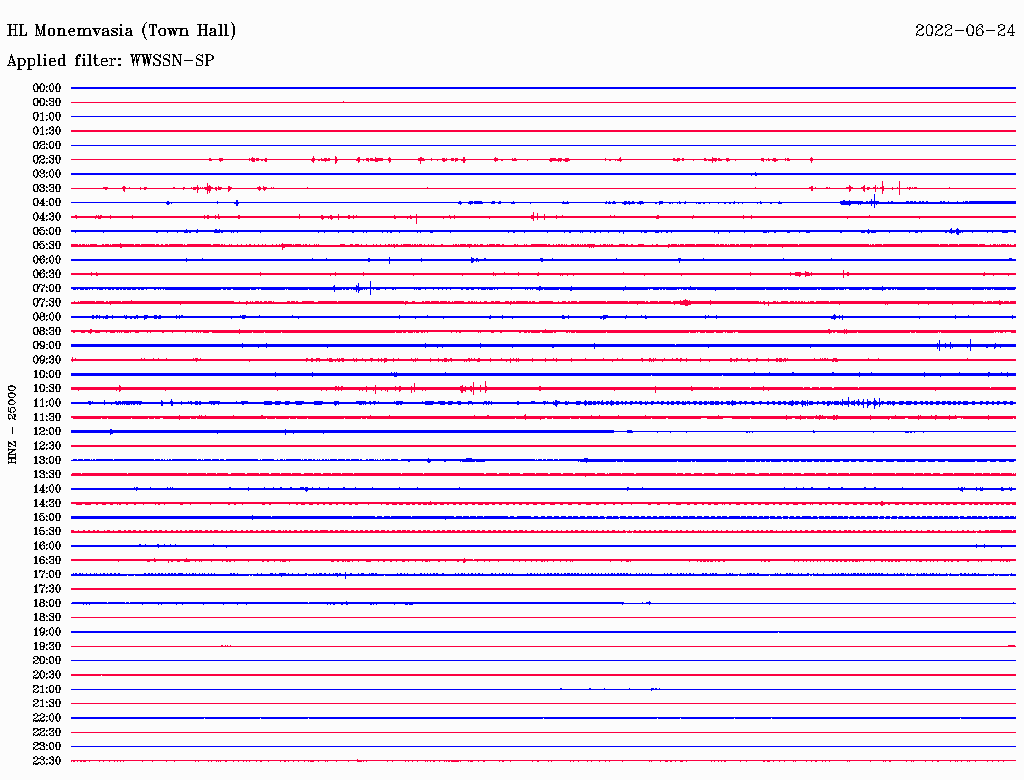

MNVAHL40.3 36 P00:38:25.38 0.41.0M
MNVAHL40.3 36 S00:38:30.70 -0.11.0M

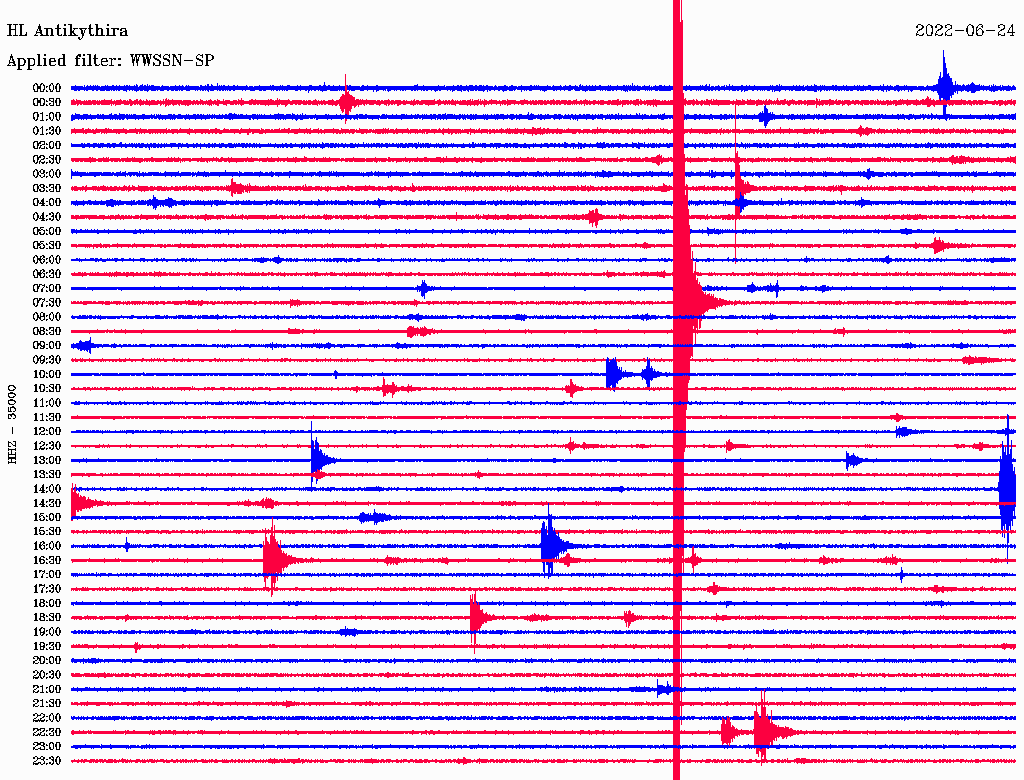

ANKYHL75.3141 P00:38:30.90 0.21.0M
ANKYHL75.3141 S00:38:40.80 -0.11.0M

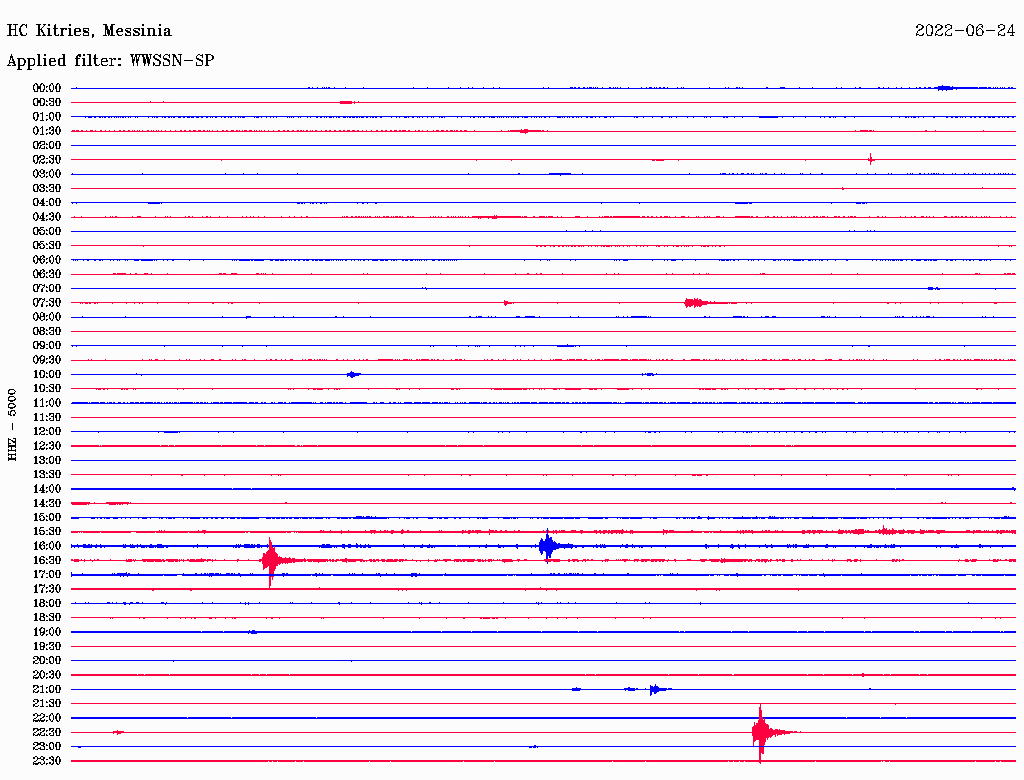

KTRSHC82.1316 P00:38:31.31 -0.51.0M
KTRSHC82.1316 S00:38:43.66 0.81.0M

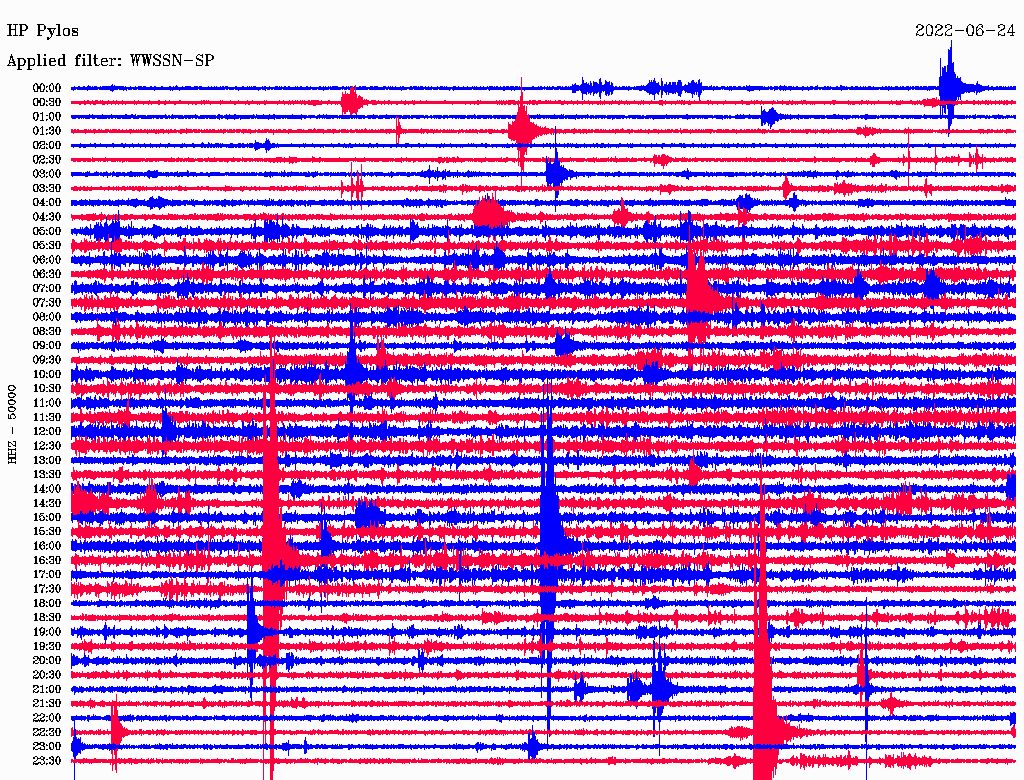

PYLHP107.6301 P00:38:35.10 -0.81.0M
PYLHP107.6301 S00:38:50.60 0.41.0M

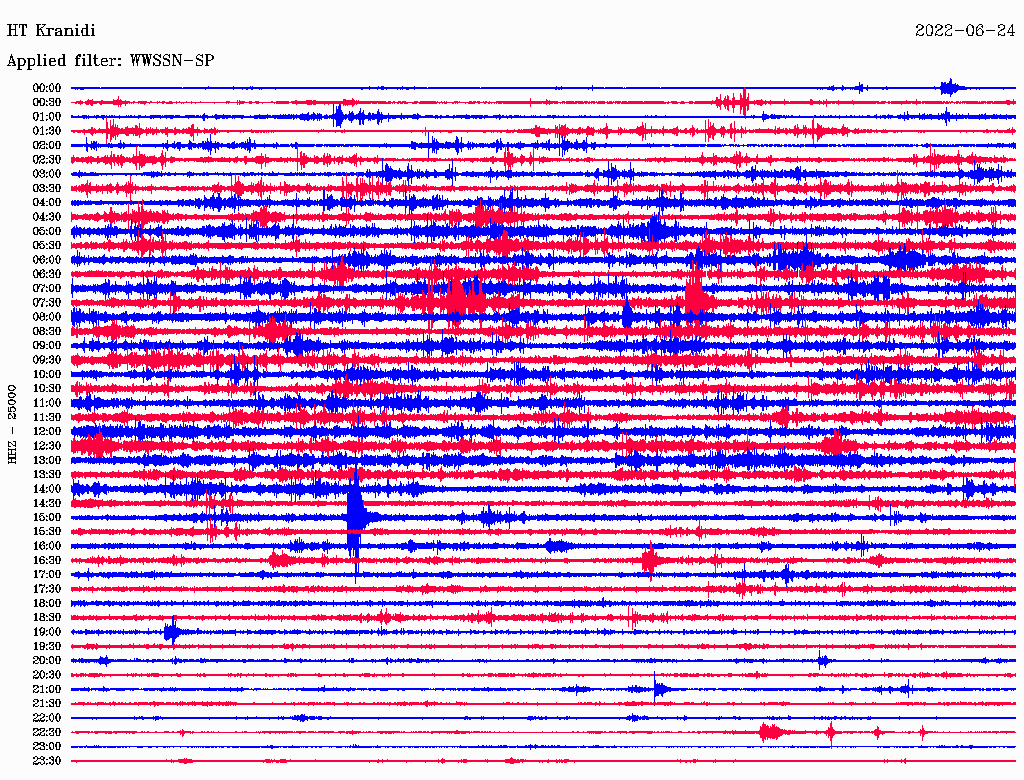

KRNDHT115.1 17 P00:38:37.40 0.31.0M
KRNDHT115.1 17 S00:38:52.48 0.31.0M

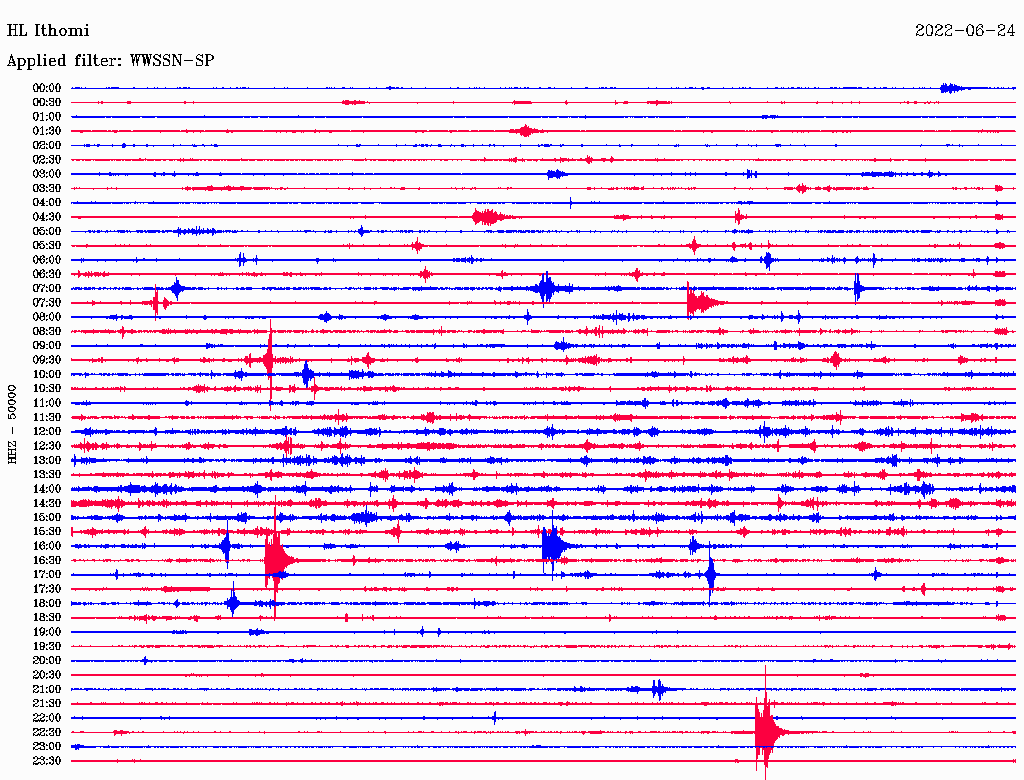

ITMHL115.4319 P00:38:37.13 -0.11.0M
ITMHL115.4319 S00:38:52.14 -0.21.0M

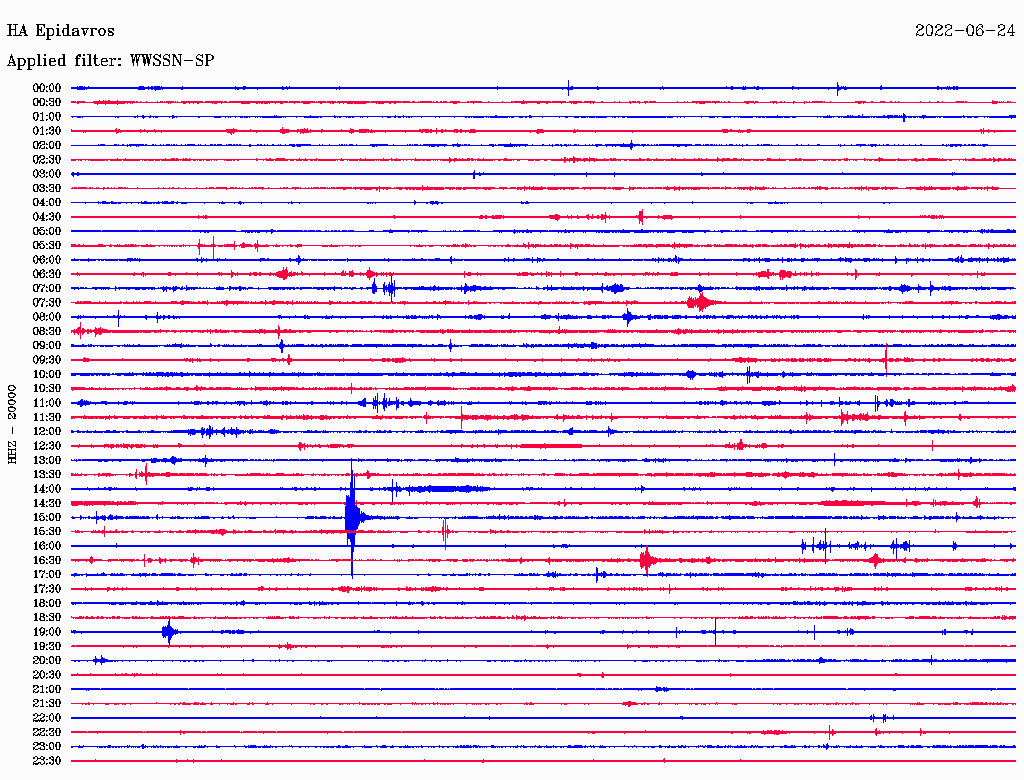

EPIDHA139.2 13 P00:38:41.35 0.51.0M
EPIDHA139.2 13 S00:38:58.39 -0.51.0M

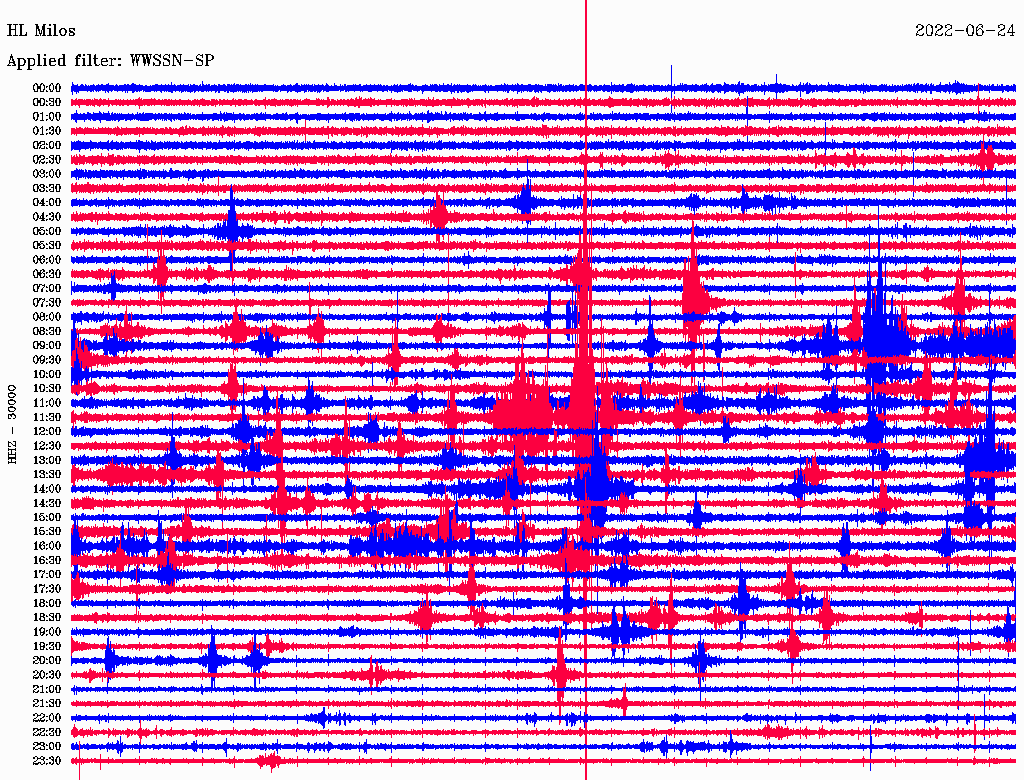

MHLOHL149.2 77 P00:38:42.40 -0.11.0M
MHLOHL149.2 77 S00:39:00.96 -0.71.0M

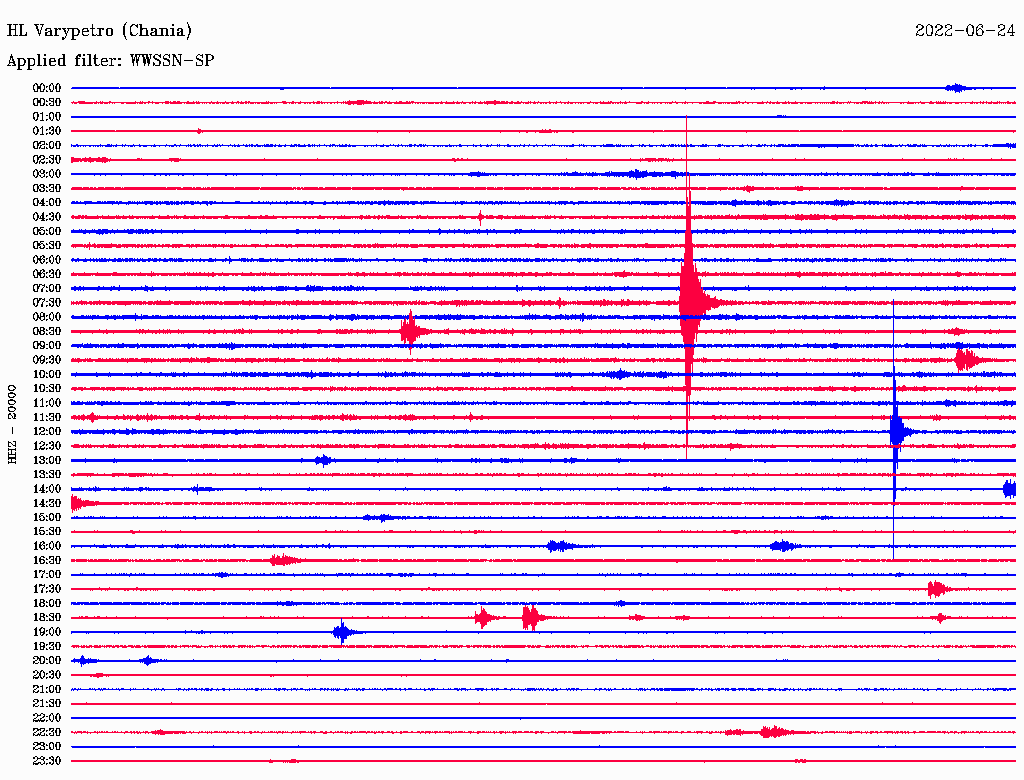

IMMVHL150.3134 P00:38:42.83 0.21.0M
IMMVHL150.3134 S00:39:01.58 -0.31.0M


  Solution details

Event:
    Public ID              nkua2022mfyu
    Description
      region name: Southern Greece
Origin:
    Date                   2022-06-24
    Time                  00:38:17.23
    Latitude              36.3932 deg  +/-      1 km
    Longitude             22.7728 deg  +/-      1 km
    Depth                       2 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.45 s
    Azimuthal gap             160 deg

2 Network magnitudes:
    MLv       1.98 +/- 0.24  11
    M         1.98           11 preferred

26 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KTHR  HC    0.2 130  P       00:38:22.75   0.3 M  1.0  KTHR
    KTHR  HC    0.2 130  S       00:38:26.59   0.2 M  1.0  KTHR
    NPS1  HI    0.3  63  P       00:38:23.45   0.5 M  1.0  NPS1
    NPS1  HI    0.3  63  S       00:38:27.78   0.4 M  1.0  NPS1
    KTHA  HL    0.3 120  P       00:38:23.43   0.2 M  1.0  KTHA
    KTHA  HL    0.3 120  S       00:38:27.88   0.2 M  1.0  KTHA
    VLI   HL    0.4  23  P       00:38:24.75  -0.0 M  1.0  VLI
    VLI   HL    0.4  23  S       00:38:29.23  -1.3 M  1.0  VLI
    MNVA  HL    0.4  36  P       00:38:25.38   0.4 M  1.0  MNVA
    MNVA  HL    0.4  36  S       00:38:30.70  -0.1 M  1.0  MNVA
    ANKY  HL    0.7 141  P       00:38:30.90   0.2 M  1.0  ANKY
    ANKY  HL    0.7 141  S       00:38:40.80  -0.1 M  1.0  ANKY
    KTRS  HC    0.7 316  P       00:38:31.31  -0.5 M  1.0  KTRS
    KTRS  HC    0.7 316  S       00:38:43.66   0.8 M  1.0  KTRS
    PYL   HP    1.0 301  P       00:38:35.10  -0.8 M  1.0  PYL
    PYL   HP    1.0 301  S       00:38:50.60   0.4 M  1.0  PYL
    KRND  HT    1.0  17  P       00:38:37.40   0.3 M  1.0  KRND
    KRND  HT    1.0  17  S       00:38:52.48   0.3 M  1.0  KRND
    ITM   HL    1.0 319  P       00:38:37.13  -0.1 M  1.0  ITM
    ITM   HL    1.0 319  S       00:38:52.14  -0.2 M  1.0  ITM
    EPID  HA    1.3  13  P       00:38:41.35   0.5 M  1.0  EPID
    EPID  HA    1.3  13  S       00:38:58.39  -0.5 M  1.0  EPID
    MHLO  HL    1.3  77  P       00:38:42.40  -0.1 M  1.0  MHLO
    MHLO  HL    1.3  77  S       00:39:00.96  -0.7 M  1.0  MHLO
    IMMV  HL    1.4 134  P       00:38:42.83   0.2 M  1.0  IMMV
    IMMV  HL    1.4 134  S       00:39:01.58  -0.3 M  1.0  IMMV

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KTHR  HC    0.2 130  MLv     1.94 -0.03    1.57915
    NPS1  HI    0.3  63  MLv     1.97 -0.00    1.40239
    KTHA  HL    0.3 120  MLv     1.48 -0.50   0.425934
    VLI   HL    0.4  23  MLv     1.60 -0.38   0.426037
    MNVA  HL    0.4  36  MLv     1.96 -0.02   0.707801
    ANKY  HL    0.7 141  MLv     2.18  0.21   0.322151
    KTRS  HC    0.7 316  MLv     1.72 -0.25    0.10324
    PYL   HP    1.0 301  MLv     2.30  0.33   0.0931484
    KRND  HT    1.0  17  MLv     1.76 -0.22   0.0759666
    ITM   HL    1.0 319  MLv     1.71 -0.27   0.0676199
    EPID  HA    1.3  13  MLv     2.26  0.28   0.182975
    MHLO  HL    1.3  77  MLv     2.35  0.37   0.412052
    IMMV  HL    1.4 134  MLv     2.32  0.34   0.184295
