Earthquake Information
 Origin Time
2020-05-02 12:51:06 (GMT)
 Magnitude
M 6.2
 Latitude
34.1359° N
 Longitude
25.6860° E
 Focal Depth
7 km
 # of Arrivals
38
 Location 141.6 km SSE of Iraklion
176.0 km SE of Rethimnon
462.4 km SSE of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.

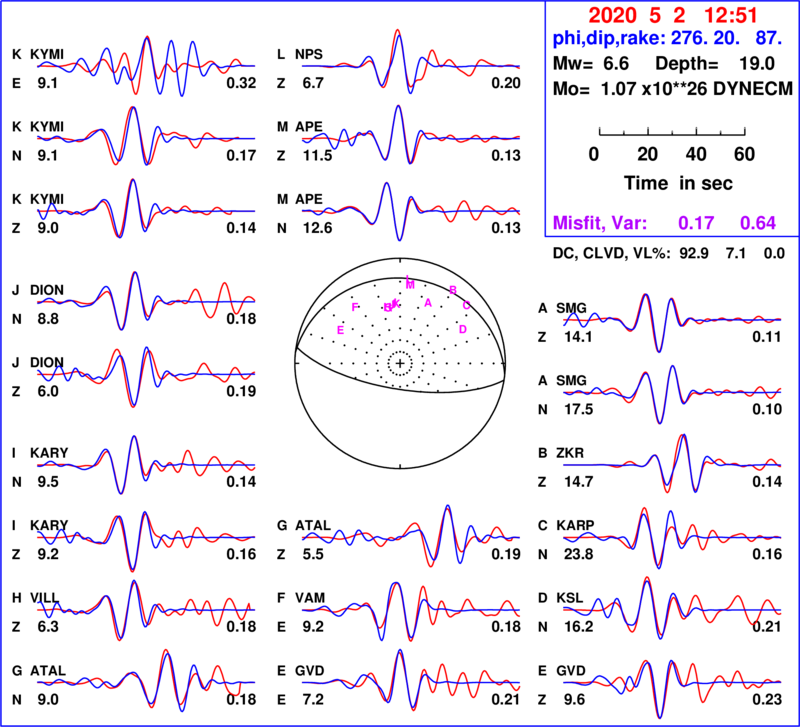

  Focal Mechanism

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
2762087 1.07E+26

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
34.317725.647819.06.6

Source parameters determination

Click here for detailed focal mechanism solution

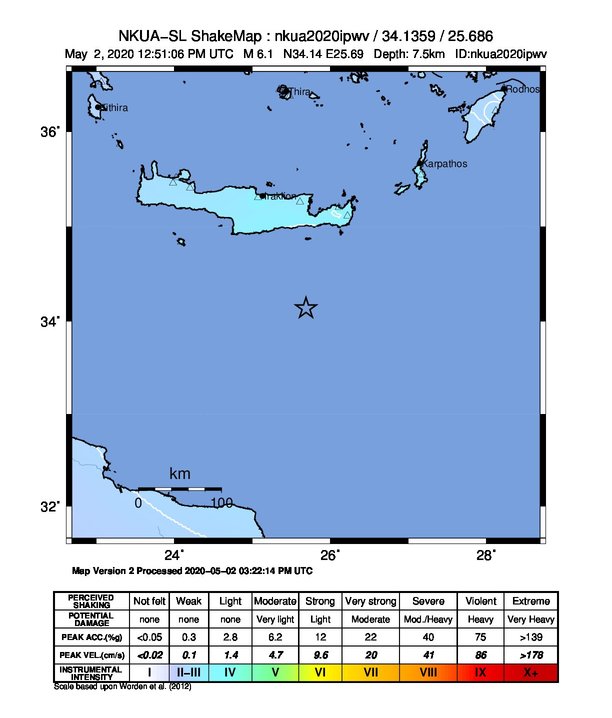

  Intensity map


PGA

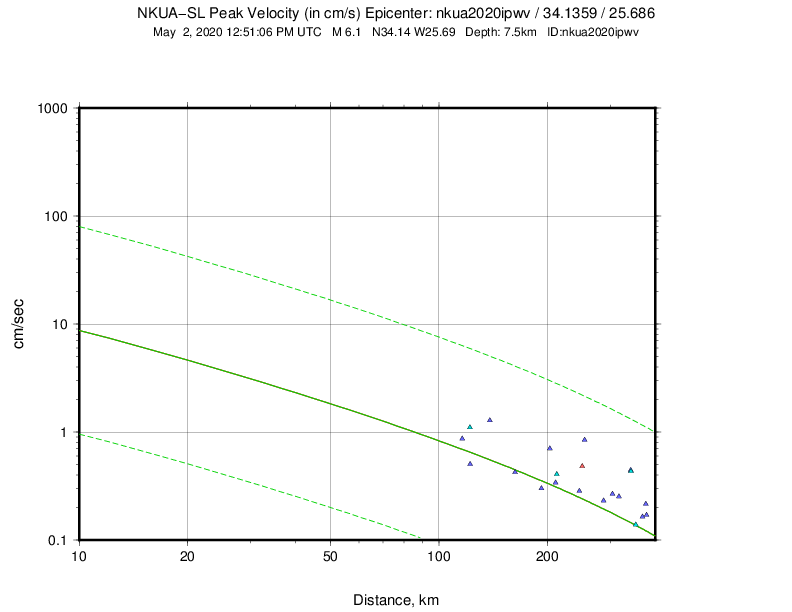

PGV

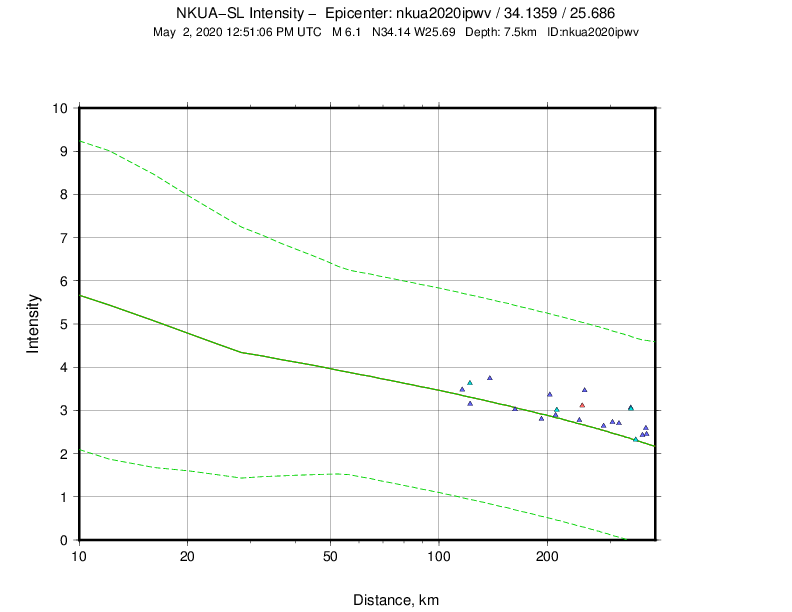

MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
NPSHL125.3357 P12:51:26.31 -1.01.0M
NPSHL125.3357 S12:51:42.97 0.11.0M
SIT2HI125.1 18 P12:51:27.68 0.41.0M
ZKRHL119.2 24 P12:51:26.50 0.01.0M
ZKRHL119.2 24 S12:51:41.32 0.01.0M
IDIMN147.3331 P12:51:30.25 -0.11.0M
IDIMN147.3331 S12:51:49.24 0.91.0M
GVDHL166.1298 P12:51:33.40 0.51.0M
CH01HI216.1316 P12:51:40.26 0.71.0M
IMMVHL214.3314 P12:51:40.04 0.71.0M
IMMVHL214.3314 S12:52:04.99 0.41.0M
KARPHL206.7 40 P12:51:38.77 0.51.0M
THERAHL248.8356 P12:51:42.71 -0.81.0M
THERAHL248.8356 S12:52:12.81 0.61.0M
MHLOHL306.9338 P12:51:50.41 -0.31.0M
ARGHL319.9 43 P12:51:53.15 0.71.0M
ARGHL319.9 43 S12:52:28.63 0.51.0M
NAX1HI331.0355 P12:51:53.66 0.01.0M
MNVAHL371.6320 P12:51:59.33 0.51.0M
MNVAHL371.6320 S12:52:39.57 -0.11.0M
TNSAHL381.4353 P12:52:00.31 0.41.0M
SMGHL410.1 14 P12:52:02.69 -0.81.0M
SMGHL410.1 14 S12:52:47.85 -0.21.0M
KSLHL419.3 57 P12:52:04.19 -0.61.0M
KSLHL419.3 57 S12:52:50.65 0.31.0M
KARYHA447.5346 P12:52:07.88 -0.21.0M
KARYHA447.5346 S12:52:55.71 -0.61.0M
VLYHL446.9338 P12:52:08.05 0.01.0M
VLYHL446.9338 S12:52:55.50 -0.81.0M
ATHHL462.0338 P12:52:10.73 0.81.0M
ATHUHA458.9339 P12:52:09.51 0.01.0M
PYLHP470.6312 P12:52:10.49 -0.61.0M
VLXHP467.2321 P12:52:10.68 0.11.0M
CHOSHT473.8 4 P12:52:11.08 -0.21.0M
ITMHL479.4316 P12:52:11.48 -0.71.0M
MAGUHA479.9337 P12:52:11.12 -1.01.0M
LTKHP496.4331 P12:52:14.13 0.01.0M
VILLHA496.0335 P12:52:13.89 -0.21.0M


  Solution details

Event:
    Public ID              nkua2020ipwv
    Type                   earthquake
    Description
      region name: Crete, Greece
Origin:
    Date                   2020-05-02
    Time                  12:51:06.22  +/-    0.6 s
    Latitude              34.1359 deg  +/-      3 km
    Longitude             25.6860 deg  +/-      2 km
    Depth                       7 km   +/-    3 km
    Agency                 HA
    Author                 A.Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.53 s
    Azimuthal gap             242 deg

2 Network magnitudes:
    MLv       6.18 +/- 0.24  22 preferred
    M         6.18           22

38 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ZKR   HL    1.1  24  P       12:51:26.50   0.0 M  1.0  ZKR
    ZKR   HL    1.1  24  S       12:51:41.32   0.0 M  1.0  ZKR
    SIT2  HI    1.1  18  P       12:51:27.68   0.4 M  1.0  SIT2
    NPS   HL    1.1 357  P       12:51:26.31  -1.0 M  1.0  NPS
    NPS   HL    1.1 357  S       12:51:42.97   0.1 M  1.0  NPS
    IDI   MN    1.3 331  P       12:51:30.25  -0.1 M  1.0  IDI
    IDI   MN    1.3 331  S       12:51:49.24   0.9 M  1.0  IDI
    GVD   HL    1.5 298  P       12:51:33.40   0.5 M  1.0  GVD
    KARP  HL    1.9  40  P       12:51:38.77   0.5 M  1.0  KARP
    IMMV  HL    1.9 314  P       12:51:40.04   0.7 M  1.0  IMMV
    IMMV  HL    1.9 314  S       12:52:04.99   0.4 M  1.0  IMMV
    CH01  HI    1.9 316  P       12:51:40.26   0.7 M  1.0  CH01
    THERA HL    2.2 356  P       12:51:42.71  -0.8 M  1.0  THERA
    THERA HL    2.2 356  S       12:52:12.81   0.6 M  1.0  THERA
    MHLO  HL    2.8 338  P       12:51:50.41  -0.3 M  1.0  MHLO
    ARG   HL    2.9  43  P       12:51:53.15   0.7 M  1.0  ARG
    ARG   HL    2.9  43  S       12:52:28.63   0.5 M  1.0  ARG
    NAX1  HI    3.0 355  P       12:51:53.66  -0.0 M  1.0  NAX1
    MNVA  HL    3.3 320  P       12:51:59.33   0.5 M  1.0  MNVA
    MNVA  HL    3.3 320  S       12:52:39.57  -0.1 M  1.0  MNVA
    TNSA  HL    3.4 353  P       12:52:00.31   0.4 M  1.0  TNSA
    SMG   HL    3.7  14  P       12:52:02.69  -0.8 M  1.0  SMG
    SMG   HL    3.7  14  S       12:52:47.85  -0.2 M  1.0  SMG
    KSL   HL    3.8  57  P       12:52:04.19  -0.6 M  1.0  KSL
    KSL   HL    3.8  57  S       12:52:50.65   0.3 M  1.0  KSL
    VLY   HL    4.0 338  P       12:52:08.05   0.0 M  1.0  VLY
    VLY   HL    4.0 338  S       12:52:55.50  -0.8 M  1.0  VLY
    KARY  HA    4.0 346  P       12:52:07.88  -0.2 M  1.0  KARY
    KARY  HA    4.0 346  S       12:52:55.71  -0.6 M  1.0  KARY
    ATHU  HA    4.1 339  P       12:52:09.51  -0.0 M  1.0  ATHU
    ATH   HL    4.1 338  P       12:52:10.73   0.8 M  1.0  ATH
    VLX   HP    4.2 321  P       12:52:10.68   0.1 M  1.0  VLX
    PYL   HP    4.2 312  P       12:52:10.49  -0.6 M  1.0  PYL
    CHOS  HT    4.3   4  P       12:52:11.08  -0.2 M  1.0  CHOS
    MAGU  HA    4.3 337  P       12:52:11.12  -1.0 M  1.0  MAGU
    ITM   HL    4.3 316  P       12:52:11.48  -0.7 M  1.0  ITM
    VILL  HA    4.5 335  P       12:52:13.89  -0.2 M  1.0  VILL
    LTK   HP    4.5 331  P       12:52:14.13  -0.0 M  1.0  LTK

27 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ZKR   HL    1.1  24  MLv     5.81 -0.37    816.973
    SIT2  HI    1.1  18  MLv     5.93 -0.25     1021.1
    NPS   HL    1.1 357  MLv     5.70 -0.48    591.572
    IDI   MN    1.3 331  MLv     5.70 -0.48    462.103
    GVD   HL    1.5 298  MLv     5.76 -0.42    327.736
    KARP  HL    1.9  40  MLv     5.94 -0.24     534.39
    IMMV  HL    1.9 314  MLv     5.87 -0.31    314.895
    CH01  HI    1.9 316  MLv     5.97 -0.21    390.363
    THERA HL    2.2 356  MLv     5.89 -0.29    223.654
    MHLO  HL    2.8 338  MLv     5.92 -0.26     251.68
    ARG   HL    2.9  43  MLv     6.25  0.07    222.119
    NAX1  HI    3.0 355  MLv     6.17 -0.01    166.051
    MNVA  HL    3.3 320  MLv     6.29  0.11    137.054
    TNSA  HL    3.4 353  MLv     6.36  0.18    142.145
    SMG   HL    3.7  14  MLv     6.45  0.27    132.979
    KSL   HL    3.8  57  MLv     6.43  0.25    94.0216
    VLY   HL    4.0 338  MLv     6.14 -0.04    54.7149
    KARY  HA    4.0 346  MLv     6.44  0.26    107.672
    ATHU  HA    4.1 339  MLv     6.43  0.26    62.0545
    ATH   HL    4.1 338  MLv     6.25  0.07    64.8209
    VLX   HP    4.2 321  MLv     5.85 -0.33    25.0088
    PYL   HP    4.2 312  MLv     7.85  1.67    75.8503
    CHOS  HT    4.3   4  MLv     6.58  0.40    130.241
    MAGU  HA    4.3 337  MLv     6.27  0.09    62.0299
    ITM   HL    4.3 316  MLv     6.34  0.16    73.0394
    VILL  HA    4.5 335  MLv     6.36  0.18    70.2431
    LTK   HP    4.5 331  MLv     5.22 -0.96    19.2935
