Earthquake Information
 Origin Time
 2023-10-01 13:30:16 (GMT)
 Magnitude
 M 3.5
 Latitude
 38.3034° N
 Longitude
 27.3673° E
 Focal Depth
 7 km
 # of Arrivals
 42
 Location 69.7 km NNE of Samos
107.6 km E of Chios
319.8 km E of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

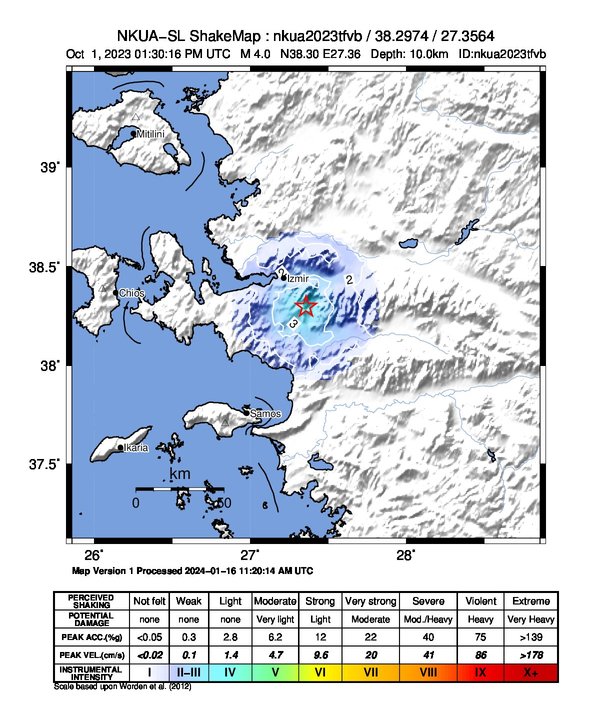

  Intensity map

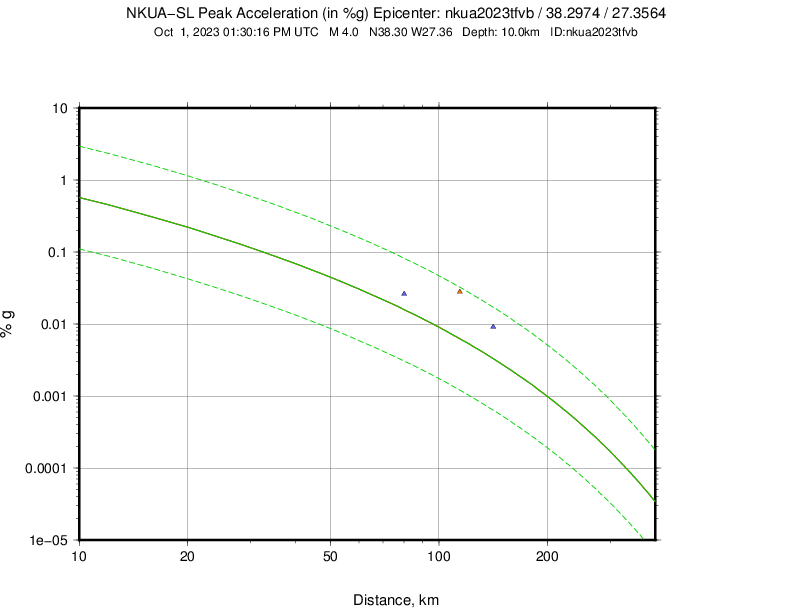

PGA

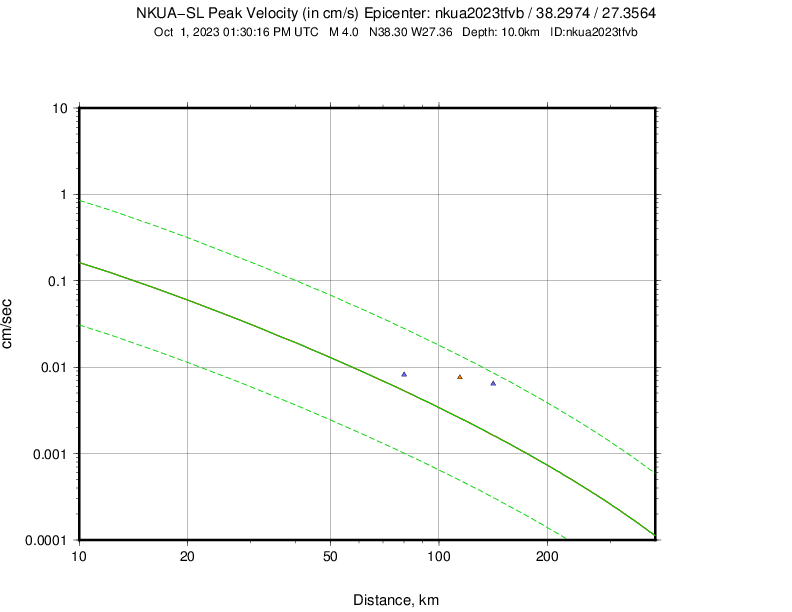

 PGV

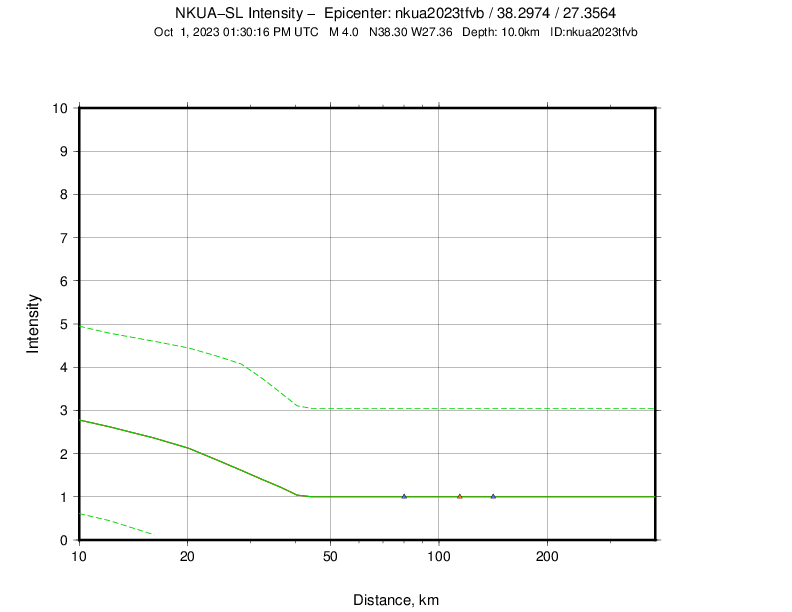

 MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
KRL1HI80.9226 P13:30:30.55 0.61.0M
KRL1HI80.9226 S13:30:40.29 0.01.0M
SMGHL81.2215 P13:30:30.63 0.71.0M
SMGHL81.2215 S13:30:40.43 0.01.0M
CHOSHT115.2275 P13:30:34.74 -0.71.0M
CHOSHT115.2275 S13:30:49.62 -0.21.0M
PRKHL141.8318 P13:30:39.33 0.21.0M
PRKHL141.8318 S13:30:56.53 0.01.0M
APEHL212.3231 P13:30:47.54 -1.01.0M
APEHL212.3231 S13:31:14.38 0.71.0M
KARYHA257.9264 P13:30:53.31 -1.01.0M
KARYHA257.9264 S13:31:24.22 0.21.0M
LIAHL258.9314 P13:30:53.92 -0.41.0M
LIAHL258.9314 S13:31:24.62 0.51.0M
GR271Y274.0268 P13:30:55.42 -0.91.0M
GR271Y274.0268 S13:31:27.89 0.31.0M
MRTHHA300.0267 P13:30:58.85 -0.71.0M
MRTHHA300.0267 S13:31:33.68 0.31.0M
ERTRHA312.4273 P13:31:00.31 -0.81.0M
ERTRHA312.4273 S13:31:36.25 0.11.0M
VLYHL316.7262 P13:31:01.25 -0.31.0M
VLYHL316.7262 S13:31:36.61 -0.51.0M
RDOHL352.7334 P13:31:06.11 0.21.0M
VILLHA354.5269 P13:31:06.06 -0.21.0M
VILLHA354.5269 S13:31:45.59 0.01.0M
GR041Y361.8326 P13:31:07.32 0.21.0M
GR031Y381.2327 P13:31:09.64 0.21.0M
KAVAHT386.3322 P13:31:09.88 -0.21.0M
KOKKHT401.9315 P13:31:11.68 -0.41.0M
KDZBS408.3336 P13:31:12.84 0.11.0M
PRASHL415.7325 P13:31:13.83 0.11.0M
GR211Y436.8287 P13:31:16.59 0.11.0M
GURHP441.4266 P13:31:17.28 0.21.0M
NVRHL451.7320 P13:31:18.36 0.21.0M
KALEHA455.9273 P13:31:18.92 0.11.0M
TRIZCL461.8272 P13:31:19.87 0.31.0M
LAKAHA470.4271 P13:31:21.22 0.61.0M
MMBBS474.5320 P13:31:21.44 0.41.0M
ANXHP475.3276 P13:31:21.64 0.41.0M
THLHL483.7288 P13:31:22.25 0.01.0M
VVKHP484.5273 P13:31:22.97 0.61.0M
AGRPCL492.3273 P13:31:23.72 0.41.0M


  Solution details

Event:
    Public ID              nkua2023tfvb
    Description
      region name: Turkey
Origin:
    Date                   2023-10-01
    Time                  13:30:15.66  +/-    0.5 s
    Latitude              38.3034 deg  +/-      2 km
    Longitude             27.3673 deg  +/-      3 km
    Depth                       7 km   +/-    3 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.45 s
    Azimuthal gap             240 deg

2 Network magnitudes:
    MLv       3.54 +/- 0.12  25
    M         3.54           25 preferred

42 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KRL1  HI    0.7 226  P       13:30:30.55   0.6 M  1.0  KRL1
    KRL1  HI    0.7 226  S       13:30:40.29  -0.0 M  1.0  KRL1
    SMG   HL    0.7 215  P       13:30:30.63   0.7 M  1.0  SMG
    SMG   HL    0.7 215  S       13:30:40.43   0.0 M  1.0  SMG
    CHOS  HT    1.0 275  P       13:30:34.74  -0.7 M  1.0  CHOS
    CHOS  HT    1.0 275  S       13:30:49.62  -0.2 M  1.0  CHOS
    PRK   HL    1.3 318  P       13:30:39.33   0.2 M  1.0  PRK
    PRK   HL    1.3 318  S       13:30:56.53   0.0 M  1.0  PRK
    APE   HL    1.9 231  P       13:30:47.54  -1.0 M  1.0  APE
    APE   HL    1.9 231  S       13:31:14.38   0.7 M  1.0  APE
    KARY  HA    2.3 264  P       13:30:53.31  -1.0 M  1.0  KARY
    KARY  HA    2.3 264  S       13:31:24.22   0.2 M  1.0  KARY
    LIA   HL    2.3 314  P       13:30:53.92  -0.4 M  1.0  LIA
    LIA   HL    2.3 314  S       13:31:24.62   0.5 M  1.0  LIA
    GR27  1Y    2.5 268  P       13:30:55.42  -0.9 M  1.0  GR27
    GR27  1Y    2.5 268  S       13:31:27.89   0.3 M  1.0  GR27
    MRTH  HA    2.7 267  P       13:30:58.85  -0.7 M  1.0  MRTH
    MRTH  HA    2.7 267  S       13:31:33.68   0.3 M  1.0  MRTH
    ERTR  HA    2.8 273  P       13:31:00.31  -0.8 M  1.0  ERTR
    ERTR  HA    2.8 273  S       13:31:36.25   0.1 M  1.0  ERTR
    VLY   HL    2.9 262  P       13:31:01.25  -0.3 M  1.0  VLY
    VLY   HL    2.9 262  S       13:31:36.61  -0.5 M  1.0  VLY
    RDO   HL    3.2 334  P       13:31:06.11   0.2 M  1.0  RDO
    VILL  HA    3.2 269  P       13:31:06.06  -0.2 M  1.0  VILL
    VILL  HA    3.2 269  S       13:31:45.59   0.0 M  1.0  VILL
    GR04  1Y    3.3 326  P       13:31:07.32   0.2 M  1.0  GR04
    GR03  1Y    3.4 327  P       13:31:09.64   0.2 M  1.0  GR03
    KAVA  HT    3.5 322  P       13:31:09.88  -0.2 M  1.0  KAVA
    KOKK  HT    3.6 315  P       13:31:11.68  -0.4 M  1.0  KOKK
    KDZ   BS    3.7 336  P       13:31:12.84   0.1 M  1.0  KDZ
    PRAS  HL    3.7 325  P       13:31:13.83   0.1 M  1.0  PRAS
    GR21  1Y    3.9 287  P       13:31:16.59   0.1 M  1.0  GR21
    GUR   HP    4.0 266  P       13:31:17.28   0.2 M  1.0  GUR
    NVR   HL    4.1 320  P       13:31:18.36   0.2 M  1.0  NVR
    KALE  HA    4.1 273  P       13:31:18.92   0.1 M  1.0  KALE
    TRIZ  CL    4.2 272  P       13:31:19.87   0.3 M  1.0  TRIZ
    LAKA  HA    4.2 271  P       13:31:21.22   0.6 M  1.0  LAKA
    MMB   BS    4.3 320  P       13:31:21.44   0.4 M  1.0  MMB
    ANX   HP    4.3 276  P       13:31:21.64   0.4 M  1.0  ANX
    THL   HL    4.4 288  P       13:31:22.25  -0.0 M  1.0  THL
    VVK   HP    4.4 273  P       13:31:22.97   0.6 M  1.0  VVK
    AGRP  CL    4.4 273  P       13:31:23.72   0.4 M  1.0  AGRP

30 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KRL1  HI    0.7 226  MLv     4.36  0.83    45.3317
    SMG   HL    0.7 215  MLv     3.77  0.23     11.528
    CHOS  HT    1.0 275  MLv     3.79  0.25    8.12157
    PRK   HL    1.3 318  MLv     4.31  0.77     20.012
    APE   HL    1.9 231  MLv     3.52 -0.02    1.43723
    KARY  HA    2.3 264  MLv     3.40 -0.14   0.640807
    LIA   HL    2.3 314  MLv     3.19 -0.34   0.792738
    GR27  1Y    2.5 268  MLv     3.49 -0.05   0.662438
    MRTH  HA    2.7 267  MLv     3.59  0.05    0.61629
    ERTR  HA    2.8 273  MLv     3.33 -0.20   0.297504
    VLY   HL    2.9 262  MLv     3.49 -0.04   0.406227
    RDO   HL    3.2 334  MLv     3.67  0.13    0.27269
    VILL  HA    3.2 269  MLv     3.56  0.03   0.310129
    GR04  1Y    3.3 326  MLv     3.52 -0.01   0.258641
    GR03  1Y    3.4 327  MLv     3.53 -0.00   0.212558
    KAVA  HT    3.5 322  MLv     3.30 -0.24   0.242676
    KOKK  HT    3.6 315  MLv     3.61  0.07     0.2016
    KDZ   BS    3.7 336  MLv     3.65  0.12   0.215487
    PRAS  HL    3.7 325  MLv     3.62  0.08   0.191413
    GR21  1Y    3.9 287  MLv     3.25 -0.29   0.0737597
    GUR   HP    4.0 266  MLv     3.64  0.10   0.176938
    NVR   HL    4.1 320  MLv     3.60  0.06    0.11338
    KALE  HA    4.1 273  MLv     3.46 -0.07   0.109216
    TRIZ  CL    4.2 272  MLv     3.44 -0.09   0.100976
    LAKA  HA    4.2 271  MLv     3.46 -0.08   0.0998127
    MMB   BS    4.3 320  MLv     3.40 -0.14   0.0855721
    ANX   HP    4.3 276  MLv     3.58  0.05    0.13052
    THL   HL    4.4 288  MLv     3.44 -0.09   0.0544576
    VVK   HP    4.4 273  MLv     2.88 -0.65   0.115279
    AGRP  CL    4.4 273  MLv     3.53 -0.01   0.105102
