Earthquake Information
 Origin Time
 2018-10-25 22:22:54 (GMT)
 Magnitude
 M 4.8
 Latitude
 37.3429° N
 Longitude
 20.5596° E
 Focal Depth
 4 km
 # of Arrivals
 88
 Location 58.0 km SSW of Zakynthos
87.2 km WSW of Pyrgos
288.3 km WSW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.


  Focal Mechanism

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
1178378 2.10E+23

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
37.378620.606716.04.8

Source parameters determination

Click here for detailed focal mechanism solution


  Intensity map

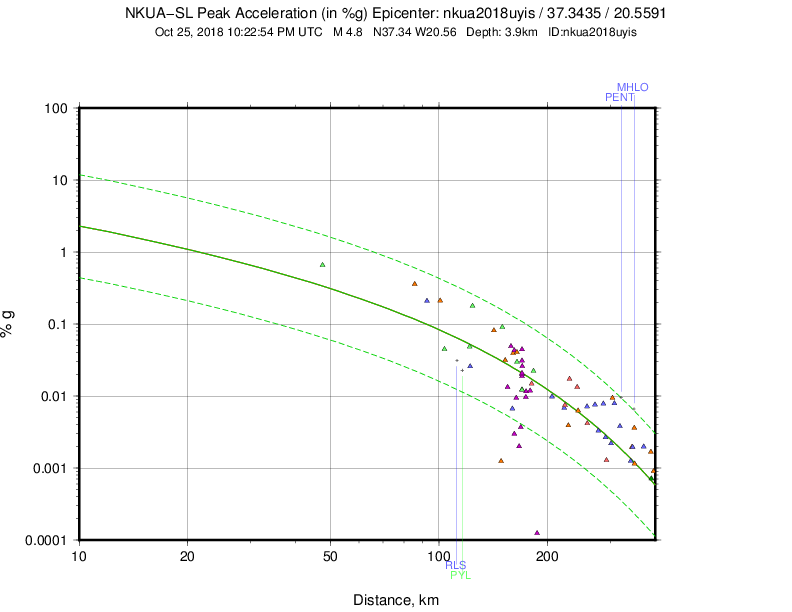

PGA

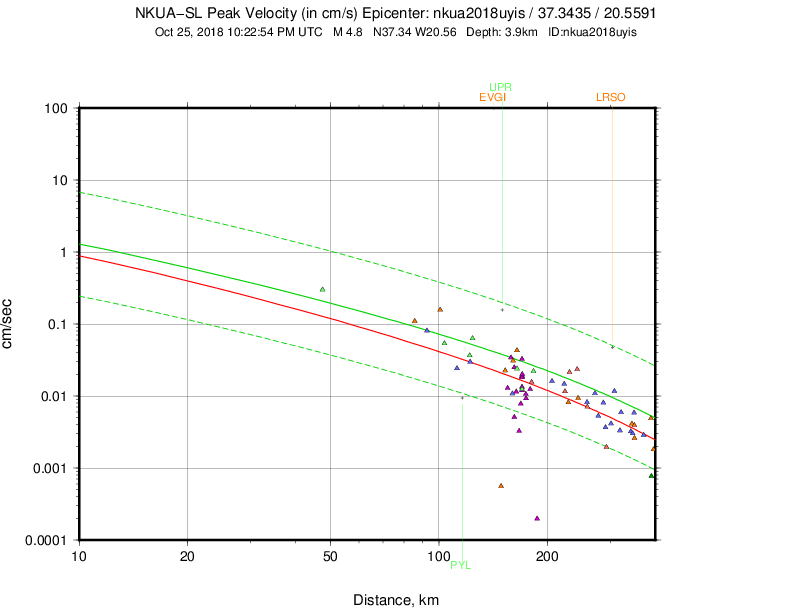

 PGV

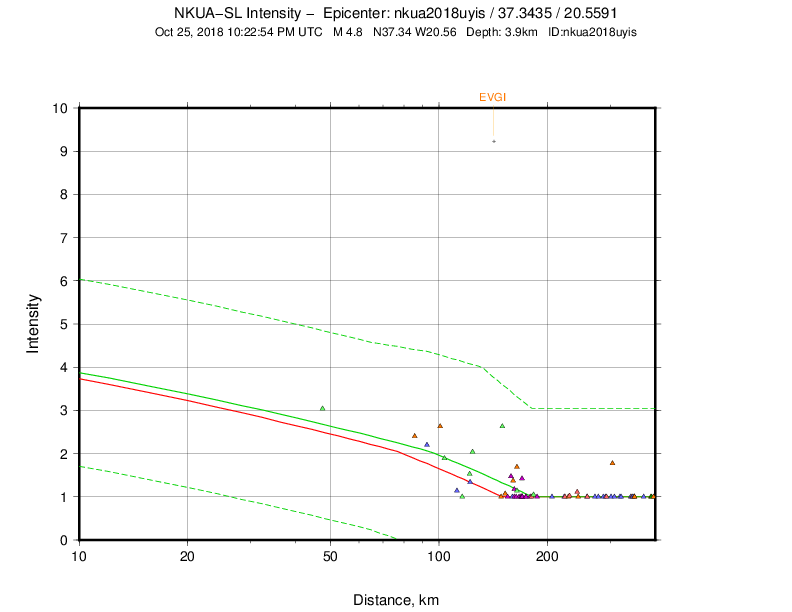

 MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
LTHKHP47.5 31 P22:23:02.44 -0.21.0M
LTHKHP47.5 31 S22:23:08.33 -0.31.0M
PSDAHT85.8 1 P22:23:08.64 -0.41.0M
PSDAHT85.8 1 S22:23:19.50 -0.11.0M
VLSHL92.8 2 P22:23:09.73 -0.41.0M
VLSHL92.8 2 S22:23:22.02 0.41.0M
DMLNHT100.9351 P22:23:11.38 -0.21.0M
RLSHL112.4 45 P22:23:12.80 -0.61.0M
RLSHL112.4 45 S22:23:27.36 0.11.0M
PYLHP116.0115 P22:23:14.06 0.11.0M
DROHP121.9 56 P22:23:14.46 -0.41.0M
ITMHL122.2 98 P22:23:14.99 0.11.0M
FSKHP124.1 0 P22:23:14.51 -0.61.0M
FSKHP124.1 0 S22:23:30.51 0.21.0M
EVGIHT142.4 3 P22:23:17.90 0.21.0M
EVGIHT142.4 3 S22:23:35.44 0.41.0M
DRAGHT149.1 1 P22:23:18.77 0.11.0M
NYDRHT152.9 5 P22:23:19.55 0.41.0M
NYDRHT152.9 5 S22:23:37.93 0.11.0M
AGRPCL155.4 41 P22:23:19.51 -0.11.0M
ROD3CL158.8 47 P22:23:20.39 0.31.0M
KLVHL160.2 61 P22:23:20.48 0.21.0M
MALACL164.1 44 P22:23:20.95 0.11.0M
TSLKHT165.0 3 P22:23:21.67 0.81.0M
PVOHP165.0 31 P22:23:21.65 0.81.0M
AGEOCL167.2 52 P22:23:21.76 0.51.0M
GURHP170.3 67 P22:23:21.84 0.11.0M
MG00CL170.3 45 P22:23:21.82 0.11.0M
KALEHA181.2 50 P22:23:23.84 0.71.0M
ANXHP183.2 40 P22:23:24.16 0.71.0M
PANRCL187.5 52 P22:23:24.83 0.81.0M
PANRCL187.5 52 S22:23:46.73 0.21.0M
VLIHL223.0107 P22:23:29.68 0.91.0M
VLIHL223.0107 S22:23:55.06 -0.11.0M
KRNDHT229.0 88 P22:23:28.95 -0.61.0M
KRNDHT229.0 88 S22:23:56.42 -0.11.0M
AXARHA242.6 49 P22:23:31.90 0.71.0M
IGTHT244.2355 P22:23:30.78 -0.51.0M
JANHL258.4 6 P22:23:33.83 0.81.0M
VILLHA258.6 69 P22:23:32.66 -0.61.0M
KEKHL271.7346 P22:23:33.94 -0.81.0M
KEKHL271.7346 S22:24:05.94 0.11.0M
THLHL277.6 27 P22:23:36.23 0.81.0M
THLHL277.6 27 S22:24:07.14 -0.11.0M
ATHHL286.7 75 P22:23:36.49 -0.21.0M
VLYHL290.5 78 P22:23:36.46 -0.71.0M
VLYHL290.5 78 S22:24:10.35 0.11.0M
ATHUHA292.2 75 P22:23:36.80 -0.61.0M
ATHUHA292.2 75 S22:24:11.08 0.41.0M
ANKYHL294.6123 P22:23:38.28 0.61.0M
ANKYHL294.6123 S22:24:11.61 0.51.0M
PTLHL301.1 74 P22:23:38.18 -0.31.0M
LRSOHT304.0 31 P22:23:39.06 0.31.0M
DIONHL307.8 74 P22:23:38.79 -0.51.0M
DIONHL307.8 74 S22:24:13.87 -0.21.0M
NEOHL318.7 46 P22:23:40.35 -0.21.0M
KYMIHL341.8 64 P22:23:43.04 -0.51.0M
KYMIHL341.8 64 S22:24:21.44 -0.21.0M
RODPHC348.0124 P22:23:44.96 0.71.0M
MHLOHL348.7101 P22:23:44.02 -0.41.0M
LITHT349.3 28 P22:23:44.14 -0.21.0M
LITHT349.3 28 S22:24:23.47 0.31.0M
AOS2HT350.0 54 P22:23:44.18 -0.31.0M
IMMVHL370.9123 P22:23:47.42 0.31.0M
IMMVHL370.9123 S22:24:28.21 0.11.0M
FNAHT388.9 10 P22:23:49.40 0.21.0M
TIPMN389.6303 P22:23:48.97 -0.41.0M
THEHT420.5 29 P22:23:52.44 -0.71.0M
GVDHL421.8130 P22:23:53.65 0.31.0M
GVDHL421.8130 S22:24:39.06 -0.31.0M
CELMN422.4285 P22:23:53.52 0.01.0M
HORTHT423.3 31 P22:23:52.77 -0.71.0M
SAP3HL437.4102 P22:23:55.31 -0.11.0M
SNT5HA442.6102 P22:23:56.15 0.11.0M
OURHT445.4 41 P22:23:55.56 -0.71.0M
TIRMN449.3353 P22:23:57.09 0.51.0M
SOHHT455.8 31 P22:23:57.63 0.11.0M
SOHHT455.8 31 S22:24:46.95 0.11.0M
KOKKHT487.2 37 P22:24:00.85 -0.61.0M
LIAHL491.7 53 P22:24:01.17 -0.91.0M
SRSHT493.1 31 P22:24:01.97 -0.21.0M
CHOSHT495.7 75 P22:24:02.04 -0.61.0M
CUCMN506.4307 P22:24:04.02 0.21.0M
CUCMN506.4307 S22:24:57.94 -0.31.0M

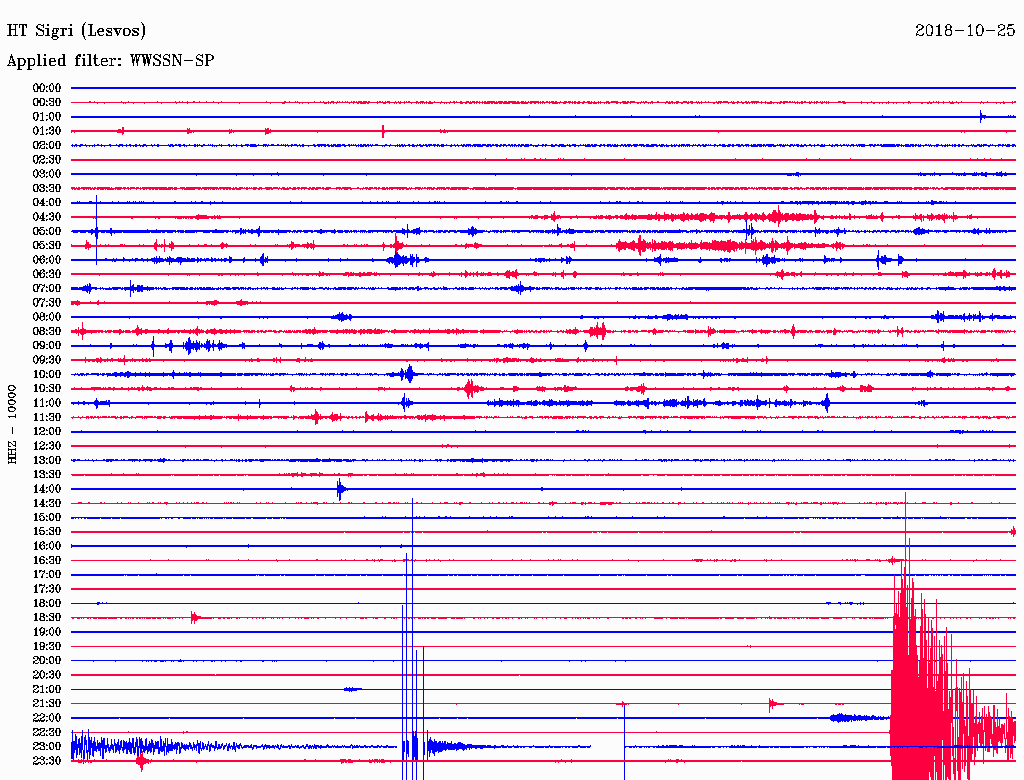

SIGRHT506.7 64 P22:24:04.05 0.11.0M

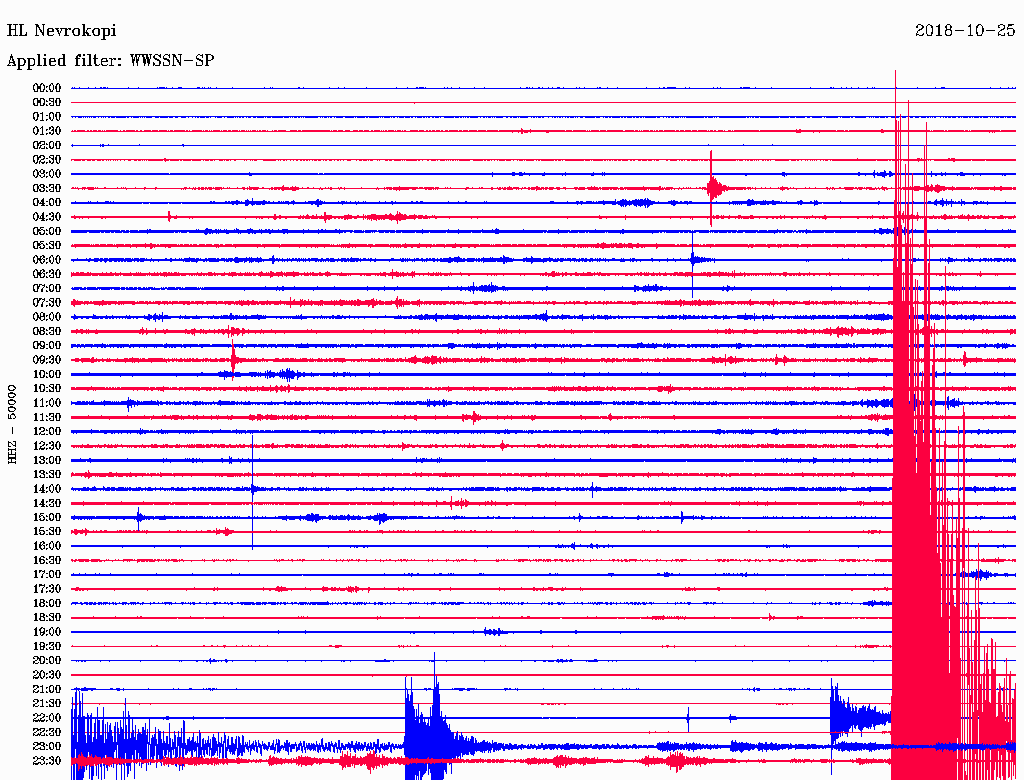

NVRHL528.3 32 P22:24:07.18 0.71.0M
WDDMN564.1255 P22:24:11.25 0.21.0M
KARPHL623.2107 P22:24:17.80 -0.61.0M


  Solution details

Event:
    Public ID              nkua2018uyis
    Type                   earthquake
    Description
      region name: Ionian Sea
Origin:
    Date                   2018-10-25
    Time                  22:22:54.10  +/-    0.3 s
    Latitude              37.3429 deg  +/-      2 km
    Longitude             20.5596 deg  +/-      2 km
    Depth                       4 km   +/-    2 km
    Agency                 HA
    Author                 A.Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.44 s
    Azimuthal gap             124 deg

5 Network magnitudes:
    MLv       4.81 +/- 0.13  49
    mb        6.54            1
    mB        6.40            1
    Mw(mB)    6.14            1
    M         4.81           49 preferred

88 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    LTHK  HP    0.4  31  P       22:23:02.44  -0.2 M  1.0  LTHK
    LTHK  HP    0.4  31  S       22:23:08.33  -0.3 M  1.0  LTHK
    PSDA  HT    0.8   1  P       22:23:08.64  -0.4 M  1.0  PSDA
    PSDA  HT    0.8   1  S       22:23:19.50  -0.1 M  1.0  PSDA
    VLS   HL    0.8   2  P       22:23:09.73  -0.4 M  1.0  VLS
    VLS   HL    0.8   2  S       22:23:22.02   0.4 M  1.0  VLS
    DMLN  HT    0.9 351  P       22:23:11.38  -0.2 M  1.0  DMLN
    RLS   HL    1.0  45  P       22:23:12.80  -0.6 M  1.0  RLS
    RLS   HL    1.0  45  S       22:23:27.36   0.1 M  1.0  RLS
    PYL   HP    1.0 115  P       22:23:14.06   0.1 M  1.0  PYL
    DRO   HP    1.1  56  P       22:23:14.46  -0.4 M  1.0  DRO
    ITM   HL    1.1  98  P       22:23:14.99   0.1 M  1.0  ITM
    FSK   HP    1.1   0  P       22:23:14.51  -0.6 M  1.0  FSK
    FSK   HP    1.1   0  S       22:23:30.51   0.2 M  1.0  FSK
    EVGI  HT    1.3   3  P       22:23:17.90   0.2 M  1.0  EVGI
    EVGI  HT    1.3   3  S       22:23:35.44   0.4 M  1.0  EVGI
    DRAG  HT    1.3   1  P       22:23:18.77   0.1 M  1.0  DRAG
    NYDR  HT    1.4   5  P       22:23:19.55   0.4 M  1.0  NYDR
    NYDR  HT    1.4   5  S       22:23:37.93   0.1 M  1.0  NYDR
    AGRP  CL    1.4  41  P       22:23:19.51  -0.1 M  1.0  AGRP
    ROD3  CL    1.4  47  P       22:23:20.39   0.3 M  1.0  ROD3
    KLV   HL    1.4  61  P       22:23:20.48   0.2 M  1.0  KLV
    MALA  CL    1.5  44  P       22:23:20.95   0.1 M  1.0  MALA
    TSLK  HT    1.5   3  P       22:23:21.67   0.8 M  1.0  TSLK
    PVO   HP    1.5  31  P       22:23:21.65   0.8 M  1.0  PVO
    AGEO  CL    1.5  52  P       22:23:21.76   0.5 M  1.0  AGEO
    MG00  CL    1.5  45  P       22:23:21.82   0.1 M  1.0  MG00
    GUR   HP    1.5  67  P       22:23:21.84   0.1 M  1.0  GUR
    KALE  HA    1.6  50  P       22:23:23.84   0.7 M  1.0  KALE
    ANX   HP    1.6  40  P       22:23:24.16   0.7 M  1.0  ANX
    PANR  CL    1.7  52  P       22:23:24.83   0.8 M  1.0  PANR
    PANR  CL    1.7  52  S       22:23:46.73   0.2 M  1.0  PANR
    VLI   HL    2.0 107  P       22:23:29.68   0.9 M  1.0  VLI
    VLI   HL    2.0 107  S       22:23:55.06  -0.1 M  1.0  VLI
    KRND  HT    2.1  88  P       22:23:28.95  -0.6 M  1.0  KRND
    KRND  HT    2.1  88  S       22:23:56.42  -0.1 M  1.0  KRND
    AXAR  HA    2.2  49  P       22:23:31.90   0.7 M  1.0  AXAR
    IGT   HT    2.2 355  P       22:23:30.78  -0.5 M  1.0  IGT
    JAN   HL    2.3   6  P       22:23:33.83   0.8 M  1.0  JAN
    VILL  HA    2.3  69  P       22:23:32.66  -0.6 M  1.0  VILL
    KEK   HL    2.4 346  P       22:23:33.94  -0.8 M  1.0  KEK
    KEK   HL    2.4 346  S       22:24:05.94   0.1 M  1.0  KEK
    THL   HL    2.5  27  P       22:23:36.23   0.8 M  1.0  THL
    THL   HL    2.5  27  S       22:24:07.14  -0.1 M  1.0  THL
    ATH   HL    2.6  75  P       22:23:36.49  -0.2 M  1.0  ATH
    VLY   HL    2.6  78  P       22:23:36.46  -0.7 M  1.0  VLY
    VLY   HL    2.6  78  S       22:24:10.35   0.1 M  1.0  VLY
    ATHU  HA    2.6  75  P       22:23:36.80  -0.6 M  1.0  ATHU
    ATHU  HA    2.6  75  S       22:24:11.08   0.4 M  1.0  ATHU
    ANKY  HL    2.7 123  P       22:23:38.28   0.6 M  1.0  ANKY
    ANKY  HL    2.7 123  S       22:24:11.61   0.5 M  1.0  ANKY
    PTL   HL    2.7  74  P       22:23:38.18  -0.3 M  1.0  PTL
    LRSO  HT    2.7  31  P       22:23:39.06   0.3 M  1.0  LRSO
    DION  HL    2.8  74  P       22:23:38.79  -0.5 M  1.0  DION
    DION  HL    2.8  74  S       22:24:13.87  -0.2 M  1.0  DION
    NEO   HL    2.9  46  P       22:23:40.35  -0.2 M  1.0  NEO
    KYMI  HL    3.1  64  P       22:23:43.04  -0.5 M  1.0  KYMI
    KYMI  HL    3.1  64  S       22:24:21.44  -0.2 M  1.0  KYMI
    RODP  HC    3.1 124  P       22:23:44.96   0.7 M  1.0  RODP
    LIT   HT    3.1  28  P       22:23:44.14  -0.2 M  1.0  LIT
    LIT   HT    3.1  28  S       22:24:23.47   0.3 M  1.0  LIT
    MHLO  HL    3.1 101  P       22:23:44.02  -0.4 M  1.0  MHLO
    AOS2  HT    3.2  54  P       22:23:44.18  -0.3 M  1.0  AOS2
    IMMV  HL    3.3 123  P       22:23:47.42   0.3 M  1.0  IMMV
    IMMV  HL    3.3 123  S       22:24:28.21   0.1 M  1.0  IMMV
    FNA   HT    3.5  10  P       22:23:49.40   0.2 M  1.0  FNA
    TIP   MN    3.5 303  P       22:23:48.97  -0.4 M  1.0  TIP
    THE   HT    3.8  29  P       22:23:52.44  -0.7 M  1.0  THE
    GVD   HL    3.8 130  P       22:23:53.65   0.3 M  1.0  GVD
    GVD   HL    3.8 130  S       22:24:39.06  -0.3 M  1.0  GVD
    HORT  HT    3.8  31  P       22:23:52.77  -0.7 M  1.0  HORT
    CEL   MN    3.8 285  P       22:23:53.52   0.0 M  1.0  CEL
    SAP3  HL    3.9 102  P       22:23:55.31  -0.1 M  1.0  SAP3
    SNT5  HA    4.0 102  P       22:23:56.15   0.1 M  1.0  SNT5
    OUR   HT    4.0  41  P       22:23:55.56  -0.7 M  1.0  OUR
    TIR   MN    4.0 353  P       22:23:57.09   0.5 M  1.0  TIR
    SOH   HT    4.1  31  P       22:23:57.63   0.1 M  1.0  SOH
    SOH   HT    4.1  31  S       22:24:46.95   0.1 M  1.0  SOH
    KOKK  HT    4.4  37  P       22:24:00.85  -0.6 M  1.0  KOKK
    LIA   HL    4.4  53  P       22:24:01.17  -0.9 M  1.0  LIA
    SRS   HT    4.4  31  P       22:24:01.97  -0.2 M  1.0  SRS
    CHOS  HT    4.5  75  P       22:24:02.04  -0.6 M  1.0  CHOS
    CUC   MN    4.6 307  P       22:24:04.02   0.2 M  1.0  CUC
    CUC   MN    4.6 307  S       22:24:57.94  -0.3 M  1.0  CUC
    SIGR  HT    4.6  64  P       22:24:04.05   0.1 M  1.0  SIGR
    NVR   HL    4.8  32  P       22:24:07.18   0.7 M  1.0  NVR
    WDD   MN    5.1 255  P       22:24:11.25   0.2 M  1.0  WDD
    KARP  HL    5.6 107  P       22:24:17.80  -0.6 M  1.0  KARP

67 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    LTHK  HP    0.4  31  MLv     4.81  0.00    332.333
    PSDA  HT    0.8   1  MLv     4.92  0.12    156.902
    VLS   HL    0.8   2  MLv     4.88  0.08    131.554
    DMLN  HT    0.9 351  MLv     5.05  0.25    243.606
    RLS   HL    1.0  45  MLv     4.66 -0.15    62.8857
    PYL   HP    1.0 115  MLv     4.62 -0.18    1.70425
    DRO   HP    1.1  56  MLv     4.36 -0.44    59.6125
    ITM   HL    1.1  98  MLv     4.74 -0.06    68.0811
    FSK   HP    1.1   0  MLv     4.99  0.18    117.178
    EVGI  HT    1.3   3  MLv     4.91  0.11    80.0194
    DRAG  HT    1.3   1  MLv     3.93 -0.87   0.508267
    NYDR  HT    1.4   5  MLv     4.92  0.12    52.0721
    AGRP  CL    1.4  41  MLv     4.63 -0.17    36.0145
    ROD3  CL    1.4  47  MLv     4.63 -0.18    51.6443
    KLV   HL    1.4  61  MLv     4.81  0.01    39.1916
    MALA  CL    1.5  44  MLv     4.85  0.05    42.1547
    TSLK  HT    1.5   3  MLv     4.76 -0.04    43.2124
    PVO   HP    1.5  31  MLv     4.89  0.08    57.6864
    AGEO  CL    1.5  52  MLv     4.54 -0.27    7.30884
    MG00  CL    1.5  45  MLv     4.42 -0.39    23.9055
    GUR   HP    1.5  67  MLv     4.68 -0.12    33.9434
    KALE  HA    1.6  50  MLv     4.65 -0.15    27.9427
    ANX   HP    1.6  40  MLv     4.77 -0.04    35.4401
    PANR  CL    1.7  52  MLv     4.11 -0.69   0.147262
    VLI   HL    2.0 107  MLv     4.55 -0.25    17.7339
    KRND  HT    2.1  88  MLv     4.65 -0.16    16.0597
    AXAR  HA    2.2  49  MLv     4.62 -0.18     51.251
    IGT   HT    2.2 355  MLv     4.95  0.14    26.7314
    JAN   HL    2.3   6  MLv     4.85  0.05    24.0855
    VILL  HA    2.3  69  MLv     4.79 -0.01    15.7847
    KEK   HL    2.4 346  MLv     4.75 -0.06    23.3711
    THL   HL    2.5  27  MLv     5.12  0.31    16.2148
    ATH   HL    2.6  75  MLv     4.99  0.19    18.2159
    VLY   HL    2.6  78  MLv     4.57 -0.23    6.61644
    ATHU  HA    2.6  75  MLv     4.80 -0.01    6.70855
    ANKY  HL    2.7 123  MLv     4.40 -0.40    4.26035
    PTL   HL    2.7  74  MLv     4.70 -0.10    7.93301
    LRSO  HT    2.7  31  MLv     4.65 -0.16    17.7284
    DION  HL    2.8  74  MLv     4.86  0.06    29.8378
    NEO   HL    2.9  46  MLv     4.63 -0.18    7.46702
    KYMI  HL    3.1  64  MLv     4.82  0.01     6.4441
    RODP  HC    3.1 124  MLv     4.71 -0.10    4.67201
    LIT   HT    3.1  28  MLv     5.08  0.27    7.81453
    MHLO  HL    3.1 101  MLv     4.67 -0.13    8.66344
    AOS2  HT    3.2  54  MLv     4.63 -0.17    3.81791
    IMMV  HL    3.3 123  MLv     4.84  0.04    4.86906
    FNA   HT    3.5  10  MLv     5.09  0.29    7.02972
    TIP   MN    3.5 303  MLv     4.64 -0.16    1.93451
    THE   HT    3.8  29  MLv     5.02  0.21    3.09574
    GVD   HL    3.8 130  MLv     4.92  0.11    2.81727
    HORT  HT    3.8  31  MLv     4.94  0.13    2.61321
    CEL   MN    3.8 285  MLv     5.10  0.30    4.30605
    SAP3  HL    3.9 102  MLv     5.18  0.38    10.5002
    SNT5  HA    4.0 102  MLv     4.81  0.00    1.52449
    OUR   HT    4.0  41  MLv     4.76 -0.05    2.26797
    TIR   MN    4.0 353  MLv     5.32  0.52    8.18811
    SOH   HT    4.1  31  MLv     5.25  0.44    6.66378
    KOKK  HT    4.4  37  MLv     4.76 -0.04      1.856
    LIA   HL    4.4  53  MLv     4.87  0.06    4.59887
    SRS   HT    4.4  31  MLv     5.15  0.35    3.11309
    CUC   MN    4.6 307  MLv     4.81  0.00    1.86659
    SIGR  HT    4.6  64  MLv     4.73 -0.07     1.5542
    NVR   HL    4.8  32  MLv     5.11  0.30    2.46137
    WDD   MN    5.1 255  MLv     5.81  1.00    13.7968
    WDD   MN    5.1 255  mB      6.40  0.00    37535.1
    WDD   MN    5.1 255  mb      6.54  0.00     4485.1 0.74
    KARP  HL    5.6 107  MLv     4.94  0.13     1.8084
