Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2026-09-07 10:51:26 (GMT)
 Μέγεθος
 M 3.7
 Γεωγρ. Πλάτος
 38.5060° Β
 Γεωγρ. Μήκος
 21.3455° Α
 Εστιακό Βάθος
 13 χμ
 Αρ. αφίξεων
 99
 Επίκεντρο 16.9 χμ ΒΒΔ του Μεσολογγίου
44.7 χμ ΒΔ της Πάτρας
216.5 χμ ΔΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

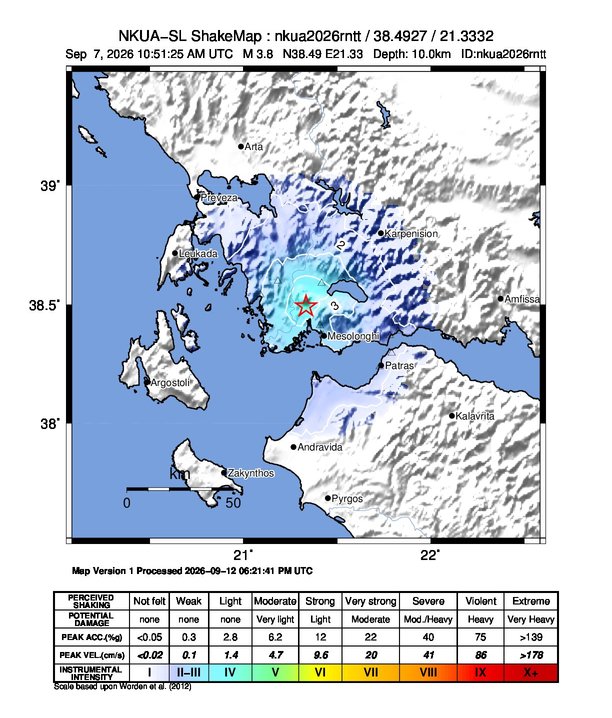

  Χάρτης εντάσεως

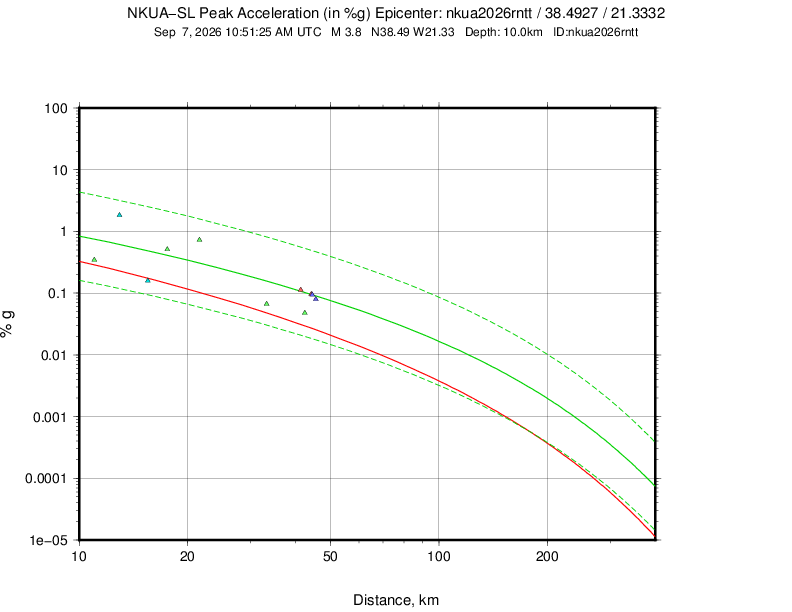

PGA

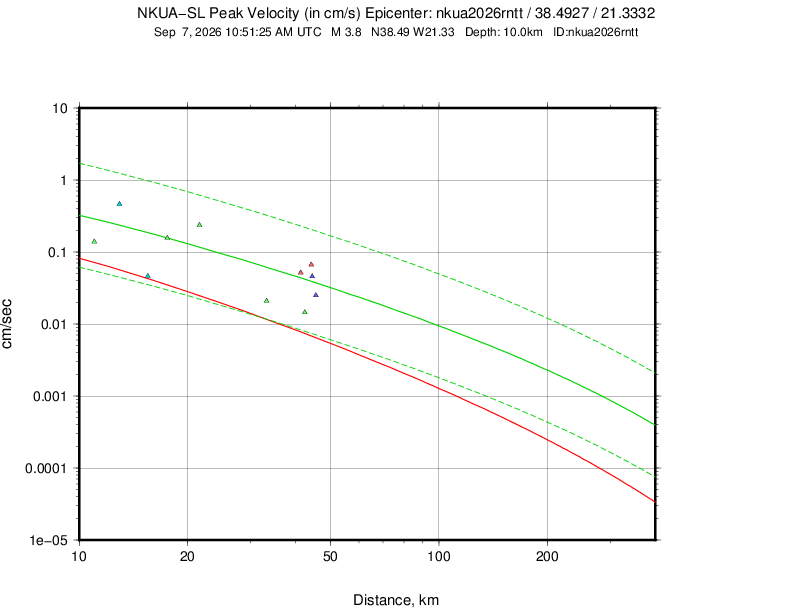

 PGV

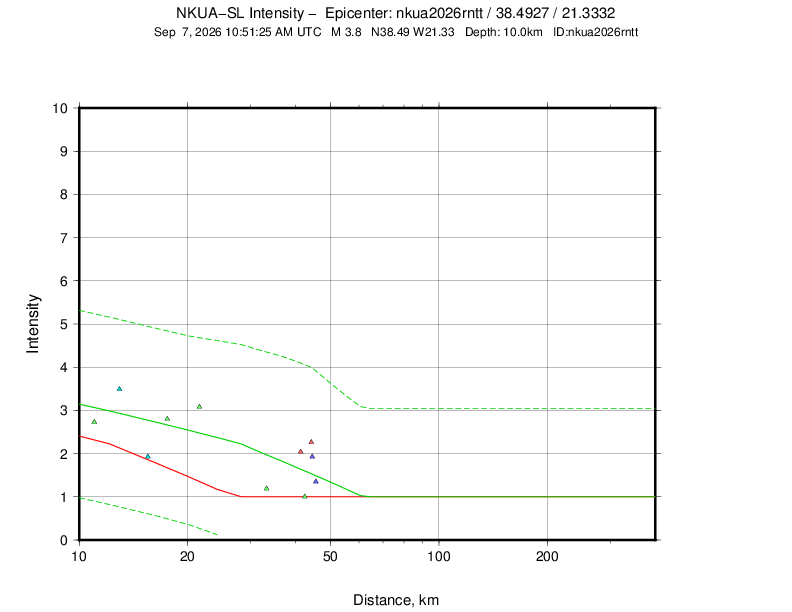

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
PLEVHP11.7153 P10:51:28.80 0.01.0M
PLEVHP11.7153 S10:51:31.61 0.51.0M
MSL1HI16.3155 P10:51:29.50 0.21.0M
MSL1HI16.3155 S10:51:32.74 0.61.0M
PDOHP17.5306 P10:51:29.52 0.01.0M
PDOHP17.5306 S10:51:32.84 0.31.0M
PVOHP19.9 52 P10:51:29.67 -0.21.0M
PVOHP19.9 52 S10:51:33.27 0.21.0M
PATCHL44.7126 P10:51:34.29 0.61.0M
PATCHL44.7126 S10:51:39.98 0.21.0M
UPRHP45.7123 P10:51:33.36 -0.51.0M
UPRHP45.7123 S10:51:40.55 0.41.0M
WGC7HA48.9115 P10:51:33.83 -0.51.0M
WGC7HA48.9115 S10:51:41.47 0.51.0M
ANXHP51.0 79 P10:51:34.06 -0.81.0M
ANXHP51.0 79 S10:51:41.93 0.11.0M
ROD3CL52.5115 P10:51:34.67 -0.31.0M
ROD3CL52.5115 S10:51:42.20 0.11.0M
PYRGCL59.4100 P10:51:35.72 -0.41.0M
PYRGCL59.4100 S10:51:44.25 0.21.0M
WGC4HA59.6102 P10:51:35.79 -0.31.0M
WGC4HA59.6102 S10:51:44.29 0.31.0M
NYDRHT60.8292 P10:51:35.87 -0.41.0M
NYDRHT60.8292 S10:51:44.70 0.41.0M
EVGIHT61.3282 P10:51:36.00 -0.41.0M
EVGIHT61.3282 S10:51:44.70 0.21.0M
ITHCHT62.3266 P10:51:36.39 -0.11.0M
ITHCHT62.3266 S10:51:44.97 0.11.0M
LAKAHA62.6118 P10:51:36.13 -0.51.0M
LAKAHA62.6118 S10:51:45.00 0.11.0M
SERGHP62.8 99 P10:51:36.22 -0.41.0M
SERGHP62.8 99 S10:51:45.10 0.11.0M
TRIZCL65.2104 P10:51:36.56 -0.41.0M
TRIZCL65.2104 S10:51:45.81 0.21.0M
LKD2HT67.5298 P10:51:37.15 -0.21.0M
LKD2HT67.5298 S10:51:46.54 0.21.0M
FSKHP68.4266 P10:51:37.11 -0.41.0M
FSKHP68.4266 S10:51:46.75 0.31.0M
RTZLHT69.3226 P10:51:37.77 0.21.0M
RTZLHT69.3226 S10:51:46.91 0.21.0M
DROHP69.4153 P10:51:37.28 -0.41.0M
DROHP69.4153 S10:51:46.89 0.11.0M
TSLKHT69.6301 P10:51:37.40 -0.31.0M
TSLKHT69.6301 S10:51:47.16 0.31.0M
KALEHA70.3100 P10:51:37.40 -0.51.0M
KALEHA70.3100 S10:51:47.32 0.11.0M
GR281Y70.8195 P10:51:38.14 0.31.0M
GR281Y70.8195 S10:51:47.30 0.21.0M
AIOACL71.2119 P10:51:37.33 -0.61.0M
AIOACL71.2119 S10:51:47.13 -0.11.0M
PSARCL74.8105 P10:51:37.91 -0.61.0M
PSARCL74.8105 S10:51:48.53 0.31.0M
VLSHL75.5241 P10:51:38.20 -0.41.0M
VLSHL75.5241 S10:51:48.69 0.21.0M
PSAMCL75.9106 P10:51:38.00 -0.71.0M
PSAMCL75.9106 S10:51:48.84 0.31.0M
GR241Y76.5 75 P10:51:37.80 -1.11.0M
GR241Y76.5 75 S10:51:48.96 0.01.0M
ART2HI77.6337 P10:51:38.49 -0.41.0M
ART2HI77.6337 S10:51:49.27 0.31.0M
PSDAHT79.5237 P10:51:38.73 -0.51.0M
PSDAHT79.5237 S10:51:49.89 0.31.0M
ATHRHA83.6256 P10:51:39.43 -0.51.0M
ATHRHA83.6256 S10:51:51.05 0.31.0M
KLVHL87.1126 P10:51:39.70 -0.81.0M
KLVHL87.1126 S10:51:51.69 -0.11.0M
HAVDHA90.3248 P10:51:40.35 -0.61.0M
HAVDHA90.3248 S10:51:52.92 0.31.0M
ORTHHL92.3218 P10:51:40.86 -0.41.0M
ORTHHL92.3218 S10:51:53.43 0.21.0M
TETRHL93.4356 P10:51:41.23 -0.31.0M
LTHKHP99.1207 P10:51:42.12 -0.11.0M
DLFAHL100.2 92 P10:51:41.78 -0.81.0M
AGGHT103.2 56 P10:51:43.16 0.11.0M
DSFHP103.4 96 P10:51:42.20 -0.91.0M
GURHP107.7126 P10:51:43.46 -0.31.0M
GURHP107.7126 S10:51:58.19 0.71.0M
AMTHP112.8164 P10:51:44.39 0.01.0M
AMTHP112.8164 S10:51:59.53 0.81.0M
ANTKHA113.8 98 P10:51:44.06 -0.61.0M
ANTKHA113.8 98 S10:52:00.02 1.01.0M
AXARHA117.7 76 P10:51:44.89 -0.31.0M
AXARHA117.7 76 S10:52:01.15 1.01.0M
KRYOHL126.0118 P10:51:46.77 0.21.0M
THALHA126.4114 P10:51:47.08 0.61.0M
THLHL131.1 26 P10:51:47.18 0.01.0M
LKRHL144.6 84 P10:51:48.87 -0.51.0M
DOMVHA145.1101 P10:51:49.31 -0.11.0M
ATALHA147.1 82 P10:51:50.07 0.31.0M
ATALHA147.1 82 S10:52:08.80 0.71.0M
ACORHA149.7117 P10:51:50.54 0.41.0M
ACORHA149.7117 S10:52:09.31 0.51.0M
ACHLHT150.6 68 P10:51:49.89 -0.31.0M
LTKHP151.4111 P10:51:50.82 0.41.0M
GR19B1Y152.3311 P10:51:50.48 0.01.0M
LOUTHA153.5112 P10:51:51.24 0.51.0M
GR301Y153.7135 P10:51:50.94 0.21.0M
TYRNHT154.3 30 P10:51:50.99 0.21.0M
TYRNHT154.3 30 S10:52:10.70 0.81.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2026rntt
    Description
      region name: Greece
Origin:
    Date                   2026-09-07
    Time                  10:51:25.62
    Latitude              38.5060 deg  +/-      0 km
    Longitude             21.3455 deg  +/-      0 km
    Depth                      13 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.38 s
    Azimuthal gap              31 deg

2 Network magnitudes:
    MLv       3.68 +/- 0.16  43
    M         3.68           43 preferred

99 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PLEV  HP    0.1 153  P       10:51:28.80   0.0 M  1.0  PLEV
    PLEV  HP    0.1 153  S       10:51:31.61   0.5 M  1.0  PLEV
    MSL1  HI    0.1 155  P       10:51:29.50   0.2 M  1.0  MSL1
    MSL1  HI    0.1 155  S       10:51:32.74   0.6 M  1.0  MSL1
    PDO   HP    0.2 306  P       10:51:29.52   0.0 M  1.0  PDO
    PDO   HP    0.2 306  S       10:51:32.84   0.3 M  1.0  PDO
    PVO   HP    0.2  52  P       10:51:29.67  -0.2 M  1.0  PVO
    PVO   HP    0.2  52  S       10:51:33.27   0.2 M  1.0  PVO
    PATC  HL    0.4 126  P       10:51:34.29   0.6 M  1.0  PATC
    PATC  HL    0.4 126  S       10:51:39.98   0.2 M  1.0  PATC
    UPR   HP    0.4 123  P       10:51:33.36  -0.5 M  1.0  UPR
    UPR   HP    0.4 123  S       10:51:40.55   0.4 M  1.0  UPR
    WGC7  HA    0.4 115  P       10:51:33.83  -0.5 M  1.0  WGC7
    WGC7  HA    0.4 115  S       10:51:41.47   0.5 M  1.0  WGC7
    ANX   HP    0.5  79  P       10:51:34.06  -0.8 M  1.0  ANX
    ANX   HP    0.5  79  S       10:51:41.93   0.1 M  1.0  ANX
    ROD3  CL    0.5 115  P       10:51:34.67  -0.3 M  1.0  ROD3
    ROD3  CL    0.5 115  S       10:51:42.20   0.1 M  1.0  ROD3
    PYRG  CL    0.5 100  P       10:51:35.72  -0.4 M  1.0  PYRG
    PYRG  CL    0.5 100  S       10:51:44.25   0.2 M  1.0  PYRG
    WGC4  HA    0.5 102  P       10:51:35.79  -0.3 M  1.0  WGC4
    WGC4  HA    0.5 102  S       10:51:44.29   0.3 M  1.0  WGC4
    NYDR  HT    0.5 292  P       10:51:35.87  -0.4 M  1.0  NYDR
    NYDR  HT    0.5 292  S       10:51:44.70   0.4 M  1.0  NYDR
    EVGI  HT    0.6 282  P       10:51:36.00  -0.4 M  1.0  EVGI
    EVGI  HT    0.6 282  S       10:51:44.70   0.2 M  1.0  EVGI
    ITHC  HT    0.6 266  P       10:51:36.39  -0.1 M  1.0  ITHC
    ITHC  HT    0.6 266  S       10:51:44.97   0.1 M  1.0  ITHC
    LAKA  HA    0.6 118  P       10:51:36.13  -0.5 M  1.0  LAKA
    LAKA  HA    0.6 118  S       10:51:45.00   0.1 M  1.0  LAKA
    SERG  HP    0.6  99  P       10:51:36.22  -0.4 M  1.0  SERG
    SERG  HP    0.6  99  S       10:51:45.10   0.1 M  1.0  SERG
    TRIZ  CL    0.6 104  P       10:51:36.56  -0.4 M  1.0  TRIZ
    TRIZ  CL    0.6 104  S       10:51:45.81   0.2 M  1.0  TRIZ
    LKD2  HT    0.6 298  P       10:51:37.15  -0.2 M  1.0  LKD2
    LKD2  HT    0.6 298  S       10:51:46.54   0.2 M  1.0  LKD2
    FSK   HP    0.6 266  P       10:51:37.11  -0.4 M  1.0  FSK
    FSK   HP    0.6 266  S       10:51:46.75   0.3 M  1.0  FSK
    DRO   HP    0.6 153  P       10:51:37.28  -0.4 M  1.0  DRO
    DRO   HP    0.6 153  S       10:51:46.89   0.1 M  1.0  DRO
    RTZL  HT    0.6 226  P       10:51:37.77   0.2 M  1.0  RTZL
    RTZL  HT    0.6 226  S       10:51:46.91   0.2 M  1.0  RTZL
    TSLK  HT    0.6 301  P       10:51:37.40  -0.3 M  1.0  TSLK
    TSLK  HT    0.6 301  S       10:51:47.16   0.3 M  1.0  TSLK
    KALE  HA    0.6 100  P       10:51:37.40  -0.5 M  1.0  KALE
    KALE  HA    0.6 100  S       10:51:47.32   0.1 M  1.0  KALE
    GR28  1Y    0.6 195  P       10:51:38.14   0.3 M  1.0  GR28
    GR28  1Y    0.6 195  S       10:51:47.30   0.2 M  1.0  GR28
    AIOA  CL    0.6 119  P       10:51:37.33  -0.6 M  1.0  AIOA
    AIOA  CL    0.6 119  S       10:51:47.13  -0.1 M  1.0  AIOA
    PSAR  CL    0.7 105  P       10:51:37.91  -0.6 M  1.0  PSAR
    PSAR  CL    0.7 105  S       10:51:48.53   0.3 M  1.0  PSAR
    VLS   HL    0.7 241  P       10:51:38.20  -0.4 M  1.0  VLS
    VLS   HL    0.7 241  S       10:51:48.69   0.2 M  1.0  VLS
    PSAM  CL    0.7 106  P       10:51:38.00  -0.7 M  1.0  PSAM
    PSAM  CL    0.7 106  S       10:51:48.84   0.3 M  1.0  PSAM
    GR24  1Y    0.7  75  P       10:51:37.80  -1.1 M  1.0  GR24
    GR24  1Y    0.7  75  S       10:51:48.96   0.0 M  1.0  GR24
    ART2  HI    0.7 337  P       10:51:38.49  -0.4 M  1.0  ART2
    ART2  HI    0.7 337  S       10:51:49.27   0.3 M  1.0  ART2
    PSDA  HT    0.7 237  P       10:51:38.73  -0.5 M  1.0  PSDA
    PSDA  HT    0.7 237  S       10:51:49.89   0.3 M  1.0  PSDA
    ATHR  HA    0.8 256  P       10:51:39.43  -0.5 M  1.0  ATHR
    ATHR  HA    0.8 256  S       10:51:51.05   0.3 M  1.0  ATHR
    KLV   HL    0.8 126  P       10:51:39.70  -0.8 M  1.0  KLV
    KLV   HL    0.8 126  S       10:51:51.69  -0.1 M  1.0  KLV
    HAVD  HA    0.8 248  P       10:51:40.35  -0.6 M  1.0  HAVD
    HAVD  HA    0.8 248  S       10:51:52.92   0.3 M  1.0  HAVD
    ORTH  HL    0.8 218  P       10:51:40.86  -0.4 M  1.0  ORTH
    ORTH  HL    0.8 218  S       10:51:53.43   0.2 M  1.0  ORTH
    TETR  HL    0.8 356  P       10:51:41.23  -0.3 M  1.0  TETR
    LTHK  HP    0.9 207  P       10:51:42.12  -0.1 M  1.0  LTHK
    DLFA  HL    0.9  92  P       10:51:41.78  -0.8 M  1.0  DLFA
    AGG   HT    0.9  56  P       10:51:43.16   0.1 M  1.0  AGG
    DSF   HP    0.9  96  P       10:51:42.20  -0.9 M  1.0  DSF
    GUR   HP    1.0 126  P       10:51:43.46  -0.3 M  1.0  GUR
    GUR   HP    1.0 126  S       10:51:58.19   0.7 M  1.0  GUR
    AMT   HP    1.0 164  P       10:51:44.39  -0.0 M  1.0  AMT
    AMT   HP    1.0 164  S       10:51:59.53   0.8 M  1.0  AMT
    ANTK  HA    1.0  98  P       10:51:44.06  -0.6 M  1.0  ANTK
    ANTK  HA    1.0  98  S       10:52:00.02   1.0 M  1.0  ANTK
    AXAR  HA    1.1  76  P       10:51:44.89  -0.3 M  1.0  AXAR
    AXAR  HA    1.1  76  S       10:52:01.15   1.0 M  1.0  AXAR
    KRYO  HL    1.1 118  P       10:51:46.77   0.2 M  1.0  KRYO
    THAL  HA    1.1 114  P       10:51:47.08   0.6 M  1.0  THAL
    THL   HL    1.2  26  P       10:51:47.18  -0.0 M  1.0  THL
    LKR   HL    1.3  84  P       10:51:48.87  -0.5 M  1.0  LKR
    DOMV  HA    1.3 101  P       10:51:49.31  -0.1 M  1.0  DOMV
    ATAL  HA    1.3  82  P       10:51:50.07   0.3 M  1.0  ATAL
    ATAL  HA    1.3  82  S       10:52:08.80   0.7 M  1.0  ATAL
    ACOR  HA    1.3 117  P       10:51:50.54   0.4 M  1.0  ACOR
    ACOR  HA    1.3 117  S       10:52:09.31   0.5 M  1.0  ACOR
    ACHL  HT    1.4  68  P       10:51:49.89  -0.3 M  1.0  ACHL
    LTK   HP    1.4 111  P       10:51:50.82   0.4 M  1.0  LTK
    GR19B 1Y    1.4 311  P       10:51:50.48   0.0 M  1.0  GR19B
    GR30  1Y    1.4 135  P       10:51:50.94   0.2 M  1.0  GR30
    LOUT  HA    1.4 112  P       10:51:51.24   0.5 M  1.0  LOUT
    TYRN  HT    1.4  30  P       10:51:50.99   0.2 M  1.0  TYRN
    TYRN  HT    1.4  30  S       10:52:10.70   0.8 M  1.0  TYRN

57 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PLEV  HP    0.1 153  MLv     3.44 -0.24    111.992
    MSL1  HI    0.1 155  MLv     3.68  0.01    149.741
    PDO   HP    0.2 306  MLv     3.82  0.15    194.233
    PVO   HP    0.2  52  MLv     3.85  0.17    177.646
    PATC  HL    0.4 126  MLv     3.94  0.26    52.9766
    UPR   HP    0.4 123  MLv     2.76 -0.92    37.7713
    WGC7  HA    0.4 115  MLv     3.44 -0.24    13.0786
    ANX   HP    0.5  79  MLv     3.66 -0.02    19.3447
    ROD3  CL    0.5 115  MLv     3.96  0.28    53.8873
    PYRG  CL    0.5 100  MLv     3.53 -0.14    5.60353
    WGC4  HA    0.5 102  MLv     4.00  0.32    25.6278
    NYDR  HT    0.5 292  MLv     4.04  0.36     19.578
    EVGI  HT    0.6 282  MLv     3.93  0.25    21.0417
    ITHC  HT    0.6 266  MLv     4.10  0.43     31.063
    LAKA  HA    0.6 118  MLv     3.70  0.02    12.1563
    SERG  HP    0.6  99  MLv     4.12  0.45    32.4156
    TRIZ  CL    0.6 104  MLv     3.96  0.28    21.6221
    LKD2  HT    0.6 298  MLv     3.93  0.25    19.6537
    FSK   HP    0.6 266  MLv     3.81  0.13     14.787
    DRO   HP    0.6 153  MLv     3.57 -0.10    17.7055
    RTZL  HT    0.6 226  MLv     3.86  0.18    16.4234
    TSLK  HT    0.6 301  MLv     3.75  0.08     12.783
    KALE  HA    0.6 100  MLv     3.93  0.25    18.9182
    GR28  1Y    0.6 195  MLv     3.42 -0.26    5.82778
    AIOA  CL    0.6 119  MLv     3.89  0.21    4.38027
    PSAR  CL    0.7 105  MLv     3.38 -0.30    5.03765
    VLS   HL    0.7 241  MLv     3.82  0.15    14.0088
    PSAM  CL    0.7 106  MLv     3.66 -0.02    9.60527
    GR24  1Y    0.7  75  MLv     3.61 -0.06    8.55824
    ART2  HI    0.7 337  MLv     3.84  0.16    14.2245
    PSDA  HT    0.7 237  MLv     3.92  0.25    16.8544
    ATHR  HA    0.8 256  MLv     3.69  0.01    9.35776
    KLV   HL    0.8 126  MLv     3.74  0.06    7.71207
    HAVD  HA    0.8 248  MLv     3.85  0.17    12.5875
    ORTH  HL    0.8 218  MLv     3.34 -0.34    3.80129
    TETR  HL    0.8 356  MLv     3.74  0.06    9.33528
    LTHK  HP    0.9 207  MLv     3.71  0.04    8.29176
    DLFA  HL    0.9  92  MLv     3.52 -0.16    5.21419
    AGG   HT    0.9  56  MLv     3.62 -0.05    4.99041
    DSF   HP    0.9  96  MLv     3.55 -0.12    5.47207
    GUR   HP    1.0 126  MLv     3.63 -0.05    6.13705
    AMT   HP    1.0 164  MLv     3.70  0.02     6.8887
    ANTK  HA    1.0  98  MLv     3.46 -0.21    3.93892
    AXAR  HA    1.1  76  MLv     3.23 -0.45    8.64723
    KRYO  HL    1.1 118  MLv     3.69  0.01    5.75528
    THAL  HA    1.1 114  MLv     3.47 -0.21    6.12881
    THL   HL    1.2  26  MLv     3.37 -0.31    1.56723
    LKR   HL    1.3  84  MLv     3.59 -0.09    1.97136
    DOMV  HA    1.3 101  MLv     3.75  0.07    5.33392
    ATAL  HA    1.3  82  MLv     3.36 -0.32    2.09241
    ACOR  HA    1.3 117  MLv     3.44 -0.24    2.46069
    ACHL  HT    1.4  68  MLv     3.43 -0.25    2.36876
    LTK   HP    1.4 111  MLv     2.98 -0.70    3.17309
    GR19B 1Y    1.4 311  MLv     3.89  0.21    6.74984
    GR30  1Y    1.4 135  MLv     3.47 -0.21    2.50784
    LOUT  HA    1.4 112  MLv     3.56 -0.12    3.07778
    TYRN  HT    1.4  30  MLv     3.55 -0.13    2.33521
