Earthquake Information
 Origin Time
2020-05-09 09:39:31 (GMT)
 Magnitude
M 4.0
 Latitude
34.2470° N
 Longitude
25.6187° E
 Focal Depth
20 km
 # of Arrivals
49
 Location 127.9 km SSE of Iraklion
162.5 km SE of Rethimnon
448.6 km SSE of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.


  Focal Mechanism

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
13878107 1.86E+22

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
34.278825.62147.04.1

Source parameters determination

Click here for detailed focal mechanism solution


  Intensity map


PGA
PGV
MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
NPSHL112.8360 P09:39:49.31 -0.51.0M
NPSHL112.8360 S09:40:04.08 0.21.0M

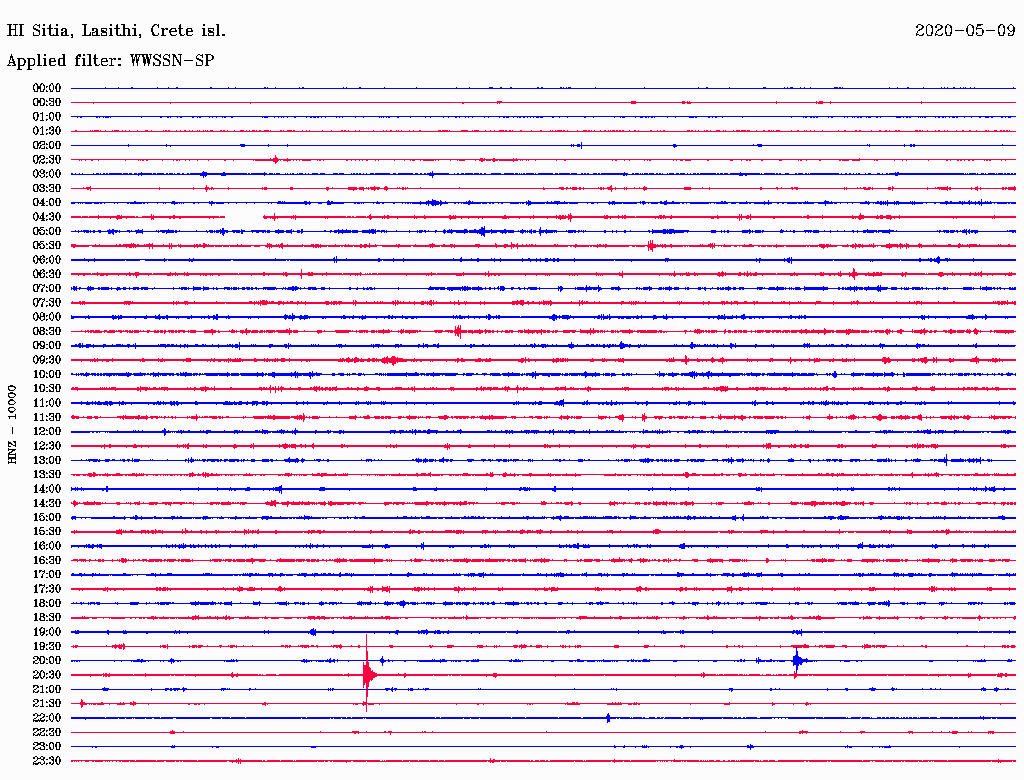

SIT2HI115.6 23 P09:39:50.21 0.11.0M
SIT2HI115.6 23 S09:40:04.74 0.11.0M

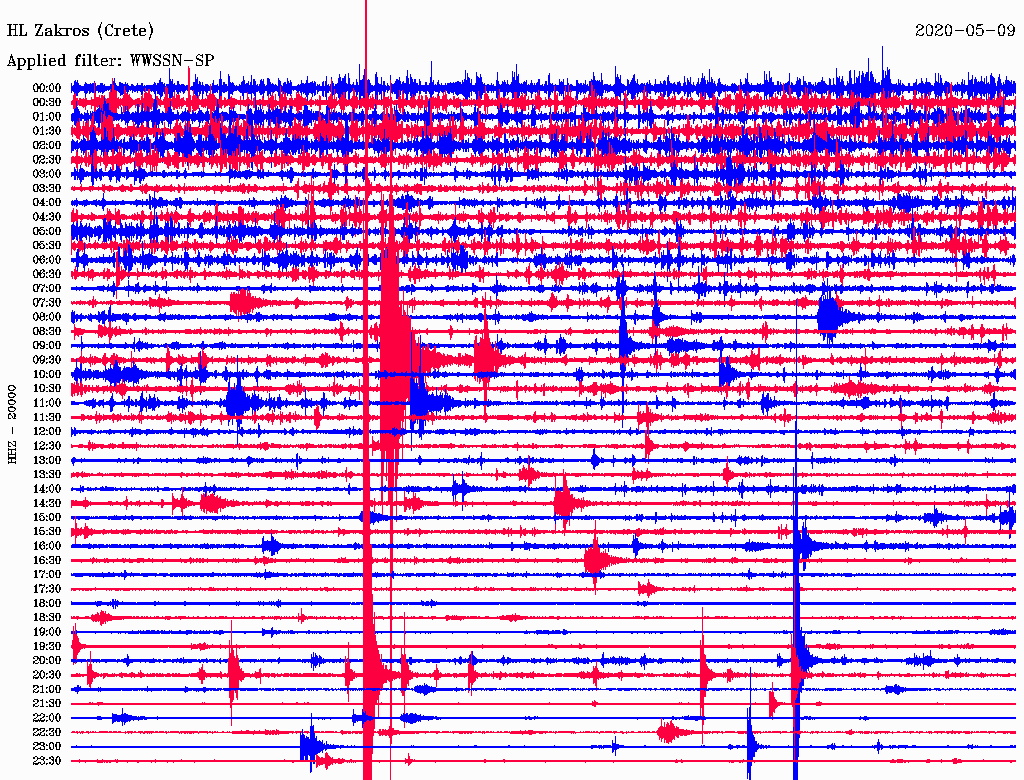

ZKRHL110.9 30 P09:39:48.92 -0.61.0M
ZKRHL110.9 30 S09:40:03.68 0.21.0M
IDIMN133.5330 P09:39:52.59 -0.41.0M
IDIMN133.5330 S09:40:09.99 0.31.0M
GVDHL154.9295 P09:39:55.25 -0.61.0M
GVDHL154.9295 S09:40:14.72 0.01.0M

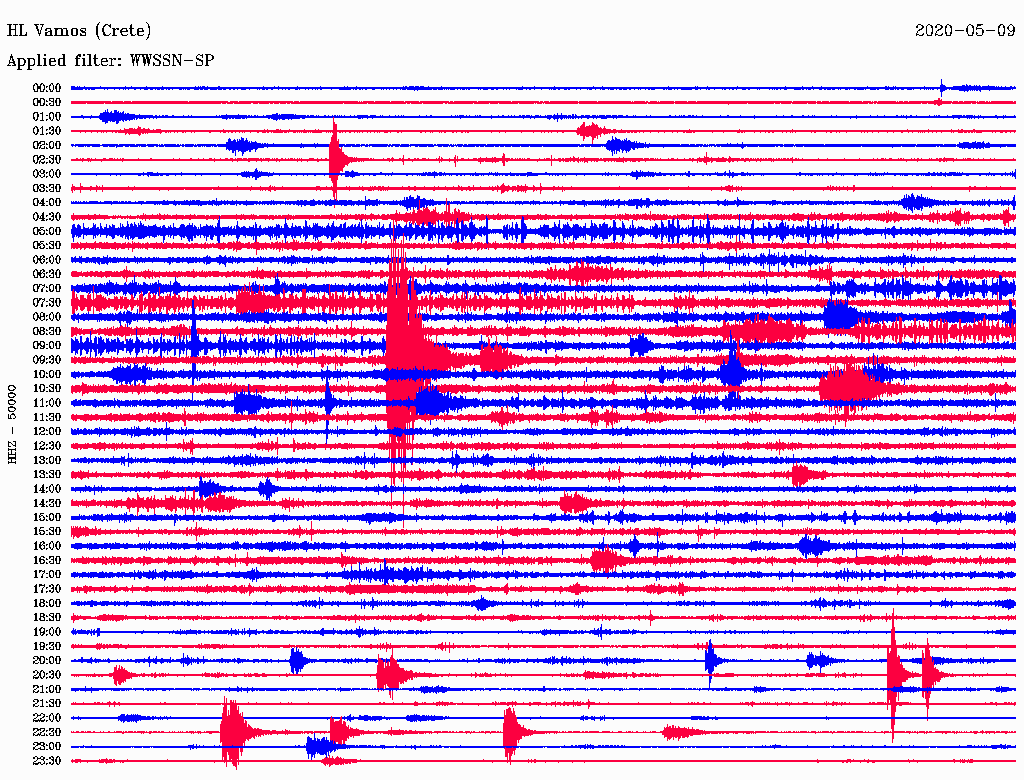

VAMHL182.8315 P09:39:59.58 0.21.0M
VAMHL182.8315 S09:40:21.15 0.21.0M
IMMVHL201.3312 P09:40:02.22 0.41.0M
IMMVHL201.3312 S09:40:25.29 0.11.0M

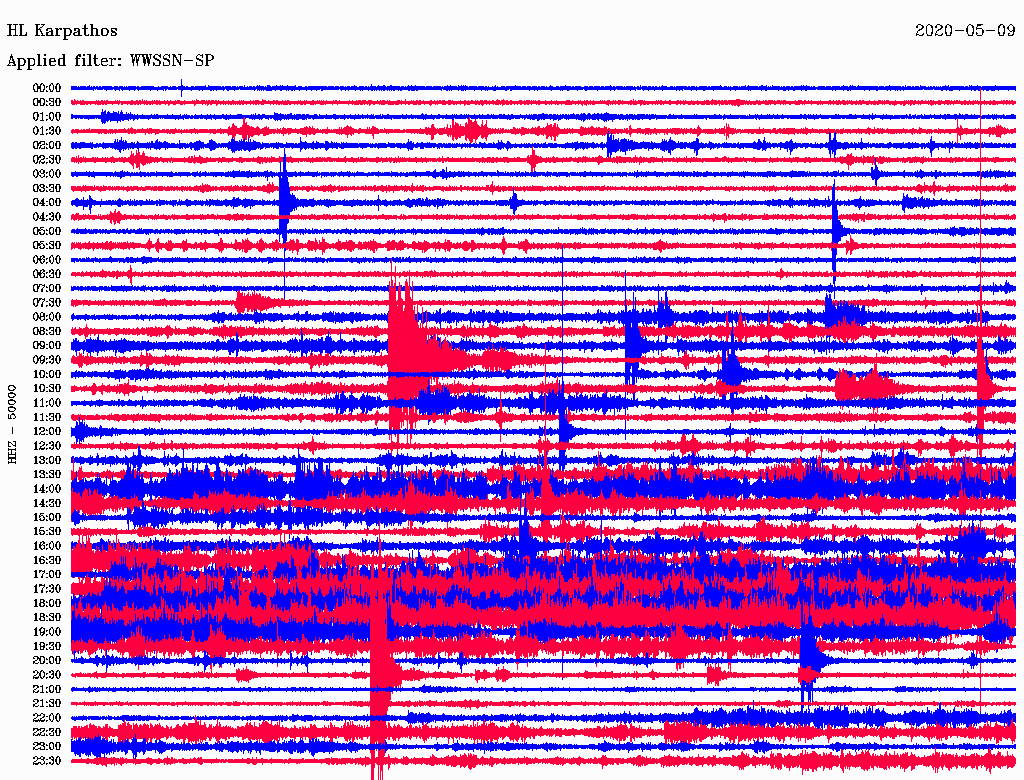

KARPHL201.7 44 P09:40:02.26 0.41.0M
KARPHL201.7 44 S09:40:25.11 -0.21.0M
THERAHL236.1357 P09:40:06.85 0.61.0M
THERAHL236.1357 S09:40:32.57 -0.31.0M
THR6HT235.4355 P09:40:06.60 0.51.0M
THR6HT235.4355 S09:40:32.42 -0.21.0M

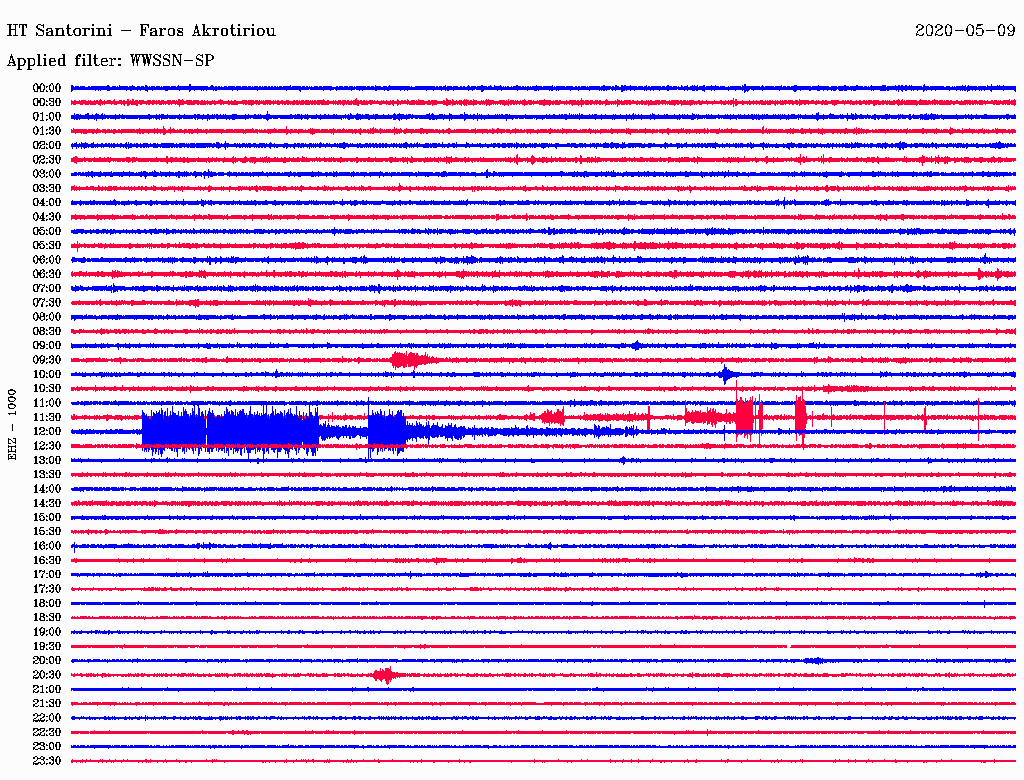

THR9HT235.9354 P09:40:06.50 0.31.0M
SAP3HL244.6354 P09:40:07.66 0.41.0M
SAP3HL244.6354 S09:40:34.47 -0.31.0M

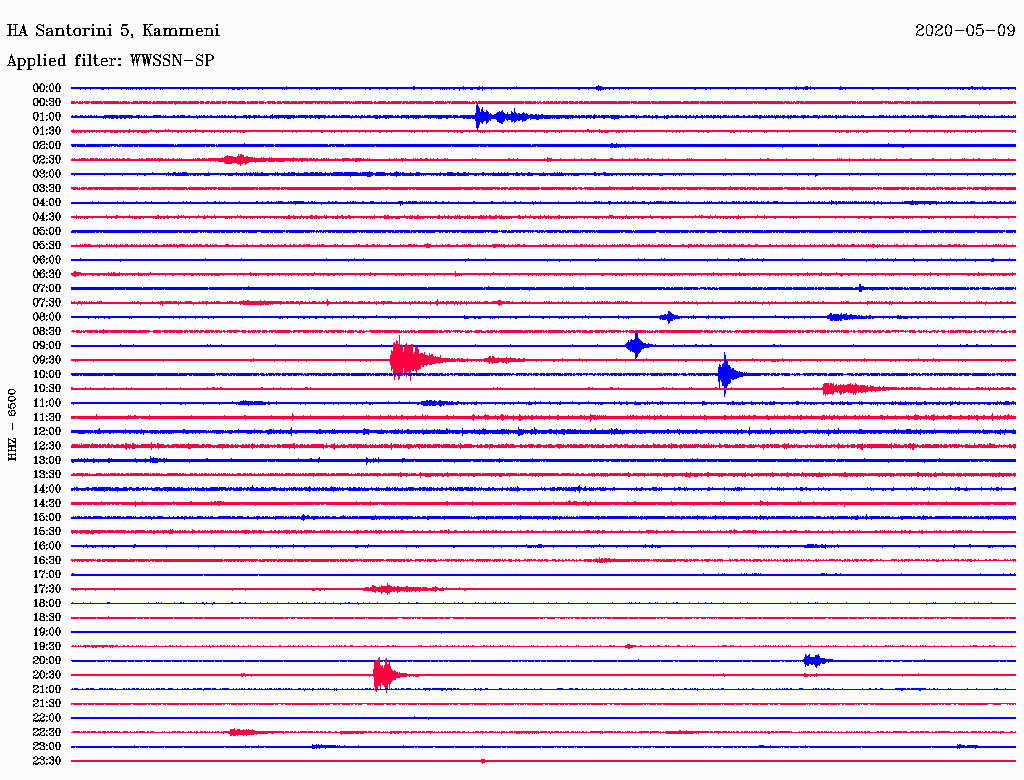

SNT5HA240.7355 P09:40:07.15 0.41.0M
SNT5HA240.7355 S09:40:33.68 -0.21.0M

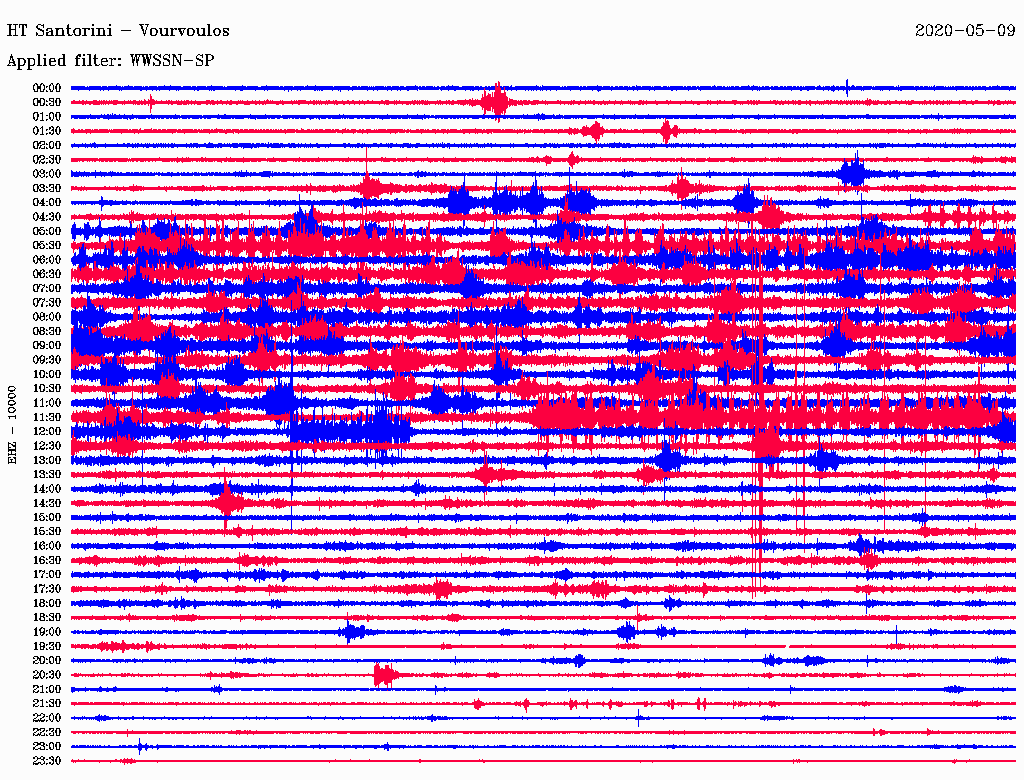

THR2HT245.2356 P09:40:07.33 0.01.0M
THR2HT245.2356 S09:40:34.54 -0.31.0M

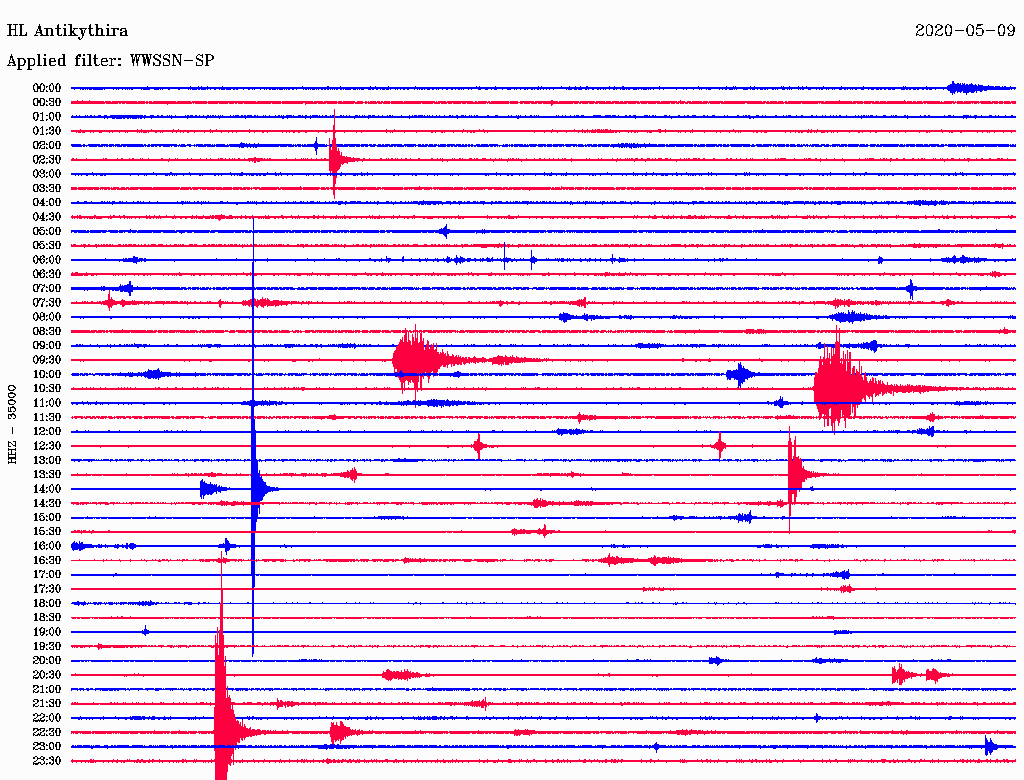

ANKYHL277.4310 P09:40:11.95 0.41.0M
ANKYHL277.4310 S09:40:42.04 -0.21.0M

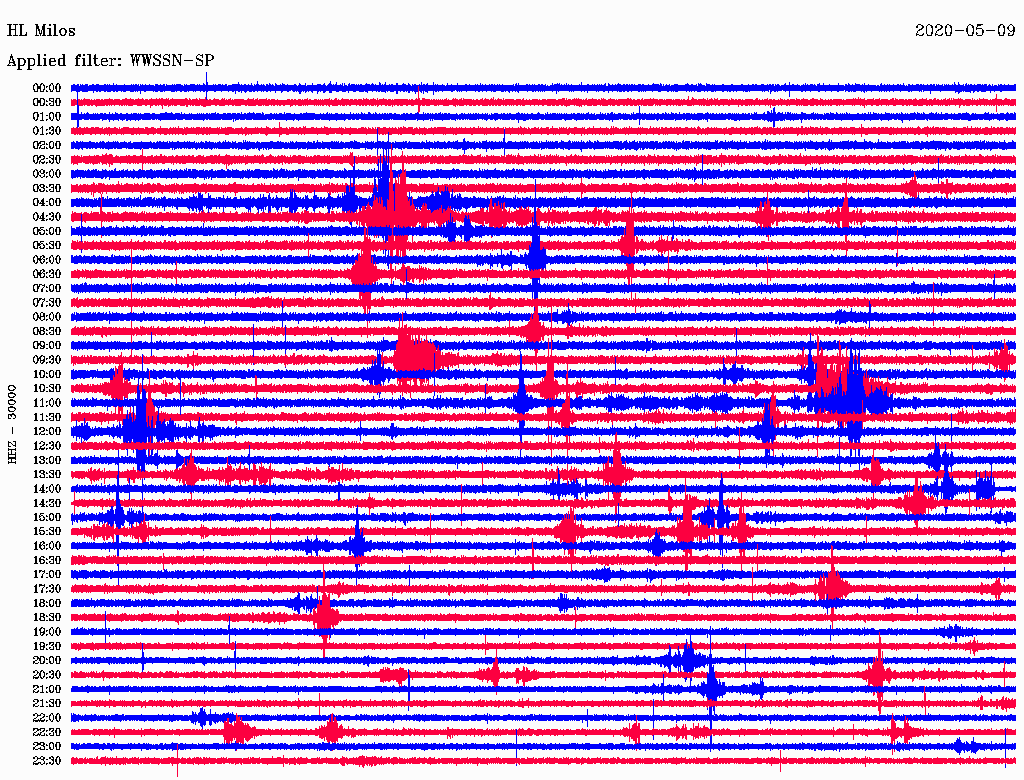

MHLOHL293.1338 P09:40:13.71 0.21.0M
MHLOHL293.1338 S09:40:45.34 -0.41.0M

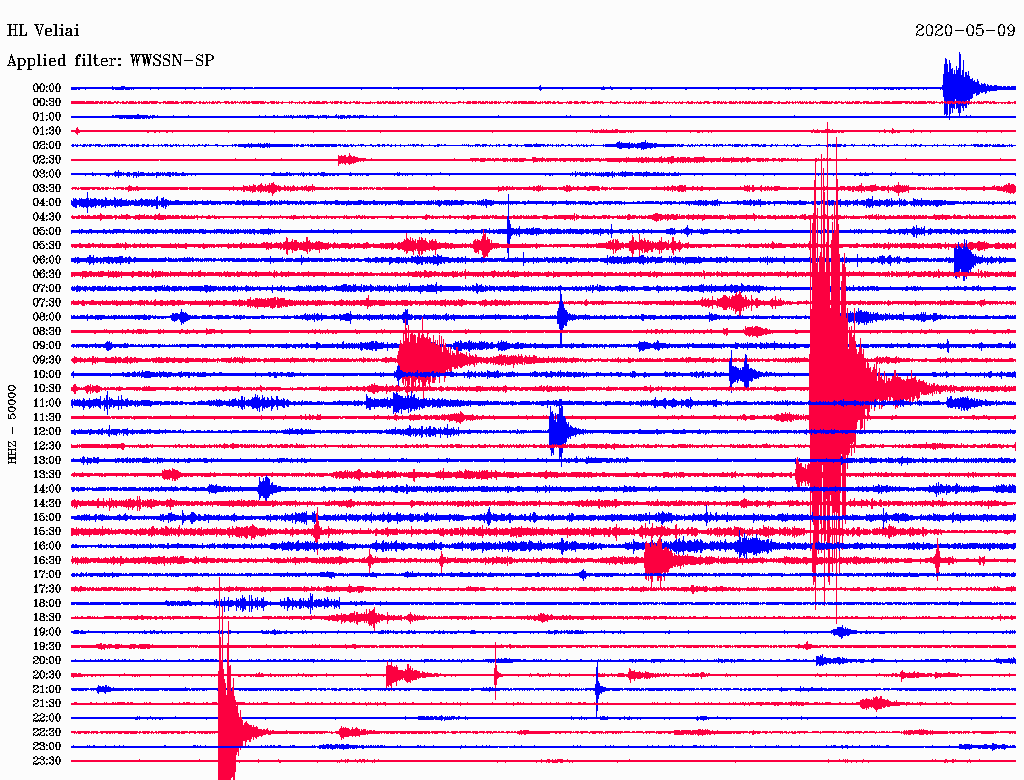

VLIHL366.1319 P09:40:22.63 -0.31.0M
VLIHL366.1319 S09:41:02.11 -0.21.0M

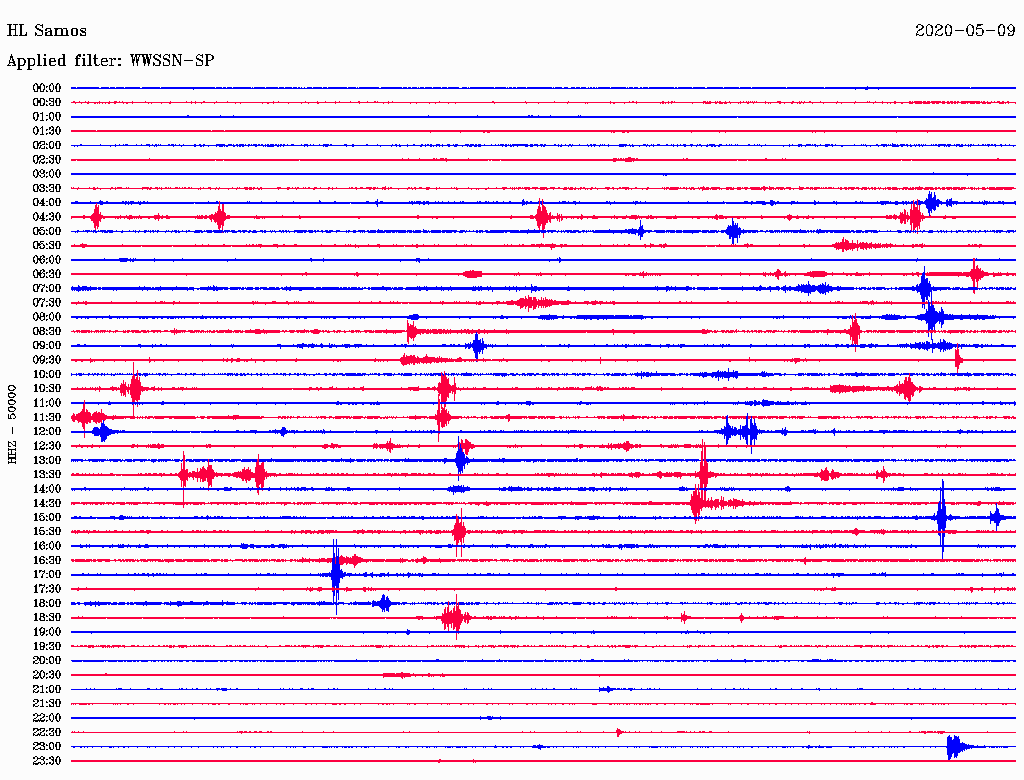

SMGHL399.8 16 P09:40:26.49 -0.71.0M
SMGHL399.8 16 S09:41:09.91 0.11.0M

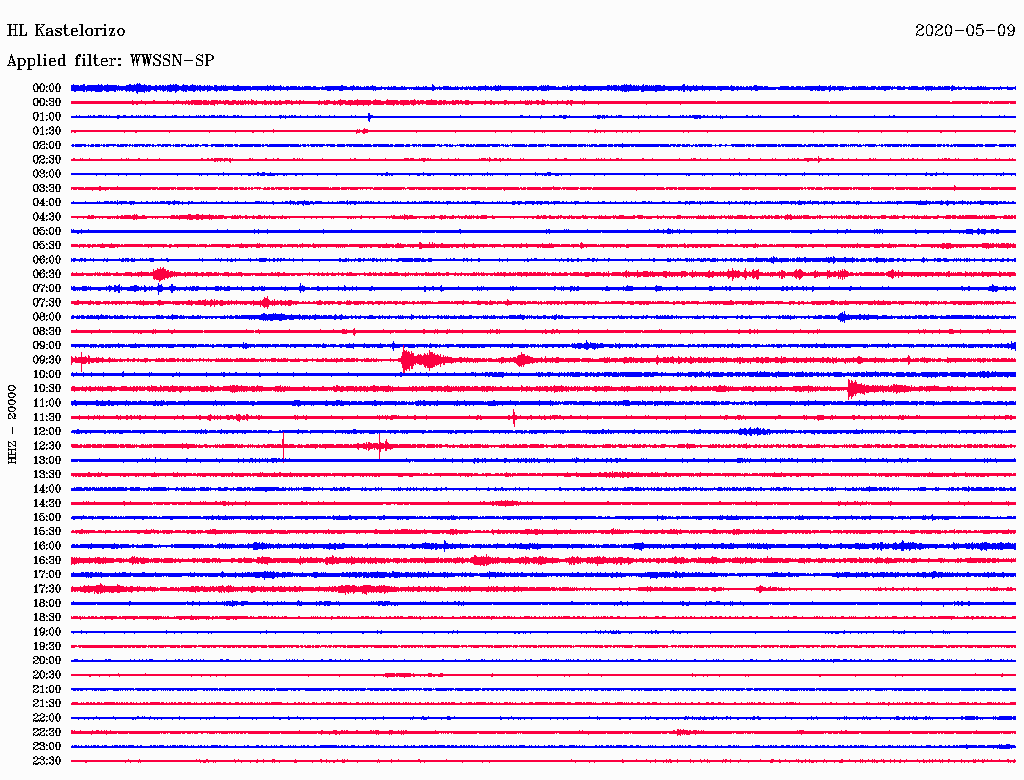

KSLHL417.9 60 P09:40:29.38 -0.21.0M
KSLHL417.9 60 S09:41:14.26 0.21.0M

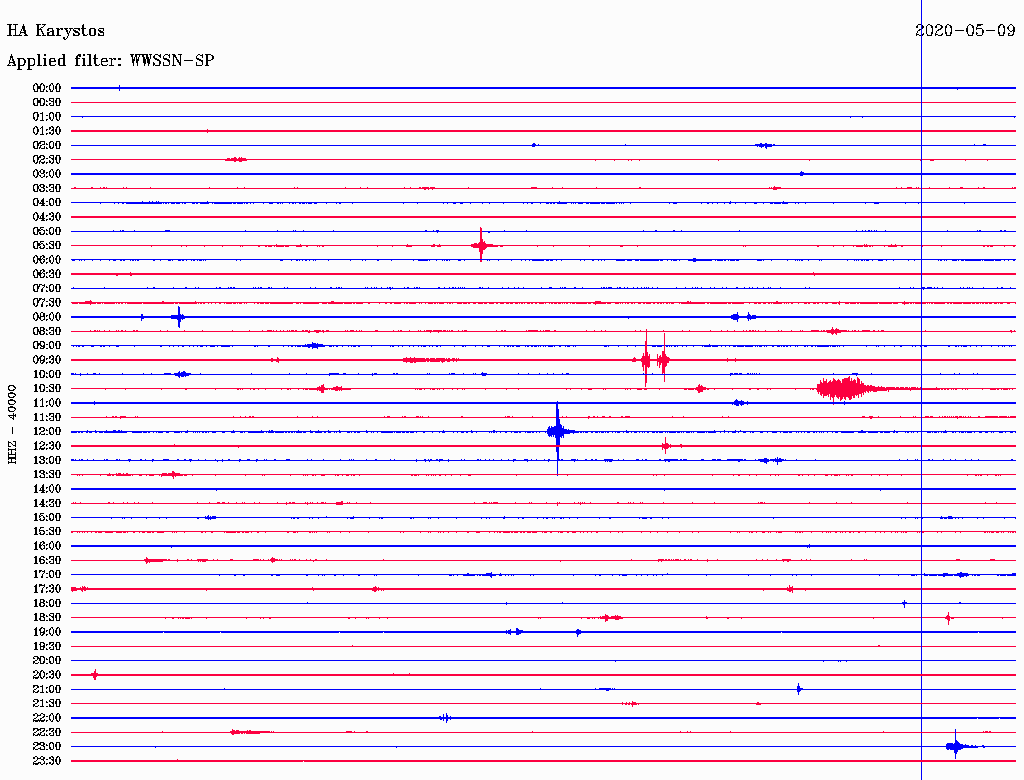

KARYHA434.0346 P09:40:31.16 -0.41.0M
KARYHA434.0346 S09:41:16.73 -0.71.0M

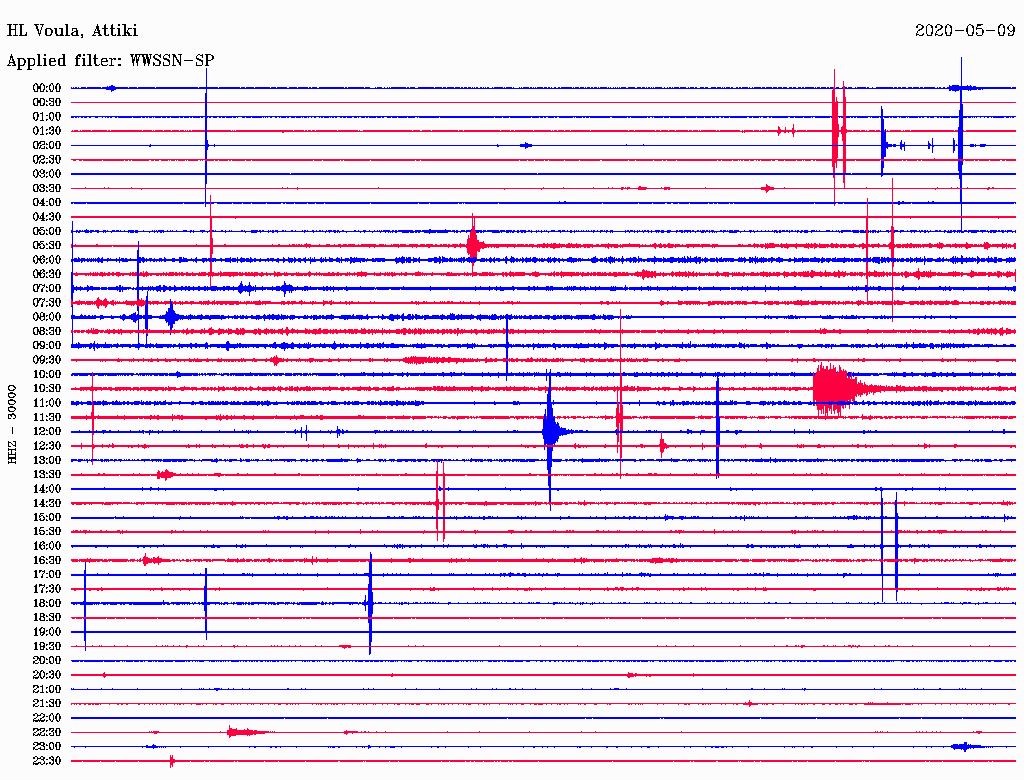

VLYHL433.1338 P09:40:30.94 -0.51.0M
VLYHL433.1338 S09:41:16.77 -0.51.0M
ATHUHA445.2338 P09:40:32.56 -0.41.0M
ATHUHA445.2338 S09:41:19.87 -0.11.0M

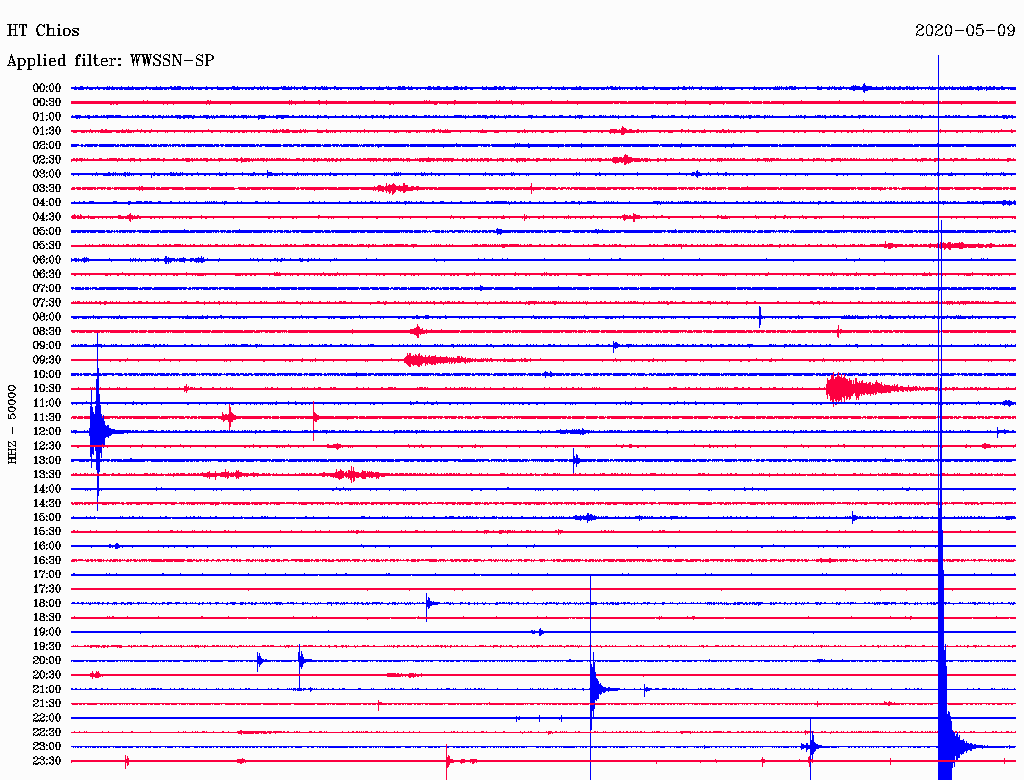

CHOSHT461.9 5 P09:40:34.57 -0.61.0M

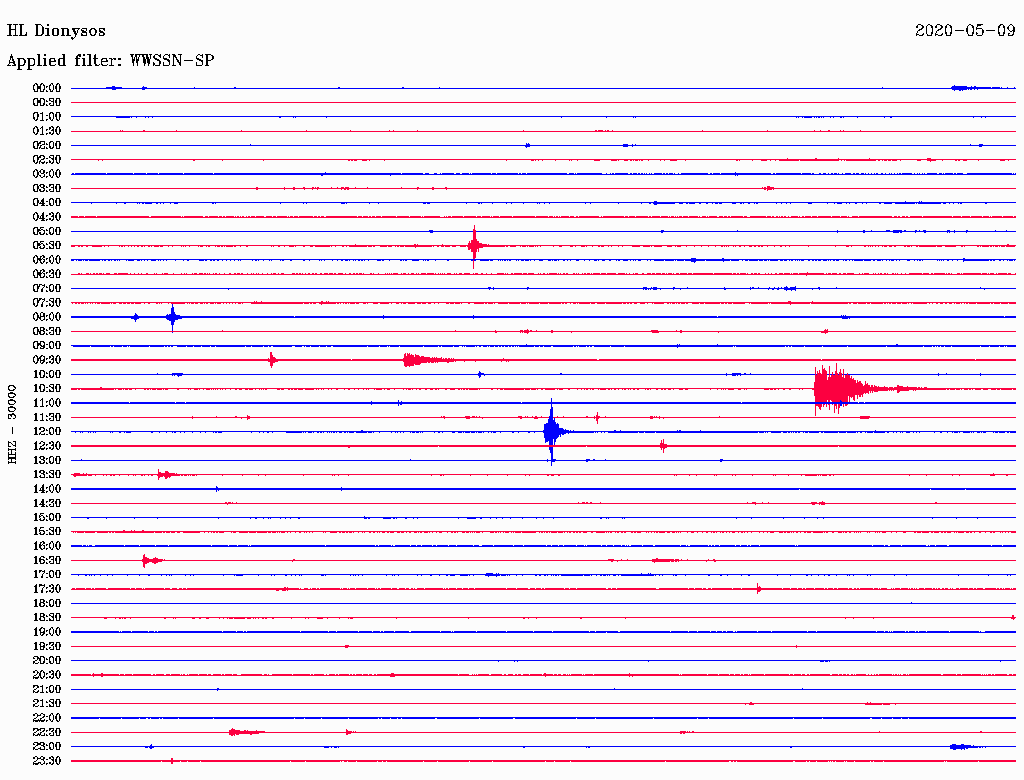

DIONHL452.0340 P09:40:33.30 -0.61.0M
DIONHL452.0340 S09:41:21.68 0.11.0M

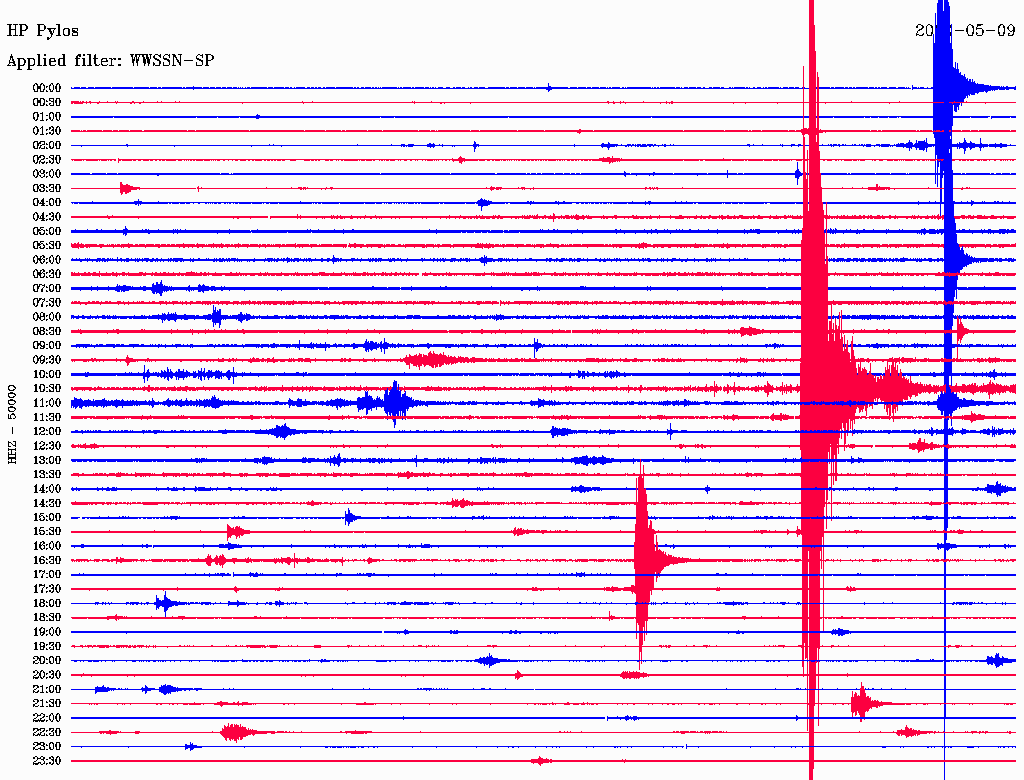

PYLHP457.8310 P09:40:34.67 -0.11.0M

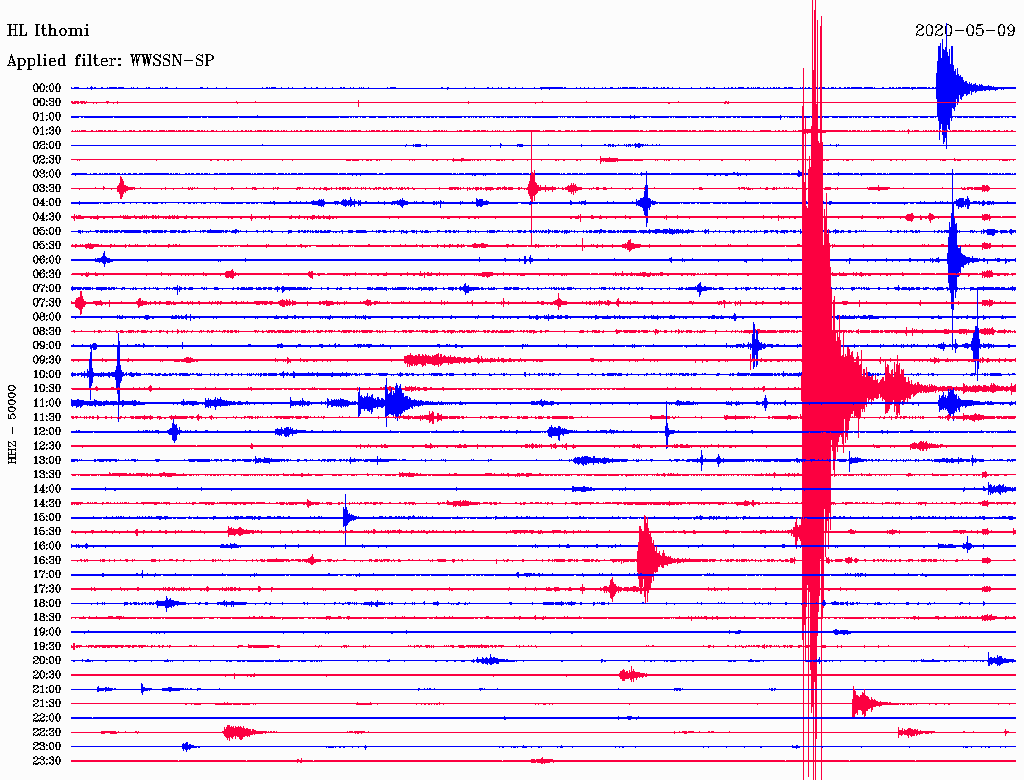

ITMHL466.3314 P09:40:35.27 -0.61.0M

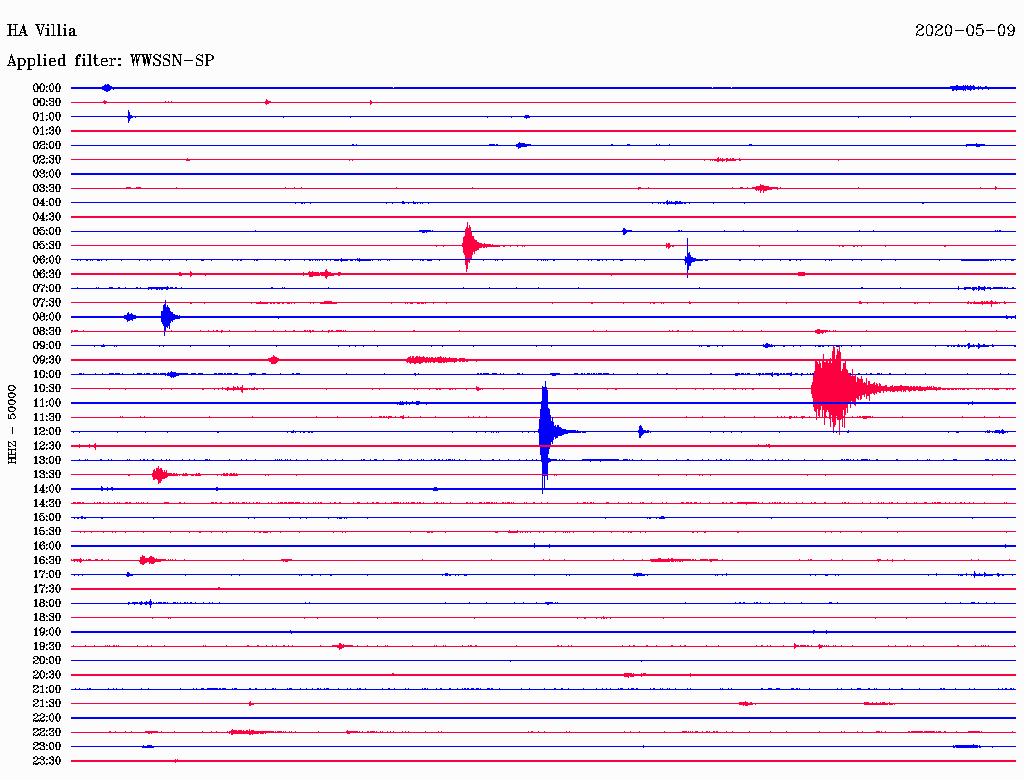

VILLHA482.2334 P09:40:37.22 -0.61.0M


  Solution details

Event:
    Public ID              nkua2020jcla
    Description
      region name: Crete, Greece
Origin:
    Date                   2020-05-09
    Time                  09:39:31.12
    Latitude              34.2470 deg  +/-      1 km
    Longitude             25.6187 deg  +/-      1 km
    Depth                      20 km   +/-    1 km
    Agency                 HA
    Author                 K.Pavlou
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.33 s
    Azimuthal gap             235 deg

2 Network magnitudes:
    MLv       3.97 +/- 0.12  23
    M         3.97           23 preferred

49 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ZKR   HL    1.0  30  P       09:39:48.92  -0.6 M  1.0  ZKR
    ZKR   HL    1.0  30  S       09:40:03.68   0.2 M  1.0  ZKR
    NPS   HL    1.0 360  P       09:39:49.31  -0.5 M  1.0  NPS
    NPS   HL    1.0 360  S       09:40:04.08   0.2 M  1.0  NPS
    SIT2  HI    1.0  23  P       09:39:50.21   0.1 M  1.0  SIT2
    SIT2  HI    1.0  23  S       09:40:04.74   0.1 M  1.0  SIT2
    IDI   MN    1.2 330  P       09:39:52.59  -0.4 M  1.0  IDI
    IDI   MN    1.2 330  S       09:40:09.99   0.3 M  1.0  IDI
    GVD   HL    1.4 295  P       09:39:55.25  -0.6 M  1.0  GVD
    GVD   HL    1.4 295  S       09:40:14.72   0.0 M  1.0  GVD
    VAM   HL    1.6 315  P       09:39:59.58   0.2 M  1.0  VAM
    VAM   HL    1.6 315  S       09:40:21.15   0.2 M  1.0  VAM
    IMMV  HL    1.8 312  P       09:40:02.22   0.4 M  1.0  IMMV
    IMMV  HL    1.8 312  S       09:40:25.29   0.1 M  1.0  IMMV
    KARP  HL    1.8  44  P       09:40:02.26   0.4 M  1.0  KARP
    KARP  HL    1.8  44  S       09:40:25.11  -0.2 M  1.0  KARP
    THR6  HT    2.1 355  P       09:40:06.60   0.5 M  1.0  THR6
    THR6  HT    2.1 355  S       09:40:32.42  -0.2 M  1.0  THR6
    THR9  HT    2.1 354  P       09:40:06.50   0.3 M  1.0  THR9
    THERA HL    2.1 357  P       09:40:06.85   0.6 M  1.0  THERA
    THERA HL    2.1 357  S       09:40:32.57  -0.3 M  1.0  THERA
    SNT5  HA    2.2 355  P       09:40:07.15   0.4 M  1.0  SNT5
    SNT5  HA    2.2 355  S       09:40:33.68  -0.2 M  1.0  SNT5
    SAP3  HL    2.2 354  P       09:40:07.66   0.4 M  1.0  SAP3
    SAP3  HL    2.2 354  S       09:40:34.47  -0.3 M  1.0  SAP3
    THR2  HT    2.2 356  P       09:40:07.33  -0.0 M  1.0  THR2
    THR2  HT    2.2 356  S       09:40:34.54  -0.3 M  1.0  THR2
    ANKY  HL    2.5 310  P       09:40:11.95   0.4 M  1.0  ANKY
    ANKY  HL    2.5 310  S       09:40:42.04  -0.2 M  1.0  ANKY
    MHLO  HL    2.6 338  P       09:40:13.71   0.2 M  1.0  MHLO
    MHLO  HL    2.6 338  S       09:40:45.34  -0.4 M  1.0  MHLO
    VLI   HL    3.3 319  P       09:40:22.63  -0.3 M  1.0  VLI
    VLI   HL    3.3 319  S       09:41:02.11  -0.2 M  1.0  VLI
    SMG   HL    3.6  16  P       09:40:26.49  -0.7 M  1.0  SMG
    SMG   HL    3.6  16  S       09:41:09.91   0.1 M  1.0  SMG
    KSL   HL    3.8  60  P       09:40:29.38  -0.2 M  1.0  KSL
    KSL   HL    3.8  60  S       09:41:14.26   0.2 M  1.0  KSL
    VLY   HL    3.9 338  P       09:40:30.94  -0.5 M  1.0  VLY
    VLY   HL    3.9 338  S       09:41:16.77  -0.5 M  1.0  VLY
    KARY  HA    3.9 346  P       09:40:31.16  -0.4 M  1.0  KARY
    KARY  HA    3.9 346  S       09:41:16.73  -0.7 M  1.0  KARY
    ATHU  HA    4.0 338  P       09:40:32.56  -0.4 M  1.0  ATHU
    ATHU  HA    4.0 338  S       09:41:19.87  -0.1 M  1.0  ATHU
    DION  HL    4.1 340  P       09:40:33.30  -0.6 M  1.0  DION
    DION  HL    4.1 340  S       09:41:21.68   0.1 M  1.0  DION
    PYL   HP    4.1 310  P       09:40:34.67  -0.1 M  1.0  PYL
    CHOS  HT    4.1   5  P       09:40:34.57  -0.6 M  1.0  CHOS
    ITM   HL    4.2 314  P       09:40:35.27  -0.6 M  1.0  ITM
    VILL  HA    4.3 334  P       09:40:37.22  -0.6 M  1.0  VILL

27 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ZKR   HL    1.0  30  MLv     4.05  0.08    15.6468
    NPS   HL    1.0 360  MLv     3.88 -0.09    10.3994
    SIT2  HI    1.0  23  MLv     4.27  0.30    24.7242
    IDI   MN    1.2 330  MLv     3.73 -0.24    5.80338
    GVD   HL    1.4 295  MLv     3.97 -0.01    6.03235
    VAM   HL    1.6 315  MLv     4.20  0.23    5.45435
    IMMV  HL    1.8 312  MLv     3.98  0.01    4.74567
    KARP  HL    1.8  44  MLv     3.71 -0.26     3.3181
    THR6  HT    2.1 355  MLv     4.02  0.05    6.24563
    THR9  HT    2.1 354  MLv     4.09  0.11    14.6852
    THERA HL    2.1 357  MLv     3.85 -0.12    2.37103
    SNT5  HA    2.2 355  MLv     3.94 -0.03    1.61651
    SAP3  HL    2.2 354  MLv     4.10  0.13    6.33982
    THR2  HT    2.2 356  MLv     3.84 -0.13    4.86409
    ANKY  HL    2.5 310  MLv     4.04  0.06    2.24029
    MHLO  HL    2.6 338  MLv     4.07  0.10    4.10911
    VLI   HL    3.3 319  MLv     4.02  0.05    1.01015
    SMG   HL    3.6  16  MLv     4.00  0.03   0.509174
    KSL   HL    3.8  60  MLv     4.10  0.13   0.447779
    VLY   HL    3.9 338  MLv     3.97 -0.00   0.396024
    KARY  HA    3.9 346  MLv     3.99  0.01   0.408294
    ATHU  HA    4.0 338  MLv     4.11  0.14   0.316997
    DION  HL    4.1 340  MLv     3.75 -0.23   0.603115
    PYL   HP    4.1 310  MLv     5.52  1.55   0.380842
    CHOS  HT    4.1   5  MLv     4.19  0.22   0.566566
    ITM   HL    4.2 314  MLv     4.13  0.16   0.478095
    VILL  HA    4.3 334  MLv     4.03  0.06   0.350488
