Earthquake Information
 Origin Time
 2023-11-30 12:39:22 (GMT)
 Magnitude
 M 4.3
 Latitude
 37.8422° N
 Longitude
 20.4723° E
 Focal Depth
 10 km
 # of Arrivals
 48
 Location 36.8 km S of Argostoli
37.6 km W of Zakynthos
286.5 km W of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.

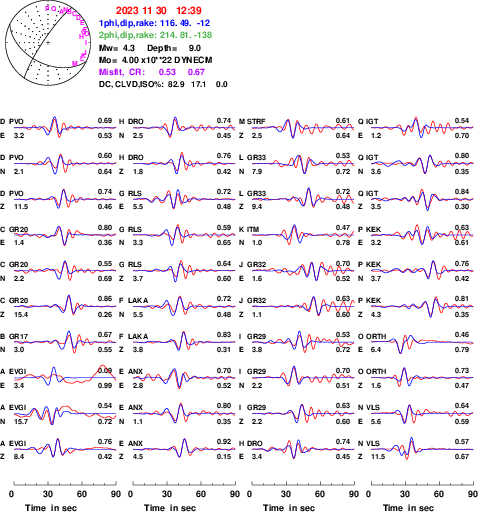

  Focal Mechanism (automatic solution)

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
11649-12 4.00E+22

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
37.808520.43819.04.3

Source parameters determination

Click here for detailed focal mechanism automatic solution

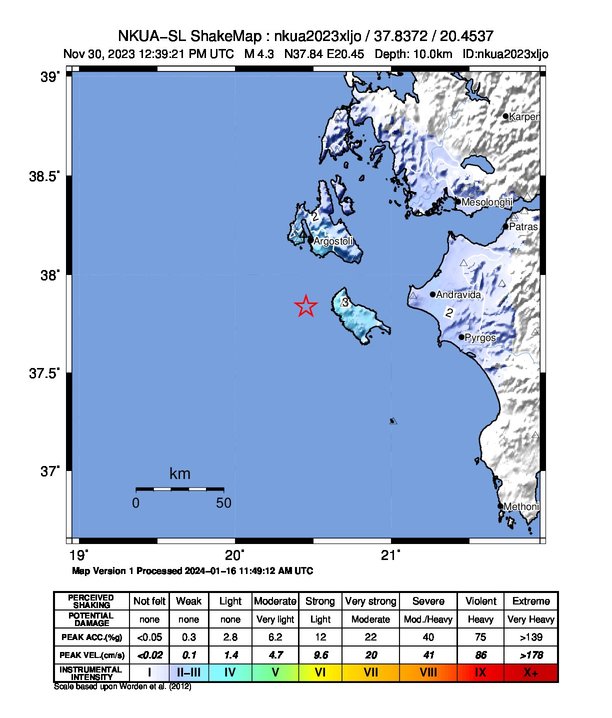

  Intensity map

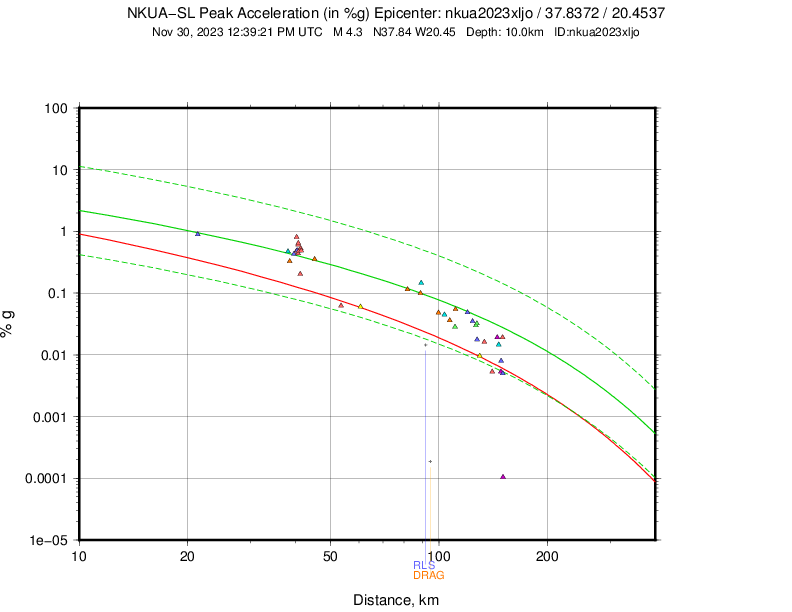

PGA

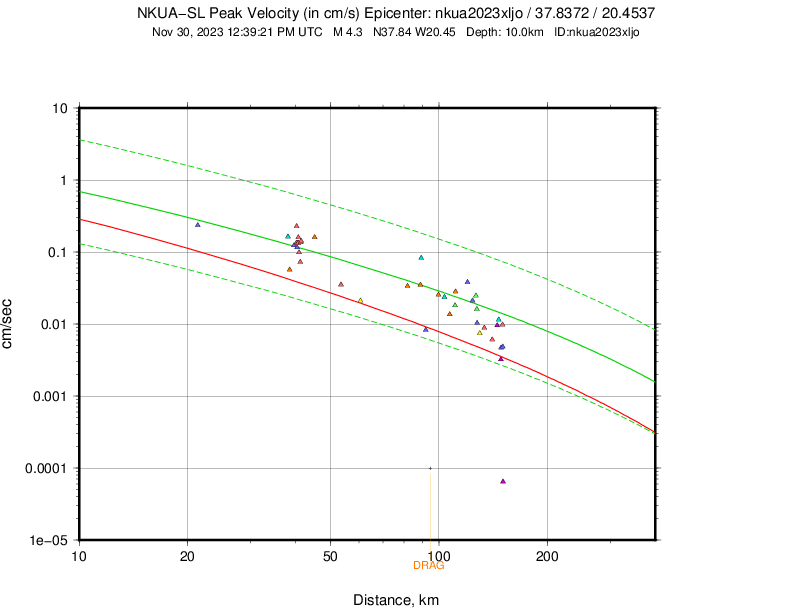

 PGV

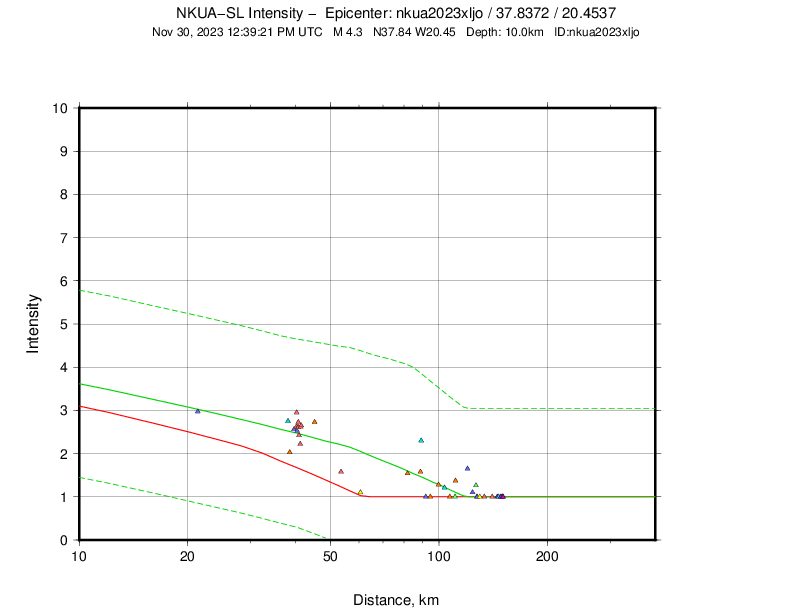

 MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ORTHHL19.7 87 P12:39:25.43 -0.41.0M
ORTHHL19.7 87 S12:39:29.03 0.11.0M
RTZLHT36.9 45 P12:39:28.20 -0.31.0M
RTZLHT36.9 45 S12:39:34.54 0.81.0M
LX10HA37.7351 P12:39:28.26 -0.41.0M
LX10HA37.7351 S12:39:34.37 0.51.0M
VLSHL38.6 15 P12:39:28.31 -0.51.0M
VLSHL38.6 15 S12:39:34.55 0.31.0M
LX18HA39.7355 P12:39:28.70 -0.31.0M
LX18HA39.7355 S12:39:35.31 0.81.0M
LX20HA39.8356 P12:39:28.64 -0.31.0M
LX20HA39.8356 S12:39:35.41 0.91.0M
LX11HA39.9356 P12:39:28.67 -0.31.0M
LX11HA39.9356 S12:39:35.35 0.81.0M
LX17HA40.2355 P12:39:28.72 -0.31.0M
LX17HA40.2355 S12:39:35.39 0.81.0M
LX22HA40.2356 P12:39:28.79 -0.21.0M
LX22HA40.2356 S12:39:35.27 0.71.0M
LX12HA40.2356 P12:39:28.94 -0.11.0M
LX12HA40.2356 S12:39:35.40 0.81.0M
LX24HA40.4356 P12:39:29.00 -0.11.0M
LX24HA40.4356 S12:39:35.07 0.41.0M
LX16HA40.8355 P12:39:28.82 -0.31.0M
LX16HA40.8355 S12:39:35.52 0.71.0M
HAVDHA40.9349 P12:39:28.54 -0.71.0M
HAVDHA40.9349 S12:39:34.85 0.01.0M
LX15HA40.9356 P12:39:28.86 -0.31.0M
LX15HA40.9356 S12:39:35.28 0.51.0M
DMLNHT44.9349 P12:39:29.24 -0.61.0M
DMLNHT44.9349 S12:39:36.22 0.21.0M
ATHRHA53.0355 P12:39:30.37 -0.81.0M
ATHRHA53.0355 S12:39:38.62 0.31.0M
GR281Y58.9 85 P12:39:31.46 -0.71.0M
GR281Y58.9 85 S12:39:40.47 0.41.0M
STRFHT81.8144 P12:39:35.95 0.31.0M
STRFHT81.8144 S12:39:47.18 0.91.0M
EVGIHT88.1 11 P12:39:36.15 -0.61.0M
EVGIHT88.1 11 S12:39:47.83 -0.31.0M
RLSHL90.2 75 P12:39:36.76 -0.41.0M
RLSHL90.2 75 S12:39:48.31 -0.51.0M
DRAGHT94.0 5 P12:39:36.84 -0.91.0M
DRAGHT94.0 5 S12:39:50.23 0.41.0M
NYDRHT98.9 12 P12:39:37.96 -0.51.0M
NYDRHT98.9 12 S12:39:51.04 -0.11.0M
MSL1HI102.1 55 P12:39:39.21 0.21.0M
MSL1HI102.1 55 S12:39:52.35 0.31.0M
DROHP109.4 84 P12:39:39.95 -0.31.0M
DROHP109.4 84 S12:39:54.59 0.31.0M


  Solution details

Event:
    Public ID              nkua2023xljo
    Description
      region name: Ionian Sea
Origin:
    Date                   2023-11-30
    Time                  12:39:21.75
    Latitude              37.8422 deg  +/-      1 km
    Longitude             20.4723 deg  +/-      1 km
    Depth                      10 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.49 s
    Azimuthal gap             205 deg

2 Network magnitudes:
    MLv       4.32 +/- 0.18  17
    M         4.32           17 preferred

48 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ORTH  HL    0.2  87  P       12:39:25.43  -0.4 M  1.0  ORTH
    ORTH  HL    0.2  87  S       12:39:29.03   0.1 M  1.0  ORTH
    RTZL  HT    0.3  45  P       12:39:28.20  -0.3 M  1.0  RTZL
    RTZL  HT    0.3  45  S       12:39:34.54   0.8 M  1.0  RTZL
    LX10  HA    0.3 351  P       12:39:28.26  -0.4 M  1.0  LX10
    LX10  HA    0.3 351  S       12:39:34.37   0.5 M  1.0  LX10
    VLS   HL    0.3  15  P       12:39:28.31  -0.5 M  1.0  VLS
    VLS   HL    0.3  15  S       12:39:34.55   0.3 M  1.0  VLS
    LX18  HA    0.4 355  P       12:39:28.70  -0.3 M  1.0  LX18
    LX18  HA    0.4 355  S       12:39:35.31   0.8 M  1.0  LX18
    LX20  HA    0.4 356  P       12:39:28.64  -0.3 M  1.0  LX20
    LX20  HA    0.4 356  S       12:39:35.41   0.9 M  1.0  LX20
    LX11  HA    0.4 356  P       12:39:28.67  -0.3 M  1.0  LX11
    LX11  HA    0.4 356  S       12:39:35.35   0.8 M  1.0  LX11
    LX12  HA    0.4 356  P       12:39:28.94  -0.1 M  1.0  LX12
    LX12  HA    0.4 356  S       12:39:35.40   0.8 M  1.0  LX12
    LX17  HA    0.4 355  P       12:39:28.72  -0.3 M  1.0  LX17
    LX17  HA    0.4 355  S       12:39:35.39   0.8 M  1.0  LX17
    LX22  HA    0.4 356  P       12:39:28.79  -0.2 M  1.0  LX22
    LX22  HA    0.4 356  S       12:39:35.27   0.7 M  1.0  LX22
    LX24  HA    0.4 356  P       12:39:29.00  -0.1 M  1.0  LX24
    LX24  HA    0.4 356  S       12:39:35.07   0.4 M  1.0  LX24
    HAVD  HA    0.4 349  P       12:39:28.54  -0.7 M  1.0  HAVD
    HAVD  HA    0.4 349  S       12:39:34.85   0.0 M  1.0  HAVD
    LX16  HA    0.4 355  P       12:39:28.82  -0.3 M  1.0  LX16
    LX16  HA    0.4 355  S       12:39:35.52   0.7 M  1.0  LX16
    LX15  HA    0.4 356  P       12:39:28.86  -0.3 M  1.0  LX15
    LX15  HA    0.4 356  S       12:39:35.28   0.5 M  1.0  LX15
    DMLN  HT    0.4 349  P       12:39:29.24  -0.6 M  1.0  DMLN
    DMLN  HT    0.4 349  S       12:39:36.22   0.2 M  1.0  DMLN
    ATHR  HA    0.5 355  P       12:39:30.37  -0.8 M  1.0  ATHR
    ATHR  HA    0.5 355  S       12:39:38.62   0.3 M  1.0  ATHR
    GR28  1Y    0.5  85  P       12:39:31.46  -0.7 M  1.0  GR28
    GR28  1Y    0.5  85  S       12:39:40.47   0.4 M  1.0  GR28
    STRF  HT    0.7 144  P       12:39:35.95   0.3 M  1.0  STRF
    STRF  HT    0.7 144  S       12:39:47.18   0.9 M  1.0  STRF
    EVGI  HT    0.8  11  P       12:39:36.15  -0.6 M  1.0  EVGI
    EVGI  HT    0.8  11  S       12:39:47.83  -0.3 M  1.0  EVGI
    RLS   HL    0.8  75  P       12:39:36.76  -0.4 M  1.0  RLS
    RLS   HL    0.8  75  S       12:39:48.31  -0.5 M  1.0  RLS
    DRAG  HT    0.8   5  P       12:39:36.84  -0.9 M  1.0  DRAG
    DRAG  HT    0.8   5  S       12:39:50.23   0.4 M  1.0  DRAG
    NYDR  HT    0.9  12  P       12:39:37.96  -0.5 M  1.0  NYDR
    NYDR  HT    0.9  12  S       12:39:51.04  -0.1 M  1.0  NYDR
    MSL1  HI    0.9  55  P       12:39:39.21   0.2 M  1.0  MSL1
    MSL1  HI    0.9  55  S       12:39:52.35   0.3 M  1.0  MSL1
    DRO   HP    1.0  84  P       12:39:39.95  -0.3 M  1.0  DRO
    DRO   HP    1.0  84  S       12:39:54.59   0.3 M  1.0  DRO

24 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ORTH  HL    0.2  87  MLv     4.12 -0.20    339.976
    RTZL  HT    0.3  45  MLv     3.86 -0.46    68.7948
    LX10  HA    0.3 351  MLv     4.43  0.10    241.666
    VLS   HL    0.3  15  MLv     4.19 -0.13    135.114
    LX18  HA    0.4 355  MLv     4.47  0.15    239.456
    LX20  HA    0.4 356  MLv     4.38  0.06    195.287
    LX11  HA    0.4 356  MLv     4.45  0.13    225.099
    LX12  HA    0.4 356  MLv     4.48  0.16    239.201
    LX17  HA    0.4 355  MLv     4.52  0.20    262.152
    LX22  HA    0.4 356  MLv     4.42  0.09    205.674
    LX24  HA    0.4 356  MLv     4.56  0.24    281.051
    HAVD  HA    0.4 349  MLv     4.15 -0.17    106.381
    LX16  HA    0.4 355  MLv     4.51  0.19    247.569
    LX15  HA    0.4 356  MLv     4.40  0.08     188.86
    DMLN  HT    0.4 349  MLv     4.31 -0.01    167.334
    ATHR  HA    0.5 355  MLv     4.19 -0.14    57.8515
    GR28  1Y    0.5  85  MLv     3.99 -0.33    26.3309
    STRF  HT    0.7 144  MLv     4.68  0.36    94.5854
    EVGI  HT    0.8  11  MLv     4.49  0.17    56.5572
    RLS   HL    0.8  75  MLv     3.93 -0.39    15.2573
    DRAG  HT    0.8   5  MLv     1.88 -2.44   0.129957
    NYDR  HT    0.9  12  MLv     4.53  0.21    39.6495
    MSL1  HI    0.9  55  MLv     4.67  0.35    72.5833
    DRO   HP    1.0  84  MLv     3.98 -0.35    28.1882
