Earthquake Information
 Origin Time
 2023-09-30 09:38:53 (GMT)
 Magnitude
 M 4.1
 Latitude
 36.9497° N
 Longitude
 27.0263° E
 Focal Depth
 15 km
 # of Arrivals
 79
 Location 24.2 km WNW of Kos
89.9 km S of Samos
312.5 km ESE of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.

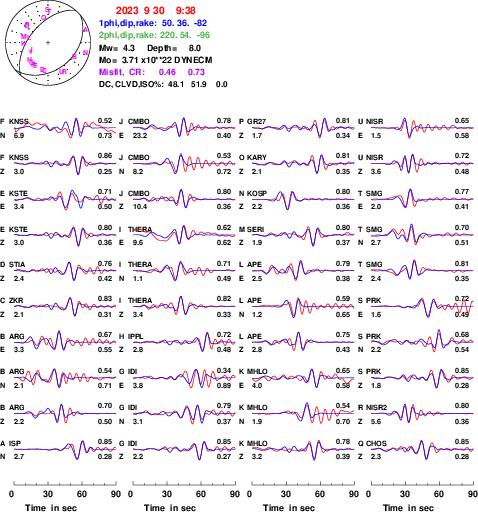

  Focal Mechanism (automatic solution)

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
5036-82 3.71E+22

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
36.962327.03938.04.3

Source parameters determination

Click here for detailed focal mechanism automatic solution

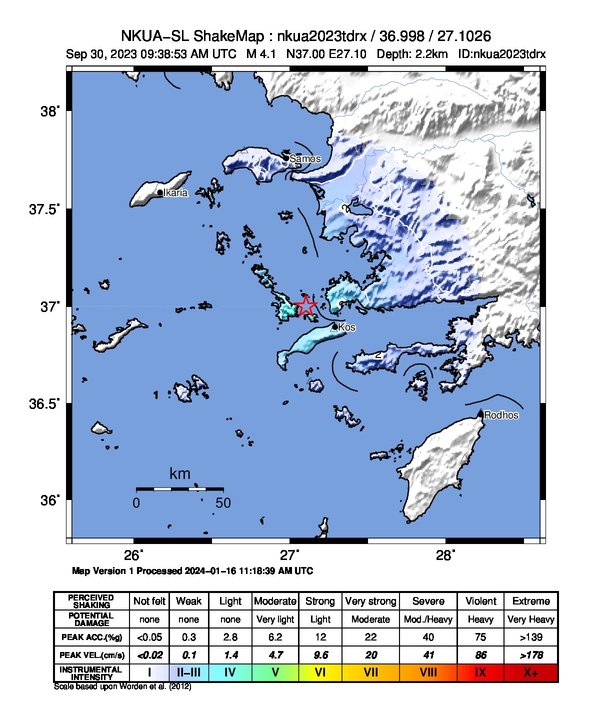

  Intensity map

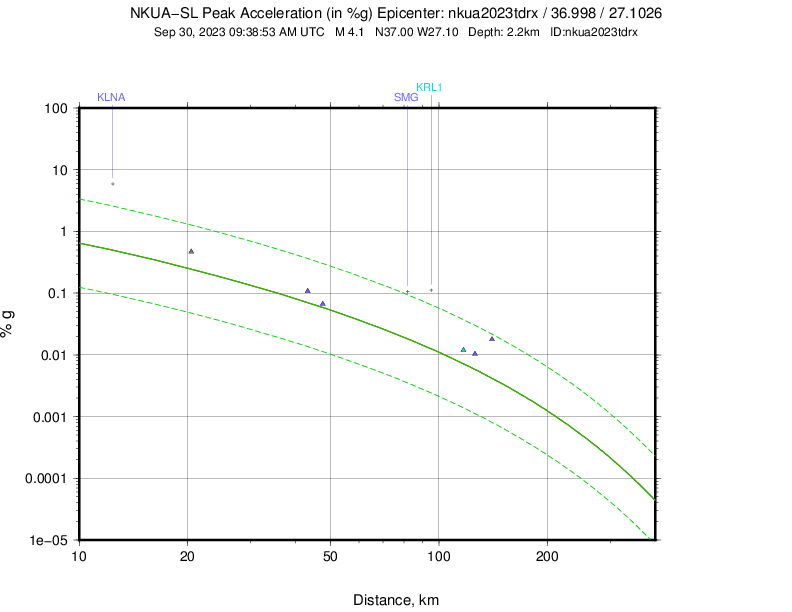

PGA

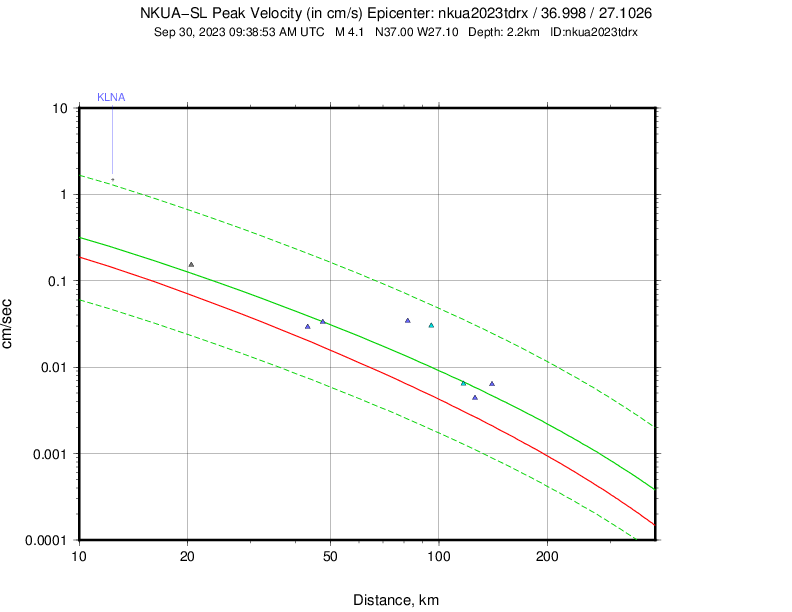

 PGV

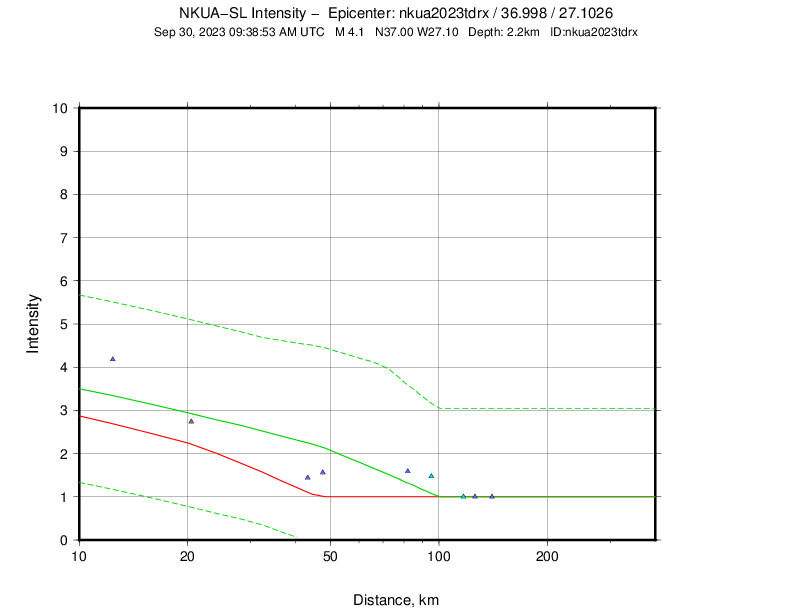

 MI

Download files: Google Earth (.kmz), Measurements (.csv)

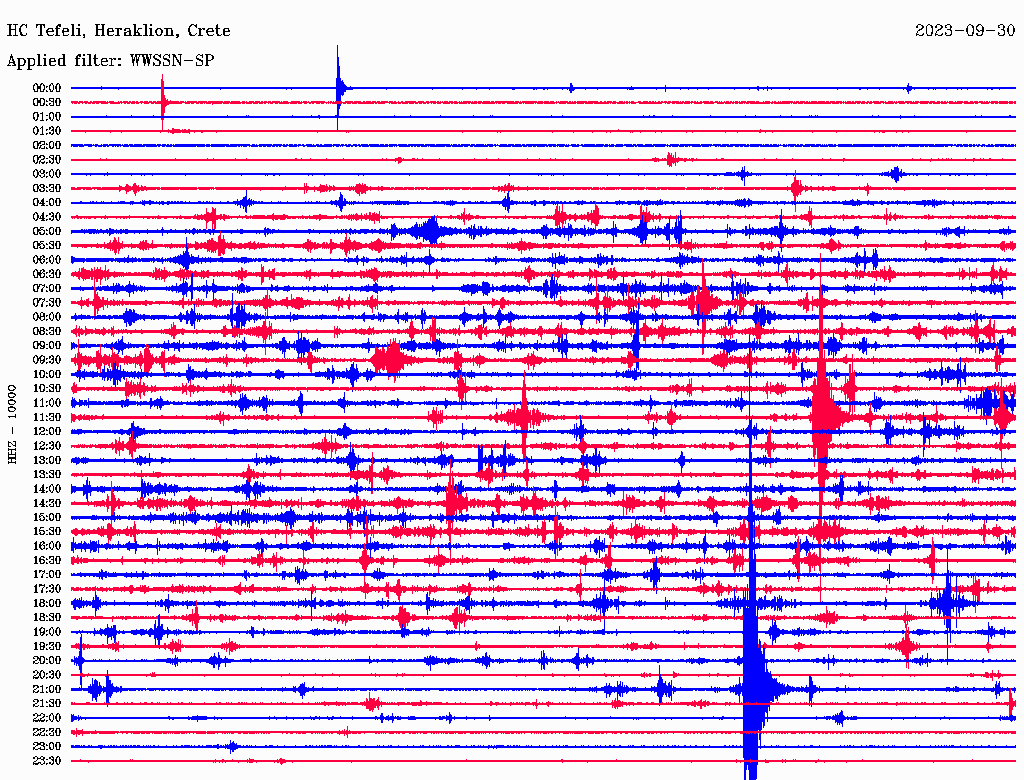

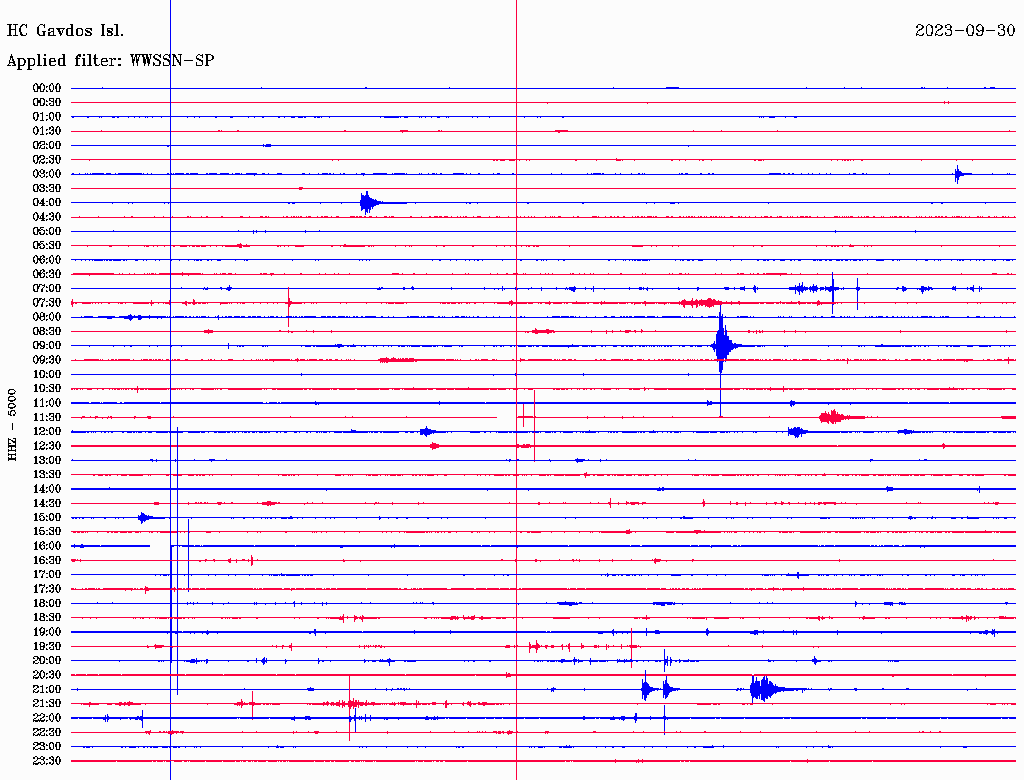

  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
KLNAHL4.8280 P09:38:55.32 -0.31.0M
KLNAHL4.8280 S09:38:56.76 -1.01.0M
KOSPHC23.9109 P09:38:57.60 -0.21.0M
KOSPHC23.9109 S09:39:01.21 -0.41.0M
NISRHL38.8166 P09:39:00.31 0.21.0M
NISRHL38.8166 S09:39:05.73 0.21.0M
NISR2HL43.8162 P09:39:01.28 0.41.0M
NISR2HL43.8162 S09:39:07.20 0.21.0M
SMGHL85.5349 P09:39:07.84 0.51.0M
SMGHL85.5349 S09:39:19.39 1.01.0M
KRL1HI98.2343 P09:39:10.43 1.11.0M
KRL1HI98.2343 S09:39:22.55 0.81.0M
ARGHL127.5130 P09:39:13.96 0.11.0M
ARGHL127.5130 S09:39:30.01 0.21.0M
APEHL134.2276 P09:39:15.22 0.21.0M
APEHL134.2276 S09:39:32.17 0.41.0M
THERAHL152.8245 P09:39:18.51 0.71.0M
THERAHL152.8245 S09:39:37.06 0.31.0M
CMBOHT154.0250 P09:39:18.52 0.61.0M
CMBOHT154.0250 S09:39:37.00 0.11.0M
CHOSHT181.4332 P09:39:20.92 -0.61.0M
CHOSHT181.4332 S09:39:42.86 -0.41.0M
ZKRHL216.6200 P09:39:25.62 -0.31.0M
ZKRHL216.6200 S09:39:51.11 0.11.0M
MHLOHL235.4263 P09:39:28.11 -0.31.0M
MHLOHL235.4263 S09:39:56.05 0.71.0M
KNSSHC246.9222 P09:39:29.58 -0.21.0M
KNSSHC246.9222 S09:39:57.64 -0.31.0M
PFKSHC253.9214 P09:39:30.19 -0.61.0M
PFKSHC253.9214 S09:39:59.34 -0.21.0M
KARYHA258.2298 P09:39:31.18 -0.11.0M
KARYHA258.2298 S09:40:00.31 -0.21.0M
PRKHL263.8345 P09:39:31.28 -0.71.0M
PRKHL263.8345 S09:40:01.10 -0.51.0M
TEFLHC265.8219 P09:39:32.39 0.11.0M
TEFLHC265.8219 S09:40:02.03 -0.11.0M
GR271Y281.8299 P09:39:34.49 0.21.0M
GR271Y281.8299 S09:40:05.35 -0.51.0M
SIVAHL293.0223 P09:39:36.37 0.71.0M
SIVAHL293.0223 S09:40:07.89 -0.31.0M
IMODHC297.4222 P09:39:37.01 0.71.0M
IMODHC297.4222 S09:40:09.24 -0.11.0M
MRTHHA301.7296 P09:39:37.02 0.11.0M
MRTHHA301.7296 S09:40:10.53 0.21.0M
VLYHL302.6289 P09:39:37.21 0.21.0M
VLYHL302.6289 S09:40:10.20 -0.41.0M
ATHUHA307.6291 P09:39:37.78 0.11.0M
ATHUHA307.6291 S09:40:11.31 -0.41.0M
IMMVHL319.5239 P09:39:39.80 0.61.0M
IMMVHL319.5239 S09:40:14.01 -0.31.0M
ERTRHA327.9299 P09:39:40.23 0.01.0M
RODPHC331.3242 P09:39:41.03 0.31.0M
RODPHC331.3242 S09:40:16.64 -0.41.0M
STFNHA335.9294 P09:39:41.68 0.31.0M
STFNHA335.9294 S09:40:17.54 -0.71.0M
EFSAHL338.6328 P09:39:41.28 -0.21.0M
EFSAHL338.6328 S09:40:17.77 -0.71.0M
PSAHHA347.3301 P09:39:42.94 0.21.0M
VILLHA354.1292 P09:39:43.96 0.21.0M
VILLHA354.1292 S09:40:21.90 -0.51.0M
ANKYHL354.4250 P09:39:43.59 -0.11.0M
ANKYHL354.4250 S09:40:21.98 -0.31.0M
GVDSHC355.7229 P09:39:45.01 1.21.0M
GVDSHC355.7229 S09:40:22.15 -0.41.0M
GR261Y356.7297 P09:39:43.90 -0.11.0M
GR261Y356.7297 S09:40:22.46 -0.51.0M
MRKAHA359.6303 P09:39:44.18 -0.21.0M
MRKAHA359.6303 S09:40:22.80 -0.71.0M
AMPEHA363.4294 P09:39:45.29 0.41.0M
AMPEHA363.4294 S09:40:23.54 -0.81.0M
VLIHL364.0266 P09:39:44.91 0.01.0M
VLIHL364.0266 S09:40:24.24 -0.31.0M
LIAHL365.0334 P09:39:44.38 -0.51.0M
LIAHL365.0334 S09:40:24.26 -0.21.0M
KTHRHC368.4258 P09:39:46.29 0.81.0M
KTHRHC368.4258 S09:40:25.49 0.01.0M
LOUTHA375.7288 P09:39:46.56 0.11.0M
LTKHP377.5288 P09:39:46.81 0.11.0M
LTKHP377.5288 S09:40:27.46 -0.11.0M


  Solution details

Event:
    Public ID              nkua2023tdrx
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2023-09-30
    Time                  09:38:52.88
    Latitude              36.9497 deg  +/-      0 km
    Longitude             27.0263 deg  +/-      0 km
    Depth                      15 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.42 s
    Azimuthal gap             120 deg

2 Network magnitudes:
    MLv       4.11 +/- 0.19  31
    M         4.11           31 preferred

79 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KLNA  HL    0.0 280  P       09:38:55.32  -0.3 M  1.0  KLNA
    KLNA  HL    0.0 280  S       09:38:56.76  -1.0 M  1.0  KLNA
    KOSP  HC    0.2 109  P       09:38:57.60  -0.2 M  1.0  KOSP
    KOSP  HC    0.2 109  S       09:39:01.21  -0.4 M  1.0  KOSP
    NISR  HL    0.3 166  P       09:39:00.31   0.2 M  1.0  NISR
    NISR  HL    0.3 166  S       09:39:05.73   0.2 M  1.0  NISR
    NISR2 HL    0.4 162  P       09:39:01.28   0.4 M  1.0  NISR2
    NISR2 HL    0.4 162  S       09:39:07.20   0.2 M  1.0  NISR2
    SMG   HL    0.8 349  P       09:39:07.84   0.5 M  1.0  SMG
    SMG   HL    0.8 349  S       09:39:19.39   1.0 M  1.0  SMG
    KRL1  HI    0.9 343  P       09:39:10.43   1.1 M  1.0  KRL1
    KRL1  HI    0.9 343  S       09:39:22.55   0.8 M  1.0  KRL1
    ARG   HL    1.1 130  P       09:39:13.96   0.1 M  1.0  ARG
    ARG   HL    1.1 130  S       09:39:30.01   0.2 M  1.0  ARG
    APE   HL    1.2 276  P       09:39:15.22   0.2 M  1.0  APE
    APE   HL    1.2 276  S       09:39:32.17   0.4 M  1.0  APE
    THERA HL    1.4 245  P       09:39:18.51   0.7 M  1.0  THERA
    THERA HL    1.4 245  S       09:39:37.06   0.3 M  1.0  THERA
    CMBO  HT    1.4 250  P       09:39:18.52   0.6 M  1.0  CMBO
    CMBO  HT    1.4 250  S       09:39:37.00   0.1 M  1.0  CMBO
    CHOS  HT    1.6 332  P       09:39:20.92  -0.6 M  1.0  CHOS
    CHOS  HT    1.6 332  S       09:39:42.86  -0.4 M  1.0  CHOS
    ZKR   HL    1.9 200  P       09:39:25.62  -0.3 M  1.0  ZKR
    ZKR   HL    1.9 200  S       09:39:51.11   0.1 M  1.0  ZKR
    MHLO  HL    2.1 263  P       09:39:28.11  -0.3 M  1.0  MHLO
    MHLO  HL    2.1 263  S       09:39:56.05   0.7 M  1.0  MHLO
    KNSS  HC    2.2 222  P       09:39:29.58  -0.2 M  1.0  KNSS
    KNSS  HC    2.2 222  S       09:39:57.64  -0.3 M  1.0  KNSS
    PFKS  HC    2.3 214  P       09:39:30.19  -0.6 M  1.0  PFKS
    PFKS  HC    2.3 214  S       09:39:59.34  -0.2 M  1.0  PFKS
    KARY  HA    2.3 298  P       09:39:31.18  -0.1 M  1.0  KARY
    KARY  HA    2.3 298  S       09:40:00.31  -0.2 M  1.0  KARY
    PRK   HL    2.4 345  P       09:39:31.28  -0.7 M  1.0  PRK
    PRK   HL    2.4 345  S       09:40:01.10  -0.5 M  1.0  PRK
    TEFL  HC    2.4 219  P       09:39:32.39   0.1 M  1.0  TEFL
    TEFL  HC    2.4 219  S       09:40:02.03  -0.1 M  1.0  TEFL
    GR27  1Y    2.5 299  P       09:39:34.49   0.2 M  1.0  GR27
    GR27  1Y    2.5 299  S       09:40:05.35  -0.5 M  1.0  GR27
    SIVA  HL    2.6 223  P       09:39:36.37   0.7 M  1.0  SIVA
    SIVA  HL    2.6 223  S       09:40:07.89  -0.3 M  1.0  SIVA
    IMOD  HC    2.7 222  P       09:39:37.01   0.7 M  1.0  IMOD
    IMOD  HC    2.7 222  S       09:40:09.24  -0.1 M  1.0  IMOD
    MRTH  HA    2.7 296  P       09:39:37.02   0.1 M  1.0  MRTH
    MRTH  HA    2.7 296  S       09:40:10.53   0.2 M  1.0  MRTH
    VLY   HL    2.7 289  P       09:39:37.21   0.2 M  1.0  VLY
    VLY   HL    2.7 289  S       09:40:10.20  -0.4 M  1.0  VLY
    ATHU  HA    2.8 291  P       09:39:37.78   0.1 M  1.0  ATHU
    ATHU  HA    2.8 291  S       09:40:11.31  -0.4 M  1.0  ATHU
    IMMV  HL    2.9 239  P       09:39:39.80   0.6 M  1.0  IMMV
    IMMV  HL    2.9 239  S       09:40:14.01  -0.3 M  1.0  IMMV
    ERTR  HA    3.0 299  P       09:39:40.23  -0.0 M  1.0  ERTR
    RODP  HC    3.0 242  P       09:39:41.03   0.3 M  1.0  RODP
    RODP  HC    3.0 242  S       09:40:16.64  -0.4 M  1.0  RODP
    STFN  HA    3.0 294  P       09:39:41.68   0.3 M  1.0  STFN
    STFN  HA    3.0 294  S       09:40:17.54  -0.7 M  1.0  STFN
    EFSA  HL    3.0 328  P       09:39:41.28  -0.2 M  1.0  EFSA
    EFSA  HL    3.0 328  S       09:40:17.77  -0.7 M  1.0  EFSA
    PSAH  HA    3.1 301  P       09:39:42.94   0.2 M  1.0  PSAH
    VILL  HA    3.2 292  P       09:39:43.96   0.2 M  1.0  VILL
    VILL  HA    3.2 292  S       09:40:21.90  -0.5 M  1.0  VILL
    ANKY  HL    3.2 250  P       09:39:43.59  -0.1 M  1.0  ANKY
    ANKY  HL    3.2 250  S       09:40:21.98  -0.3 M  1.0  ANKY
    GVDS  HC    3.2 229  P       09:39:45.01   1.2 M  1.0  GVDS
    GVDS  HC    3.2 229  S       09:40:22.15  -0.4 M  1.0  GVDS
    GR26  1Y    3.2 297  P       09:39:43.90  -0.1 M  1.0  GR26
    GR26  1Y    3.2 297  S       09:40:22.46  -0.5 M  1.0  GR26
    MRKA  HA    3.2 303  P       09:39:44.18  -0.2 M  1.0  MRKA
    MRKA  HA    3.2 303  S       09:40:22.80  -0.7 M  1.0  MRKA
    AMPE  HA    3.3 294  P       09:39:45.29   0.4 M  1.0  AMPE
    AMPE  HA    3.3 294  S       09:40:23.54  -0.8 M  1.0  AMPE
    LIA   HL    3.3 334  P       09:39:44.38  -0.5 M  1.0  LIA
    LIA   HL    3.3 334  S       09:40:24.26  -0.2 M  1.0  LIA
    VLI   HL    3.3 266  P       09:39:44.91  -0.0 M  1.0  VLI
    VLI   HL    3.3 266  S       09:40:24.24  -0.3 M  1.0  VLI
    KTHR  HC    3.3 258  P       09:39:46.29   0.8 M  1.0  KTHR
    KTHR  HC    3.3 258  S       09:40:25.49   0.0 M  1.0  KTHR
    LOUT  HA    3.4 288  P       09:39:46.56   0.1 M  1.0  LOUT
    LTK   HP    3.4 288  P       09:39:46.81   0.1 M  1.0  LTK
    LTK   HP    3.4 288  S       09:40:27.46  -0.1 M  1.0  LTK

41 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KLNA  HL    0.0 280  MLv     4.53  0.42    2037.47
    KOSP  HC    0.2 109  MLv     4.14  0.03    274.778
    NISR  HL    0.3 166  MLv     3.43 -0.68    22.7203
    NISR2 HL    0.4 162  MLv     3.77 -0.33    37.7346
    SMG   HL    0.8 349  MLv     4.53  0.42      63.54
    KRL1  HI    0.9 343  MLv     4.70  0.59    80.7686
    ARG   HL    1.1 130  MLv     4.00 -0.10    11.5913
    APE   HL    1.2 276  MLv     4.05 -0.05    12.1164
    THERA HL    1.4 245  MLv     4.02 -0.08     9.0935
    CMBO  HT    1.4 250  MLv     4.65  0.55    38.4661
    CHOS  HT    1.6 332  MLv     3.88 -0.22    4.73875
    ZKR   HL    1.9 200  MLv     3.78 -0.32    2.52504
    MHLO  HL    2.1 263  MLv     4.31  0.21    14.0743
    KNSS  HC    2.2 222  MLv     3.99 -0.11    2.88153
    PFKS  HC    2.3 214  MLv     3.90 -0.21    2.14063
    KARY  HA    2.3 298  MLv     4.10 -0.01    3.21552
    PRK   HL    2.4 345  MLv     4.35  0.24     5.4012
    TEFL  HC    2.4 219  MLv     4.06 -0.05     2.6771
    GR27  1Y    2.5 299  MLv     4.22  0.11    3.25786
    SIVA  HL    2.6 223  MLv     4.00 -0.11    1.70815
    IMOD  HC    2.7 222  MLv     3.85 -0.26    1.15266
    MRTH  HA    2.7 296  MLv     4.11  0.01    2.02794
    VLY   HL    2.7 289  MLv     4.58  0.47     5.8139
    ATHU  HA    2.8 291  MLv     4.38  0.27    2.13847
    IMMV  HL    2.9 239  MLv     4.00 -0.11    1.25836
    ERTR  HA    3.0 299  MLv     3.88 -0.22   0.883165
    RODP  HC    3.0 242  MLv     3.95 -0.16   0.976875
    STFN  HA    3.0 294  MLv     4.20  0.10    1.67569
    EFSA  HL    3.0 328  MLv     3.95 -0.16   0.902387
    PSAH  HA    3.1 301  MLv     4.25  0.15     1.6426
    VILL  HA    3.2 292  MLv     4.52  0.41    2.82009
    ANKY  HL    3.2 250  MLv     3.98 -0.13   0.803691
    GVDS  HC    3.2 229  MLv     3.73 -0.37    0.45163
    GR26  1Y    3.2 297  MLv     4.26  0.16    1.51748
    MRKA  HA    3.2 303  MLv     4.10 -0.01    1.00526
    AMPE  HA    3.3 294  MLv     4.73  0.62      4.108
    LIA   HL    3.3 334  MLv     3.76 -0.35   0.856853
    VLI   HL    3.3 266  MLv     4.15  0.04    1.37391
    KTHR  HC    3.3 258  MLv     4.12  0.01   0.950678
    LOUT  HA    3.4 288  MLv     4.27  0.16    1.23605
    LTK   HP    3.4 288  MLv     3.68 -0.43     1.1723
