Earthquake Information
 Origin Time
 2023-09-25 20:27:52 (GMT)
 Magnitude
 M 3.7
 Latitude
 38.2012° N
 Longitude
 22.6830° E
 Focal Depth
 6 km
 # of Arrivals
 85
 Location 30.9 km SSW of Levadhia
36.5 km NW of Korinthos
95.1 km WNW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.

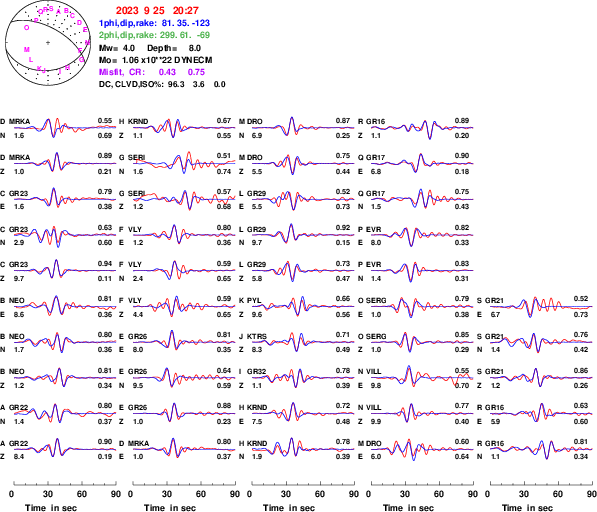

  Focal Mechanism (automatic solution)

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
29961-69 1.06E+22

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
38.199622.68828.04.0

Source parameters determination

Click here for detailed focal mechanism automatic solution

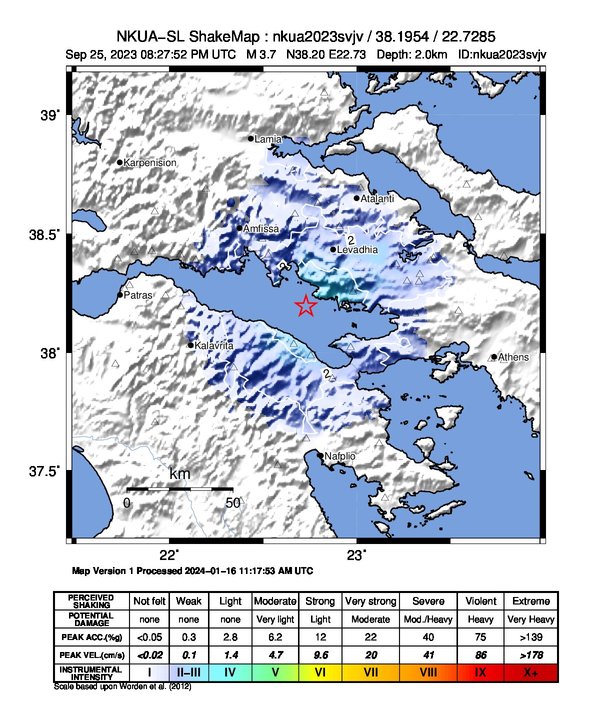

  Intensity map

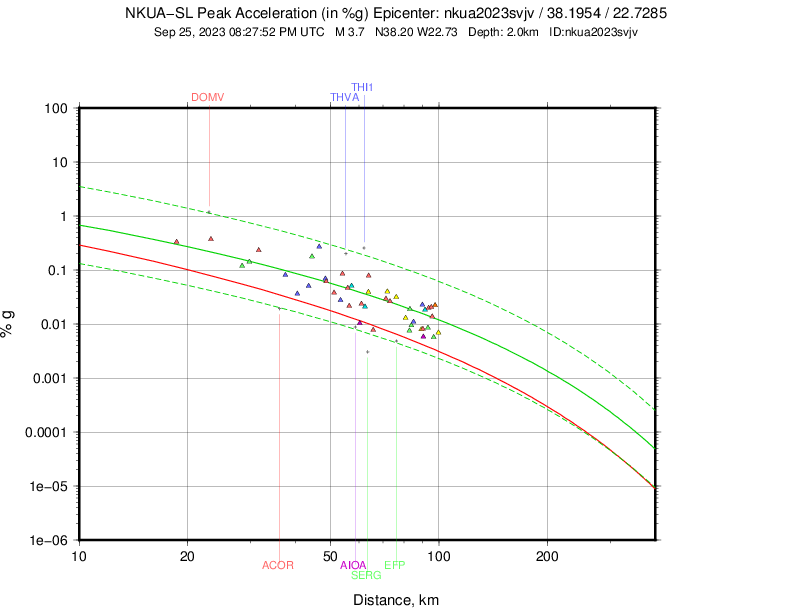

PGA

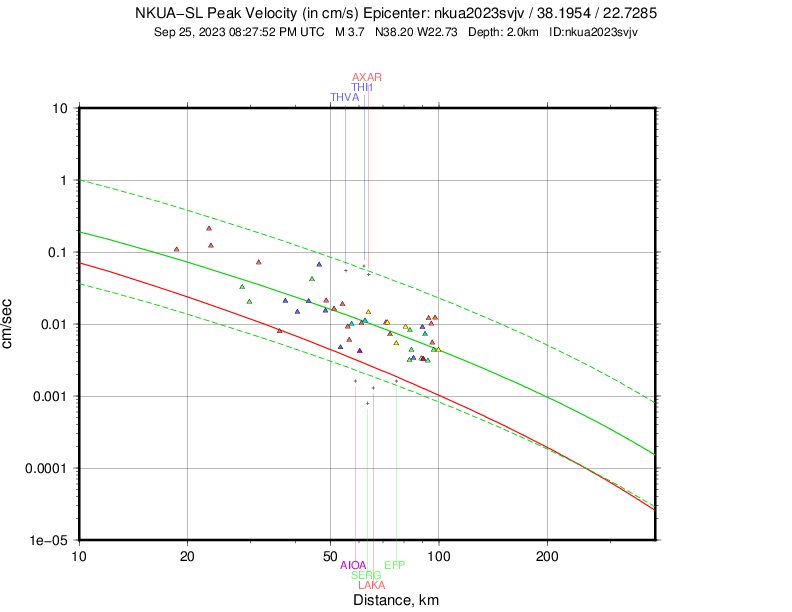

 PGV

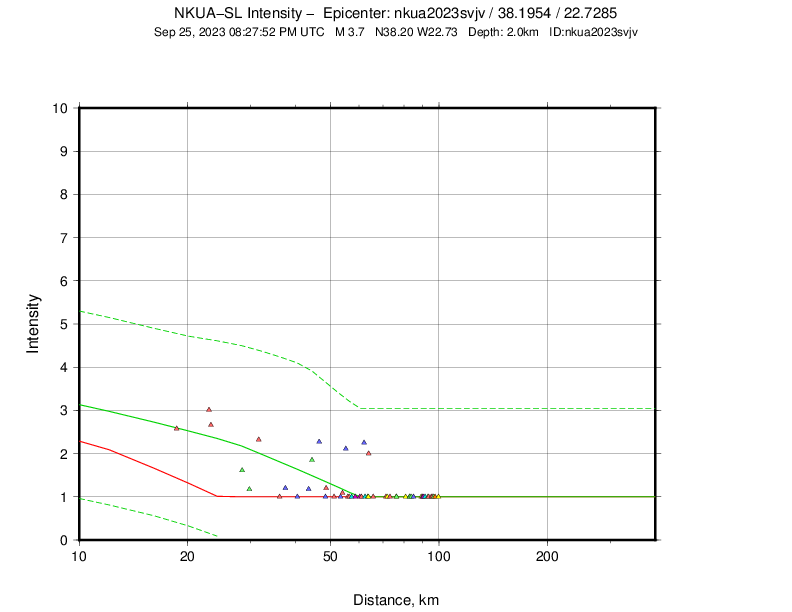

 MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
THALHA18.5185 P20:27:56.01 0.21.0M
THALHA18.5185 S20:27:58.70 0.11.0M
KIASHA24.6165 P20:27:57.21 0.41.0M
KIASHA24.6165 S20:28:00.40 0.01.0M
DOMVHA26.6 77 P20:27:57.36 0.21.0M
DOMVHA26.6 77 S20:28:00.95 -0.11.0M
DSFHP27.0330 P20:27:57.46 0.21.0M
DSFHP27.0330 S20:28:00.67 -0.61.0M
LTKHP31.8128 P20:27:57.97 -0.11.0M
LTKHP31.8128 S20:28:02.28 -0.31.0M
LOUTHA34.8133 P20:27:58.38 -0.11.0M
LOUTHA34.8133 S20:28:03.16 -0.31.0M
DLFAHL34.9332 P20:27:58.67 0.11.0M
DLFAHL34.9332 S20:28:03.24 -0.31.0M
ACORHA38.2155 P20:27:58.84 -0.21.0M
IMANHL41.5 28 P20:27:59.69 0.11.0M
GURHP41.9225 P20:27:59.98 0.21.0M
GURHP41.9225 S20:28:05.02 -0.71.0M
TITHHL42.5358 P20:27:59.65 -0.11.0M
ELATHL48.4 11 P20:28:00.59 -0.11.0M
ELATHL48.4 11 S20:28:07.04 -0.31.0M
KLVHL49.8249 P20:28:00.76 -0.31.0M
KLVHL49.8249 S20:28:07.47 -0.41.0M
THI2HL49.9 68 P20:28:00.93 -0.11.0M
THI2HL49.9 68 S20:28:07.49 -0.31.0M
KALEHA51.9294 P20:28:01.43 0.11.0M
AMPEHA52.4 78 P20:28:01.63 0.21.0M
KLV1HI53.7250 P20:28:01.74 0.11.0M
KLV1HI53.7250 S20:28:08.63 -0.41.0M
AIOACL54.6269 P20:28:01.89 0.11.0M
AIOACL54.6269 S20:28:08.78 -0.41.0M
VILLHA55.1 94 P20:28:01.88 0.01.0M
TRIZCL56.3289 P20:28:02.23 0.21.0M
THIVHA57.7 79 P20:28:02.46 0.21.0M
THVAHL58.8 76 P20:28:02.38 -0.11.0M
THVAHL58.8 76 S20:28:10.17 -0.21.0M
LAKAHA61.7274 P20:28:03.15 0.21.0M
LAKAHA61.7274 S20:28:11.16 -0.11.0M
ATALHA62.1 28 P20:28:02.71 -0.31.0M
AXARHA62.9358 P20:28:03.07 0.01.0M
AXARHA62.9358 S20:28:11.34 -0.21.0M
ARS1HI63.1176 P20:28:03.32 0.21.0M
ARS1HI63.1176 S20:28:11.16 -0.31.0M
THI1HL65.5 72 P20:28:03.36 -0.21.0M
GR261Y67.2 71 P20:28:03.55 -0.31.0M
GR261Y67.2 71 S20:28:12.62 -0.31.0M
GR241Y68.9322 P20:28:04.16 0.01.0M
EFPHP72.3290 P20:28:04.70 0.11.0M
STFNHA75.3 92 P20:28:05.30 0.11.0M
STFNHA75.3 92 S20:28:15.02 -0.21.0M
EPIDHA75.6150 P20:28:05.08 -0.11.0M
EPIDHA75.6150 S20:28:15.10 -0.11.0M
GR301Y76.1187 P20:28:05.02 -0.31.0M
UPRHP78.8277 P20:28:06.19 0.51.0M
ANXHP79.4303 P20:28:06.14 0.21.0M
VVKHP79.9288 P20:28:06.33 0.41.0M
PATCHL81.0275 P20:28:06.65 0.61.0M
GR231Y82.5 35 P20:28:06.70 0.41.0M
GR231Y82.5 35 S20:28:17.11 0.01.0M
AGRPCL86.5284 P20:28:07.36 0.31.0M
GR291Y86.6230 P20:28:06.85 -0.21.0M
GR291Y86.6230 S20:28:18.48 0.01.0M
DROHP89.5252 P20:28:07.50 0.01.0M
DROHP89.5252 S20:28:19.40 0.11.0M
PSAHHA93.5 64 P20:28:07.88 -0.21.0M
ATHHL94.0106 P20:28:08.58 0.41.0M
NOACHL94.0106 P20:28:08.63 0.51.0M
NOACHL94.0106 S20:28:20.64 0.21.0M
VLXHP96.2196 P20:28:08.43 -0.11.0M
MRKAHA96.5 55 P20:28:09.00 0.41.0M
ERTRHA99.0 77 P20:28:08.82 -0.11.0M
GR221Y99.6 7 P20:28:09.02 0.01.0M
GR221Y99.6 7 S20:28:22.23 0.31.0M
KRNDHT99.8156 P20:28:09.23 0.21.0M
ATHUHA99.9105 P20:28:09.44 0.31.0M
ATHUHA99.9105 S20:28:22.27 0.11.0M
VLYHL104.8112 P20:28:10.54 0.71.0M
VLYHL104.8112 S20:28:23.73 0.21.0M
RLSHL107.8261 P20:28:10.28 -0.11.0M
RLSHL107.8261 S20:28:24.78 0.51.0M
MRTHHA110.3 95 P20:28:11.06 0.31.0M
MRTHHA110.3 95 S20:28:25.38 0.41.0M
PVOHP110.9294 P20:28:11.73 0.91.0M
AMTHP113.3229 P20:28:11.23 0.01.0M
PLEVHP113.8282 P20:28:11.60 0.31.0M


  Solution details

Event:
    Public ID              nkua2023svjv
    Description
      region name: Greece
Origin:
    Date                   2023-09-25
    Time                  20:27:52.02
    Latitude              38.2012 deg  +/-      0 km
    Longitude             22.6830 deg  +/-      0 km
    Depth                       6 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.25 s
    Azimuthal gap              29 deg

2 Network magnitudes:
    MLv       3.72 +/- 0.26  42
    M         3.72           42 preferred

85 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THAL  HA    0.2 185  P       20:27:56.01   0.2 M  1.0  THAL
    THAL  HA    0.2 185  S       20:27:58.70   0.1 M  1.0  THAL
    KIAS  HA    0.2 165  P       20:27:57.21   0.4 M  1.0  KIAS
    KIAS  HA    0.2 165  S       20:28:00.40  -0.0 M  1.0  KIAS
    DOMV  HA    0.2  77  P       20:27:57.36   0.2 M  1.0  DOMV
    DOMV  HA    0.2  77  S       20:28:00.95  -0.1 M  1.0  DOMV
    DSF   HP    0.2 330  P       20:27:57.46   0.2 M  1.0  DSF
    DSF   HP    0.2 330  S       20:28:00.67  -0.6 M  1.0  DSF
    LTK   HP    0.3 128  P       20:27:57.97  -0.1 M  1.0  LTK
    LTK   HP    0.3 128  S       20:28:02.28  -0.3 M  1.0  LTK
    LOUT  HA    0.3 133  P       20:27:58.38  -0.1 M  1.0  LOUT
    LOUT  HA    0.3 133  S       20:28:03.16  -0.3 M  1.0  LOUT
    DLFA  HL    0.3 332  P       20:27:58.67   0.1 M  1.0  DLFA
    DLFA  HL    0.3 332  S       20:28:03.24  -0.3 M  1.0  DLFA
    ACOR  HA    0.3 155  P       20:27:58.84  -0.2 M  1.0  ACOR
    IMAN  HL    0.4  28  P       20:27:59.69   0.1 M  1.0  IMAN
    GUR   HP    0.4 225  P       20:27:59.98   0.2 M  1.0  GUR
    GUR   HP    0.4 225  S       20:28:05.02  -0.7 M  1.0  GUR
    TITH  HL    0.4 358  P       20:27:59.65  -0.1 M  1.0  TITH
    ELAT  HL    0.4  11  P       20:28:00.59  -0.1 M  1.0  ELAT
    ELAT  HL    0.4  11  S       20:28:07.04  -0.3 M  1.0  ELAT
    KLV   HL    0.4 249  P       20:28:00.76  -0.3 M  1.0  KLV
    KLV   HL    0.4 249  S       20:28:07.47  -0.4 M  1.0  KLV
    THI2  HL    0.4  68  P       20:28:00.93  -0.1 M  1.0  THI2
    THI2  HL    0.4  68  S       20:28:07.49  -0.3 M  1.0  THI2
    KALE  HA    0.5 294  P       20:28:01.43   0.1 M  1.0  KALE
    AMPE  HA    0.5  78  P       20:28:01.63   0.2 M  1.0  AMPE
    KLV1  HI    0.5 250  P       20:28:01.74   0.1 M  1.0  KLV1
    KLV1  HI    0.5 250  S       20:28:08.63  -0.4 M  1.0  KLV1
    AIOA  CL    0.5 269  P       20:28:01.89   0.1 M  1.0  AIOA
    AIOA  CL    0.5 269  S       20:28:08.78  -0.4 M  1.0  AIOA
    VILL  HA    0.5  94  P       20:28:01.88  -0.0 M  1.0  VILL
    TRIZ  CL    0.5 289  P       20:28:02.23   0.2 M  1.0  TRIZ
    THIV  HA    0.5  79  P       20:28:02.46   0.2 M  1.0  THIV
    THVA  HL    0.5  76  P       20:28:02.38  -0.1 M  1.0  THVA
    THVA  HL    0.5  76  S       20:28:10.17  -0.2 M  1.0  THVA
    LAKA  HA    0.6 274  P       20:28:03.15   0.2 M  1.0  LAKA
    LAKA  HA    0.6 274  S       20:28:11.16  -0.1 M  1.0  LAKA
    ATAL  HA    0.6  28  P       20:28:02.71  -0.3 M  1.0  ATAL
    AXAR  HA    0.6 358  P       20:28:03.07  -0.0 M  1.0  AXAR
    AXAR  HA    0.6 358  S       20:28:11.34  -0.2 M  1.0  AXAR
    ARS1  HI    0.6 176  P       20:28:03.32   0.2 M  1.0  ARS1
    ARS1  HI    0.6 176  S       20:28:11.16  -0.3 M  1.0  ARS1
    THI1  HL    0.6  72  P       20:28:03.36  -0.2 M  1.0  THI1
    GR26  1Y    0.6  71  P       20:28:03.55  -0.3 M  1.0  GR26
    GR26  1Y    0.6  71  S       20:28:12.62  -0.3 M  1.0  GR26
    GR24  1Y    0.6 322  P       20:28:04.16  -0.0 M  1.0  GR24
    EFP   HP    0.7 290  P       20:28:04.70   0.1 M  1.0  EFP
    STFN  HA    0.7  92  P       20:28:05.30   0.1 M  1.0  STFN
    STFN  HA    0.7  92  S       20:28:15.02  -0.2 M  1.0  STFN
    EPID  HA    0.7 150  P       20:28:05.08  -0.1 M  1.0  EPID
    EPID  HA    0.7 150  S       20:28:15.10  -0.1 M  1.0  EPID
    GR30  1Y    0.7 187  P       20:28:05.02  -0.3 M  1.0  GR30
    UPR   HP    0.7 277  P       20:28:06.19   0.5 M  1.0  UPR
    ANX   HP    0.7 303  P       20:28:06.14   0.2 M  1.0  ANX
    VVK   HP    0.7 288  P       20:28:06.33   0.4 M  1.0  VVK
    PATC  HL    0.7 275  P       20:28:06.65   0.6 M  1.0  PATC
    GR23  1Y    0.7  35  P       20:28:06.70   0.4 M  1.0  GR23
    GR23  1Y    0.7  35  S       20:28:17.11  -0.0 M  1.0  GR23
    GR29  1Y    0.8 230  P       20:28:06.85  -0.2 M  1.0  GR29
    GR29  1Y    0.8 230  S       20:28:18.48   0.0 M  1.0  GR29
    AGRP  CL    0.8 284  P       20:28:07.36   0.3 M  1.0  AGRP
    DRO   HP    0.8 252  P       20:28:07.50  -0.0 M  1.0  DRO
    DRO   HP    0.8 252  S       20:28:19.40   0.1 M  1.0  DRO
    PSAH  HA    0.8  64  P       20:28:07.88  -0.2 M  1.0  PSAH
    ATH   HL    0.8 106  P       20:28:08.58   0.4 M  1.0  ATH
    NOAC  HL    0.8 106  P       20:28:08.63   0.5 M  1.0  NOAC
    NOAC  HL    0.8 106  S       20:28:20.64   0.2 M  1.0  NOAC
    VLX   HP    0.9 196  P       20:28:08.43  -0.1 M  1.0  VLX
    MRKA  HA    0.9  55  P       20:28:09.00   0.4 M  1.0  MRKA
    ERTR  HA    0.9  77  P       20:28:08.82  -0.1 M  1.0  ERTR
    GR22  1Y    0.9   7  P       20:28:09.02  -0.0 M  1.0  GR22
    GR22  1Y    0.9   7  S       20:28:22.23   0.3 M  1.0  GR22
    KRND  HT    0.9 156  P       20:28:09.23   0.2 M  1.0  KRND
    ATHU  HA    0.9 105  P       20:28:09.44   0.3 M  1.0  ATHU
    ATHU  HA    0.9 105  S       20:28:22.27   0.1 M  1.0  ATHU
    VLY   HL    0.9 112  P       20:28:10.54   0.7 M  1.0  VLY
    VLY   HL    0.9 112  S       20:28:23.73   0.2 M  1.0  VLY
    RLS   HL    1.0 261  P       20:28:10.28  -0.1 M  1.0  RLS
    RLS   HL    1.0 261  S       20:28:24.78   0.5 M  1.0  RLS
    MRTH  HA    1.0  95  P       20:28:11.06   0.3 M  1.0  MRTH
    MRTH  HA    1.0  95  S       20:28:25.38   0.4 M  1.0  MRTH
    PVO   HP    1.0 294  P       20:28:11.73   0.9 M  1.0  PVO
    AMT   HP    1.0 229  P       20:28:11.23  -0.0 M  1.0  AMT
    PLEV  HP    1.0 282  P       20:28:11.60   0.3 M  1.0  PLEV

56 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THAL  HA    0.2 185  MLv     3.51 -0.21    158.572
    KIAS  HA    0.2 165  MLv     3.67 -0.05    90.8927
    DOMV  HA    0.2  77  MLv     4.09  0.37    211.893
    DSF   HP    0.2 330  MLv     3.23 -0.50    28.2747
    LTK   HP    0.3 128  MLv     3.29 -0.44    92.4944
    LOUT  HA    0.3 133  MLv     3.74  0.01    58.6888
    DLFA  HL    0.3 332  MLv     3.46 -0.27    30.5689
    ACOR  HA    0.3 155  MLv     3.45 -0.27    24.8438
    IMAN  HL    0.4  28  MLv     3.66 -0.07    33.1434
    GUR   HP    0.4 225  MLv     3.86  0.13    51.3436
    TITH  HL    0.4 358  MLv     3.56 -0.16    25.2503
    ELAT  HL    0.4  11  MLv     3.73  0.00    26.1644
    KLV   HL    0.4 249  MLv     3.28 -0.44    6.55274
    THI2  HL    0.4  68  MLv     4.27  0.54    83.8767
    KALE  HA    0.5 294  MLv     3.31 -0.41    8.24038
    AMPE  HA    0.5  78  MLv     3.95  0.23    35.0531
    KLV1  HI    0.5 250  MLv     3.59 -0.13    14.1344
    AIOA  CL    0.5 269  MLv     3.39 -0.34    2.15449
    VILL  HA    0.5  94  MLv     3.86  0.13    23.9202
    TRIZ  CL    0.5 289  MLv     3.25 -0.47    5.56631
    THIV  HA    0.5  79  MLv     4.33  0.61    61.8384
    THVA  HL    0.5  76  MLv     4.71  0.98    137.471
    LAKA  HA    0.6 274  MLv     3.08 -0.64    2.99165
    ATAL  HA    0.6  28  MLv     3.99  0.26    23.7982
    AXAR  HA    0.6 358  MLv     3.66 -0.06    44.3616
    ARS1  HI    0.6 176  MLv     3.90  0.18    19.3249
    THI1  HL    0.6  72  MLv     4.64  0.92    104.159
    GR26  1Y    0.6  71  MLv     4.05  0.32    25.8113
    GR24  1Y    0.6 322  MLv     3.75  0.03     12.843
    EFP   HP    0.7 290  MLv     3.11 -0.62    2.80244
    STFN  HA    0.7  92  MLv     4.01  0.29    21.6433
    EPID  HA    0.7 150  MLv     3.84  0.11    14.4207
    GR30  1Y    0.7 187  MLv     3.71 -0.02    10.6028
    UPR   HP    0.7 277  MLv     2.62 -1.10    9.75879
    ANX   HP    0.7 303  MLv     3.73  0.01    10.7904
    VVK   HP    0.7 288  MLv     2.75 -0.98    5.21456
    PATC  HL    0.7 275  MLv     3.66 -0.06    9.12209
    GR23  1Y    0.7  35  MLv     4.19  0.46    29.9283
    GR29  1Y    0.8 230  MLv     3.59 -0.13    7.23687
    AGRP  CL    0.8 284  MLv     3.35 -0.37    4.14538
    DRO   HP    0.8 252  MLv     3.32 -0.40    7.87419
    PSAH  HA    0.8  64  MLv     4.21  0.48    27.5885
    ATH   HL    0.8 106  MLv     4.05  0.32    18.8531
    NOAC  HL    0.8 106  MLv     4.05  0.33    19.2069
    VLX   HP    0.9 196  MLv     3.71 -0.02    8.41626
    MRKA  HA    0.9  55  MLv     4.27  0.54    30.5053
    ERTR  HA    0.9  77  MLv     4.00  0.27    15.9138
    GR22  1Y    0.9   7  MLv     3.73  0.00    8.50157
    KRND  HT    0.9 156  MLv     4.11  0.38    20.2525
    ATHU  HA    0.9 105  MLv     3.87  0.14    7.20625
    VLY   HL    0.9 112  MLv     4.09  0.36    18.3752
    RLS   HL    1.0 261  MLv     3.16 -0.56    2.10386
    MRTH  HA    1.0  95  MLv     4.68  0.95    67.2442
    PVO   HP    1.0 294  MLv     3.59 -0.13    5.48063
    AMT   HP    1.0 229  MLv     3.86  0.14    9.88652
    PLEV  HP    1.0 282  MLv     3.15 -0.58    1.90134
